SPECIFICATIONS

Battery Included: no

Brand Name: CERTEON

Choice: yes

Control Range: -40℃ ~ 50℃

Electronic: No

High-concerned chemical: none

Model: STC-8080A

Model Number: STC-8080A

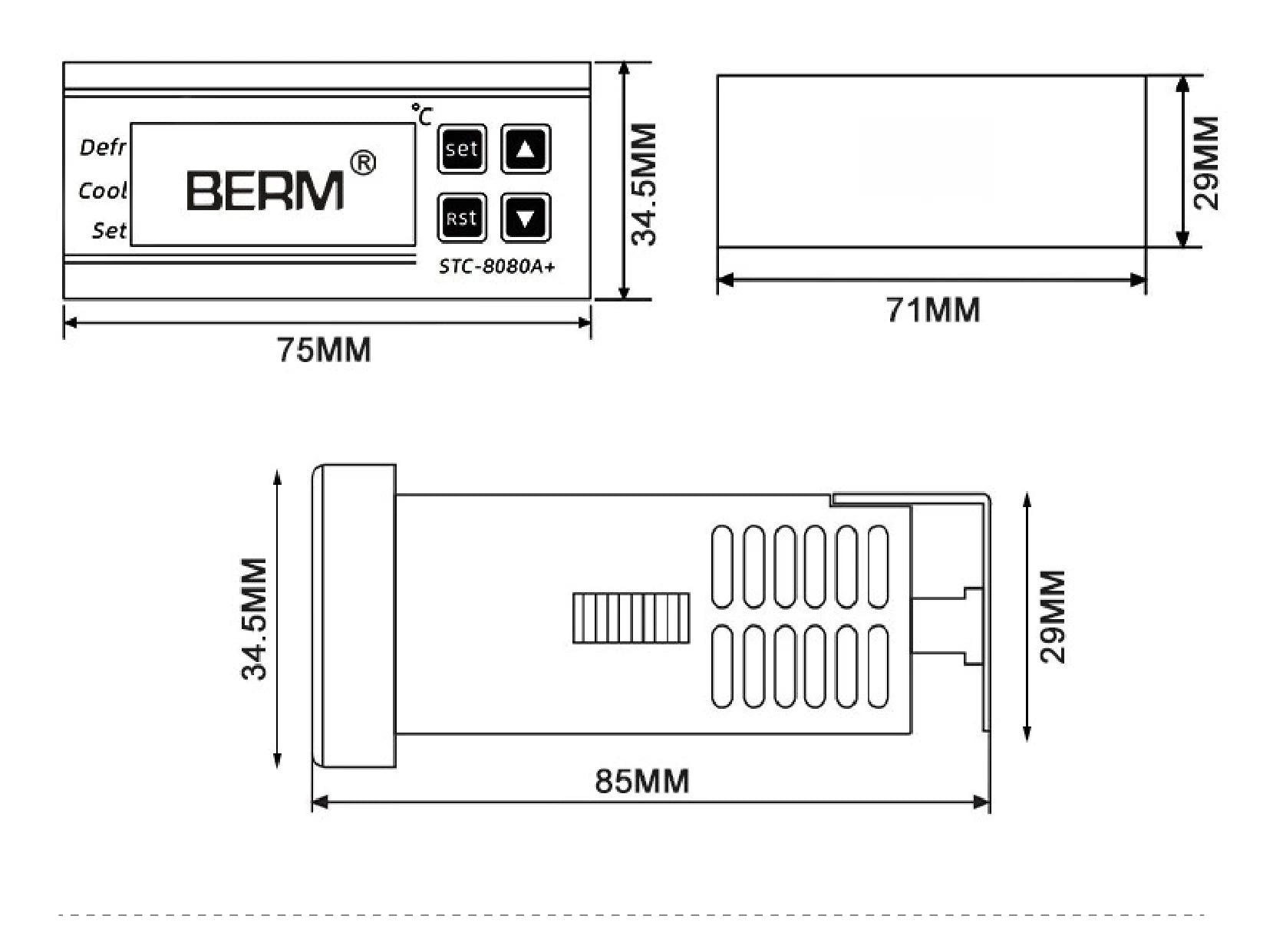

Mounting Size: 71*29mm

Origin: Mainland China

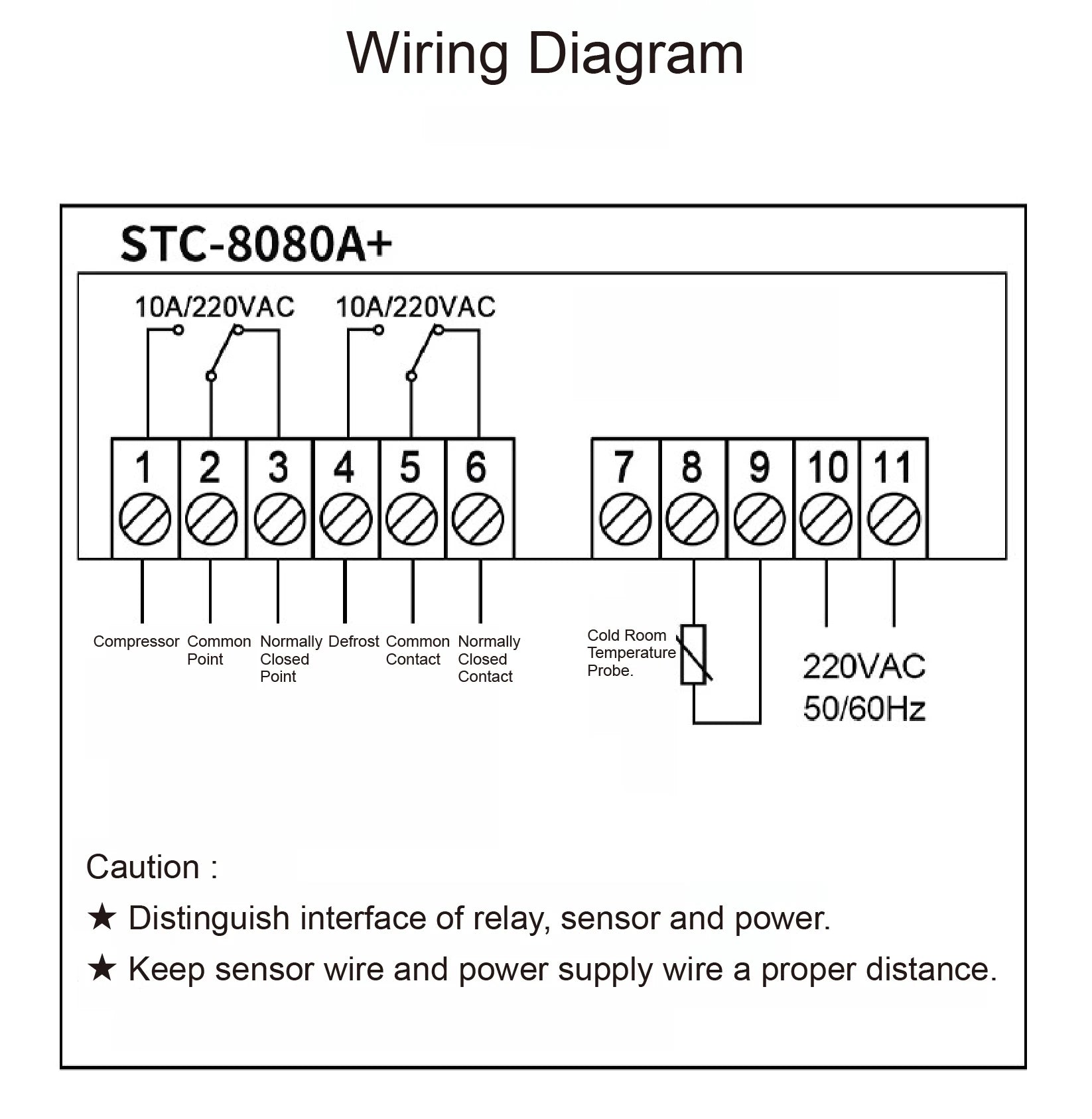

Output: Relay Output

Panel Size: 75*34.5*85mm

Power Consumption: <3W

Power Supply: 220VAC ±10%, 50/60Hz

Semi-finishedproduct: No

Sensor Delay: 1 Minute

Sensor Type: NTC Sensor (10K Ohm)

Temperature Accuracy: ±1℃ (-40℃ ~ 50℃)

Temperature Range: -50℃ ~ 99℃

Theory: Temperature Controller

semi_Choice: yes

1.NOTE

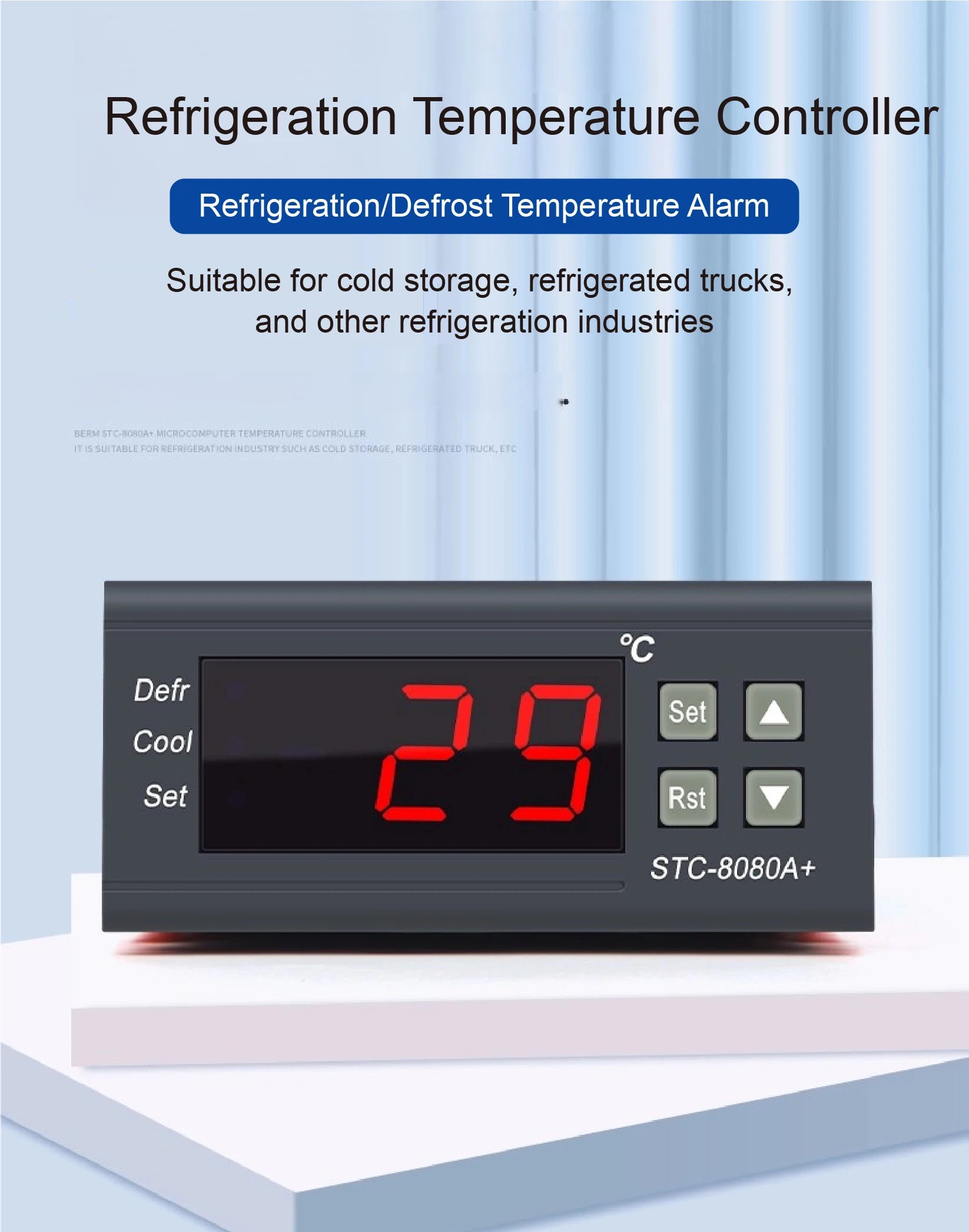

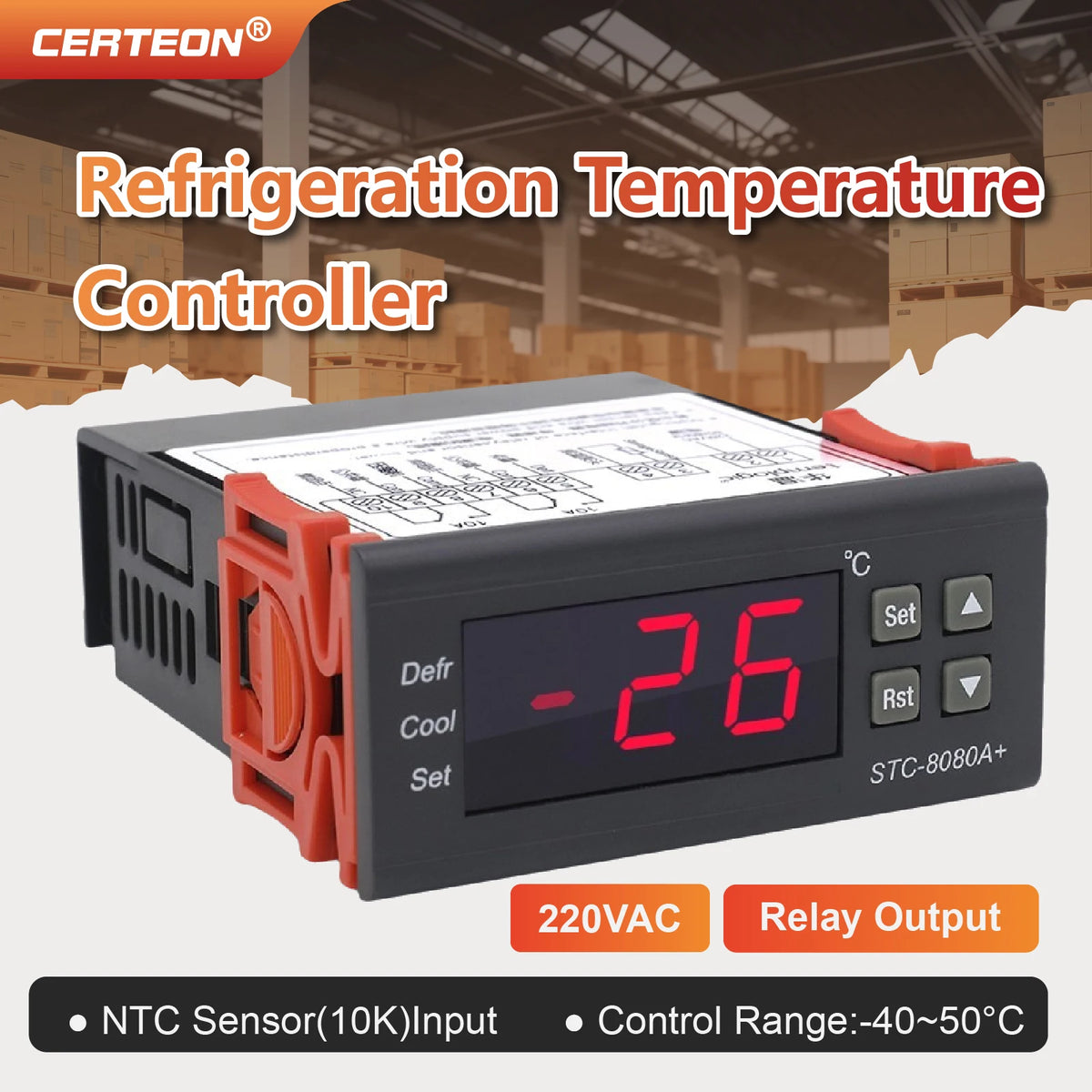

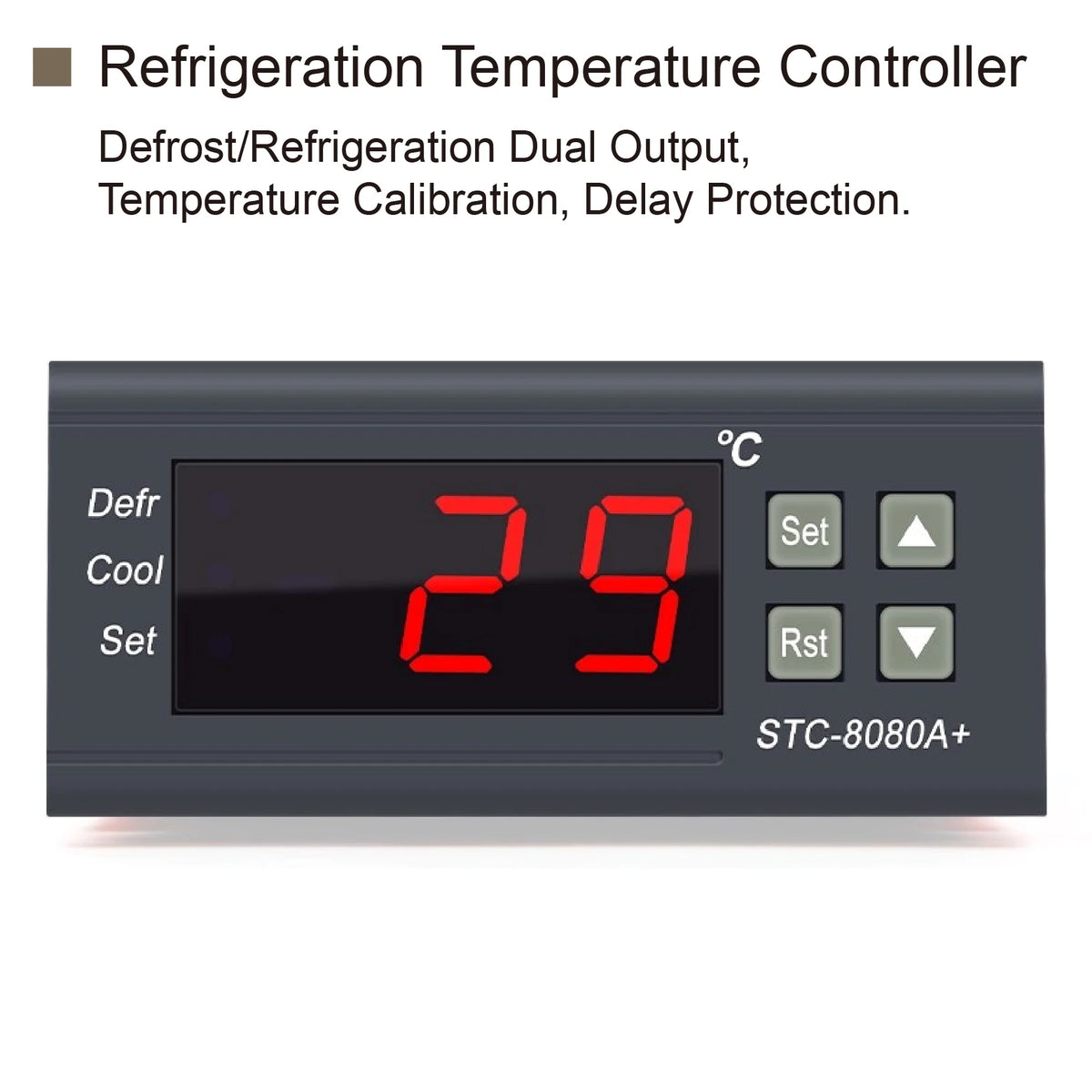

This Temperature Controller is suitable for refrigeration industries such as cold storage and refrigerated trucks. It features temperature calibration, precise temperature control, energy efficiency, an accurate sensor, upper and lower temperature limit control, and fault alarm functions.

Default Configuration Includes:

· 220V power supply

· Temperature control range: -40°C -50°C

· Output:Relay Output

· Accuracy: ±1°C (-40~50°C)

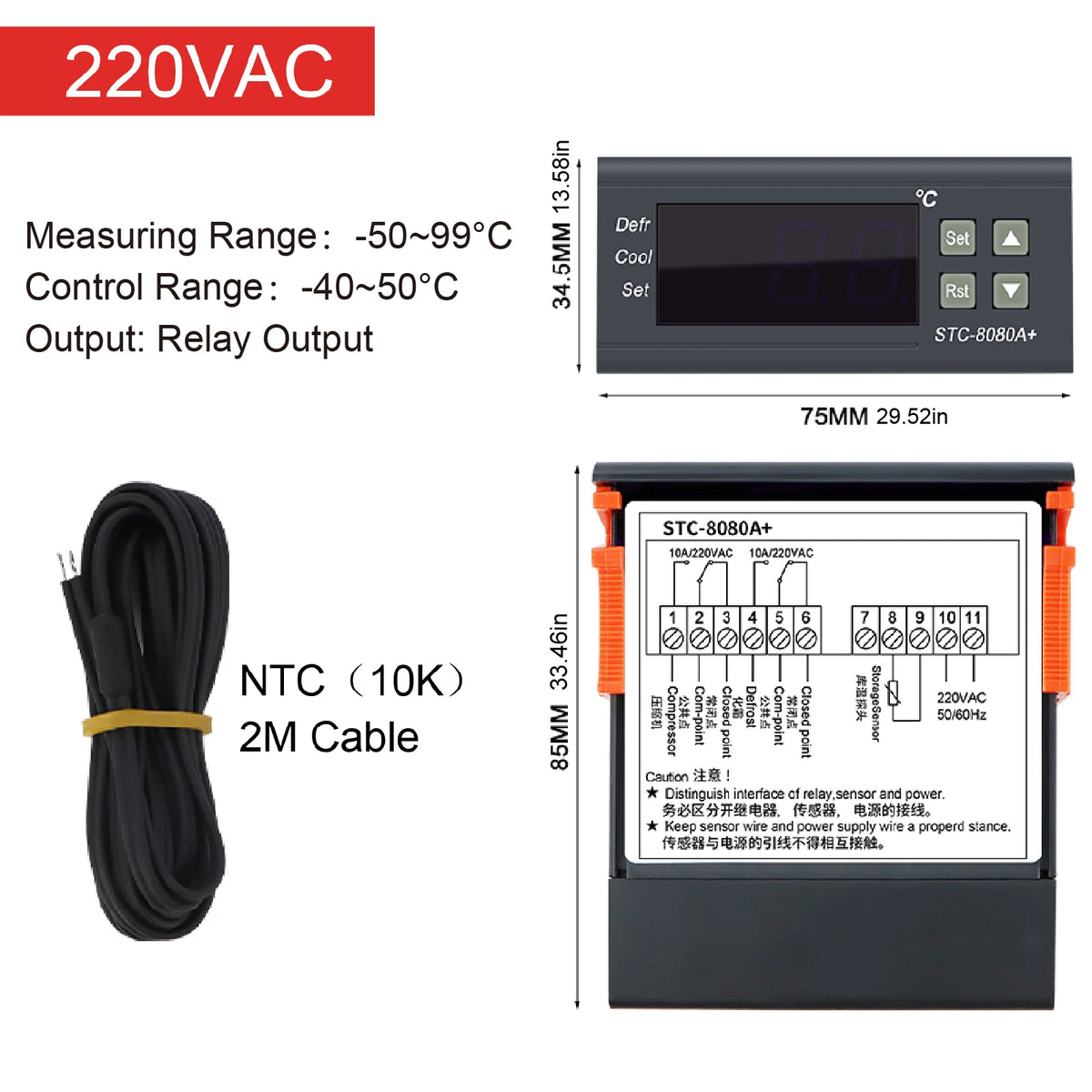

· Equipped with NTC sensor (10K)，2M Cable

· 1-minute sensor delay

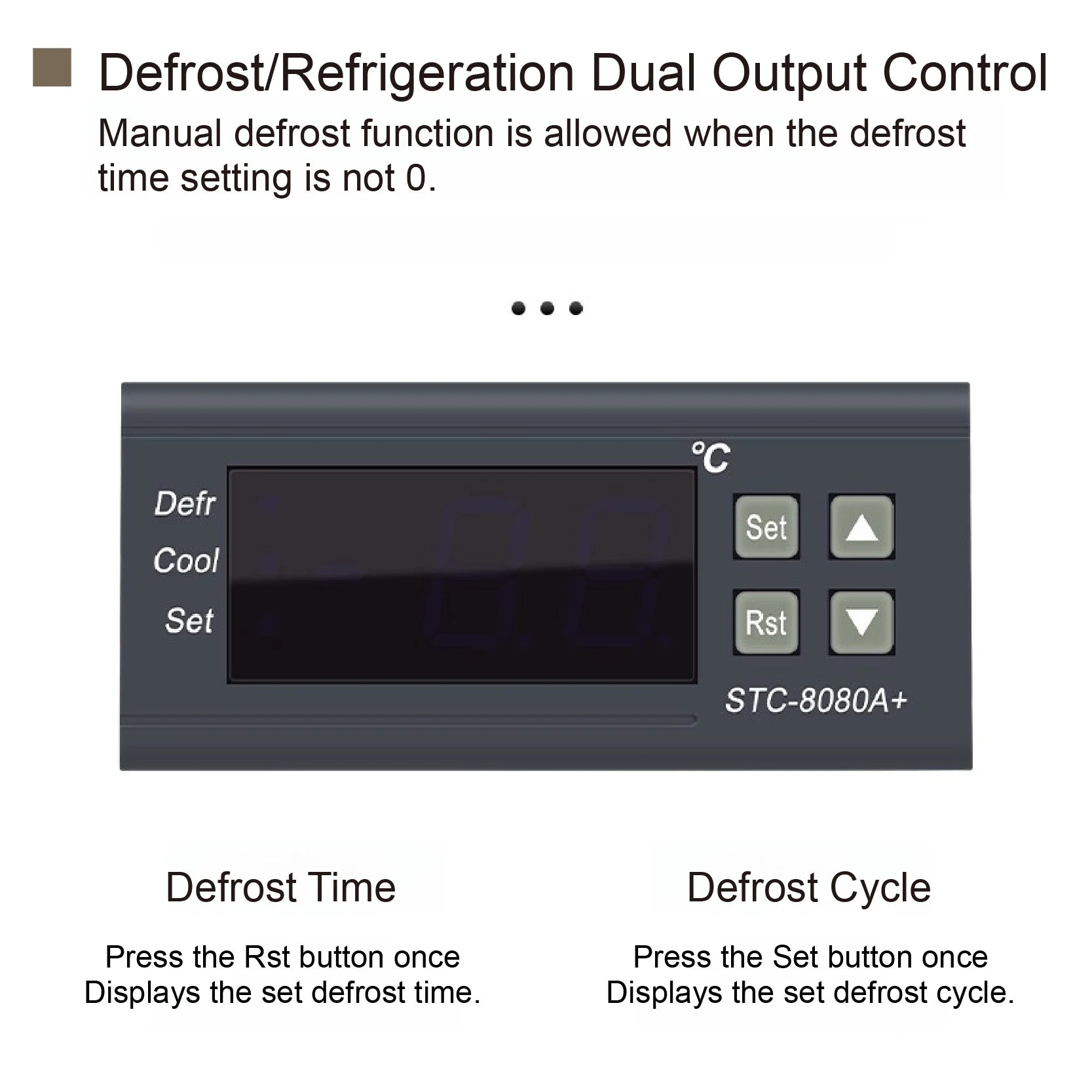

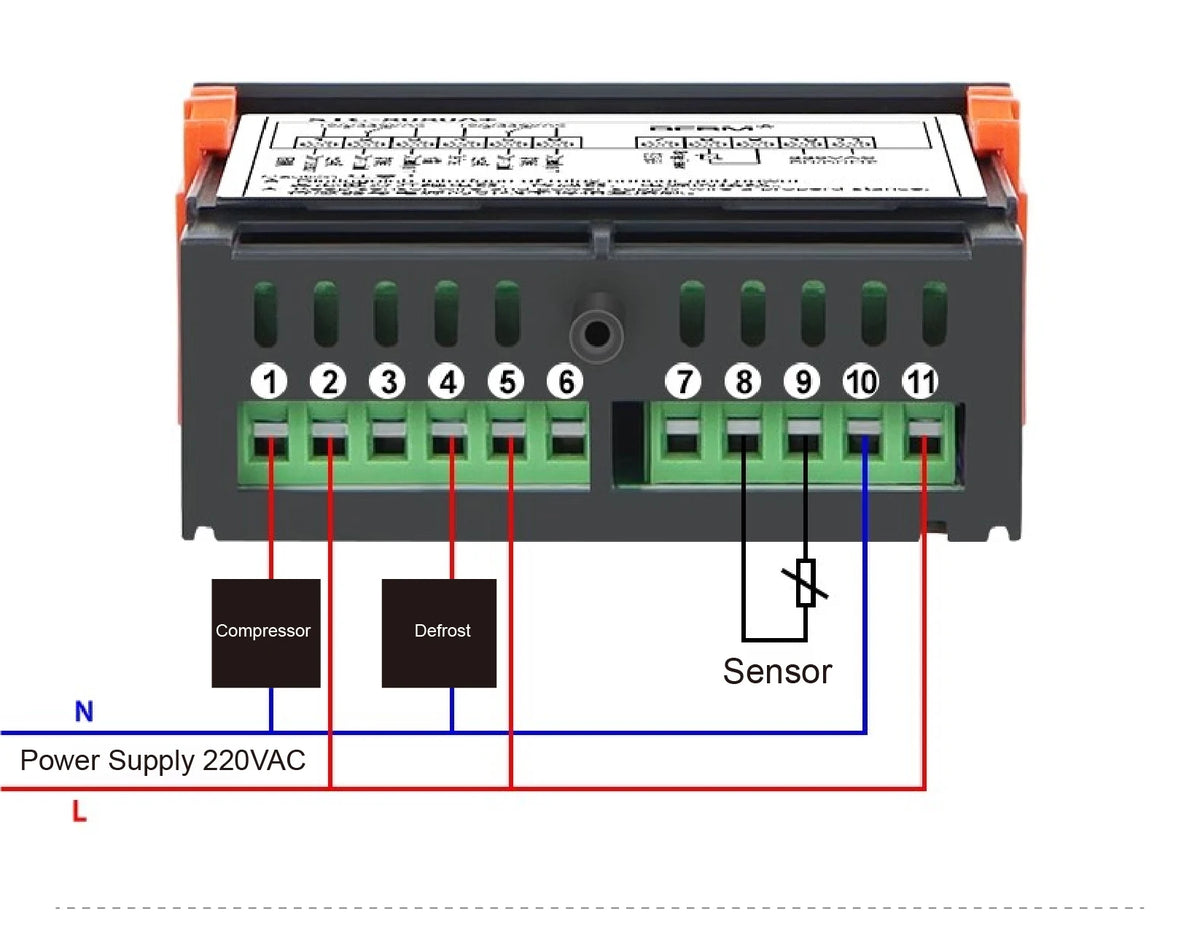

· Supports dual output control for defrost and cooling

· Features temperature calibration, fault alarm, and manual defrost functions

For specific requirements or further customization, please contact our support team.

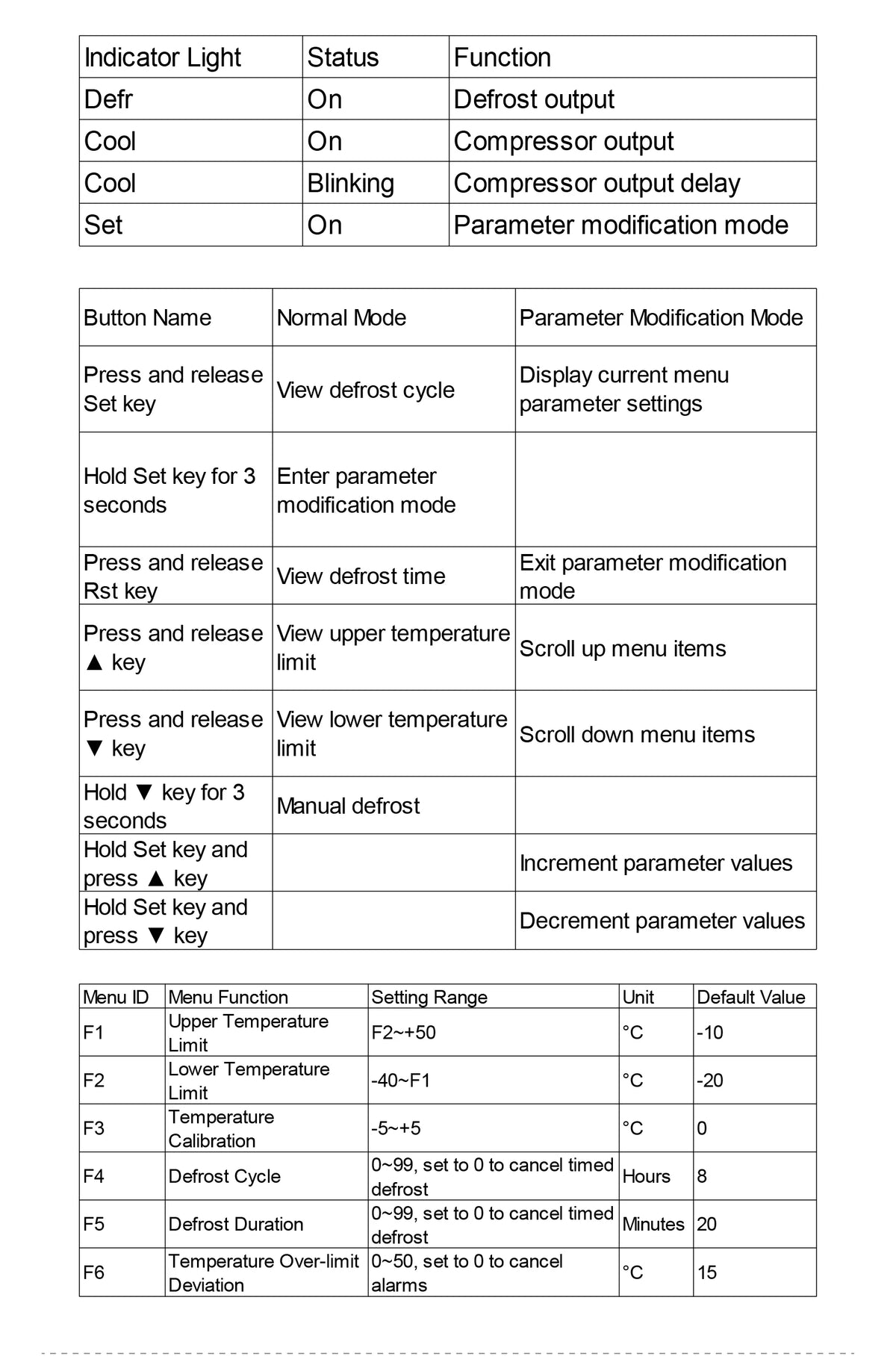

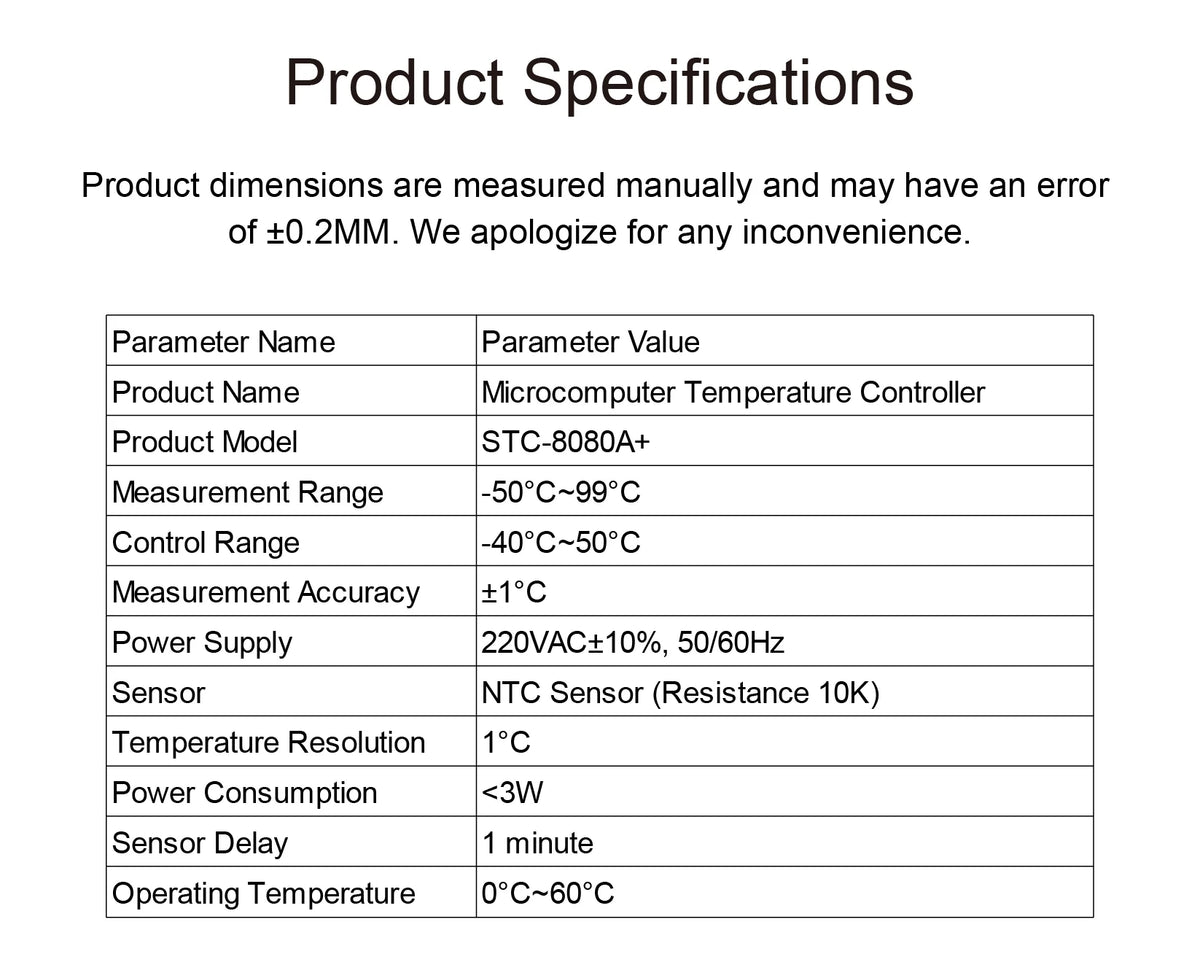

2.Parameters

3.Features

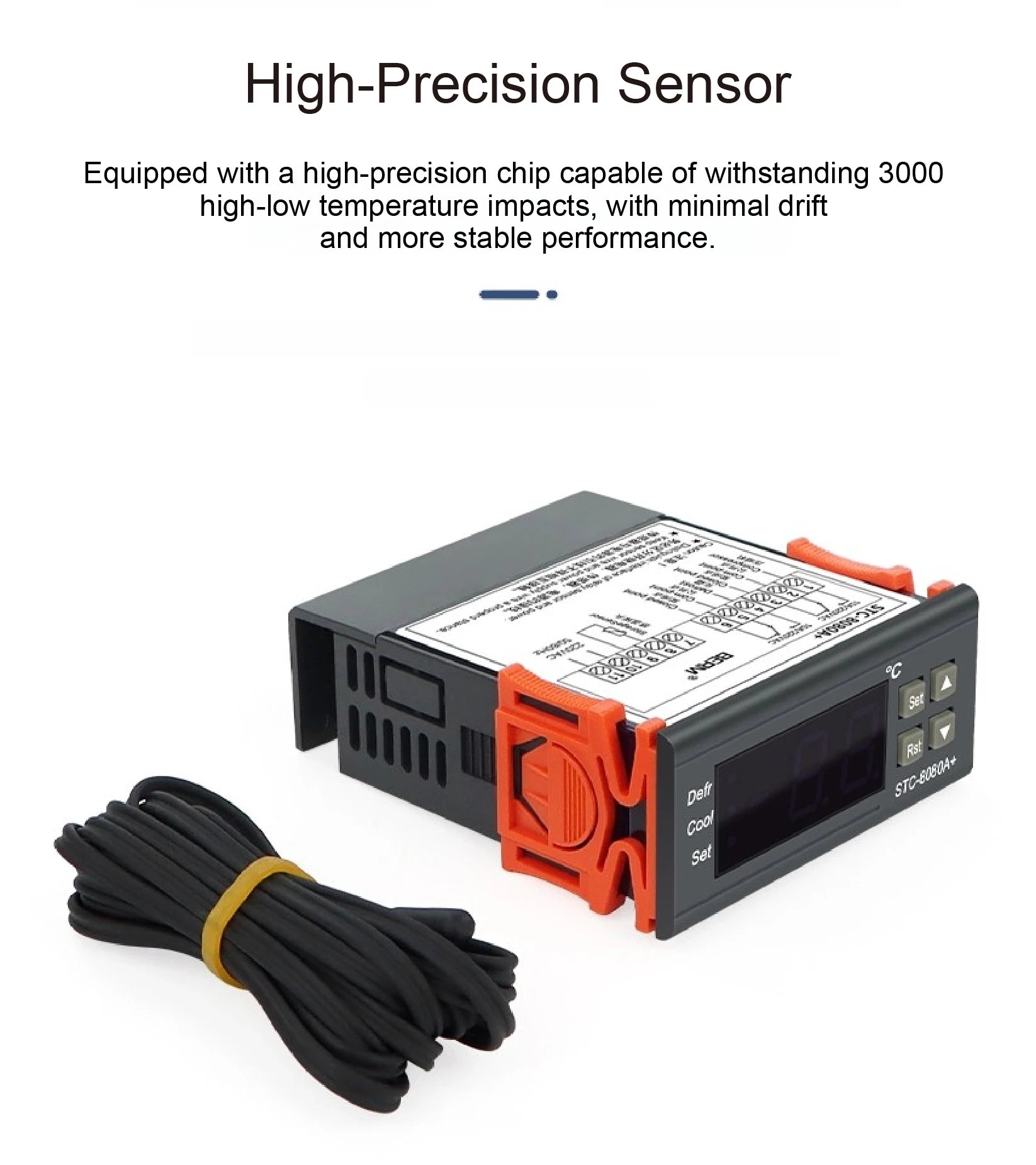

Precise Temperature Control：
Ensures accurate temperature regulation with NTC sensors for stable performance.

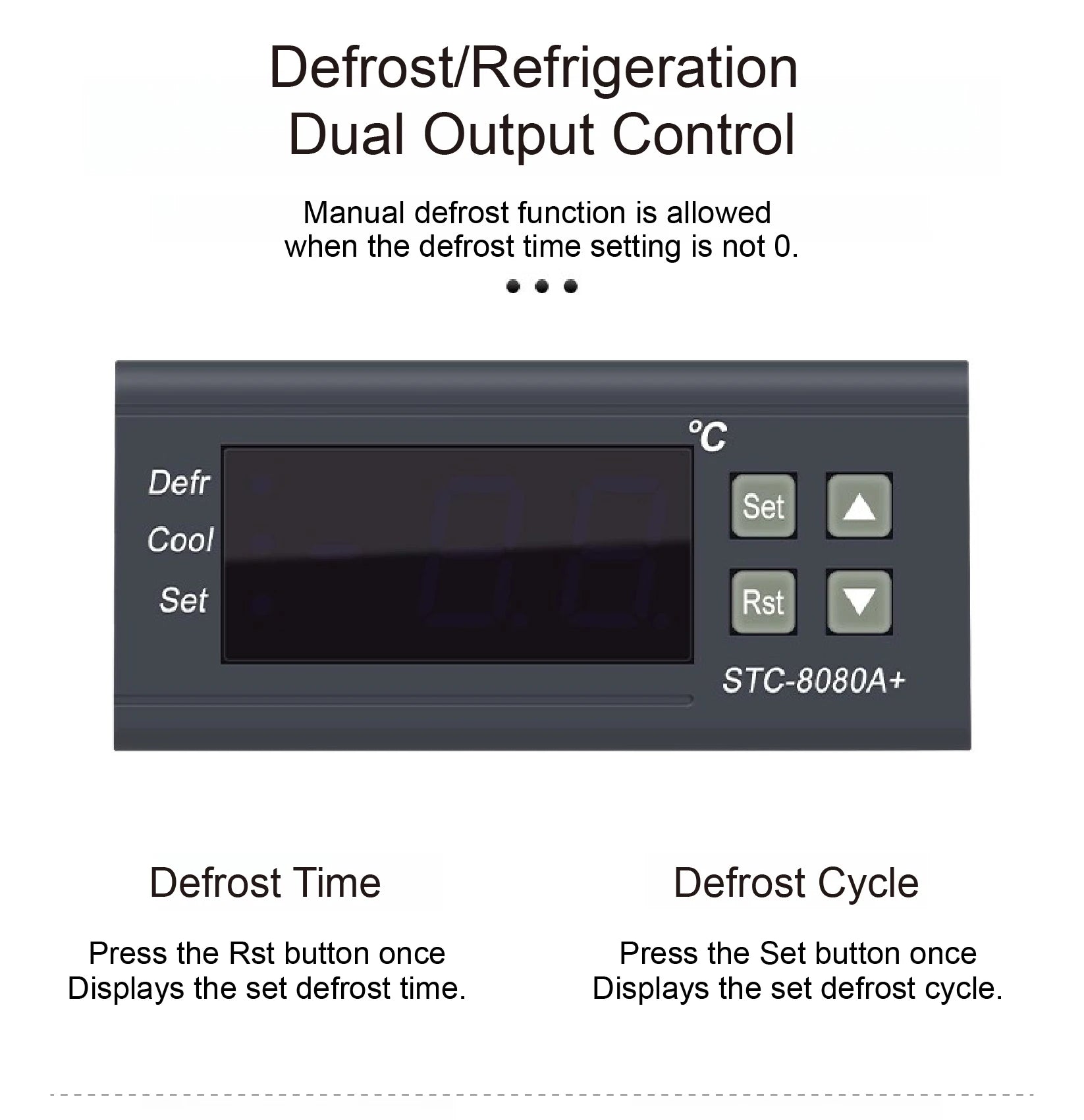

Manual & Automatic Defrost Modes：
Supports both scheduled and manual defrost functions for flexible operation.

Alarm Function：
Provides audible and visual alerts for over-temperature and sensor faults.

Adjustable Temperature Limits：
Users can set upper and lower temperature thresholds to prevent misconfiguration.

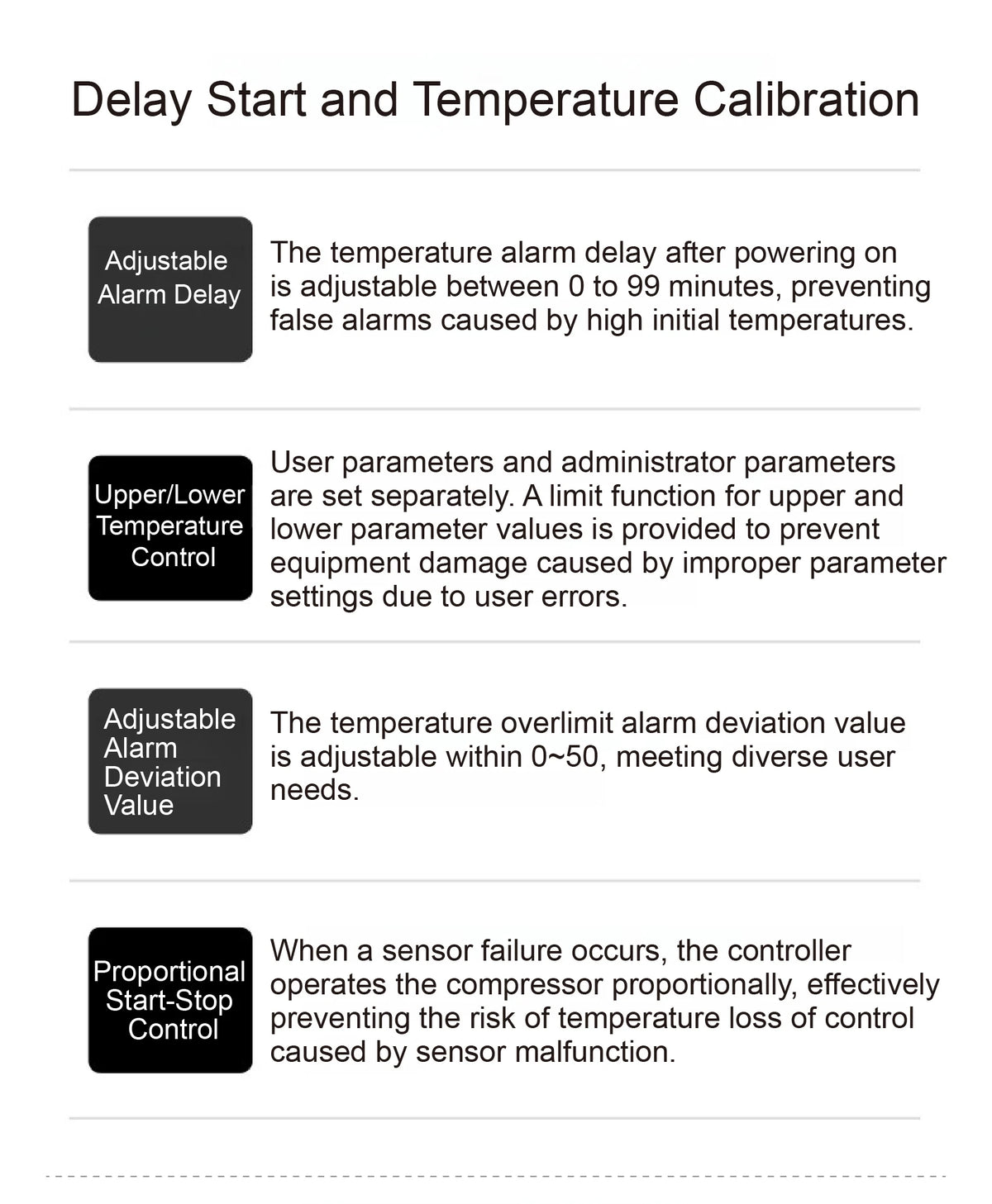

Power-On Delay Protection：
Prevents initial temperature spikes from triggering false alarms.

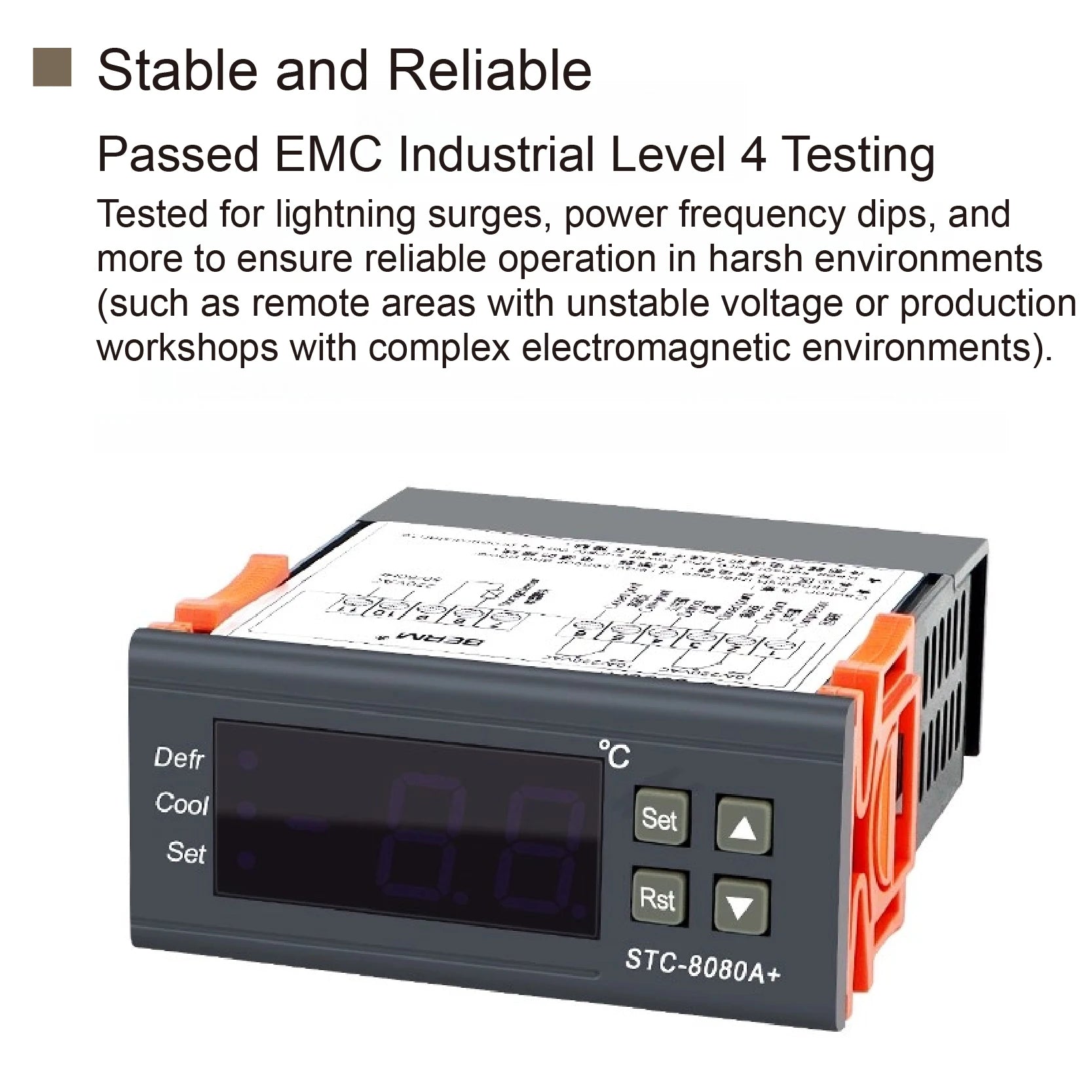

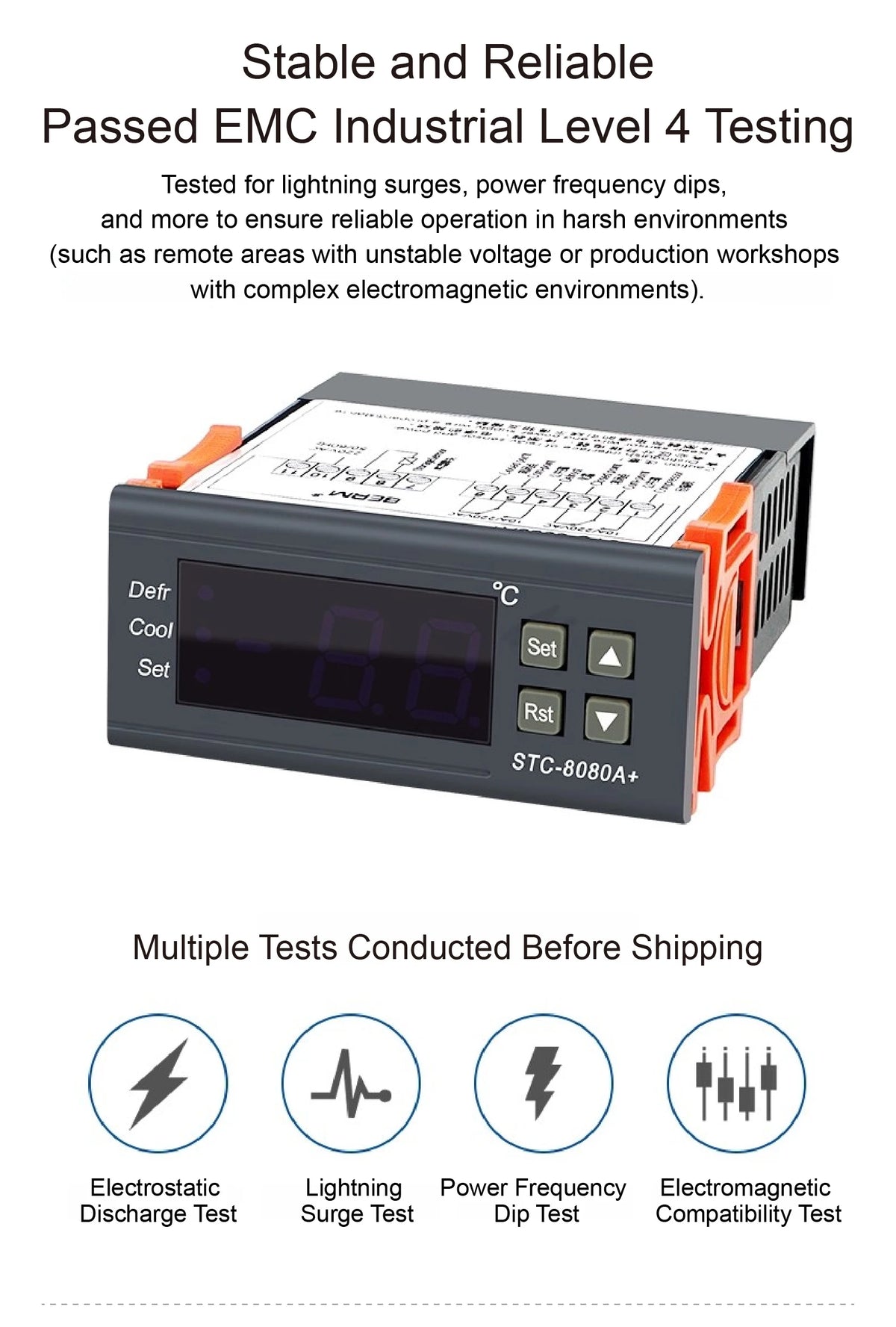

Stable Operation in Harsh Environments：
Designed to withstand voltage surges and electromagnetic interference.

4.Applications

Cold Storage Rooms

Refrigerated Trucks

Food Preservation Equipment

Commercial Refrigeration Systems

5.FAQs

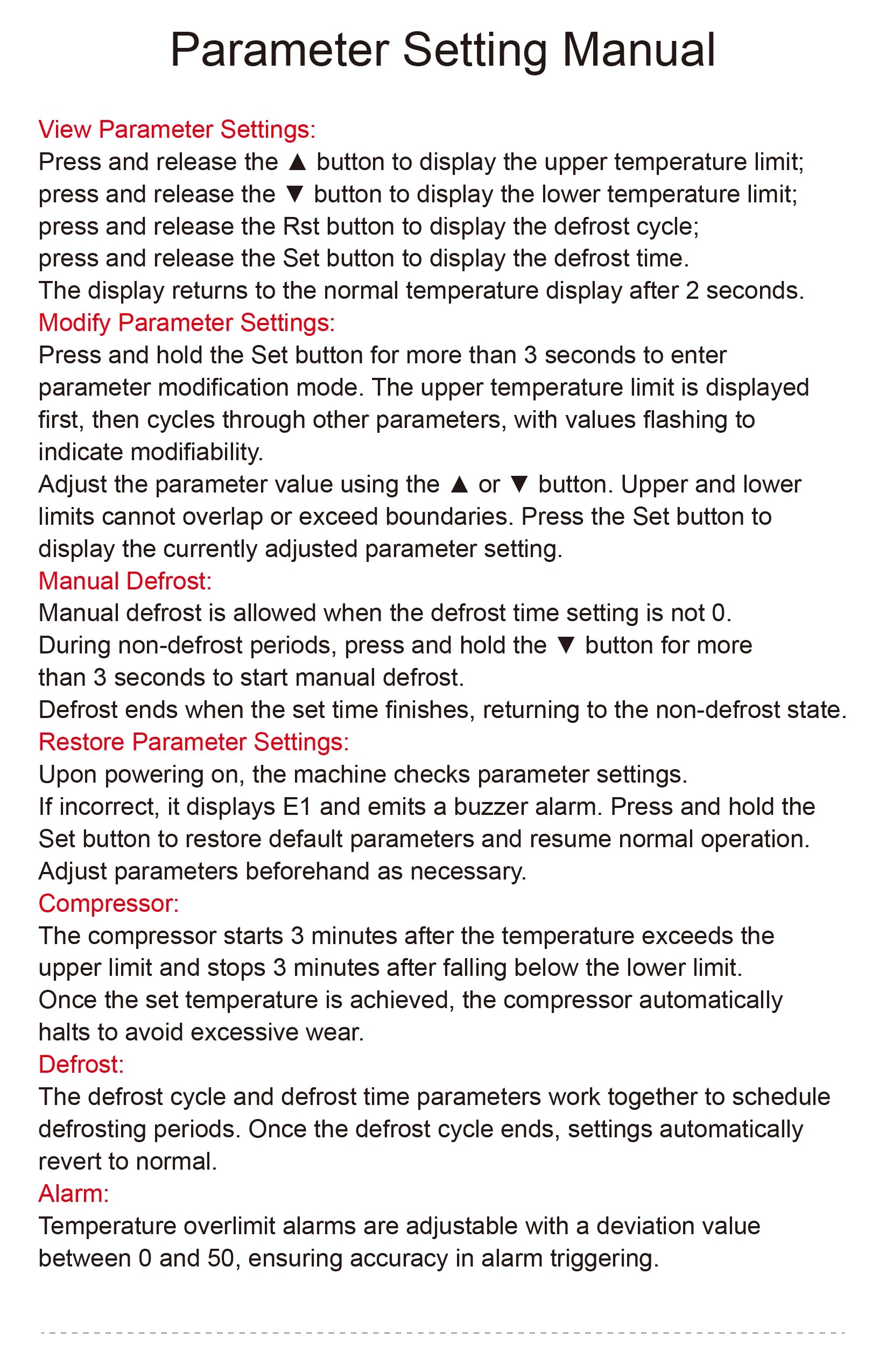

Q1: Can the controller be manually defrosted?
A1: Yes, manual defrosting can be triggered by holding the ▼ button for 3 seconds.

Q2: What happens if the sensor fails?
A2: The controller will operate the compressor in a proportional start/stop mode to avoid temperature runaway.

Q3: Can I adjust the alarm delay?
A3: Yes, the alarm delay can be set between 0 to 99 minutes.
