2-in-1 2.4GHz NRF24 + Sub-GHz CC1101 RF Module for M5Stack StickC Plus2, equipped with a physical switch and Bruce firmware, supports NRF24 signal interference and Sub-GHz signal transmission and reception.

Product Description


This RF module is designed specifically for M5Stack StickC Plus2, employing a 2-in-1 integrated solution of CC1101 and NRF24. A single module covers both the 2.4GHz and Sub-GHz wireless bands, and with Bruce open-source firmware, it's ready to use immediately. Both Sub-GHz signal capture and playback, and 2.4GHz band interference research can be completed independently.


Key Selling Points


2-in-1 Multimode Integrated Design


This module integrates both the CC1101 Sub-1GHz RF transceiver chip and the NRF24 2.4GHz wireless communication chip, replacing the functionality previously required two separate modules, significantly reducing hardware costs and project space requirements.


Dual-band full coverage, wide range of applications


The CC1101 module supports Sub-GHz bands (315MHz, 433MHz, 868MHz, 915MHz, etc., covering the 300-348MHz, 387-464MHz, and 779-928MHz ranges), enabling low-power long-range wireless communication and RF signal reception/transmission. The NRF24 module supports the 2.4GHz band and can implement NRF24 jammer signal interference functionality.


Physical switch, ready to use immediately


The module is equipped with a physical switch, eliminating the need for unplugging cables or software configuration. A single button allows for quick switching between the two RF modules, significantly improving debugging and usage efficiency.


Perfect Bruce firmware compatibility


The module's GPIO pin layout is pre-configured and full compatible with Bruce open-source firmware. When using StickC Plus2 devices, the unified RF module abstraction layer of the Bruce firmware automatically identifies and drives the CC1101 and NRF24 modules, supporting advanced functions such as Sub-GHz signal analysis and playback, spectrum scanning, signal recording and playback.






Product Specifications


Module Type: for M5Stack StickC Plus2 Dedicated Expansion Module


Integrated Chip: CC1101 (Sub-1GHz) + NRF24 (2.4GHz)


Supported Frequency Bands:


CC1101: 300-348MHz, 387-464MHz, 779-928MHz (Typical values ​​315/433/868/915MHz)
NRF24: 2.4GHz


Core Functions:


CC1101: Sub-GHz signal reception and transmission


NRF24: 2.4GHz Jammer signal interference


Module Switching: Physical toggle switch


Firmware Compatibility: Bruce Firmware (Bruce firmware needs to be flashed for first use)


Packaging and Accessories List

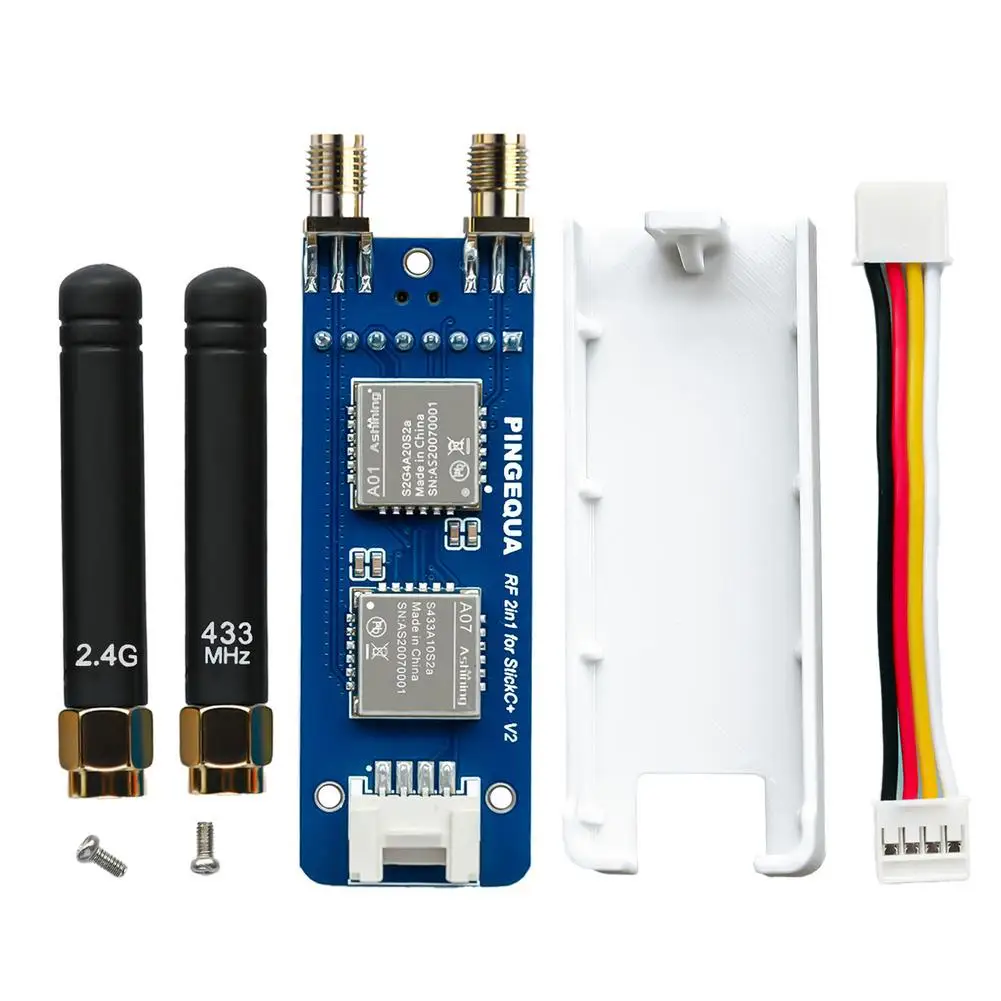

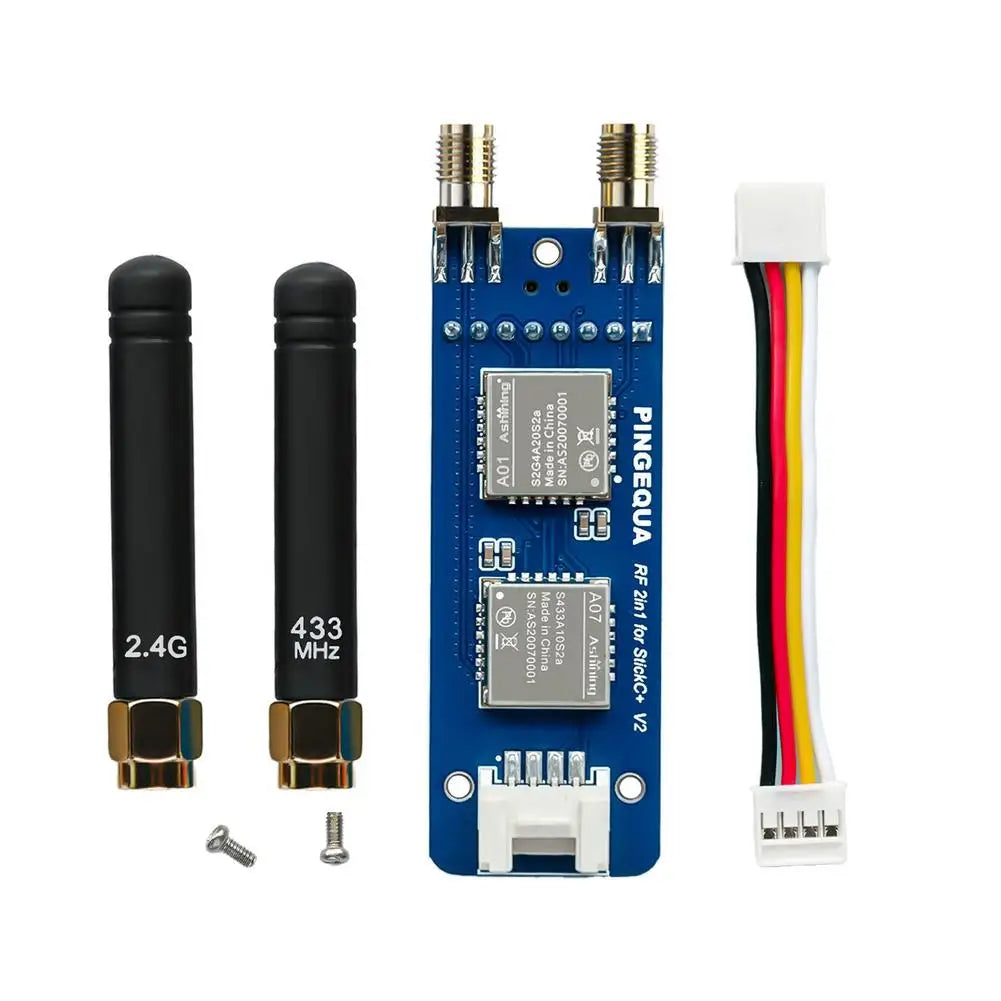

RF 2-in-1 Module × 1 piece


Matching Antenna × 2 pieces


Grove Connection Cable × 1 piece


Protective Case × 1 piece


Packaging Specifications


Packaging Weight: Approx. 50g


Packaging Dimensions: Approx. 10cm × 8cm × 5cm
