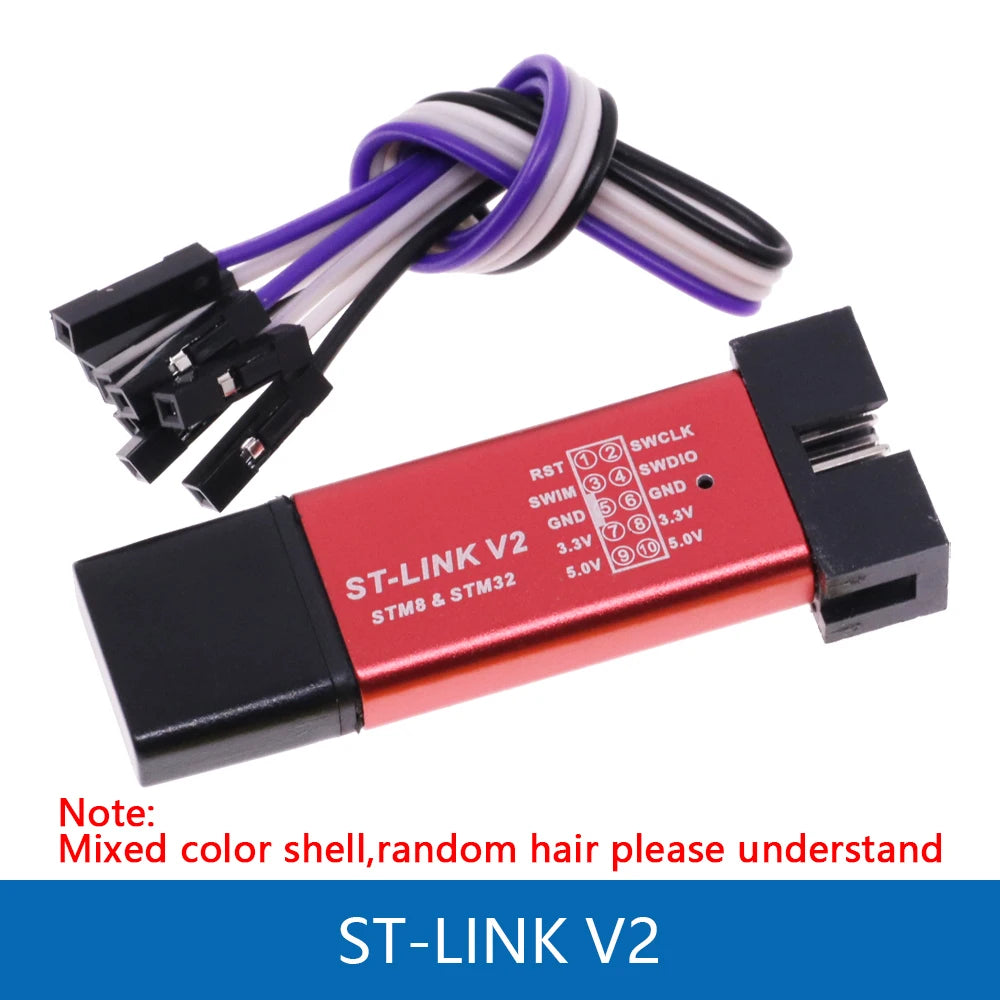

ST-Link V2 Mini STM8 Simulator Download

Specifications

lInput voltage (USB): 5V

lOutput Voltages: 3.3V, 5V

lInterfaces: SWIM, SWD

lConnectors: USB, 10 pin (molex type)

lDimensions: 57mm x 20mm x 8mm[2.2in x 0.7in x 0.3in]

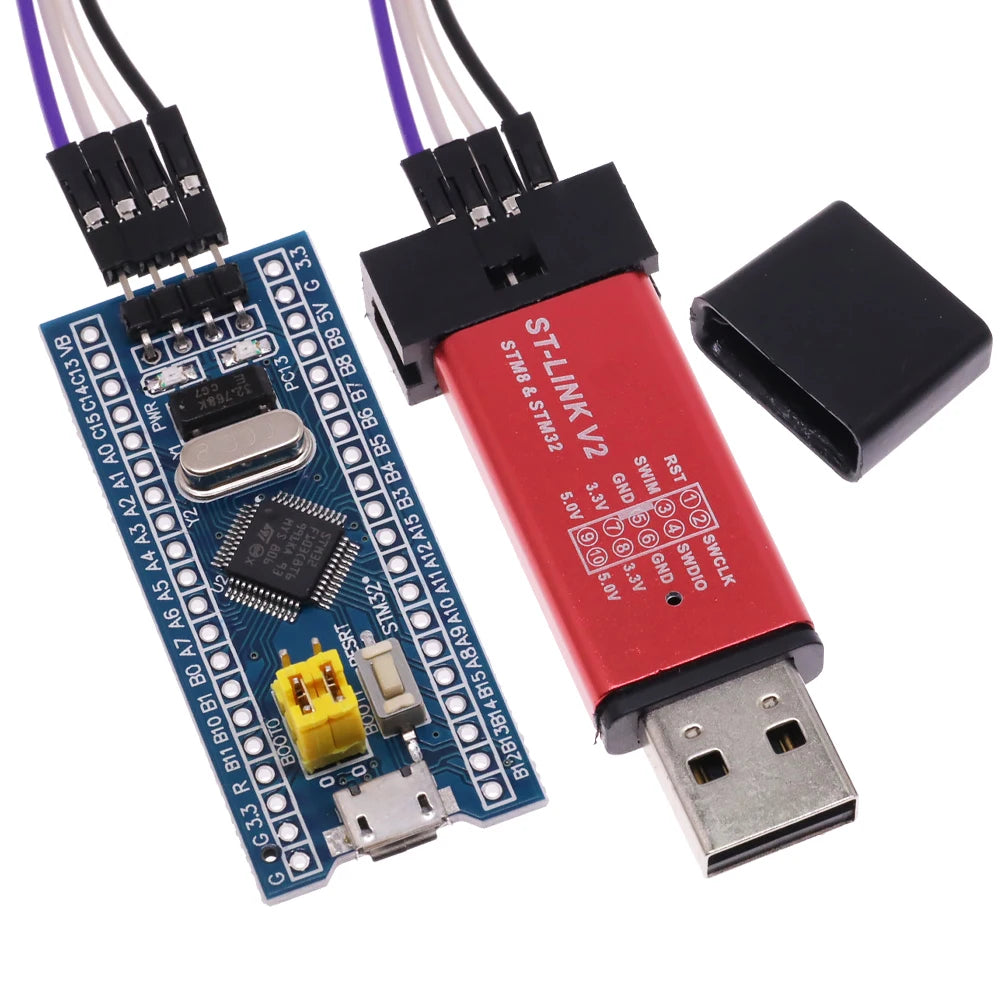

The St Link V2 programmer supports STM8 and STM32 microcontrollers

The module supports automatic firmware upgrades to ensure the maintenance of ST products. The factory firmware has been updated to the latest version V2.J17.S4.

2x5 headers 2.54 mm (0.1 in) apart, including cables (4 f-f jumper wires)

USB 2.0 full speed compatible interface

lWARNING: STM32 chips run on 3.3V, most breakout boards will include a voltage regulator so it can be powered from USB, and STLink dongles will provide a3.3V VCC pin to power up the chip.

lDo not connect the board to the PC using USB while the chip is powered up usingthe ST-Link V2 programmer!

lConnect one or another but not both simultaneously. The ST-Link V2 dongle provides a 5V pin as well. It is not going to be used because the STM32 chips are not5V tolerant, the 3.3V pin has to be used only.

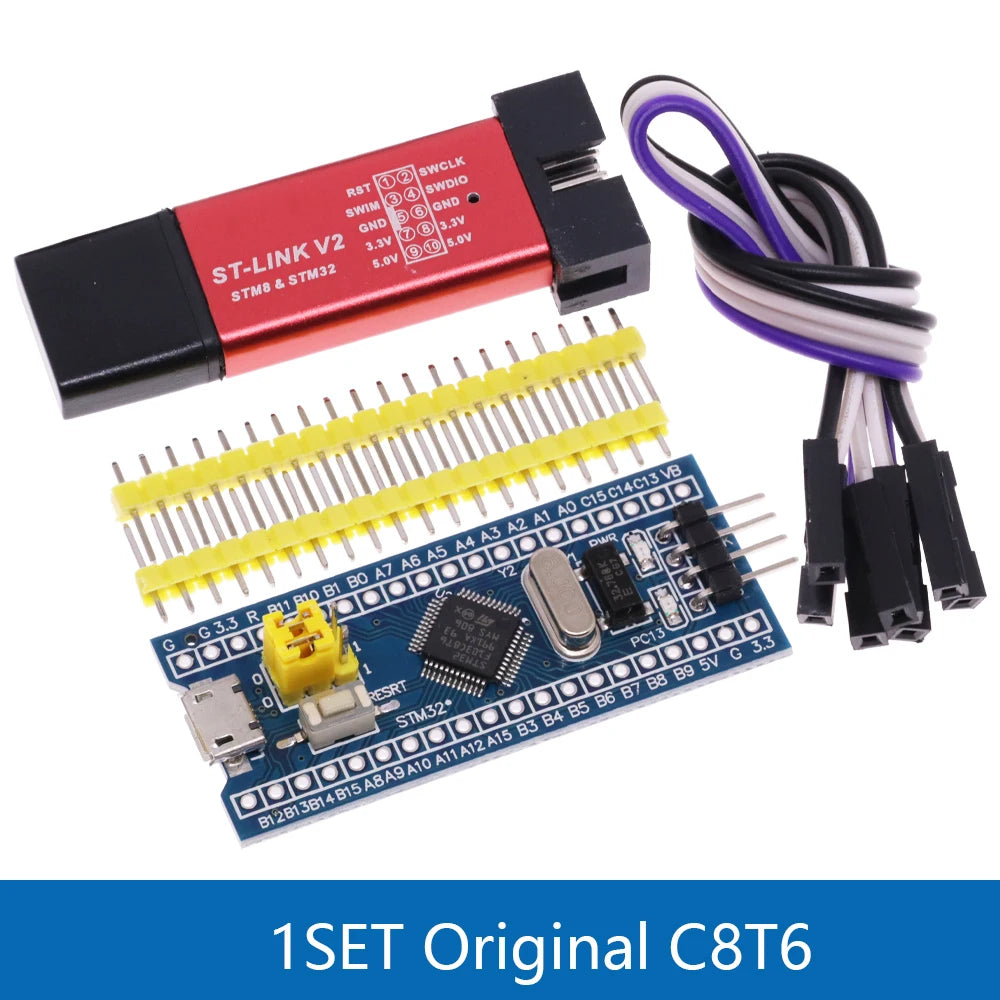

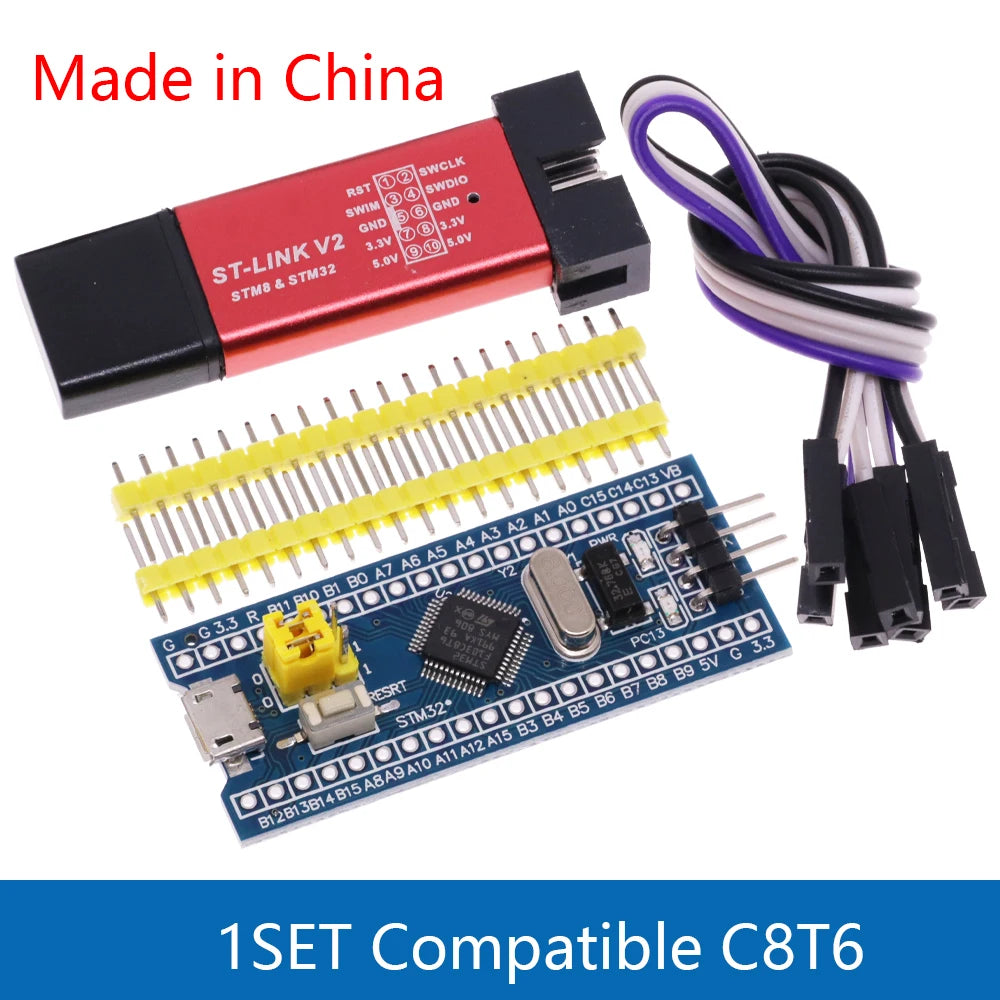

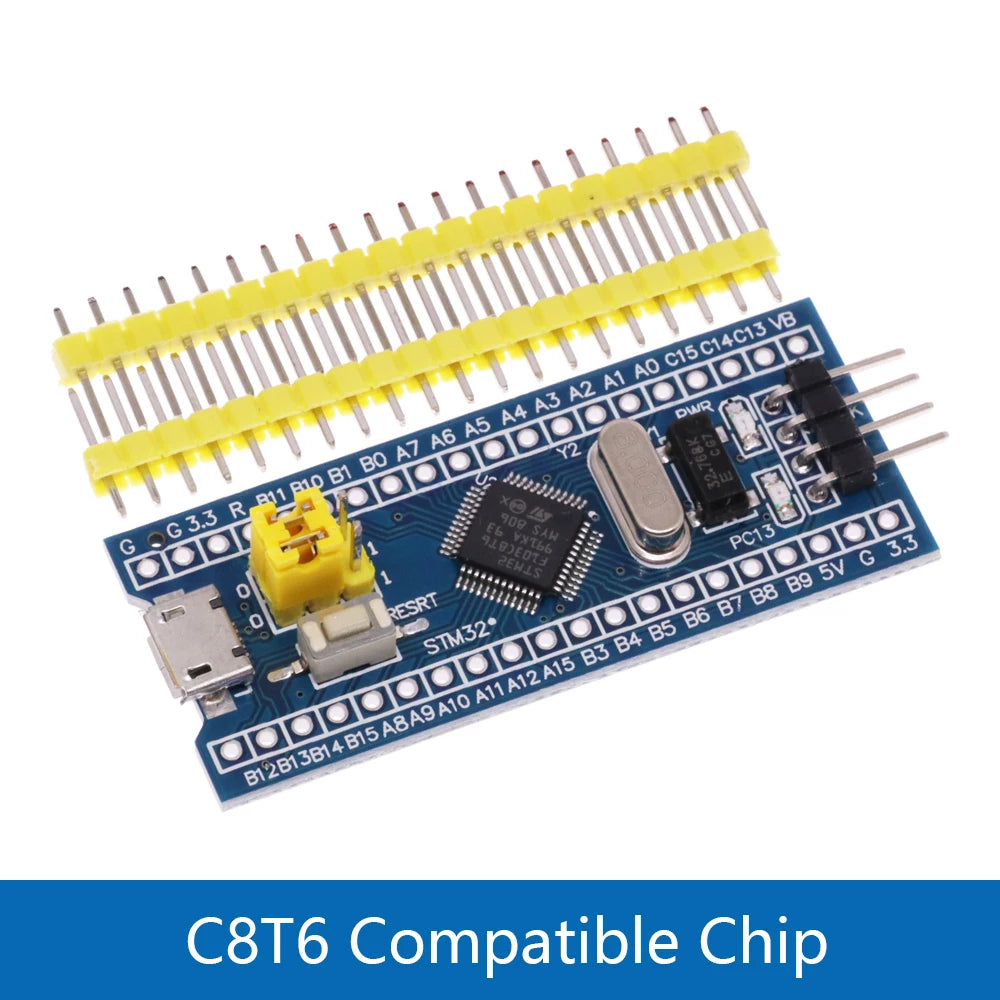

STM32F103C8T6 ARM STM32 Minimum System Development Board Module For Arduino

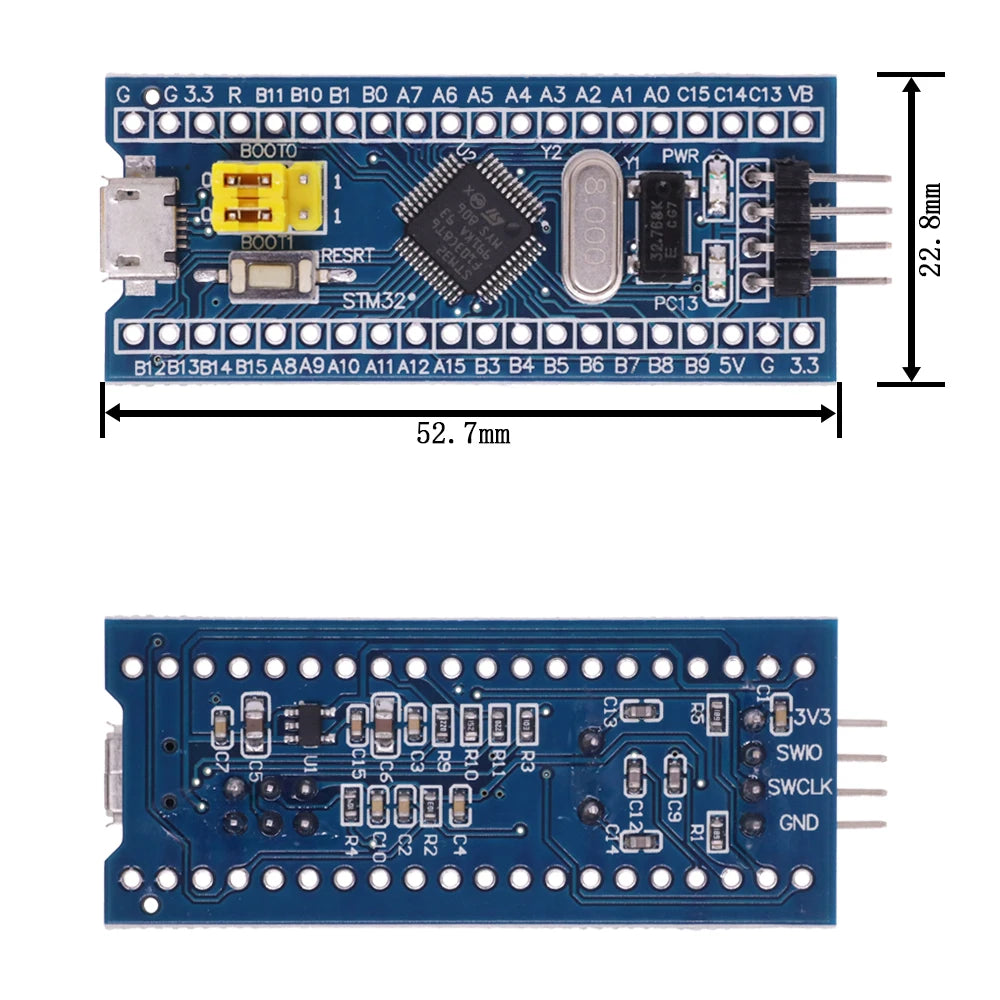

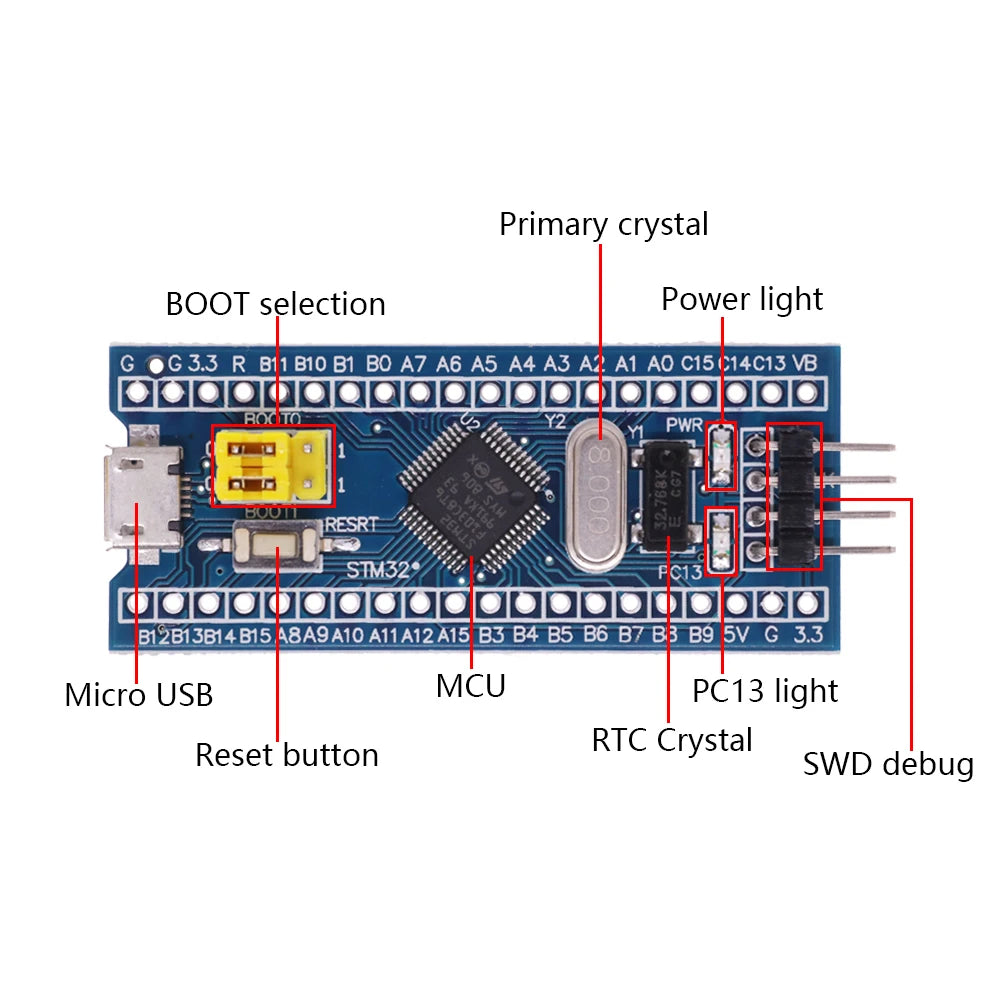

This is a core chip based on for CS32F103C8T6 ARM core board, features are as follows:

1, the board based on the most basic MCU circuit, 8M and 32768 crystal circuit, USB power supply circuit.

2, the core board is divided into two rows leads to all the I / O port.

3, with SWD simulation debug download interface, simple and convenient, debugging speed.

4, the use of the Mirco USB interface, you can do USB communication and power supply, USB interface, compatible with the ordinary Andrews mobile phone charger interface.

6, RTC crystal Epson brand, easy to start, more stable.

7, with double pin, but the pin does not default welding, the user according to their own application scenarios to choose their own welding direction. If welding is required, please tell the owner.

Keil can be used to compile, IAR compiler, can be downloaded through the J-Link or USART1 procedures, the procedures are the owner and debugging procedures, there are problems can consult the owner.

Chip Description:

1, 32F103C8T6

Package Type: LQFP;

Number of pins: 48;

Kernel: Cortex-M3;

Operating frequency: 72MHz;

Storage resources: 64K Byte Flash, 20KByte SRAM;
