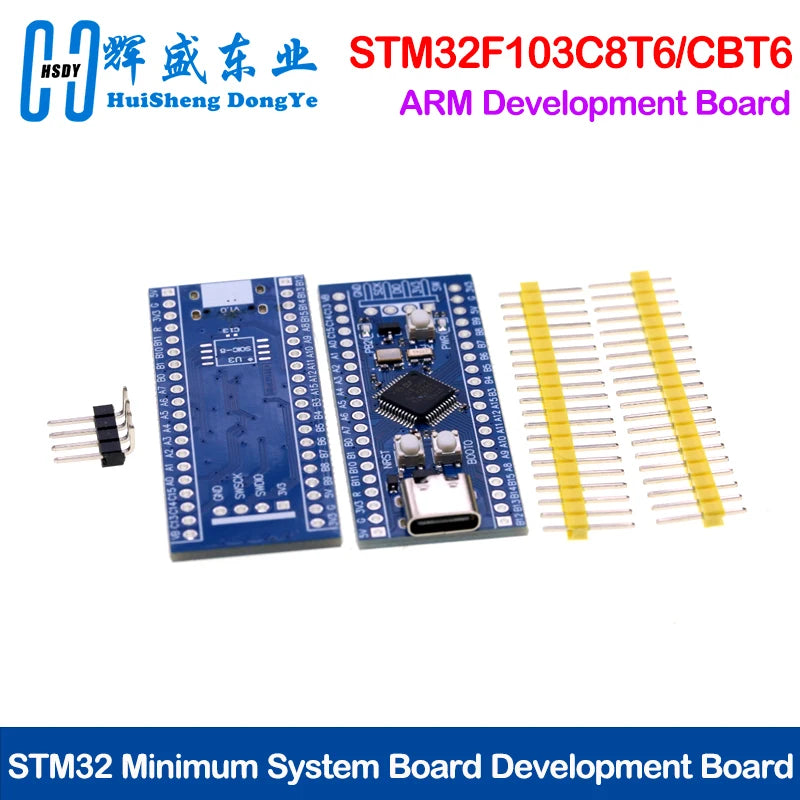

STM32F103C8T6 STM32F103CBT6 STM32F103 STM32F1 Bluepill Plus ARM STM32 Minimum System Development Board Module
STM32F103CBT6 / 1PCS
$15.17
Sale price
$15.17
Regular price
$0.00
Skip to product information
STM32F103C8T6 STM32F103CBT6 STM32F103 STM32F1 Bluepill Plus ARM STM32 Minimum System Development Board Module
$15.17
Sale price
$15.17
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: HUISHENGYUFA
Condition: New
Dissipation Power: STM32 Minimum System Development Board
High-concerned chemical: none
Operating Temperature: STM32 Minimum System Development Board
Origin: Mainland China
Package: SMD
Supply Voltage: 3.3V-5V
Type: Drive IC
is_customized: Yes
Product Features:
1. Stable performance, high sensitivity, and easy installation.
2. High quality crystal oscillator and metal casing are used, both of which can vibrate well
3. Using TYPE-C interface, it can be used for USB communication and power supply, with USB connection
Port, compatible with regular Android phone charger interface.
4. Equipped with a power indicator light, the status of the power indicator light can determine whether the power supply is stable.
5. Equipped with dual needles, default no welding, users can customize according to their own application scenarios
Choose the welding direction that suits you.
Product parameters：
Focusing on electronic components with years of industry experience
1. Chip: ARM CortexM3
Maximum operating frequency of 72MHz, accessed during the 0 waiting period of the memory
It can reach 1.25 DMips/MHz (DhrystoNe 2.1)
2. Operating frequency 72Mhz
3. Flash memory: 64KB ROM/4. Storage: 20KB RAM
128KB ROM
5. Clock and power supply (1) Power supply:
3.3V-5V power input, 3.3VLDO maximum 100mA additional output, using TYPE-C interface, with diodes in series to prevent power backflow
(2) Clock:
8MHz high-speed passive crystal oscillator input
32.768K low-speed passive crystal oscillator input
6. Interfaces and buttons:
USB-C (Type C) interface x1 nd
User key KEY (PA O) xl-
Reset button NRS Tx1
BO0TO button x1
Usage instructions:
How to enter ISP (serial download)
Method 1: Press BO0TO and NRST simultaneously, release NRST, 0.5
Release BO0TO after S to enter ISP mode
Method 2: In the power-off state, press and hold B00TO, turn on the power, and wait for 0.5 seconds,
Release to enter ISP mode
