Description
SPECIFICATIONS
Applicable Products: Reference Details
Application areas: Reference Details
Brand Name: NONE
Condition: New
Dimensions: 21*21
High-concerned chemical: none
Origin: Mainland China
Power consumption: none
Protection level: none
Specification: STM32F103 Core Board
Type: Module

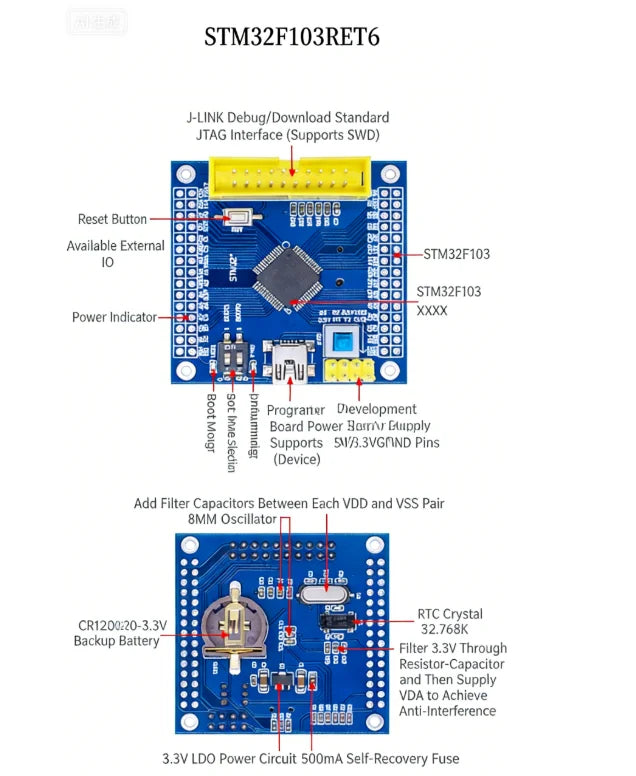

Product Features
Model: STM32F103RET6
01. Uses brand-new original STM32F103RET6 to ensure stable operation
02. A 100nF capacitor is connected between each VDD and VSS of STM32F103RET6; no corner-cutting is allowed to ensure stable operation

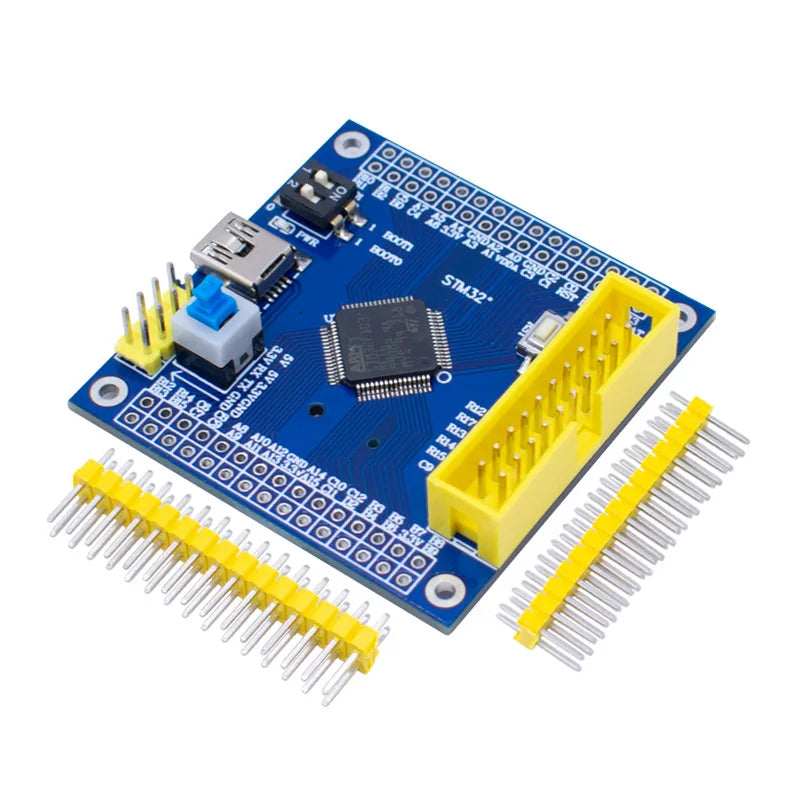

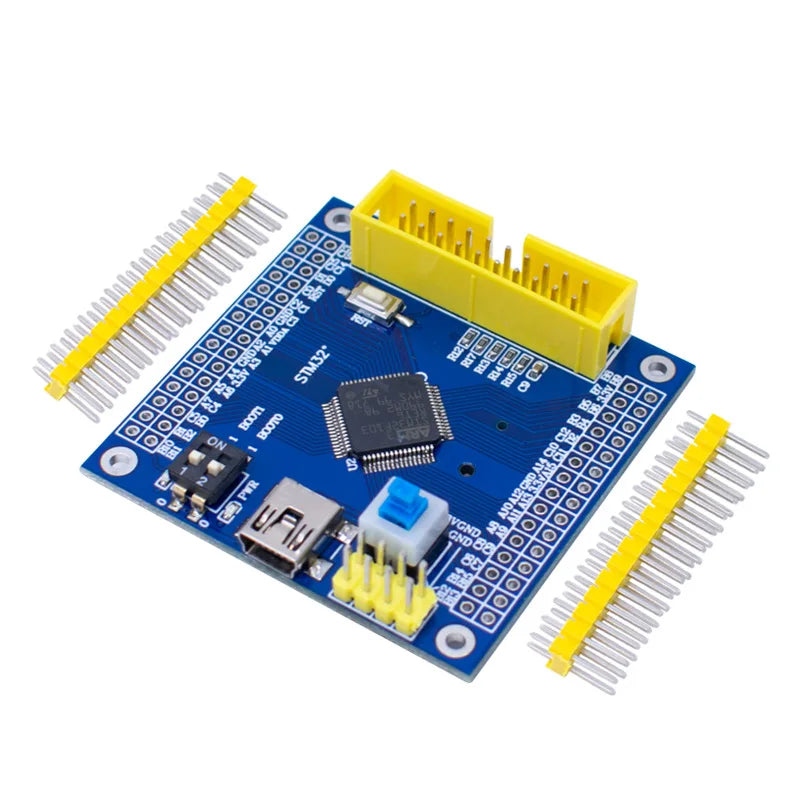

03. The pin headers on both sides of the core board can be oriented upward or downward
Product Parameters
-
Model: STM32F103RET6
-
Core: ARM 32-bit Cortex-M3 CPU
-

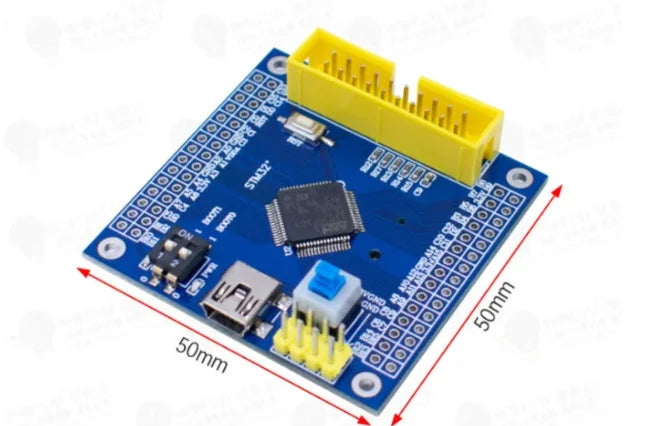

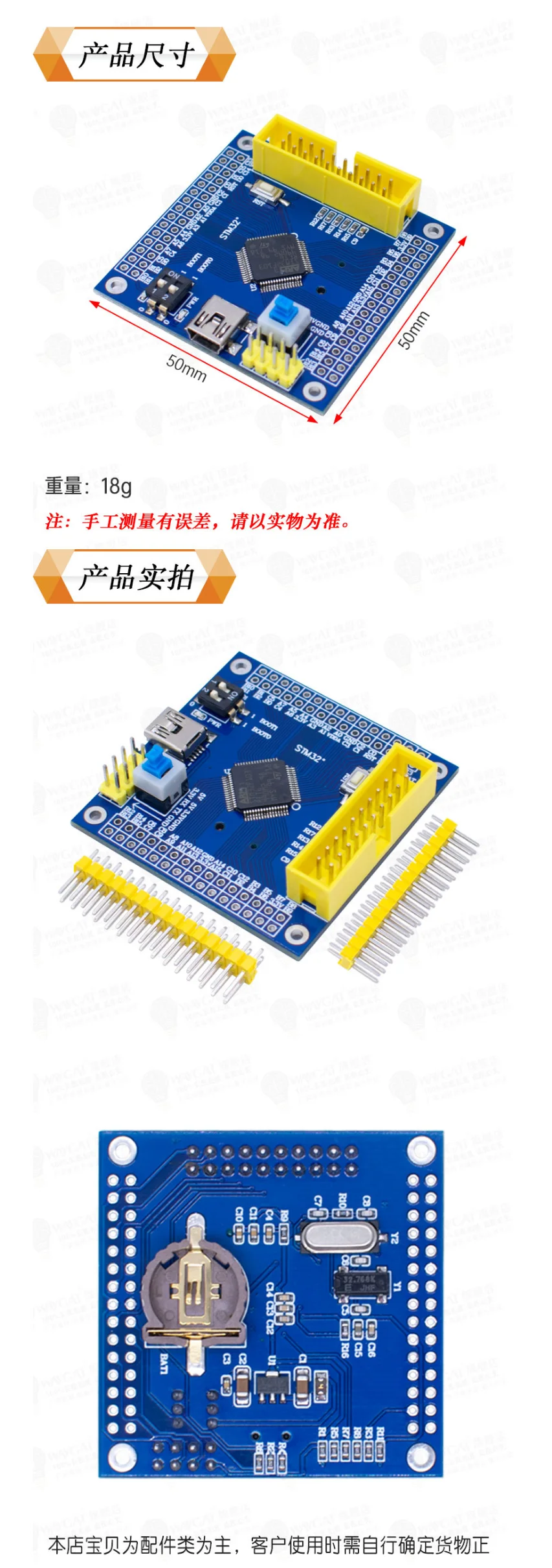

Dimensions: 50*50mm
-

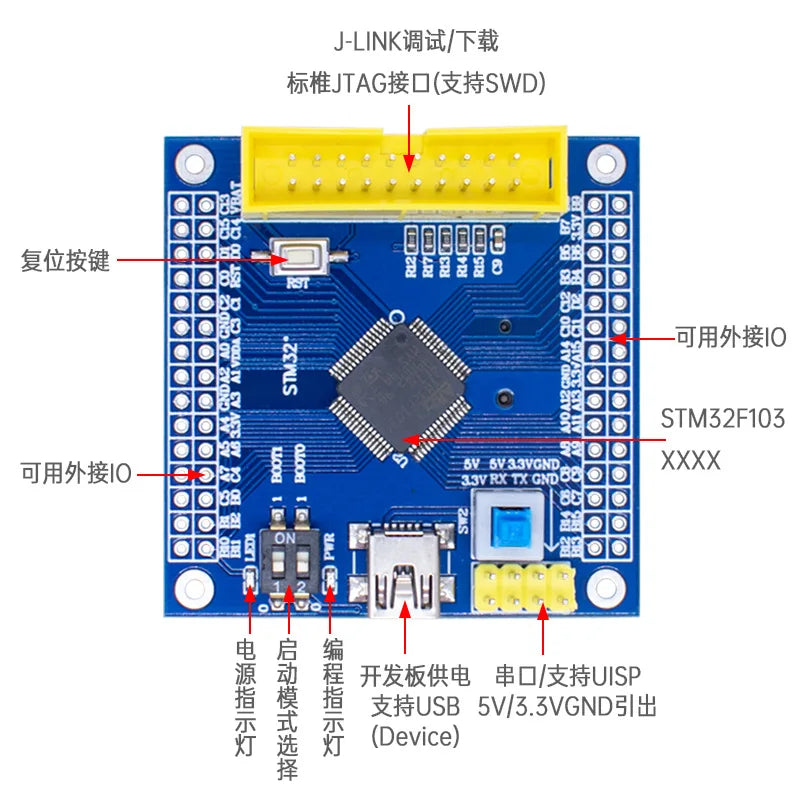

Debugging method: JTAG/SWD
-
The ARM 32-bit Cortex-M3 CPU operates at a maximum frequency of 72MHz
-
STM32F103RET6: 256KB program memory (ROM), 48KB SRAM
-

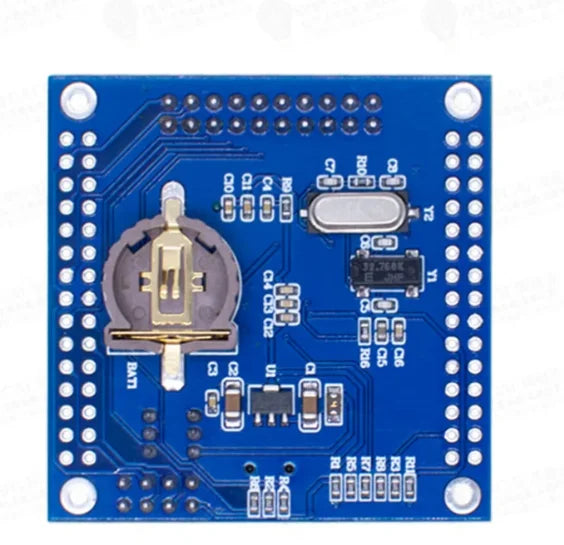

Built-in factory-calibrated 8MHz and 40KHz RC oscillators, and a 32KHz RTC oscillator with calibration function
-
Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD)
-
2.0~3.6V power supply and I/O pins
-
Sleep, stop and standby modes; VBAT supplies power to RTC and backup registers
-
2x 12-bit analog-to-digital converters (ADCs) with 1μs conversion time (up to 21 input channels); conversion range: 0 to 3.6V; triple sampling and holding function; internal temperature sensor
-
7-channel DMA controller, supporting peripherals, timers, ADC, SPI, I2C and USART
-
Serial wire debug (SWD), Cortex-M3 embedded trace module (ETM)
-
51 multi-function bidirectional I/O ports; I/O ports can be mapped to 16 external interrupts; almost all ports tolerate 5V signals
-
3 general-purpose timers, 1 advanced timer
-
Up to 2 I2C interfaces (supporting SMBus/PMBus)
-
Up to 3 USART interfaces
-
Up to 2 SPI interfaces (18M bits/sec); 2 can be reused
-
CAN interface (2.0B active)
-
USB 2.0 full-speed interface
