SPECIFICATIONS

Parameter:

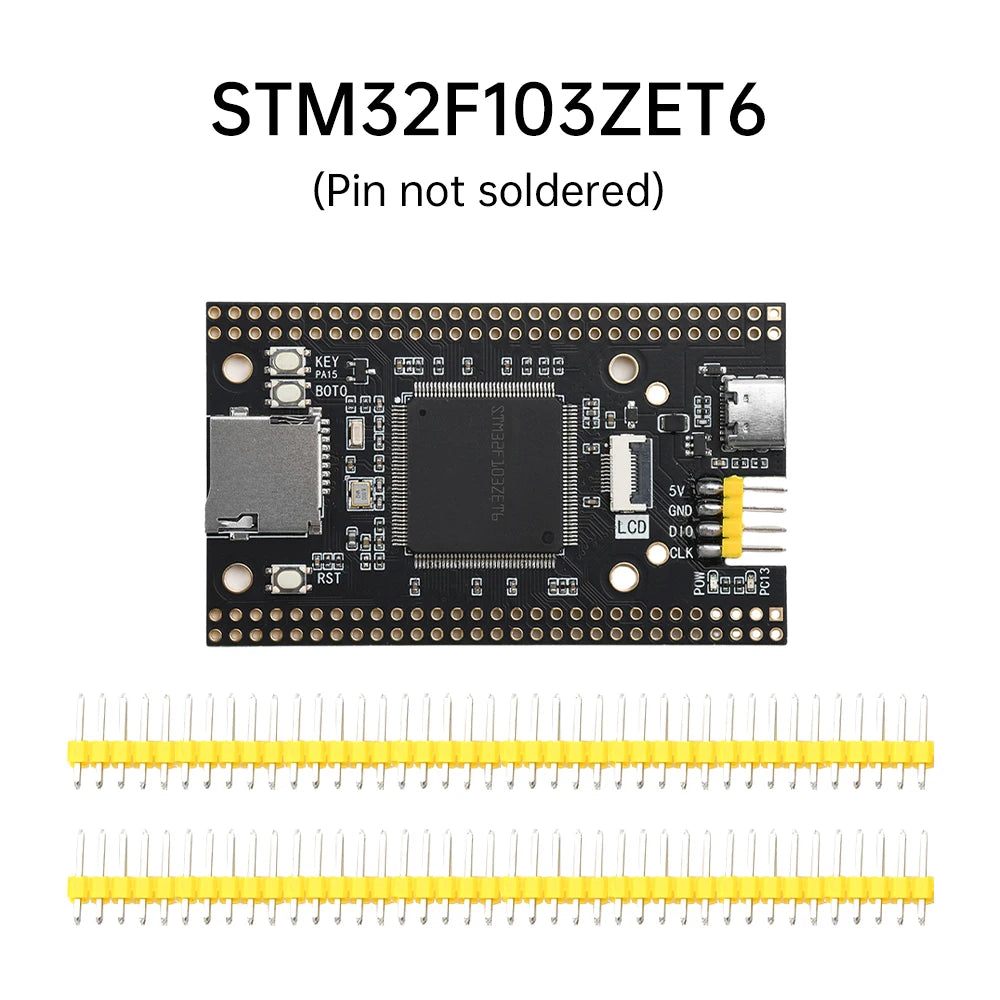

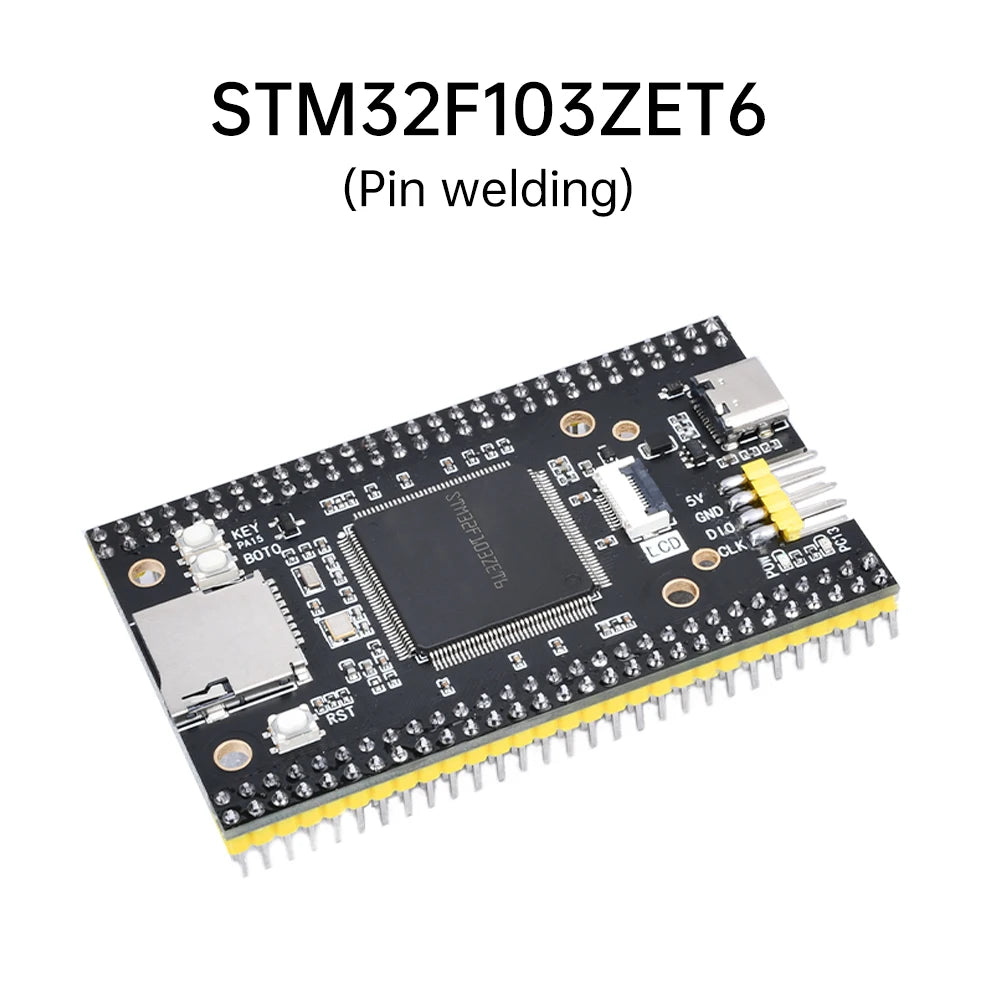

Style 1: STM32F103ZET6：
Product Introduction:
The STM32F103ZET6 development board features high performance, rich peripheral interfaces, and a wide range of applications. STM32F103ZET6 is a high-performance 32-bit microcontroller (MCU) based on the ARM Cortex-M3 core. The following is a detailed introduction to its characteristics:
Computing power: The chip adopts an efficient ARM Cortex-M3 core with a maximum operating frequency of 72MHz, providing excellent computing performance and data processing capabilities.
Storage resources: It has 1M KB of Flash program memory and 64KB of SRAM data memory, which can meet the needs of most embedded applications.
Peripheral Interface: Provides a wide range of peripheral interfaces, including USARTSPI, 12C serial communication interfaces, as well as ADC, PWM outputs, etc., to facilitate communication and connection with other devices.
Low power design: It has multiple low-power modes that can be adjusted according to actual application needs to optimize power consumption and extend battery life.
Security: In order to protect critical data and system security, hardware encryption engines and memory that supports code execution protection are provided.
Development tool support: STMicroelectronics provides a wide range of development tools and software support, including STM32Cube software package, IDE, routines, drivers, etc., to accelerate product development and debugging processes.

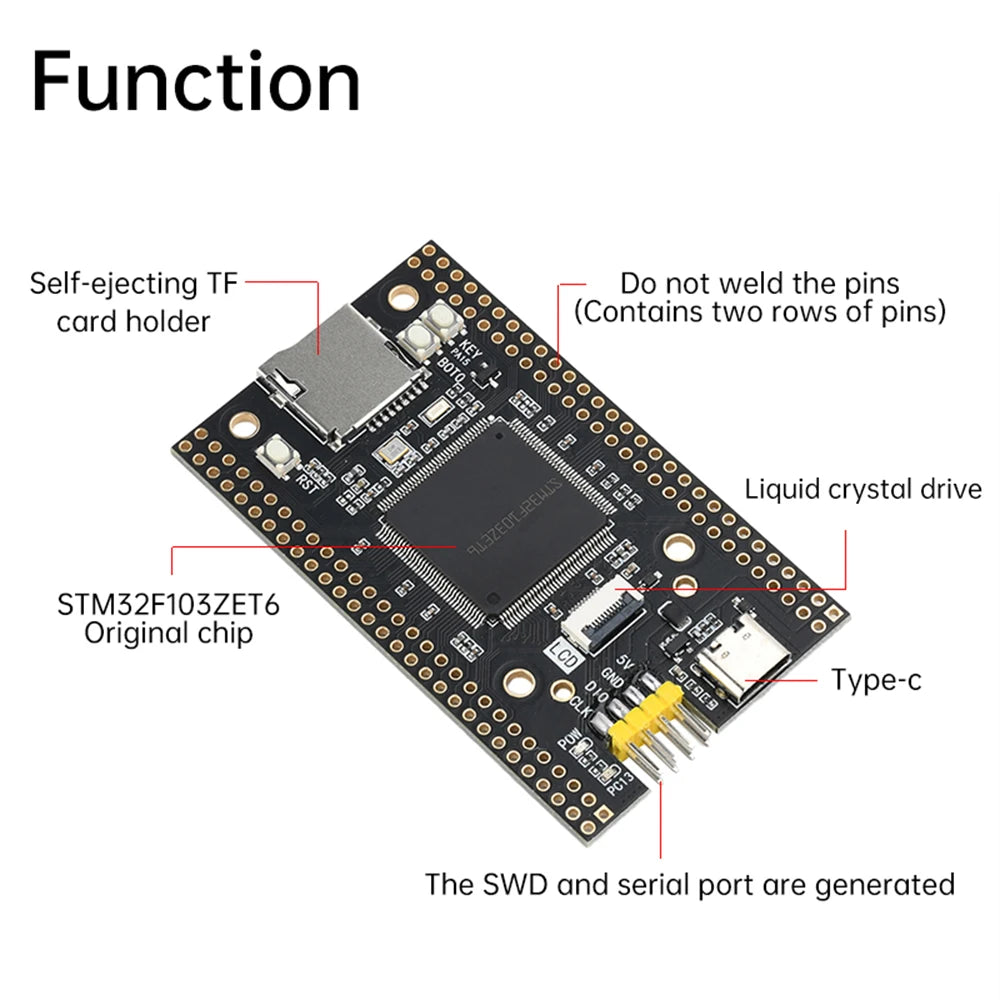

Product parameters:
Main control chip: main frequency 72MHz, 1M Flash, 64K SRAM
LCD interface: SPI interface
Storage Expansion: TF Card Interface
Output device: User LED

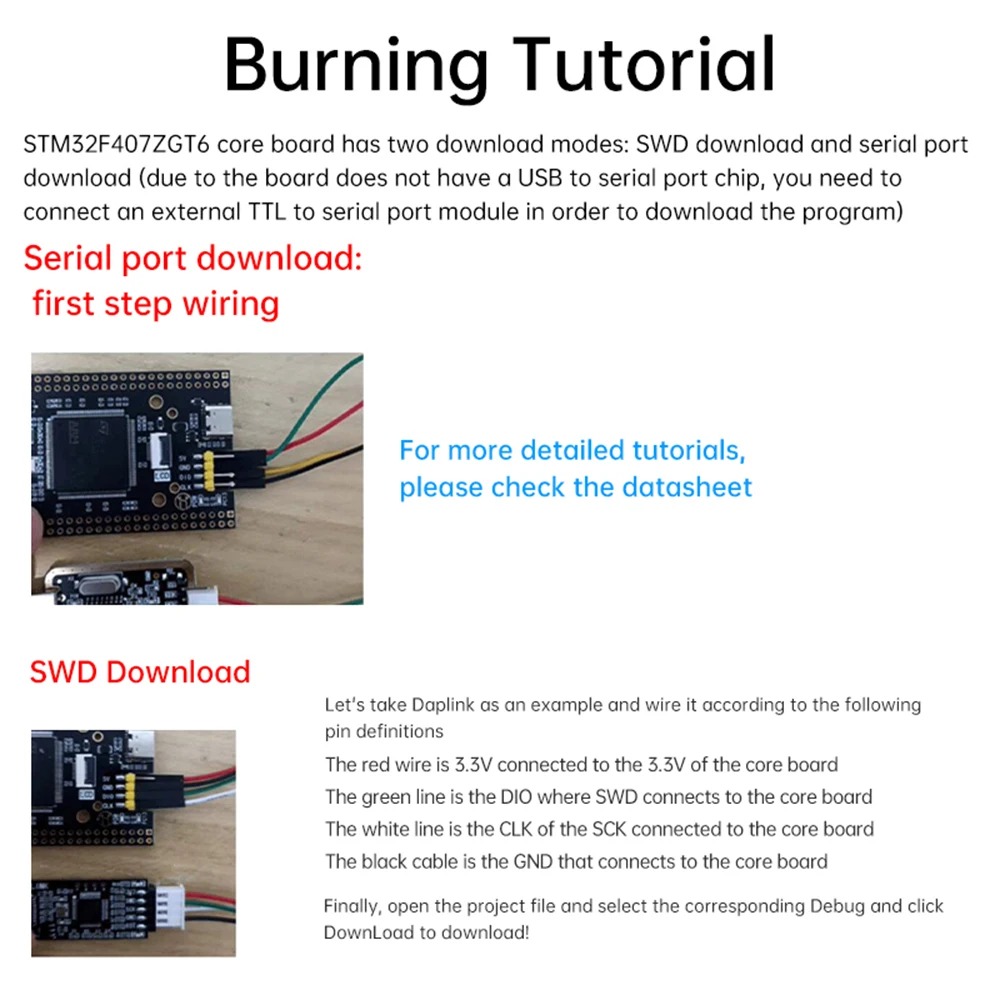

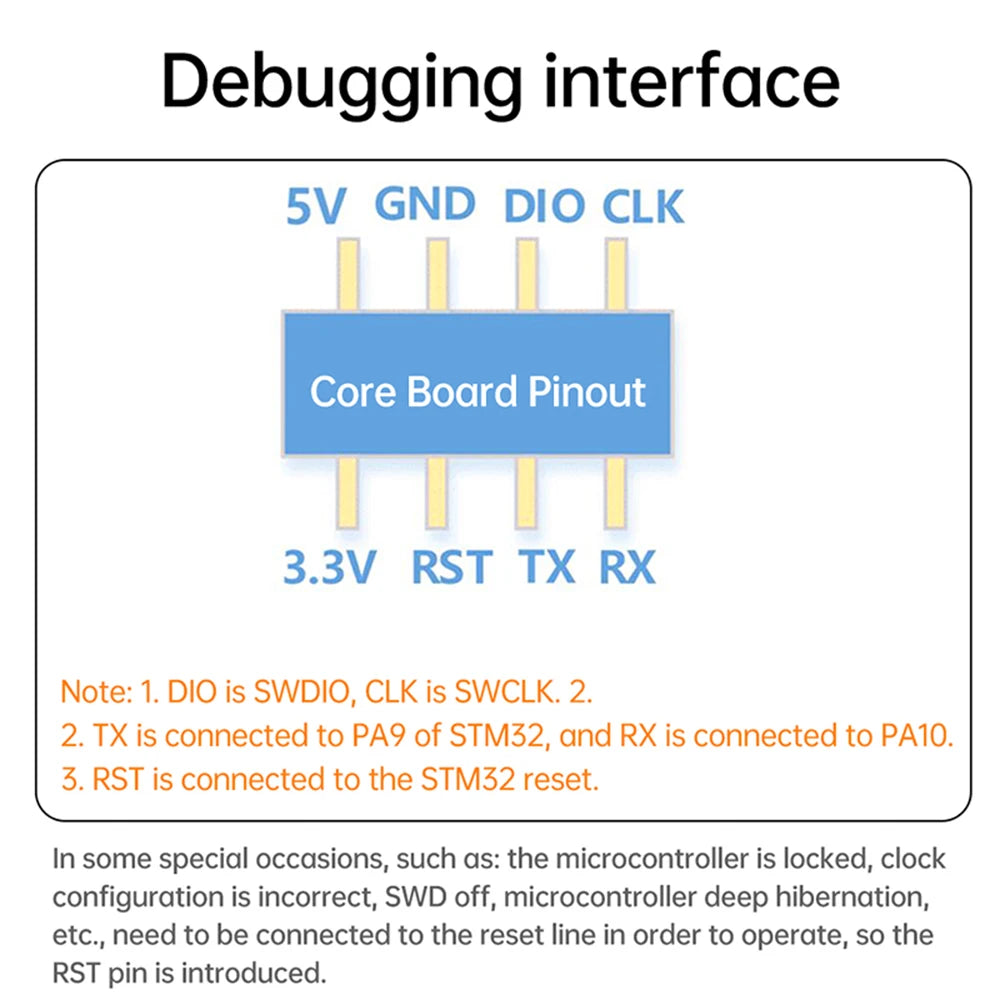

Connectors: SWD and serial port
Button: User button, booto button, reset button
IO pins: 108 IO pins
Working temperature:- 40~85°C

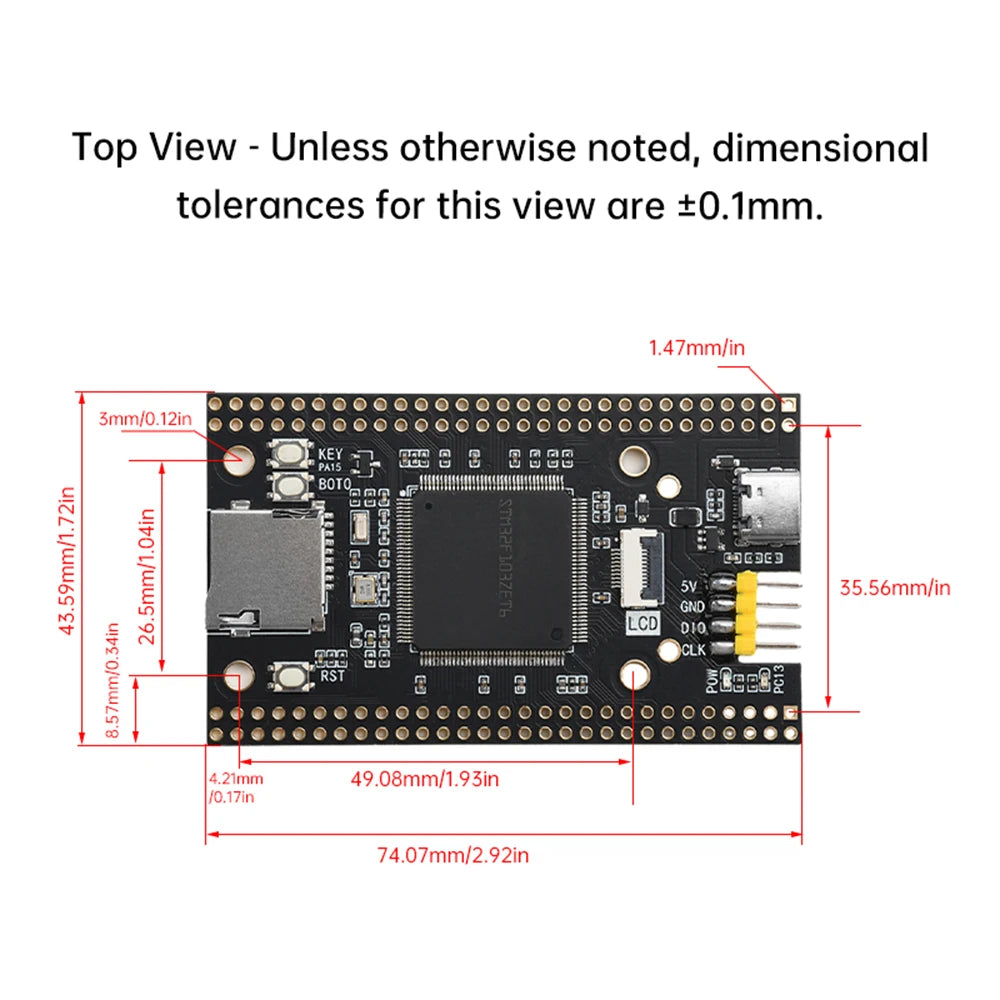

Size: 74.07mm * 43.59mm

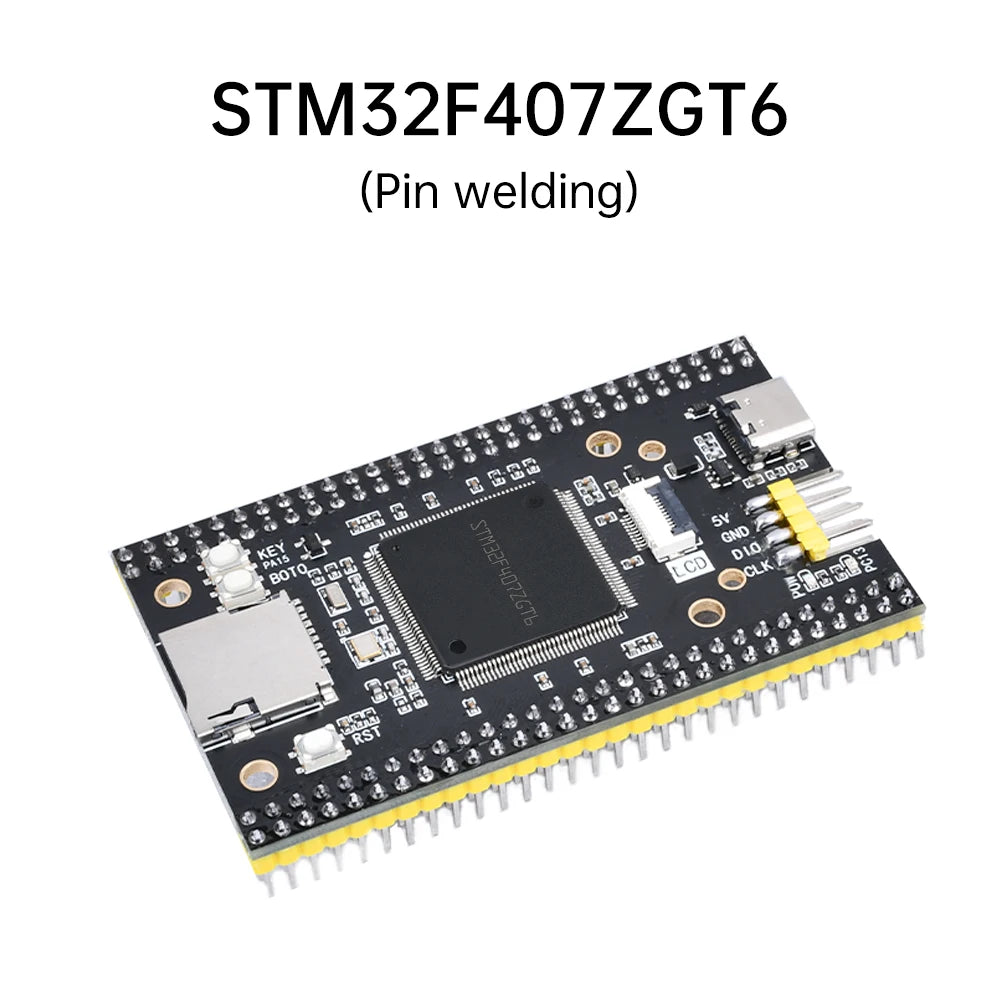

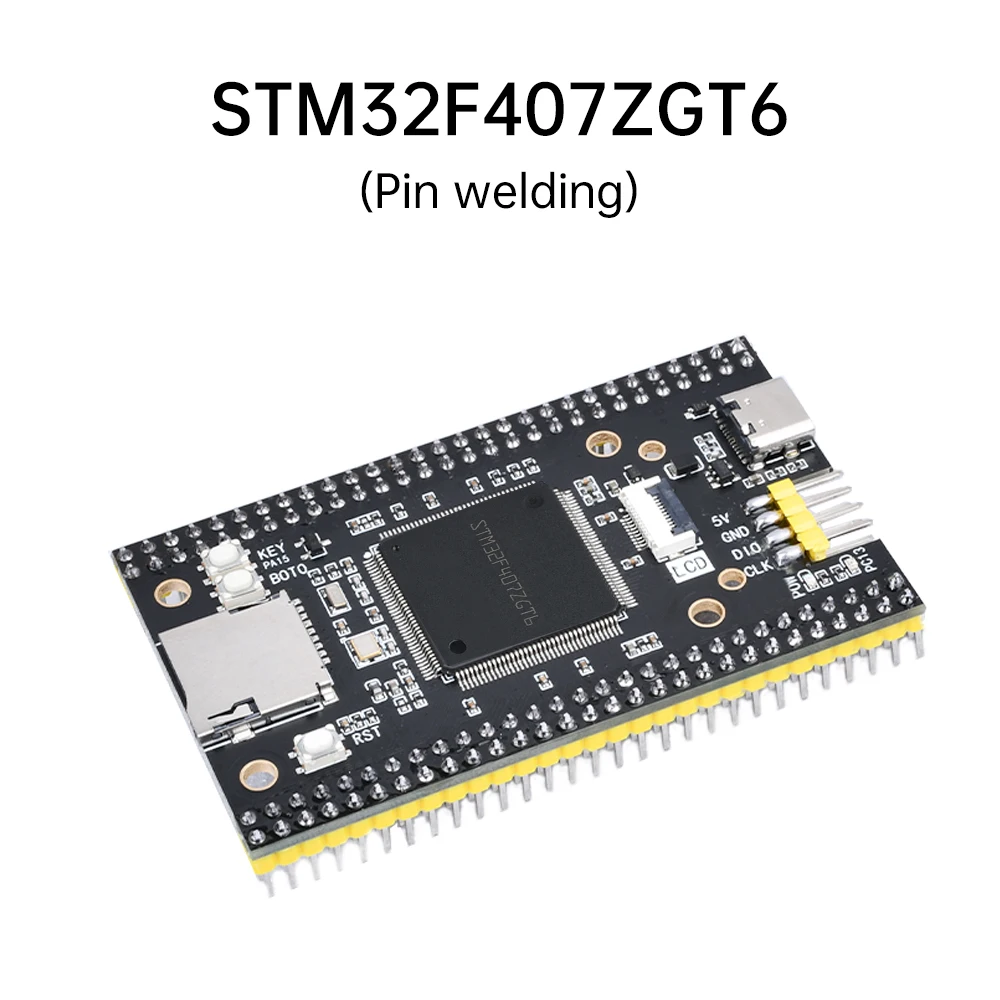

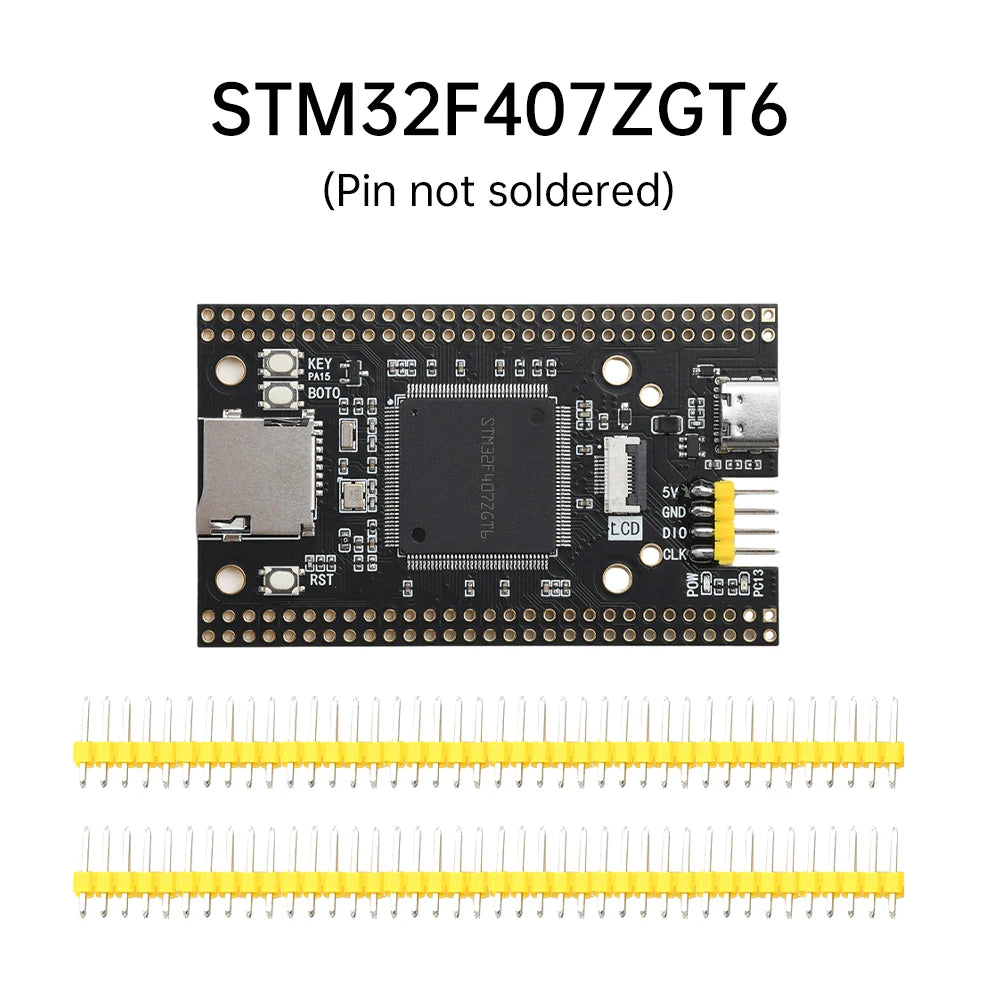

Style 2: STM32F407ZGT6

Product Introduction:
STM32H723ZGT6 is a high-performance, low-power microcontroller based on Arm@Cortex @-M7 core, with a clock frequency of up to 550MHz. This chip integrates digital signal processor (DSP) functionality, has floating point unit (FPU), and supports dual precision and single precision data processing. STM32H723ZGT6 provides up to 1MB of flash memory and 564KB of RAM, supports multiple external storage interfaces, and has rich enhanced I/O and peripherals. In addition, it also includes advanced clock management, reset, and power management functions, as well as multiple communication interfaces such as CAN, USB, SPI, and I2C. STM32H723ZGT6 is suitable for various application fields such as industrial automation, automotive electronics, and smart homes, and provides comprehensive development and support tools

Product parameters:
Main control chip: main frequency 550MHz, on-chip 1MB Flash, on-chip 564K SRAM

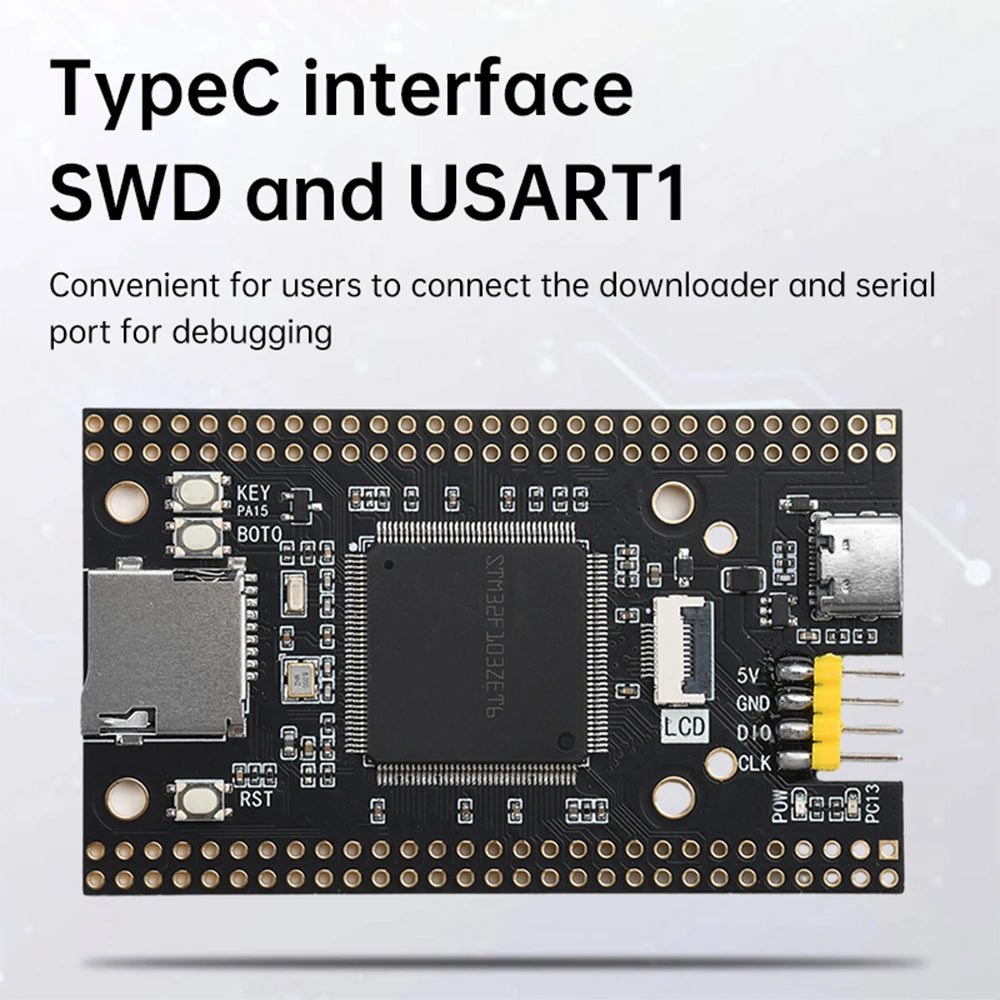

1 Typec interface
Storage Expansion: TF Card Interface
LCD interface: SPI LCD
Camera interface: Camera interface
IO pins: lead out 108 I0 ports
External expansion W25Q64, capacity 8M bytes
1 reset button
1 BOOT button
Working environment temperature:- 40~85°C
Size: 74.07mm * 43.59mm

Package Include:
1 * Development board
2 * 30P dual pin (non welded/welded pin can be selected)
