Stm32f4 Discovery Stm32f407 Cortex-m4 Development Board Module STM32H750VB Development Board STM32 Series Development Board

Stm32f4 Discovery Stm32f407 Cortex-m4 Development Board Module STM32H750VB Development Board STM32 Series Development Board

$132.62

$132.62 $0.00

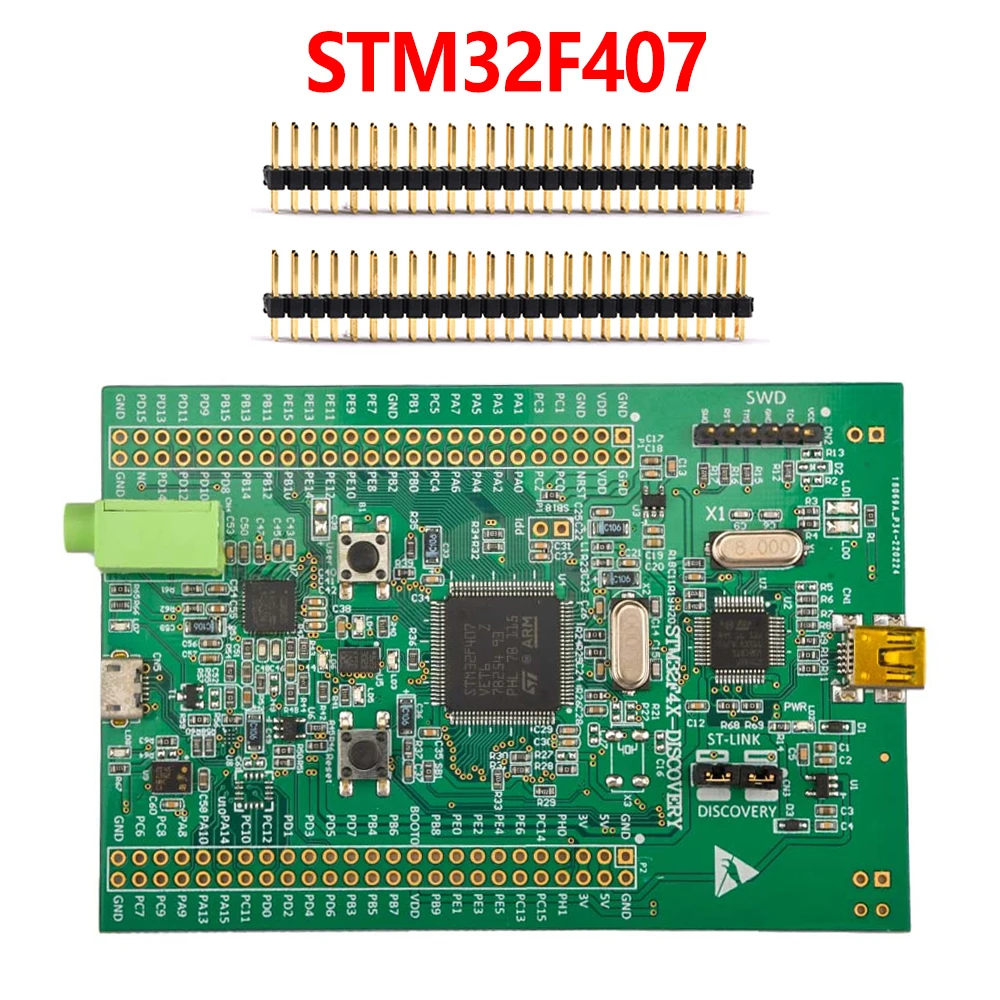

Color STM32H750VB STM32F407

Ships From United States Germany China Mainland Australia

Description

SPECIFICATIONS

Application: Development Module

Brand Name: Ziqqucu

Condition: New

Dissipation Power: Development Board

Model Number: STM32H750VB

Operating Temperature: Development Module

Origin: Mainland China

Package: Development

Supply Voltage: 5V

Type: Voltage Regulator

is_customized: Yes

Description:

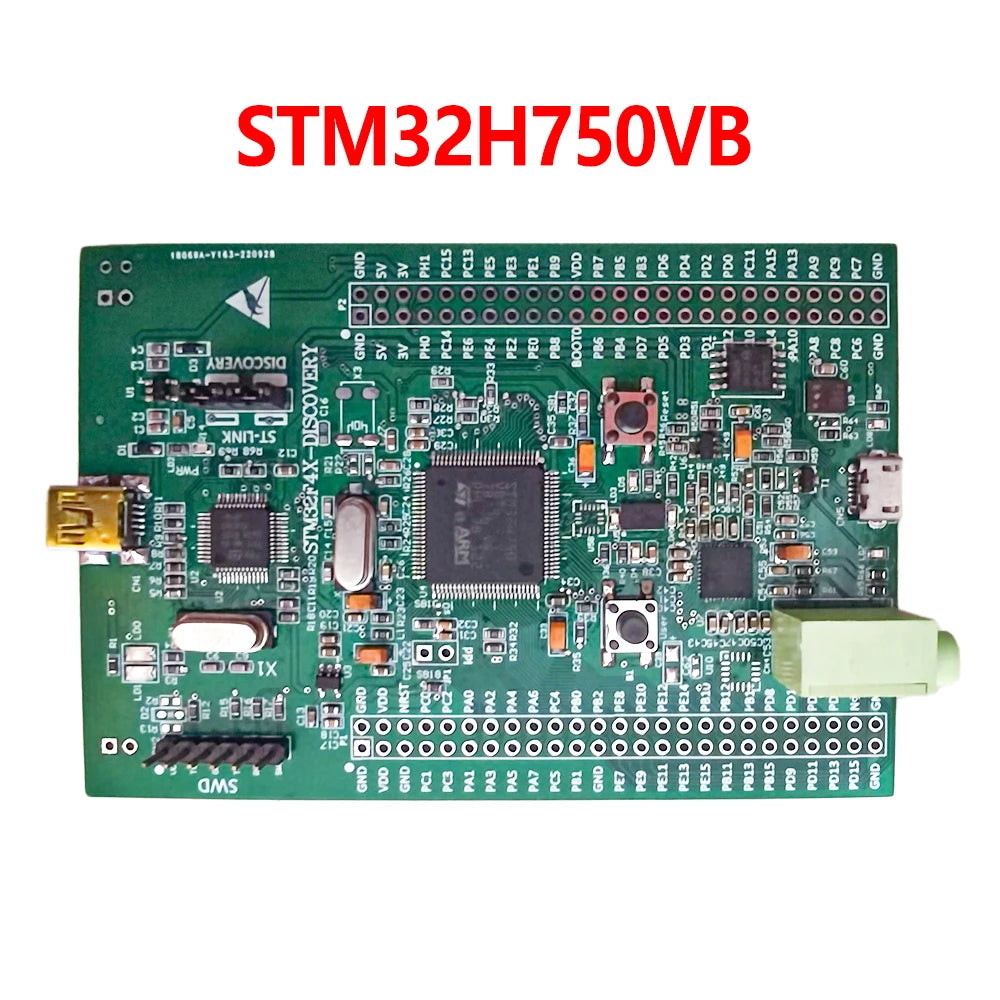

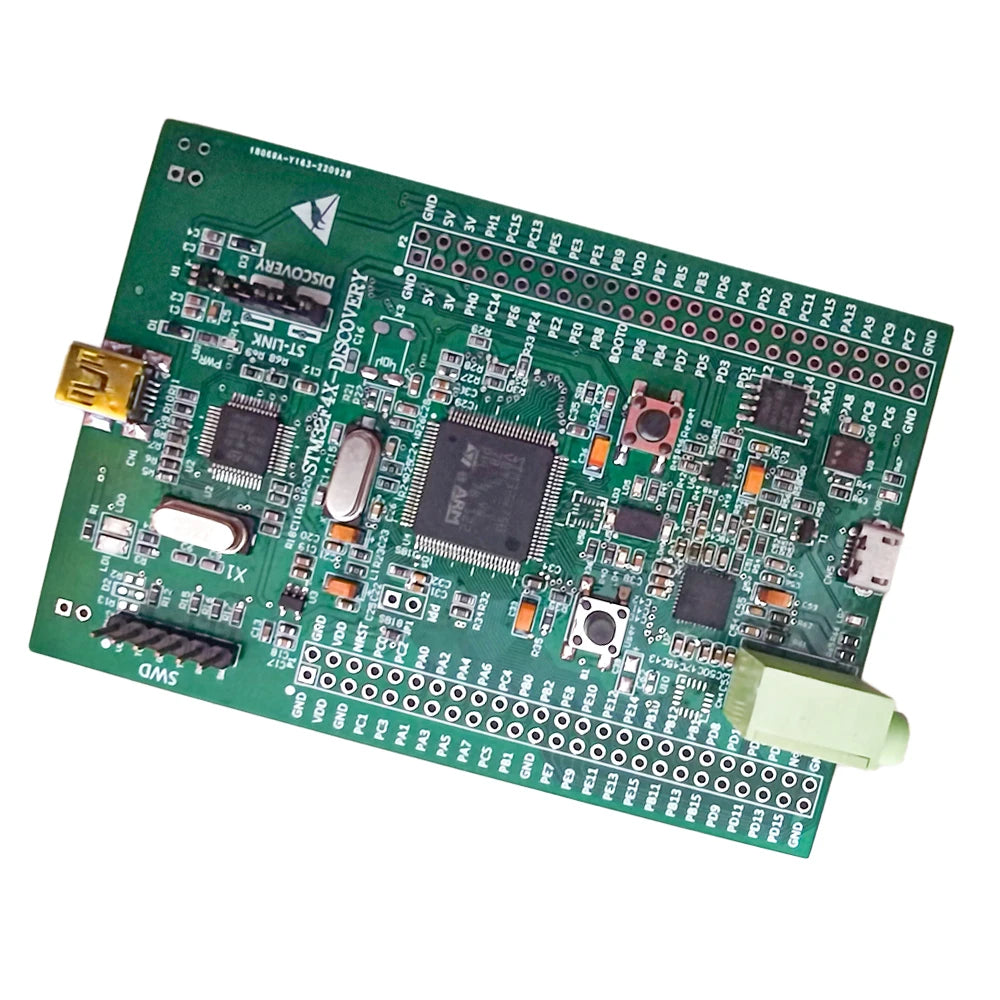

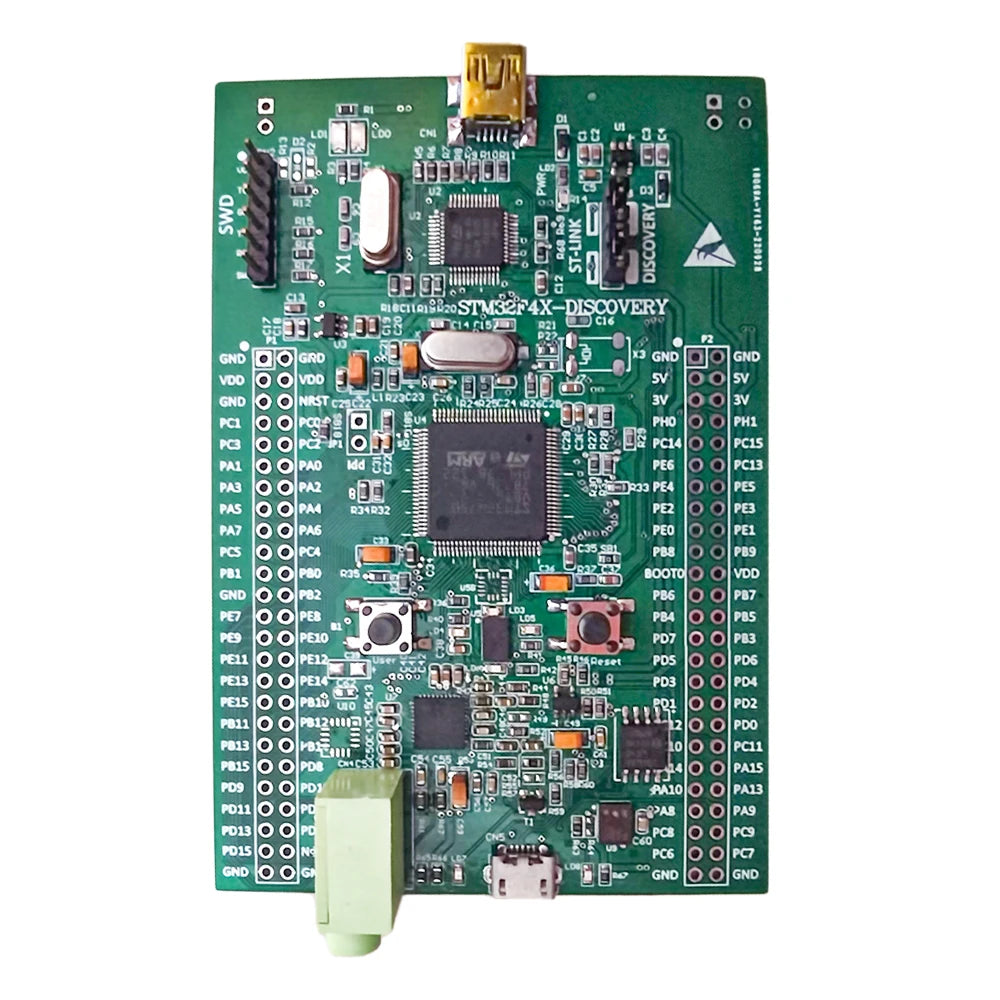

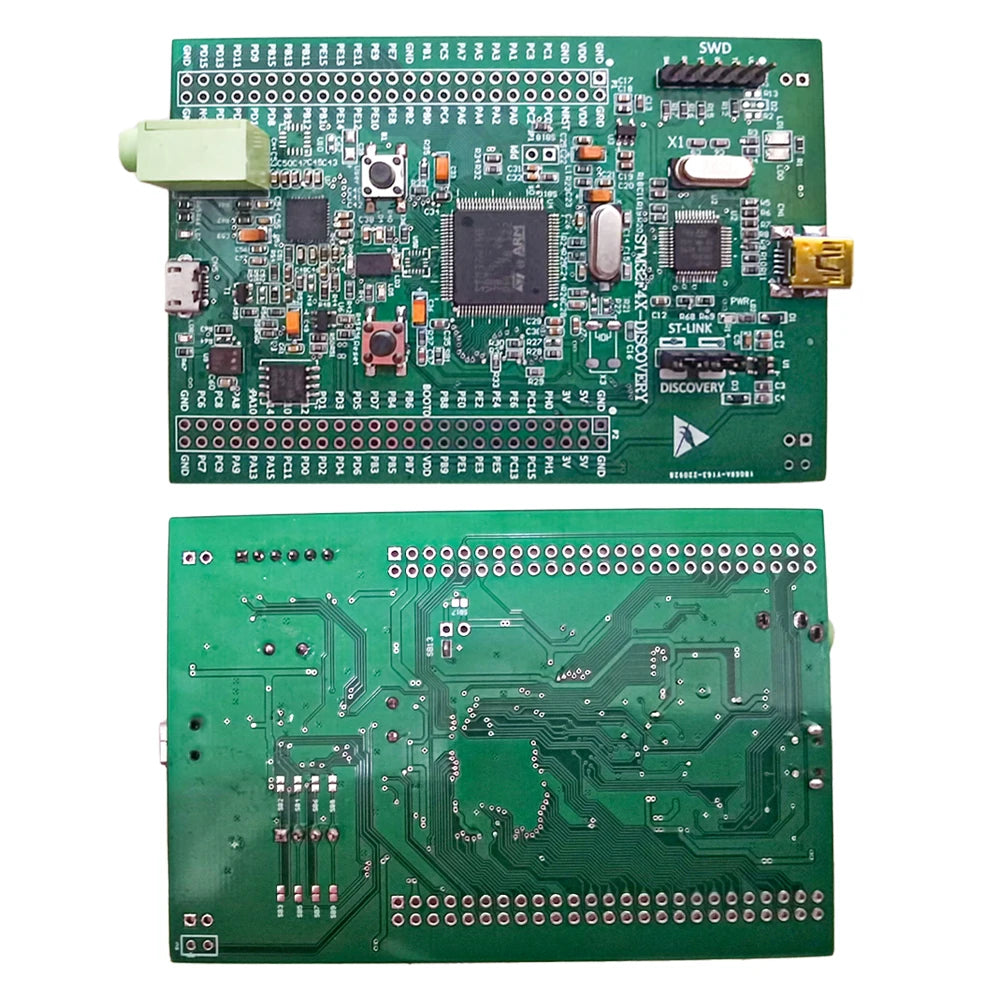

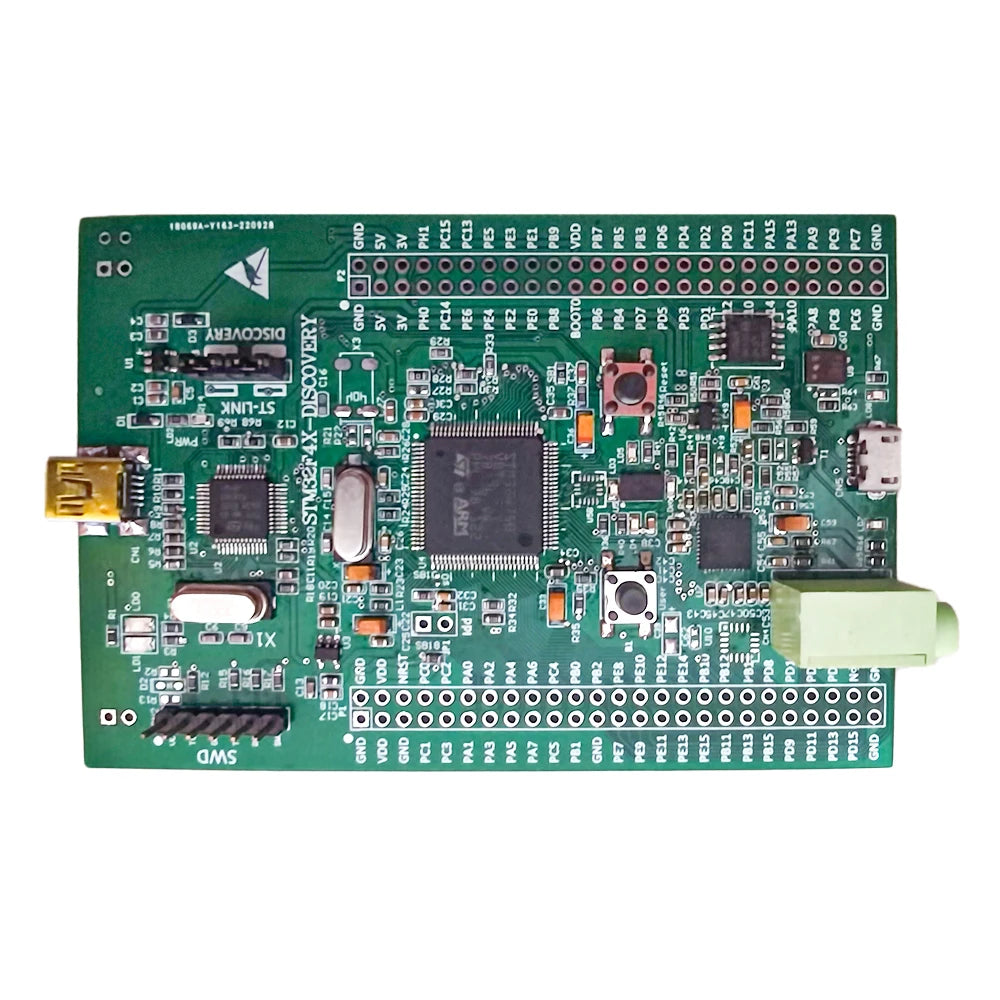

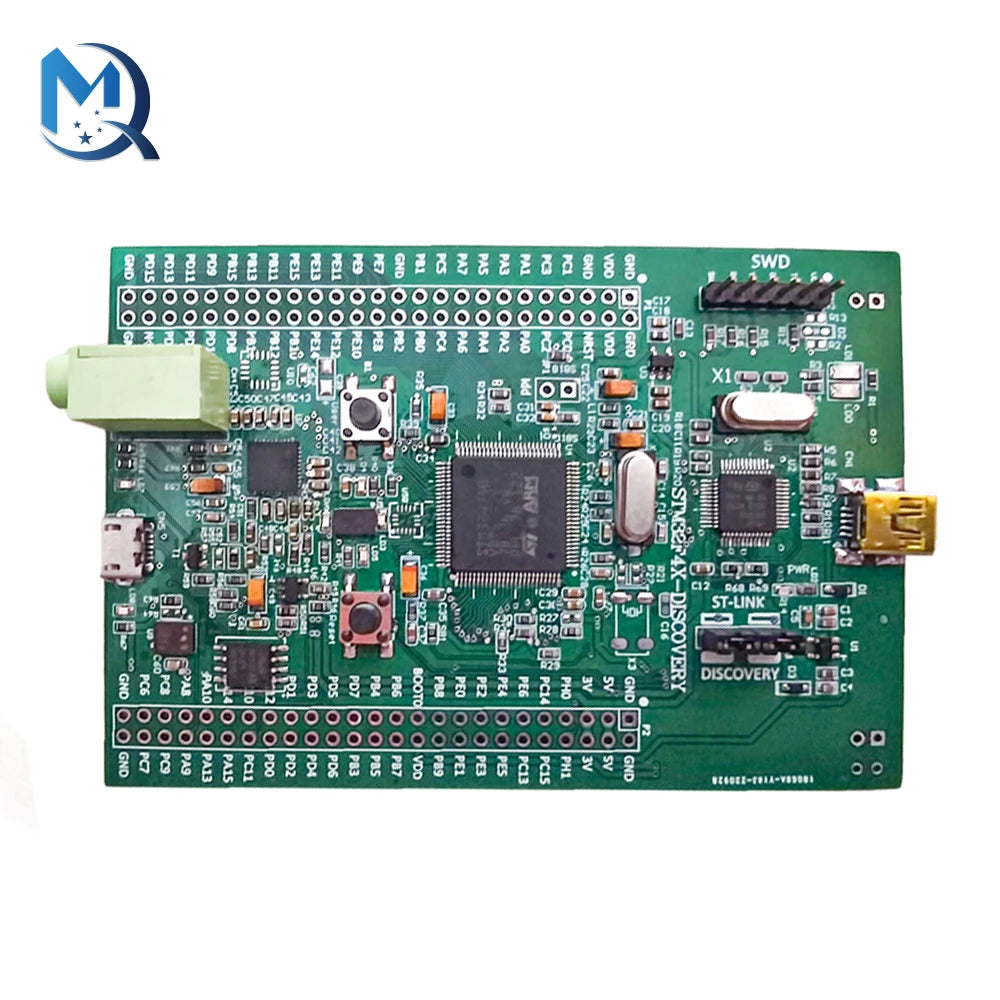

：The development board is designed based on STM32H750VBT. The development board also integrates ST-LINK/V2.1 simulation downloader (but only provides SWD interface), and adds acceleration sensor LIS3DH, digital microphone MP45DT02, speaker driver and a micro-AB type USB interface, ST provides a wealth of sample programs, allowing you to get started with STM32H7 series microcontrollers more quickly.

Features:

：STM32H750VBT microcontroller

：128KB FLASH, 1MB RAM

：100-pin, LQFP package

：The development board integrates the emulation debugger of ST-Link/V2 (but only provides SWD interface)

Indicator light:

：LD1: USB communication indicator

：LD2: 3.3V power indicator

：LD3: Application indicator

：LD4: Application indicator

：LD5: Application indicator

：LD6: Application indicator

：LD7: USB OTG LED (VBus)

：LD8: USB OTG LED (over-current)

：Keys: Reset button/Apply button

Power supply:

：Power 5V via USB

：External power supply 5V and 3V

：USB OTG FS: mini-AB

Sensor:

：LIS3DH (ST MEMS motion sensor, 3-axis digital output accelerometer)

：MP45DT02 (ST MEMS audio sensor, omni-directional digital microphone)

Audio driver:

：CS42L52 (audio DAC with integrated class D speaker driver)

：QSPI flash: W25Q128 (128M FLASH), which leads out all IO ports regularly, which is convenient for related experiments

Package Contents:

：Module X1

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
