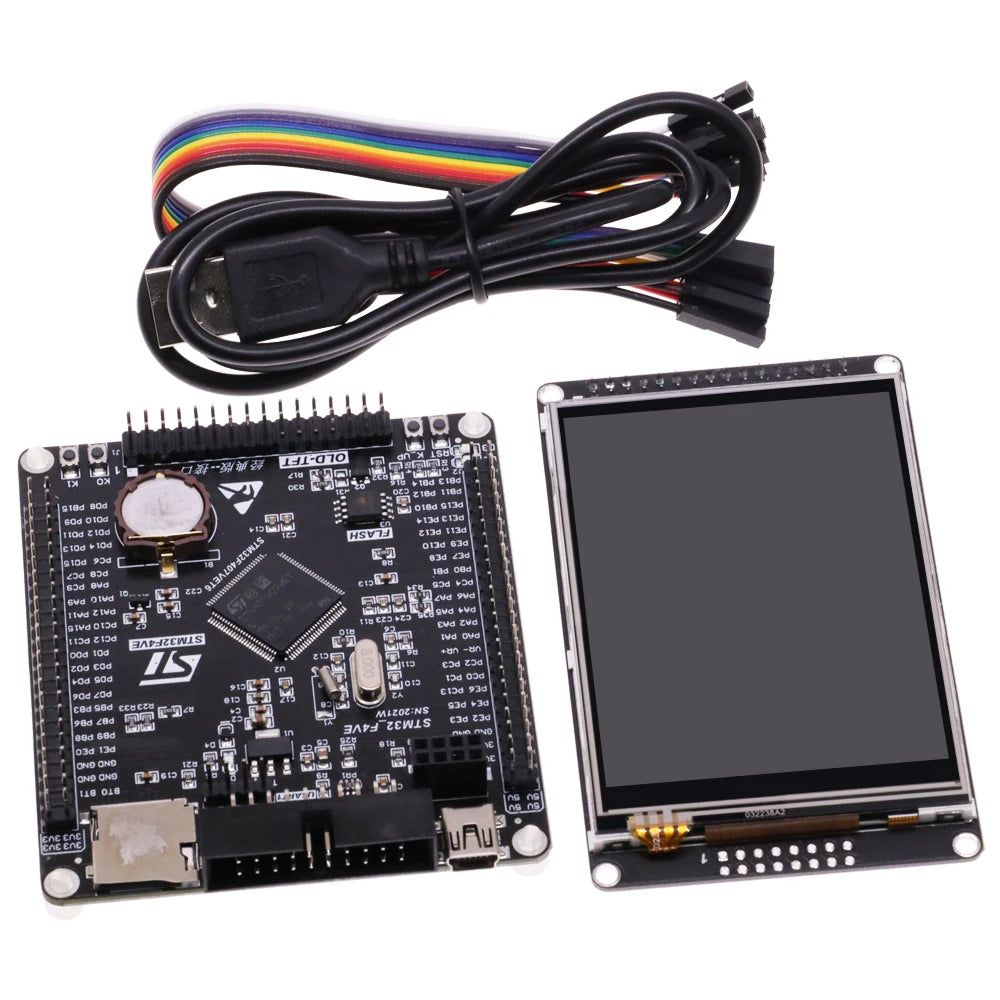

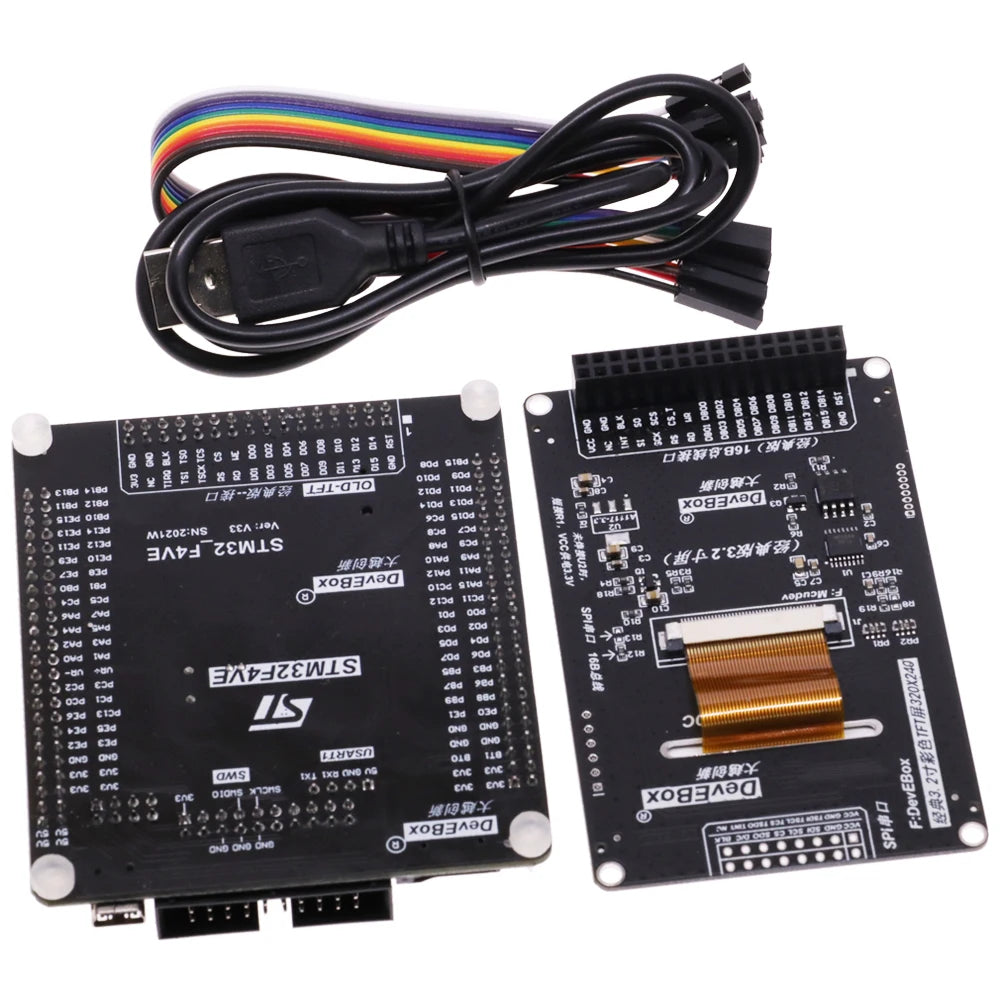

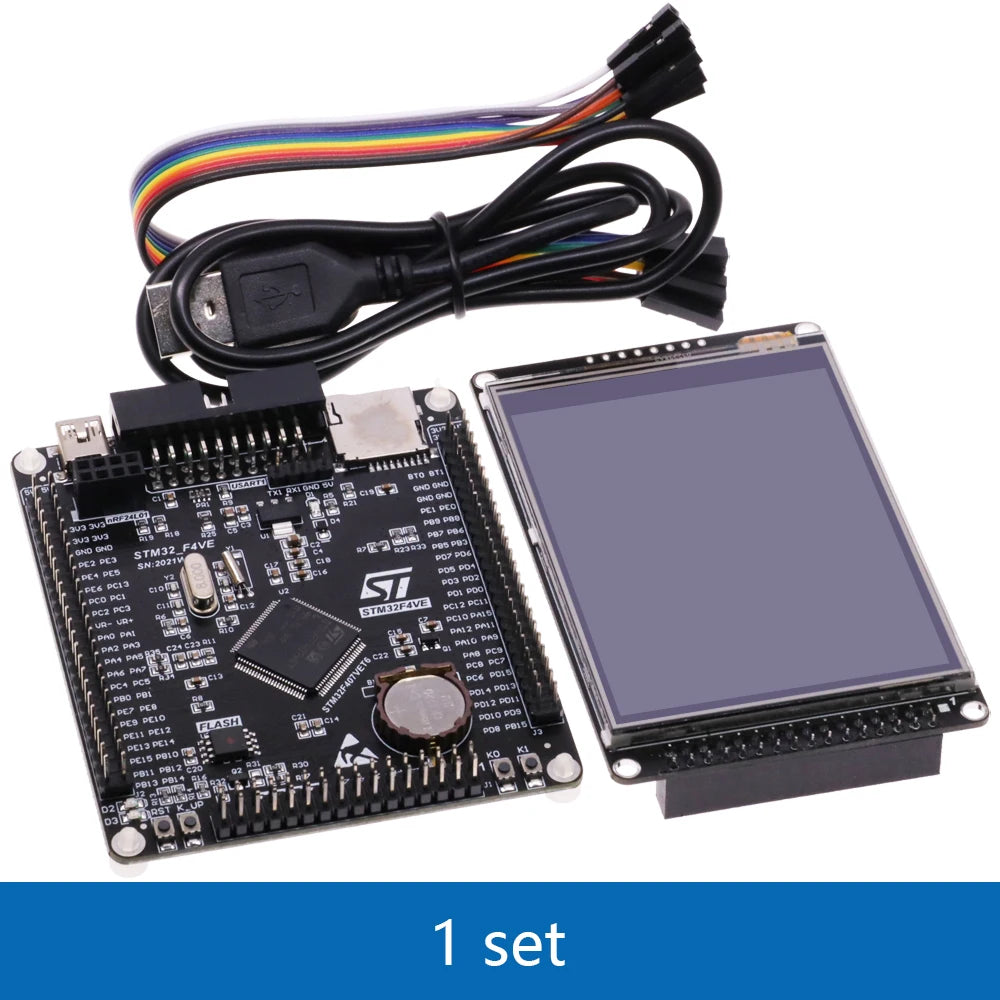

STM32F407VET6 Development Board Cortex-M4 STM32 Minimum System Learning Board ARM Core Board +3.2 Inch LCD TFT With Touch Screen
STM32F407VET6
$70.40
Sale price
$70.40
Regular price
$0.00
Skip to product information
STM32F407VET6 Development Board Cortex-M4 STM32 Minimum System Learning Board ARM Core Board +3.2 Inch LCD TFT With Touch Screen
$70.40
Sale price
$70.40
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Roarkit
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Voltage Regulator

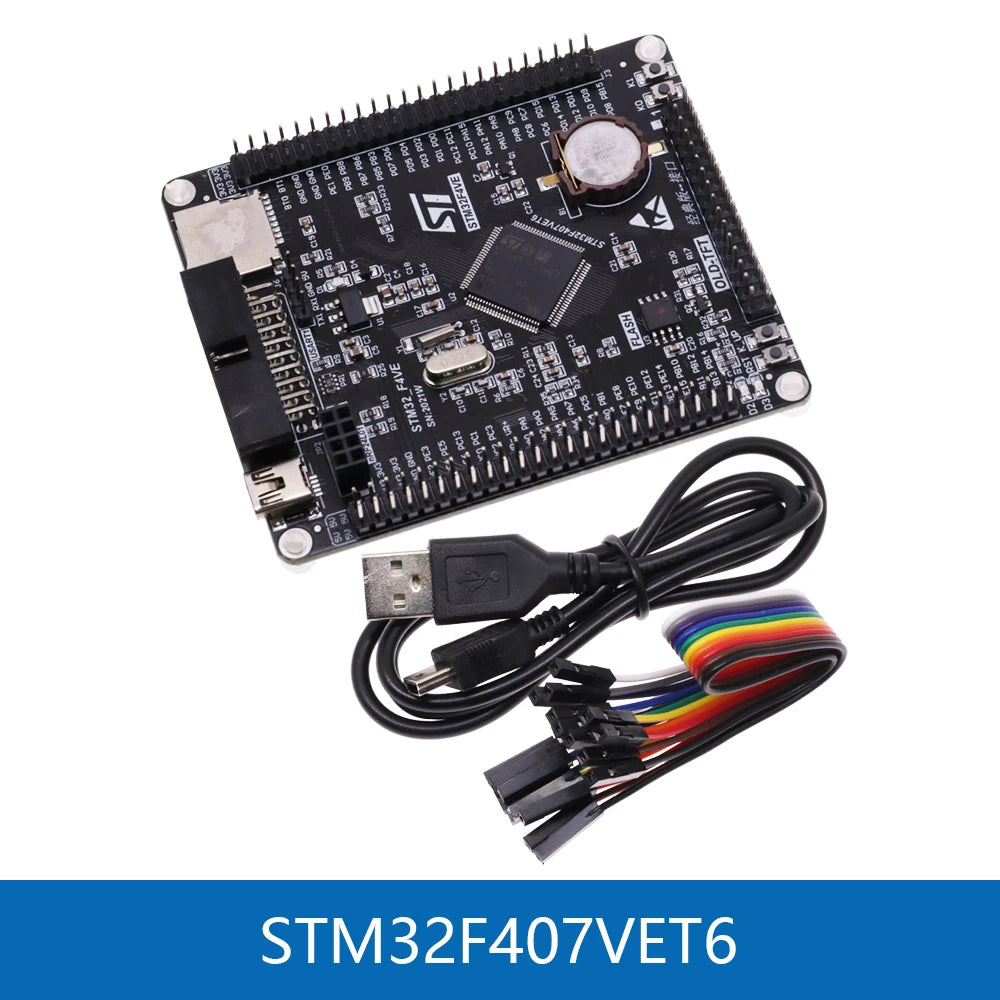

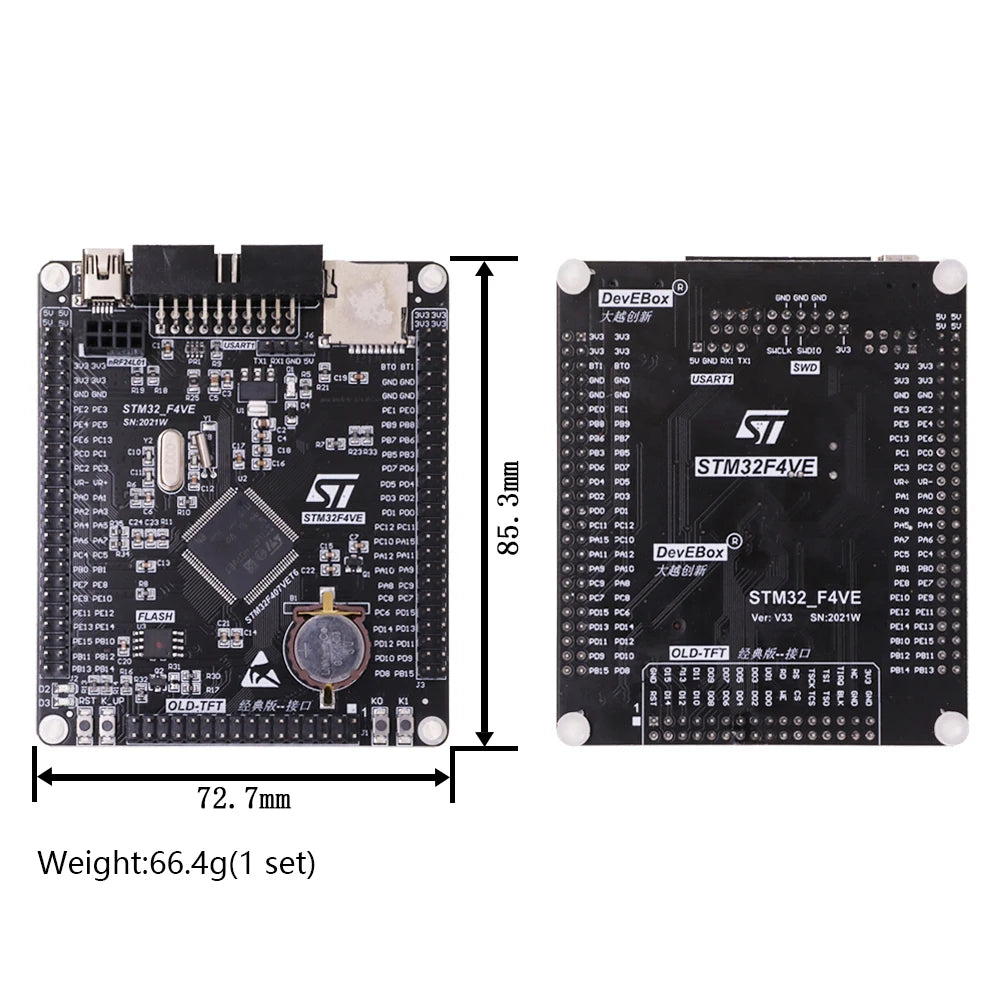

STM32F407VET6 Board
STM32F407VET6 chip main parameters：
Kernel: Cortex-M4 32-bit RISC;
Features: single-cycle DSP instructions
Operating frequency: 168MHz
210DMIPS / 1025 DMIPS / MHZ
Operating voltage: 1.8-3.6V
Package: LQFP144
Storage resources: 512kB Flash/192 + 4kb SRAM
Resources:
3 X SPI, 3 X USART
2 X UART
2 X I2S, 3 X I2C
1 X FSMC, 1 X SDIO, 2 X CAN
1 X USB 2.0 FS / HS controller (with dedicated DMA)
1 X USB HS ULPI (for external USB HS PHY)
1 X 10/100 Ethernet for MAC
1 X 8 to 12-bit parallel camera interface
3 X AD (12 Wei, 1us, sharing 24), 2 X DA (12-bit)
