SPECIFICATIONS

Application: Computer

Brand Name: EC Buying

Condition: New

Dissipation Power: 1.8-3.6V

High-concerned chemical: none

Operating Temperature: -40-+85℃

Origin: Mainland China

Package: module

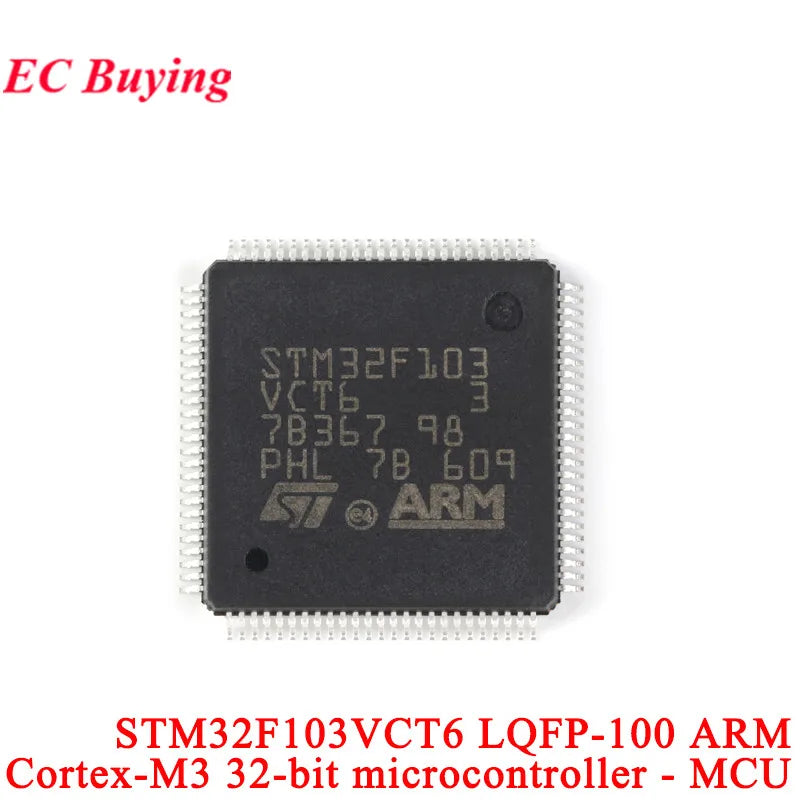

STM32F103VCT6 LQFP-100: ARM Cortex-M3 32-bit microcontroller - MCU

STM32F407VET6 STM32F407VGT6 STM32 F407: Single Chip System Core Learning Development Board Module

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: 1.8-3.6V

Type: Logic ICs

Working frequency: 168MHZ, 210DMIPS/1.25DMIPS/MHz

is_customized: Yes

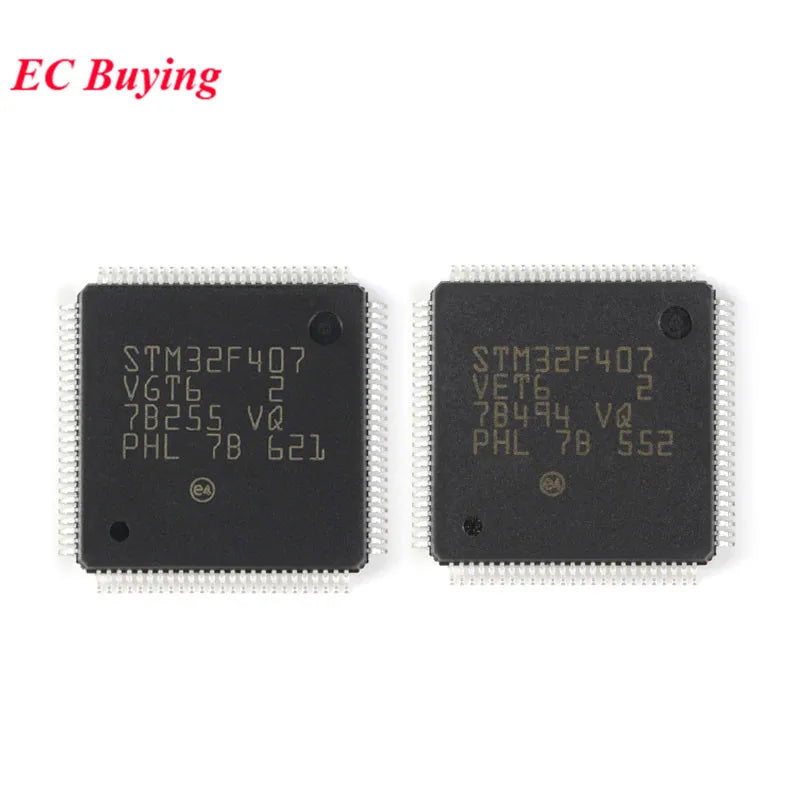

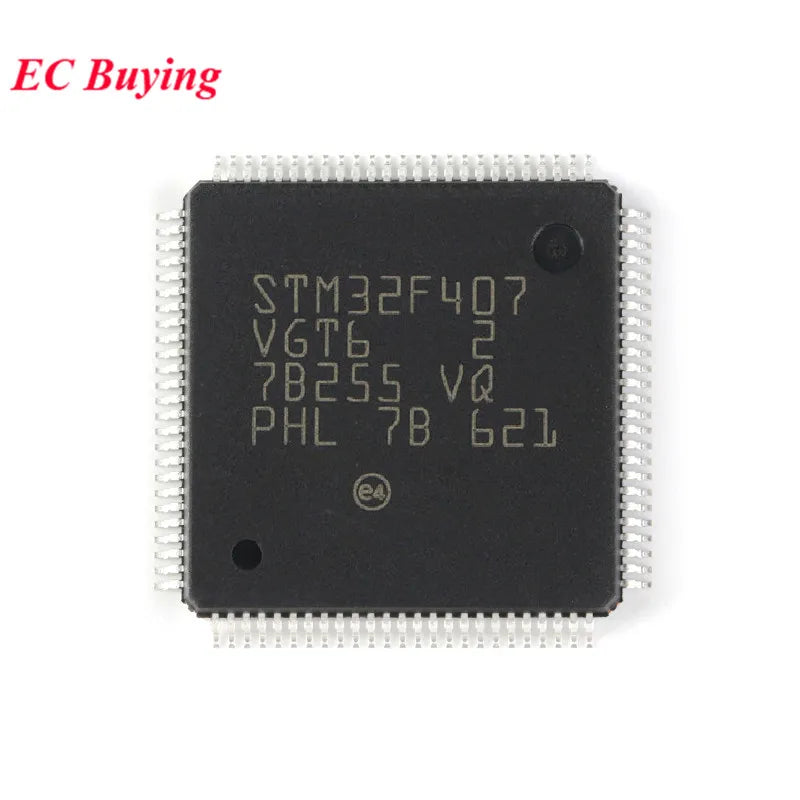

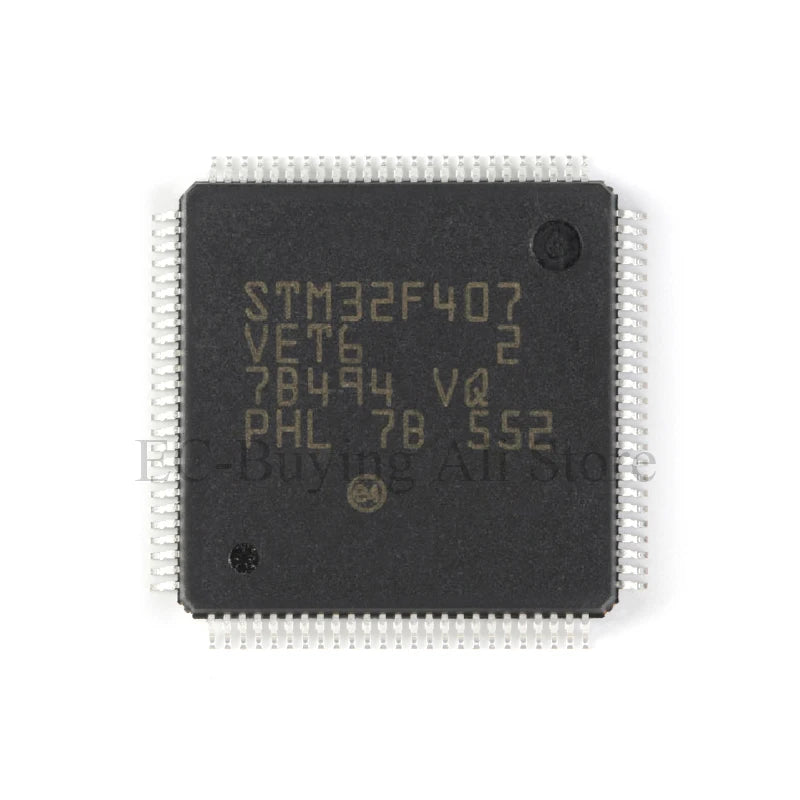

Note: STM32F407VET6 chip, we prepare it for customers who need it. If you don't need it, please don't place an order. No refund will be made if the selection is wrong. Thanks for your understanding!

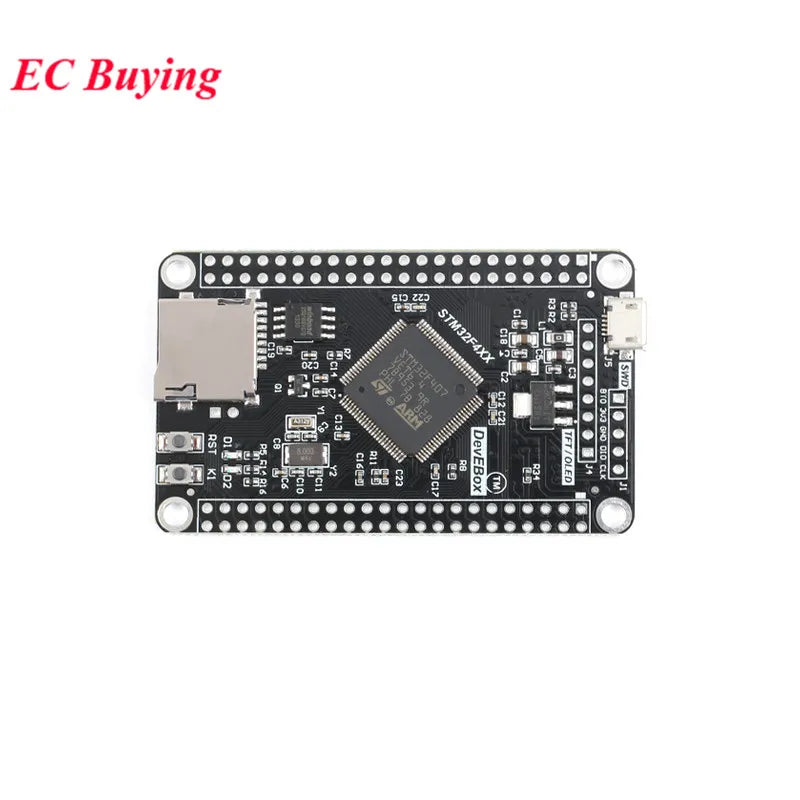

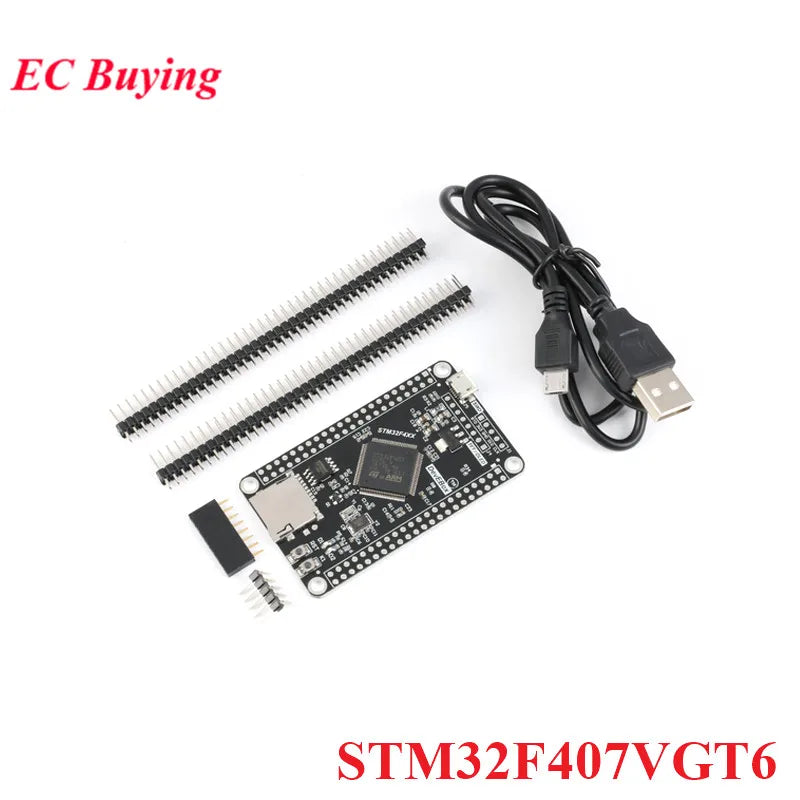

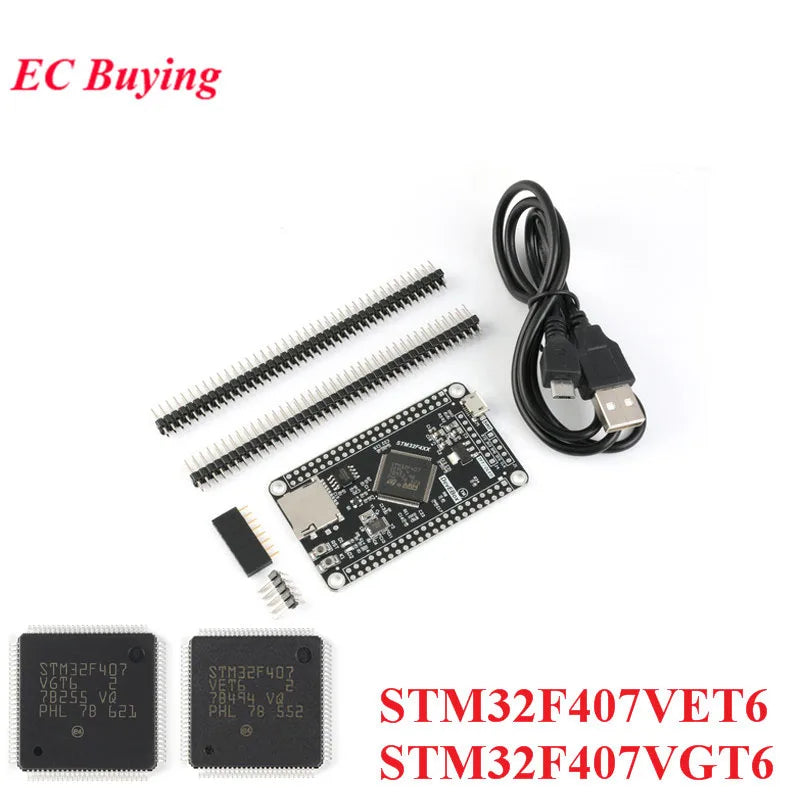

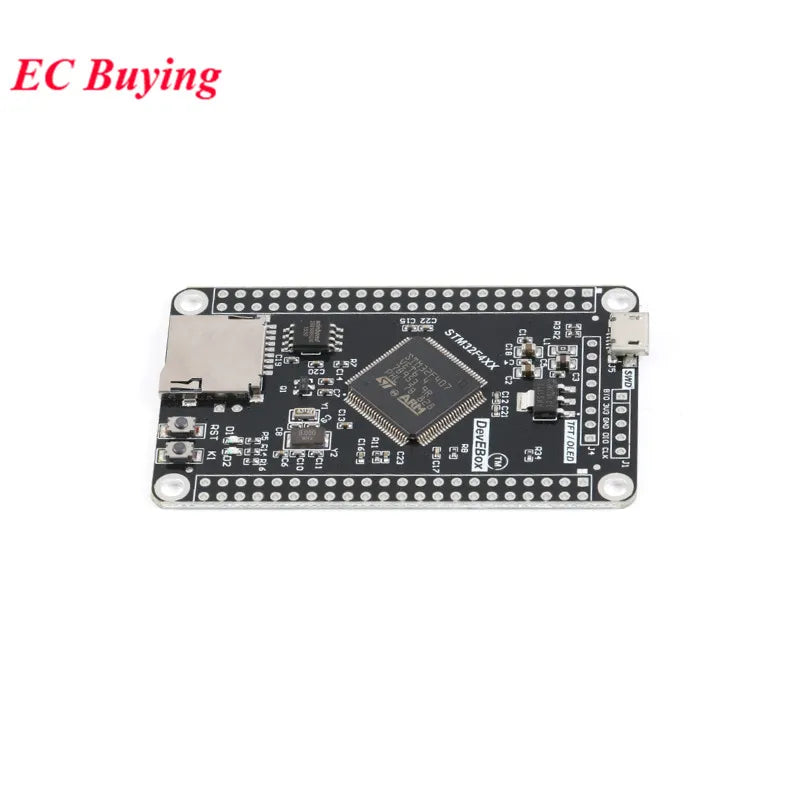

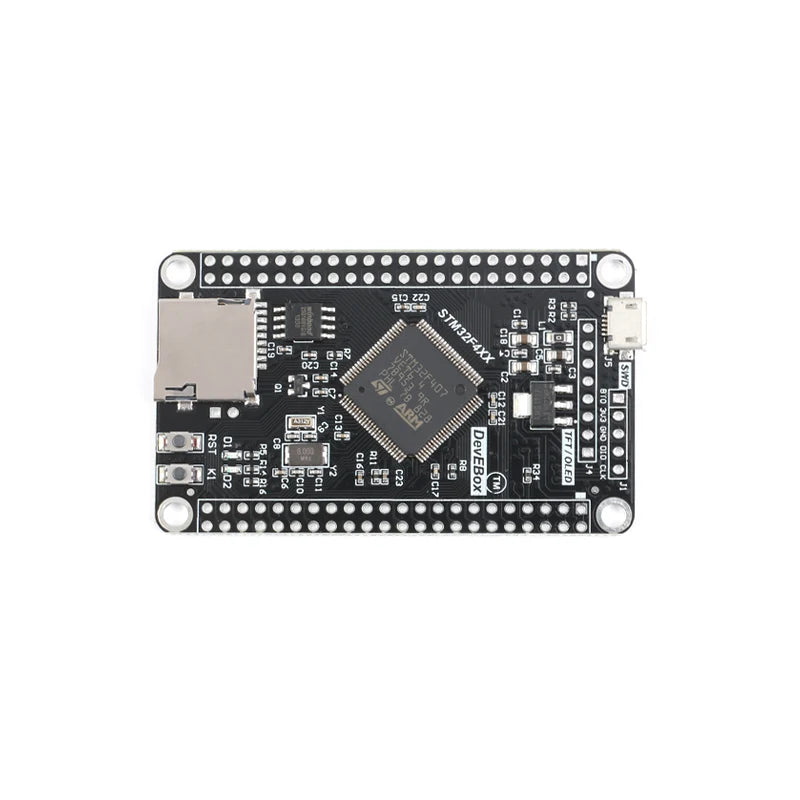

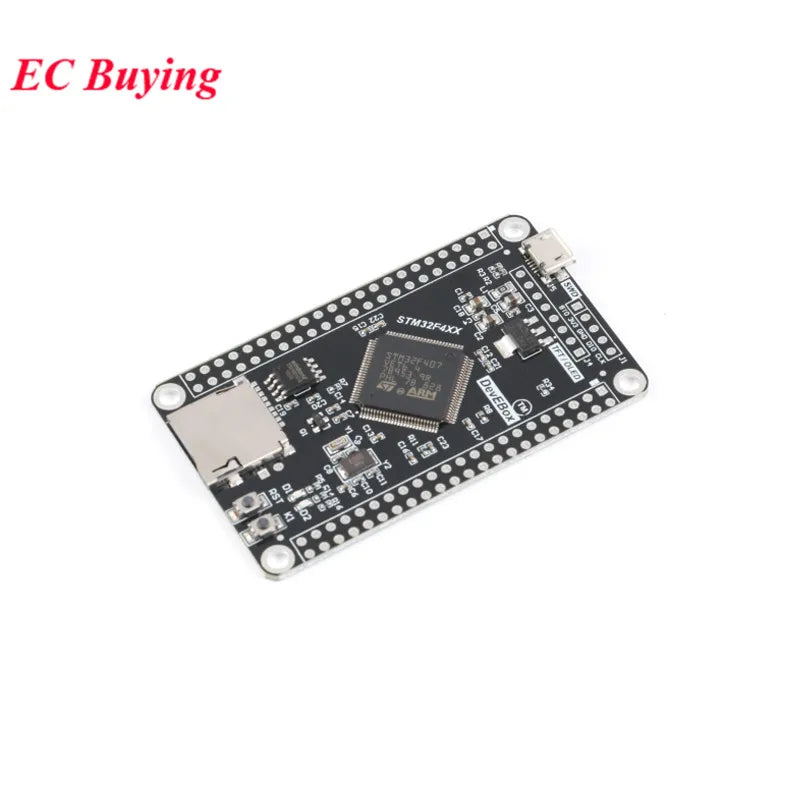

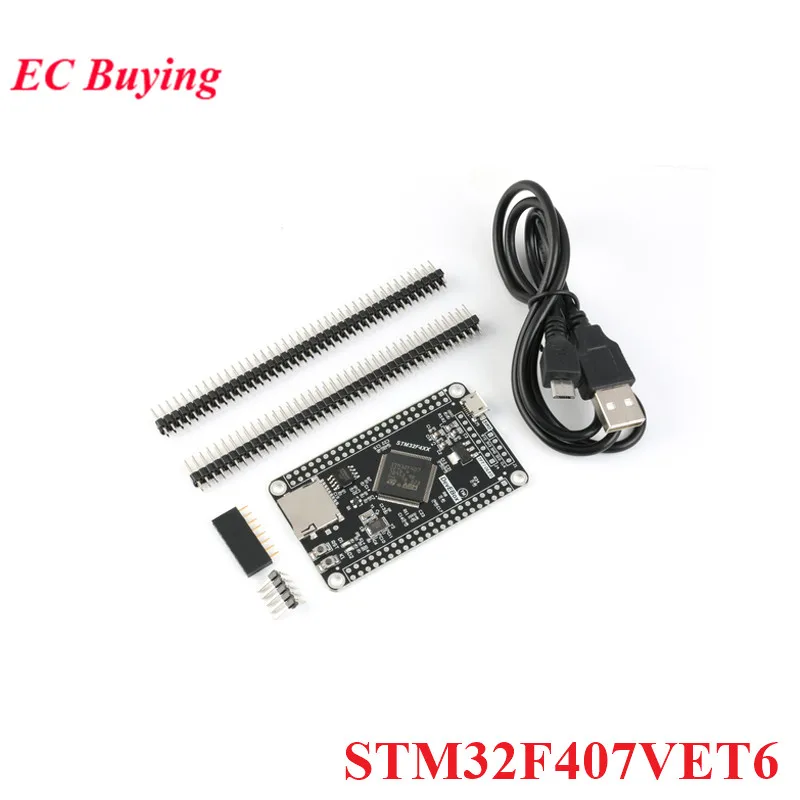

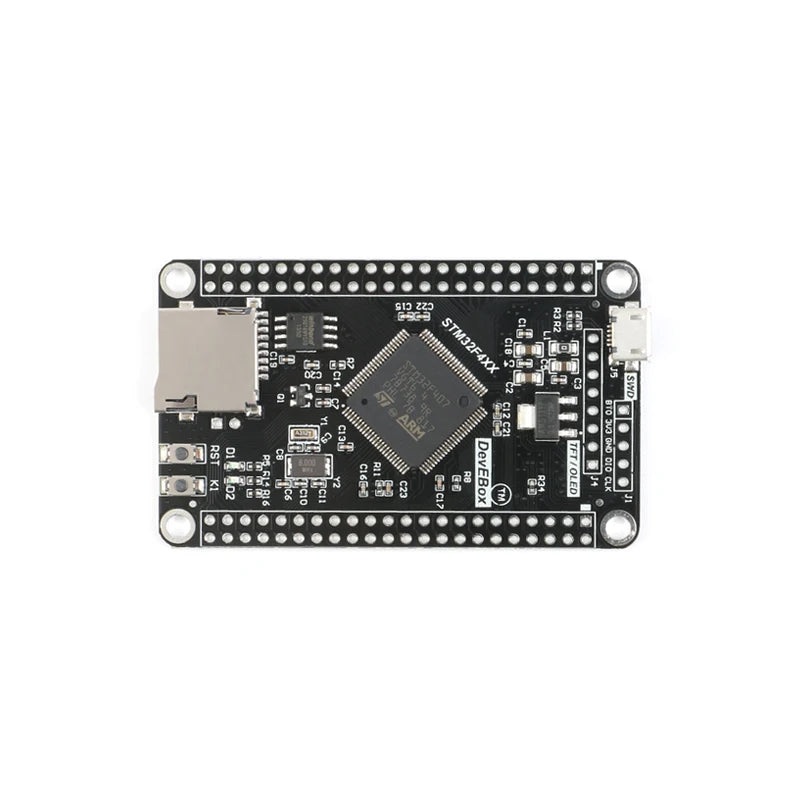

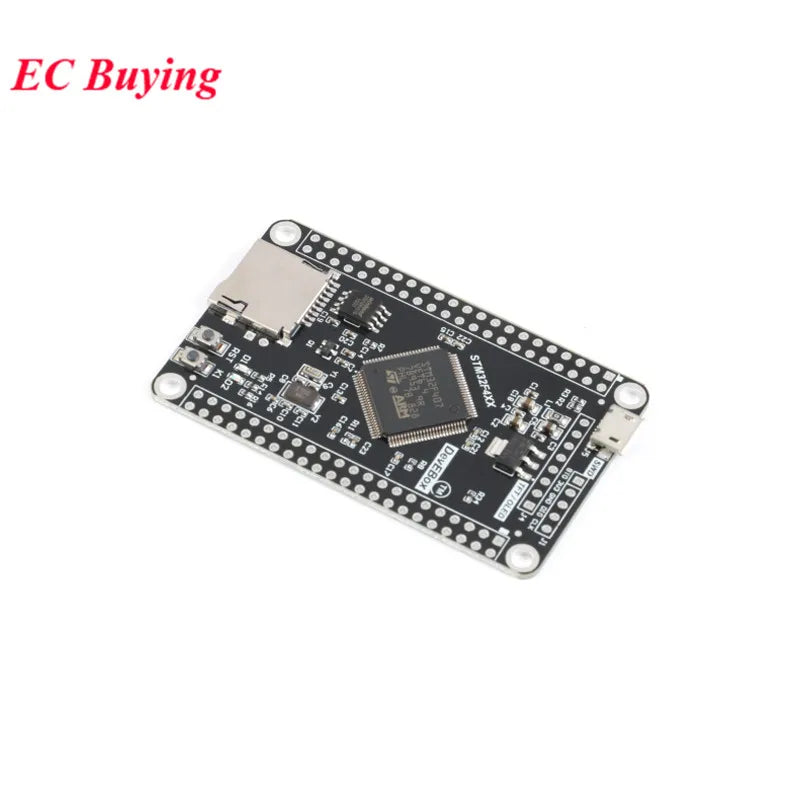

STM32F407VGT6  STM32F407VET6 development board F407 microcontroller learning board STM32 system board

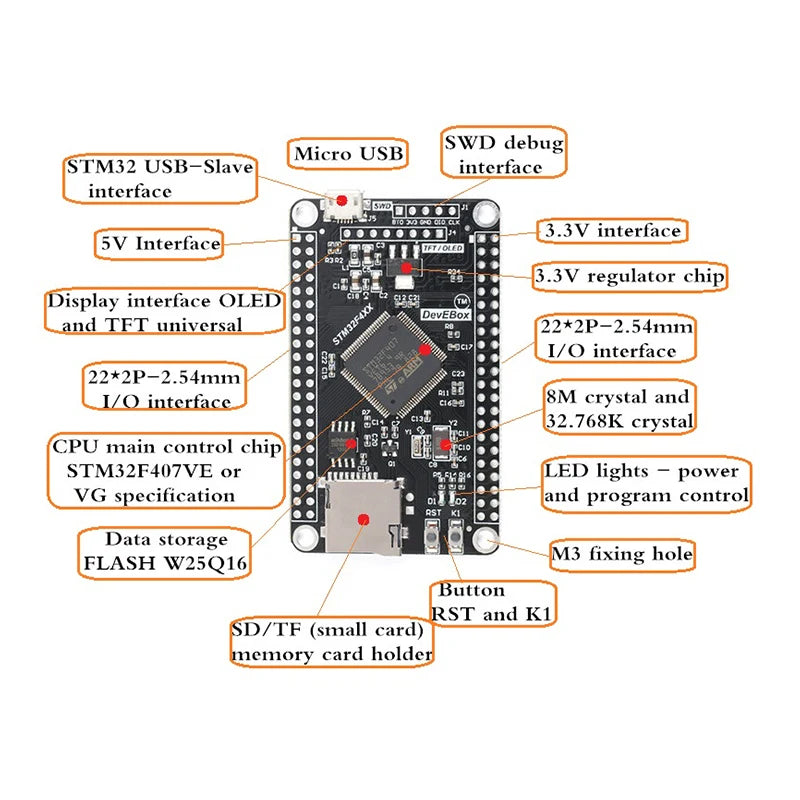

Product Features:

• USB interface support download (DFU download, not serial port)

• OLED interface - plug and play support 0.96 inch OLED

• TFT liquid crystal interface

• Connect 1.44 inch full color LCD

• Connect 1.8 inch full color LCD

• Data storage: W25Q16

• High speed crystal oscillator 8MHz

• Low frequency crystal: 32.768K

• Power + programmable LED lights

• User and reset button

• All CPU-IO leads 2.54 integer pitch pins

Parameter:

• Kernel: Cortex-M4 32 bit RISC

• Features: Single-cycle DSP instructions

• Operating frequency: 168MHZ, 210DMIPS/1.25DMIPS/MHz

• Working voltage: 1.8-3.6V

• Package: LQFP100

• Storage resource: 512KB Flash (VG specification is 1M capacity)

192+4KB SRAM

• Resources: 3*SPI, 3*USART

2*UART, 2*I2S, 3*12C

1*FSMC, 1*SDIO, 2*CAN;

1*USB 2.0 FS/HS controller (with dedicated DMA)

1*USB HS ULPI (for external USB HS PHY)

1*10/100Ethemet MAC

1*8 to 12-bit parallel camera interrace

3*AD (12-bit, 1us, time-sharing 24), 2*DA (12-bit)
