STM32F407VET6 STM32F407VGT6 STM32 System Core Board STM32F407 Development Board F407 Single-Chip Learning Board
STM32F407VGT6 1024K
$71.73
Sale price
$71.73
Regular price
$0.00
Skip to product information
STM32F407VET6 STM32F407VGT6 STM32 System Core Board STM32F407 Development Board F407 Single-Chip Learning Board
$71.73
Sale price
$71.73
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: SZYTF
Choice: yes
Condition: New
Dissipation Power: N/A
High-concerned chemical: none
Operating Temperature: N/A
Origin: Mainland China
Supply Voltage: N/A
Type: Module
is_customized: Yes
semi_Choice: yes

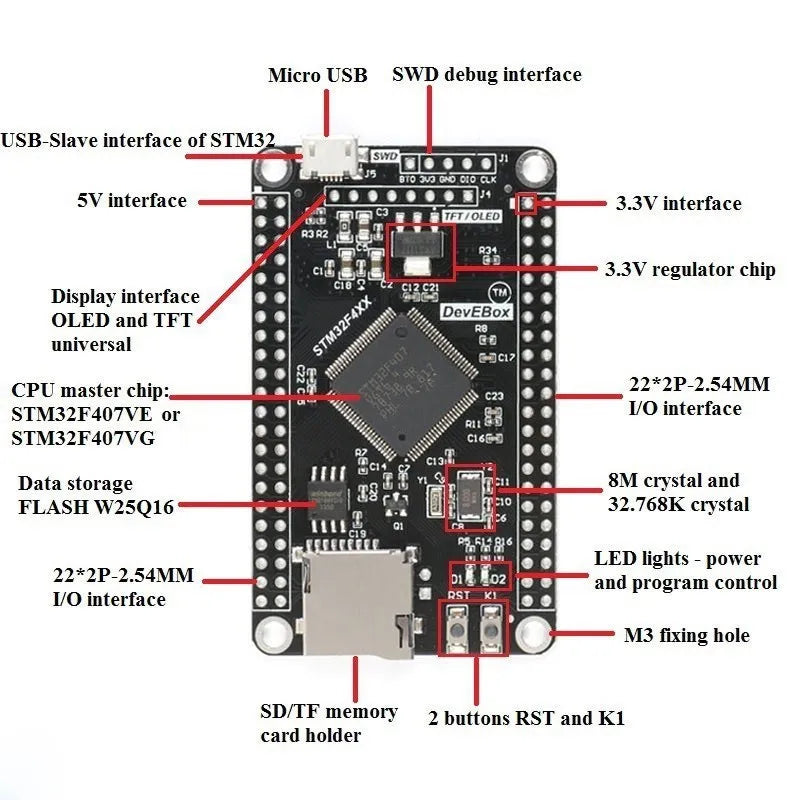

Product Features
USB interface support download (DFU download, not serial port
OLED interface - plug and play support 0.96 inch OLED
TFT liquid crystal interface
Connect 1.44 inch full color LCD
Connect 1.8 inch full color LCD
Data storage: W25Q16
High speed crystal oscillator 8MHz
Low frequency crystal: 32.768K
Power + programmable LED lights
User and reset button
All CPU-IO leads 2.54 integer pitch pins
Chip Main Parameters (STM32F407VET6/STM32F407VGT6)
Core: Cortex-M4 32-bit RISC;
Features: Single-cycle DSP instructions;
Operating frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz;
Working voltage: 1.8V-3.6V;
Packing: LQFP100;
Storage resources: 512kB Flash (STM32F407VGT6 specification is 1M capacity)
192+4kB SRAM;
Resources: 3xSPl, 3x USART, 2 xUART, 2x12S, 3x12C;
1xFSMC, 1xSDIO, 2x CAN:
1 xUSB 2.0 FS/HS controller (with dedicated DMA);
1 xUSB HS ULPI (for external USB HS PHY)
1 x 10/100 Ethernet MAC;
1x 8 to 12-bit parallel camera interace;
3xAD (12-bit, 1us, time-sharing 24), 2xDA (12-bit);

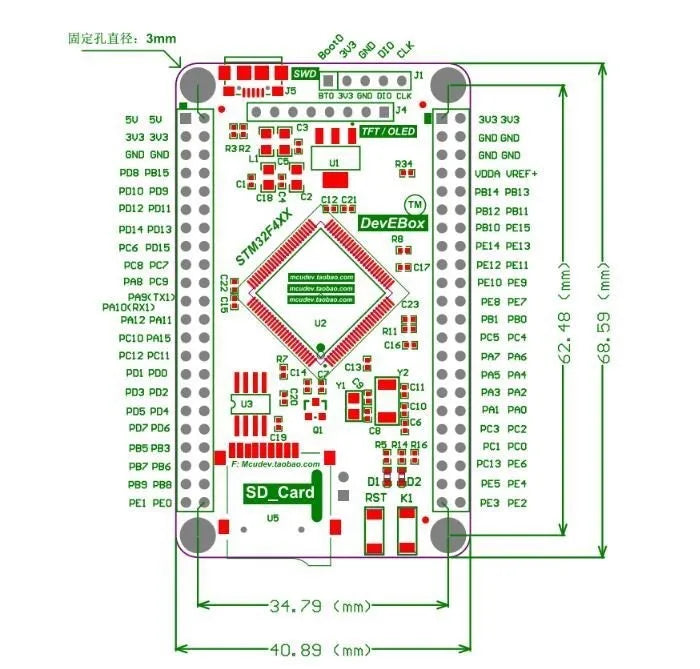

Product Size
