SPECIFICATIONS

Super 52840 NRF52840 Bluetooth 5.0 Module Nordic NRF52840 MCU Development Board Compatible with Seeed XIAO BLE Main control

V1.5 version has been fully upgraded, with standby power consumption reduced to as low as 2.5uA. Note

V1.5 reserves positions for microphone, flash, and gyroscope, which have not been soldered yet.

Cannot find serial port:

The port needs to have a light on. Press the reset button twice to enter the download mode.

Product Introduction

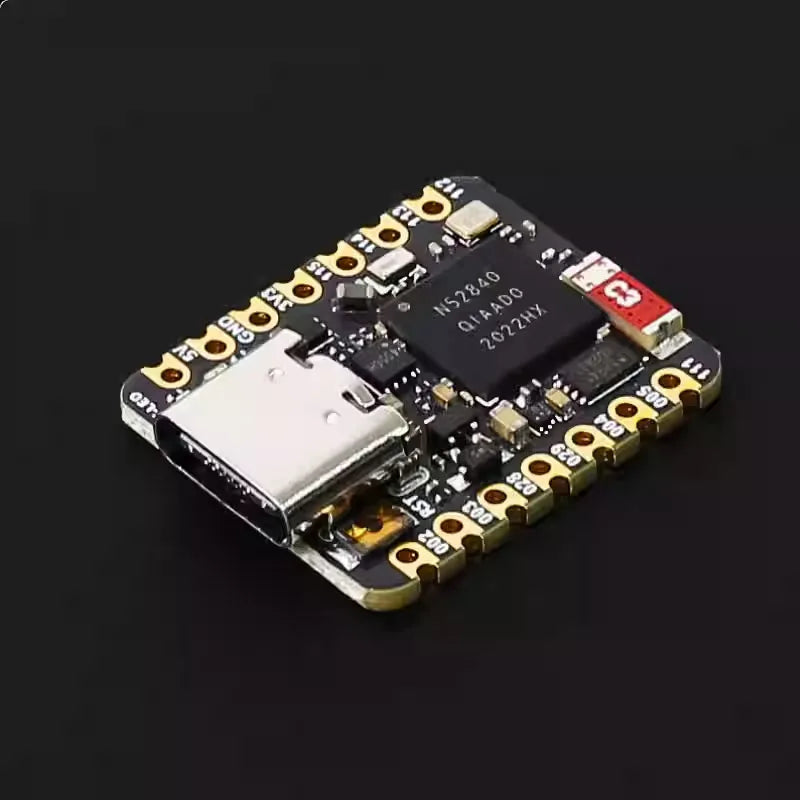

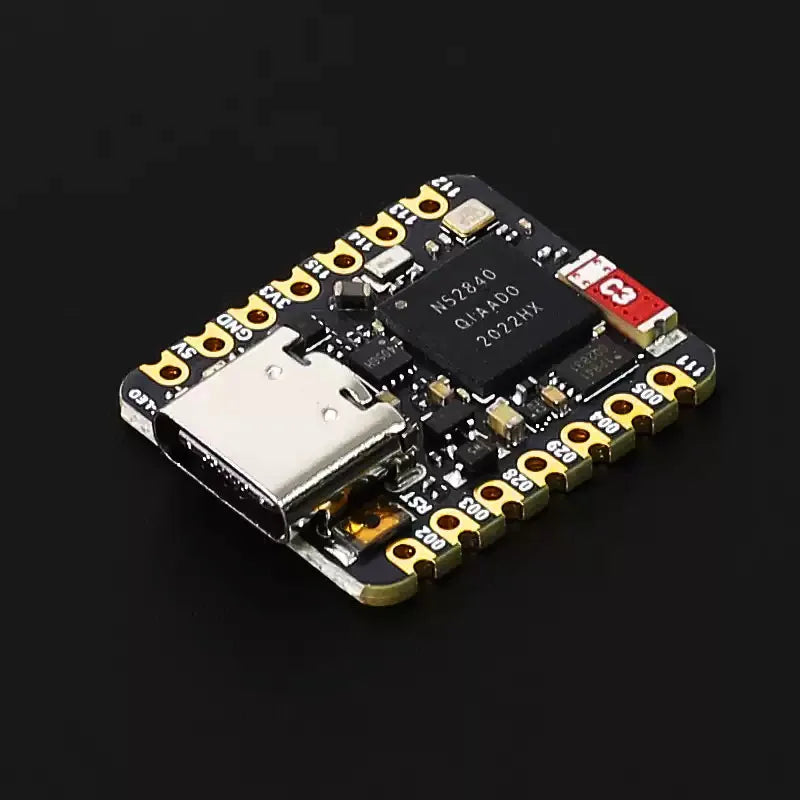

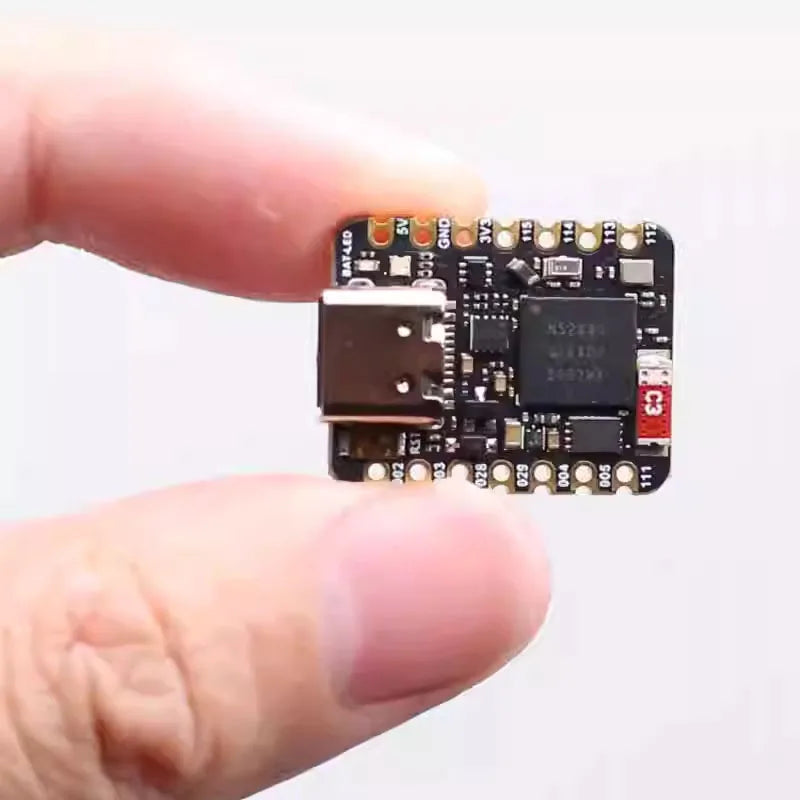

The Super nRF52840 is equipped with the powerful Nordic nRF52840 MCU, featuring Bluetooth 5.0 connectivity. It also boasts a compact and exquisite design, making it suitable for wearable devices and IoT projects. The single-sided surface mount design and onboard Bluetooth antenna greatly facilitate the rapid deployment of IoT projects.

Super52840 integrates a charging indicator light and a three-color LED. There are 11 digital I/Os available as PWM pins, and 6 analog I/Os can be used as ADC pins. It supports three common serial interfaces: UART, I2C, and SPI. The board contains a built-in 2MB memory, and can be programmed using Arduino, Micropython, CircuitPython, or other programming languages.

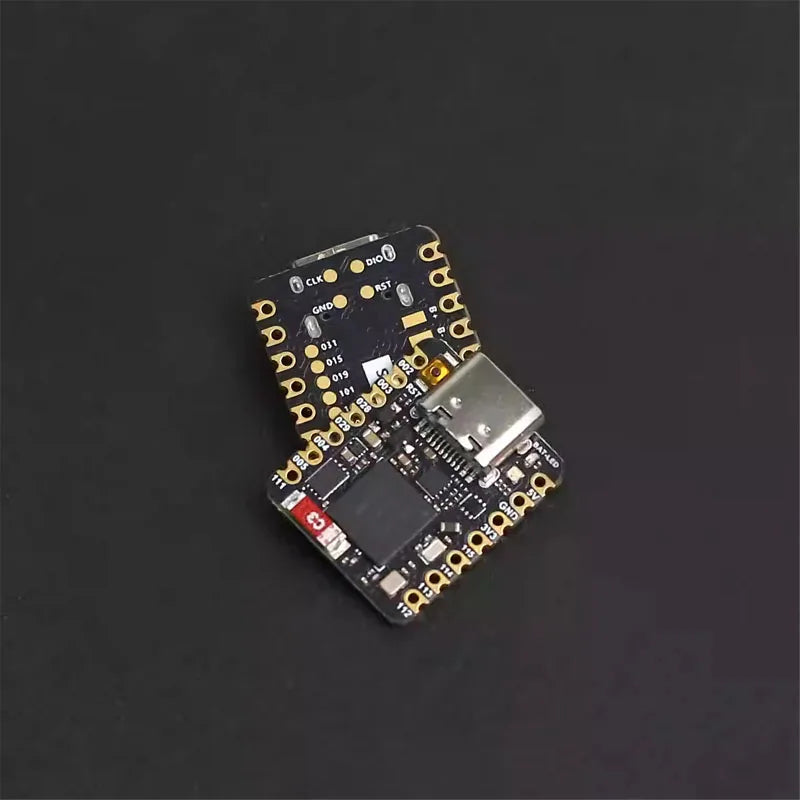

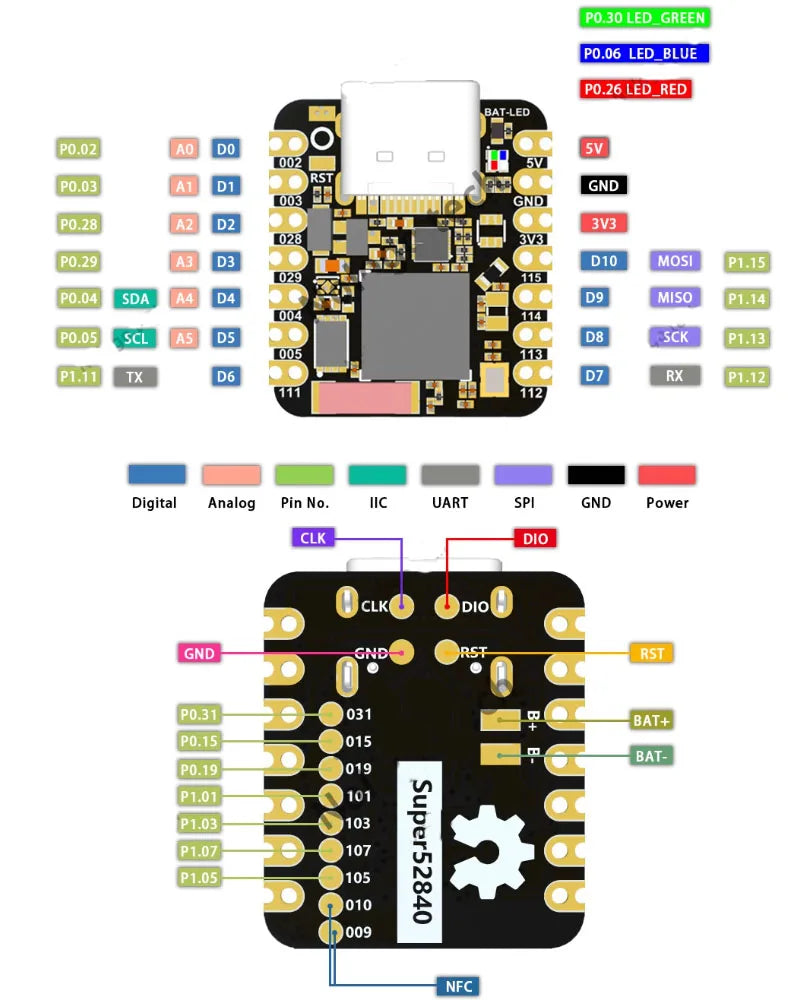

Super52840 is an alternative product of Xiao nRF52840. They have the same pin arrangement. Super52840 uses Xiao's Bootloader. Compared with Xiao nRF52840, Super52840 has 7 additional IO pins, located on the back of the board (P0.31, P0.15), P0.19, P1.01, P1.03, P1.07, and P1.05).

Product parameters

Processor: Nordic nRF52840, an ARM® Cortex®-M4 32-bit processor with FPU, operating at 64 MHz

Wireless: Bluetooth 5.0/BLE/NFC

Memory: 256KB RAM, 1MB internal memory, 2MB onboard memory

Interfaces:  1X I2C, 1X UART, 1X SPI

PWM/Analog Pins:  11/6

Onboard Buttons:  Reset button

Onboard LEDs:  Charging indicator light, three-in-one three-color LED

Programming Languages:  Arduino/MicroPython/CircuitPython
