SPECIFICATIONS

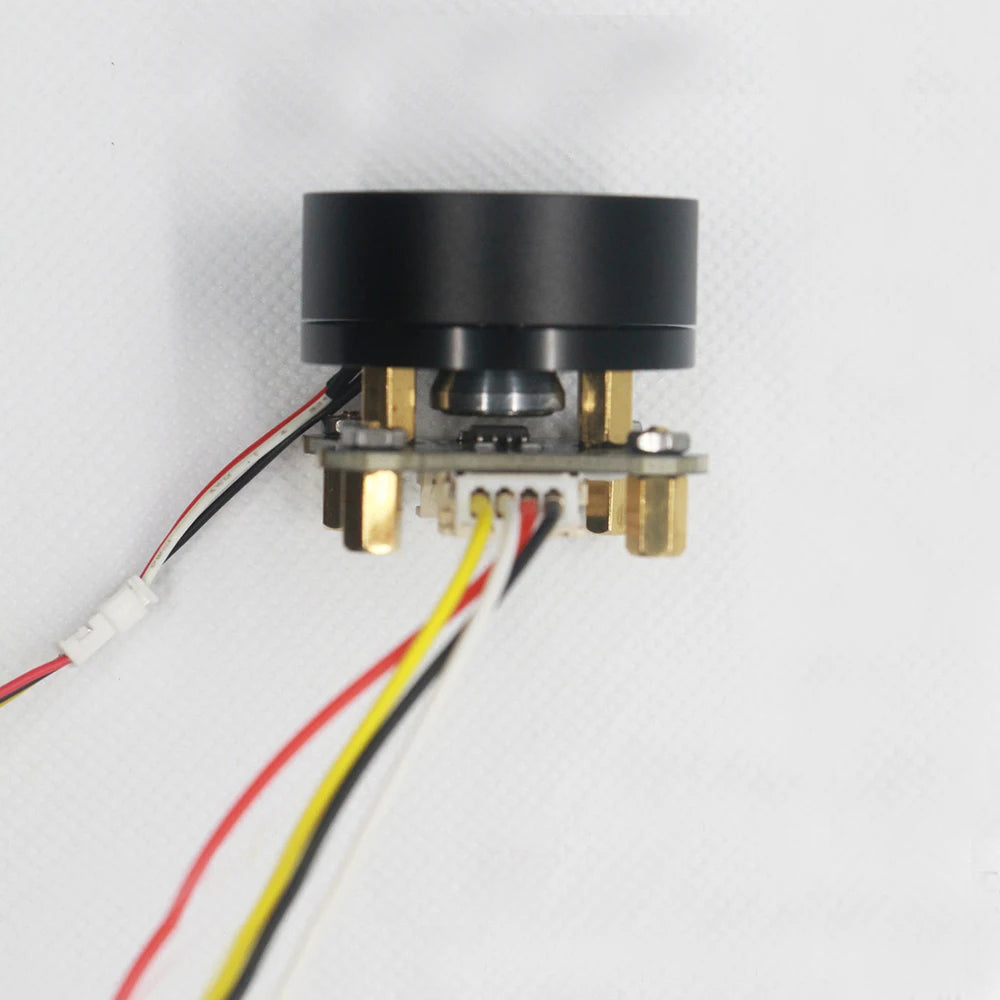

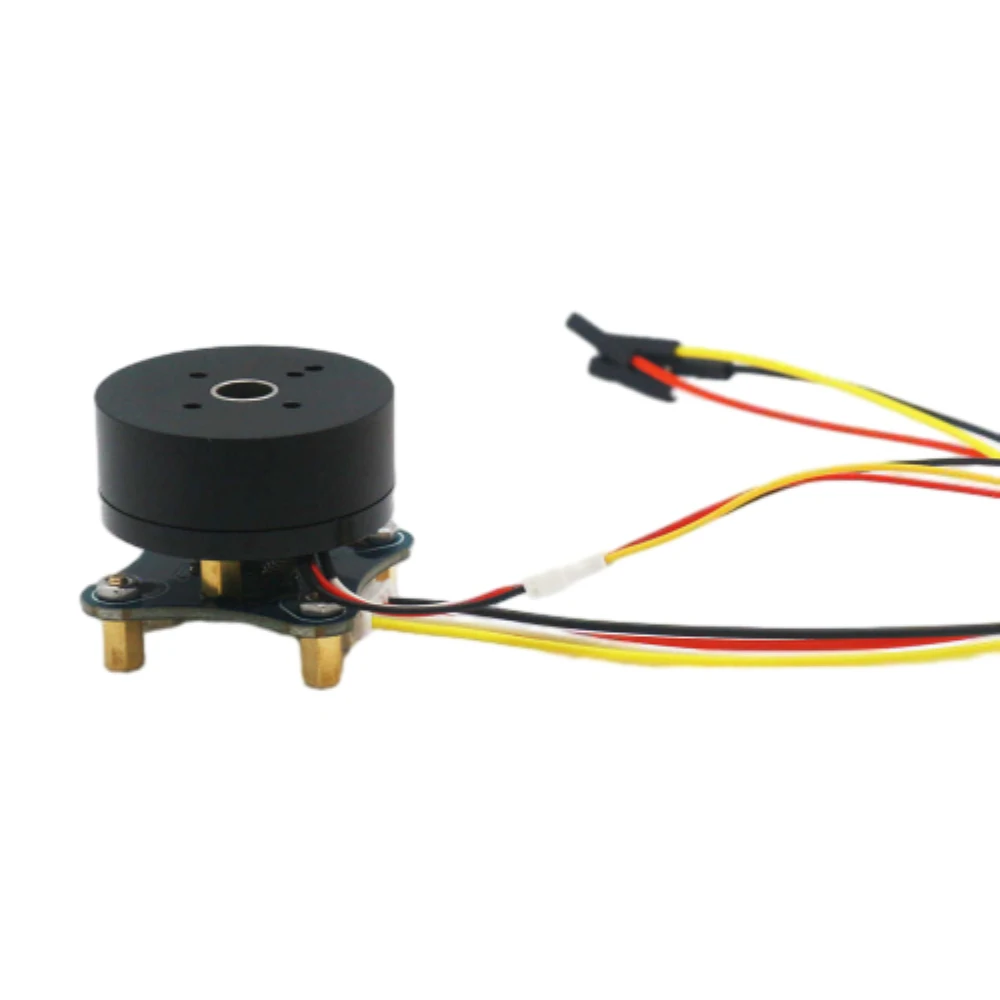

Support FOC Control 2804 Hollow Shaft Brushless DC Motor+ AS5600 Magnetic Encoder Set Hall Sensor Outer Rotor BLDC Motor Kit

Specifications:

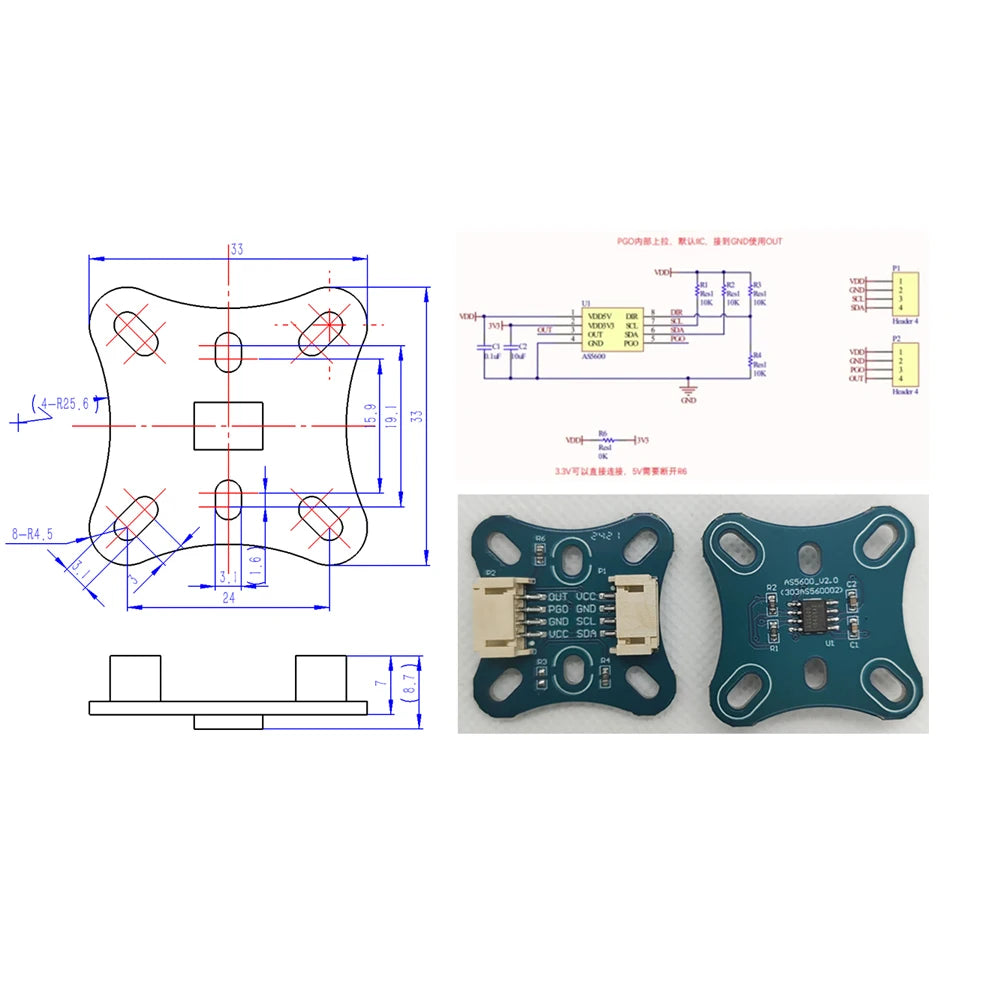

Banding radial magnetic ring, encoder has been assembled with copper columns and screws

Motor with 3P MX1.25 line, encoder with 4P pH2.0 rotor DuP line

Support FOC control, you can use the SimpleFoc library, DENGFOC library, support 0Drive (voltage control 12V), and also support the opening control.

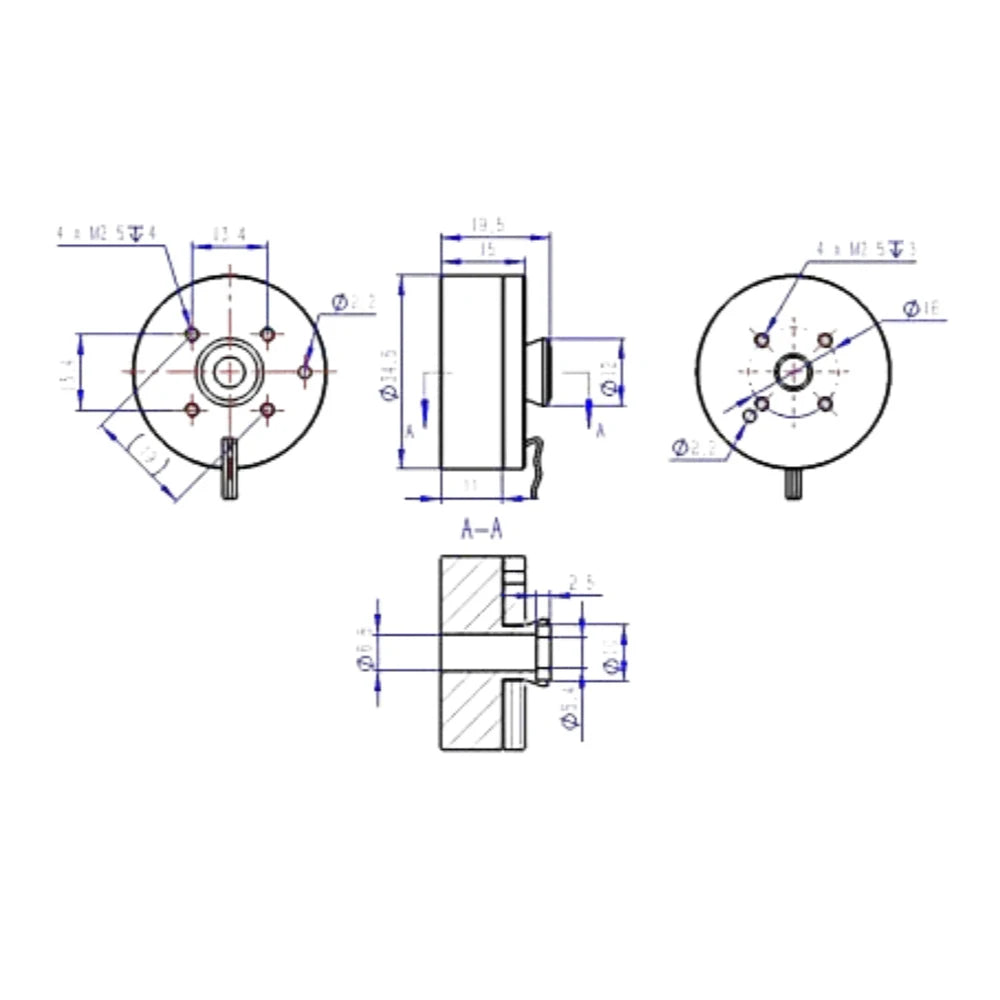

The tin iron boron is strong magnetic, the outer rotor, the mid -empty shaft φ6.5mm, the maqnetic rinq φ5.4, can be across the line

Can be used to learn DC brushless motor control, such as FOC, SVPWM, square wave

It can make preferential motors such as small robots, self -balanced cars, gimbal, drones, wheel -toot robots, KNOD smart knobs, lidar, etc.

The motor is a copper -core stator, shell aluminum alloy, black paint, rotating wireless toothless setting, high and low speed (FOC control self-test)

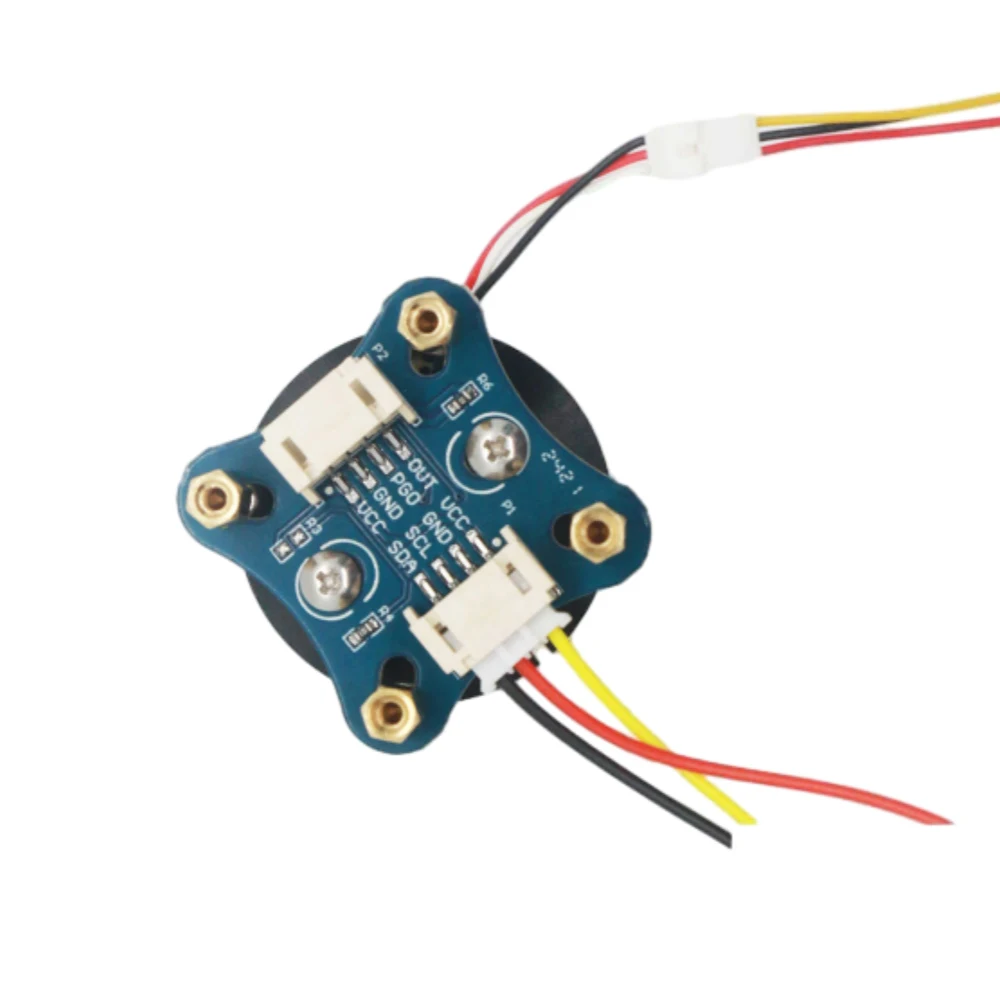

Coder supports I2C, PWM/Simulation Communication

1.Due to the light and screen difference, the item's color may be slightly different from the pictures.

2.Please allow 1mm-1cm differences due to manual measurement.

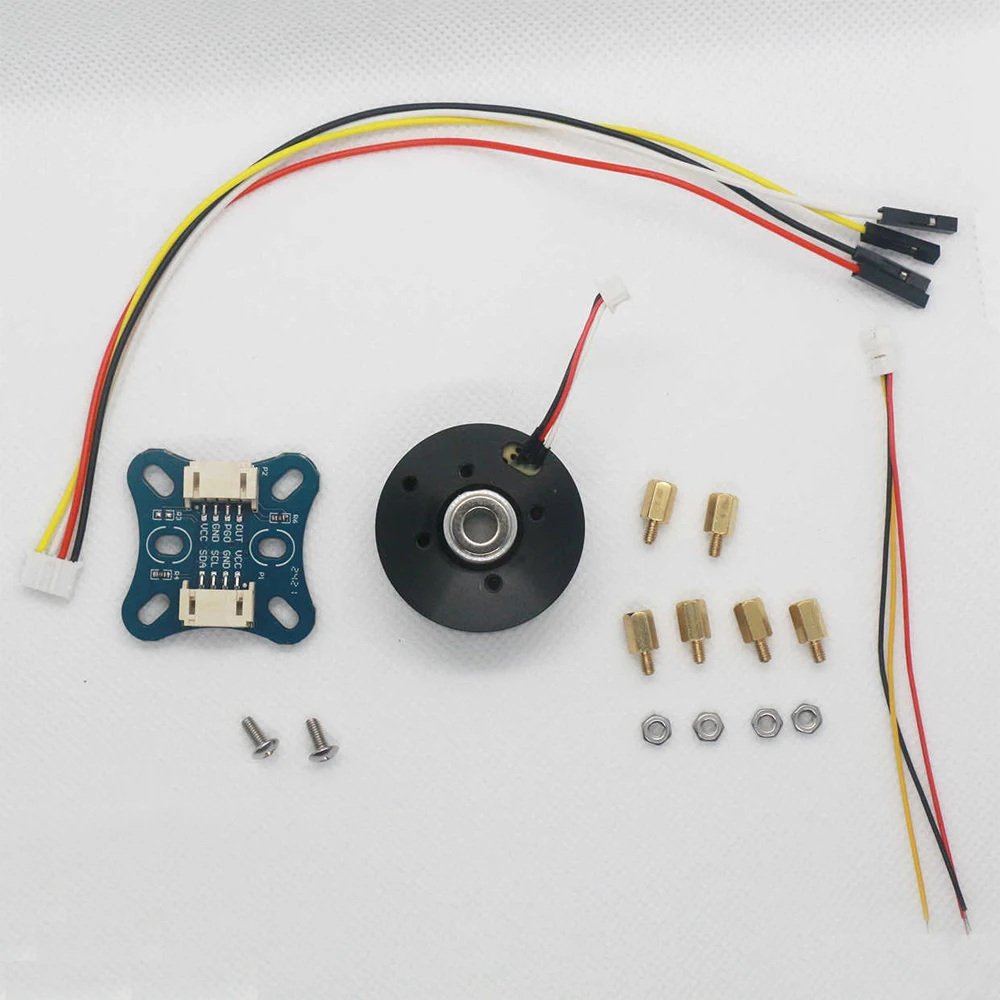

Package Includes:

1x DC Motor

1x Magnetic Encoder
