Description

SPECIFICATIONS

Brand Name: SURENOO

Display Mode: NC

High-concerned chemical: none

Model Number: SLC2004B

Origin: Mainland China

Resolution: 20*4

Semiconductors & Actives Type: lcds & displays

Type: Character

is_customized: Yes

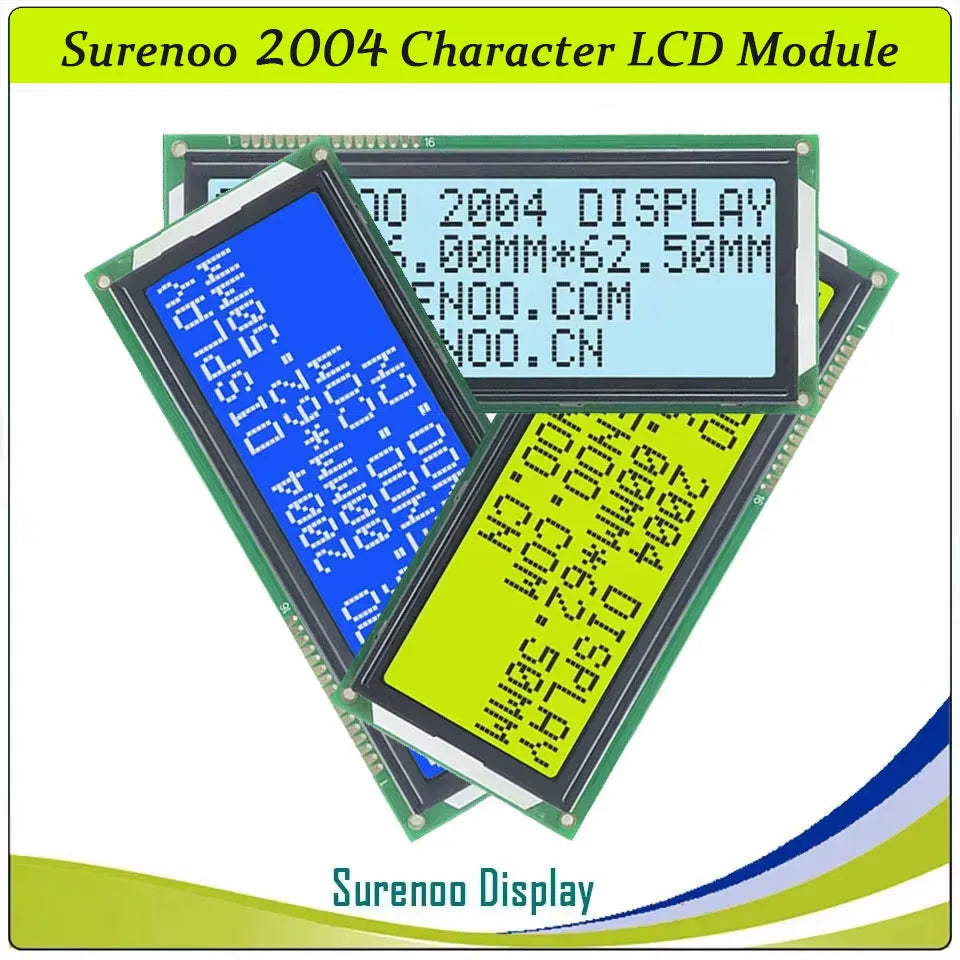

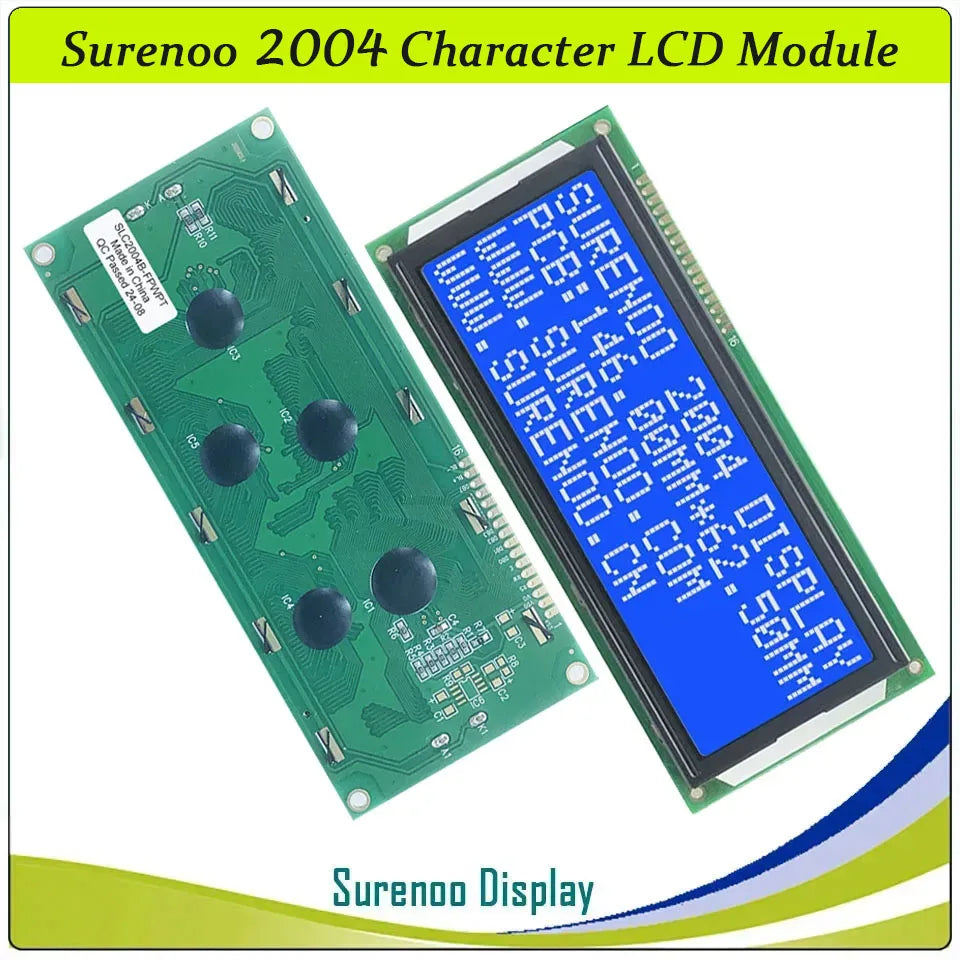

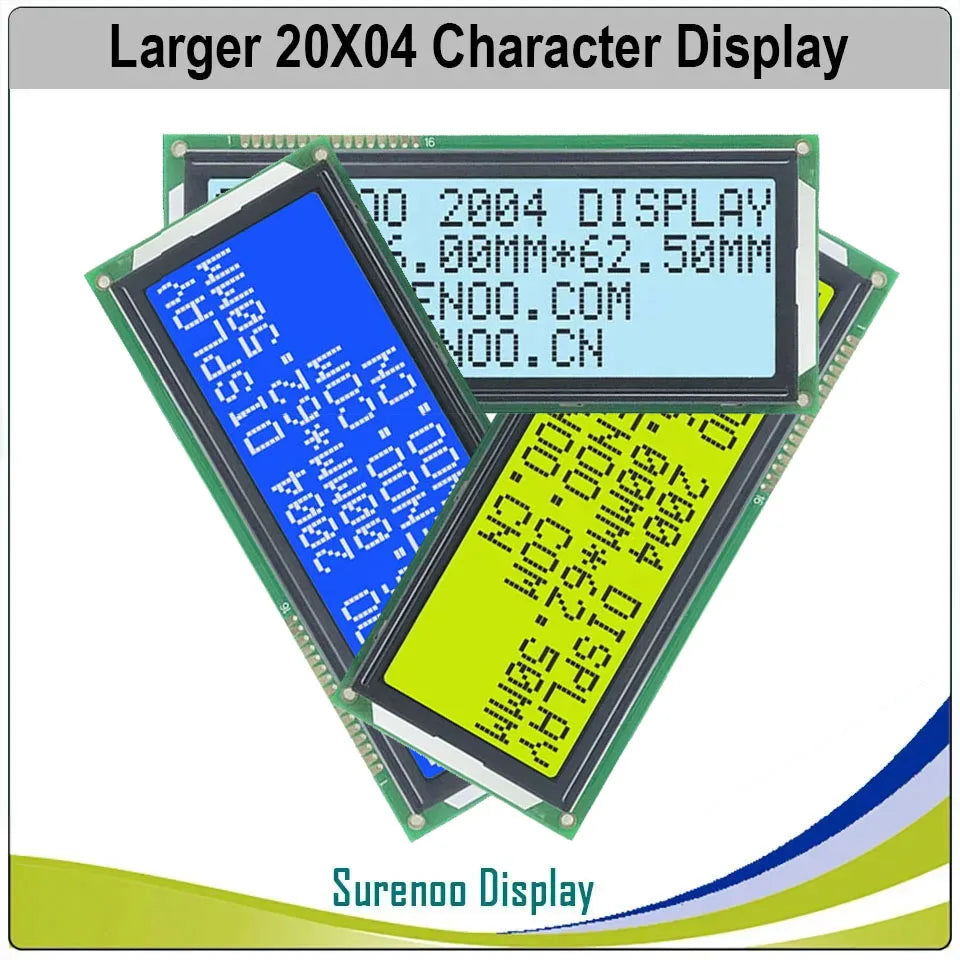

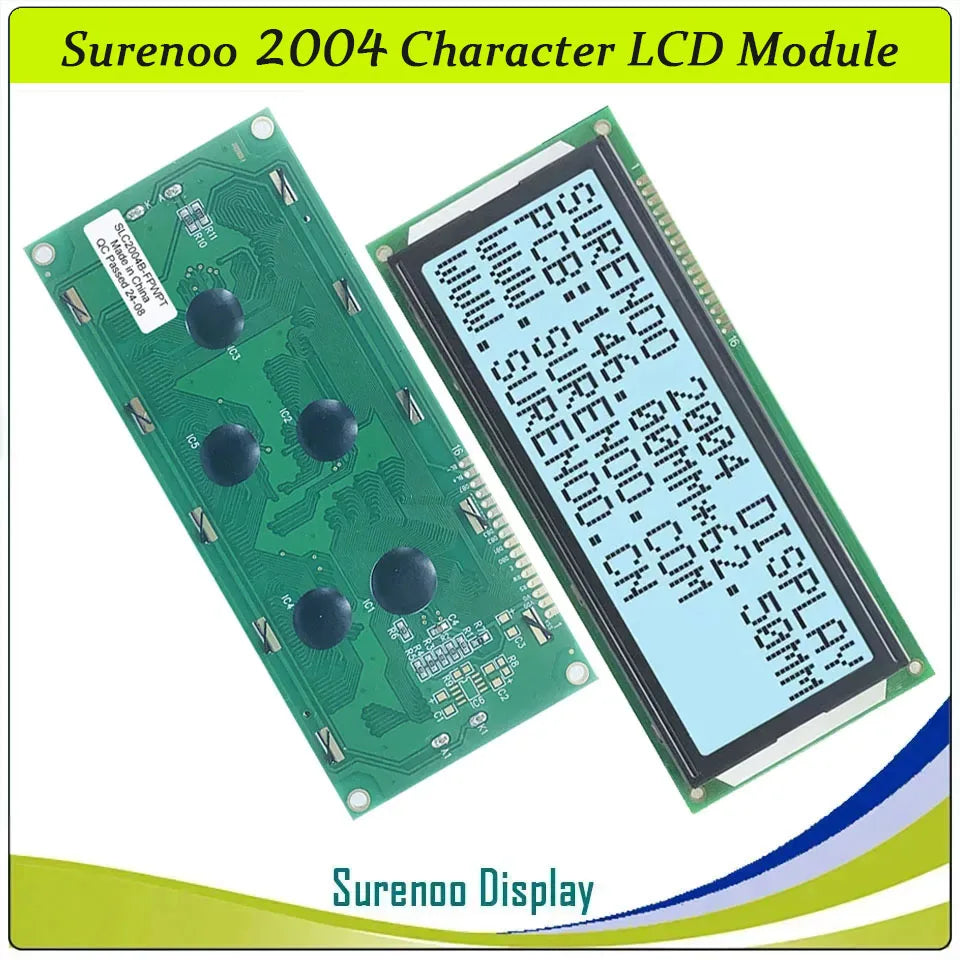

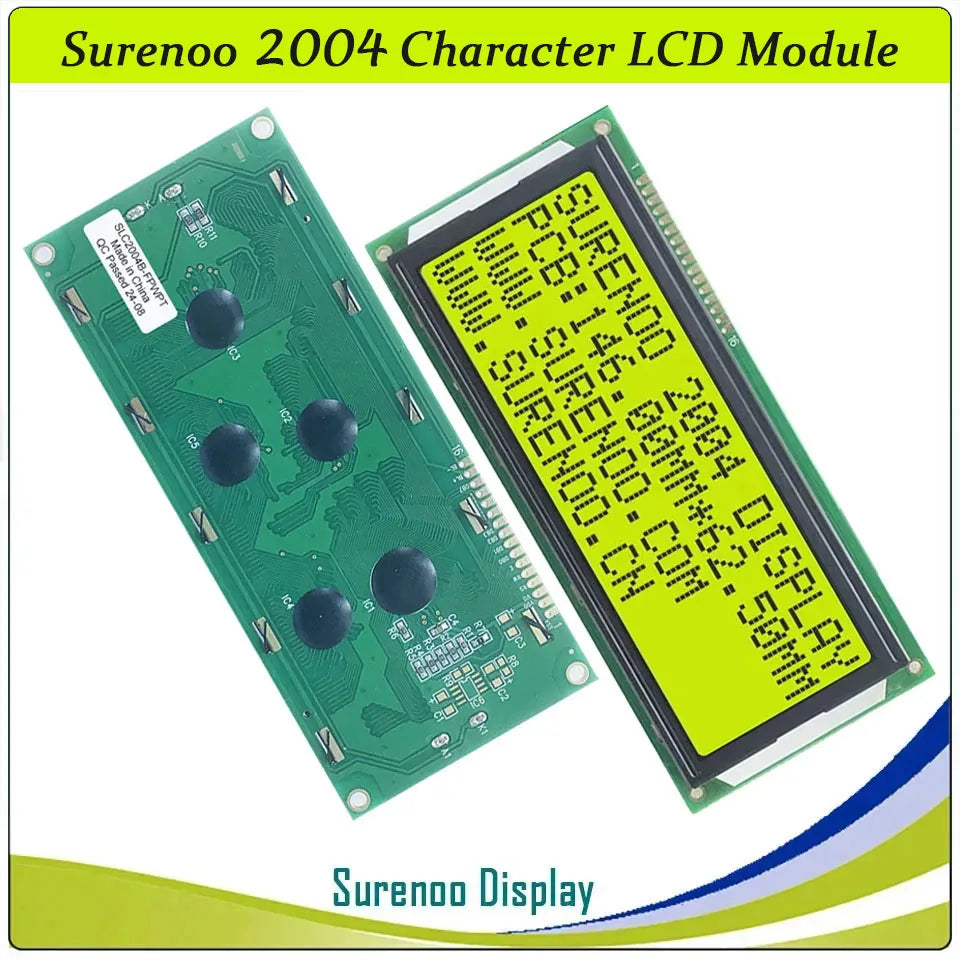

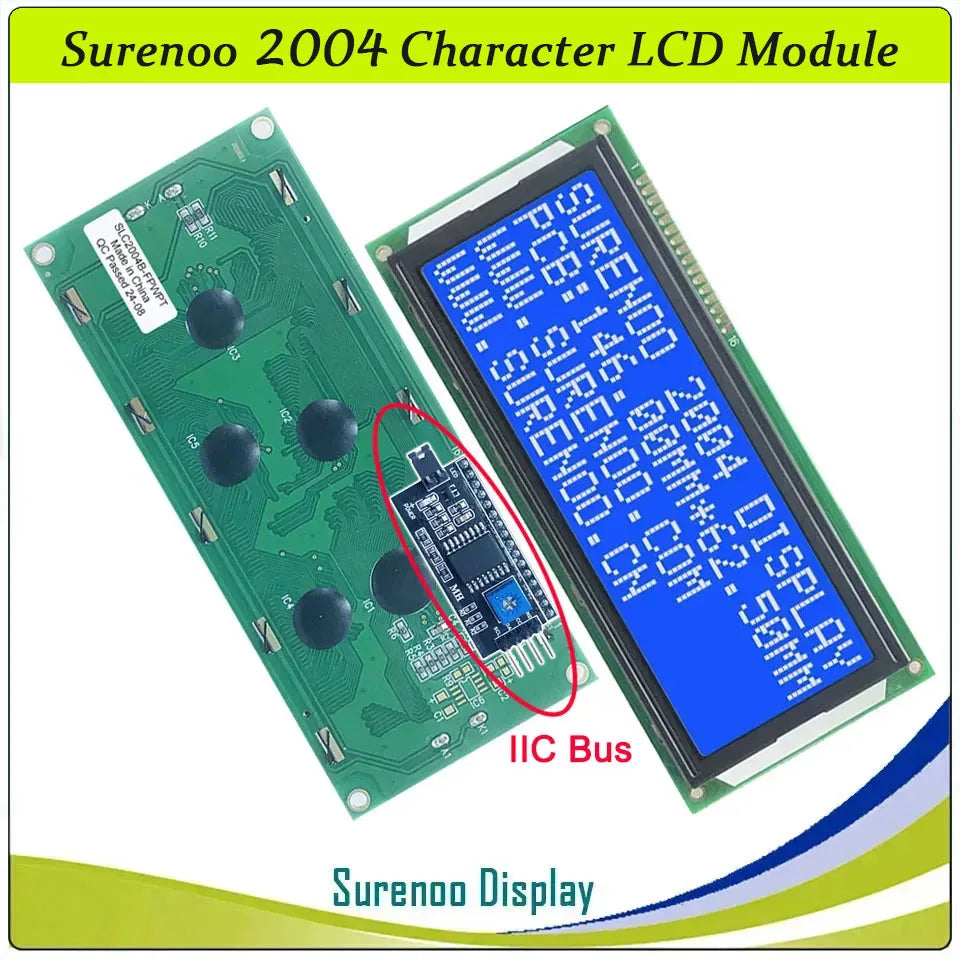

Surenoo 2004 Character LCD Module

Model No.: SLC2004B

☛ (Surenoo Character LCD Module Series Selection Guide) ☚

➤ Basic Information

>> Model No.: SLC2004B
>> Product Type: Character LCD Module
>> Brand: Surenoo
>> Display Format: 20*04 Characters
>> Interface: Parallel, Serial IIC, LCD2USB, RS232/UART(TTL)
>> IC or Equivalent: AIP31066, HD44780, KS0066, SPLC780D
>> Font: English & Japanese
>> Outline Dimension:146.00(W)x62.50(H)x13.50(T)mm
>> Visual Area: 123.50x43.00mm
>> Active Area: 118.84x38.47mm
>> Viewing Direction: 6:00
>> IC Package: COB
>> Power Supply (Type): 5.0V

➤ Datasheet Download (Surenoo Display)

https://www.surenoo.com/products/6907132

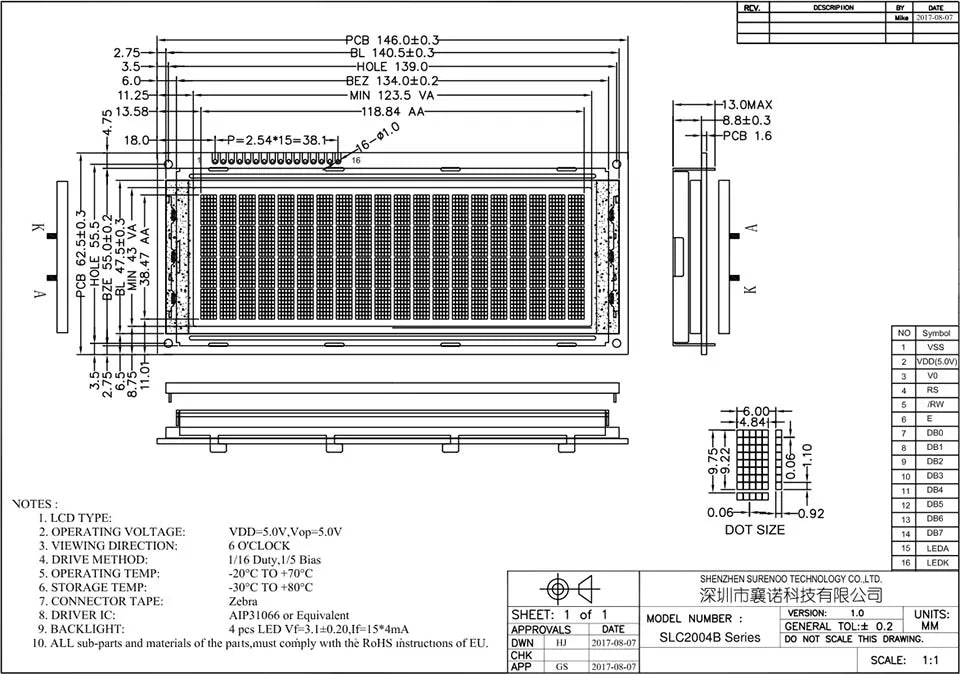

➤ Outline Drawing

➤ Pin Configuration

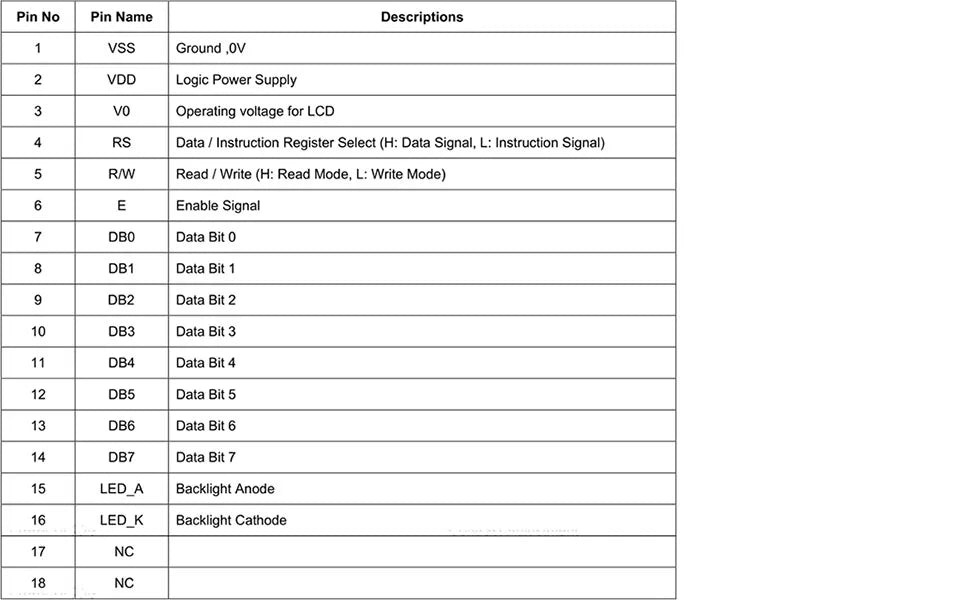

1. Parallel Interface

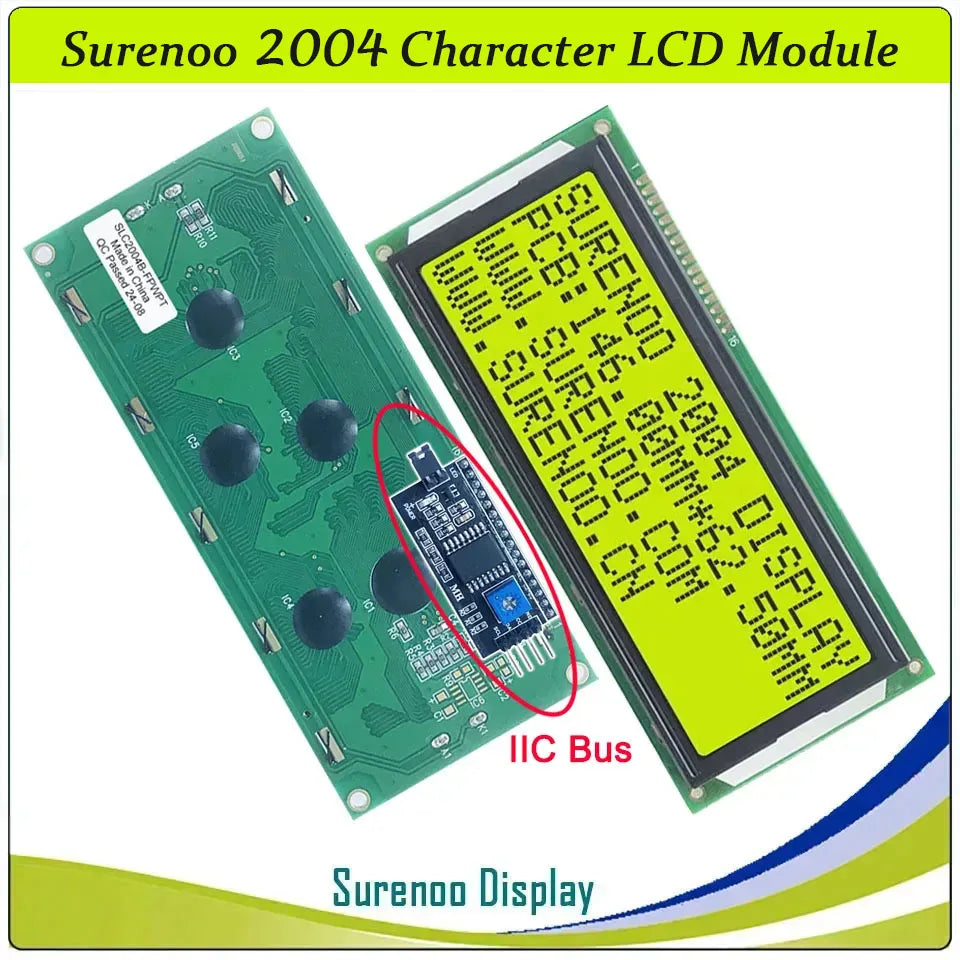

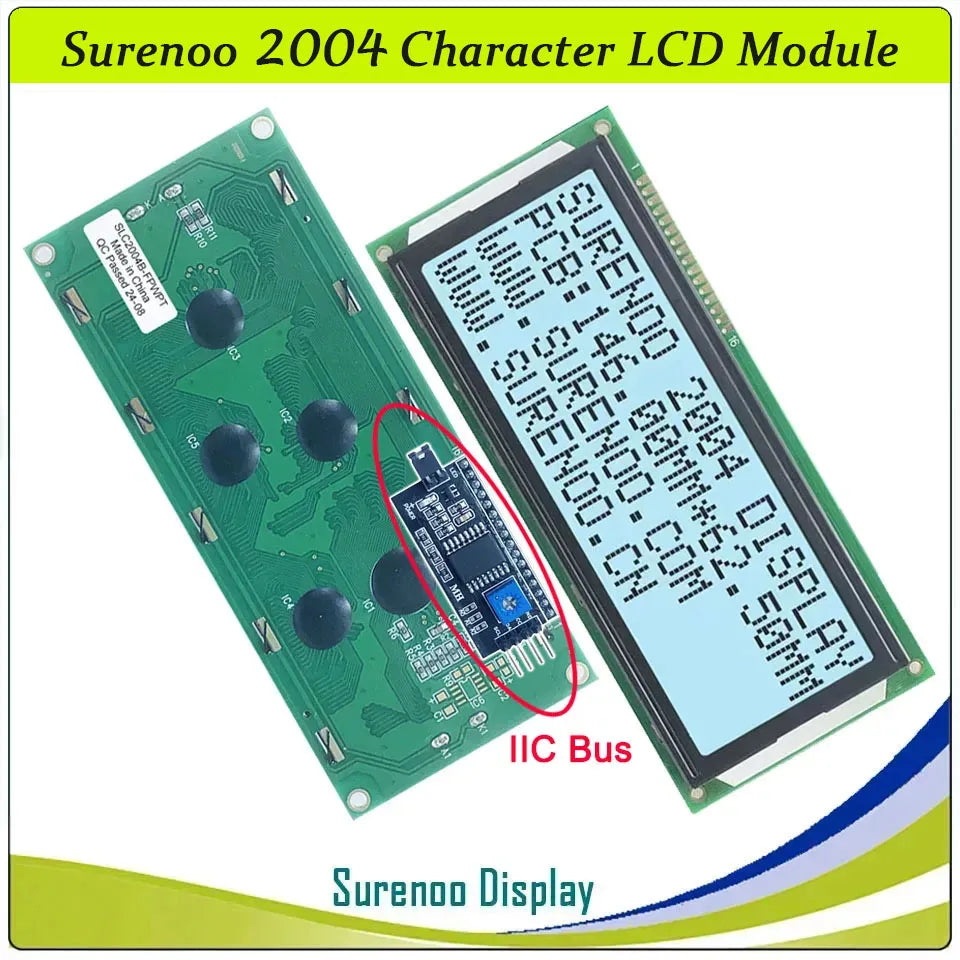

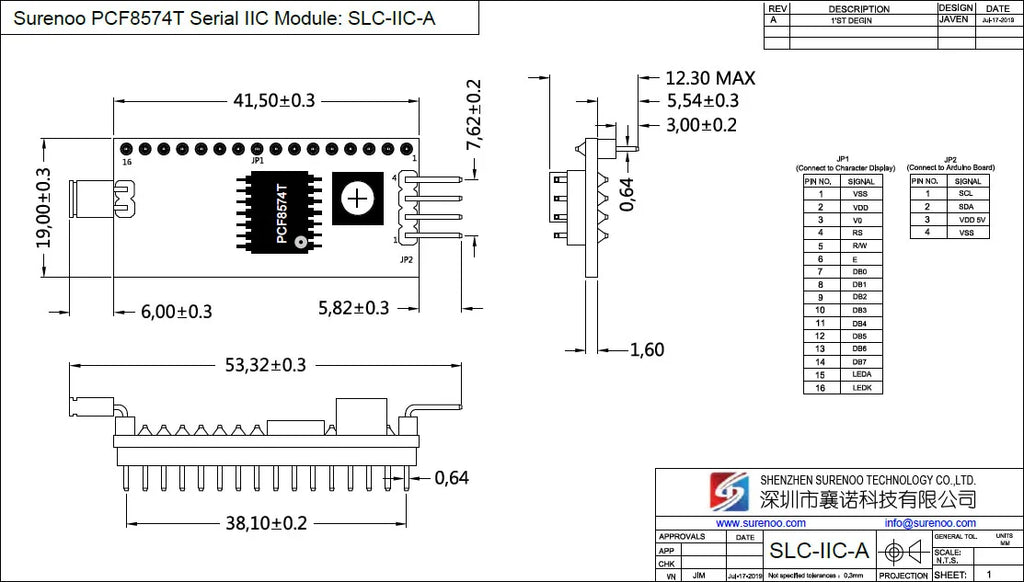

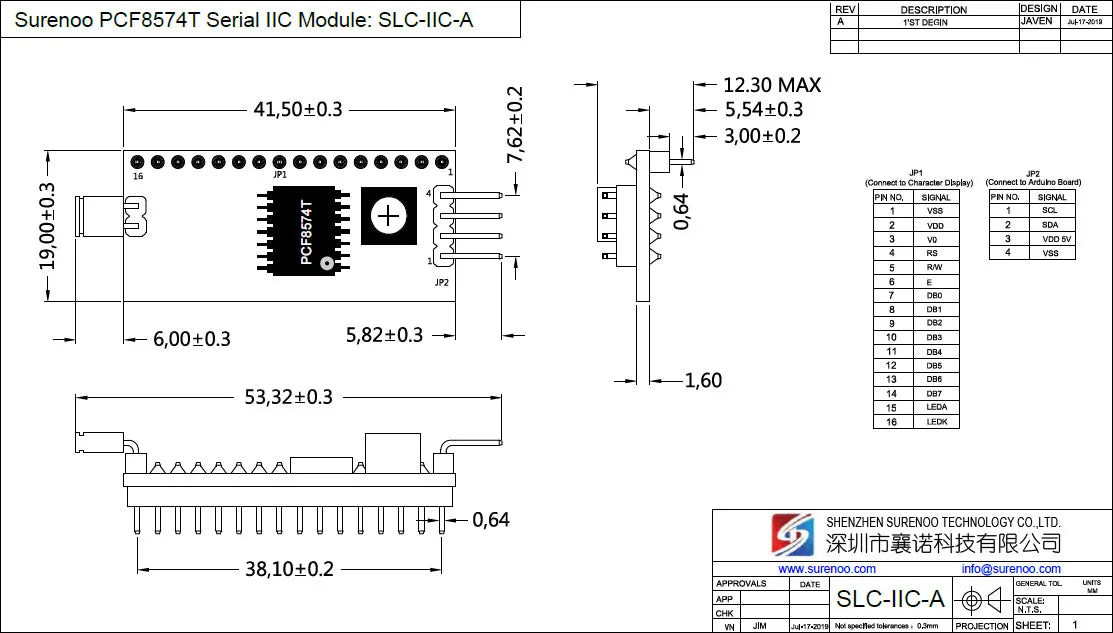

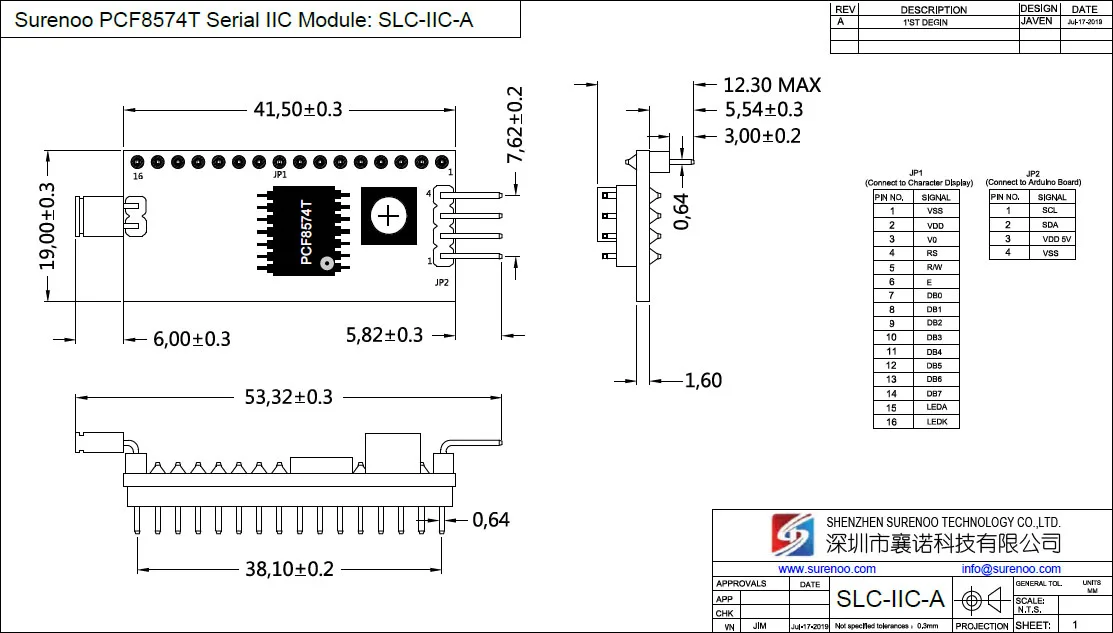

2. Serial IIC Interface

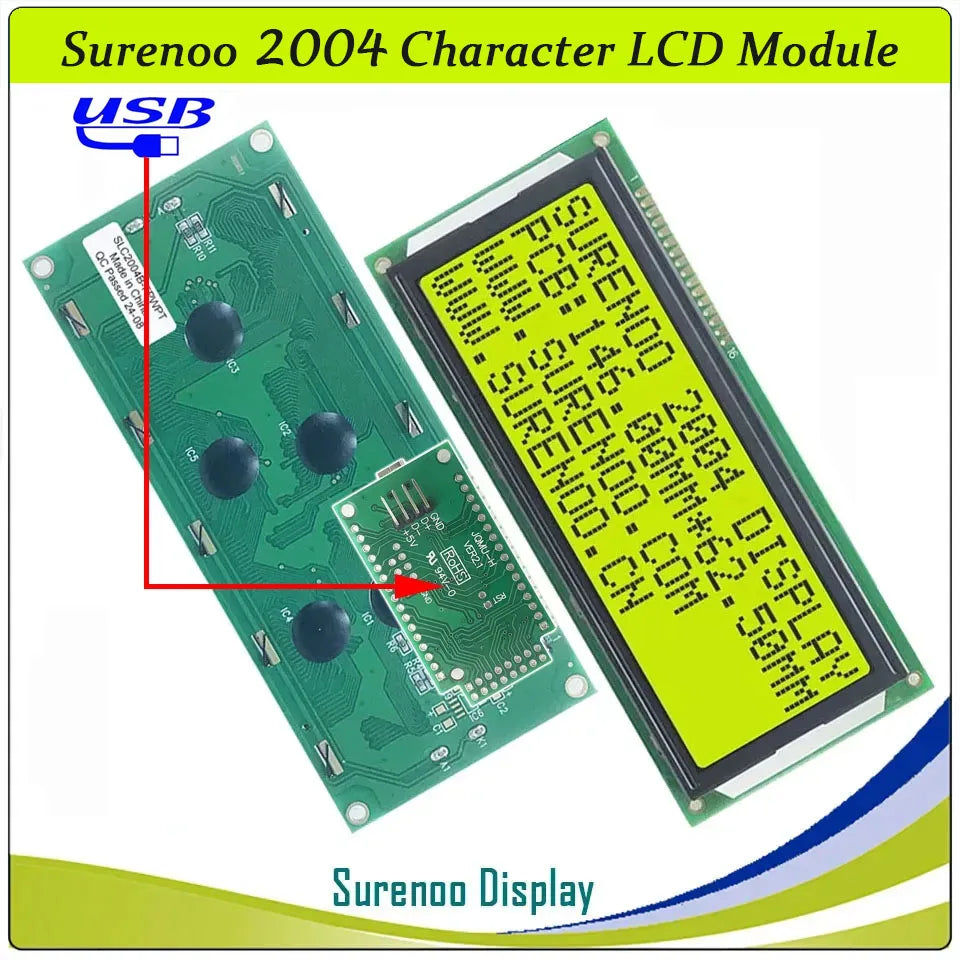

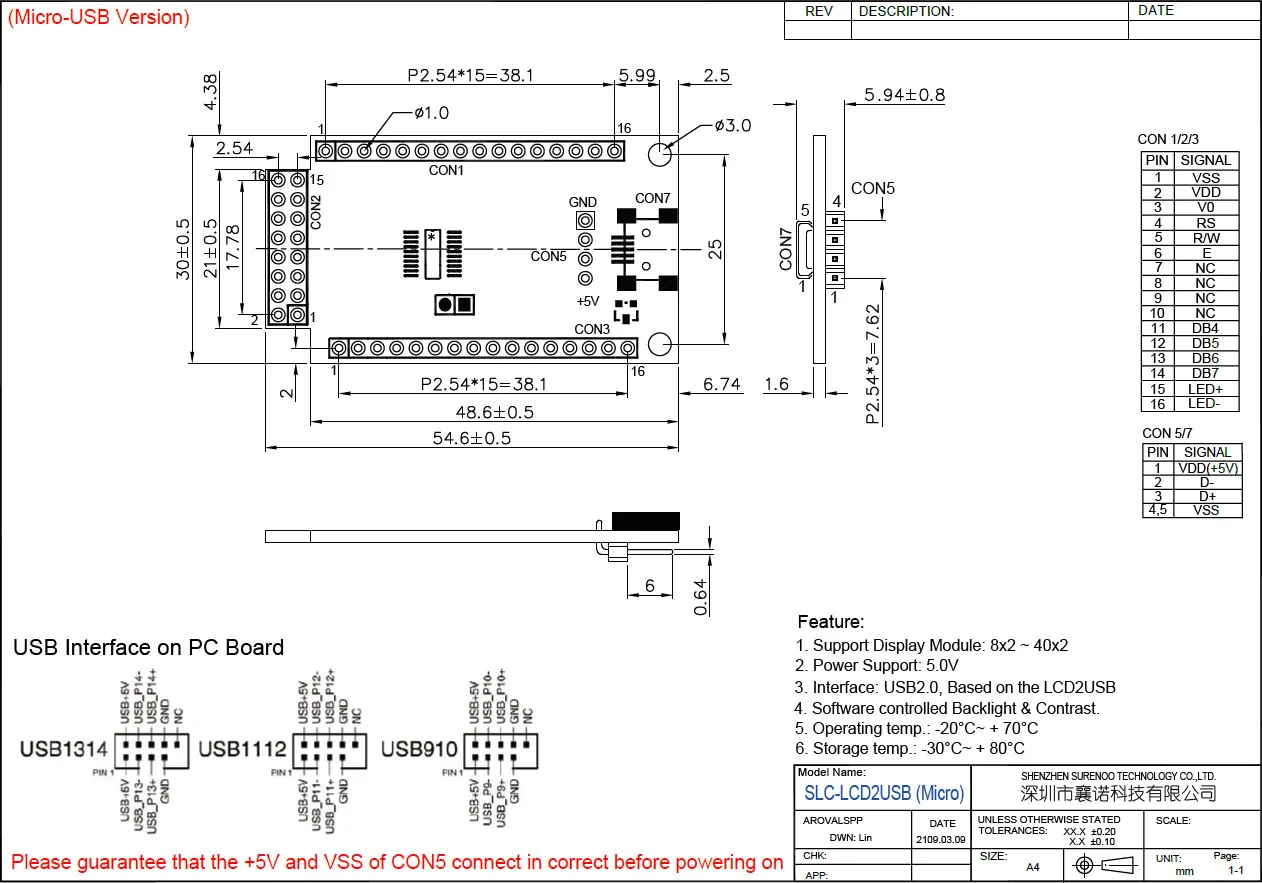

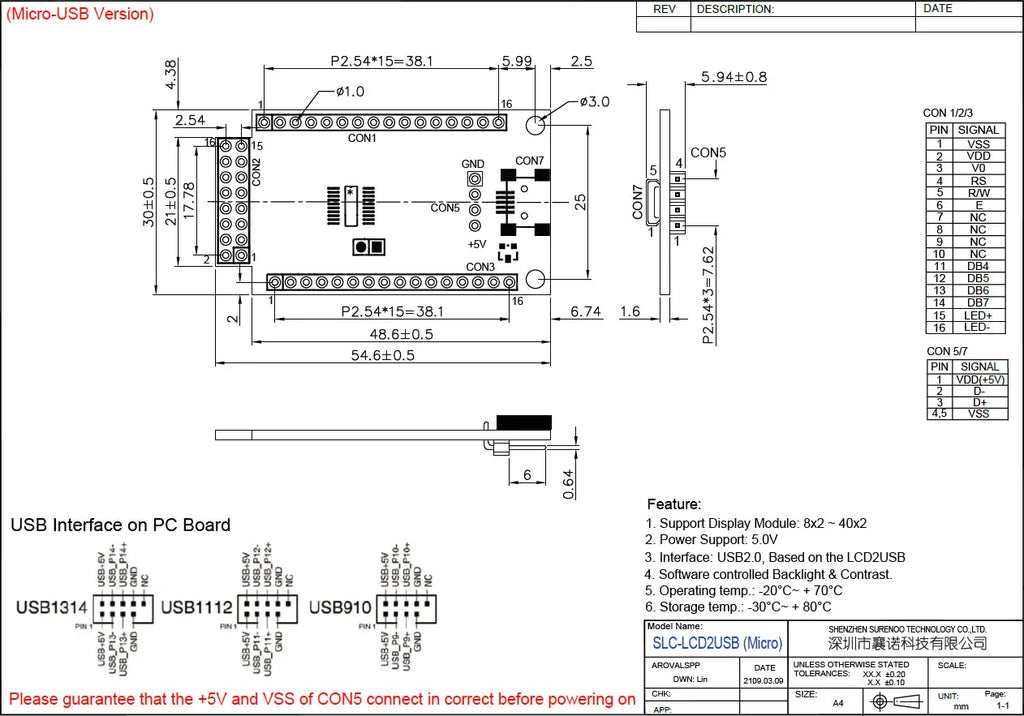

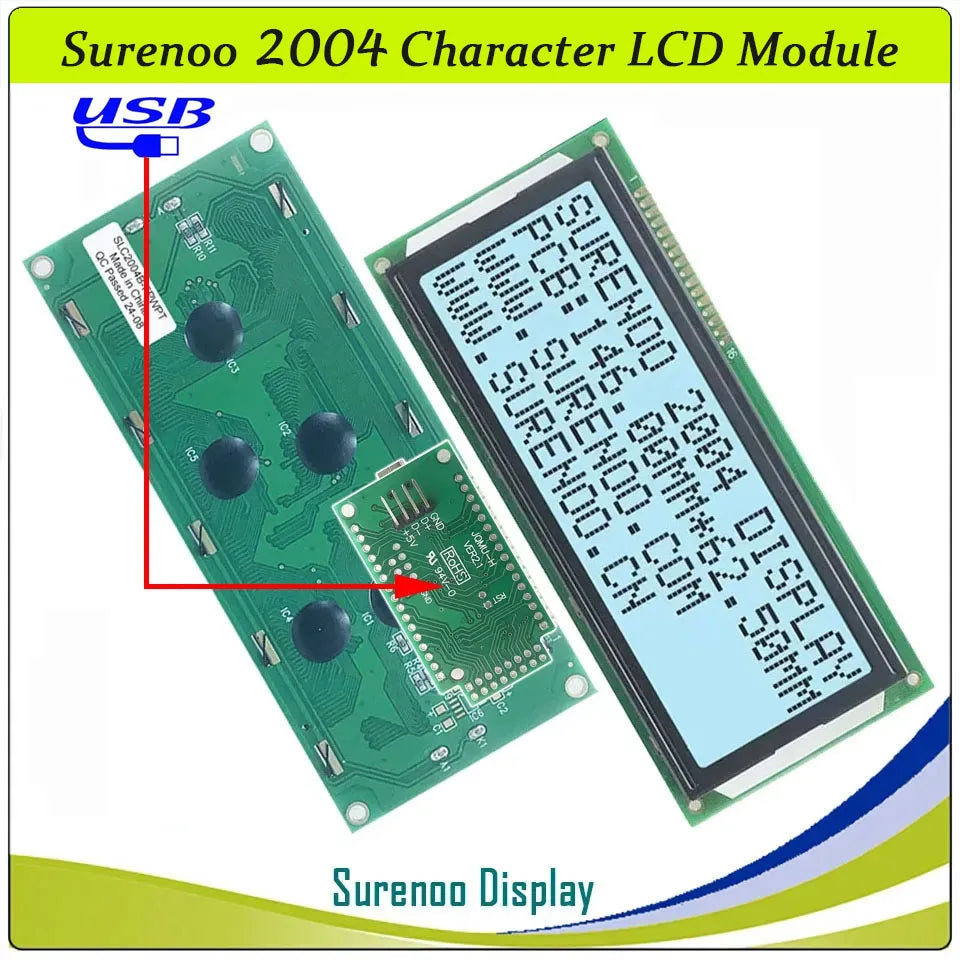

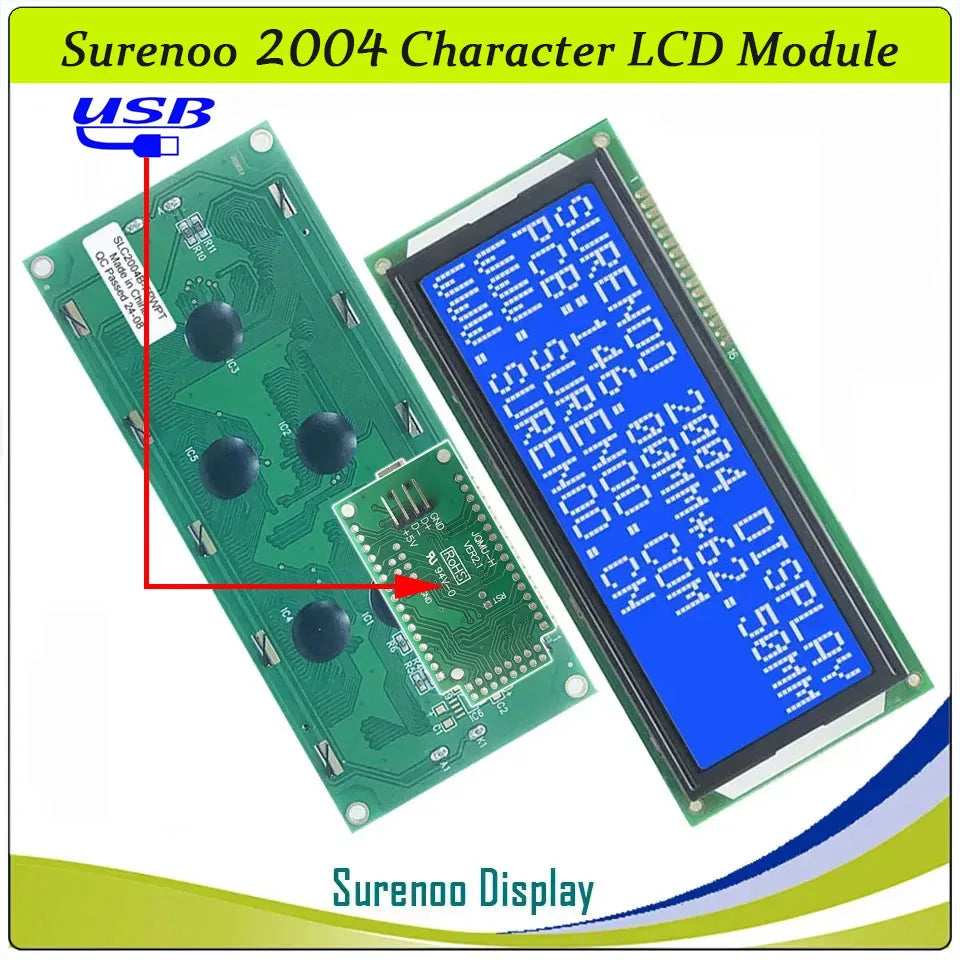

3. Serial LCD2USB Interface

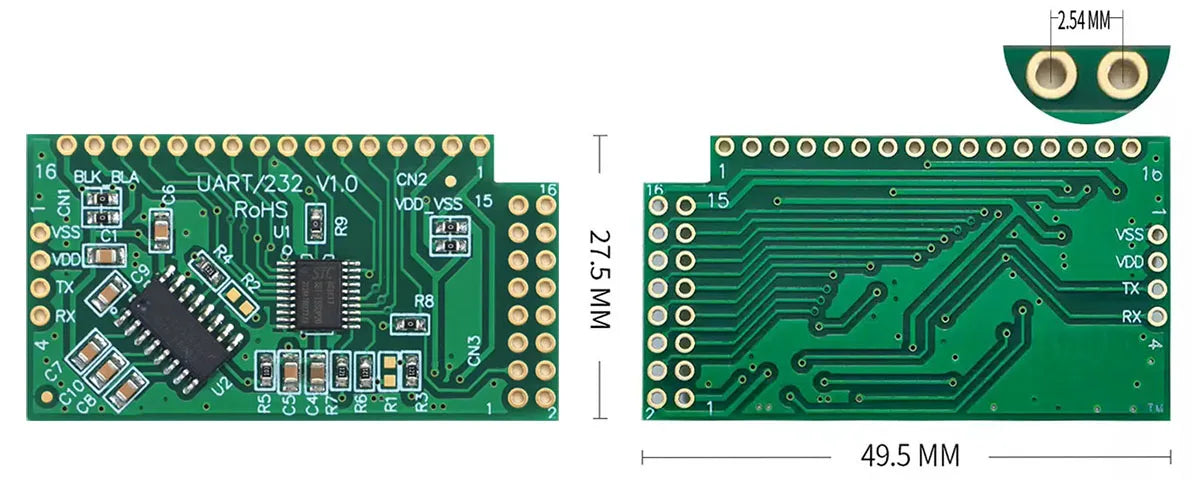

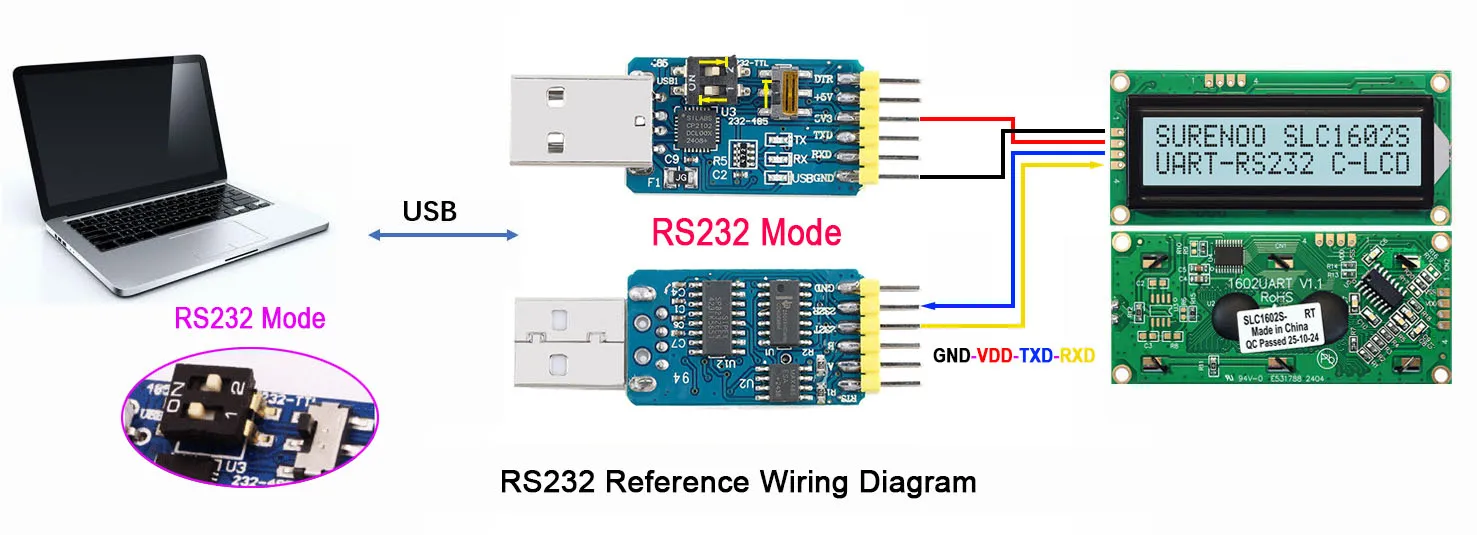

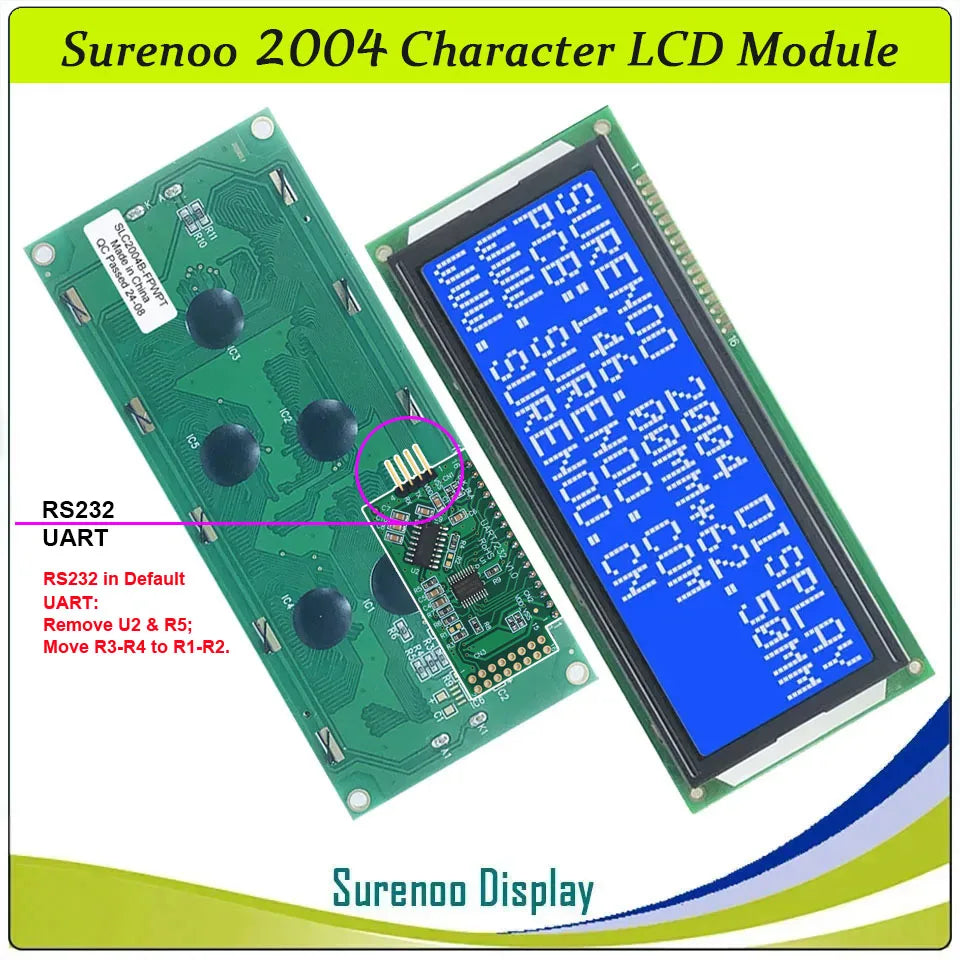

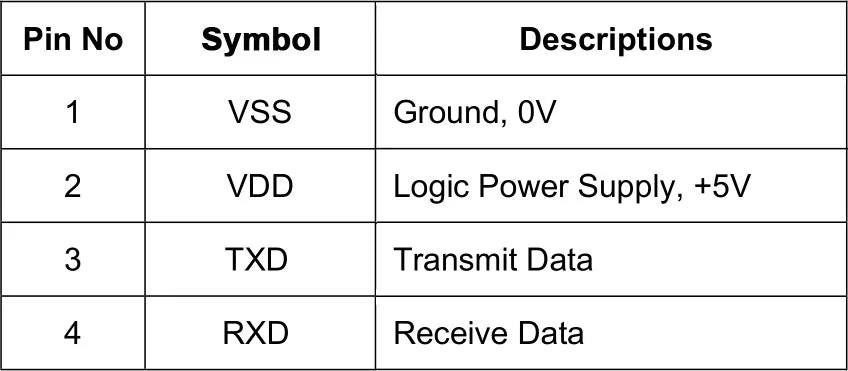

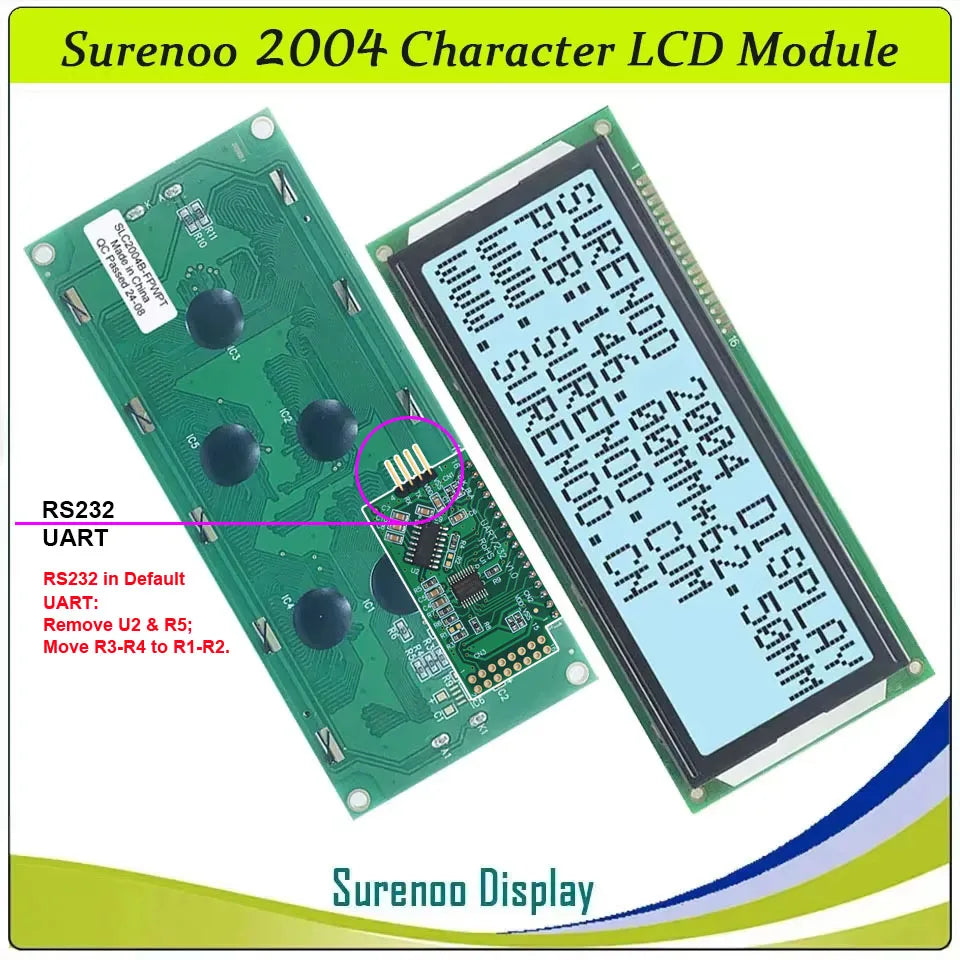

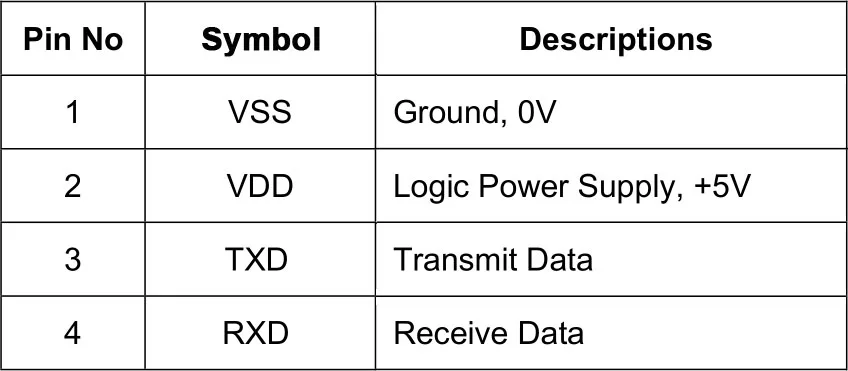

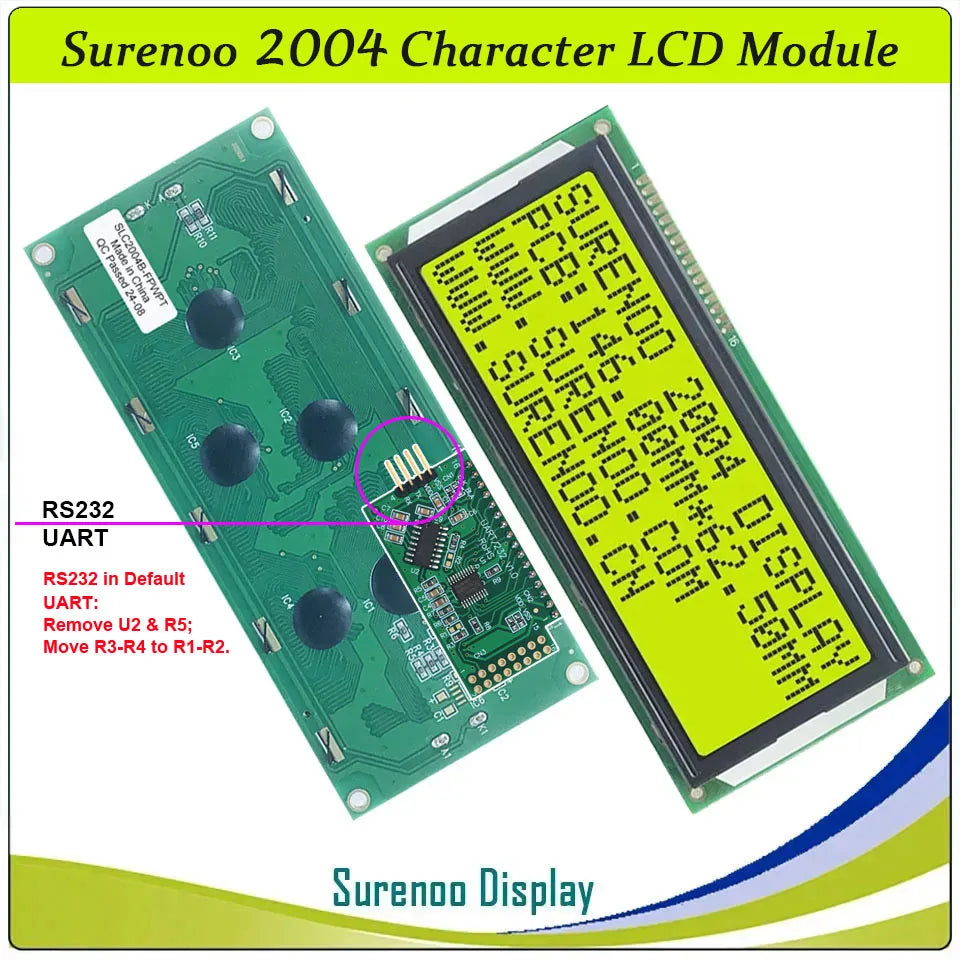

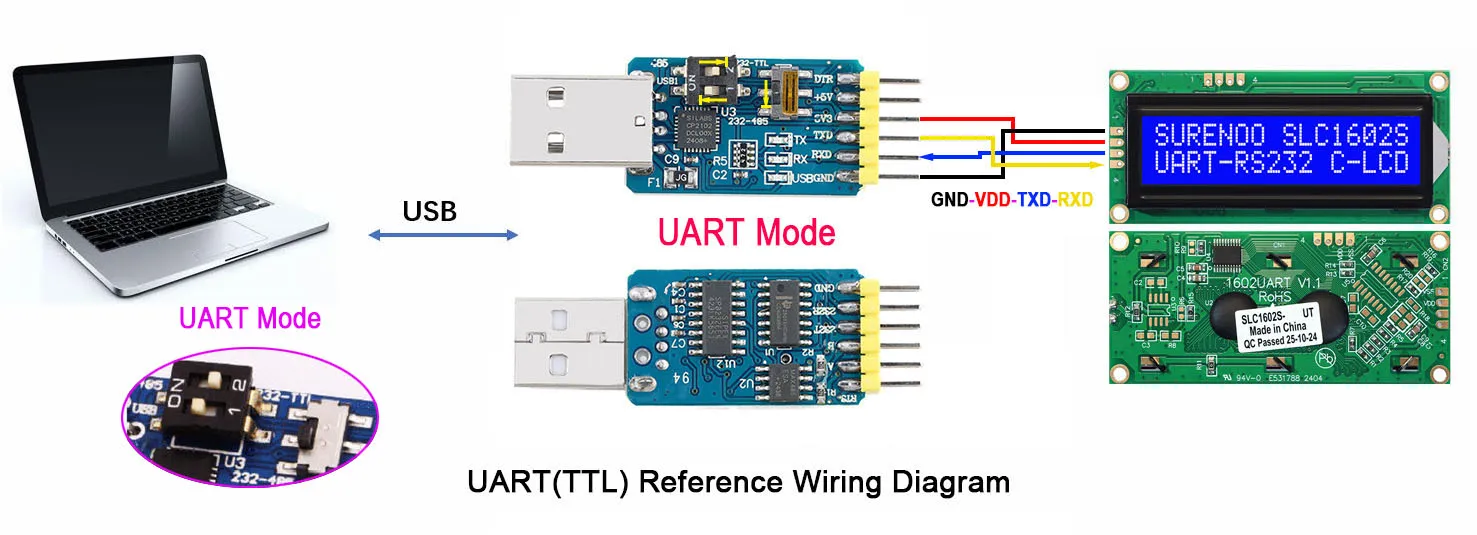

4. Serial RS232/UART Interface

"Shenzhen Surenoo Technology Co., Ltd." is a professional display supplier since 2005, The company has its own trademark "Surenoo Display", dedicated to the LCD industry over 10 years, supply service for numerous domestic and foreign eBay and Alixpress buyers and companies. After more than ten years of development, it has gradually gained recognition and recognition from domestic and foreign customers. The company has a rich product line. The company's designers are composed of a group of experienced and experienced professionals who can provide customers with fast, high-quality design solutions and meticulous technical support.

In June of 2019, we joined the Alibaba China Supplier Gold Certified Member, and we will provide professional services to our customers with more advantageous LCD product resources.

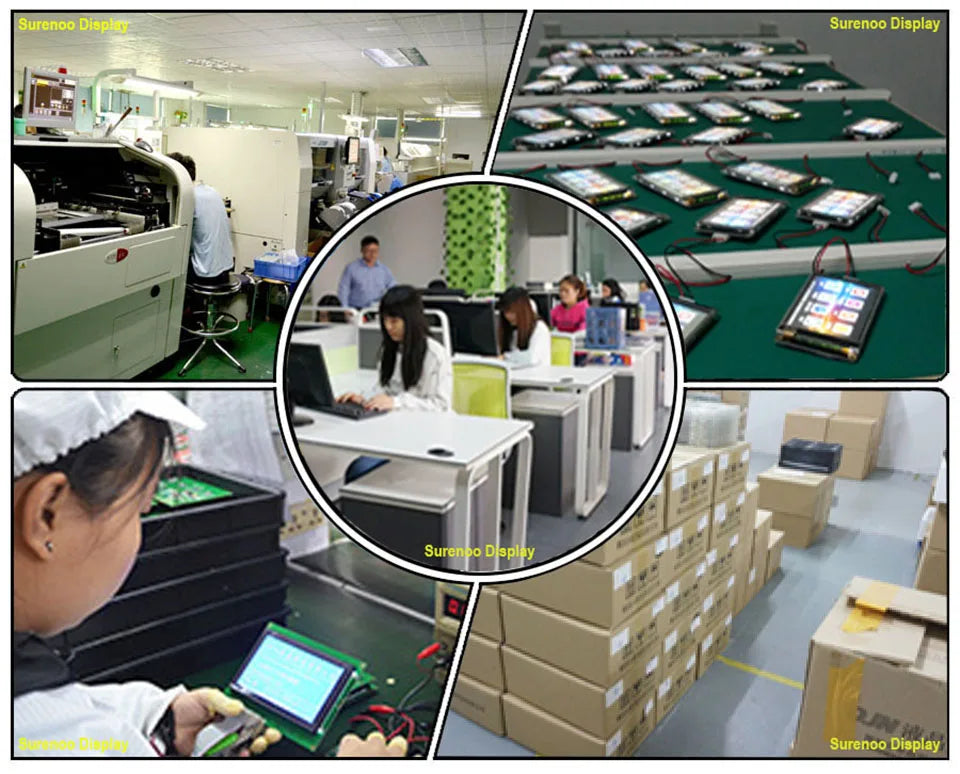

Factory
