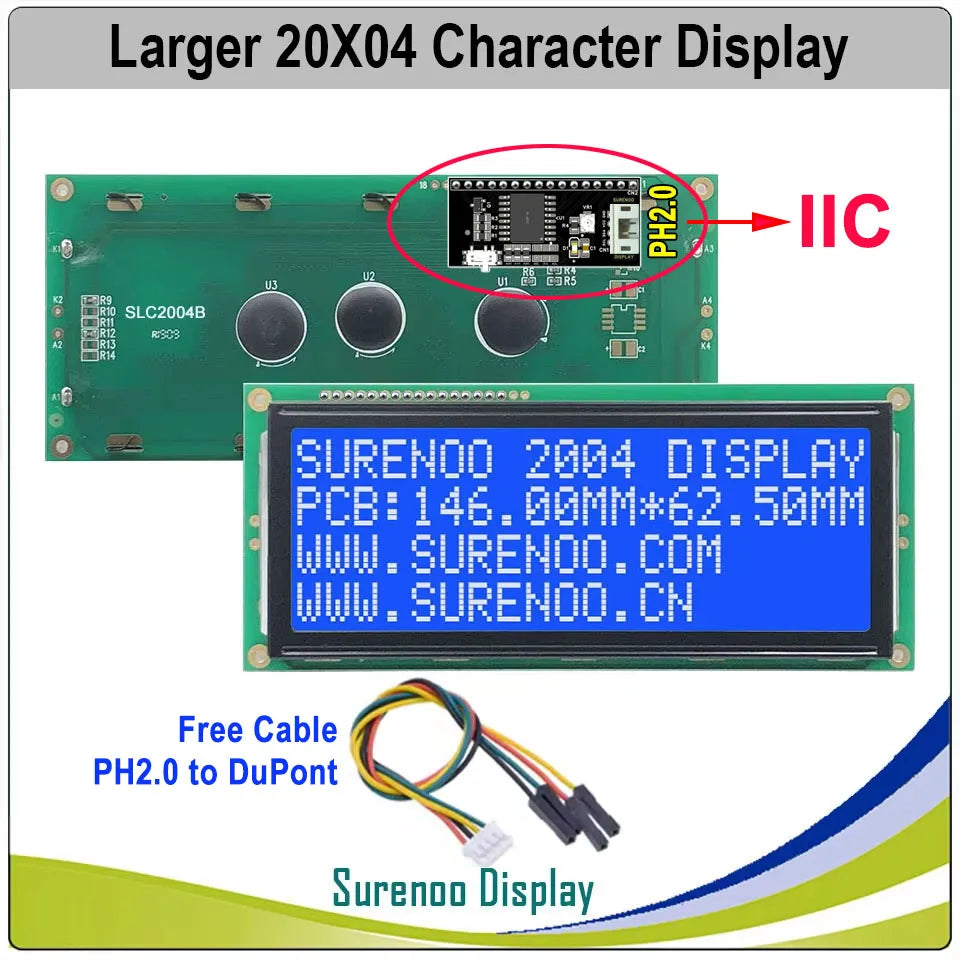

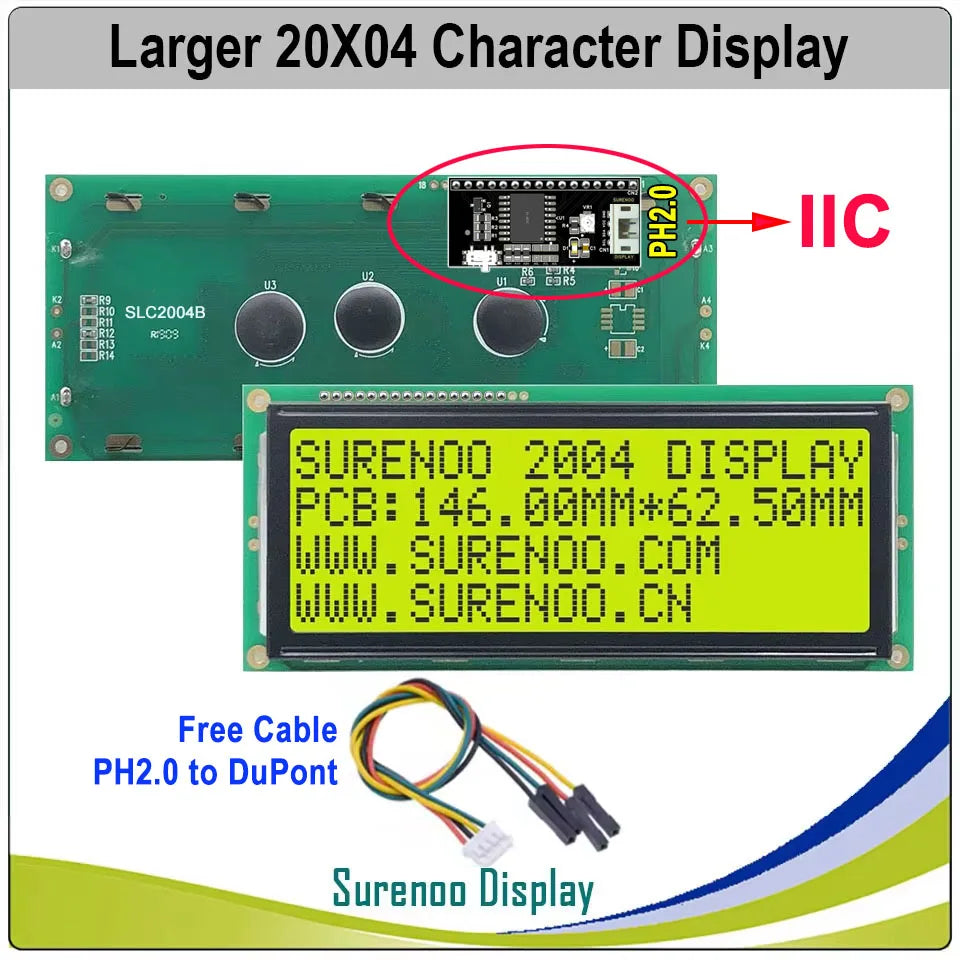

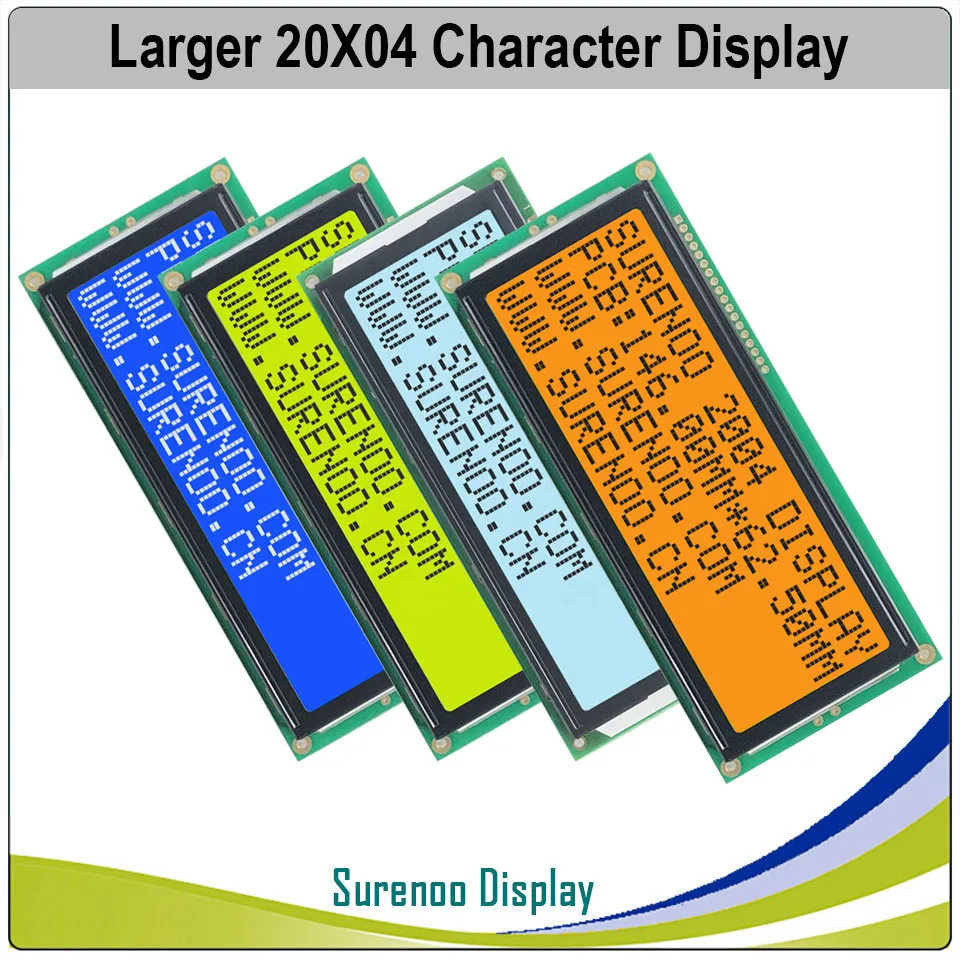

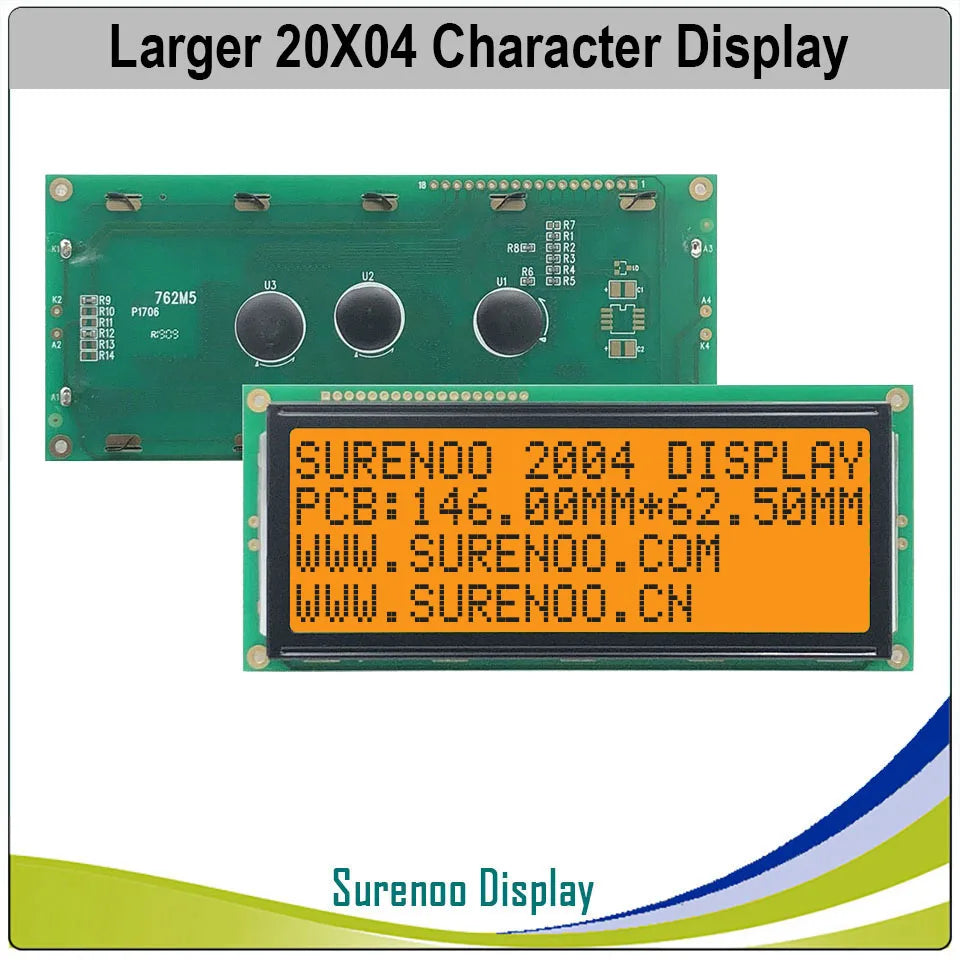

Surenoo Larger 204 20X4 2004 Character LCD Module Display Screen LCM Blue Yellow Green FSTN White LED Backlight English Japanese

Surenoo Larger 204 20X4 2004 Character LCD Module Display Screen LCM Blue Yellow Green FSTN White LED Backlight English Japanese

$53.96

$53.96 $0.00

Color IIC-2004B-YGO IIC-2004B-BLW Parallel-2004B-YGY Parallel-2004B-BLW Parallel-2004B-YGO IIC-2004B-YGY

Description

SPECIFICATIONS

Brand Name: SURENOO

Display Mode: NC

High-concerned chemical: none

Model Number: SLC2004B

Origin: Mainland China

Resolution: 20*4

Semiconductors & Actives Type: lcds & displays

Type: Character

is_customized: Yes

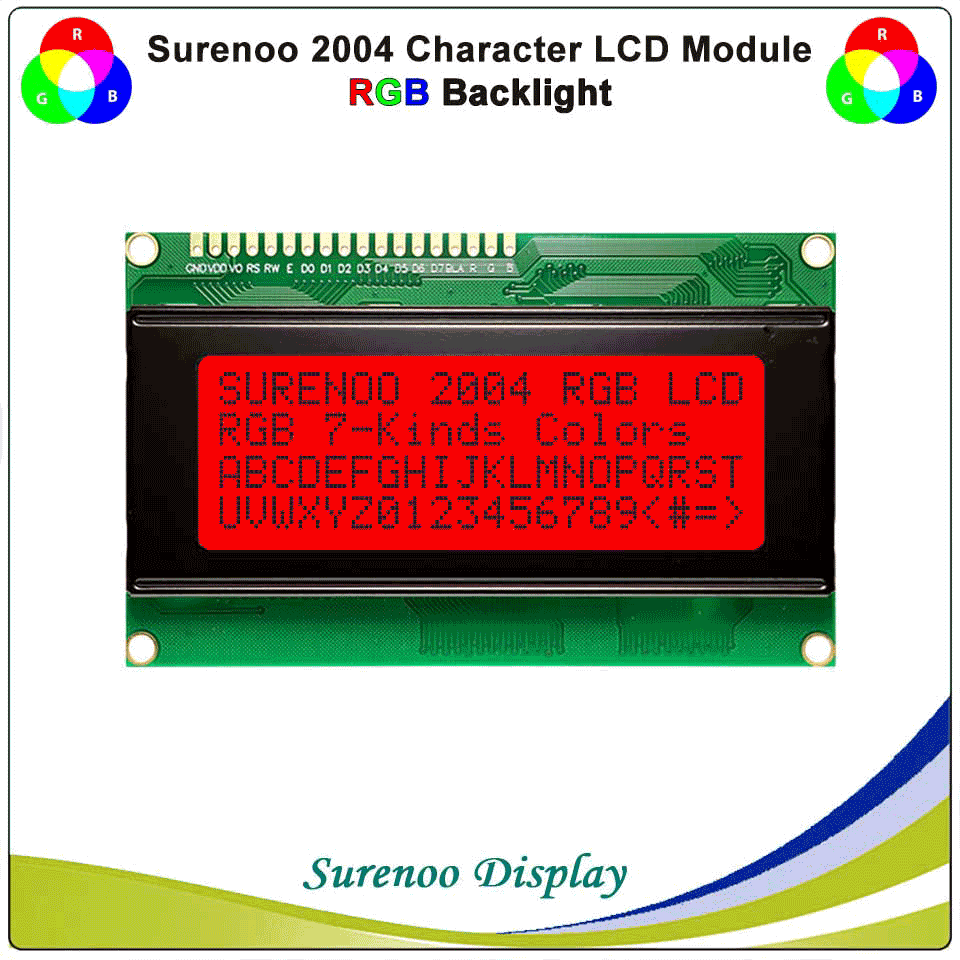

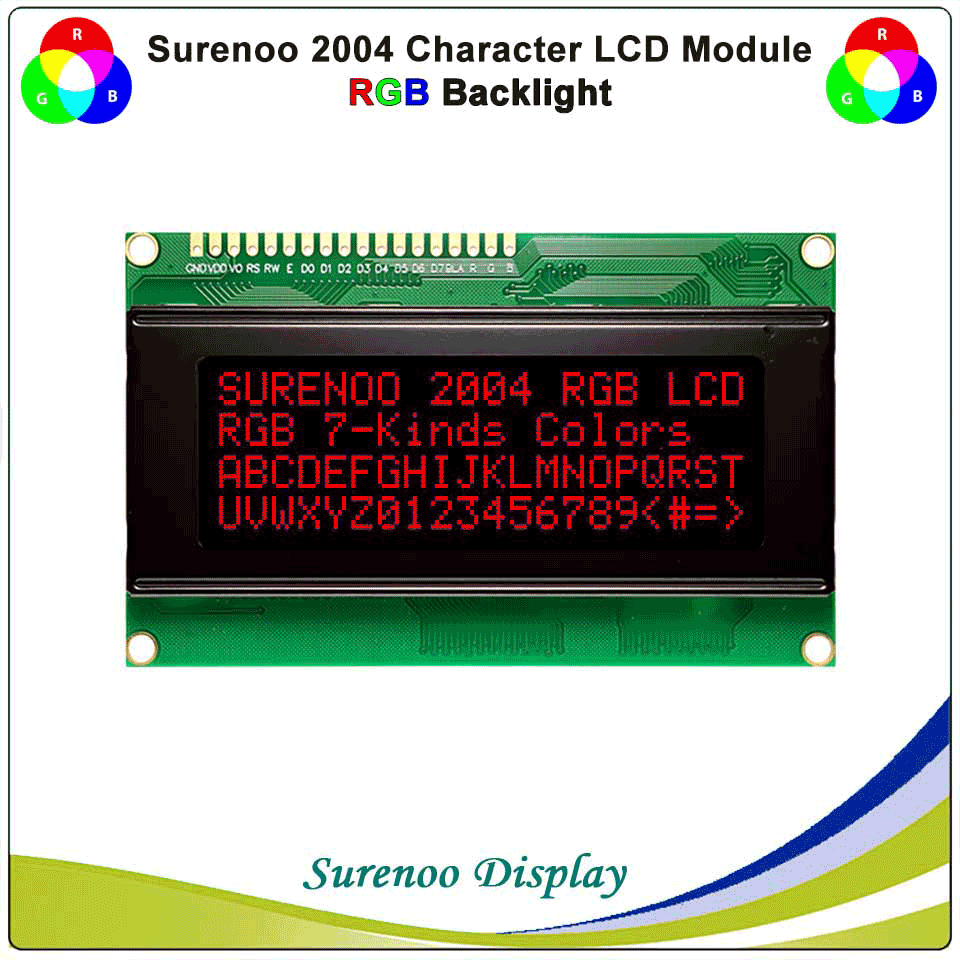

Surenoo 2004 Character Display in RGB LED Backlight

If you need it, Please click the following image to buy it.

>> Model No.: SLC2004E-VACPT

>> PCB Size: 98.00X60.00MM

>> Display Type: VA-TN Negative Black

>> Backlight Type: RGB LED Backlight

>> Model No.: SLC2004E-FPCPT

>> PCB Size: 98.00X60.00MM

>> Display Type: FSTN Positive

>> Backlight Type: RGB LED Backlight

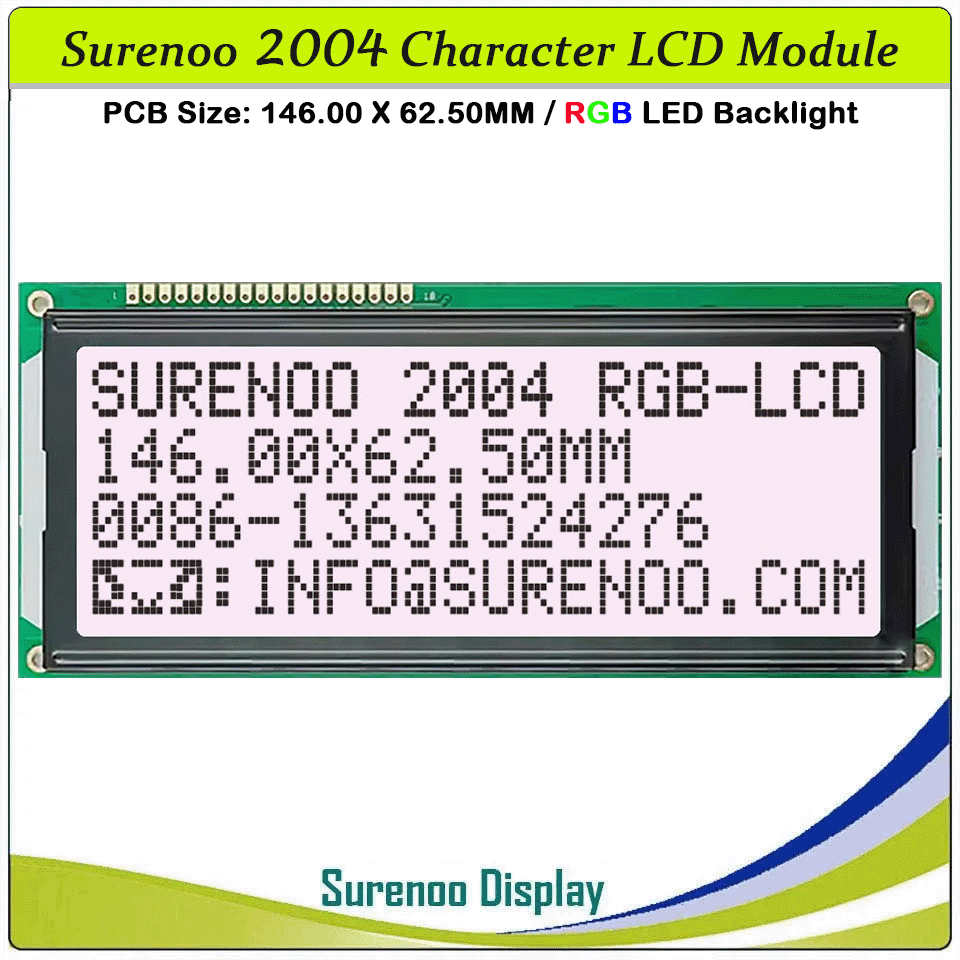

>> Model No.: SLC2004G-FPCPT

>> PCB Size: 146.00X62.50MM

>> Display Type: FSTN Positive

>> Backlight Type: RGB LED Backlight

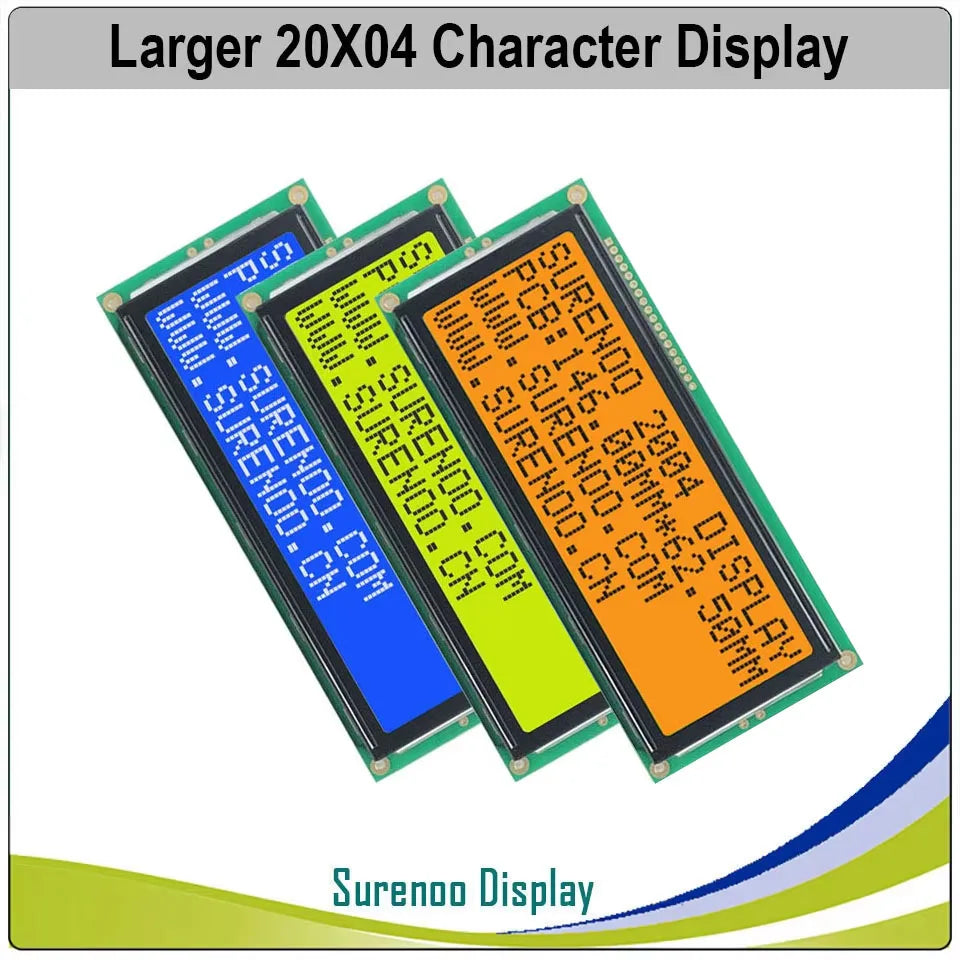

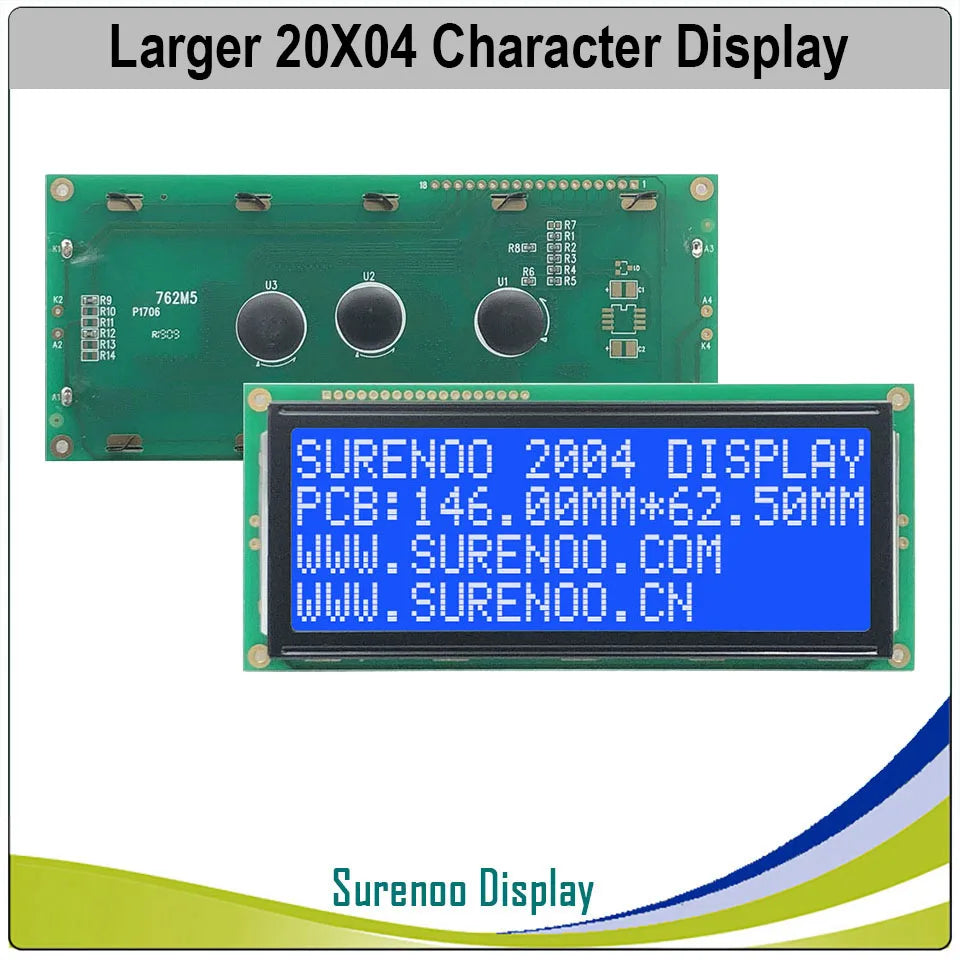

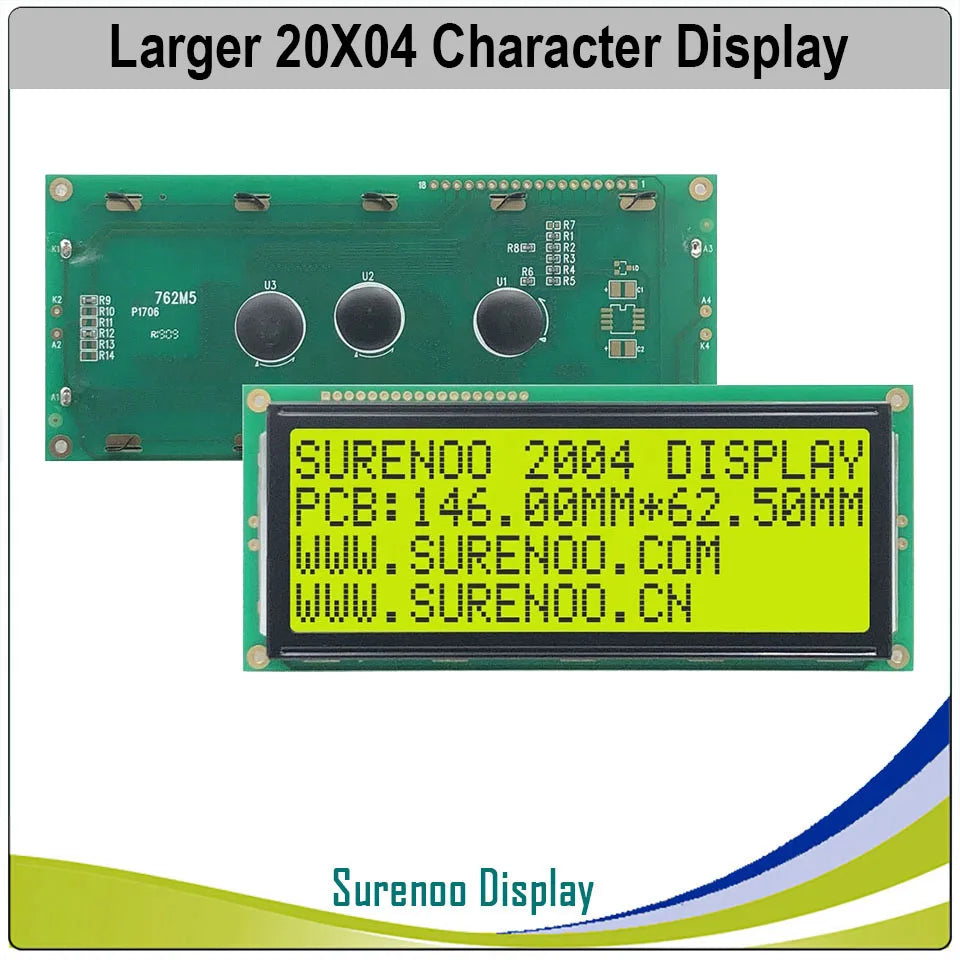

Surenoo 2004 Character LCD Module

Model No.: SLC2004B

☛ (Surenoo Character LCD Module Series Selection Guide) ☚

➤ Basic Information

>> Model No.: SLC2004B
>> Product Type: Character LCD Module
>> Brand: Surenoo
>> Display Format: 20*04 Characters
>> Interface: 6800 4-bit Parallel, 6800 8-bit Parallel
>> IC or Equivalent: AIP31066, HD44780, KS0066, SPLC780D
>> Font: English & Japanese
>> Outline Dimension:146.00(W)x62.50(H)x13.50(T)mm
>> Visual Area: 123.50x43.00mm
>> Active Area: 118.84x38.47mm
>> Viewing Direction: 6:00
>> IC Package: COB
>> Power Supply (Type): 5.0V

➤ Datasheet Download (Surenoo Display)

https://www.surenoo.com/products/6907132

➤ SLC2004B Series Table

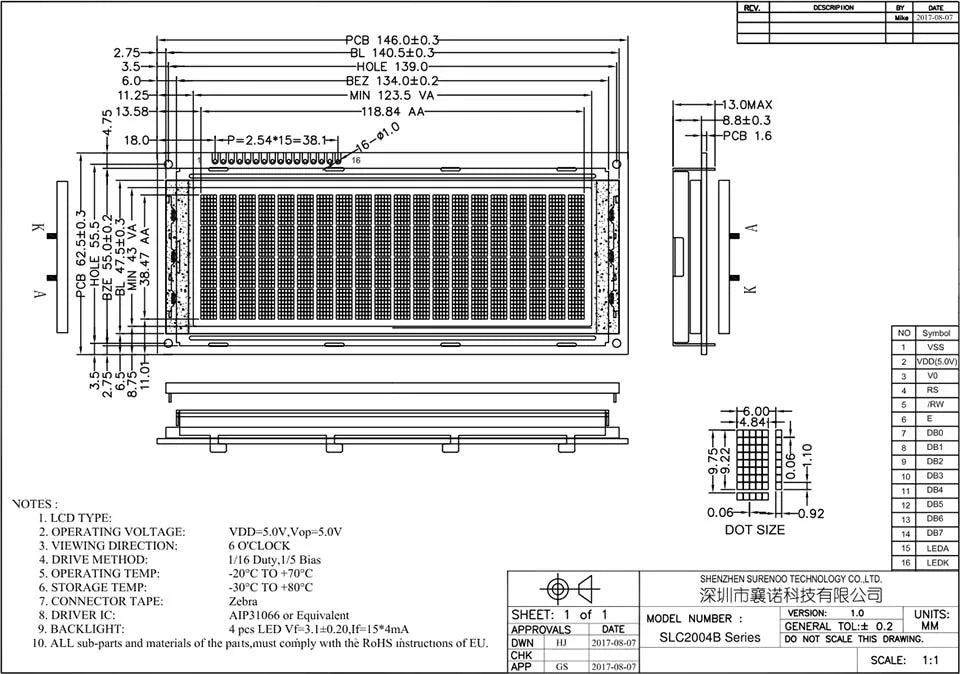

➤ SLC2004B Outline Drawing

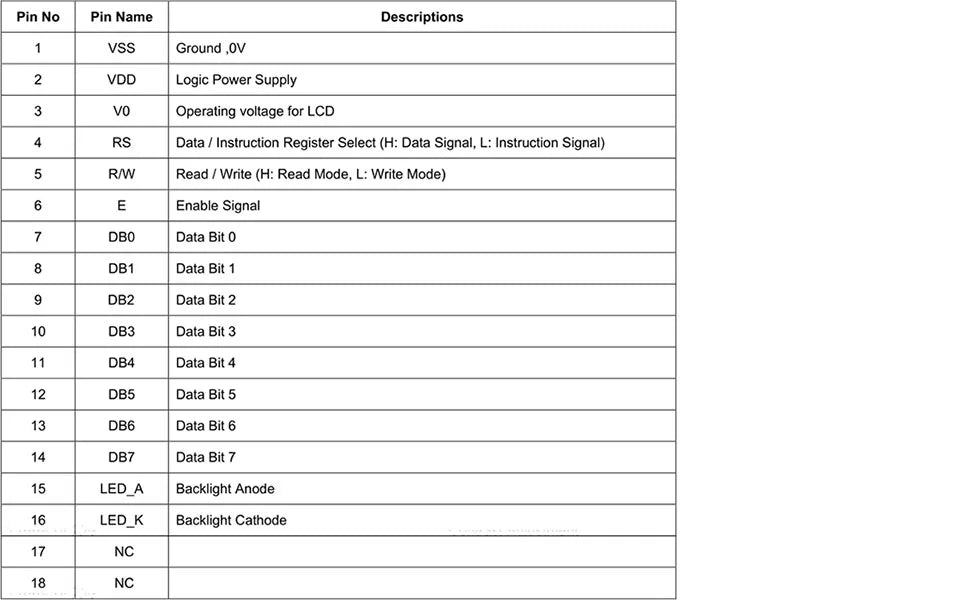

➤ SLC2004B Pin Configuration

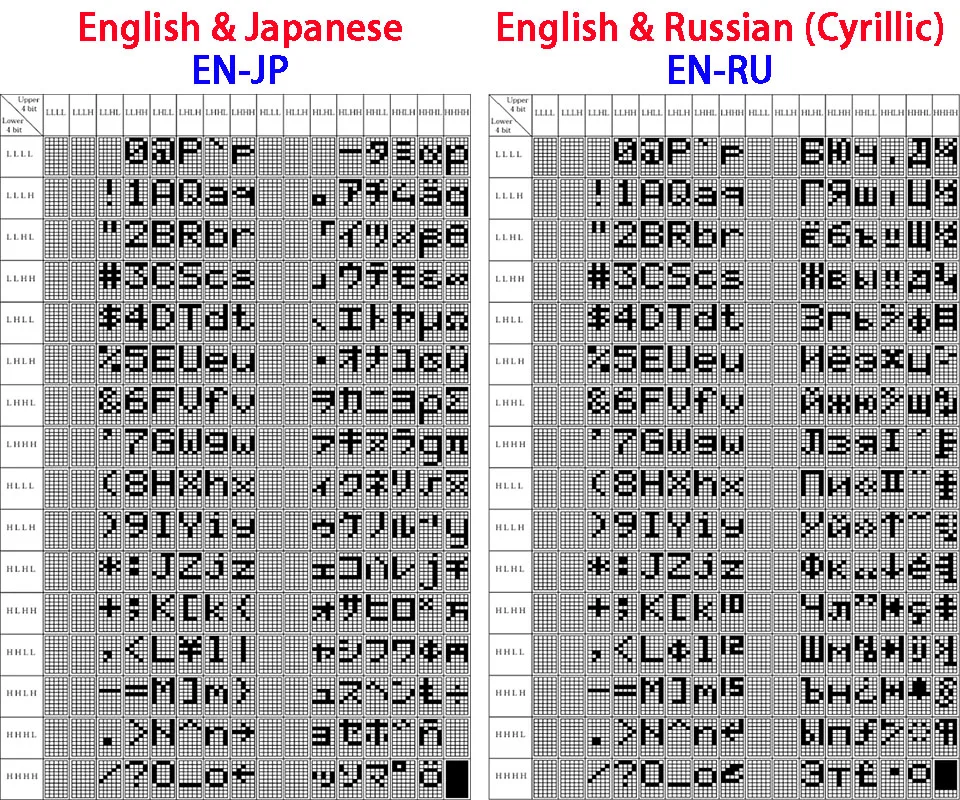

➤ SLC2004B Font Table

➤ Related Accessory

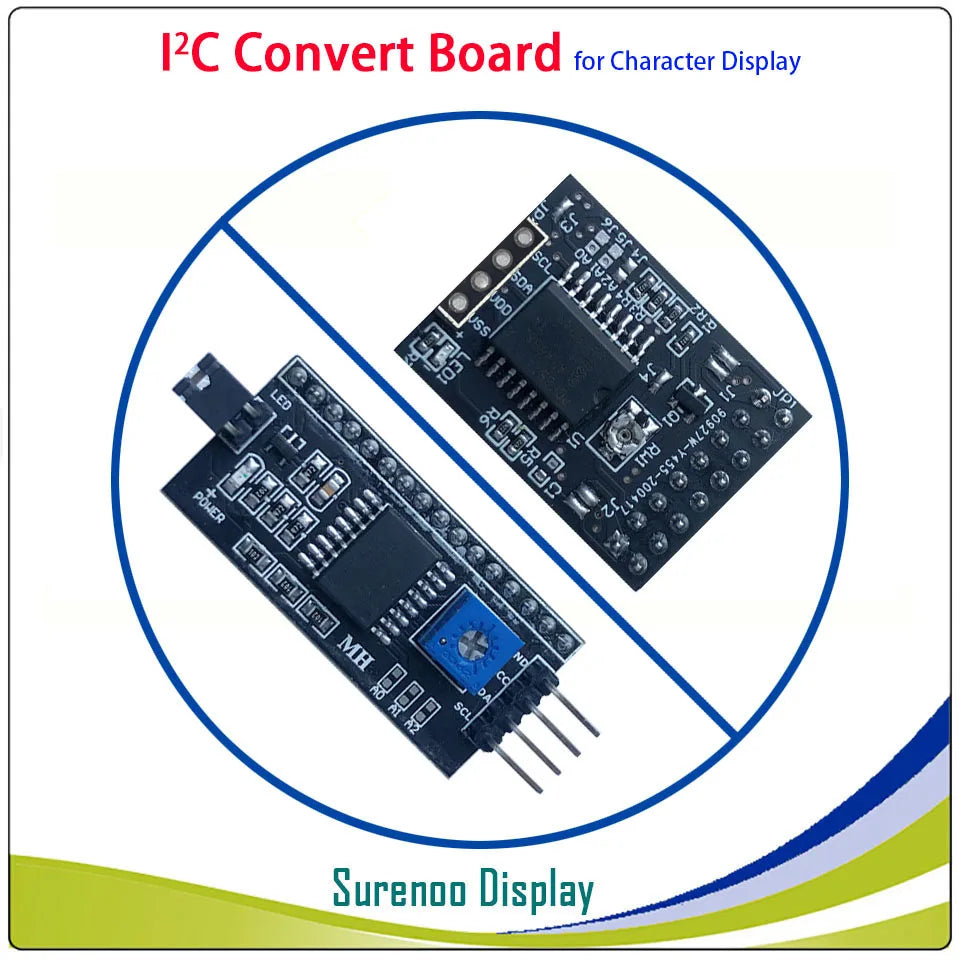

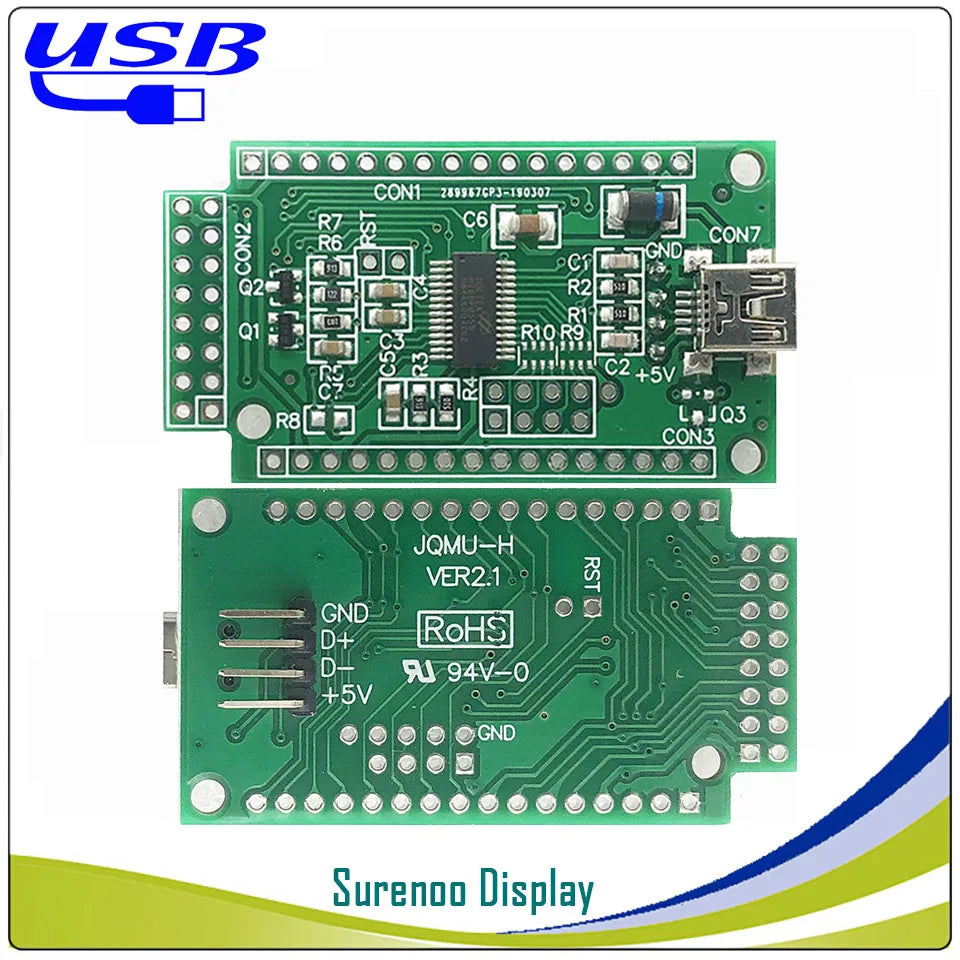

IIC Module	USB Module
