SPECIFICATIONS

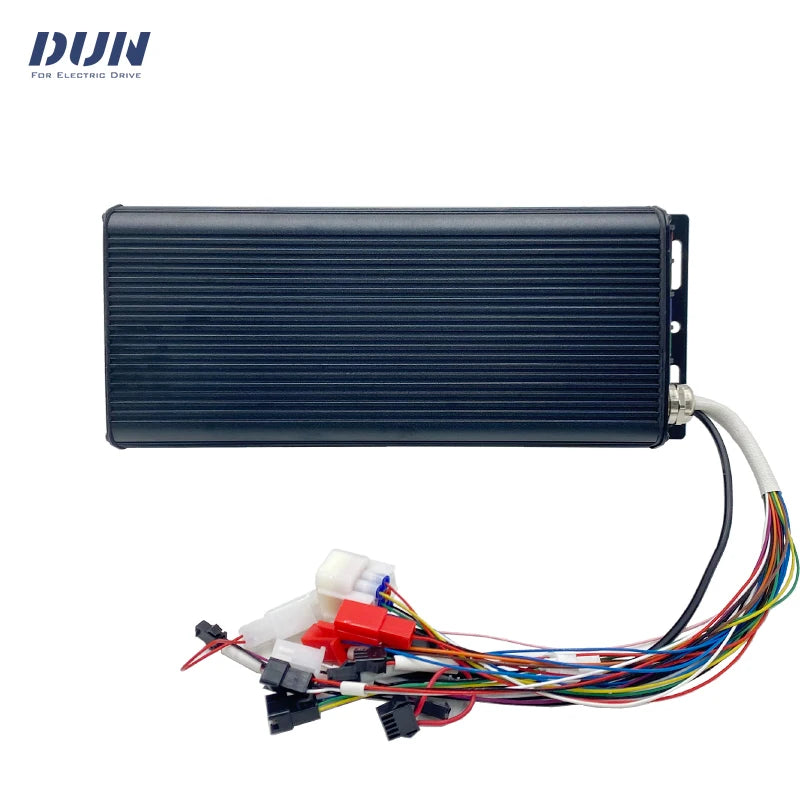

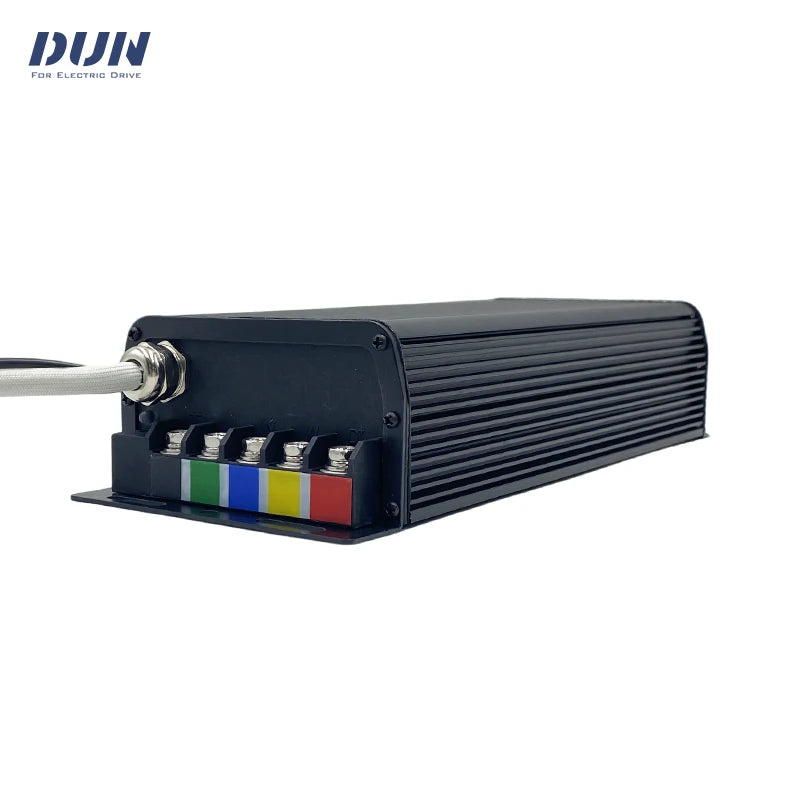

Sabvoton 4000W-5000W SVMC72200 APT Protocol DC 200A Phase 450A Hall Sensor Controller For QS273 Hub Motor

The function for SVMC-APT controller:

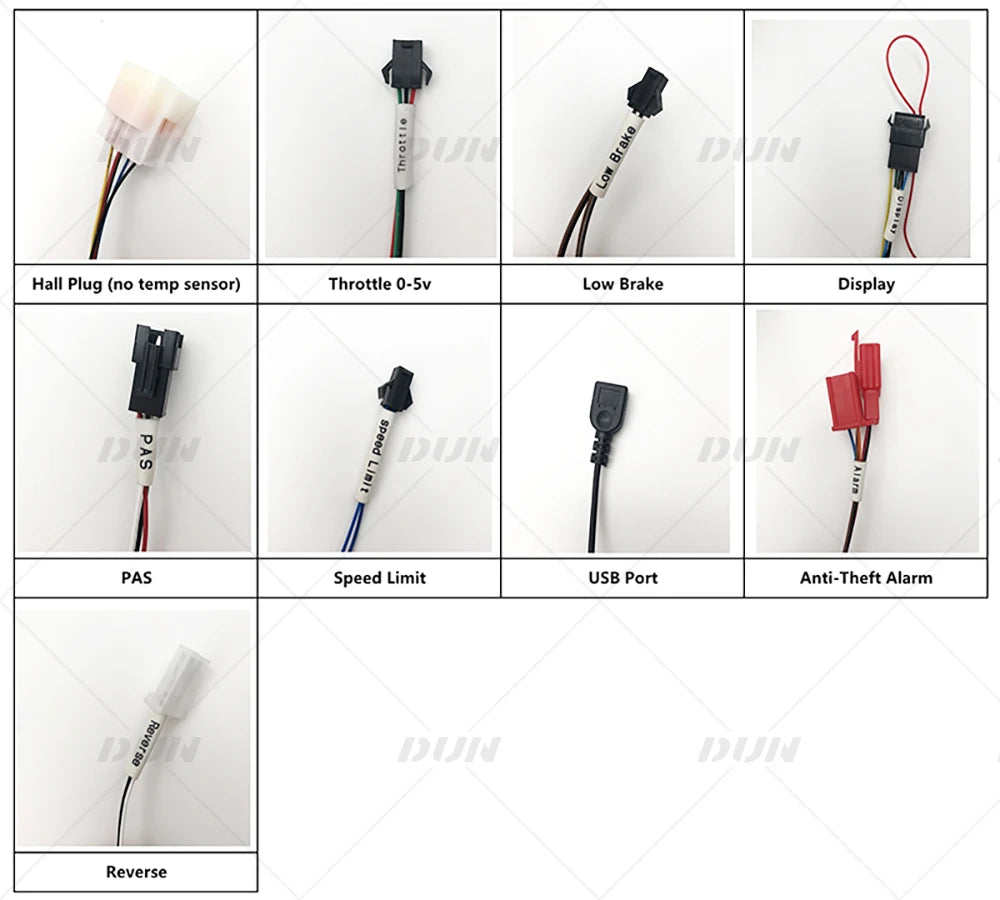

Hall Plug, PAS(5gear), Throttle Plug (0-5V), Speed Limit, Anti-Theft, Low Brake 0V, Reverse, UKC1 Display Wire(Ignition), USB Cable, Flux Weakening Current.

*This controller don't have high brake 12v function.

Note: This controller is APT protocol and can ONLY match with APT protocol display.

Sabvoton Controller Category

NOTICE: Sabvoton controller is suitable for Spoke/In-wheel/Hub motors with 120° Phase angle. But it may NOT work properly with a Mid Drive motor.

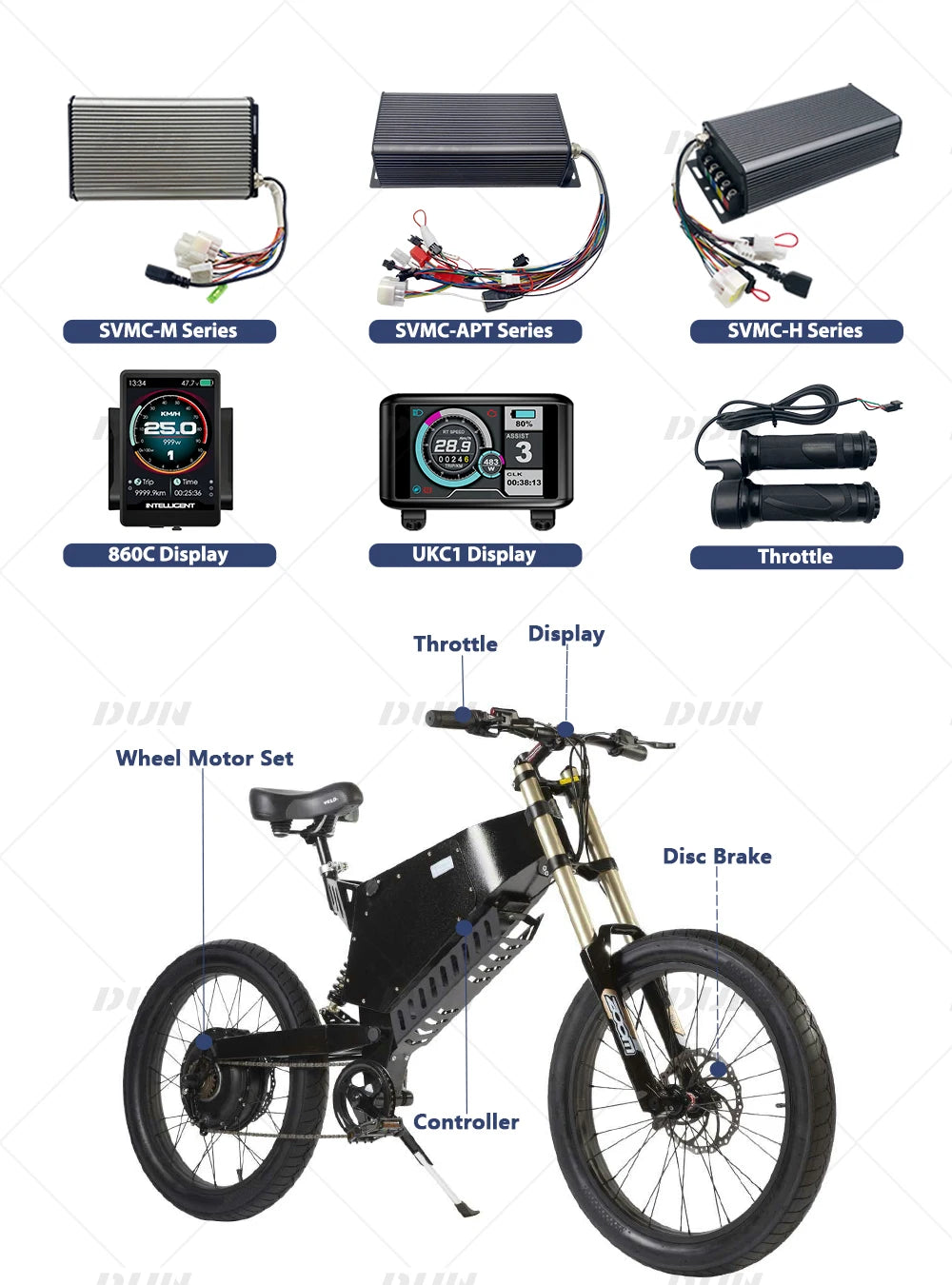

The difference between each series of Sabvoton controllers:
1. SVMC-M series matches Hall display, display communication: Hall signal.
2. SVMC-APT series matches TFT UKC1, 750C display, display communication: APT protocol.
3. SVMC-H6 series matches TFT 860C display, display communication: New Thinking NO.2 protocol.

Controller Specification

Sabvoton BLDC Motor Controller

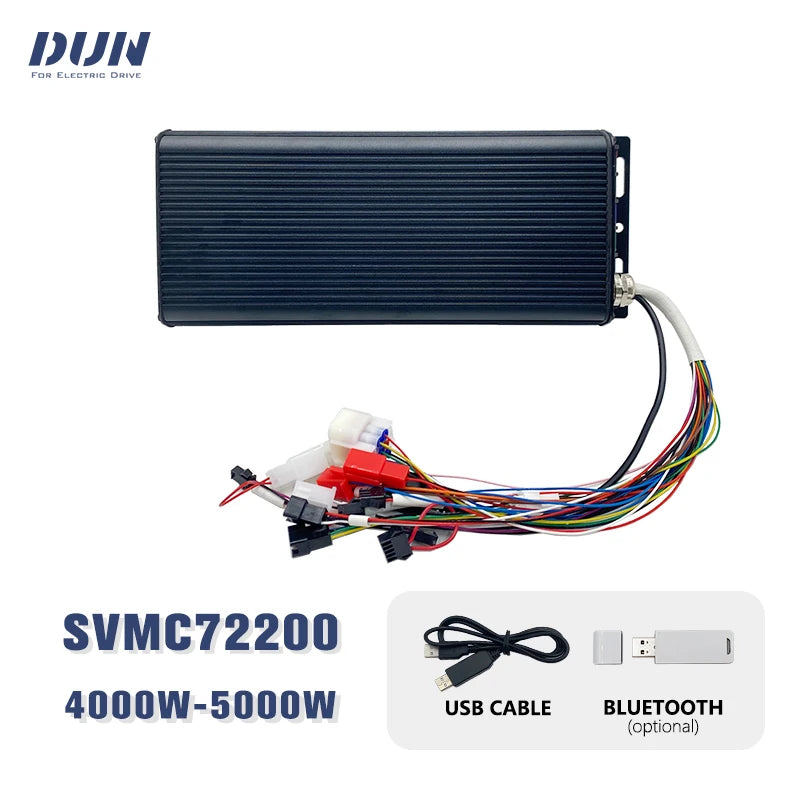

1. Model: SVMC72200-APT
2. Available Rated Battery Voltage: 36V/48V/60V/72V
3. Peak Battery Voltage: 95V
4. Available Motor Power:4KW - 5KW
5. Peak Phase Current: 450A
6. Peak DC Current: 200A
7. Working Communication: Hall Sensor

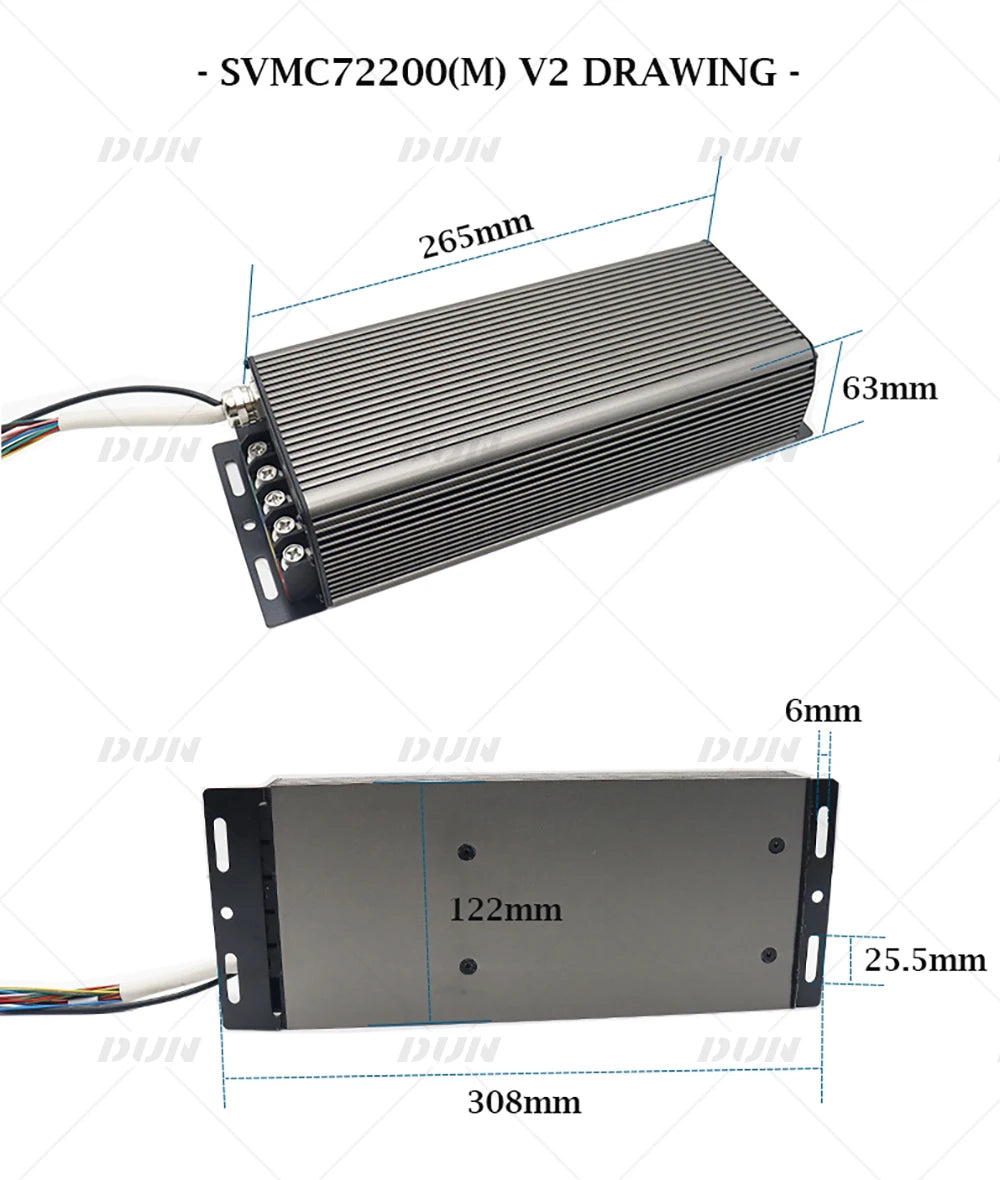

8. Size: 308mm * 122mm * 63mm
9. Weight: 2.5 kgs
10. Throttle Working Voltage: 0V - 5V
11. Mosfets Detail: 30 FET
12. Case Material/Color: Aluminum /Gray
13. Controller Design: Sine Wave Brushless DC

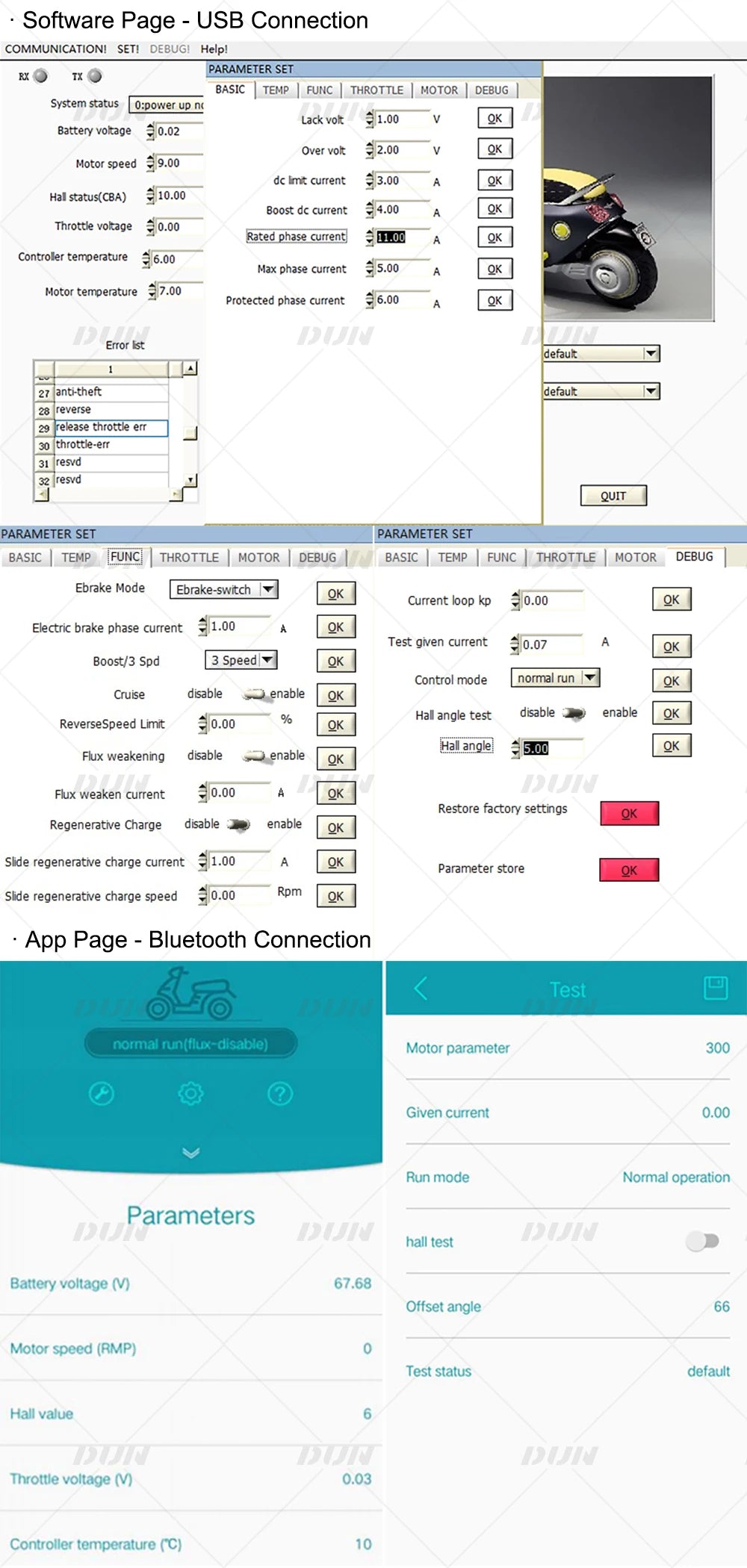

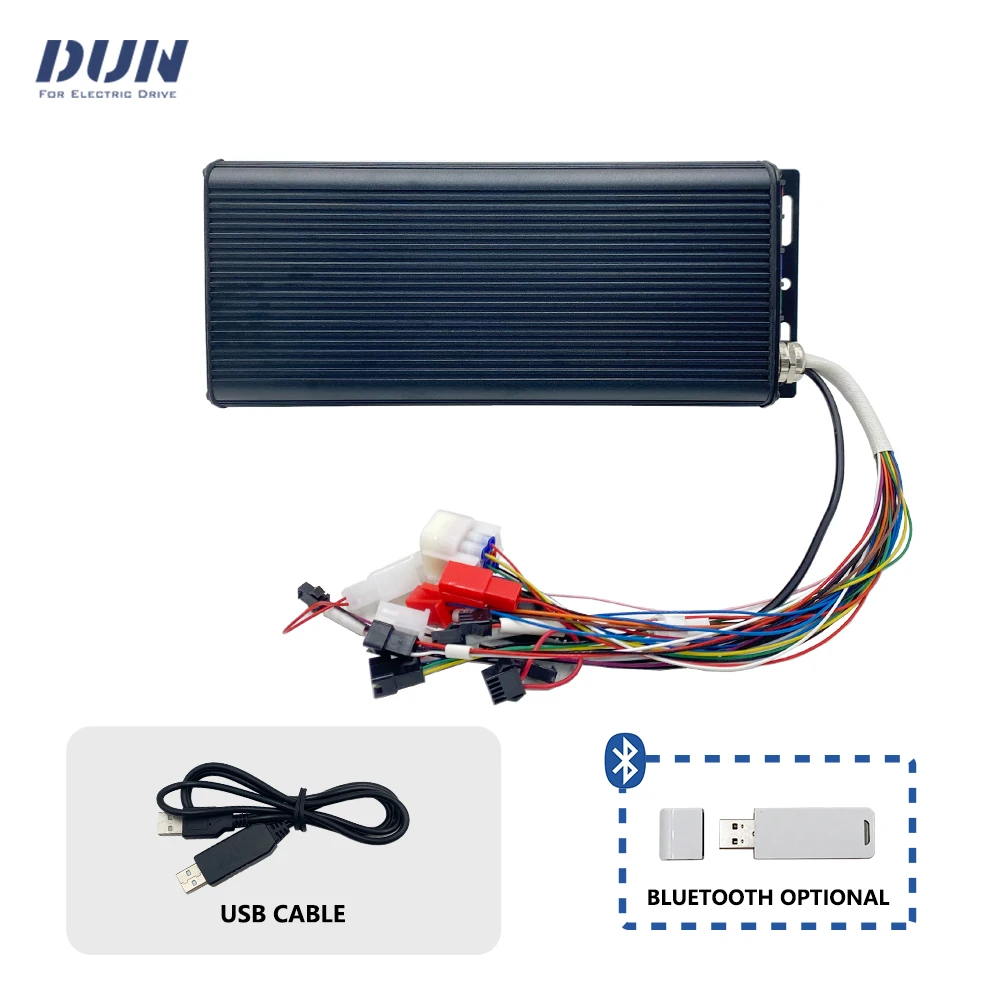

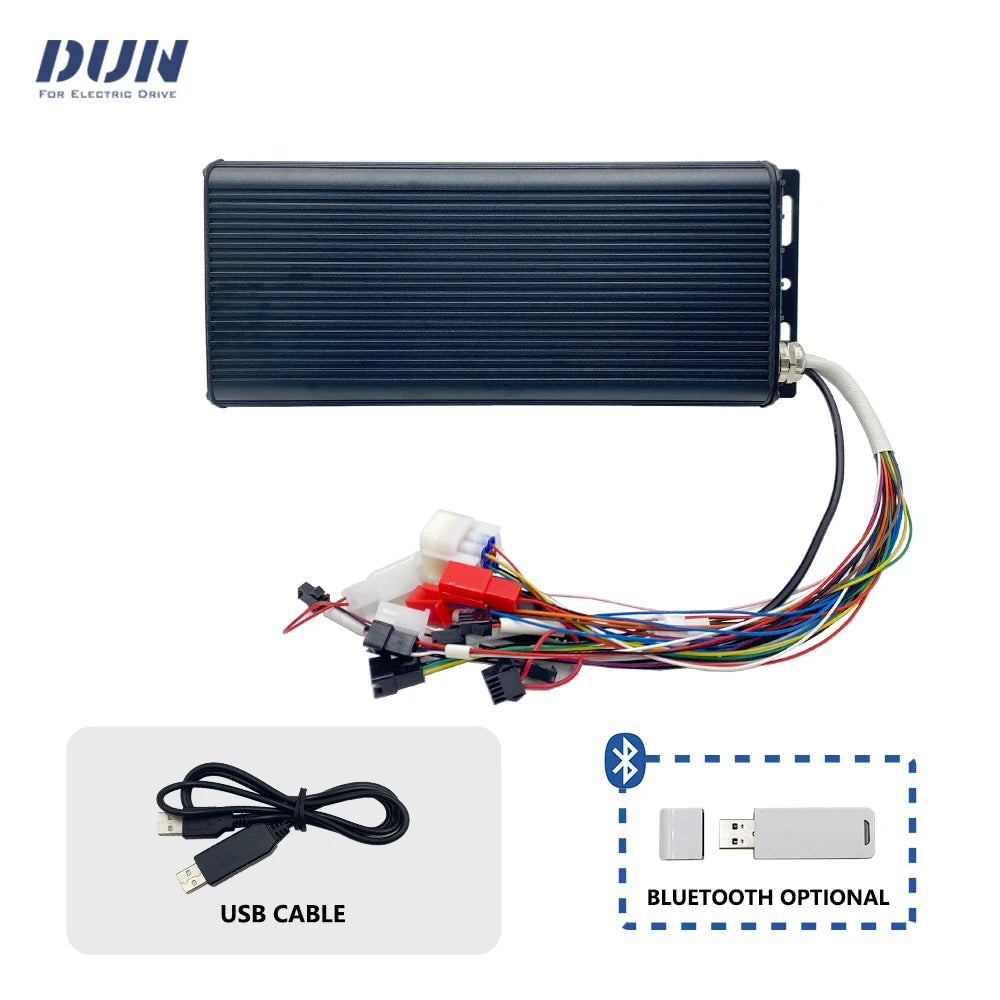

14. Support Programmable by PC & Phone

FAQ

Q: How about the Duty & Tax ?
A: All products are sent in DDU mode, the total price does not include tax and duty. The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance, please ensure that you have the ability to clear the goods before purchasing.

Q: About the functions and interfaces of the controller
A: The controllers we sell are universal versions, not customized for a specific brand. Therefore, after installation, some functions of the original vehicle may not work normally (such as speedometer display)
Most functional interfaces need to be modified, they are not plug and play.
Before refitting, please carefully check the function wires on the original vehicle and the communication signal of the speedometer.

Q: How long is the delivery time ?
A: We can ship controllers and motors in stock within 24 hours. If there is no stock, the delivery time is usually within 6-10 working days (some customized products require longer time).

Q: About delivery timeliness
A: The time limit of commitment of AliExpress shipping channel is 60 days (Goods can usually be delivered within 3 weeks, but for some special countries, it may take longer ).
If you want fast delivery, please select FedEx, DHL or UPS.

Q: How about the warranty ?
A: We offer 1 year warranty for motors and controllers, but the buyer need to pay the return shipping cost for repairing or replacing a new one.
If you have any problems, please feel free to contact us, and we will try our best to help you.
If you don't have any experience on electric kits assembly, please make prudent choice to buy it or not! There is no warranty for man-made damage.

Q: About the shipping way
A: Sometimes the online shipping cost and shipping way is not the best, we will choose the most convenient shipping way for you and will inform you before shipping. Thank you for your understanding.
