SPECIFICATIONS

Application: EC ITE,ENE,NUVOTON,MEC,EPFxxx,

Applications: IC/Chips

Brand Name: NONE

Condition: Brand Newand Original

Delivery Time: 1 Day

Description: SPI Programmer, SVOD4 VER-4 IC programmer

Features: Original

Function: Read/Write

High-concerned chemical: none

Model Number: SVOD4 VER-4

Mounting Type: Connect

Origin: Mainland China

Payment ways: paypal,TT,Western Union

Series: SVOD4

Service: 24 Hours Online

Shipping by: Fedex EMS TNT DHL

Supply Voltage: Normal Voltage

Warranty: 1 Year

Specifications:
- port for connecting to a computer: usb 2.0 high speed,
- high-speed ARM7 processor at 480MHz,
- connection to IC: zif 48 + 16 pin connector
- number of input-output ports: 56
- supply voltage: 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.25v, 1.2V, 0.8V.
- work with EC ITE, ENE, NUVOTON, MEC, EPFxxx
Supported protocols:
SPI, I2C, SMBUS, 1-Wire, NAND, NOR, EMMC, JTAG, UART, CAN, parallel synchronous and asynchronous protocols.
Automatic detection of "bad contact" when connecting IC.
SPI ROM cable - Comptible Macbook's list until 2017 year if you use SVOD programmer:
A1534 emc 2746 820-00045, A1534 emc 2991 820-00244, A1534 emc 3099 820-00687, A1370 emc 2393 820-2796, A1370 EMCXXXX 820-2955,
A1370 EMCXXXX 820-2955, A1370 820-2855-A, A1465 emc 2558 820-3208, A1465 emc 2631 820-3435, A1465 emc 2924 820-00164, A1304
EMCXXXX 820-2375, A1304 EMCXXXX 820-2375, A9 emc 2469 820-3023, A1466 emc 259 820-32509, A1466 emc 2632 820-3437, A1466 emc
2925 820-00165, A1466 emc 3178 820-00165, A1425 emc 2512 820-3462, A1502 emc 2678 820-3536, A1502 emc 2678 820-3476, A1502 emc
2875 820-3476, A1502 emc 2835 820-4924, A1398 emc 2512 820-3332, A1398 emc 2673 820-3332, A1398 emc 2746 820-3662, A1398 emc 2876
820-3662, A1398 emc 2745 820-3787, A1398 emc 2881 820-3787, A1398 emc 2909 820-00138, A1398 emc 2910 820-00163, A1398 emc 2910
820-00426, A1708 EMCXXXX 820-00361, A1708 emc 2978 820-00875, A1708 emc 3164 820-00840, A1706 emc 3071 820-00239, A1706 emc 3163
820-00923, A1707 emc 3072 820-00281, A1707 emc 3162 820-00928, A1283 emc 2264 820-2366,A1283 emc 2336 820-XXXX, A1347 emc 2364
820-2577, A1347 emc 2442 820-2993, A1347 emc 2442 820-3059, A1347 emc 2442 820-3017, A1347 emc 2570 820-3227, A1347 emc XXXX
820-3228, A1347 emc 2840 820-5509

Package include

1pcs Programmer SVOD Ver.4
1pcs USB Connection cable

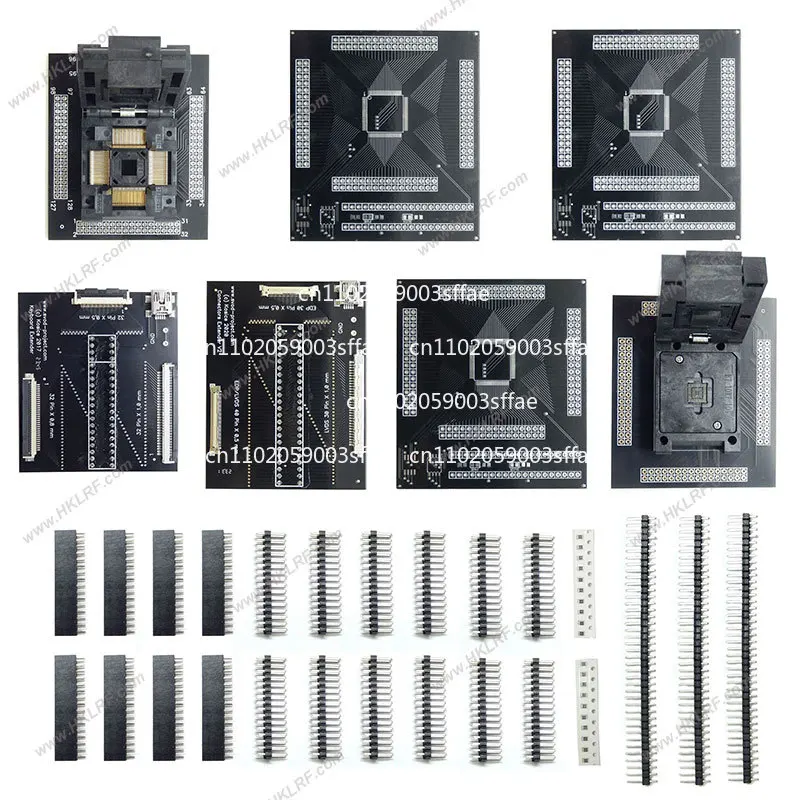

1pcs Extended board of ports for keyboard module
1pcs PCB for IDE
1pcs PCB for ene/nuvoton
1pcs PCB with ZIF socket TQFP-128p
1pcs LCD cable tester
1pcs ZIF socket BGA128-0.5
1pcs DEBUG pcb 128 pins
1pcs TSOP48-DIP48 Adapter
1pcs DFN8 QFN8-DIP8(8*6) CNV-QFN8-DIP Adapter
1pcs DFN8 QFN8-DIP8(6*5) CNV-QFN8-DIP Adapter
1pcs Double SOP8-DIP8 Adapter (SOP16-DIP20) OTS-20-1.27-01 (200mil)
1pcs 3in1 Adapter SOP8-DIP8 SOP16-DIP8 150mil 208mil 300mil
1pcs ISP-adapter 10pin ISP-Header01 Adapter

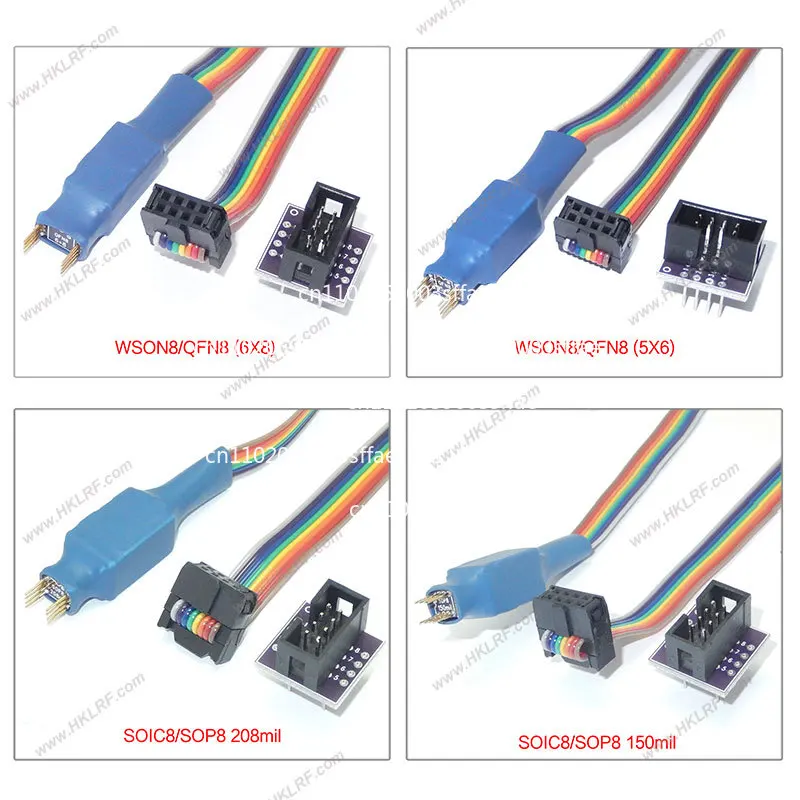

1pcs DFN8 QFN8 to DIP8 Probe 8*6mm
1pcs DFN8 QFN8 to DIP8 Probe 6*5mm
1pcs SOP8-DIP8 Probe (200mil)
1pcs SOP8-DIP8 Probe (150mil)
1pcs SOP8-DIP8 Adapter (200mil)
1pcs SOP8-DIP8 Adapter (150mil)
1pcs SOIC8 SOP8-DIP8 Cable ZIF Clip

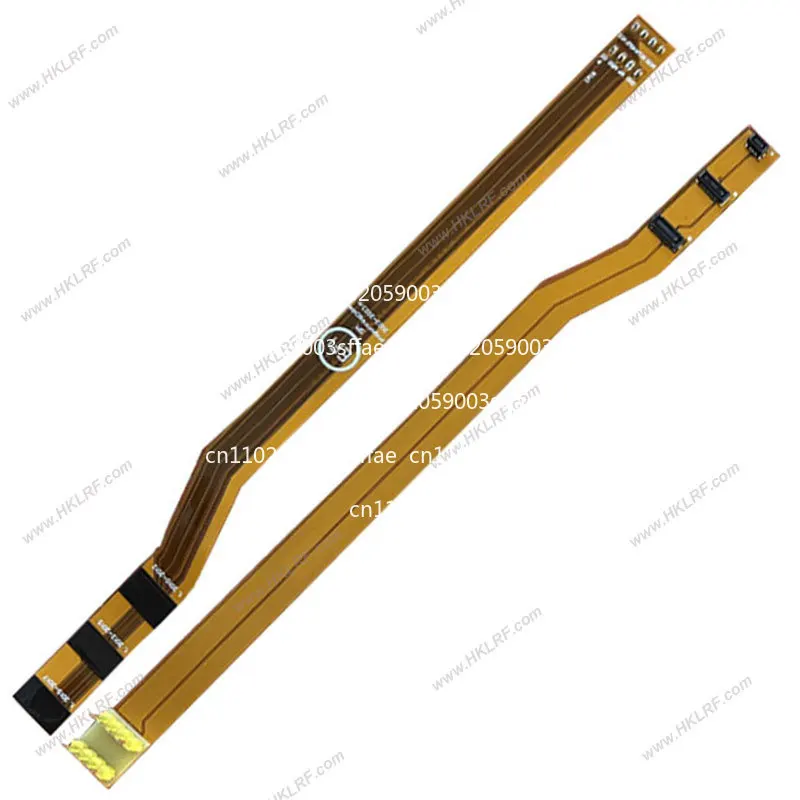

1pcs SPI ROM EFI Ribbon Cable (Hirose12 Hirose30 Molex30 connector)
Flex cables: 34pin, 32pin, 30pin, 26pin (all cables what you see in picture).
