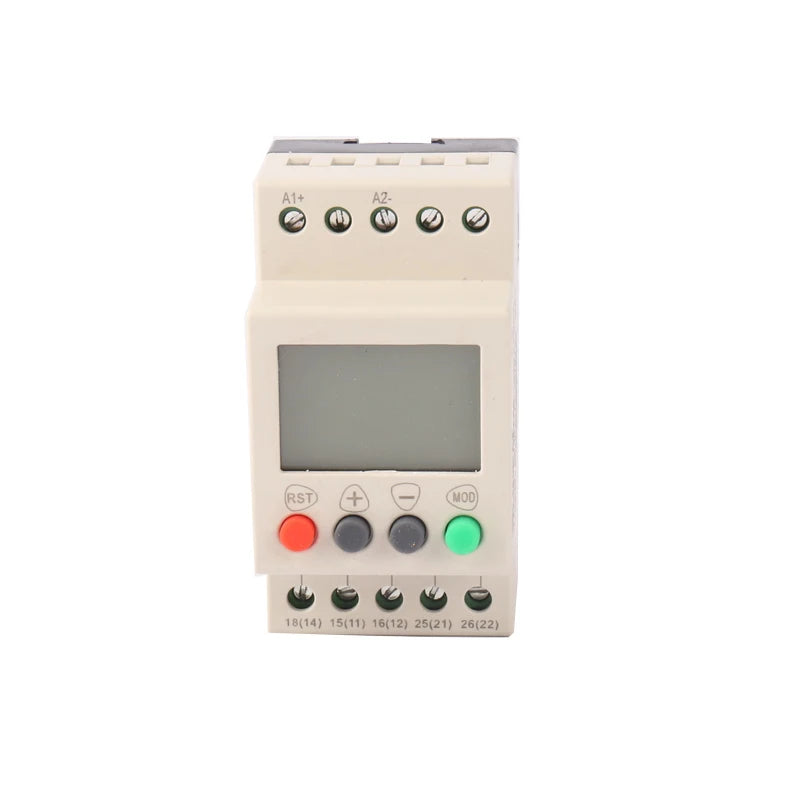

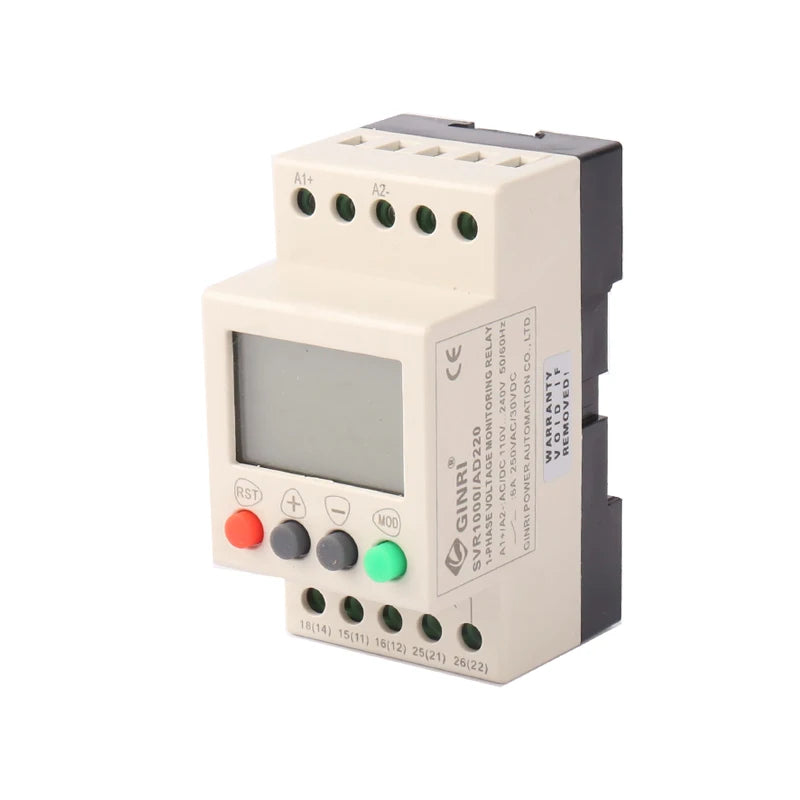

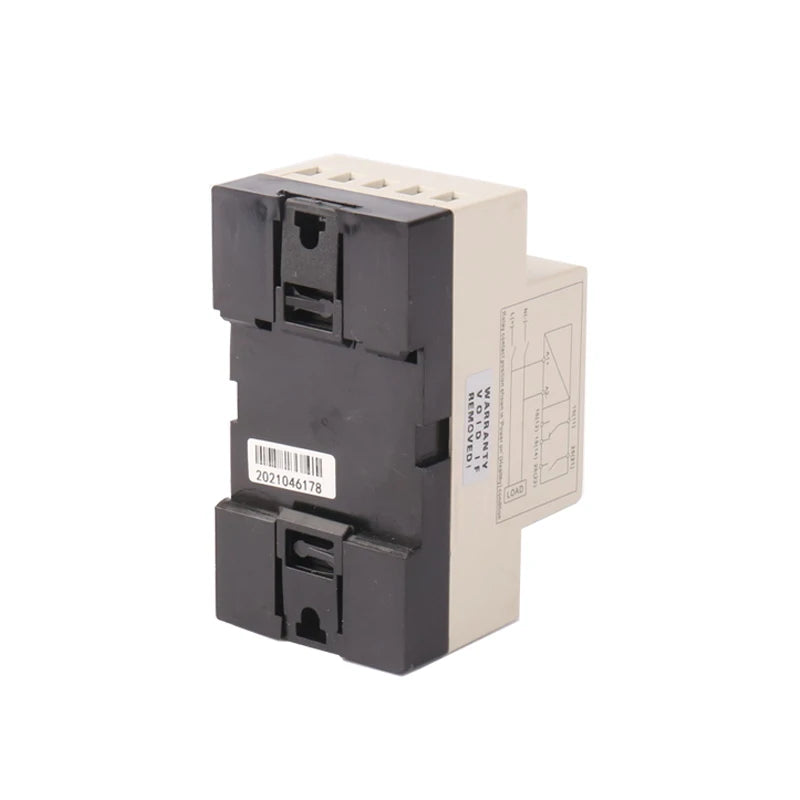

SVR1000 AC/DC LCD Display Single phase Overvoltage Relay Undervoltage Relay Protector
ACDC 110-240V
$63.77
Sale price
$63.77
Regular price
$0.00
Skip to product information
SVR1000 AC/DC LCD Display Single phase Overvoltage Relay Undervoltage Relay Protector
$63.77
Sale price
$63.77
Regular price
$0.00
Description

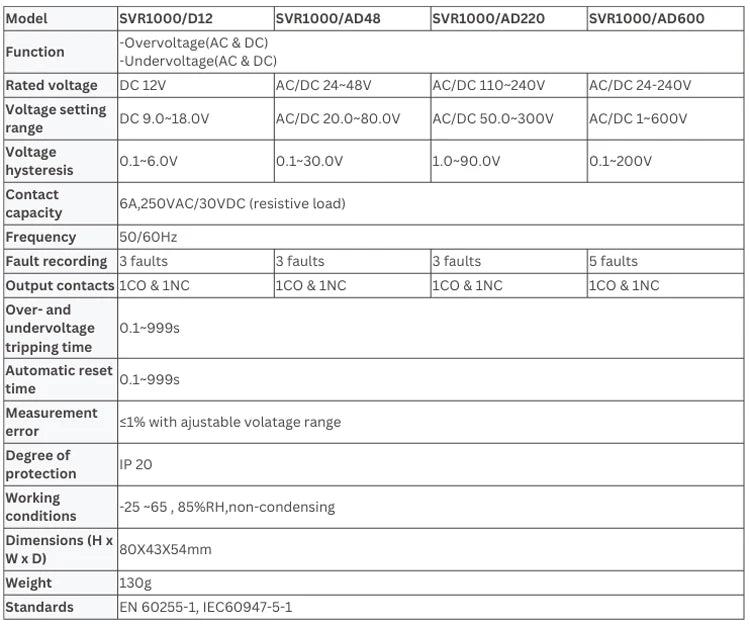

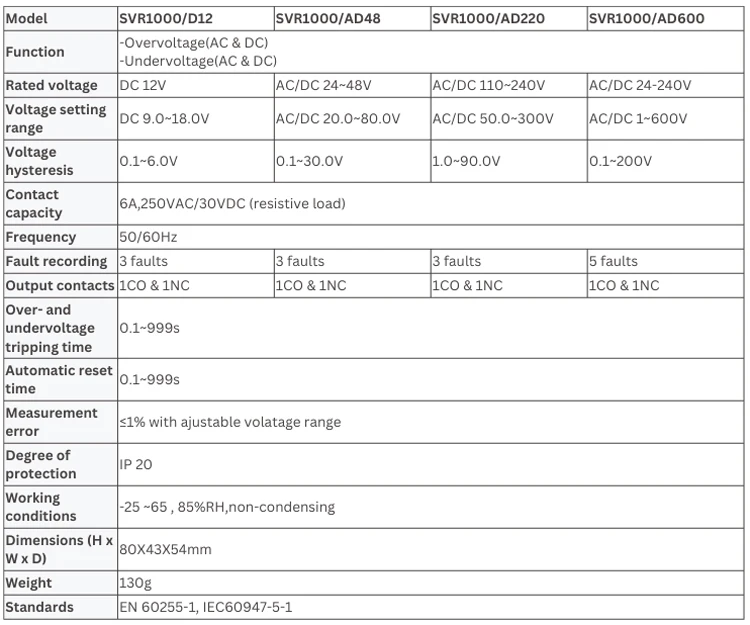

SPECIFICATIONS
Brand Name: GINRI
Contact Load: High Power
High-concerned chemical: none
Model Number: SVR1000
Origin: Mainland China
Power Source: Ac
Protect Feature: Sealed
Theory: Voltage relay
Use: Protective
Voltage: 220V
is_customized: Yes
Product Description
SVR1000-AD220 Features
SVR1000-AD220 Features
■ Powered by the measuring circuit
■ Compatible with AC and DC supply
■ Microprocessor technology provides highly accurate and repeatable protection
■ Built-in LCD and keypad afford a precise digital setting
■ Compact modular 43mm housing
■ Adjustable over- and undervoltage
■ Independent adjustable delay time for overvoltage and undervoltage
■ Adjustable reset mode:automatic reset or manual reset
■ 1 CO & 1NC contacts
■ Fault recording with last 3 faults
■ Compatible with AC and DC supply
■ Microprocessor technology provides highly accurate and repeatable protection
■ Built-in LCD and keypad afford a precise digital setting
■ Compact modular 43mm housing
■ Adjustable over- and undervoltage
■ Independent adjustable delay time for overvoltage and undervoltage
■ Adjustable reset mode:automatic reset or manual reset
■ 1 CO & 1NC contacts
■ Fault recording with last 3 faults
Single-phase Voltage Monitoring Relay SVR1000 Series

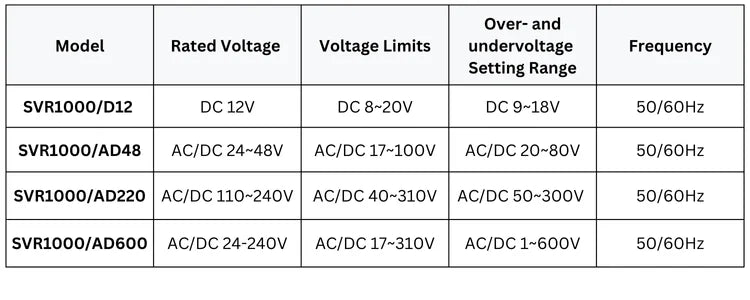

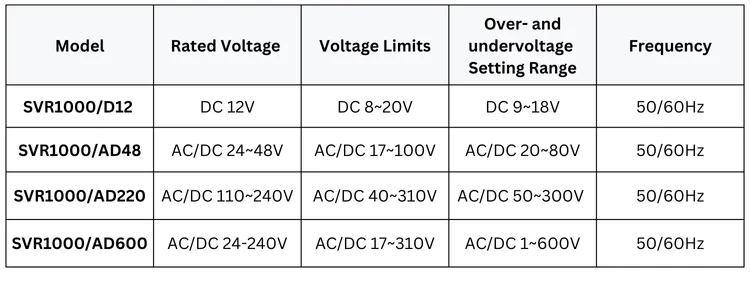

Ginri Selection Guide

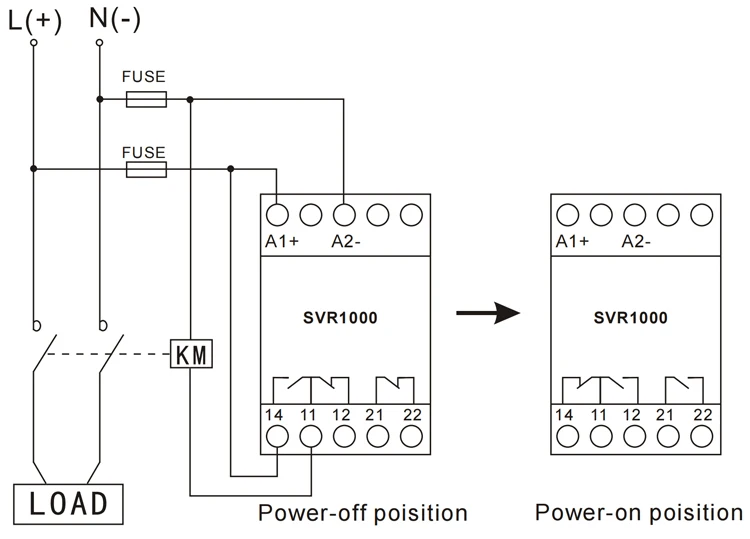

Wiring diagram
A wiring diagram gives information about the relative position and arrangement of devices and terminals on the devices, to help in building or servicing the device.
