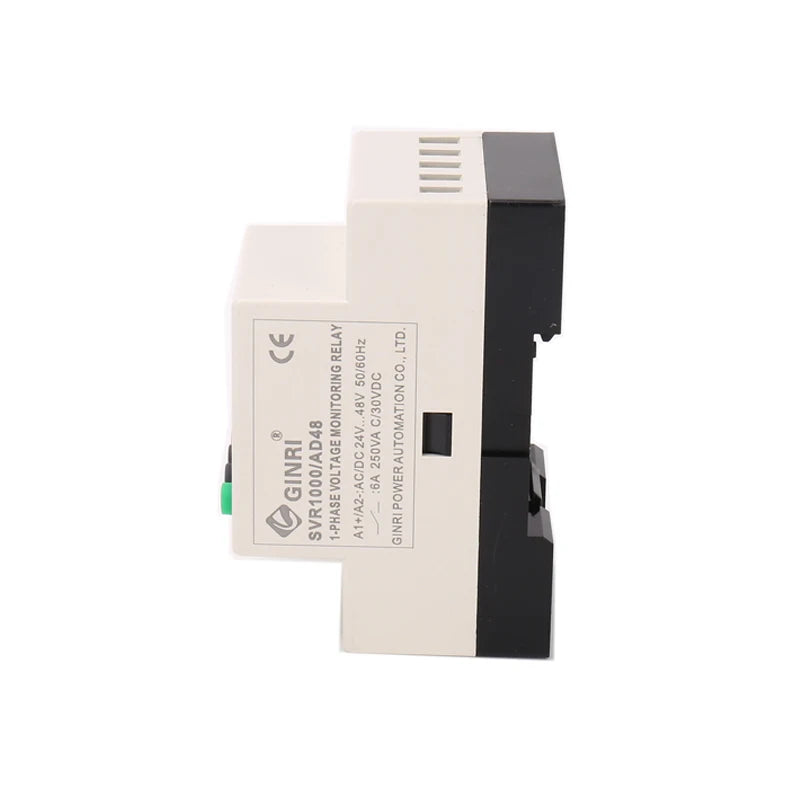

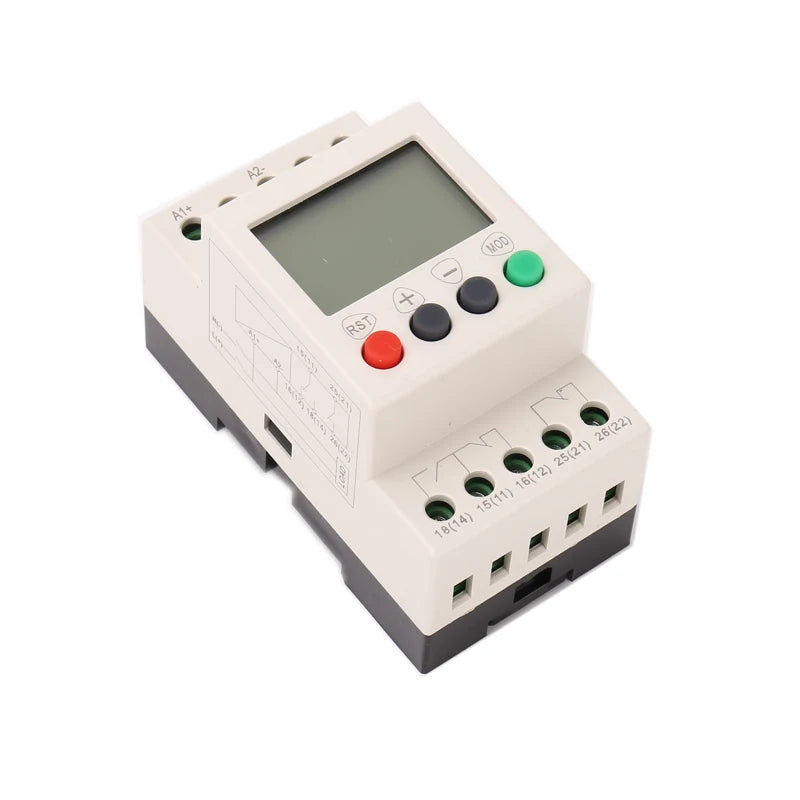

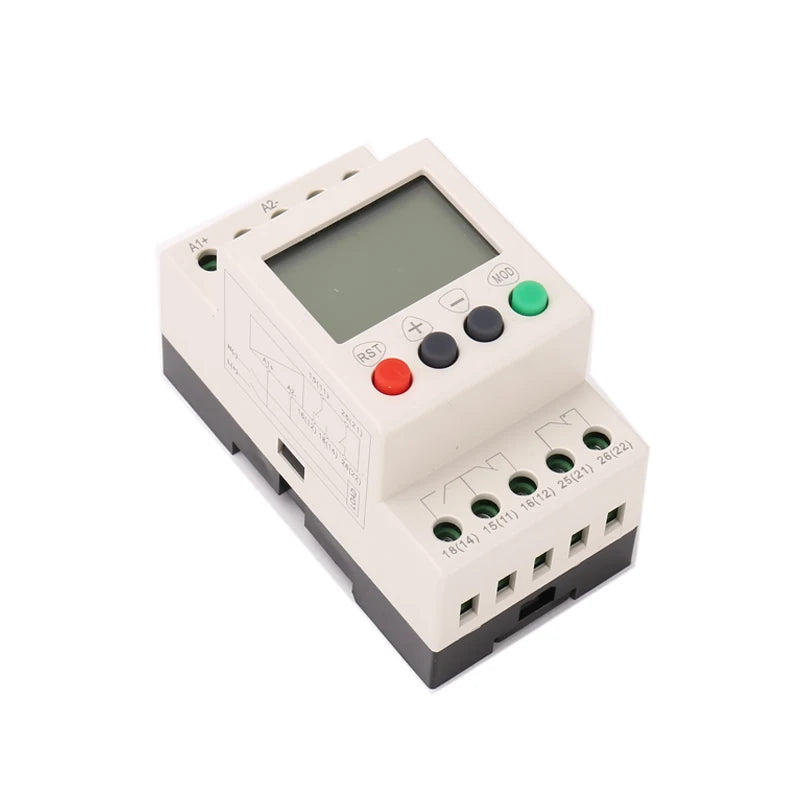

SVR1000/AD48 LCD Single-Phase AC/DC 24~48V Overvoltage/Undervoltage Monitoring Relays
$60.17
Sale price
$60.17
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: GINRI
Contact Load: High Power
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: none
Model Number: SVR1000/AD48
Origin: Mainland China
Protect Feature: Sealed
Rated supply voltage: AC/DC 24~48V
Size: Miniature
Theory: Voltage relay
Use: Protective
Voltage: 48V
Voltage hysteresis: 0.1~30.0V
Voltage setting range: AC/DC 20.0~80.0V
is_customized: Yes
Product Description
SVR1000-AD220 Features
SVR1000-AD220 Features
■ Powered by the measuring circuit
■ Compatible with AC and DC supply
■ Microprocessor technology provides highly accurate and repeatable protection

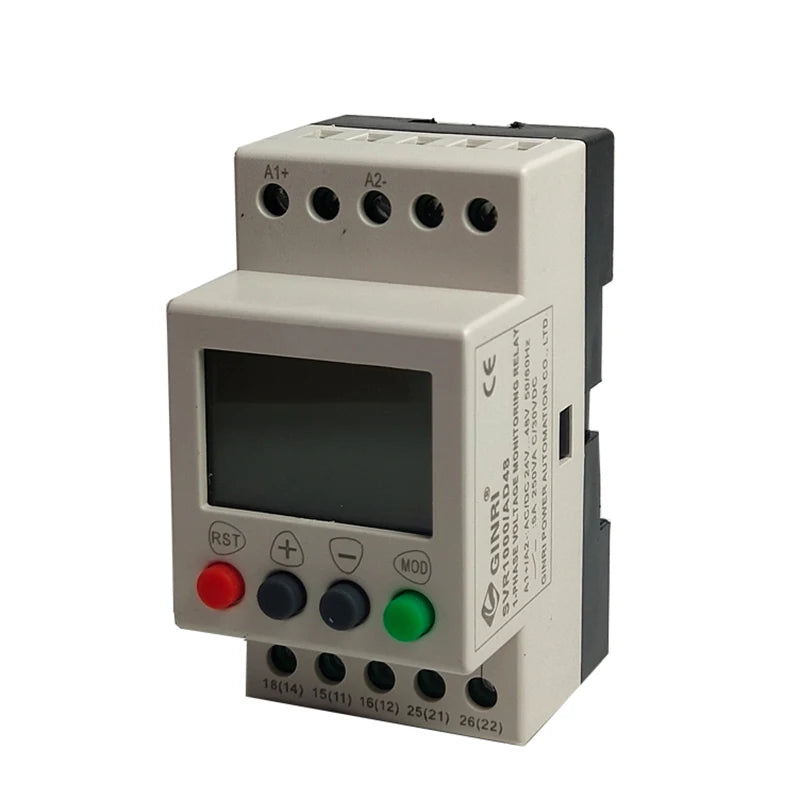

■ Built-in LCD and keypad afford a precise digital setting
■ Compact modular 43mm housing
■ Adjustable over- and undervoltage
■ Independent adjustable delay time for overvoltage and undervoltage
■ Adjustable reset mode:automatic reset or manual reset
■ 1 CO & 1NC contacts
■ Fault recording with last 3 faults
■ Compatible with AC and DC supply
■ Microprocessor technology provides highly accurate and repeatable protection
■ Built-in LCD and keypad afford a precise digital setting
■ Compact modular 43mm housing
■ Adjustable over- and undervoltage
■ Independent adjustable delay time for overvoltage and undervoltage
■ Adjustable reset mode:automatic reset or manual reset
■ 1 CO & 1NC contacts
■ Fault recording with last 3 faults

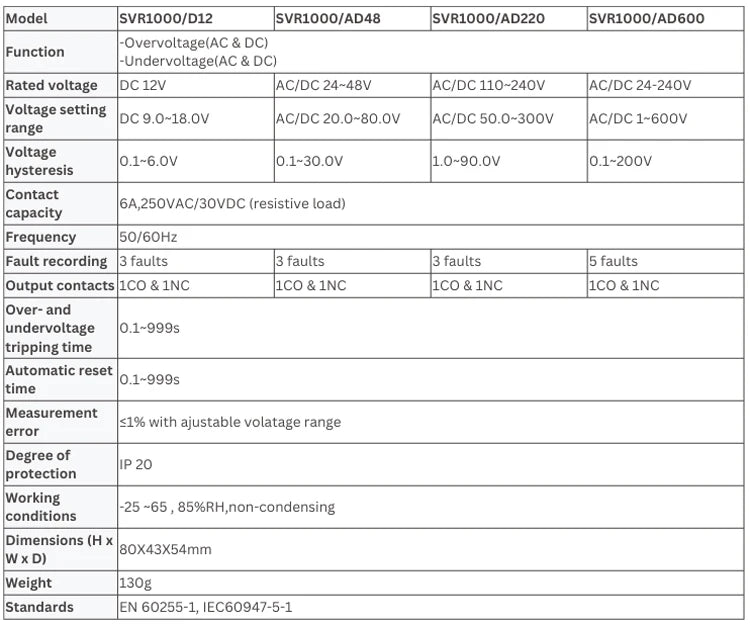

Single-phase Voltage Monitoring Relay SVR1000 Series

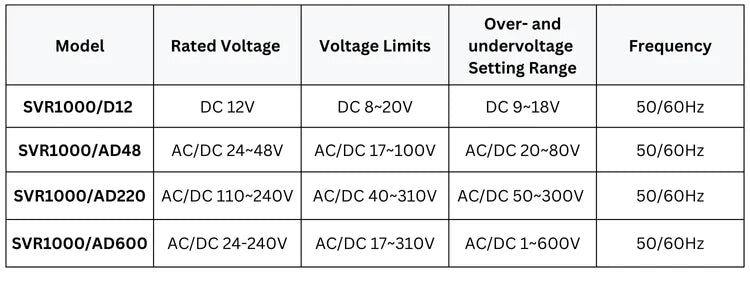

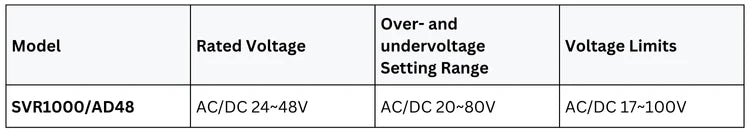

Ginri Selection Guide

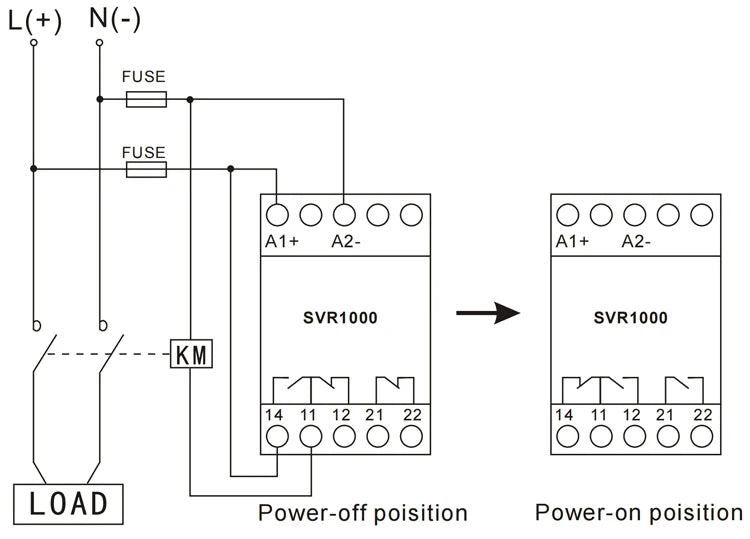

Wiring diagram
A wiring diagram gives information about the relative position and arrangement of devices and terminals on the devices, to help in building or servicing the device.
