SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Voltage: 自定义编辑

电压: 1V 2V 4V 5V 12V 12V 等 或自定义

Product features:

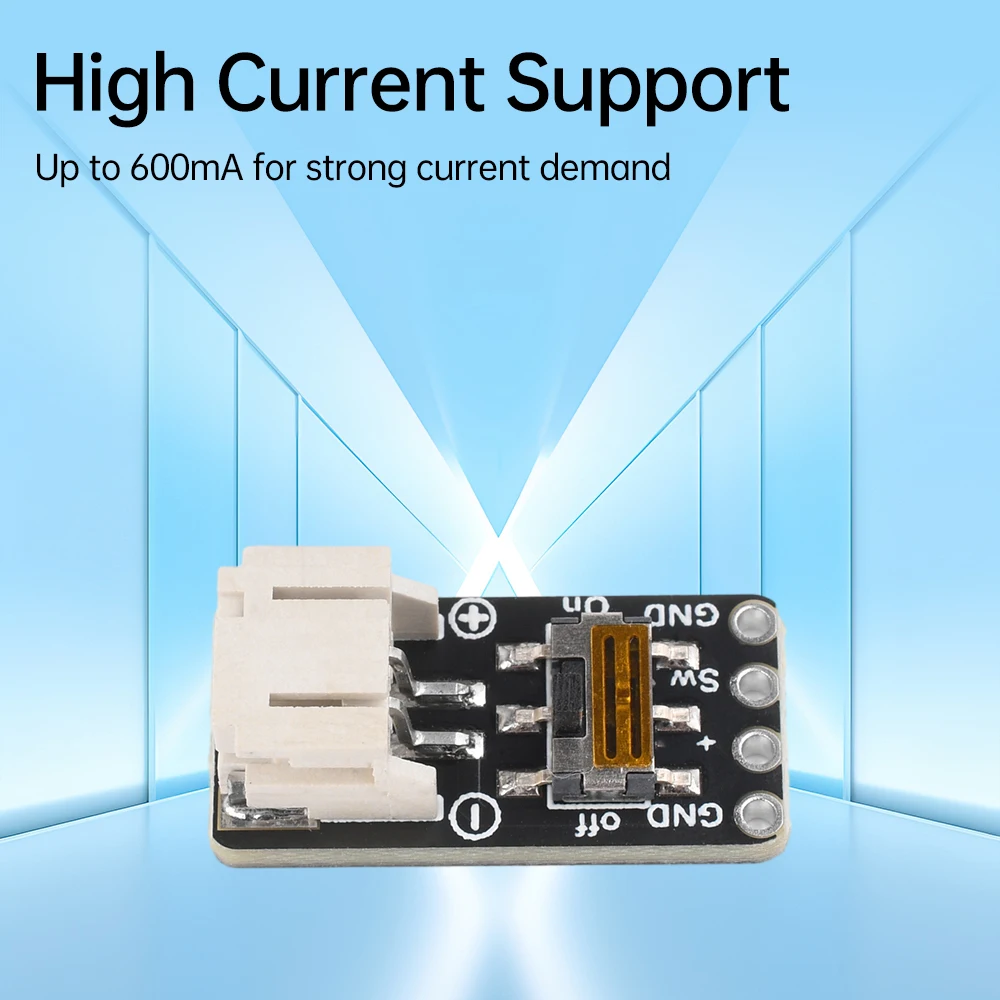

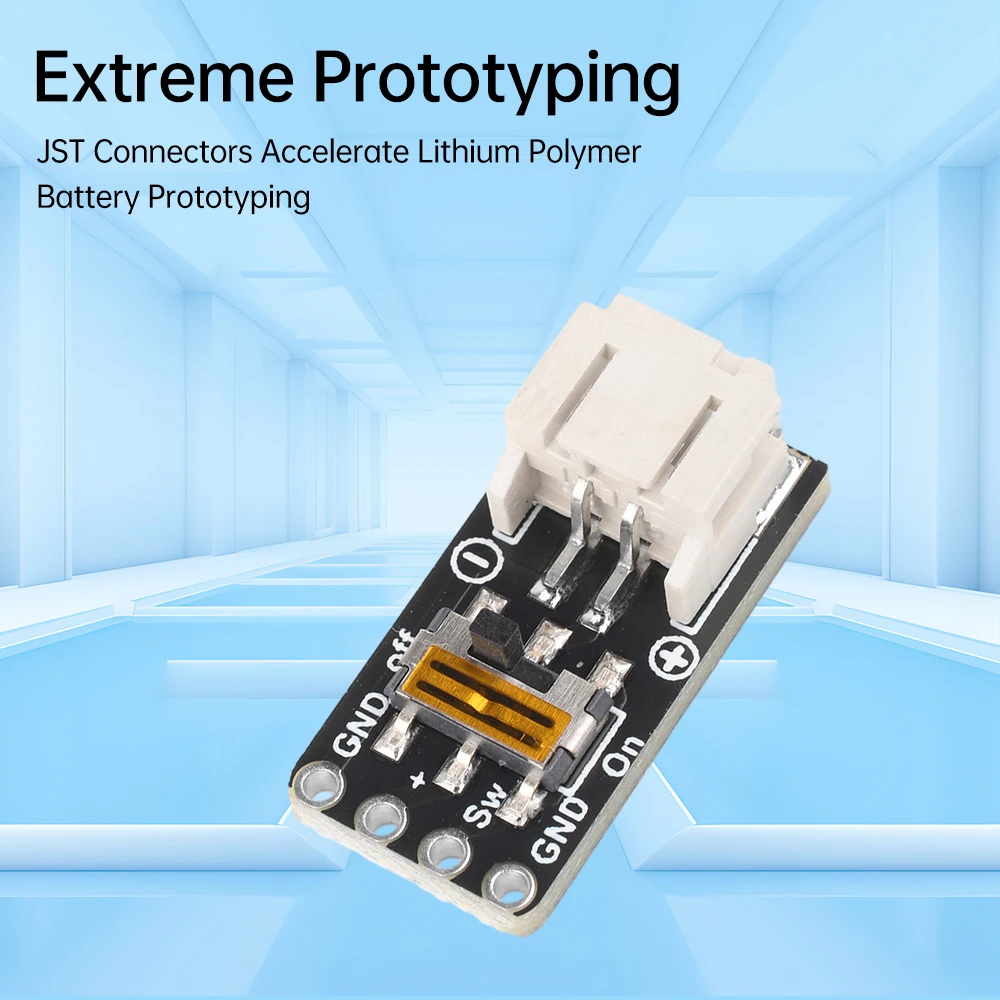

1. High-speed prototyping: JST connector accelerates the prototype design of lithium polymer batteries 2. High current support: up to 600mA to meet strong current requirements

3. Full compatibility: Suitable for multiple battery types, including 1-core lithium battery to AAA battery pack

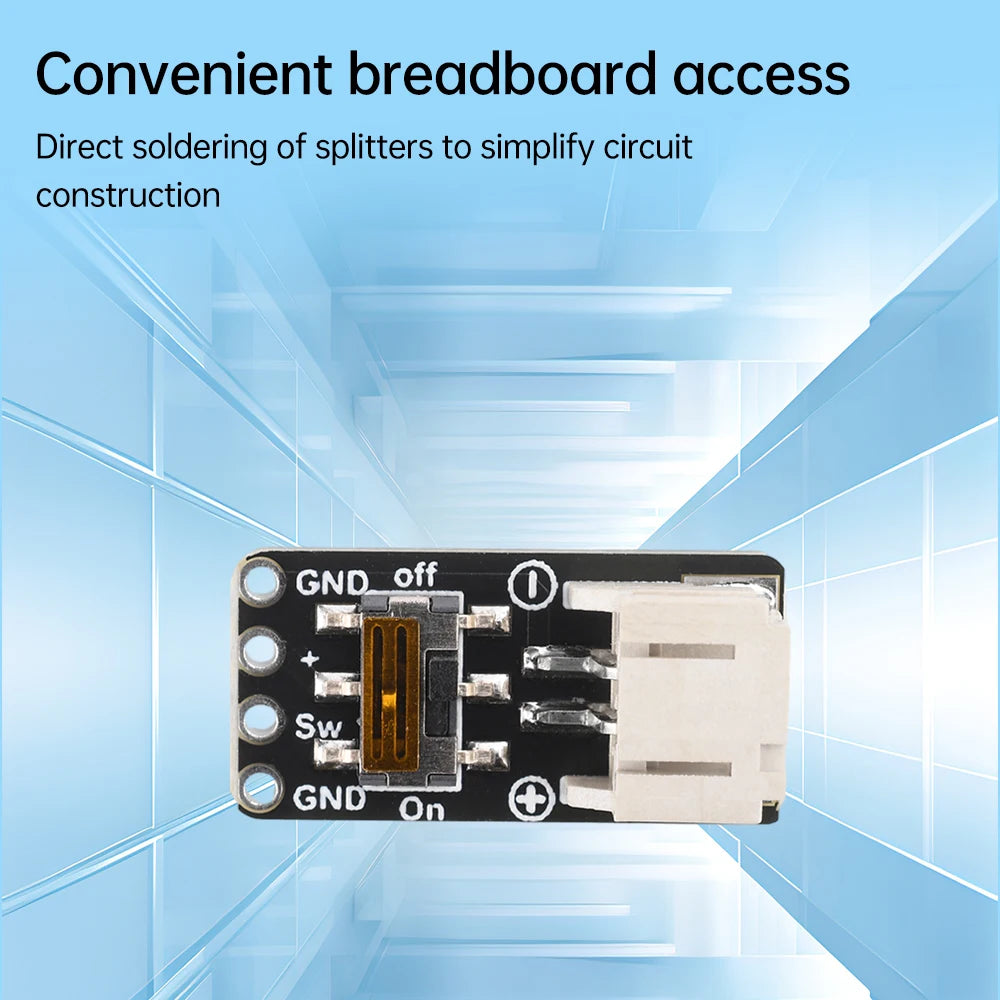

4. Convenient breadboard access: direct welding splitter, simplify circuit construction

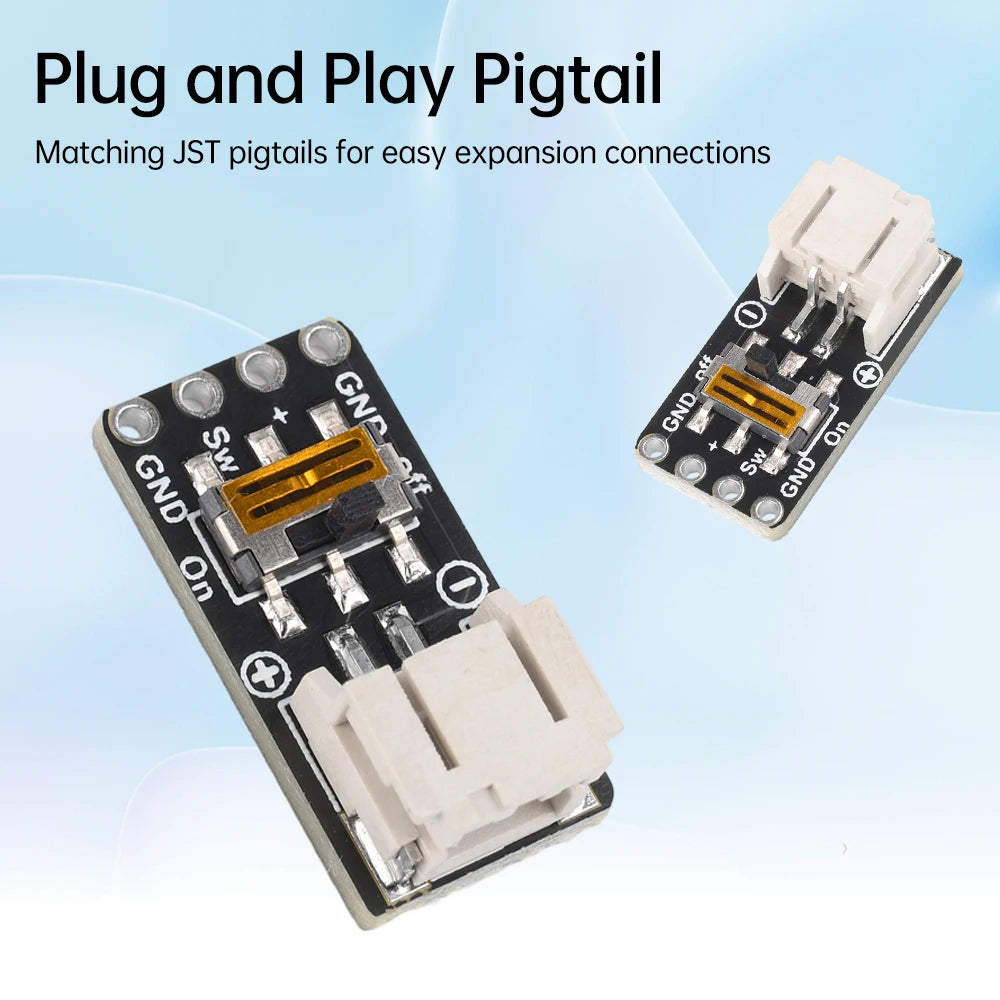

5. Plug and play pigtail: Matching JST pigtail, easy to expand connection

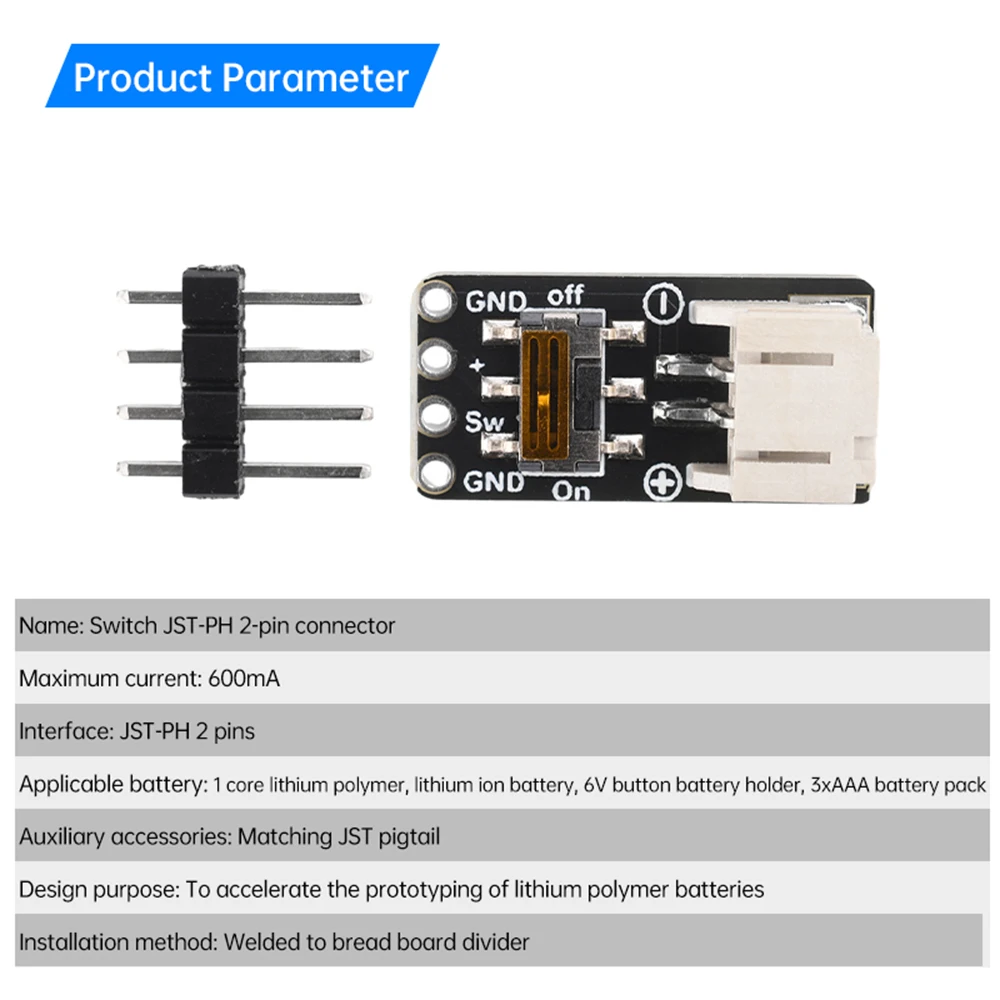

Product parameters:

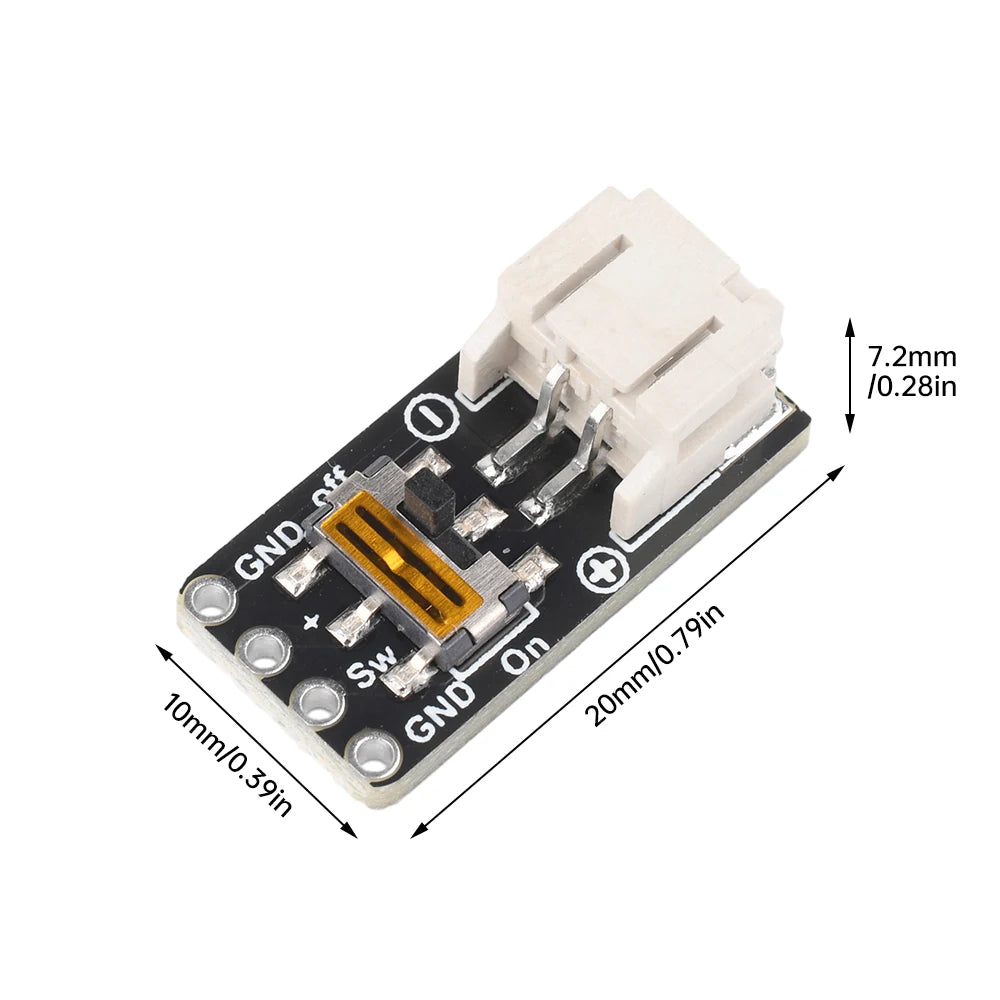

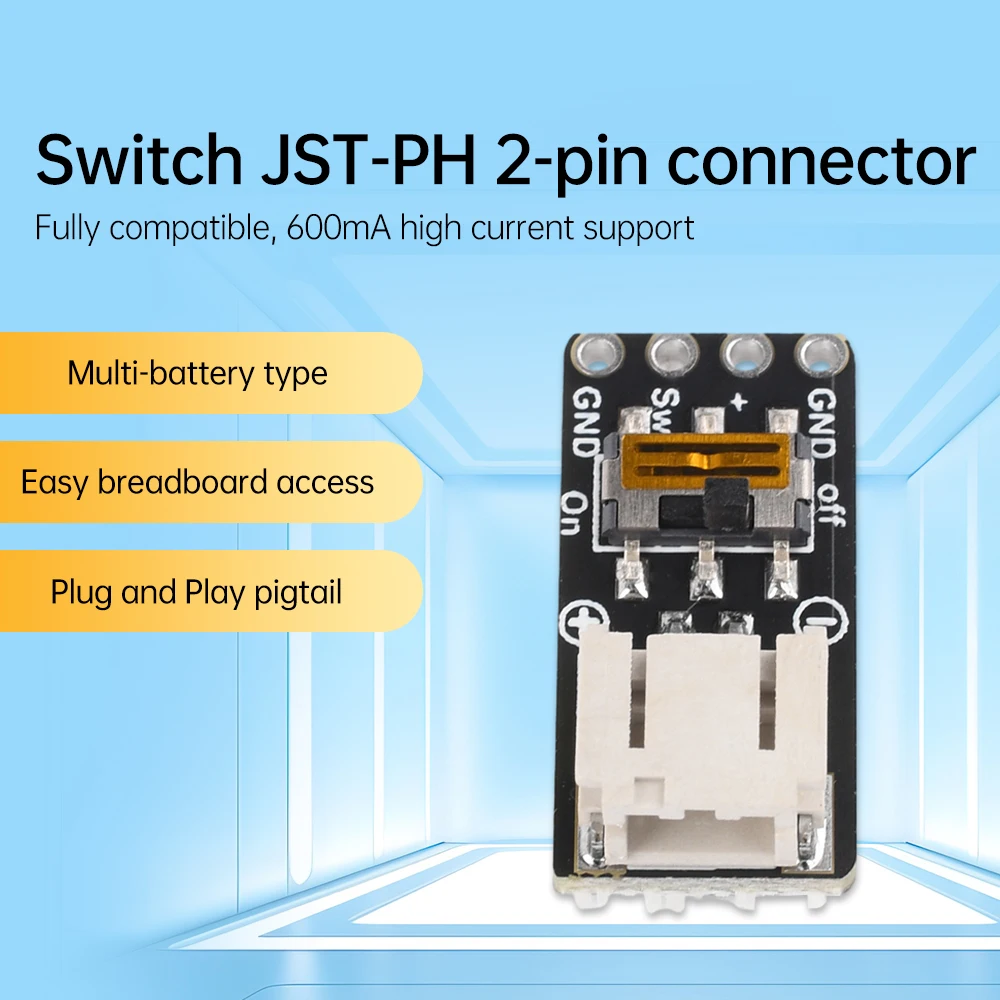

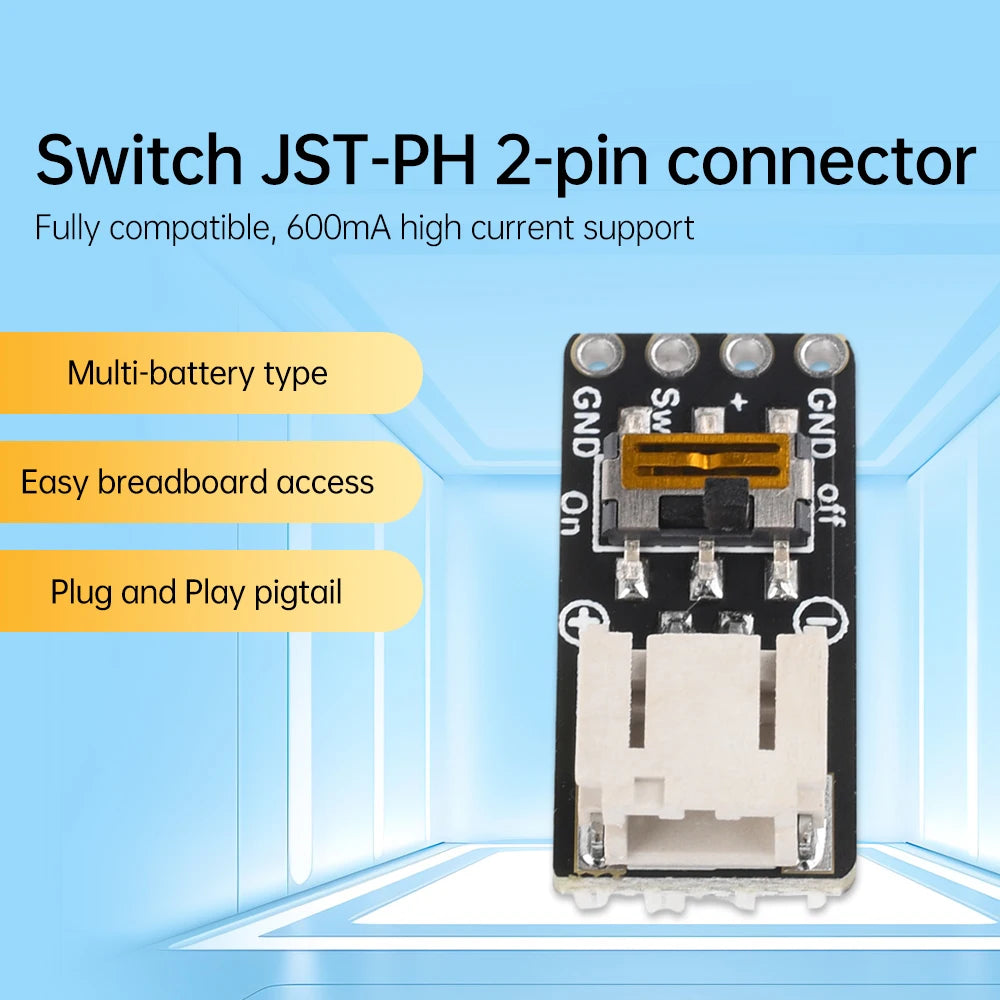

Name: Switch JST-PH 2-pin connector

Maximum current: 600mA

Interface: JST-PH 2 pins

Applicable battery: 1 core lithium polymer, lithium ion battery, 6V button battery holder, 3xAAA battery pack

Auxiliary accessories: Matching JST pigtail

Design purpose: To accelerate the prototyping of lithium polymer batteries

Installation method: Welded to bread board divider

Description:

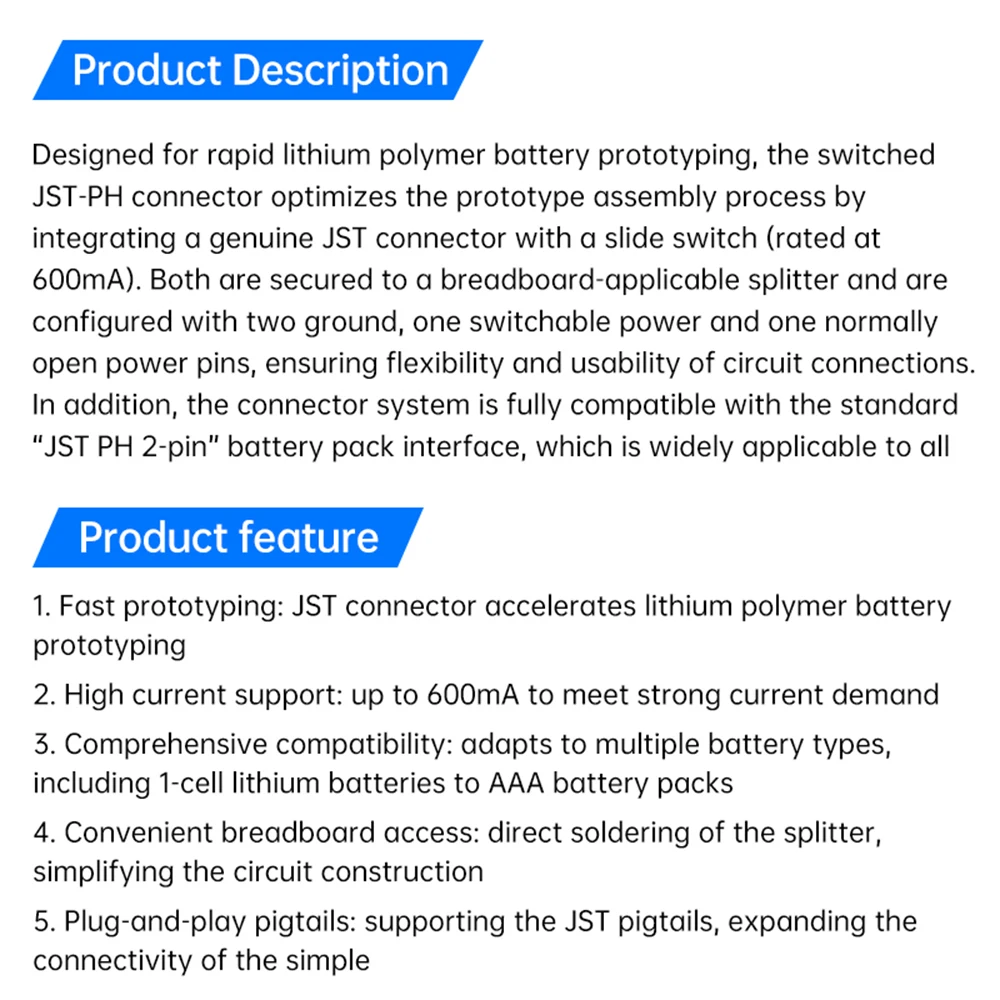

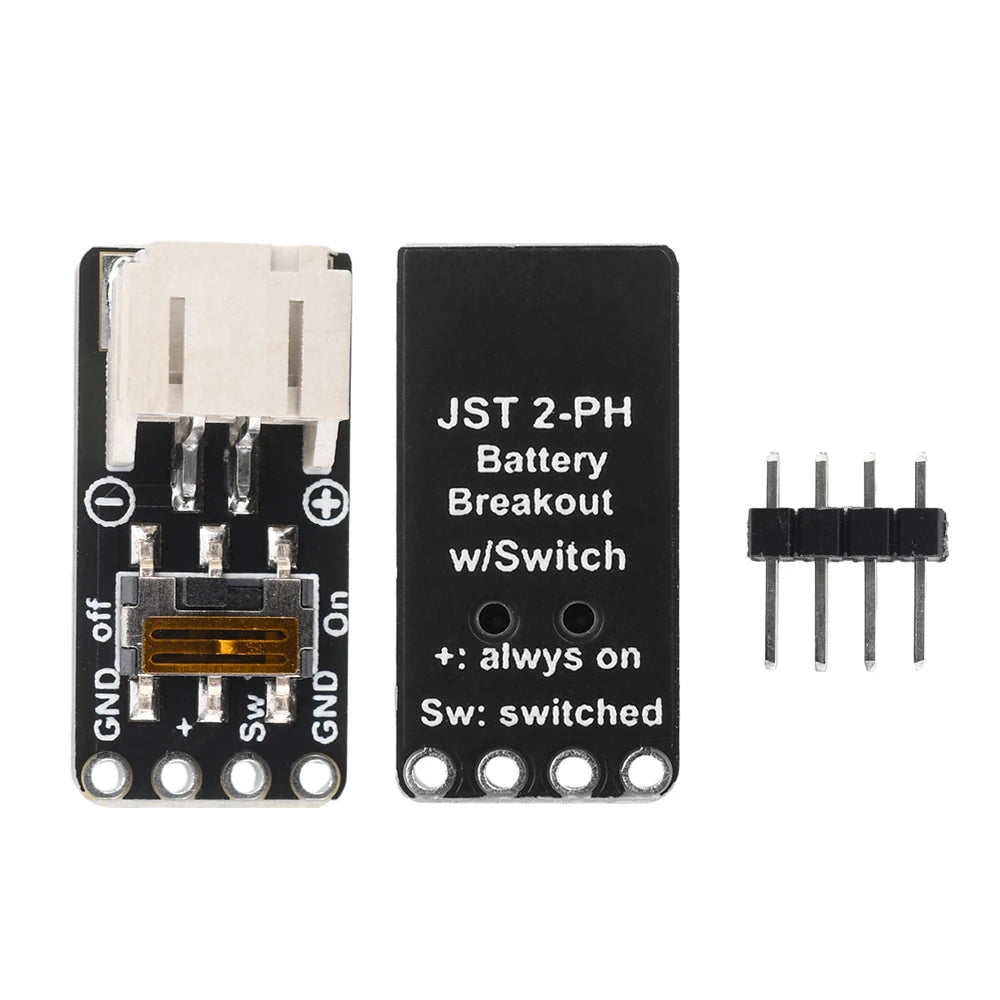

The Switch JST-PH connector is designed for rapid lithium polymer battery prototyping and optimizes the prototype assembly process by integrating an authentic JST connector with a slide switch (rated 600mA). Both have been fixed to the breadboard splitter, and the configuration includes two grounded, one switchable power supply and one normally open power supply pin, ensuring the flexibility and practicality of the circuit connection. In addition, the connector system is fully compatible with the standard "JST PH 2-pin" battery pack interface and is widely used in all single-cell Li-polymer and Li-ion battery series, as well as 6V button battery holder and three AAA battery combinations, increasing the versatility and convenience of the device. For the convenience of users, a simple JST pigtail is also provided to realize more convenient circuit expansion and maintenance.

Shipping list:

Module *1

Stitch *1
