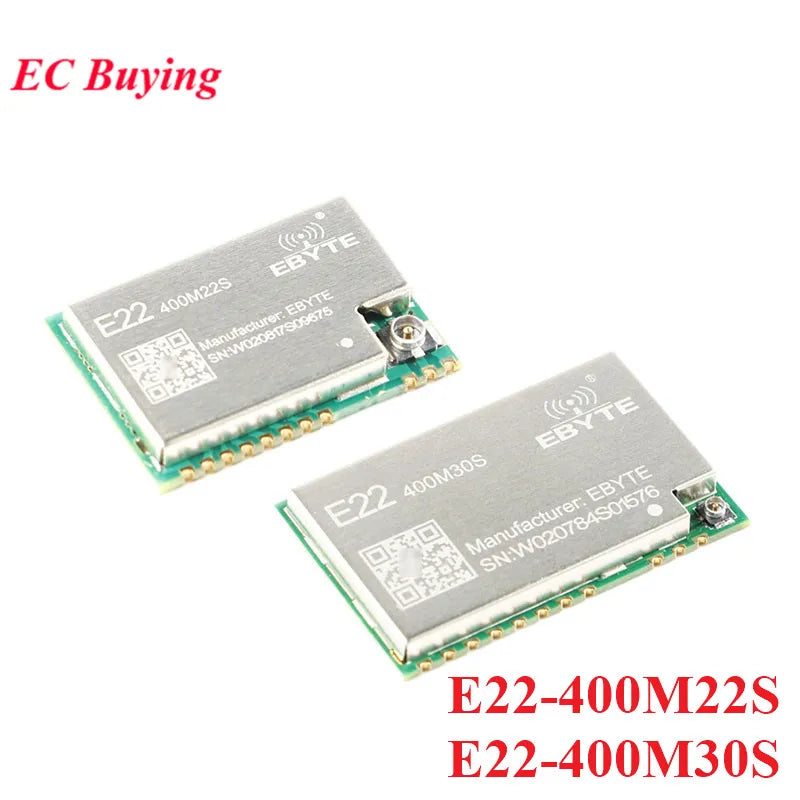

SX1268 PA 433MHz 470MHz LoRa Wireless Module E22-400M22S E22-400M30S RF Long Range Distance Data Transceiver Replace SX1278
E22-400M30S
$27.52
Sale price
$27.52
Regular price
$0.00
Skip to product information
SX1268 PA 433MHz 470MHz LoRa Wireless Module E22-400M22S E22-400M30S RF Long Range Distance Data Transceiver Replace SX1278
$27.52
Sale price
$27.52
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: EC Buying
Communication interface: SPI
Condition: New
Dissipation Power: 30dBm 22 dBm
E22-400M22S: 410~493 MHz 6500m
E22-400M30S: 410~493 MHz 12000m
High-concerned chemical: none
Operating Temperature: -40-+85℃
Origin: Mainland China
Package: Module
Smart Electronics Experiment: Switch And Sensor For Arduino STM32
Supply Voltage: Standard
Type: Logic ICs
is_customized: Yes

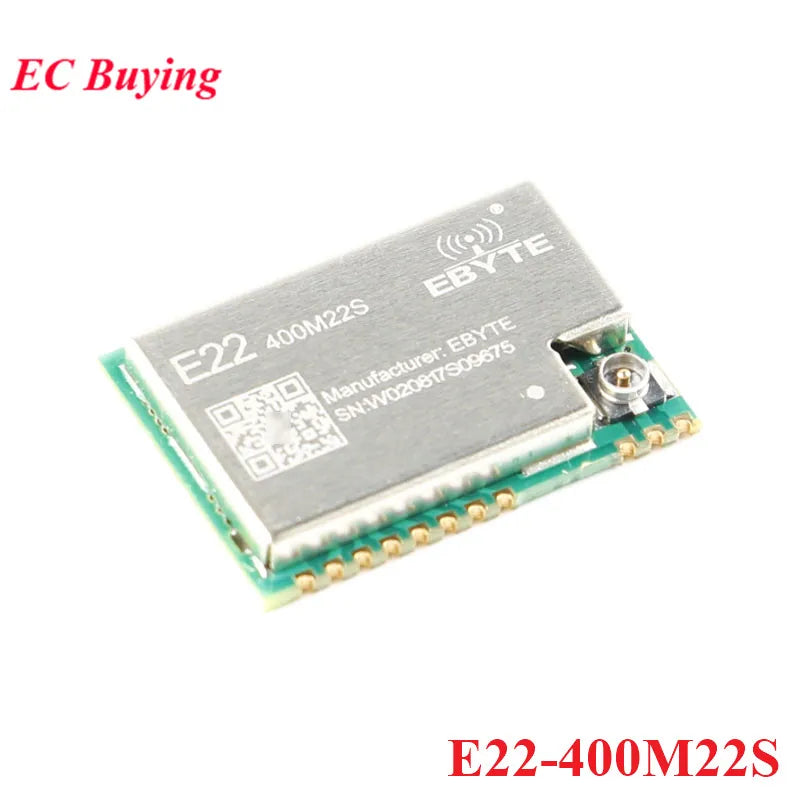

E22-400M22S
RF Parameter |
Value |
Remark |
Working frequency |
410~493 MHz |
- |
Transmitting power |
22 dBm |
Max. Power (160mW) |
Receiving sensitivity |
-147 dBm |
- |
Air data rate |
0.018k~300kbps |
- |
Test distance |
6500m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m |
Hardware Parameter |
Value |
Remark |

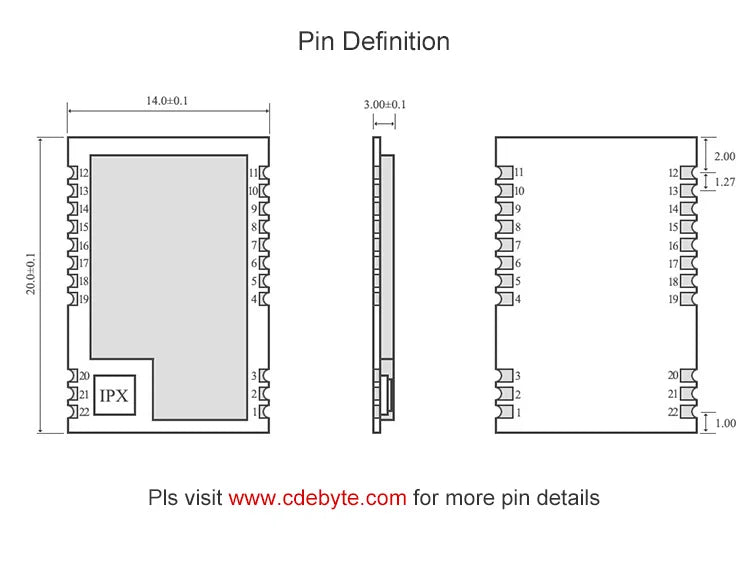

Size |
14 * 20 mm |
|
Antenna type |
||
Communication interface |
SPI |
|
Package |
SMD |
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
Power supply |
1.8 |
3.3 |
3.6 |
V |
|
Communication level |
1.8 |
3.3 |
3.6 |
V |
|
Transmitting current |
95 |
100 |
105 |
mA |
22dBm(160mW) |
Receiving current |
6 |
6.5 |
7 |
mA |
|
Sleep current |
- |
180 |
- |
nA |
|
Operating temperature |
-40 |
20 |
+85 |
℃ |
|
Operating humidity |
10 |
60 |
90 |
% |
|
Storage temperature |
-40 |
20 |
+125 |
℃ |

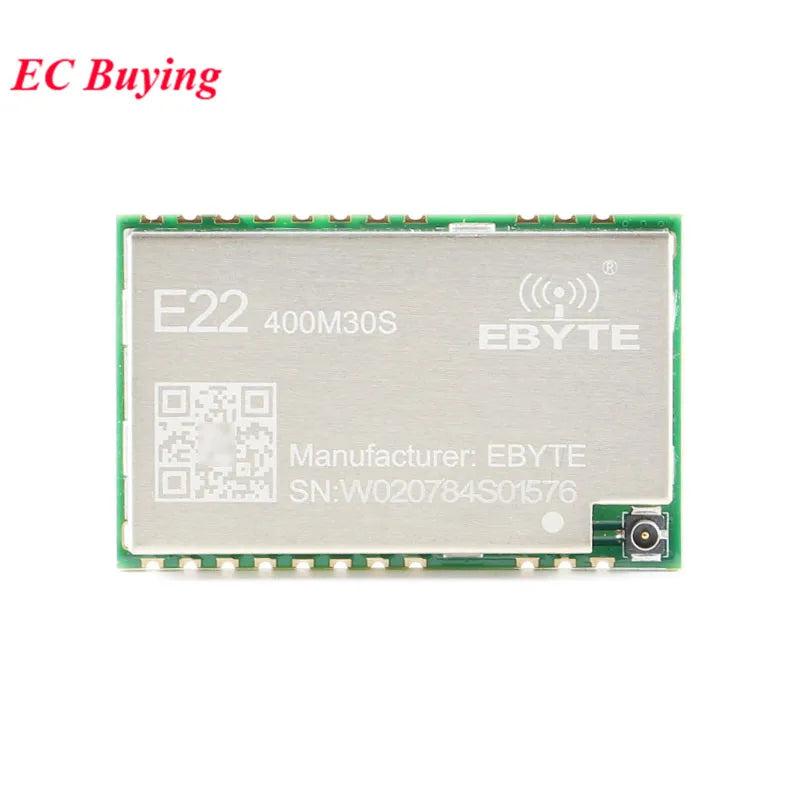

E22-400M30S
RF Parameter |
Value |
Remark |
Working frequency |
410~493 MHz |
- |
Transmitting power |
30 dBm |
Max. Power (1W) |
Receiving sensitivity |
-150 dBm |
- |
Air data rate |
0.018k~300kbps |
- |
Test distance |
12000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m |
Hardware Parameter |
Value |
Remark |

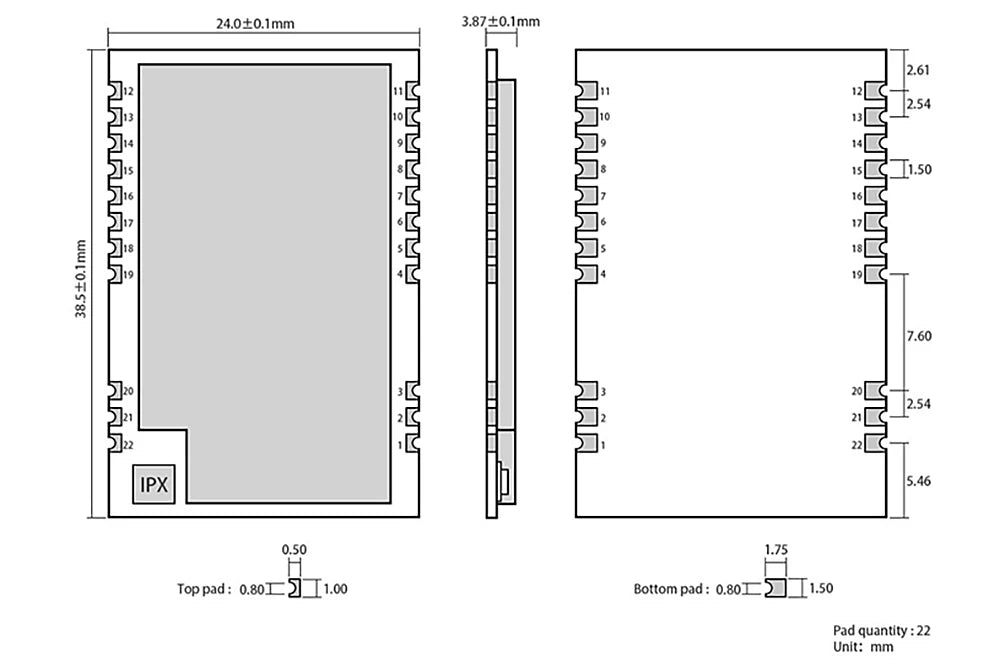

Size |
24 * 38.5 mm |
|
Antenna type |
||
Communication interface |
SPI |
|
Package |
SMD |
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
Power supply |
2.5 |
5 |
5.5 |
V |
|
Communication level |
1.8 |
3.3 |
3.7 |
V |
|
Transmitting current |
600 |
650 |
700 |
mA |
30dBm（1W） |
Receiving current |
12 |
14 |
16 |
mA |
|
Sleep current |
1 |
3 |
5 |
nA |
|
Operating temperature |
-40 |
20 |
+85 |
℃ |
|
Operating humidity |
10 |
60 |
90 |
% |
|
Storage temperature |
-40 |
20 |
+125 |
℃ |
