SX1278 LoRa Module Ra-02 Ra-01 LoRa Spread Spectrum Wireless Transmit Module 433MHZ/SPI Translator/Ra-01 Ra-02 for Smart Home

SX1278 LoRa Module Ra-02 Ra-01 LoRa Spread Spectrum Wireless Transmit Module 433MHZ/SPI Translator/Ra-01 Ra-02 for Smart Home

$19.00

$19.00 $0.00

Color Ra-01 Ra-01SC Ra-02 Ra-01SH IPEX Ra-01SH Ra-01S Ra-01SC IPEX

Description

SPECIFICATIONS

Application: Computer

Brand Name: Jessinie

Condition: New

Dissipation Power: -

High-concerned chemical: none

Operating Temperature: -30~85 degree

Origin: Mainland China

Other: Ra-01S Ra-01SH Ra-01SC

Package: TQFP

Supply Voltage: 2.5V-3.7V

Type: Voltage Regulator

is_customized: Yes

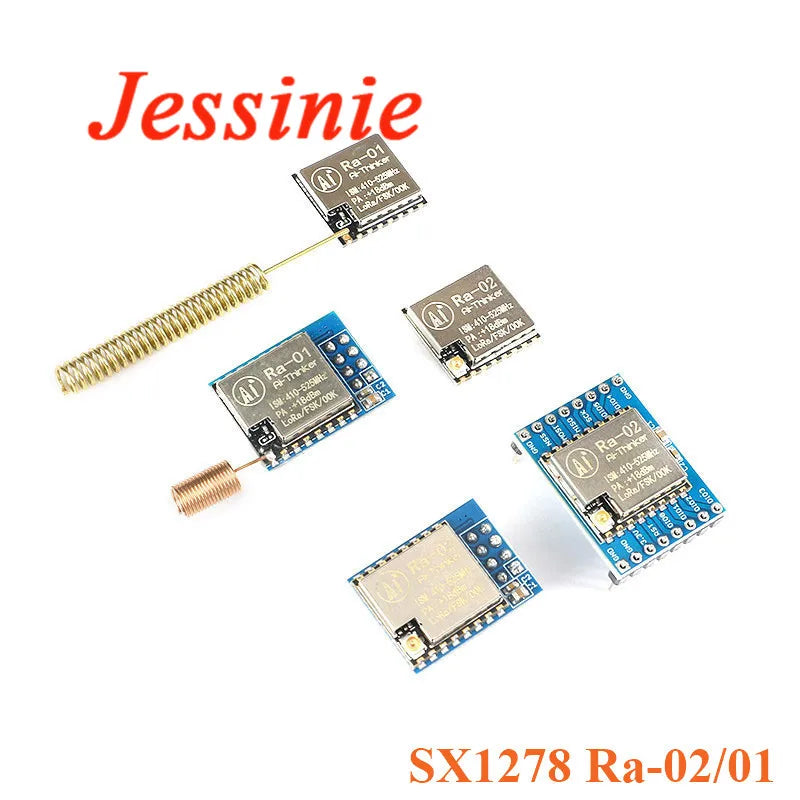

RF chip The SX1278 mainly uses a LoRaTM remote modem for ultra-long-range spread spectrum communication with high anti-interference and minimizes current consumption. With SEMTECH's patented LoRaTM modulation technology, the SX1278 has a high sensitivity of over -148dBm, +18dBm power output, long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRaTM modulation technology has obvious advantages in anti-blocking and selection, and solves the problem that the traditional design scheme can not take into consideration the distance, anti-interference and power consumption at the same time. Ra-01, Ra-02 operating frequency is 410-525MHz

Parameter Performance:

Ultra-long communication distance 15KM

Constant RF power output with +20dBm-100mW voltage change

High sensitivity: as low as -148dBm

Half-duplex SPI communication

Programmable bit rate up to 300kbps

Support for preamble detection

Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation

127dB RSSI dynamic range

Automatic RF signal detection, CAD mode and ultra-high speed AFC

Packet engine with CRC up to 256 bytes

Small double-row stamp hole patch package with shield case

Spring antenna (Ra-01) or IPEX external antenna (Ra-02)

Spectrum range 410-525MHz

Maximum transmit power 18 ± 1 dBm

433MHz average operating current TX: 93mA RX: 12.15mA Standby: 1.6mA

470MHz average operating current TX: 97mA RX: 12.15mA Standby: 1.5mA

Power supply range 2.5 ~ 3.7V, typical value 3.3V

Working temperature -30 ° C ~ 85 ° C

Storage environment -40°C ~ 90°C, <90%RH

Click "Open Program File", select the Hex firmware of the MCU, and note that the IRC frequency when the user program is running is 22.1184MHz;

After the download is complete, reset the test board again. Plug in the LoRa adapter board. This test requires two test boards, one for transmission and the other for reception. When the module is powered on without any operation, the LoRa module enters the receive mode. When one of the test boards presses one of the buttons, the module enters the send mode, the light on the right side of the module lights up, and the other module is in the receive module. If data is received, the left light flashes.
