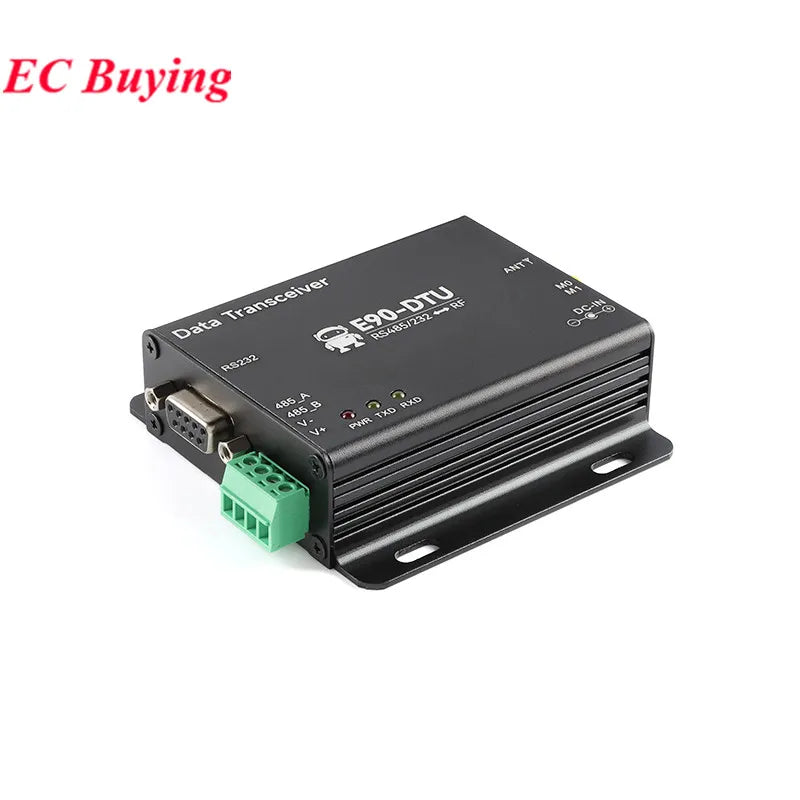

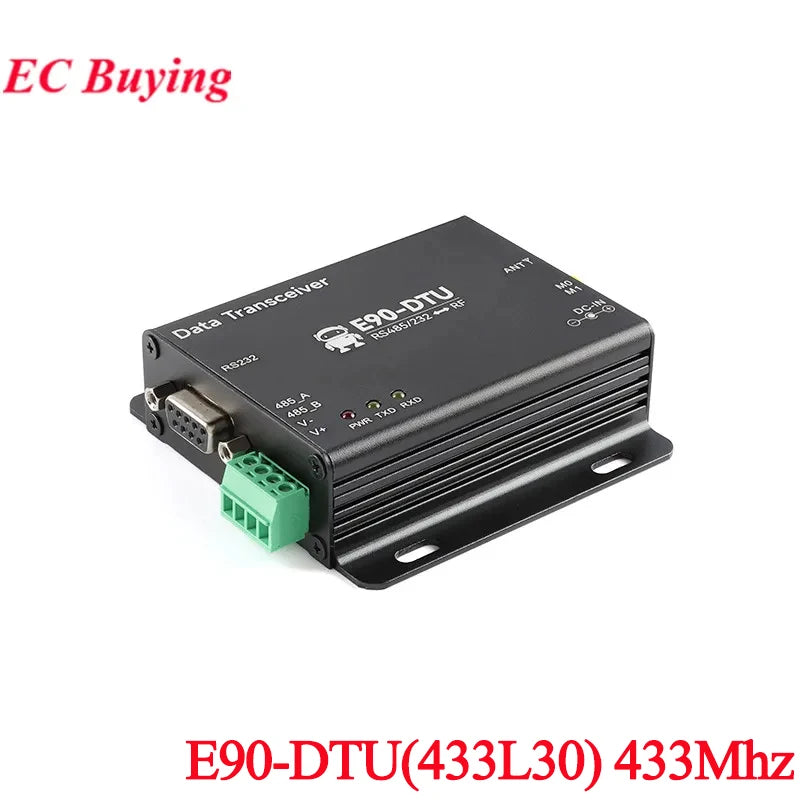

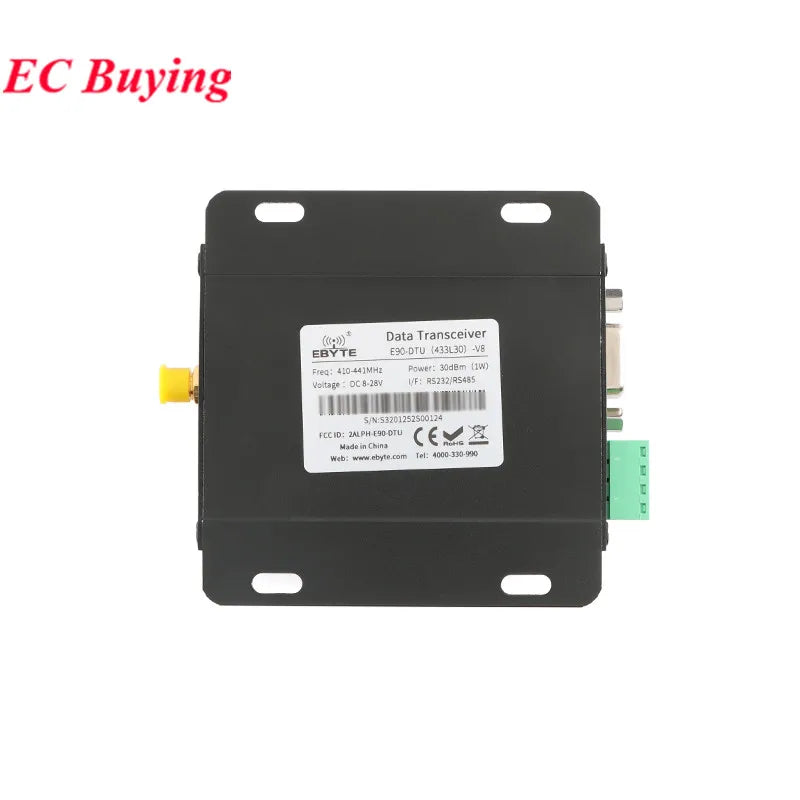

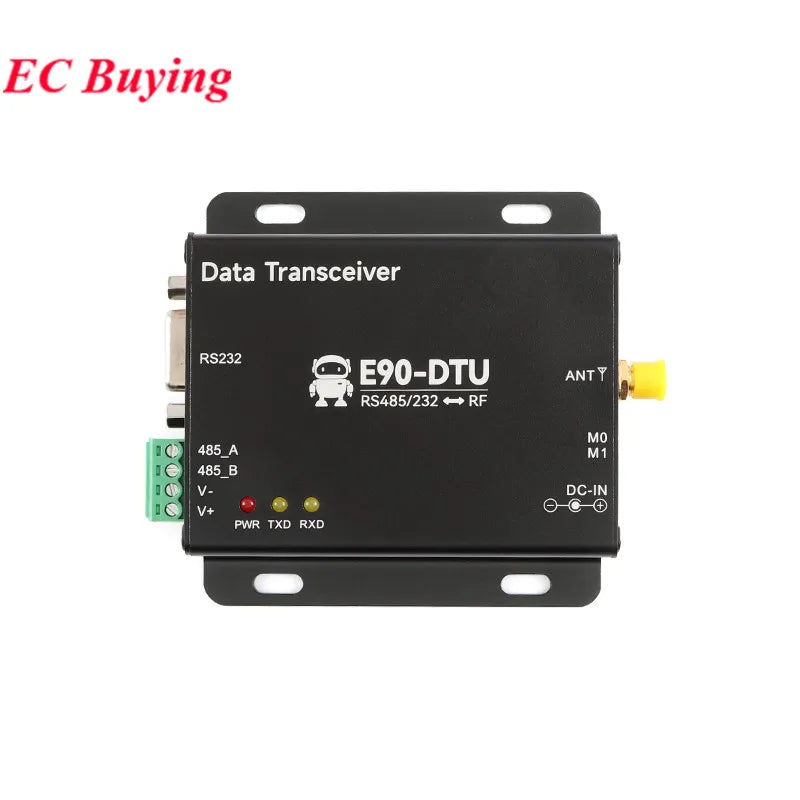

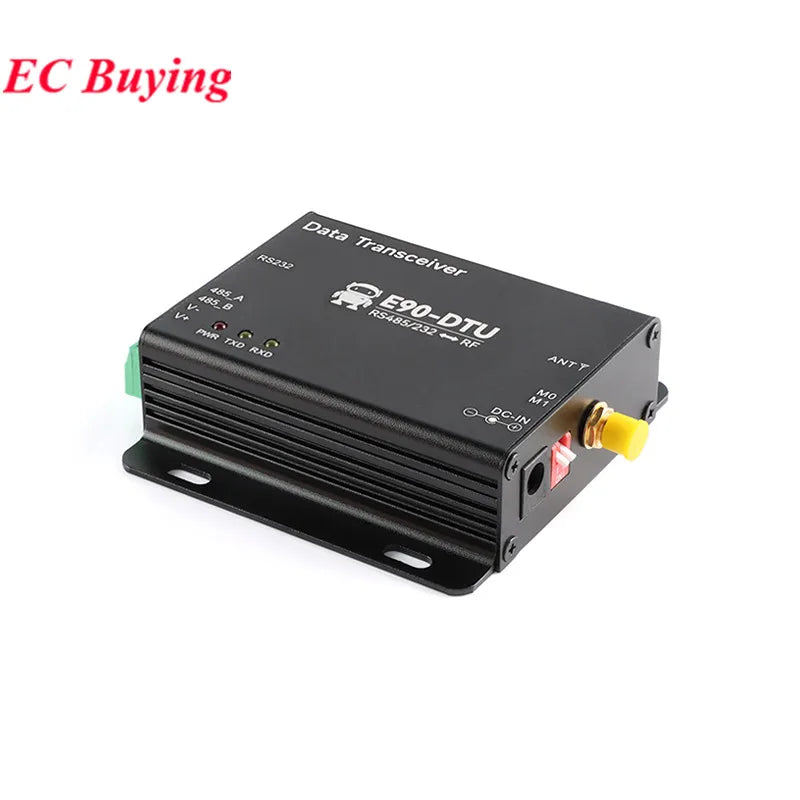

SX1278 SX1276 LoRa Wireless Data Transceiver RS232 RS485 1W IoT E90-DTU(433L30) 30dBm 433MHz Transmitter and Receiver RF Module
Default Title
$118.35
Sale price
$118.35
Regular price
$0.00
Skip to product information
SX1278 SX1276 LoRa Wireless Data Transceiver RS232 RS485 1W IoT E90-DTU(433L30) 30dBm 433MHz Transmitter and Receiver RF Module
$118.35
Sale price
$118.35
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: EC Buying
Communication interface: RS232 RS485
Condition: New
Dissipation Power: low
High-concerned chemical: none
Operating Temperature: -40-+85℃
Origin: Mainland China
Package: Module
Smart Electronics Experiment: Switch And Sensor For Arduino STM32
Supply Voltage: 10-28V 30 dBm 30dBm
Test distance: 8000m
Type: Logic ICs
Working frequency: 410~441MHz Default: 433MHz 433 MHz
is_customized: Yes
other: E32-DTU(433L30)
RF Parameter |
Value |
Remark |
Working frequency |
410~441MHz |
Default: 433MHz |
Transmitting power |
30 dBm |
About 1W |
Receiving sensitivity |
-147 dBm |
Air data rate: 2.4kbps |
Air data rate |
0.3k~19.2kbps |
Default: 2.4kbps |
Test distance |
8000 meter |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.4kbps |
Hardware Parameter |
Value |
Remark |
Size |
82 * 62 * 25 mm |
|
Antenna type |
SMA-K |
|
Communication interface |
RS232 / RS485 |
Baud rate: 1200~115200, default: 9600 |
Package |
DB-9 / Screwing |
Standard DB9 Hole/3.81 connecting terminal |
Buffer |
512 bytes buffer |
Automatically sub-packaging with 58 bytes per package |
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
Power supply |
10 |
12 |
28 |
V |
|
Transmitting current |
625 |
684 |
761 |
mA |
30dBm(1W) |
stand-by current |
27 |
29 |
32 |
mA |
|
Operating temperature |
-40 |
20 |
+85 |
℃ |
|
Operating humidity |
10 |
60 |
90 |
% |
|
Storage temperature |
-40 |
20 |
+125 |
℃ |
