SX1308 MT3608 Boost Converter Step Up Module 2-24V to 2-28V 2A Adjustable High Efficiency for DIY

Key Features & Benefits

⚡ High Efficiency: Up to 95% with SX1308/MT3608 chip, 1.2MHz switching frequency.

🔋 Wide I/O Range: 2-24V input, 2-28V adjustable output (max 31V).

💪 2A Output Current: Low RDS(on) MOSFET (100mΩ) – drives most portable devices.

🛡️ Protections: Short circuit, overheat protection.

🎛️ Adjustable Output: Onboard precision potentiometer.

🧩 DIY Friendly: Compact size with solder pads for input/output.

Product Description

Need to boost battery voltage to 5V, 9V, 12V, or higher? This SX1308/MT3608 step‑up module is the perfect solution. Input 2-24V, output 2-28V adjustable (up to 31V), up to 2A, 95% efficiency. Perfect for powering Arduino, sensors, LED strips. Onboard potentiometer for easy adjustment. Short circuit and overheat protection. Compact size ideal for DIY projects.

⚡ Quick Start Guide & Important Tips

🔹 What It Does & What You Need
✅ This module does:

Boosts DC 2-24V to 2-28V adjustable output

Up to 2A output current

Short circuit and overheat protection
❌ This module does NOT: Step down (boost only), constant current output
🔧 You will need: DC power supply (2-24V), multimeter, load device
📦 Package includes: Boost module × (as per SKU)

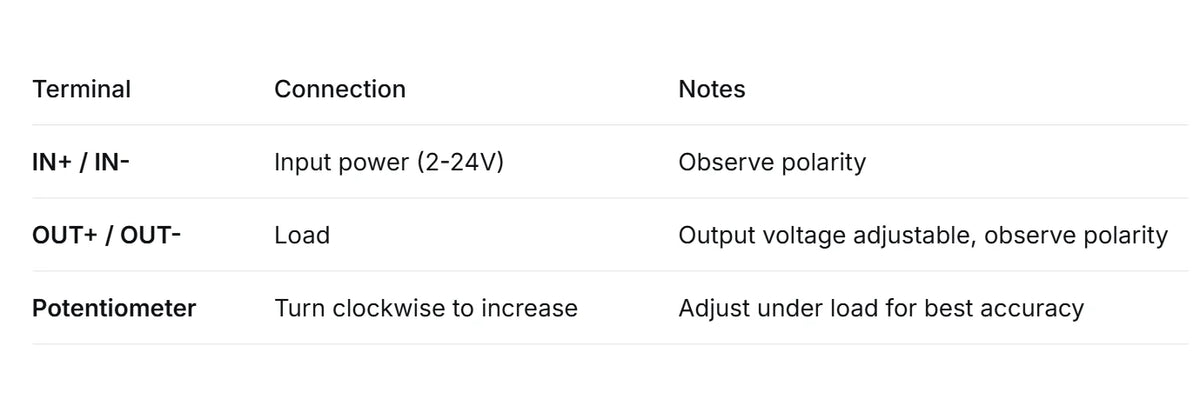

🔹 Wiring & Usage

⚠️ Important:

Input voltage: 2-24V only. Exceeding 24V may damage chip.

Input must be lower than output (boost converter).

Heat: Module gets warm at high power – add heatsink or ensure ventilation.

Polarity: Reversing input/output may damage module.

Adjustment: Turn potentiometer fully counterclockwise before powering on, then slowly increase.

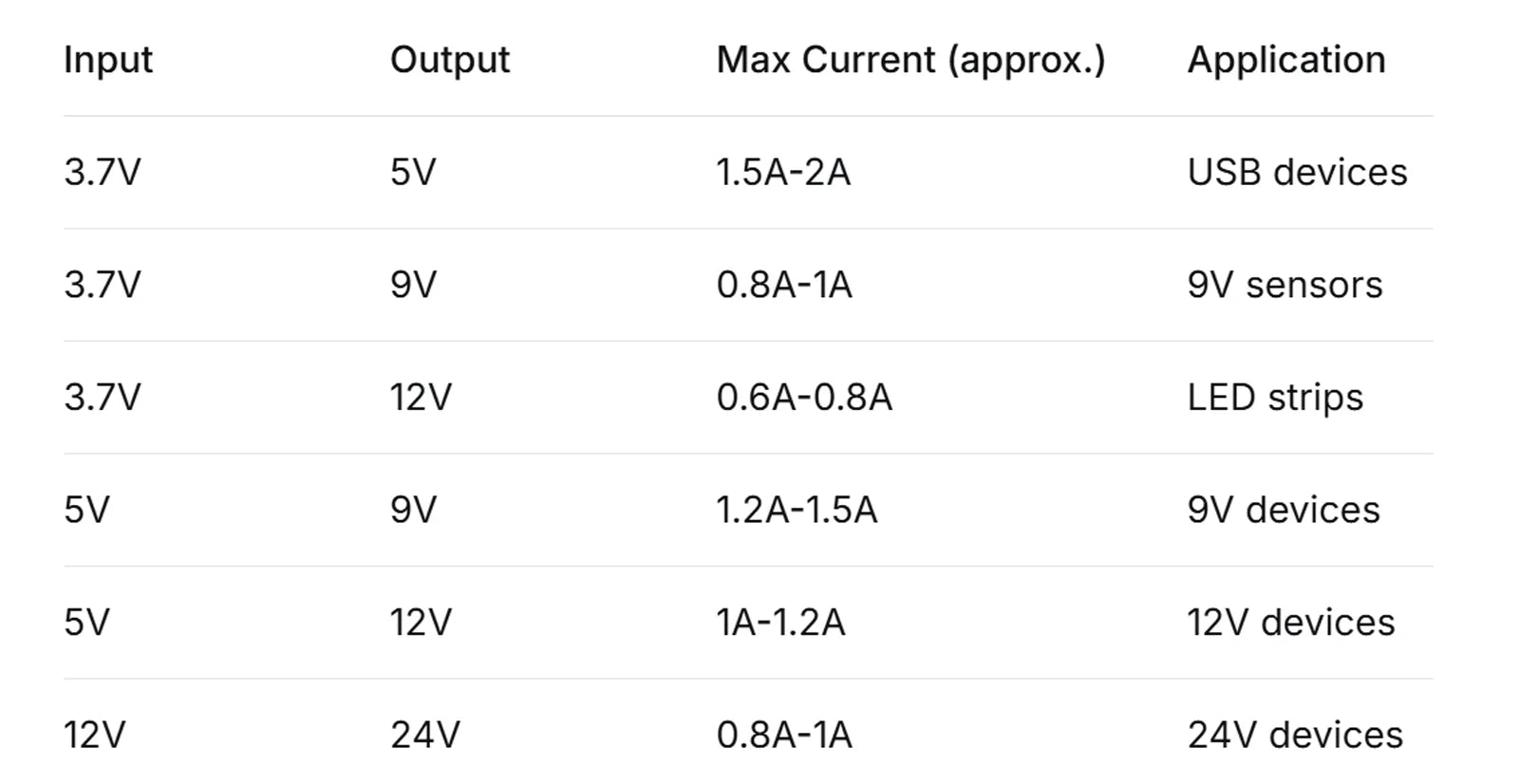

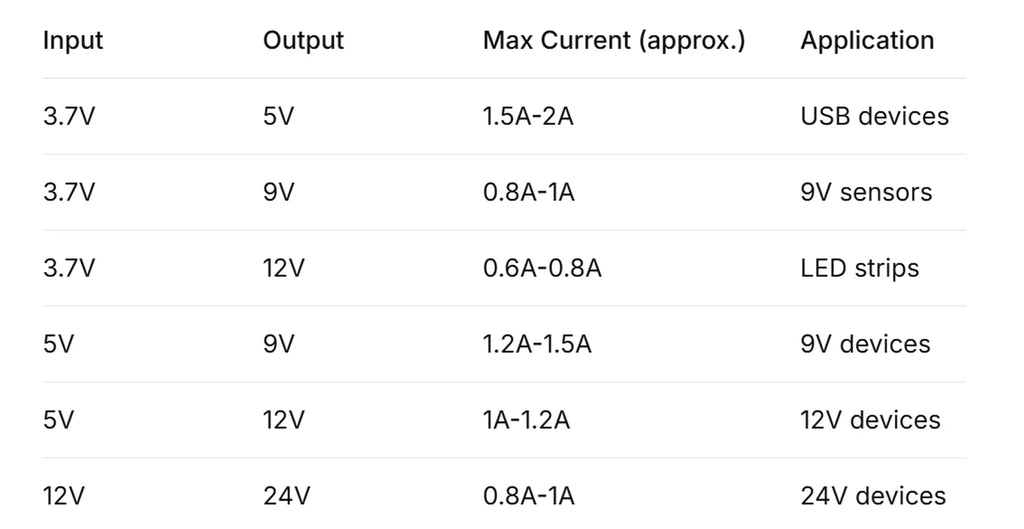

🔹 Output Current Reference

🔹 Common Questions

❓ Why can’t I reach 28V output?
Input voltage must be at least 5V for 28V output. Low input limits output.

❓ Module getting hot?
Normal at high power. Reduce load or add heatsink.

❓ Can I use it as a battery charger?
Not recommended – constant voltage output. Use a dedicated charger.

❓ SX1308 vs MT3608?
Compatible – same performance. MT3608 is common, SX1308 is equivalent.

❓ First time adjustment?
Turn potentiometer fully counterclockwise before powering on, then adjust slowly.

Specifications

Chip: SX1308 / MT3608

Input Voltage: DC 2V – 24V

Output Voltage: DC 2V – 28V (adjustable, up to 31V)

Output Current: 2A max (depends on input/output voltage)

Switching Frequency: 1.2MHz

Efficiency: Up to 95%

Adjustment: Precision potentiometer

Protections: Short circuit, overheat

Dimensions: 22×17×4mm

Weight: ~3g

Note: Manual measurement, allow 1‑3mm error. Colors may vary.
