SPECIFICATIONS

Brand Name: Liludin

Condition: New

Dissipation Power: standard

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: 220 V

Type: Terminal Block

is_customized: Yes

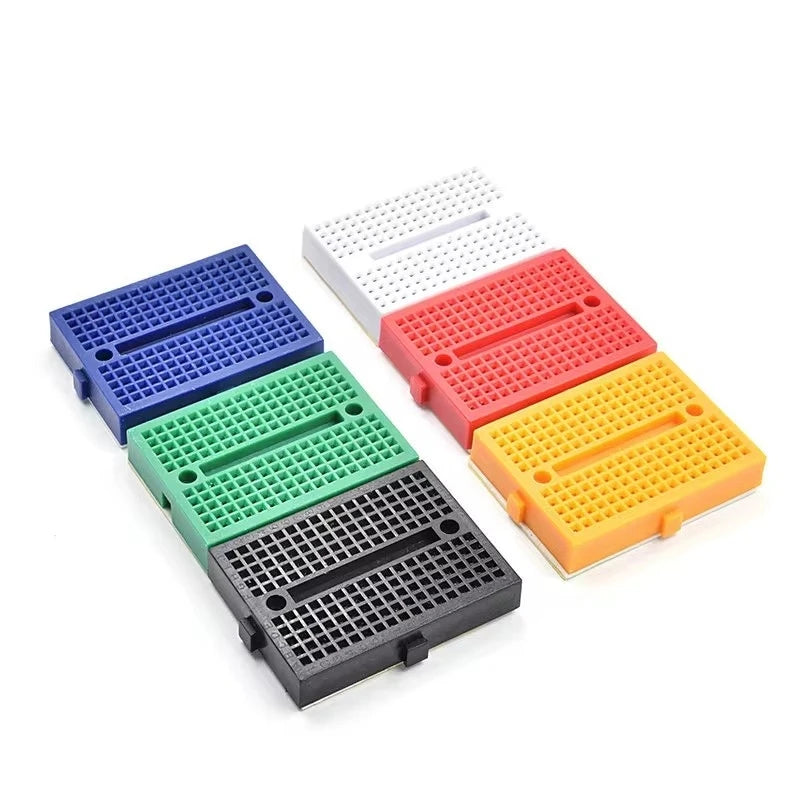

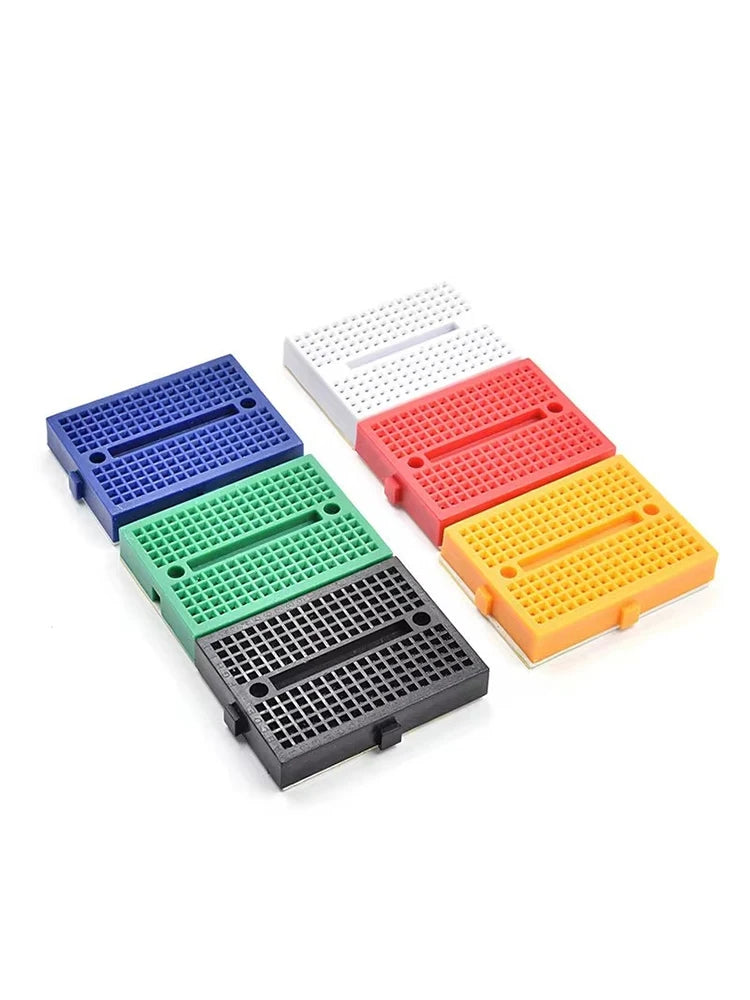

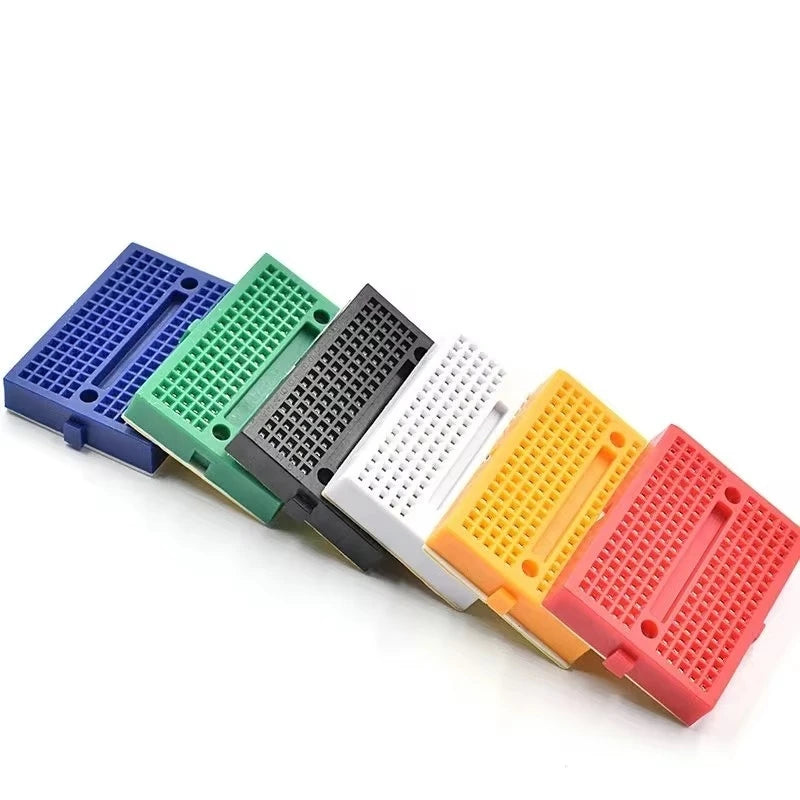

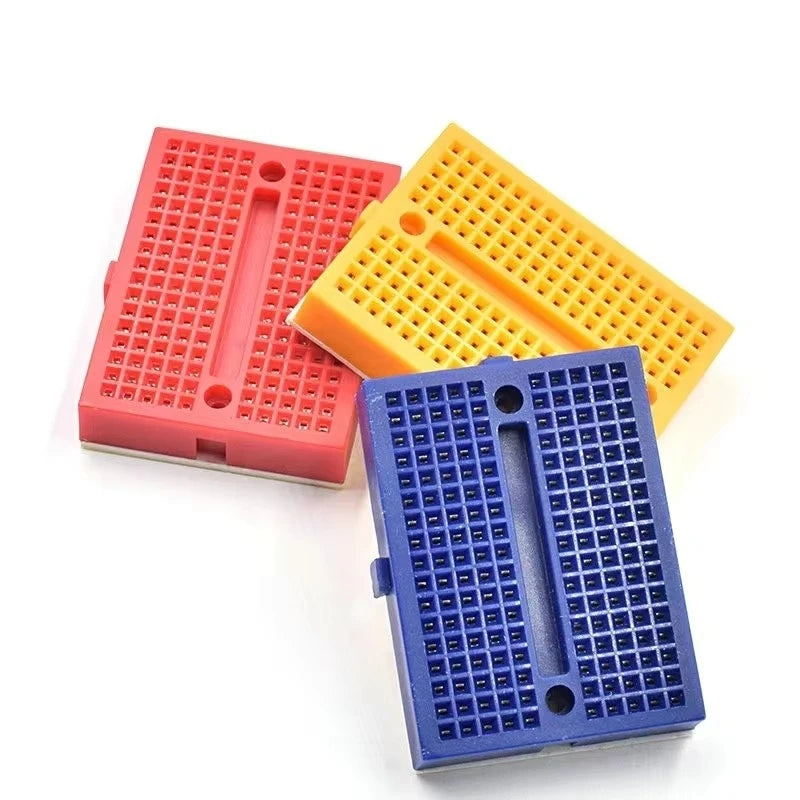

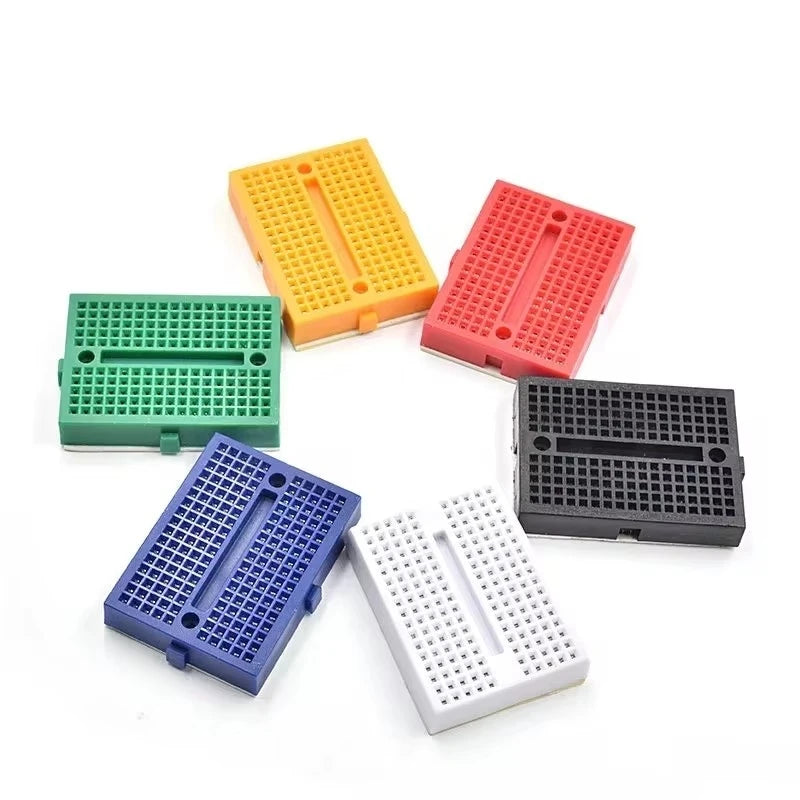

• Seven colors : red,blue,yellow,green,white and black.

• With self-adhesive tape on the back,make it easy to stick on the  Prototype Shield.

• Packing in a paper box

• We have always cared about the customer experience and improve the product function details.

Product Specifications and Package details:

Board Material: White ABS plastic with black legend
Internal Contacts Material: Phosphor bronze finished.
Board Base: Self-Adhesive Tape
170 tie-points total: 2 columns of 17 lanes with two 5 point rows each column.
Socket Pitch: 0.1"
Contact Type: Mixed metal strips
Extension Clips: Yes (Can extend with other boards)
Dimension: 45mm x 34.5mm x 9.5mm
Package included: 1pcs 170 tie-points breadboard

Convenient and Easy-to-use:

Solderless breadboard is convenient for the prototypes and circuit design experiment and other DIY projects.
Each row and columns has corresponding letters and numbers.
Self-adhesive back tape makes it easy to stick on a platform,such as the duino prototype shield.
With tight plug-in contacts,the components will sit well after assembly therefore there are no wobbles.
Jumper wires are easy to insert into or remove from these breadboards.
With nubbins and slots on the sides to easily connect multiple breadboards together.

Thoughtful Product Features:

Perfect shield prototyping and testing; can be applied in debugging without welding.
Fit for 21-26 AWG (0.4-0.7MM) wire. Comparing with breadboards of high AWG wire,Elegoo breadboards is of higher physical strength and lower resistance.
The solderless breadboards do not require soldering,therefore they are completely re-usable. This makes it easy to use for creating temporary prototypes and experimenting with circuit design which is a construction base for prototype of electronics.
Compatible with resistors,transistors,diodes,LEDS,capacitors and other types of electronic components
