SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Model Number: XH 227 YW

Origin: Mainland China

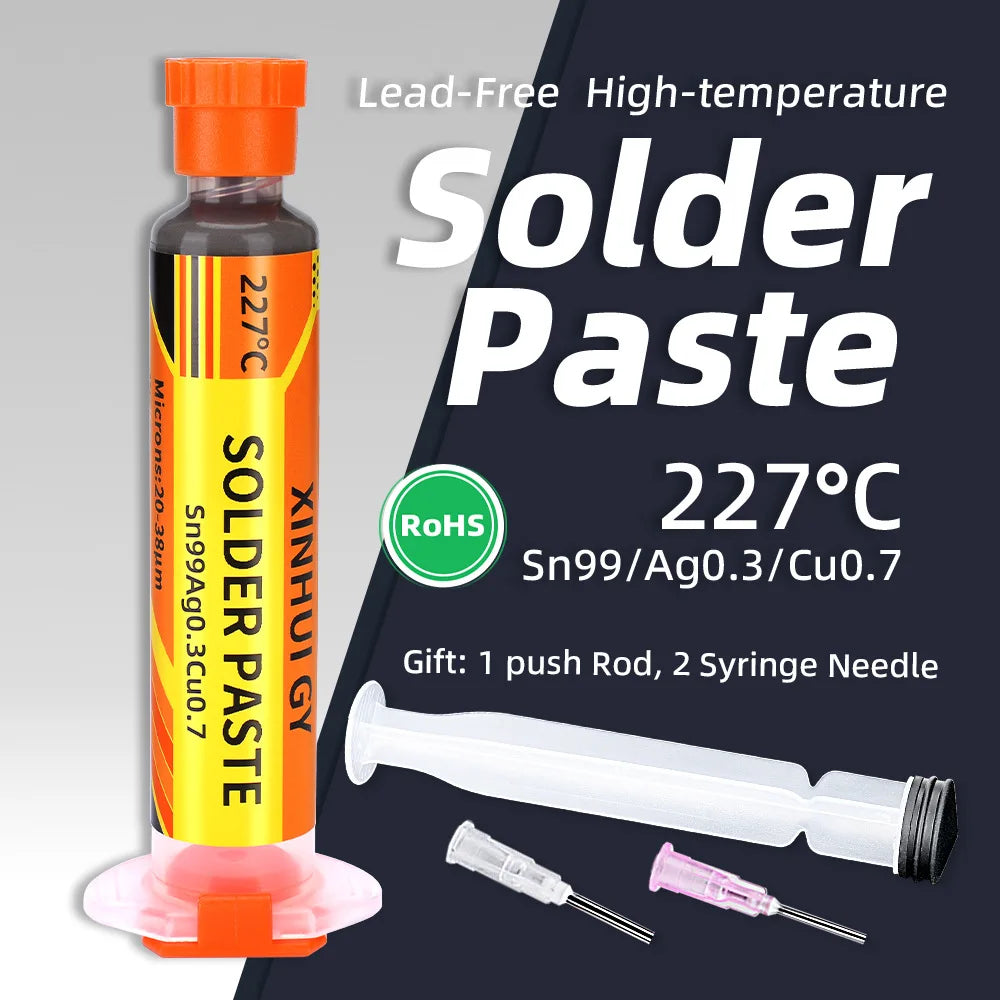

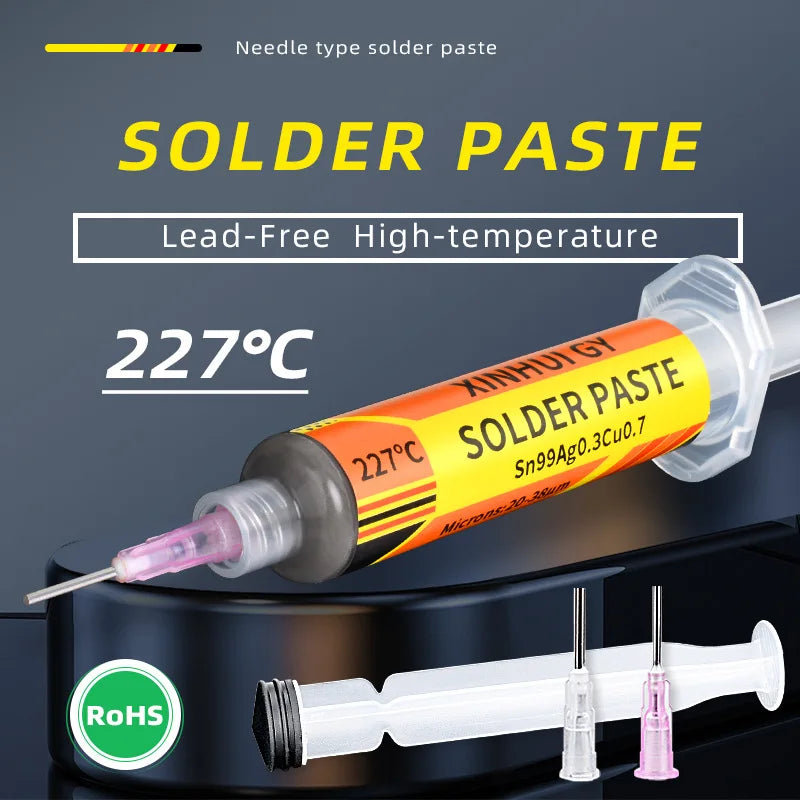

227℃ SOLDER PASTE

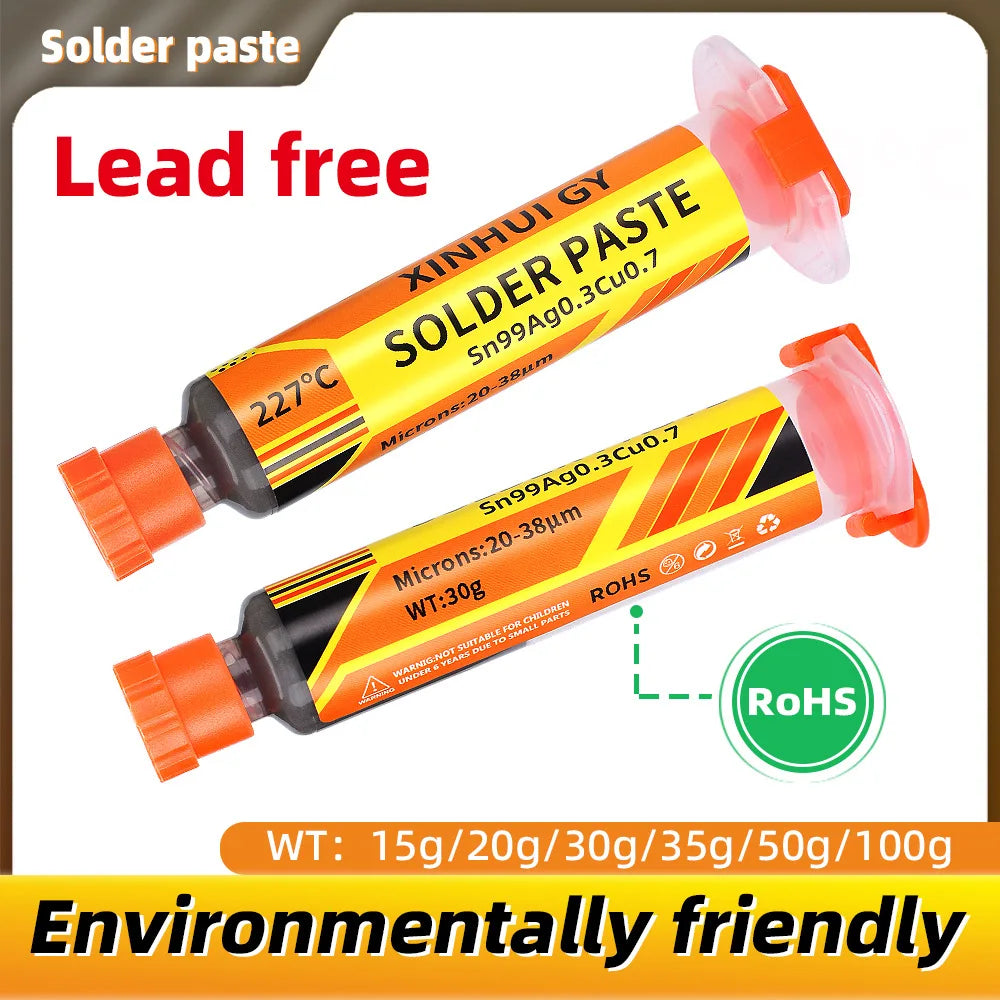

Lead-Free High-temperature

-----------------------------------------------------------------------

Product parameters

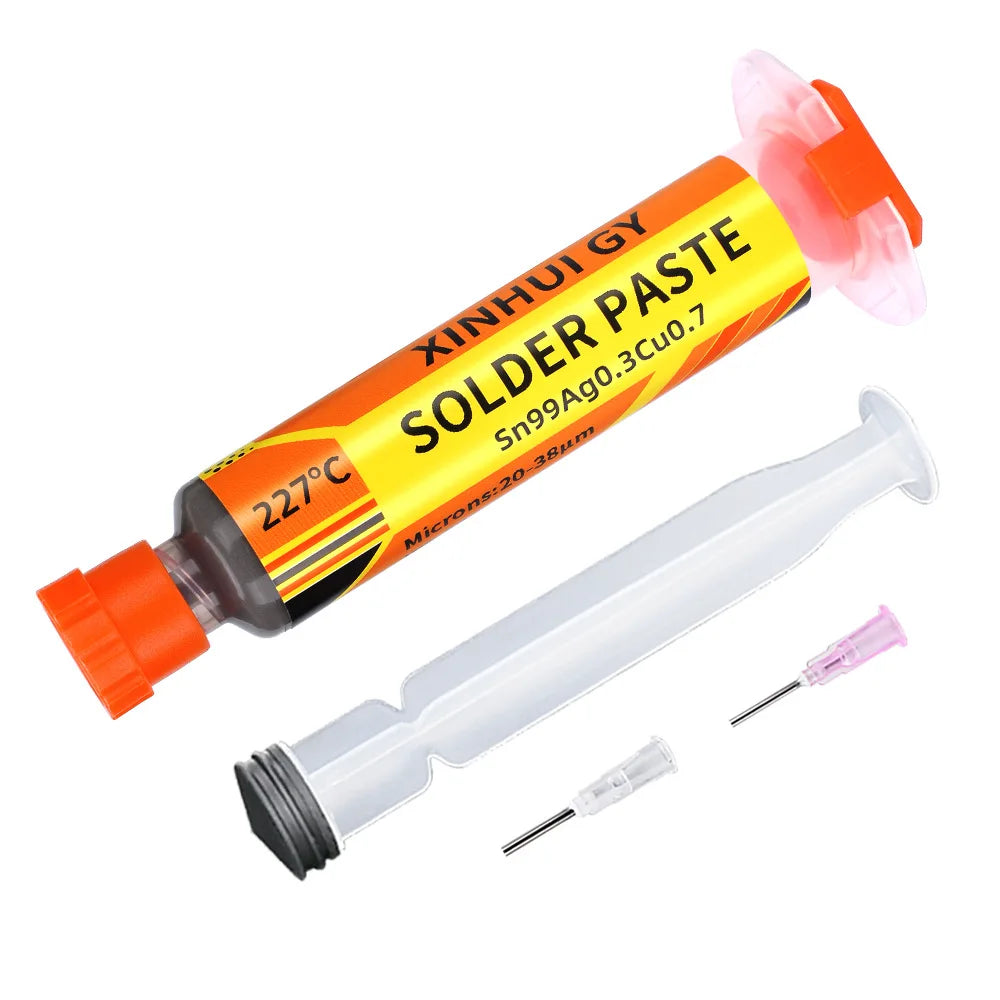

Product Name：227 needle tube solder paste

Component：Sn99 / Ag0.3 / Cu0.7   Particle size：T4（20-38μm）   Melting point：227℃

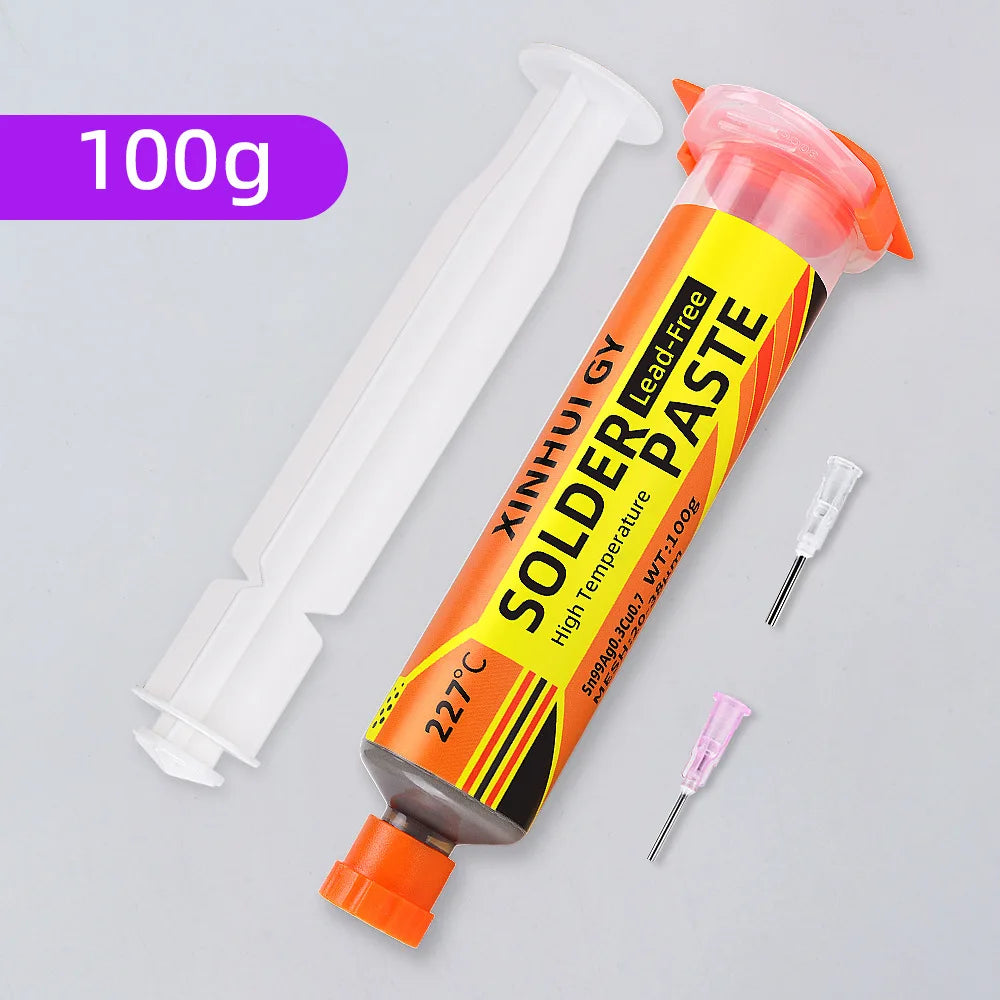

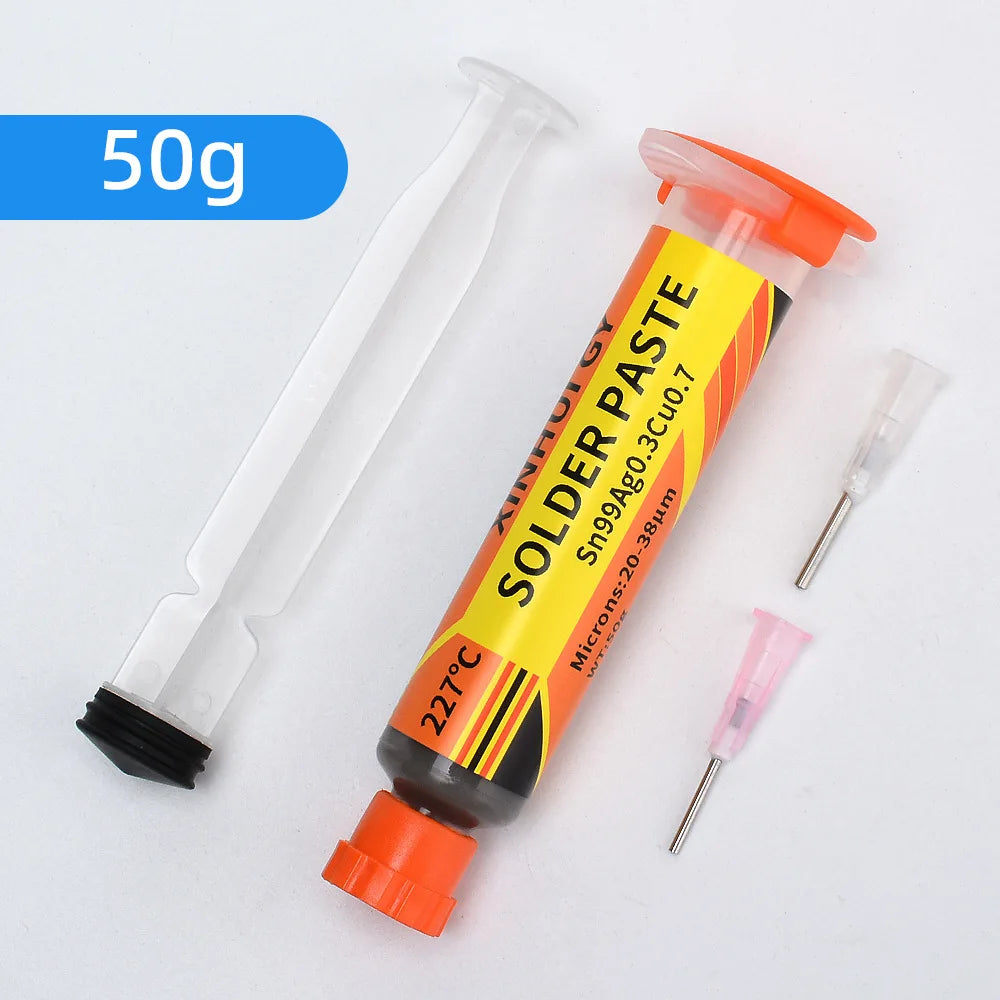

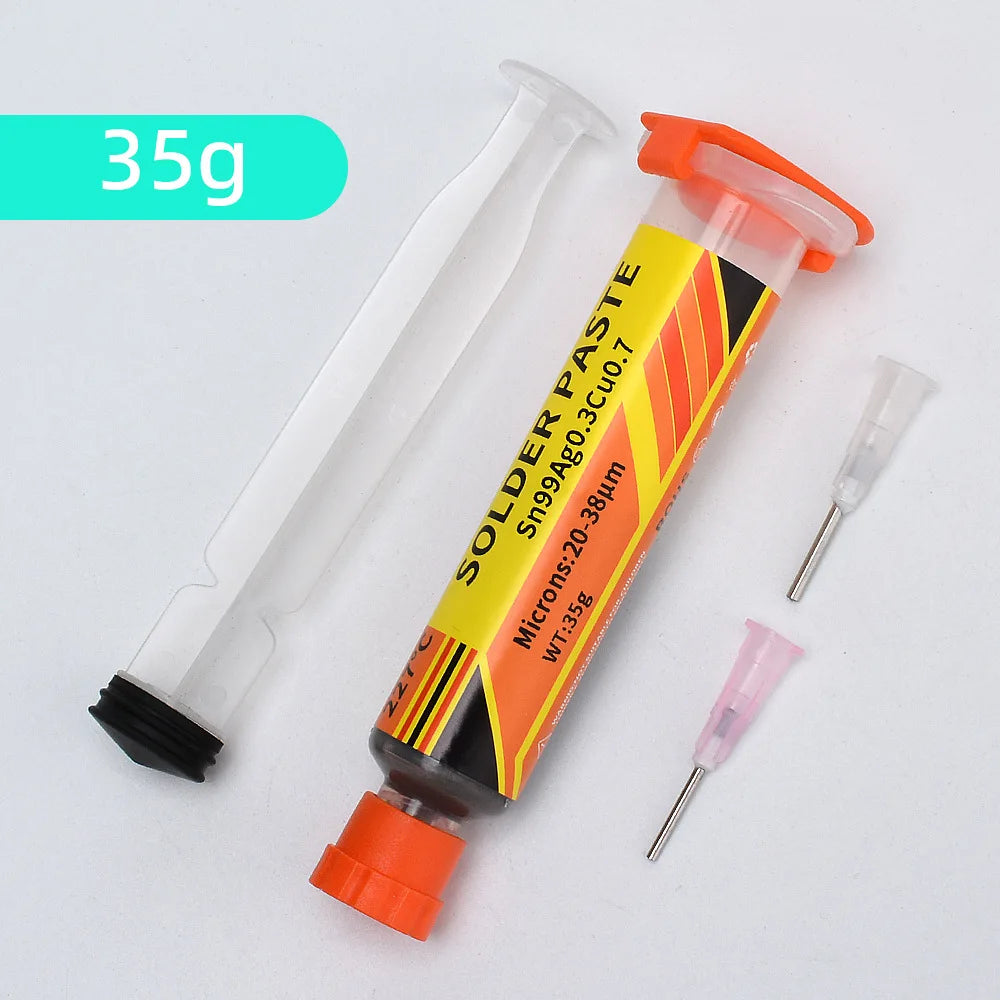

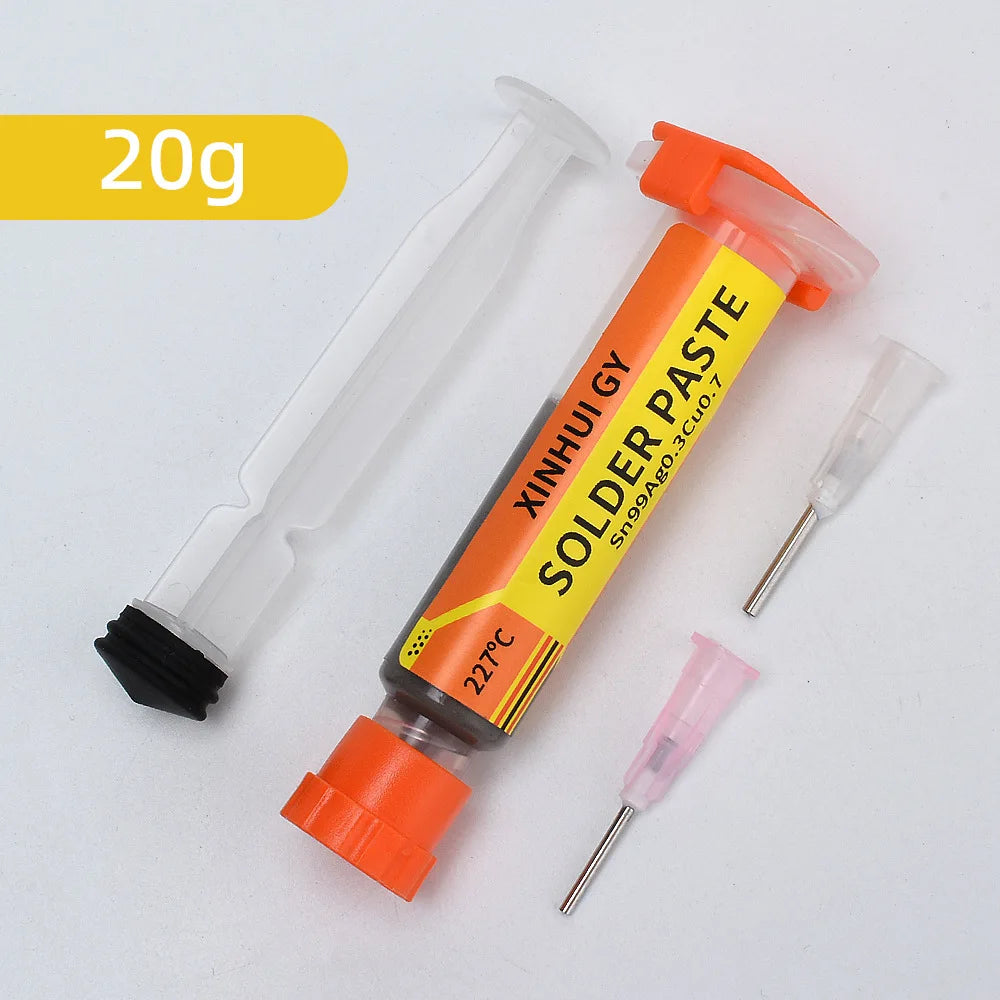

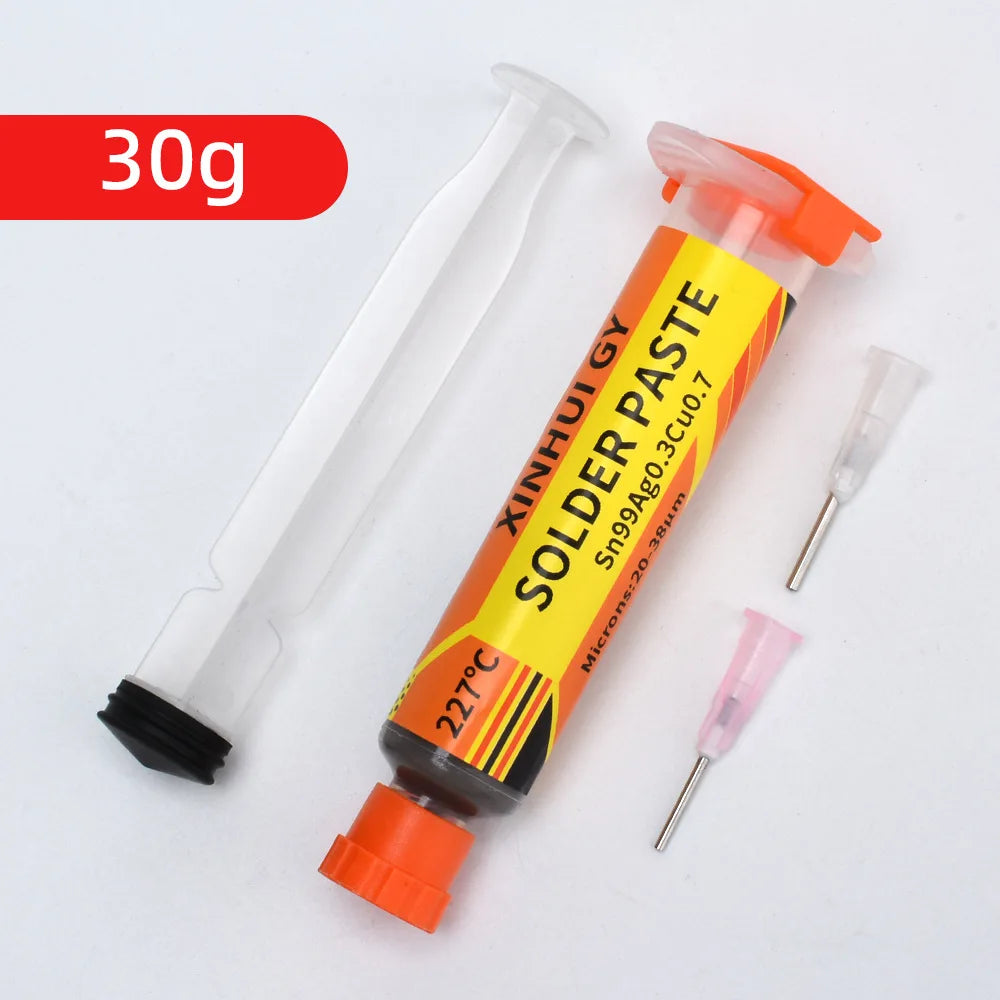

Weight：15g/20g/30g/35g/50g/100g

Application：Communication module,high-temperature resistant double-sided fiberglass PCB

-----------------------------------------------------------------------

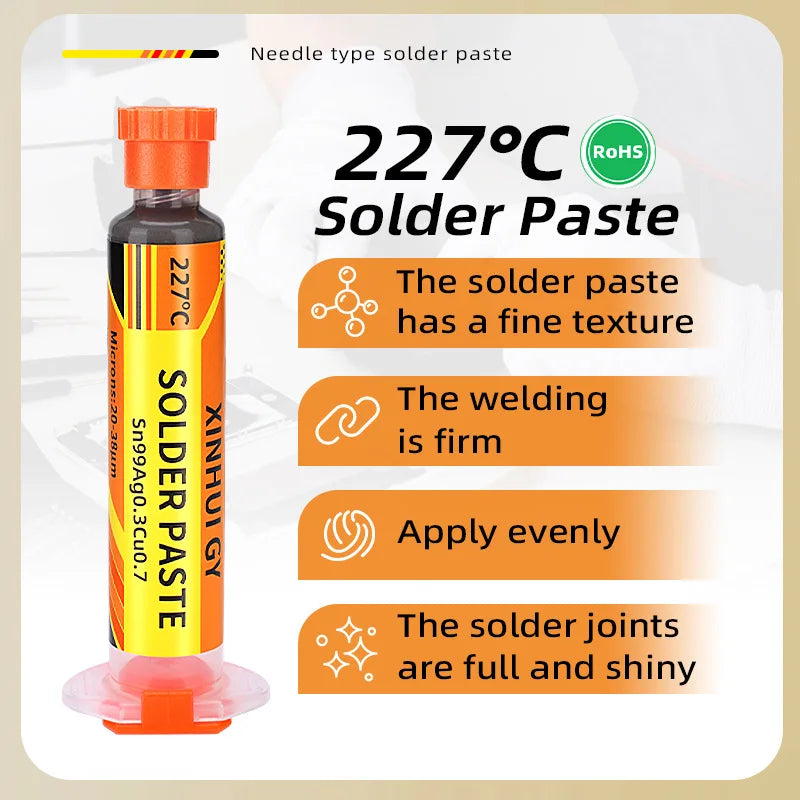

227℃ Solder Paste

The solder paste has a fine texture

The welding is firm

Apply evenly

The solder joints are full and shiny

-----------------------------------------------------------------------

Wide applicability

Welding of mobile phone charging port

Handmade SMD patch

BGA tin plating

Computer repair

Welding wiring

Home appliance maintenance

-----------------------------------------------------------------------

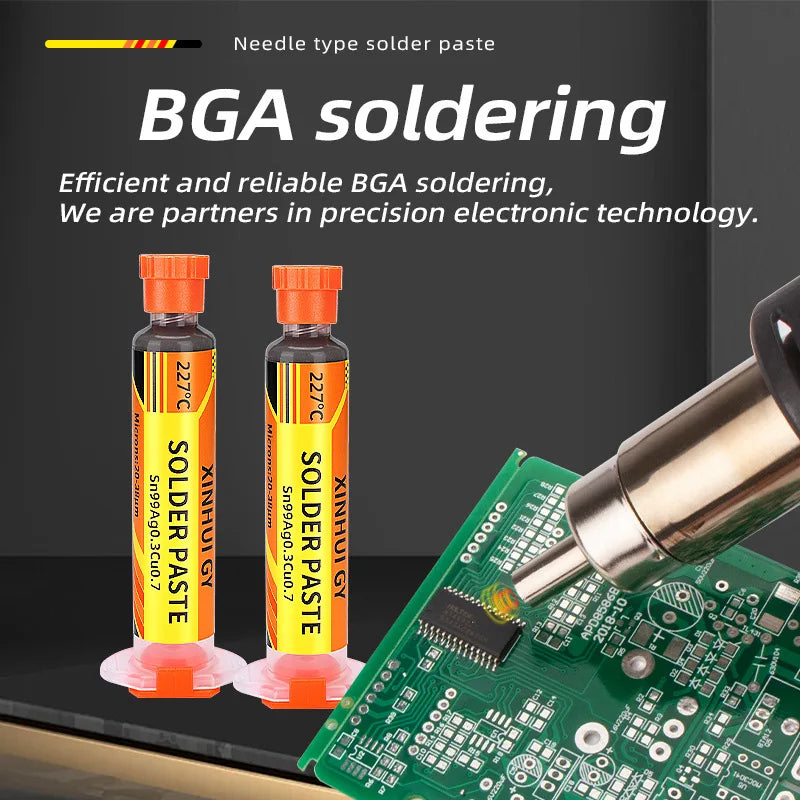

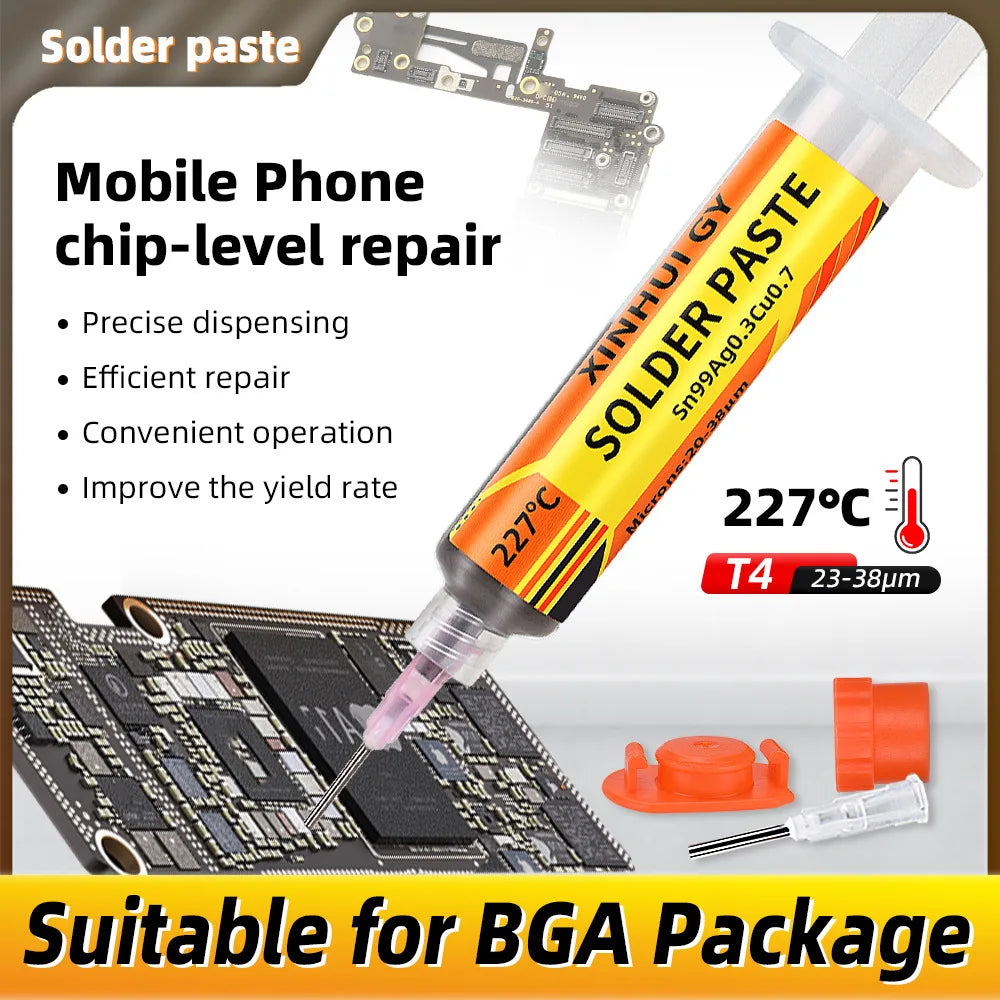

BGA soldering

Efficient and reliable BGA soldering,

We are partners in precision electronic technology.

-----------------------------------------------------------------------

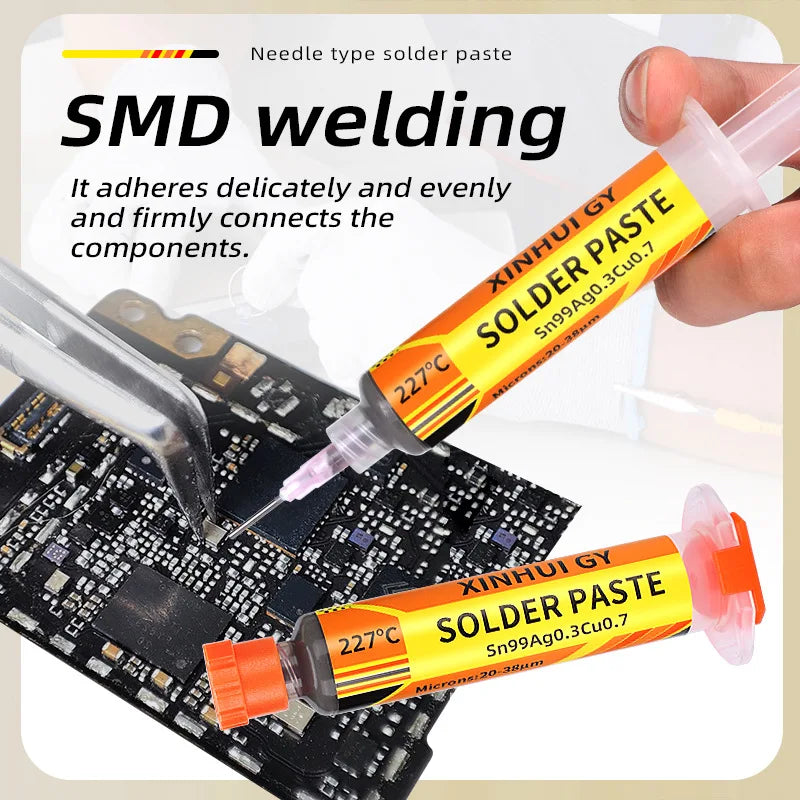

SMD welding

It adheres delicately and evenly and firmly connects the components.

-----------------------------------------------------------------------

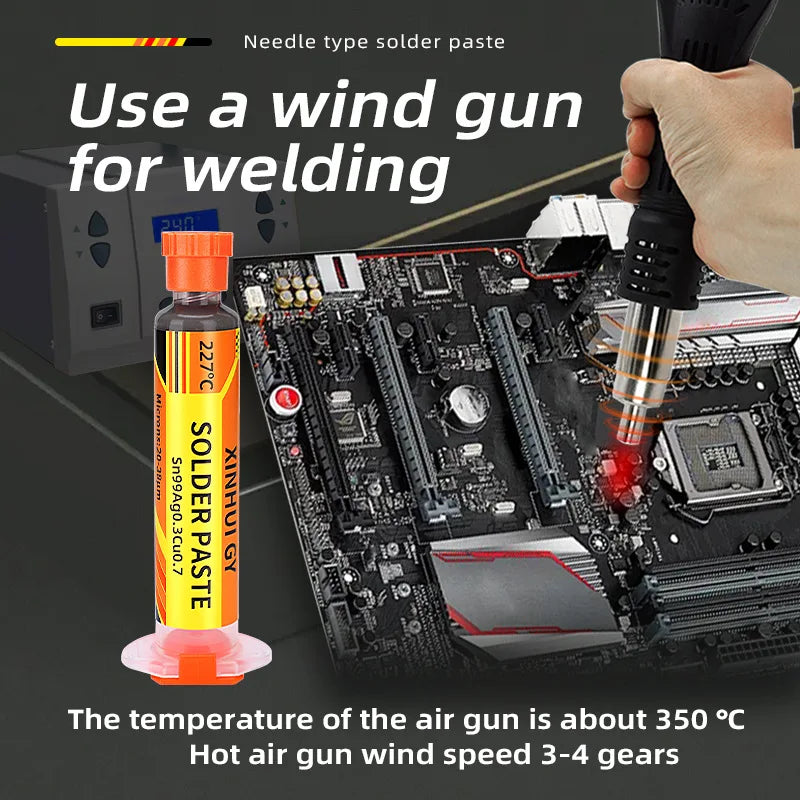

Use a wind gun for welding

The temperature of the air gun is about 350 ℃

Hot air gun wind speed 3-4 gears

-----------------------------------------------------------------------

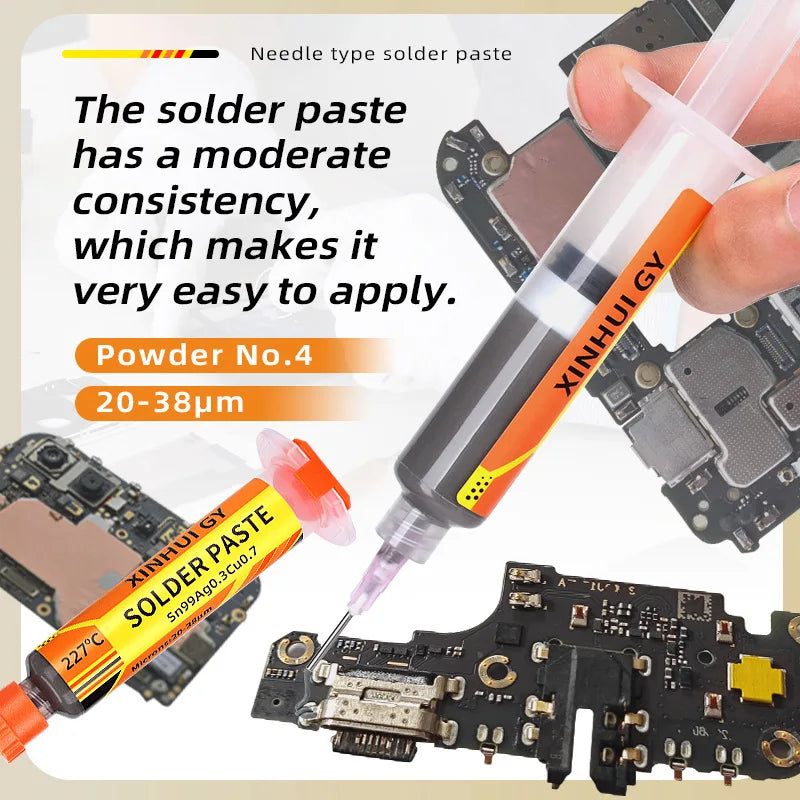

The solder paste has a moderate consistency, which makes it very easy to apply.

Powder No.4

20-38μm

-----------------------------------------------------------------------

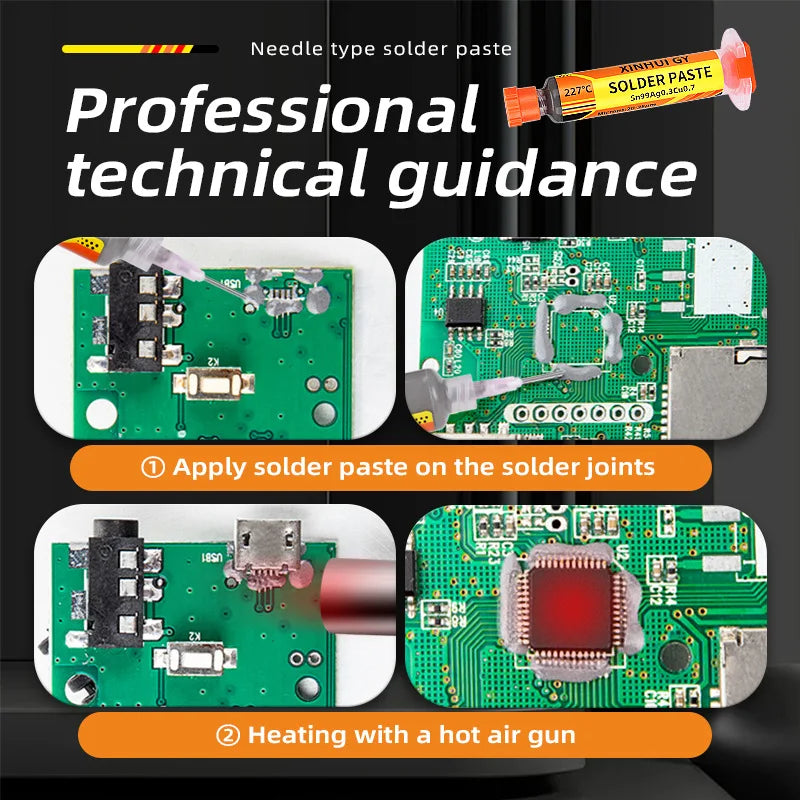

Professional technical guidance

①   Apply solder paste on the solder joints

②   Heating with a hot air gun

-----------------------------------------------------------------------

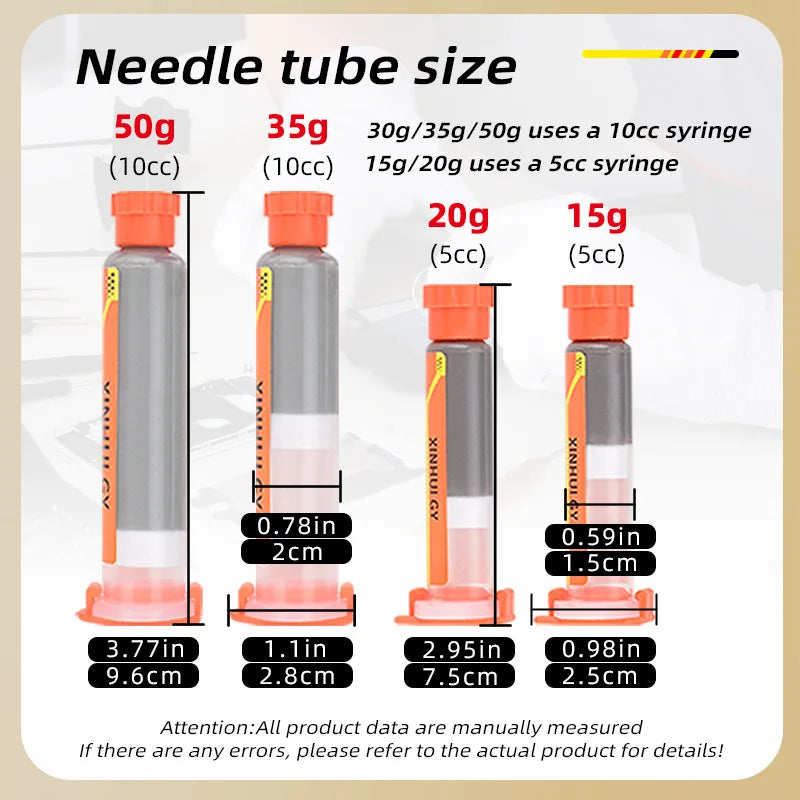

Needle tube size

30g/35g/50g uses a 10cc syringe

0.78in*1.1in*3.77in / 2cm*2.8cm*9.6cm

15g/20g uses a 5cc syringe

0.59in*0.98in*2.95in / 1.5cm*2.5cm*7.5cm

Attention:All product data are manually measured

If there are any errors, please refer to the actual product for details!

-----------------------------------------------------------------------

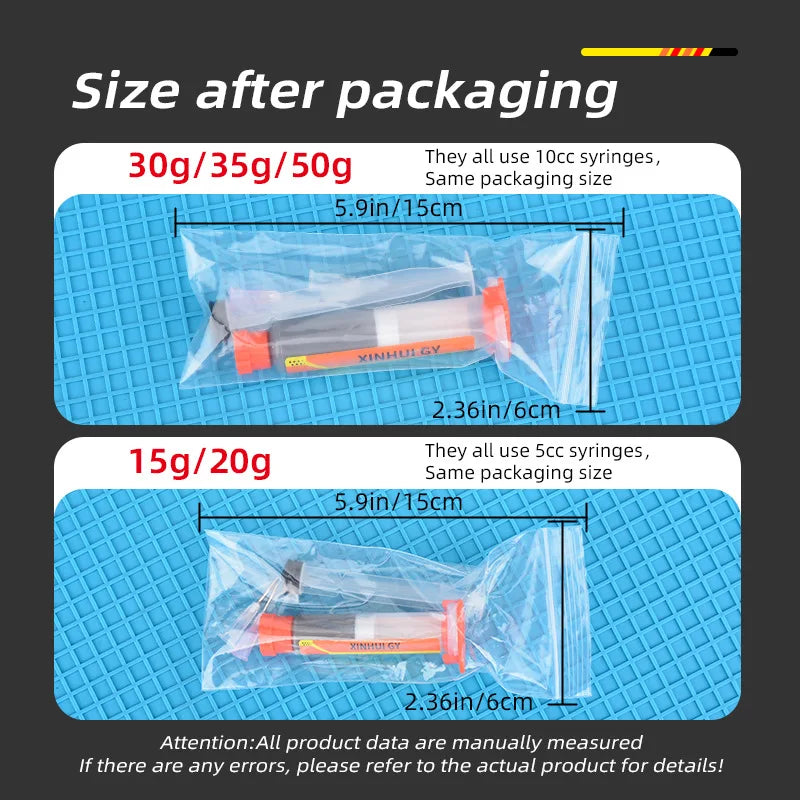

Size after packaging

30g/35g/50g They all use 10cc syringes，Same packaging size

5.9in*2.36in / 15cm*6cm

15g/20g They all use 5cc syringes，Same packaging size

5.9in*2.36in / 15cm*6cm

Attention:All product data are manually measured

If there are any errors, please refer to the actual product for details!

-----------------------------------------------------------------------

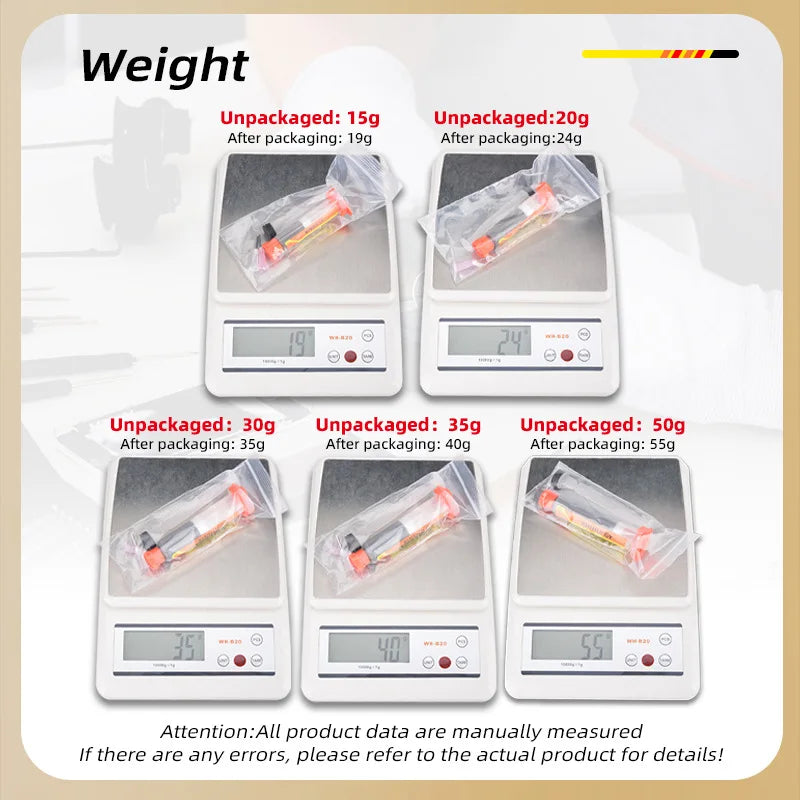

Weight

Unpackaged: 15g After packaging: 19g

Unpackaged: 20g After packaging: 24g

Unpackaged: 30g After packaging: 35g

Unpackaged: 35g After packaging: 40g

Unpackaged: 50g After packaging: 55g

Attention:All product data are manually measured

If there are any errors, please refer to the actual product for details!

-----------------------------------------------------------------------

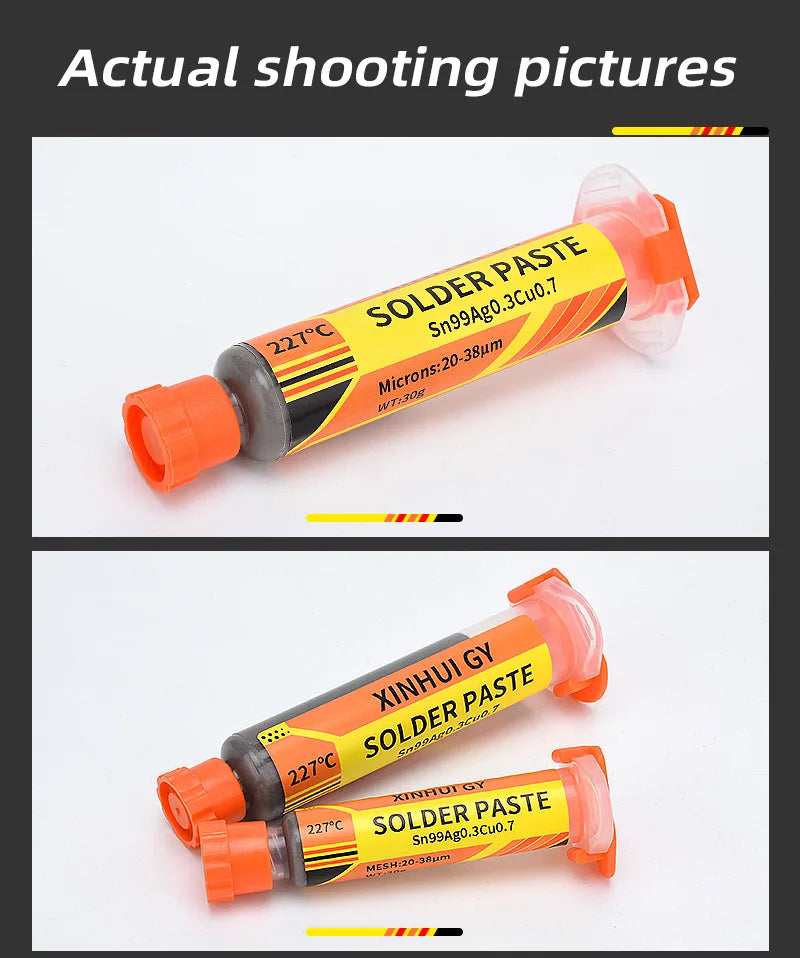

Actual shooting pictures

-----------------------------------------------------------------------

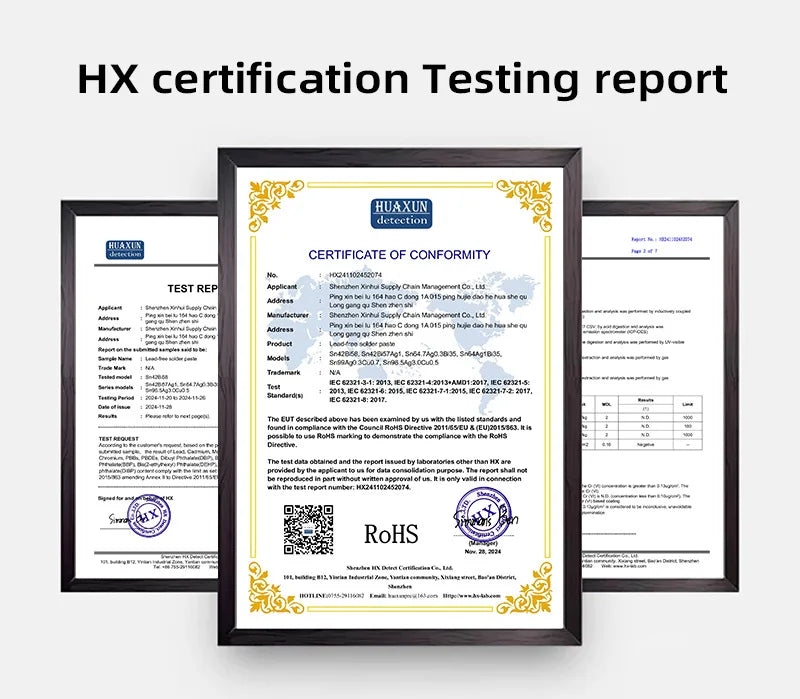

HX certification Testing report
