SPECIFICATIONS

AC Voltage: 220V

Battery Included: no

Brand Name: meterk

Choice: yes

DC Voltage: 12V

DIY Supplies: Electrical

High-concerned chemical: none

Operating Mode: Auto Range

Origin: Mainland China

Semi-finishedproduct: No

ANENG SZ308 Digital Multimeter Square Wave Digital Tester 1999 Counts HFE Triode Buzzer Multimeter AC/DC Voltage DC Current Resistance Test Tool

Specification:

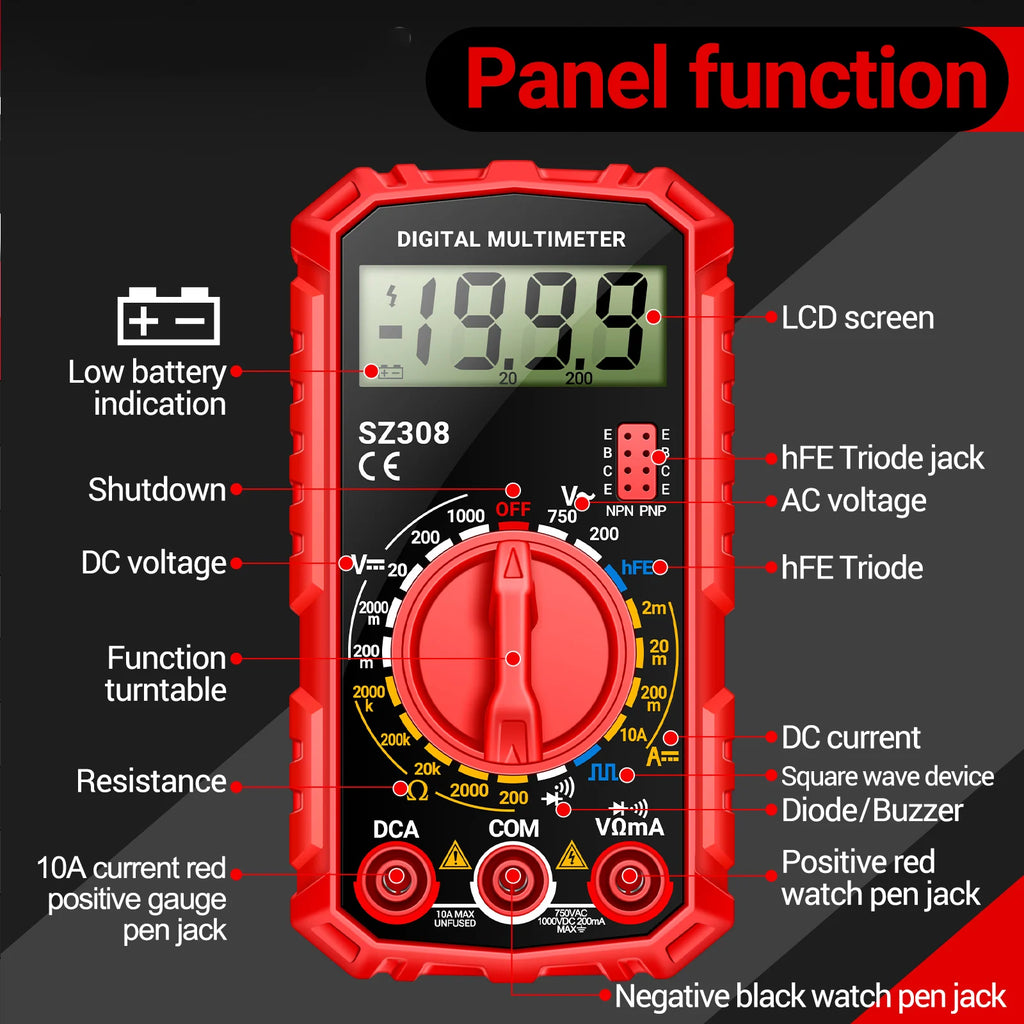

SZ308 is a handheld digital multimeter designed and produced according to international electrical safety standards, used for measuring AC/DC voltage, DC current, resistance,resistance, diode, buzzer, square wave device and hFE triode and other functions.
Features:
Ease of Use with Probe Included: The digital multimeter comes equipped with a testing probe, making it incredibly convenient for users to start measuring right out of the box. This feature ensures that both professionals and hobbyists can easily conduct their electrical tests without the need for additional accessories.
Designed for Safety: Crafted in compliance with international electrical safety standards, this handheld AC/DC voltmeter ammeter is not only reliable but also ensures the safety of its users during operation. Its design prioritizes user protection while providing accurate readings.
Versatile Application: The voltage resistance meter is designed with versatility in mind, making it suitable for a wide range of applications. Whether it's for home electrical projects, automotive troubleshooting, or industrial electrical maintenance, this tool is equipped to handle various scenarios.
Multifunctional Capabilities: With the ability to measure AC/DC voltage, DC current, resistance, diode, buzzer, square wave device and hFE triode, the voltage current detector is a multifunctional tool that meets the needs of even the most demanding electrical testing requirements.
Square Wave Testing: The inclusion of a square wave tester function makes this multimeter a must-have for professionals working with digital circuits and PWM (Pulse Width Modulation) systems. This feature allows for comprehensive testing capabilities, further expanding its utility in electronics diagnostics and development.
Specifications:
Color: Black / Red (Optional)
Model: SZ308
Material: ABS
AC Voltage: 0V-750V, 0.1V-1V, ±(1.0%+15)
DC Voltage: 200mV-1000V, 0.1mV-1V, ±(1.0%+10)
DC Current: 2mA-10A, 0.01mA-0.01A, ±(1.5%+5)
Resistance: 0Ω-2000kΩ, 0.1Ω-1kΩ, ±(1.2%+5)
hFE Triode: Yes
Diode: Yes
Buzzer: Yes
Square Wave: Yes
Low Battery Indication: Yes
Battery: 6F22, 9V battery (Not included)
Max Digital Display: 1999 Counts
Pen Bus Length: 70cm / 27.5in

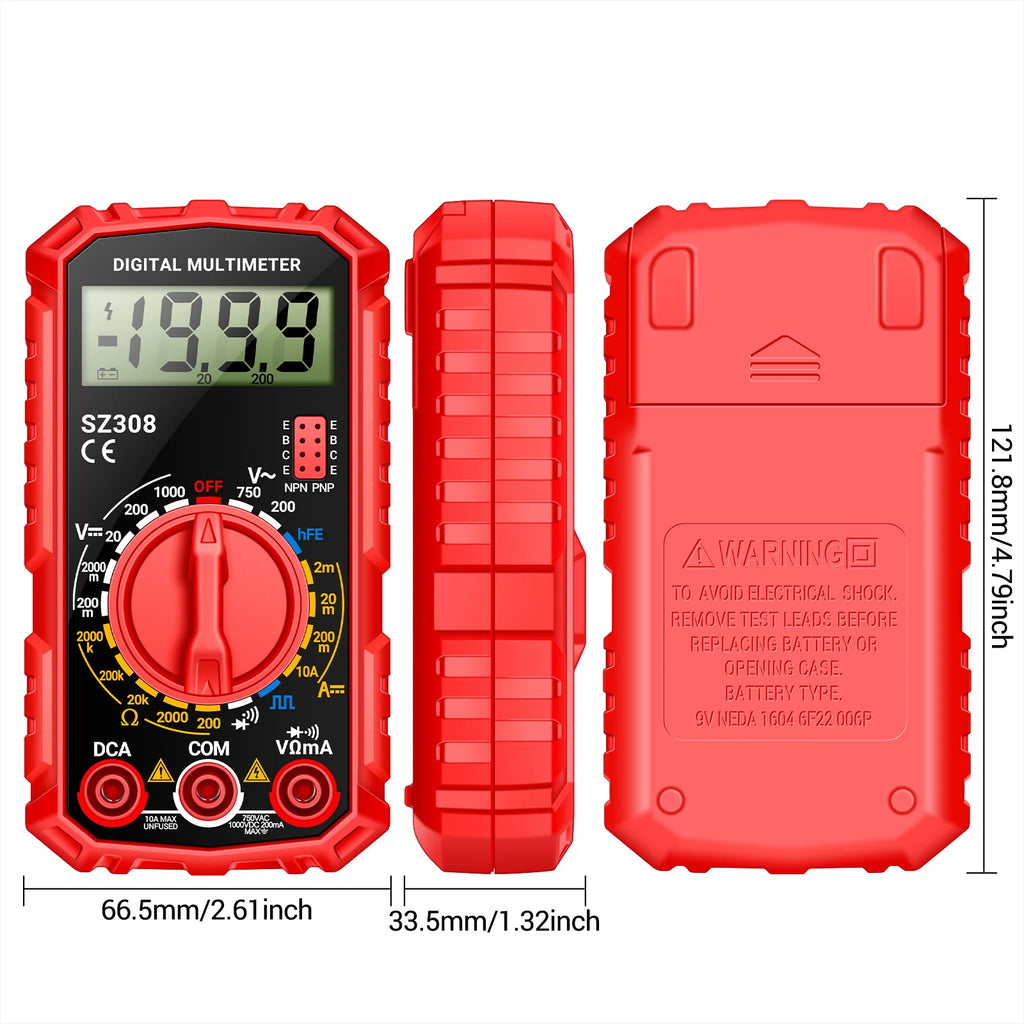

Item Size: 121.8 * 66.5 * 33.5mm / 4.79 * 2.61 * 1.32in
Item Weight: 72g / 2.54oz
Package Weight: 132g / 4.65oz
Package Size: 13.5 * 10 * 3.8cm / 5.31 * 3.94 * 1.49in
Package List:
1 * Multimeter
2 * Test Leads
1 * User Manual (English)

Package List:

Package List:

1 * Multimeter

2 * Test Leads

1 * User Manual (English)
