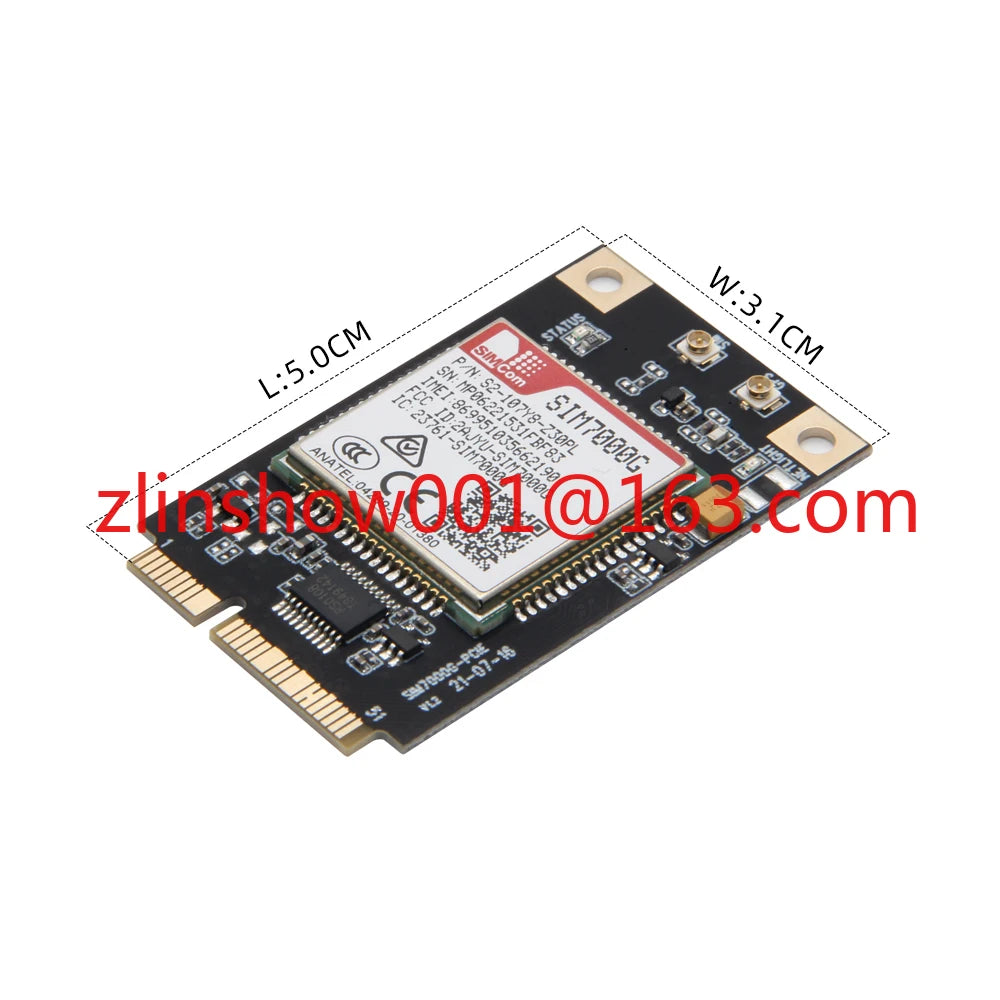

T-PCIE Development Board SIM7000G SIM7000E ESP32 Wireless Module with WIFI Bluetooth Composable Kits

T-PCIE Development Board SIM7000G SIM7000E ESP32 Wireless Module with WIFI Bluetooth Composable Kits

$109.56

$109.56 $0.00

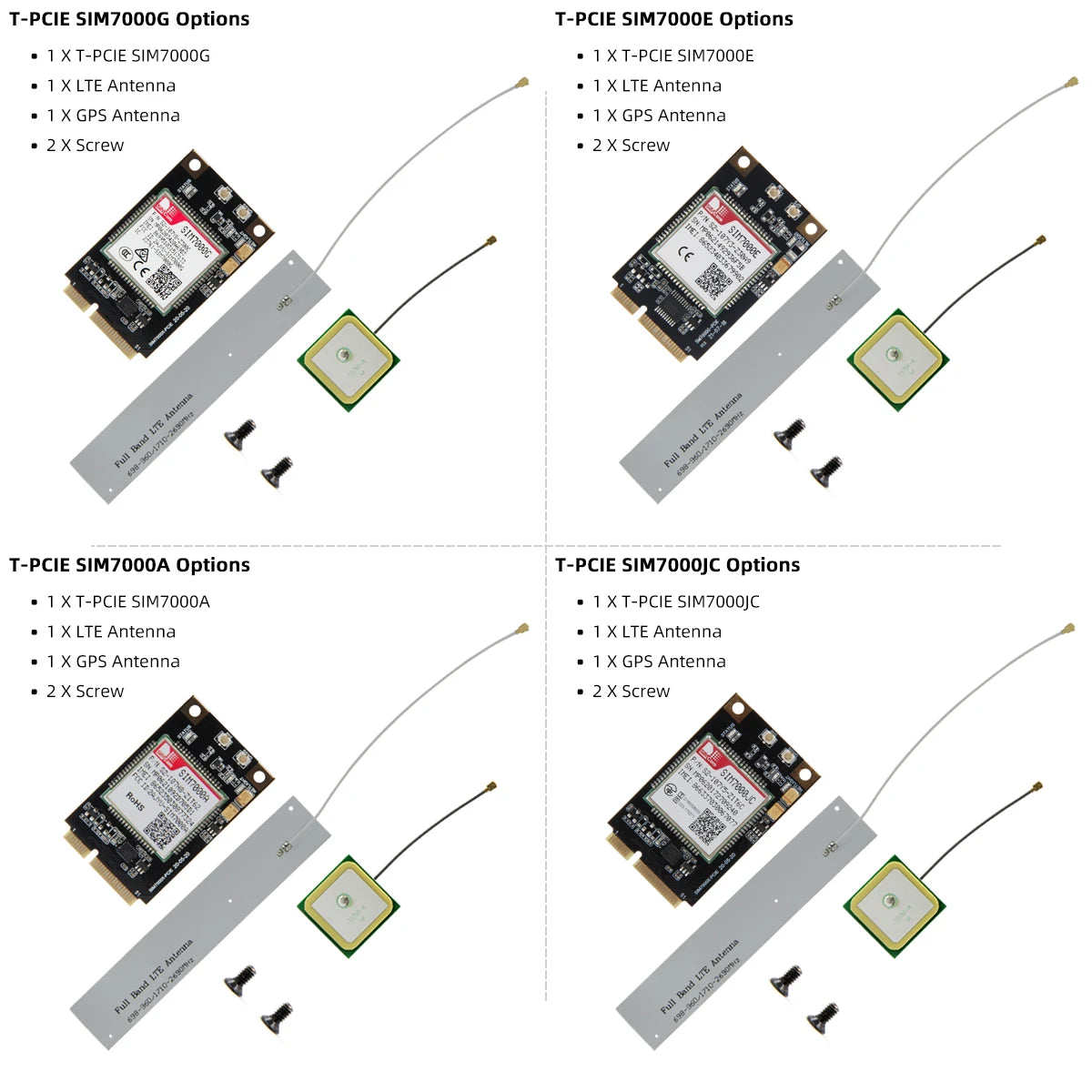

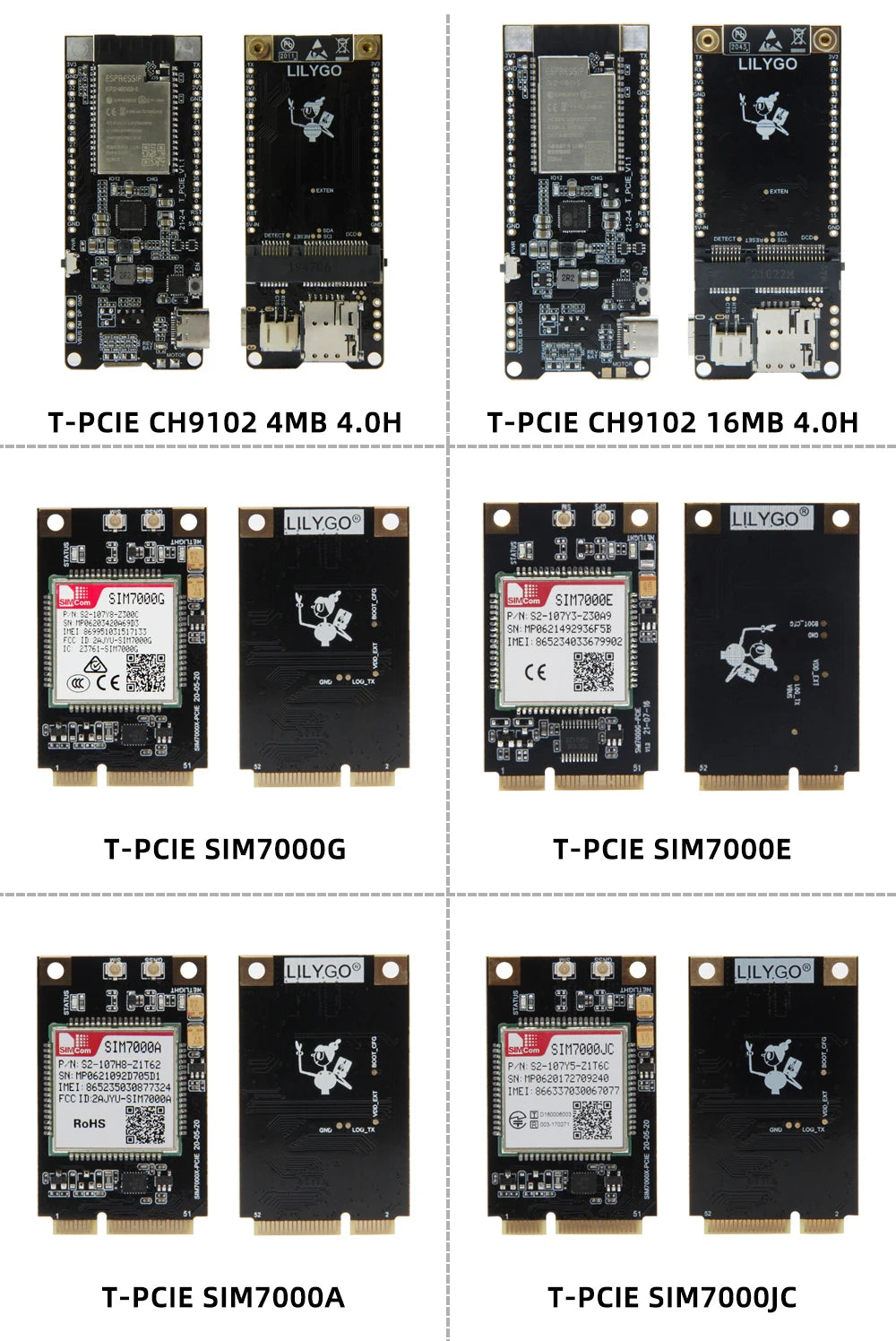

Specification PCIE 4MB 4.0H T-PCIE SIM7000G PCIE 16MB 4.0H T-PCIE SIM7000E

Description

SPECIFICATIONS

Board Type: Partially Populated

Brand Name: NONE

Button: PWR Power Switch,Reset

Chipset: ESP32-WROVER-B/E, AXP2101 Power Management Chip

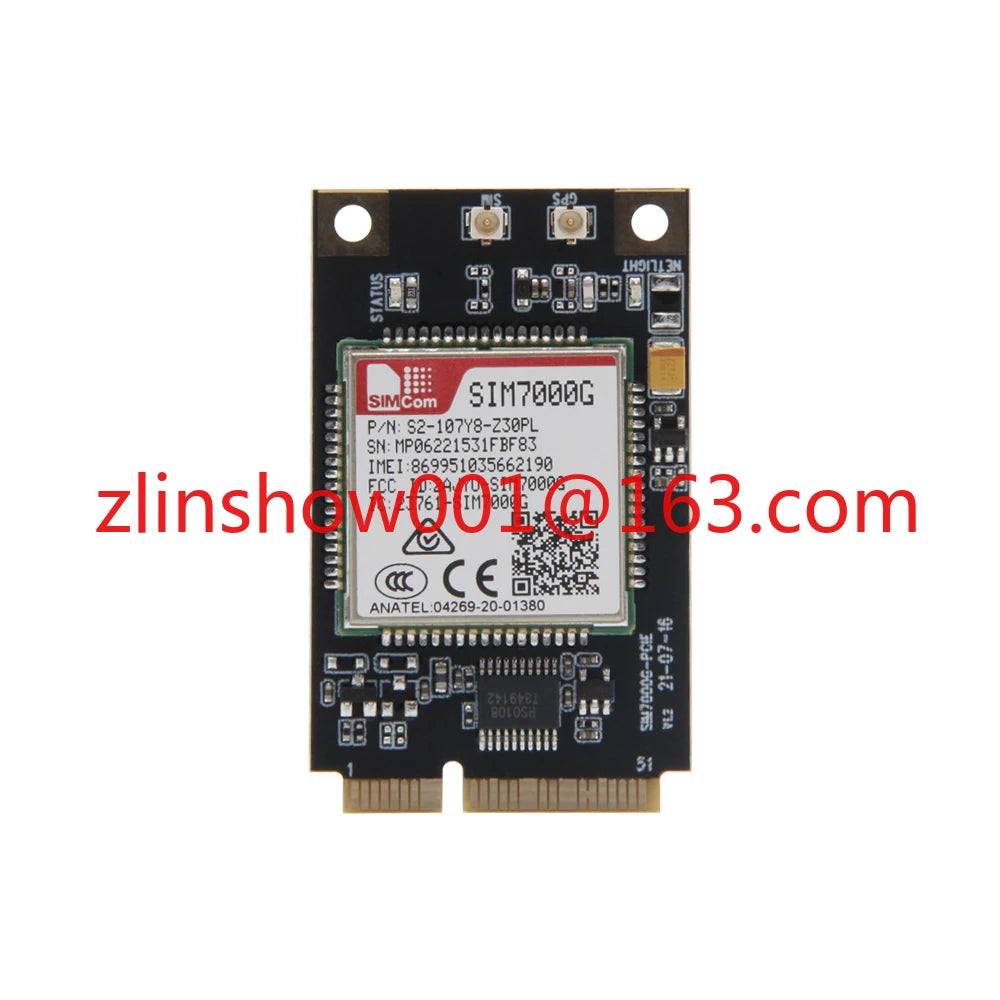

Description: T-PCIE SIM7000 Development Board

Embedded: Yes

FLASH: 4MB/16M

High-concerned chemical: none

Model Number: T-PCIE SIM7000

On-board clock: 40MHz crystal oscillator

Operating System: RTOS

Origin: Mainland China

PSRAM: 8MB

Place of Origin: Guangdong, China

SRAM: 520 KB SRAM

Series: T-PCIE SIM7000

Sleep current: About 700uA

Type: Hand Tool Parts,Development Board

USB to TTL: CH9102F

Working temperature range: -40℃ ~ +85℃

Working voltage: 2.7V-3.6V

Hello, welcome to our store. , please contact our online customer service,

Whatsapp/wechat:+86 19350856924

Email: zlinshow001@163.com

Product Details

Hardware Specifications
Chipset	ESP32-WROVER-B/E(B and E are shipped randomly) AXP192 Power Management Chip
FLASH	4MB/16M
PSRAM	8MB
SRAM	520 kB SRAM
Button	PWR Power Switch,Reset
USB to TTL	CH9102F
On-board clock	40MHz crystal oscillator
Peripherals	SIM Nano Card Slot,Mini PCIE Card Slot
Antenna	Onboard antenna(Default)
Working voltage	2.7V-3.6V
Working current	-
Sleep current	About 700uA
Working temperature range	-40鈩� ~ +85鈩�
Size	753310.5mm
Weight	14.5g

Power Supply Specifications
Power Supply Input	USB 5V/1A
Charging current	500mA
Battery Input	3.7-4.2V
Charge IC	AXP2101
JST Connector	2Pin 2.0mm
USB	Type-C

Wi-Fi
Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 Chip)
Protocol	802.11 b/g/n(802.11n锛宻peed up to150Mbps)A-MPDU and A-MSDU polymerization锛宻upport 0.4μS Protection interval
Frequency range	2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power	22dBm
Communication distance	300m

Bluetooth
Protocol	Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency	With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency

Software specification
Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA锛圱hrough network/host to download and write firmware锛�
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4銆両Pv6銆丼SL銆乀CP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS

More Information:
https://github.com/Xinyuan-LilyGO/LilyGo-T-PCIE

T-PCIE Introduction:

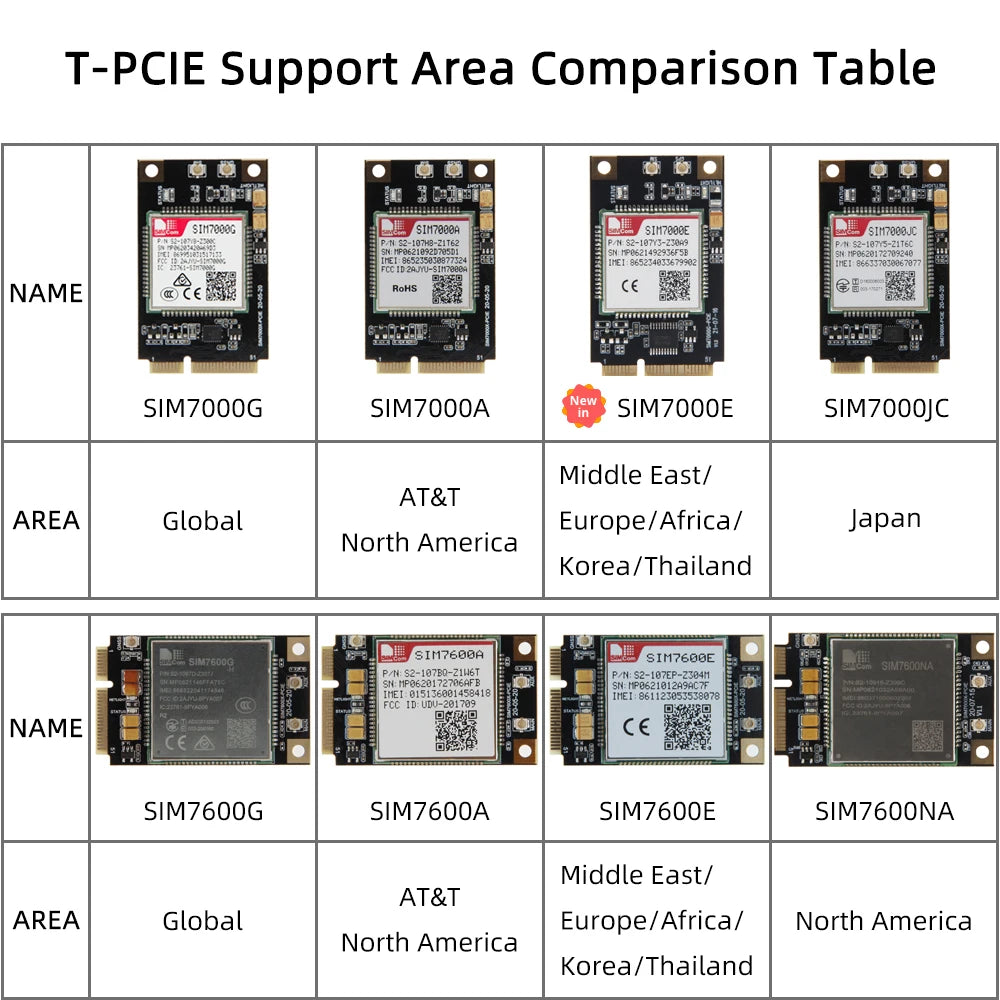

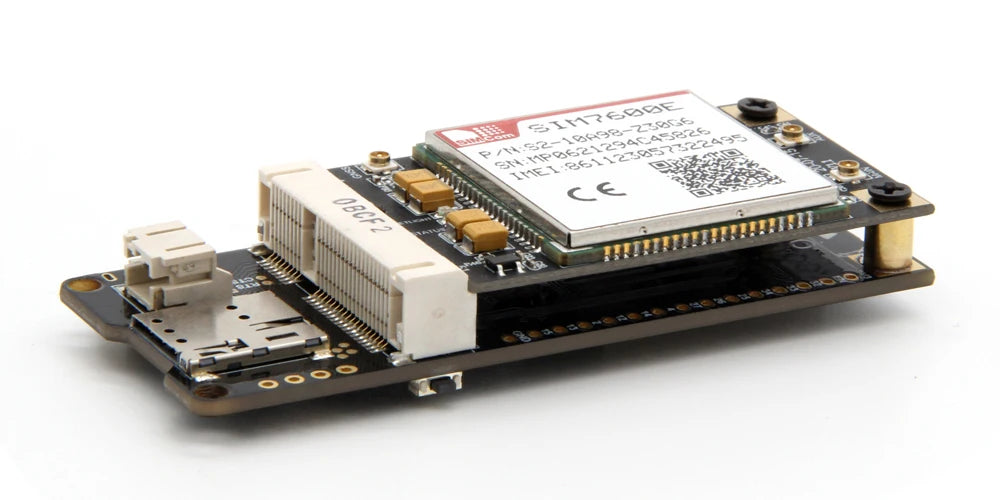

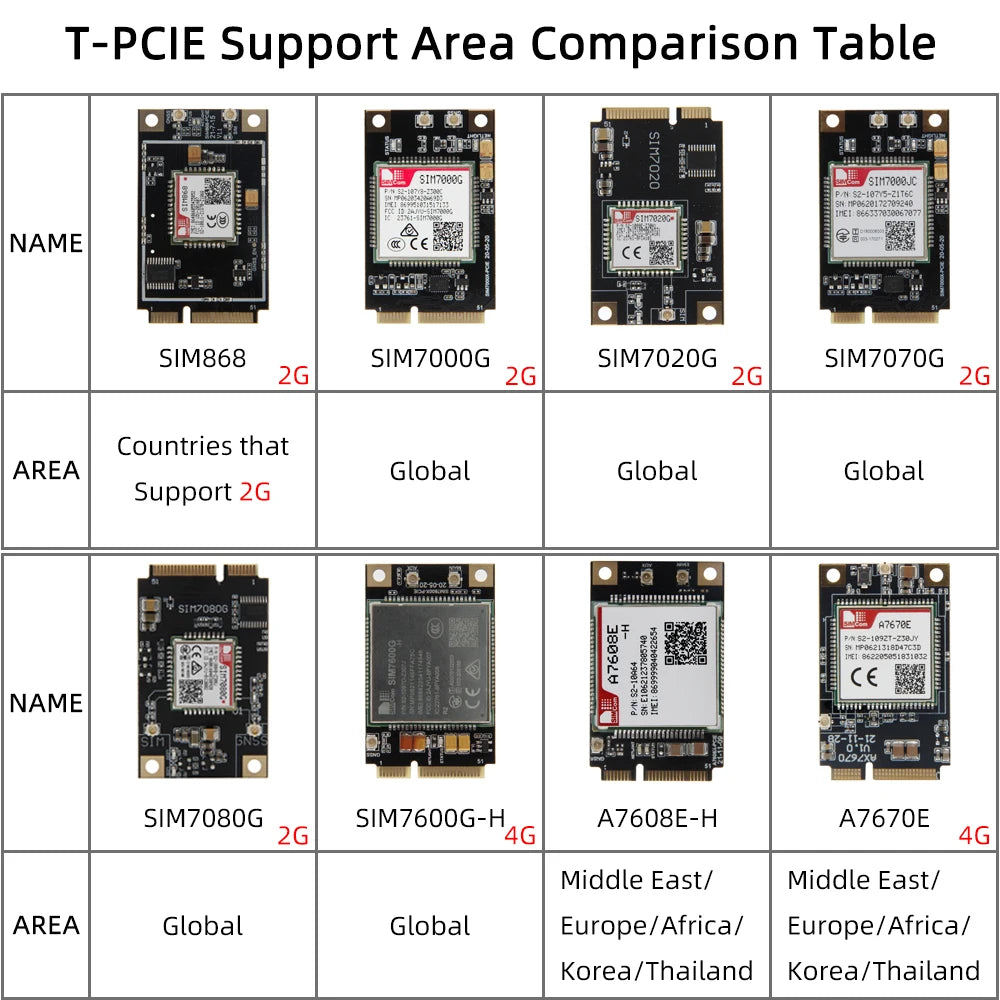

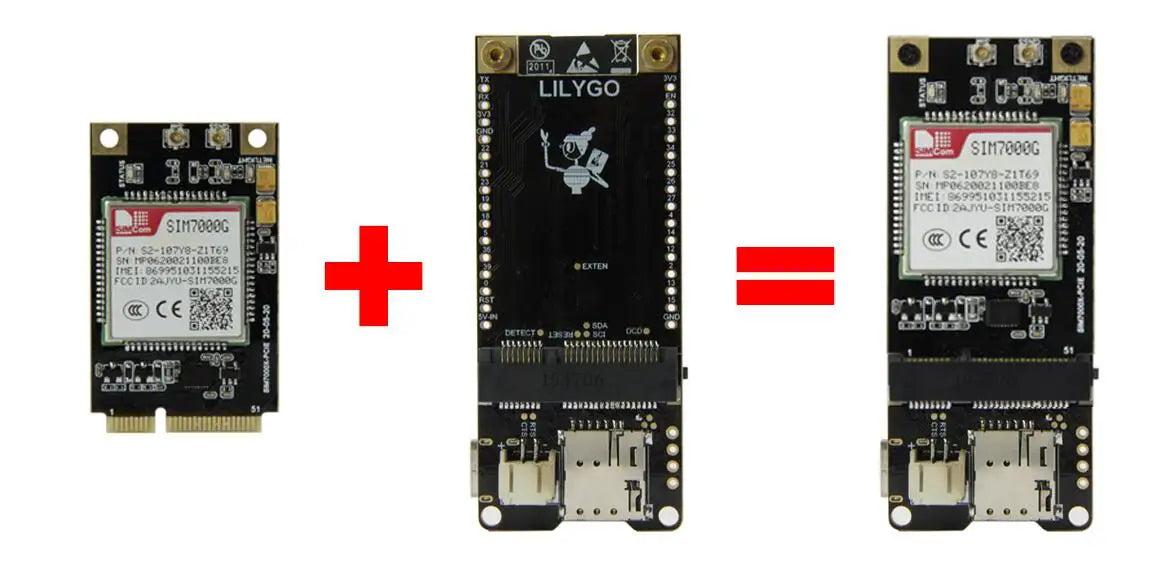

* This T-PCIE is equipped with a 4.0H socket, which is used to link the T-PCIE SIM module. We have many T-PCIE SIM modules, you can match freely, we have: SIM868, SIM7000X, SIM7600X, SIM7020X, SIM7070X,SIM7080X, A7608X-H, A7670X.

Note:

* For display purposes only. Shipment does not include a SIM module.
