Description

SPECIFICATIONS

Application: IoT

Brand Name: NONE

ESP32-WROVER-B: 16MB

Model Number: ESP32-WROVER-B 16MB With SIM7600E

Origin: Mainland China

Place of Origin: China

PS: The original SIMCom module can NOT work with the ESP32-WROVER-B board!!!

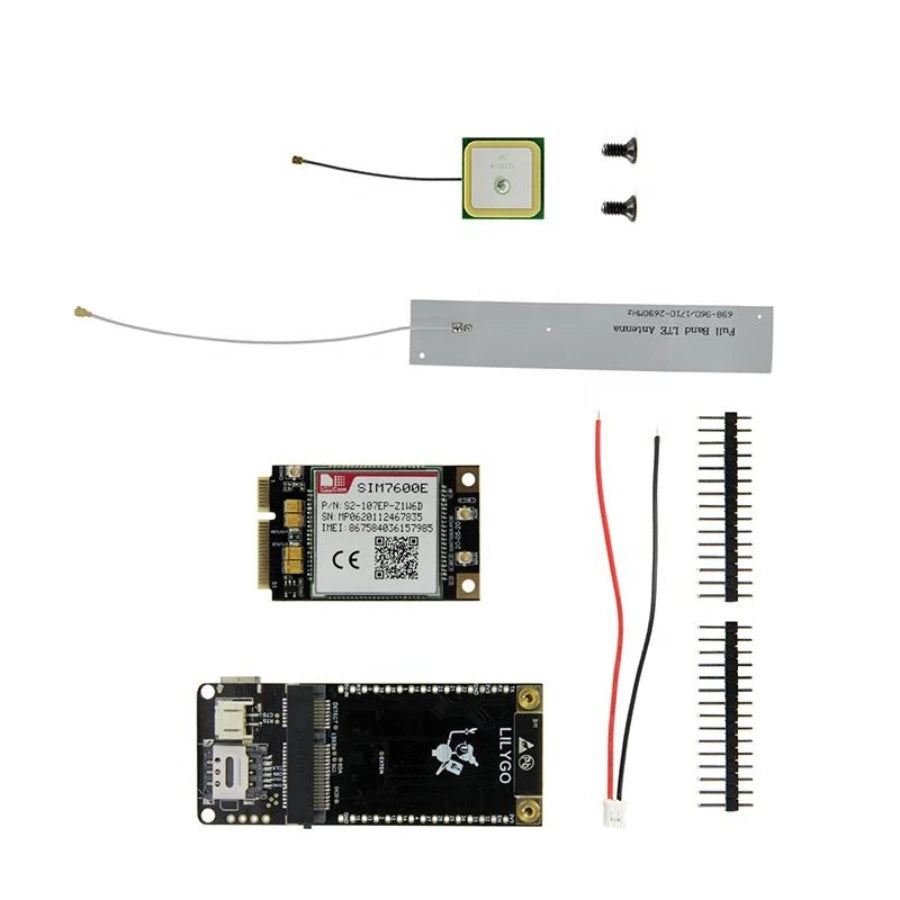

Packing list:

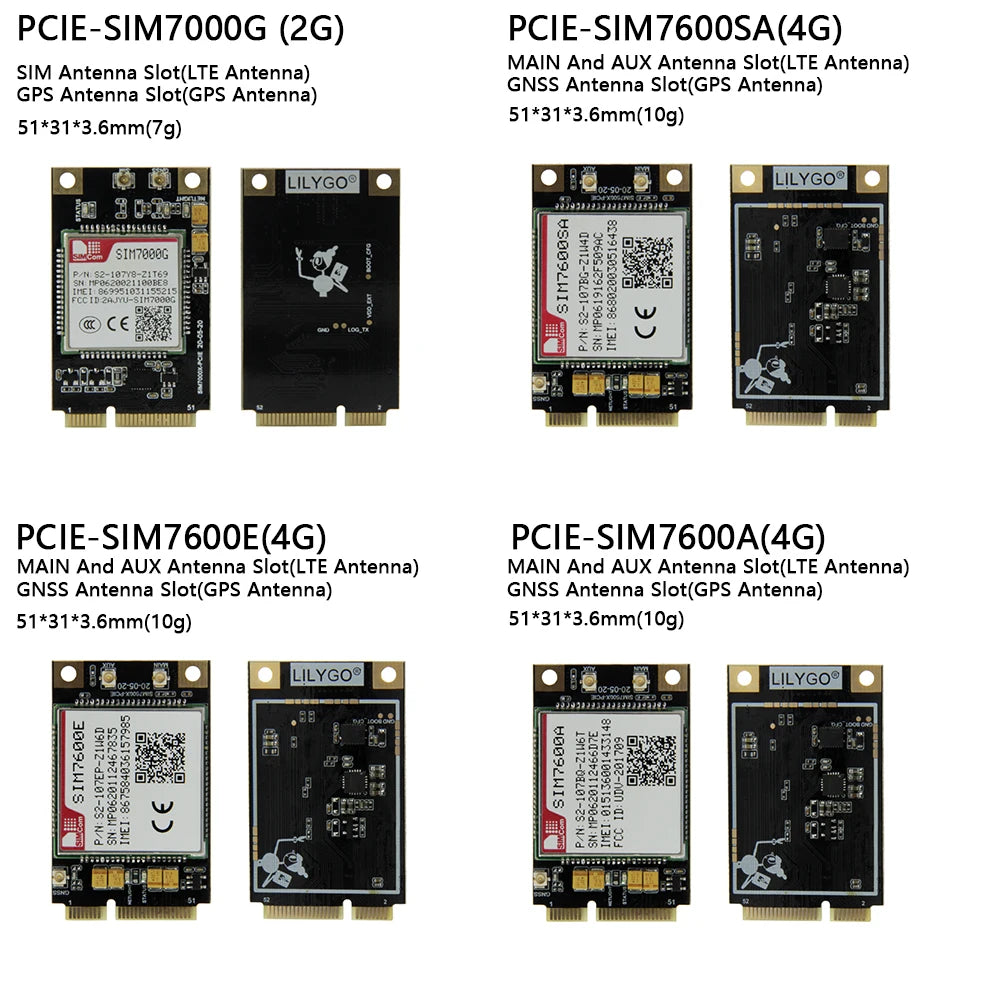

1 X PCIE-SIM7600E Module

1 X LTE antenna

1 X GPS antenna

2 X Screw

Product Description

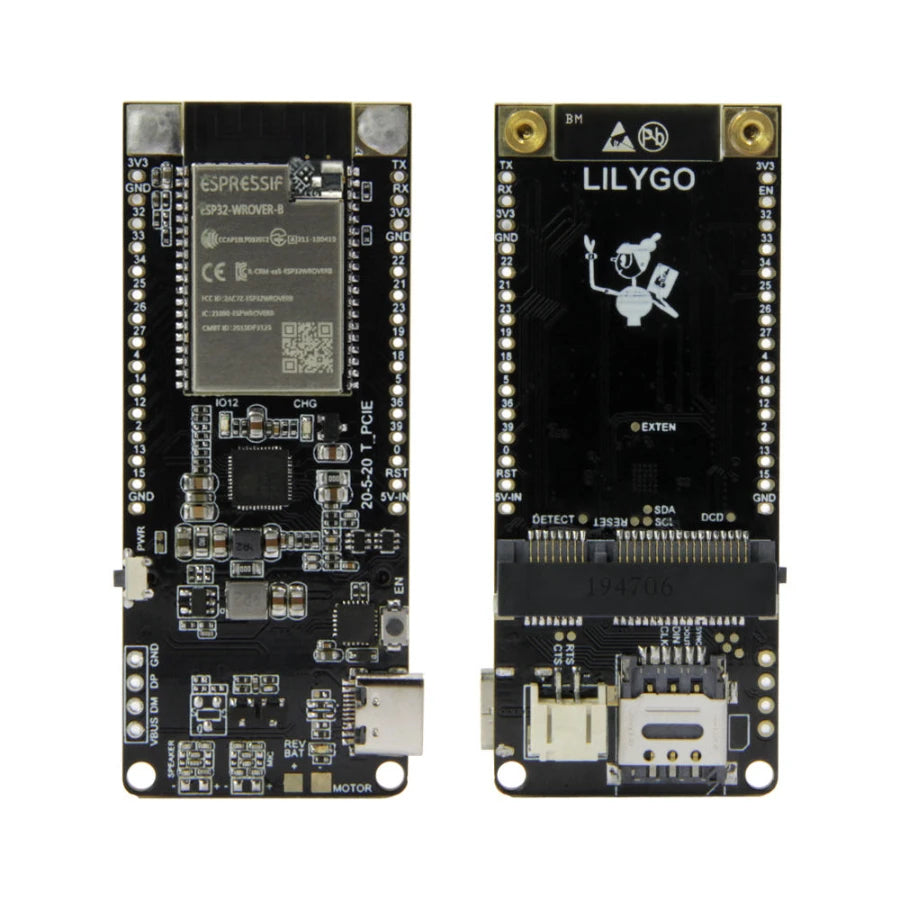

Hardware Specifications
Chipset	ESP32-WROVER-B,AXP192 Power Management Chip
FLASH	16MB
PSRAM	8MB
SRAM	520 kB SRAM
Button	PWR Power Switch,Reset
USB to TTL	CP2104
On-board clock	40MHz crystal oscillator
Peripherals	SIM Nano Card Slot,Mini PCIE Card Slot
Antenna	Onboard antenna(Default)
Working voltage	2.7V-3.6V
Working current
Sleep current	About 700ma
Working temperature range	-40℃ ~ +85℃

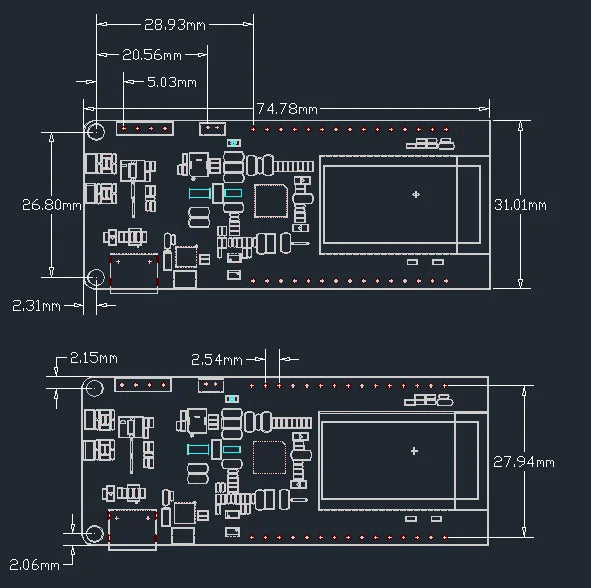

Size	753310.5mm
Weight	14.5g

Power Supply Specifications
Power Supply Input	USB 5V/1A
Charging current	500mA
Battery Input	3.7-4.2V
Charge IC	AXP192
JST Connector	2Pin 2.0mm
USB	Type-C

Wi-Fi
Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 Chip)
Protocol	802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range	2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power	22dBm
Communication distance	300m

Bluetooth
Protocol	Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency	With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency
Software specification
Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA(Through network/host to download and write firmware)
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4,IPv6,SSL,TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS
