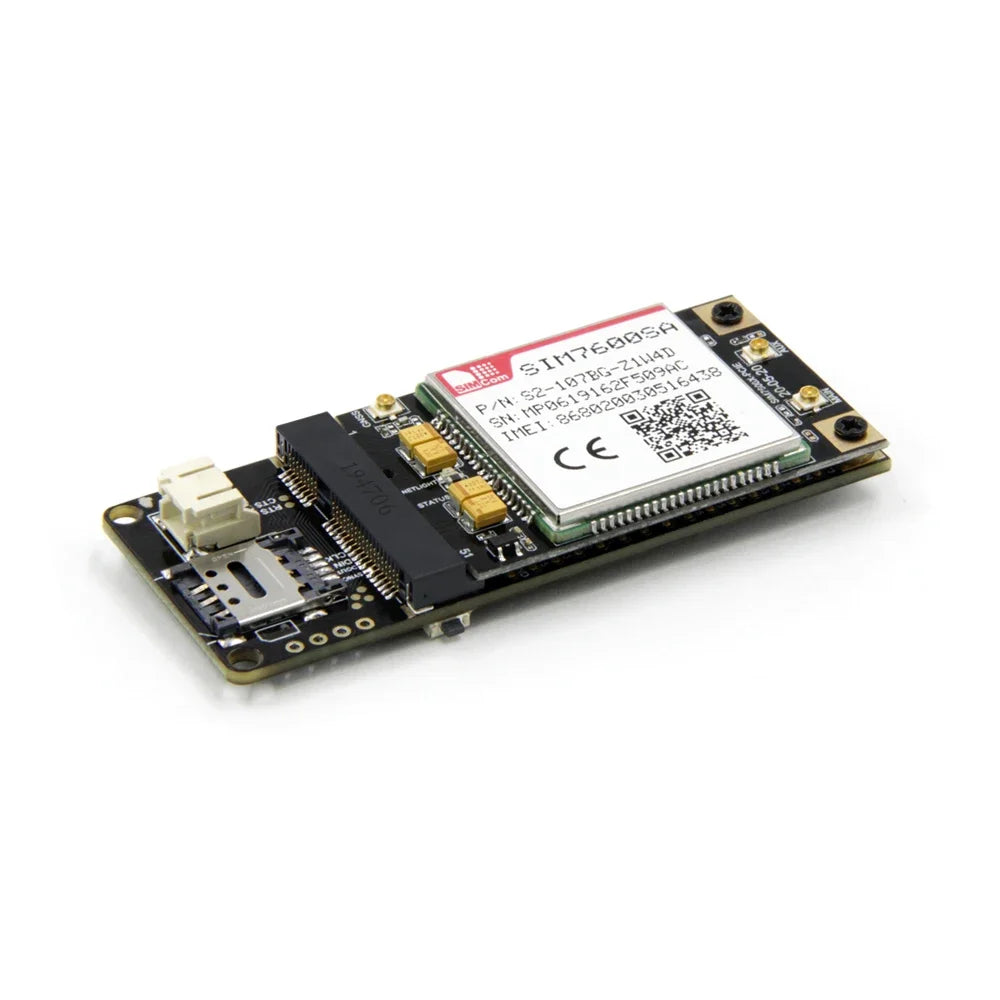

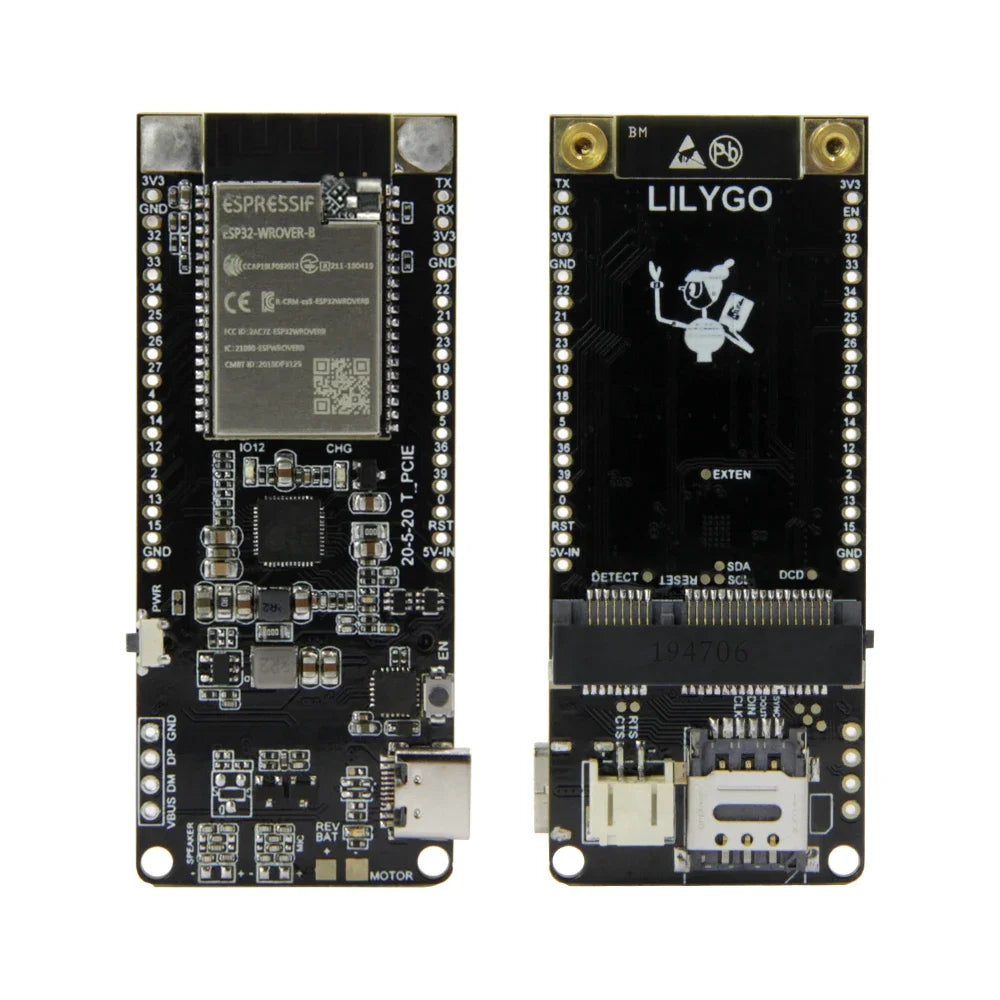

T-PCIE ESP32-WROVER-B 4MB AXP192WIFI Bluetooth Board with SIMCom SIM7000G SIM7600SA SIM7600E SIM7600JC-H SIM7070G LTE 4G module

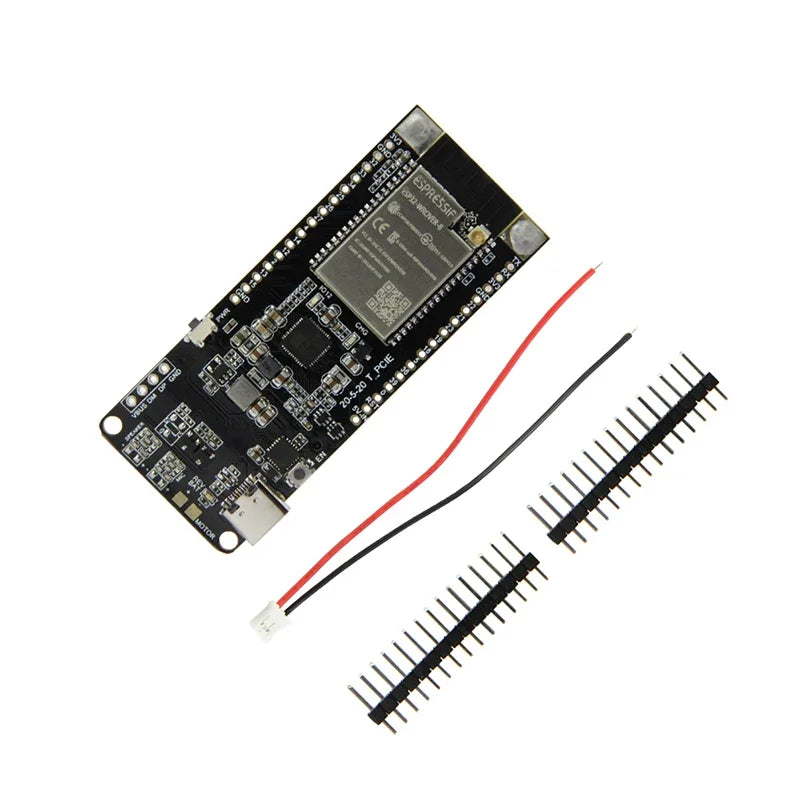

ESP32-WROVER-B 4MB

$72.64

Sale price $72.64 Regular price $0.00

Skip to product information

T-PCIE ESP32-WROVER-B 4MB AXP192WIFI Bluetooth Board with SIMCom SIM7000G SIM7600SA SIM7600E SIM7600JC-H SIM7070G LTE 4G module

T-PCIE ESP32-WROVER-B 4MB AXP192WIFI Bluetooth Board with SIMCom SIM7000G SIM7600SA SIM7600E SIM7600JC-H SIM7070G LTE 4G module

$72.64

Sale price $72.64 Regular price $0.00

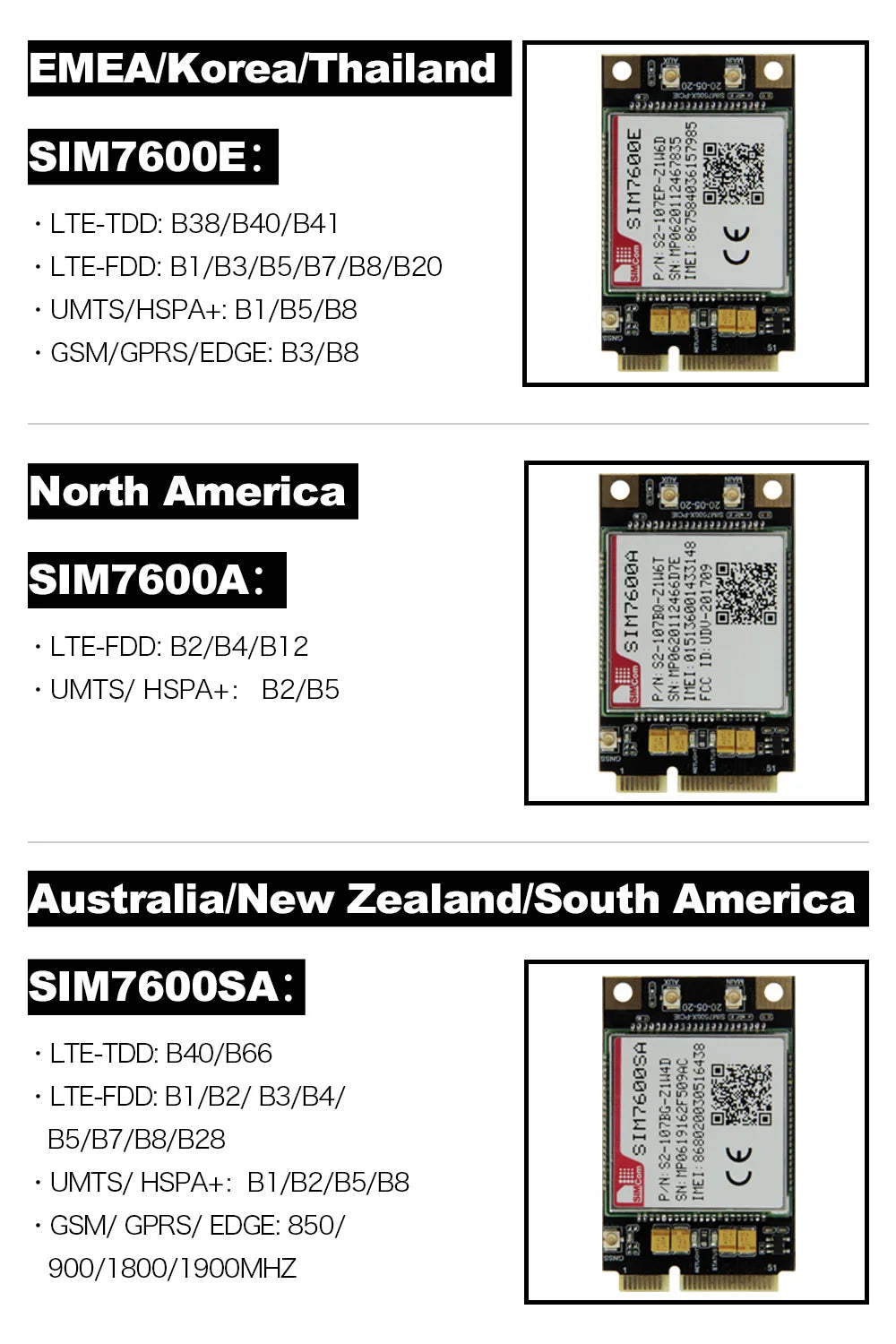

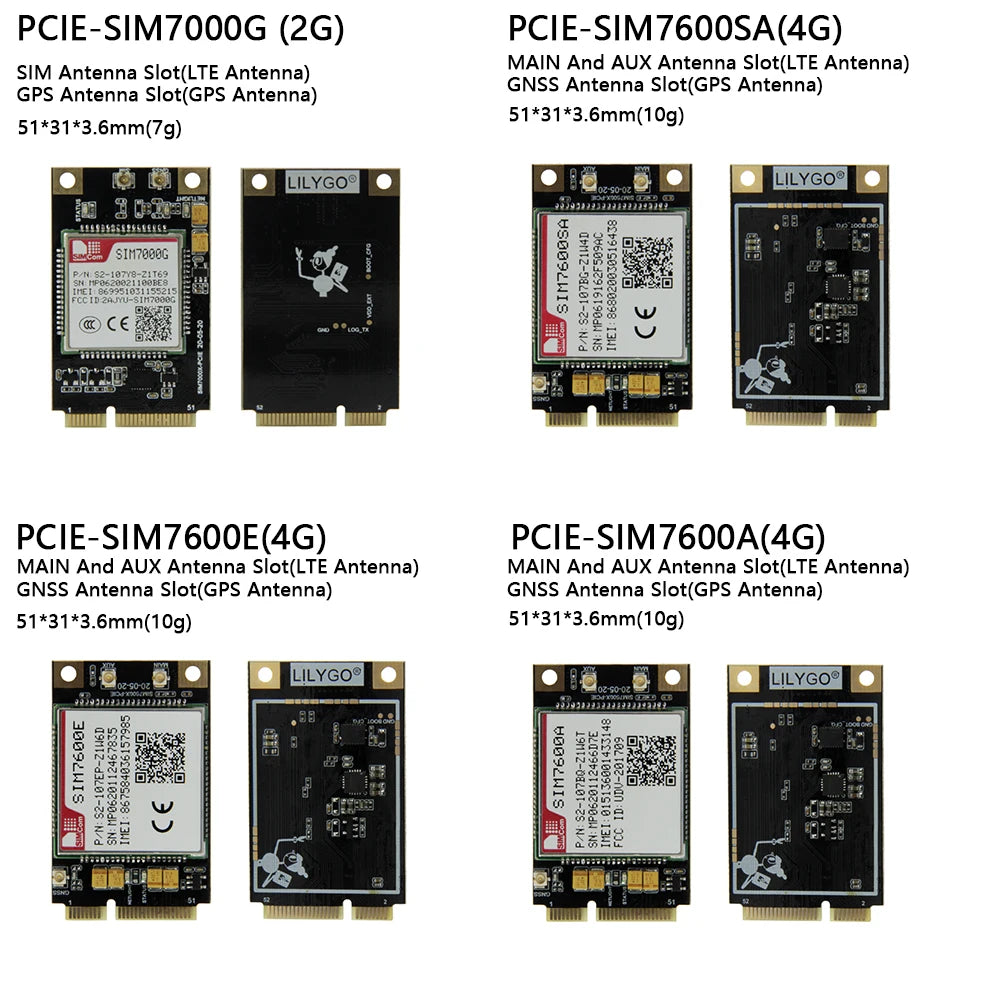

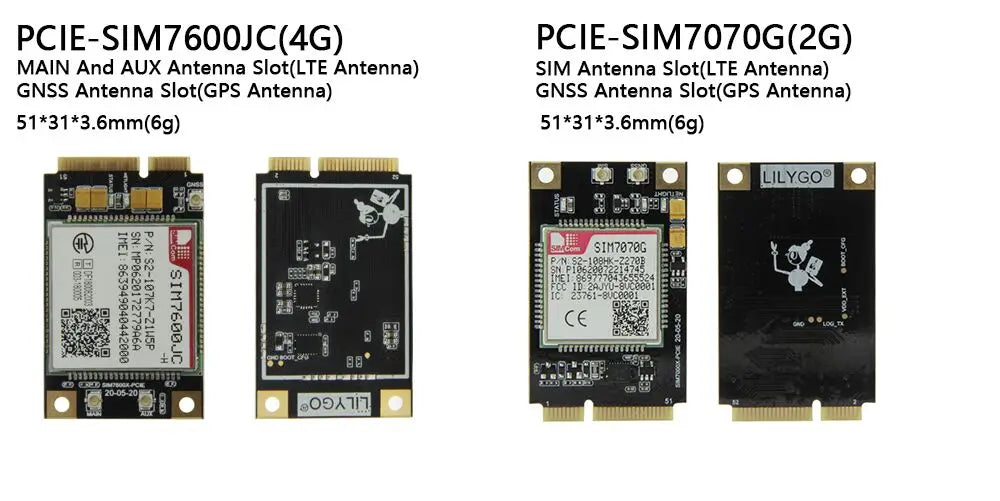

Color ESP32-WROVER-B 4MB With SIM7020G With SIM7600A With SIM7600JC-H With SIM7070G With SIM7000G With SIM7080G With SIM7600G-H With SIM7600E-L1C With SIM868 With SIM7600SA-H With SIM7600SA With SIM7600E

Description

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Origin: Mainland China

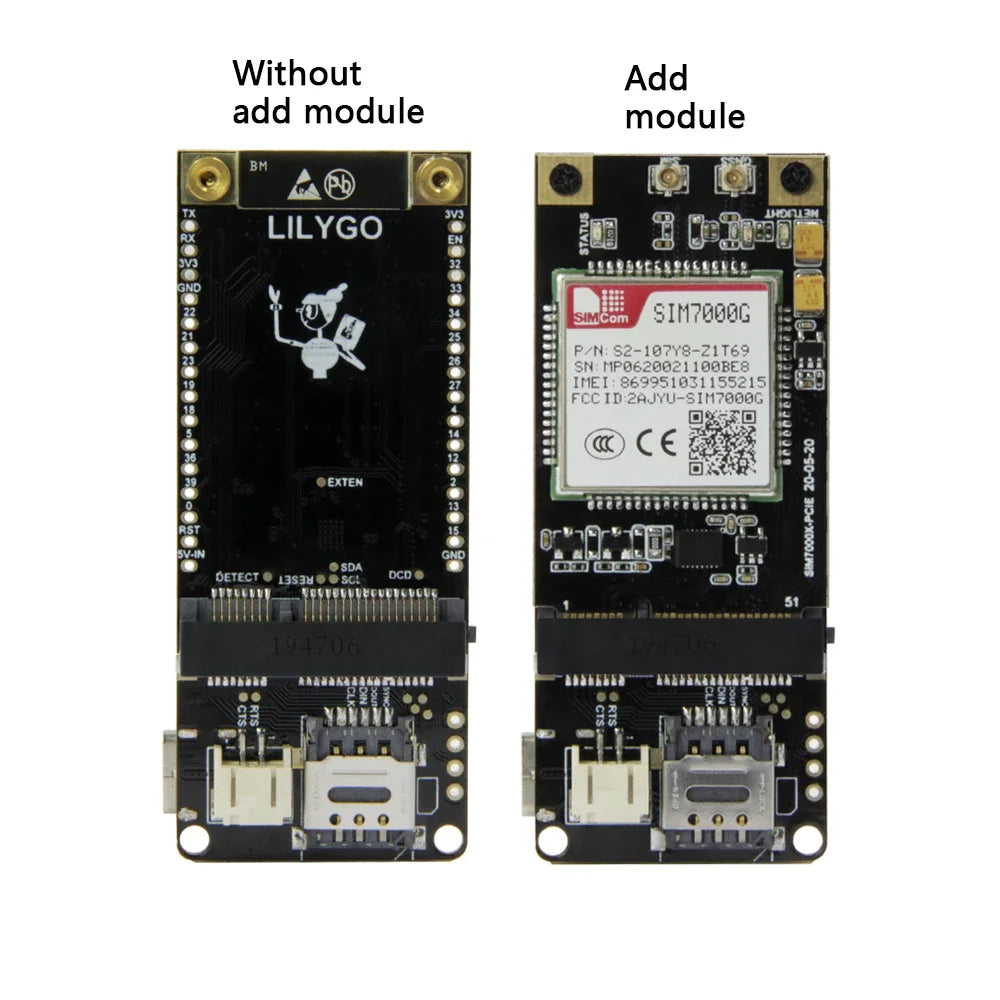

PS:The original SIMCom module can NOT work with the ESP32-WROVER-B board!!!

Product Description

Hardware Specifications
Chipset	ESP32-WROVER-B,AXP192 Power Management Chip
FLASH	4MB
PSRAM	8MB
SRAM	520 kB SRAM
Button	PWR Power Switch,Reset
USB to TTL	CP2104
On-board clock	40MHz crystal oscillator
Peripherals	SIM Nano Card Slot,Mini PCIE Card Slot
Antenna	Onboard antenna(Default)
Working voltage	2.7V-3.6V
Working current
Sleep current	About 700ma
Working temperature range	-40℃ ~ +85℃

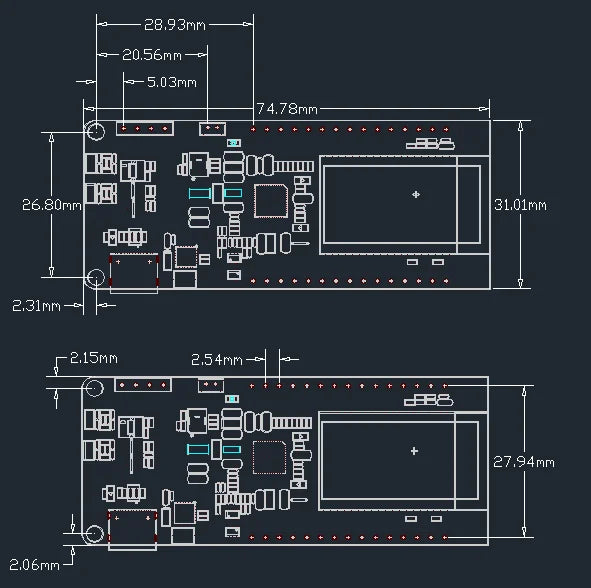

Size	753310.5mm
Weight	14.5g
Power Supply Specifications
Power Supply Input	USB 5V/1A
Charging current	500mA
Battery Input	3.7-4.2V
Charge IC	AXP192
JST Connector	2Pin 2.0mm
USB	Type-C
Wi-Fi
Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 Chip)
Protocol	802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval
Frequency range	2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power	22dBm
Communication distance	300m
Bluetooth
Protocol	Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency	With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency
Software specification
Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA（Through network/host to download and write firmware）
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS

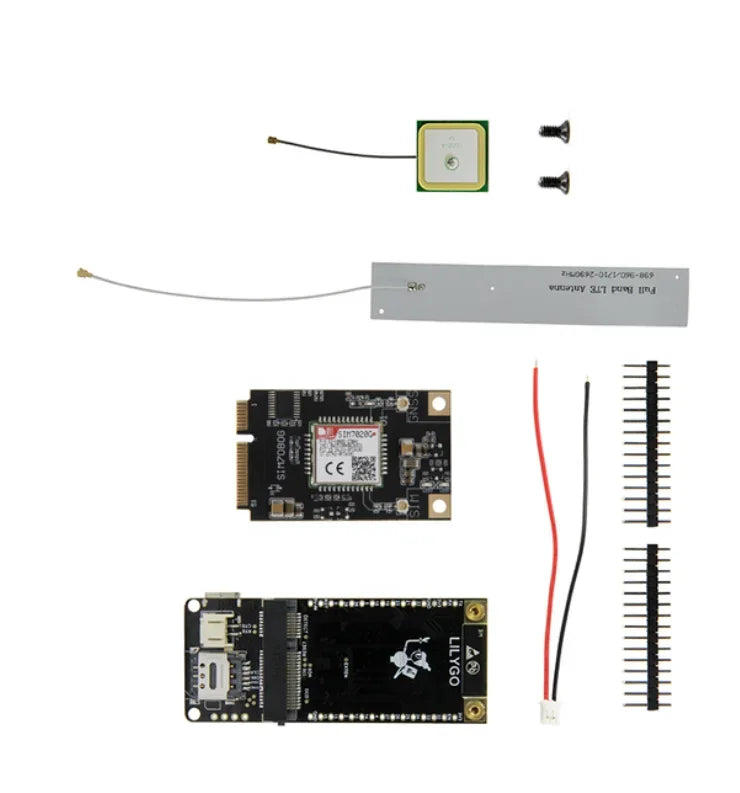

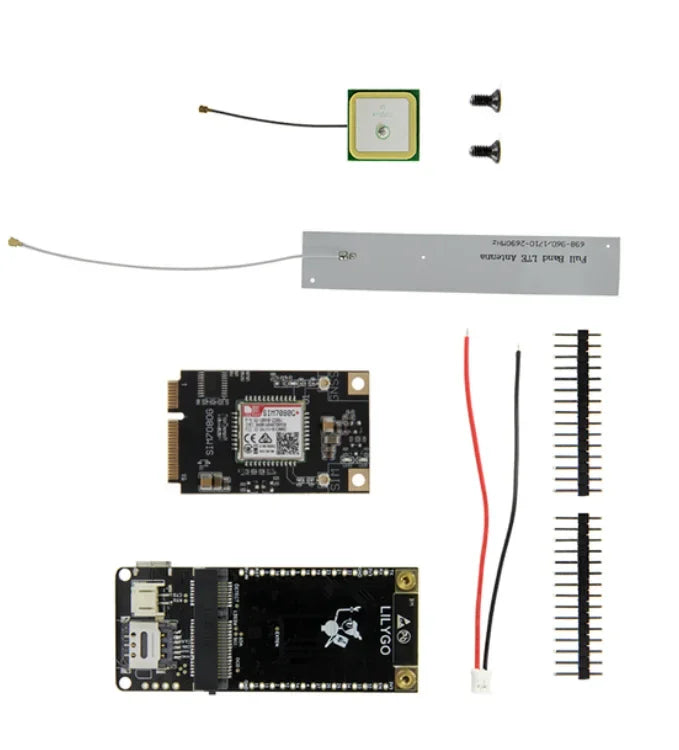

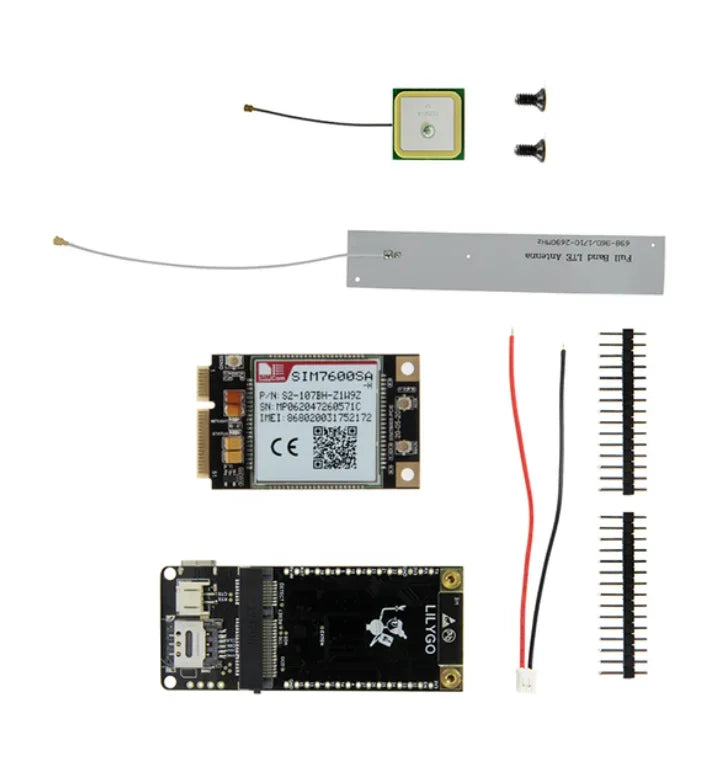

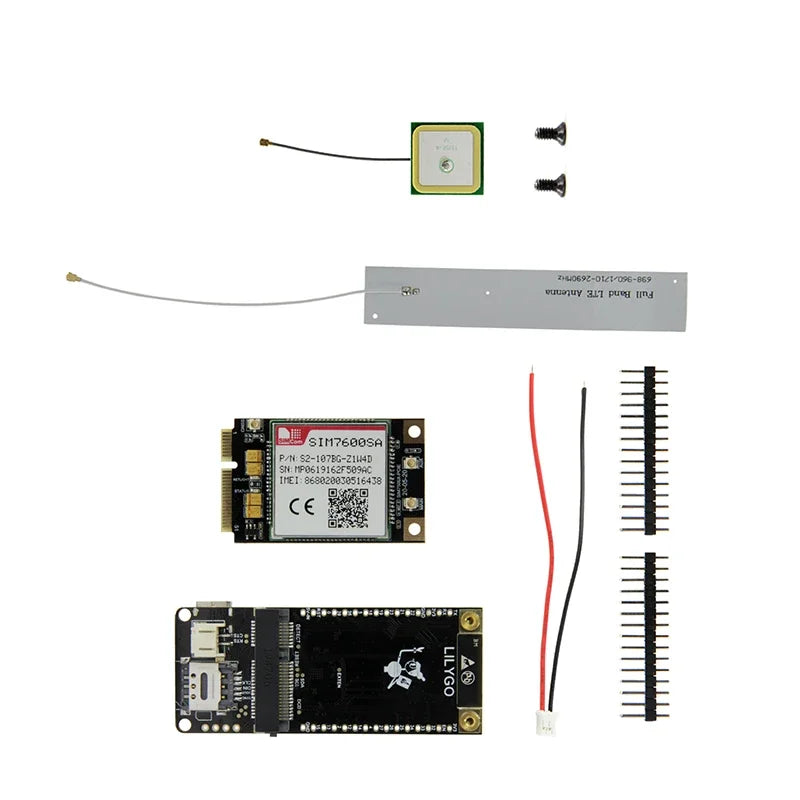

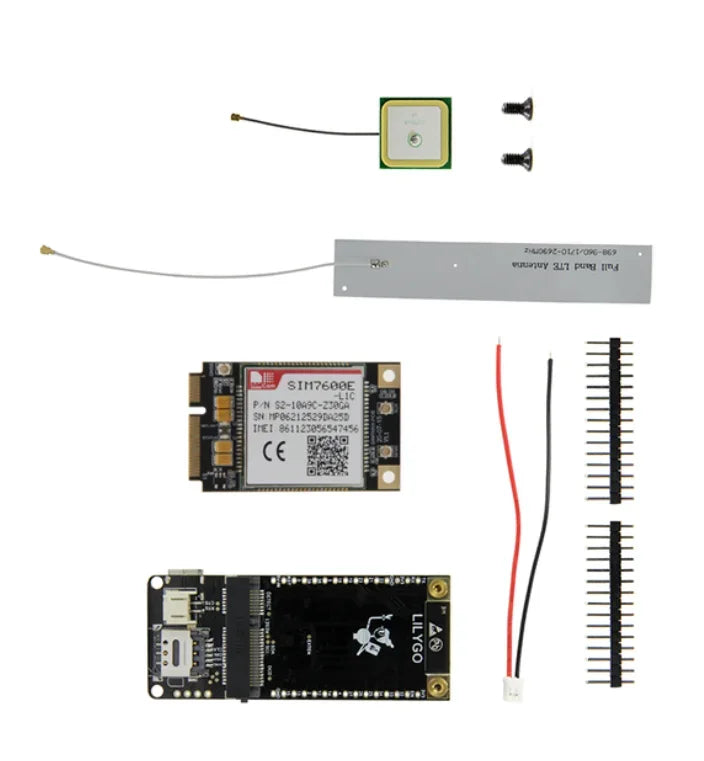

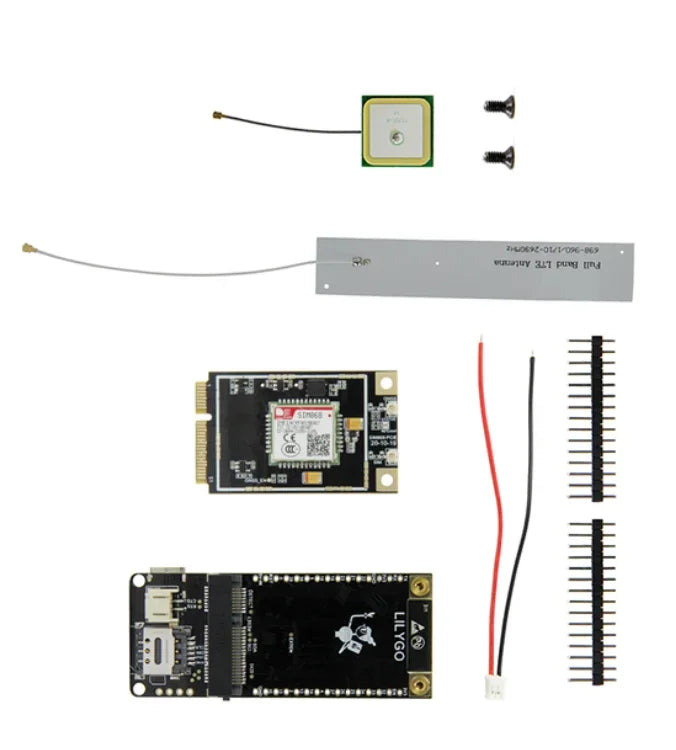

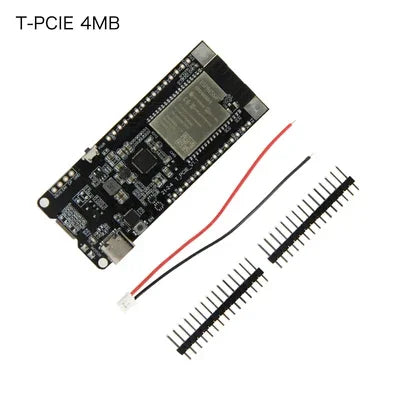

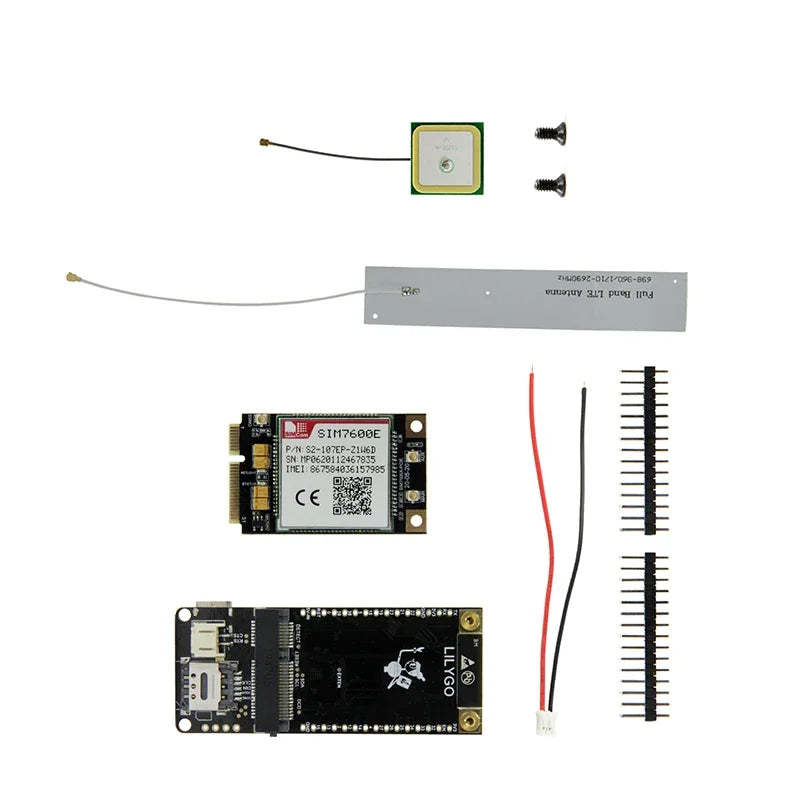

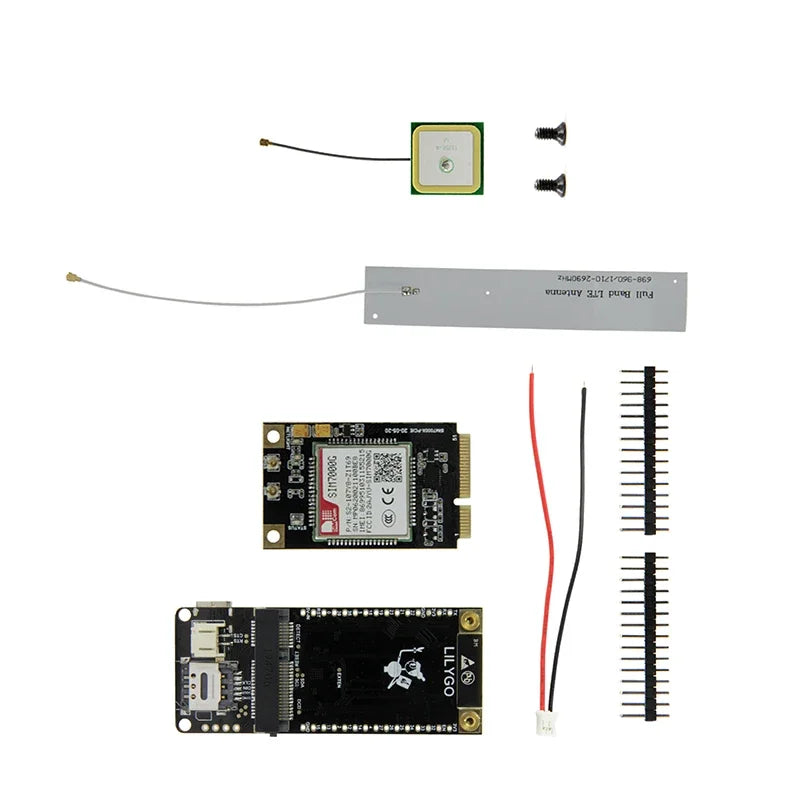

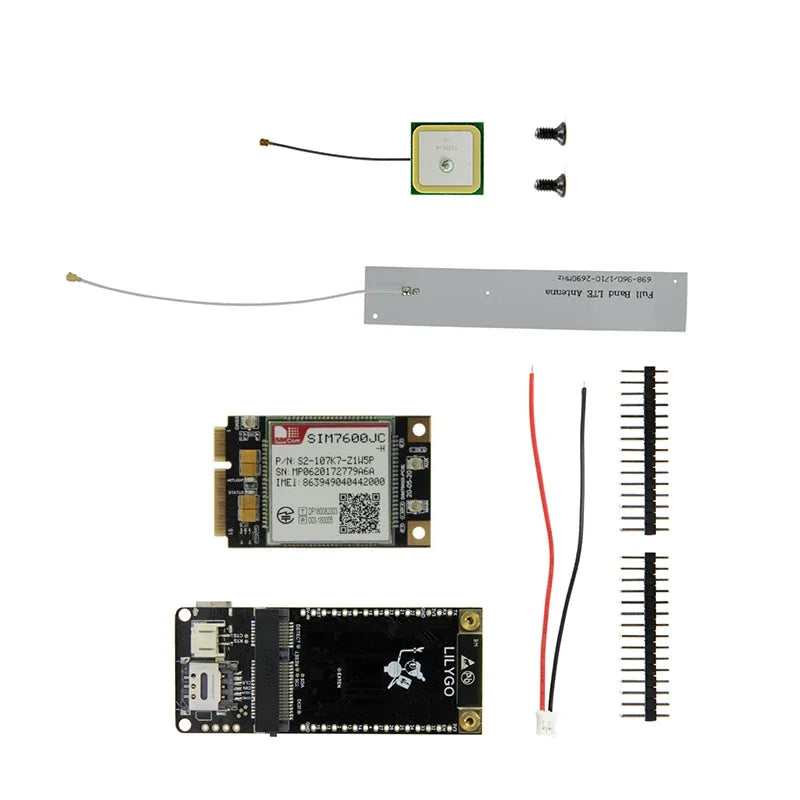

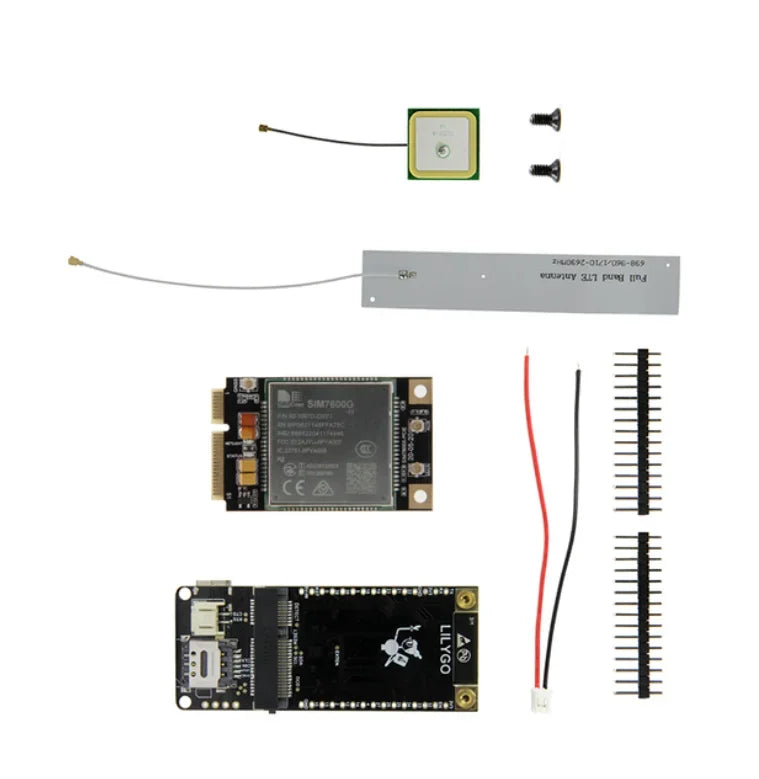

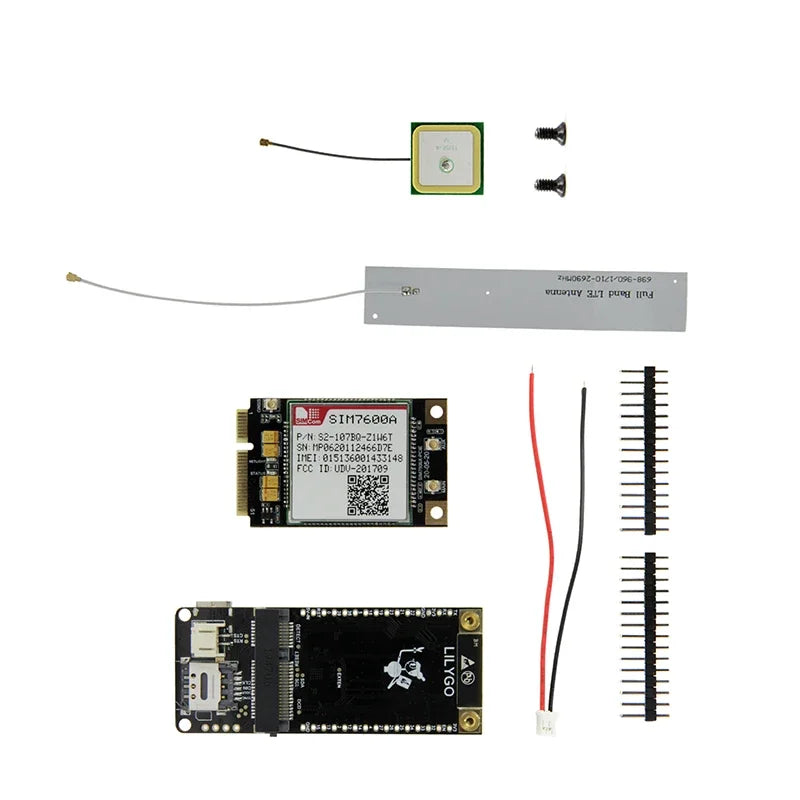

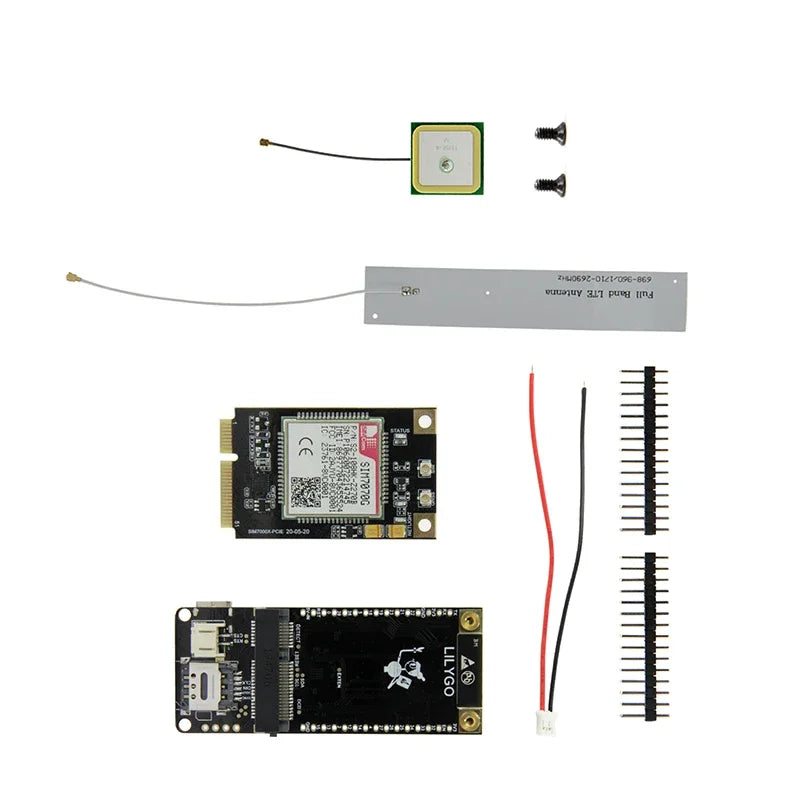

Packing list：

Will be the same as picture shows.
