SPECIFICATIONS

Brand Name: JCD

Certification: CE

High-concerned chemical: none

Model Number: JCD-T210

Origin: Mainland China

is_customized: No

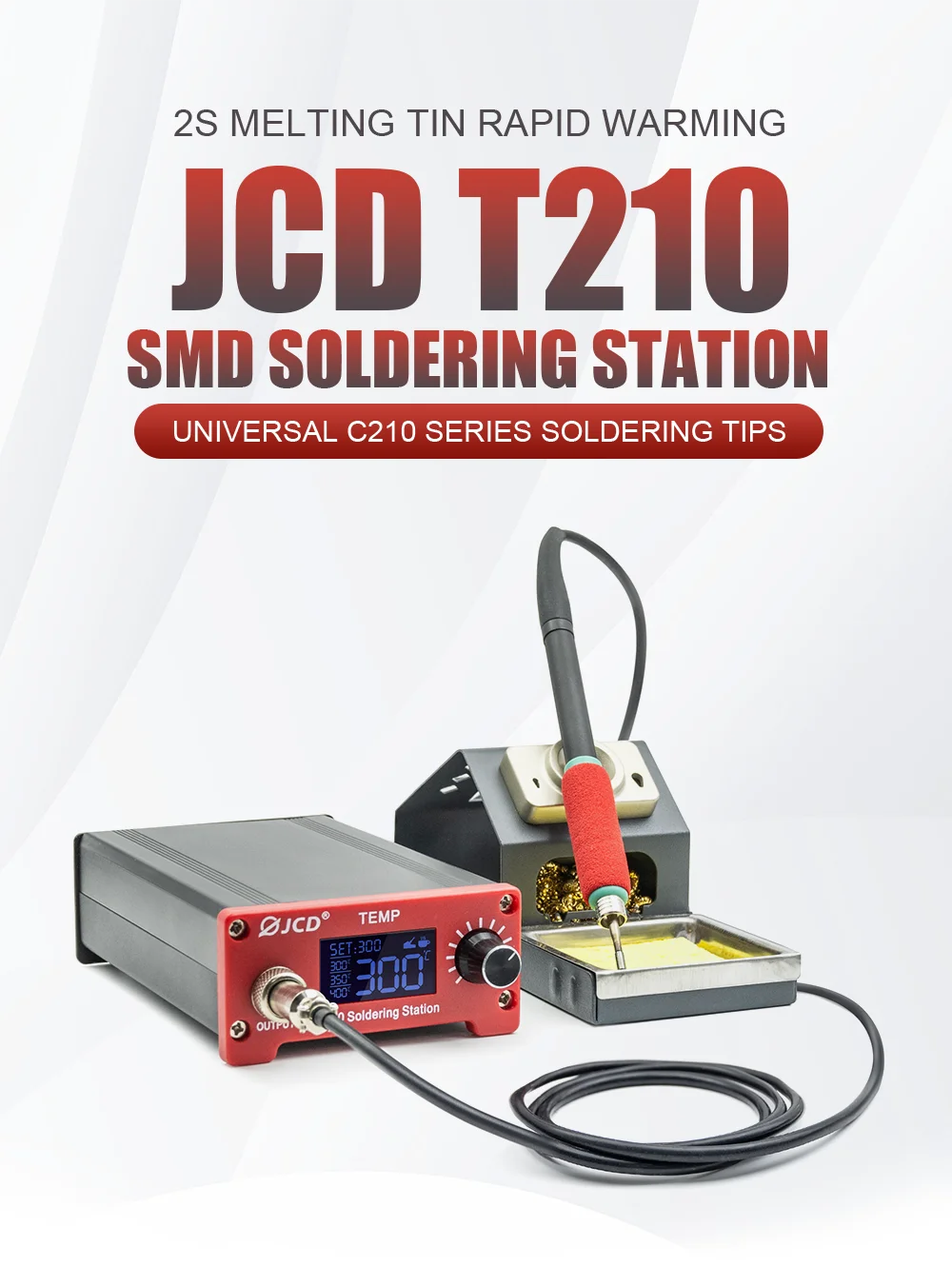

T210 75W Digital Soldering Iron Station Soldering Tips Welding Rework Station OLED Temperature Adjustable Control sleep function

Features:

• Using STC15W408A5 microcontroller,

• Use sGM855xN high precision op amp,

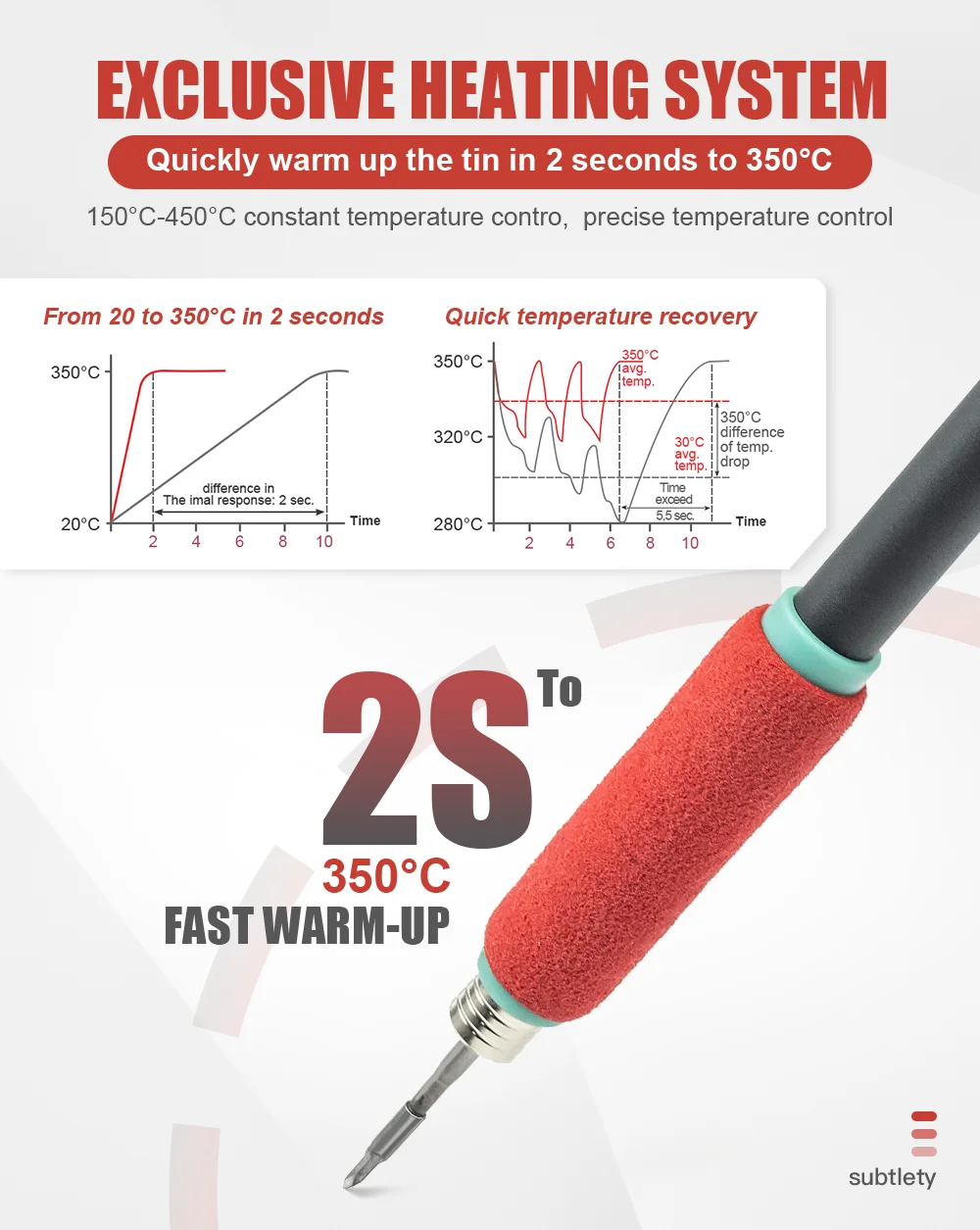

• Fast heating speed

• Accurate temperature control,

• Regain temperature quickly,

• User-friendly settings, diversified options can be set,

• With NTC ambient temperature compensation,

• Various protection and energy saving technologies,

• With buzzer tips.

• Data memory function

• Soldering tip and soldering heating element integrated

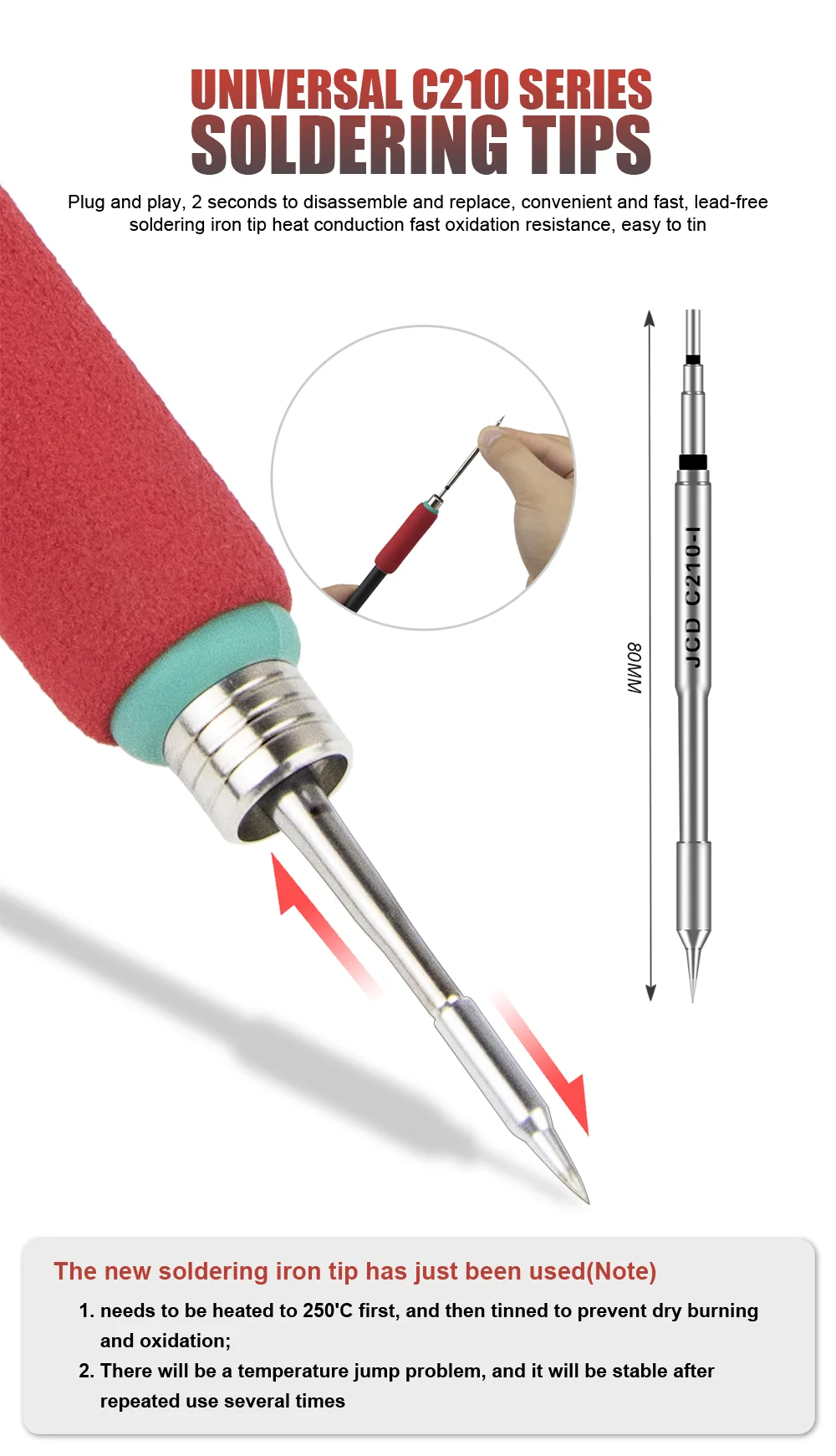

• Soldering iron tips can be replaced and change

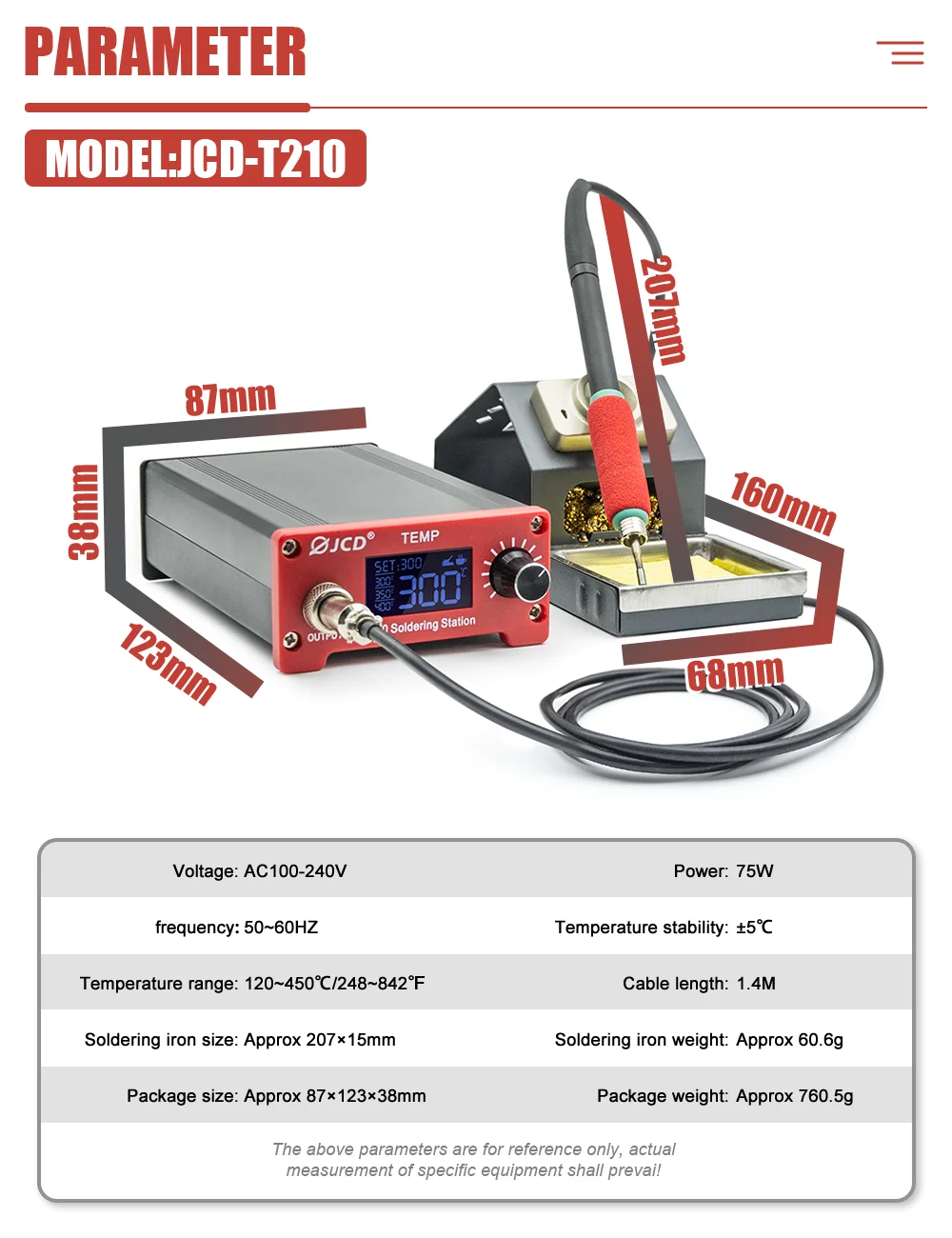

Specifications:

• Temperature range :150--450 degree

• power:75W

• output voltage: 24V

• Input voltage:100V-240V

• Main unit Dimension: 152mm X 88mm X 45mm

• Screen size:23mmX15mm

• Weight: about 1000g

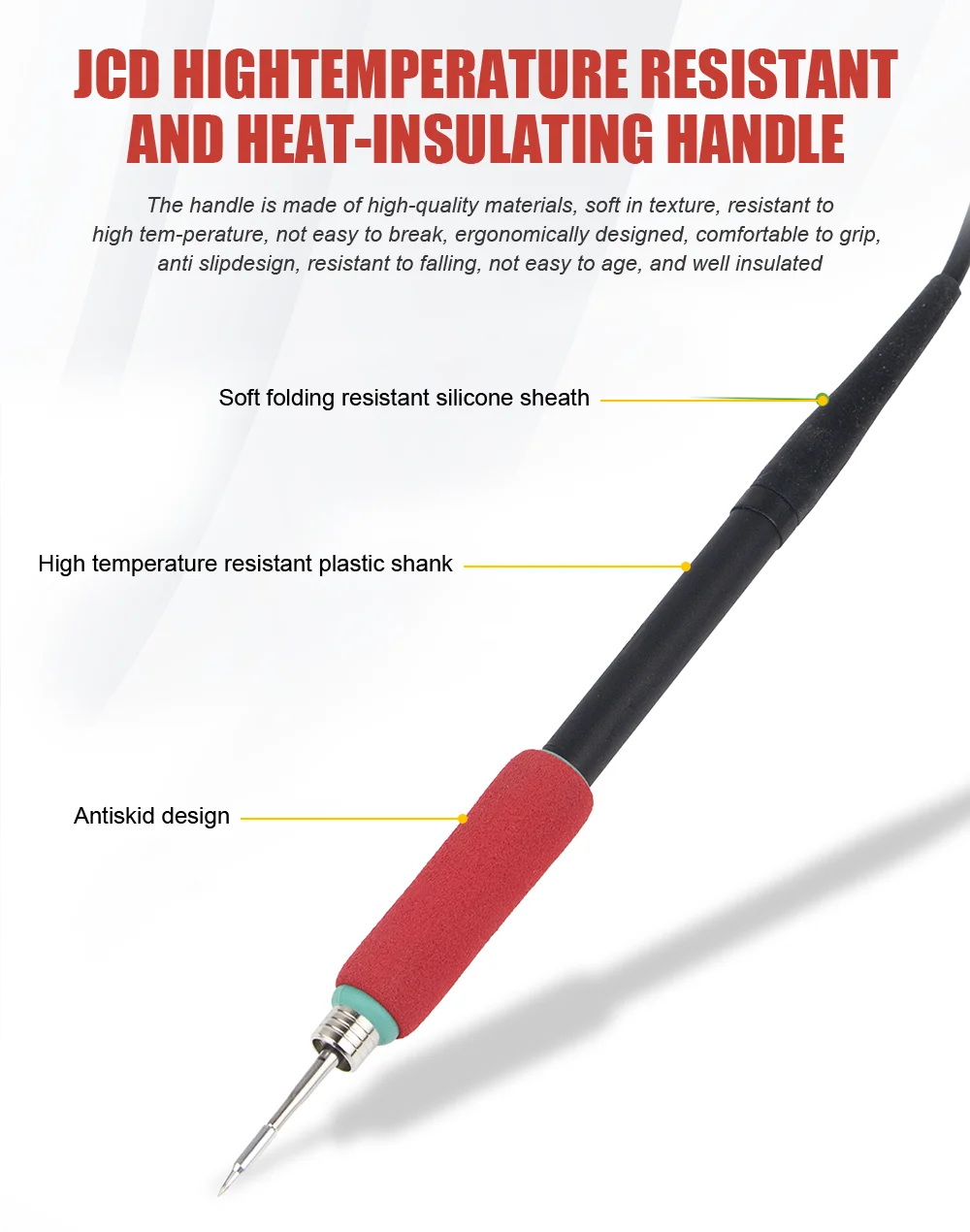

• Length of soldering iron handle: 18cm

Normal use:

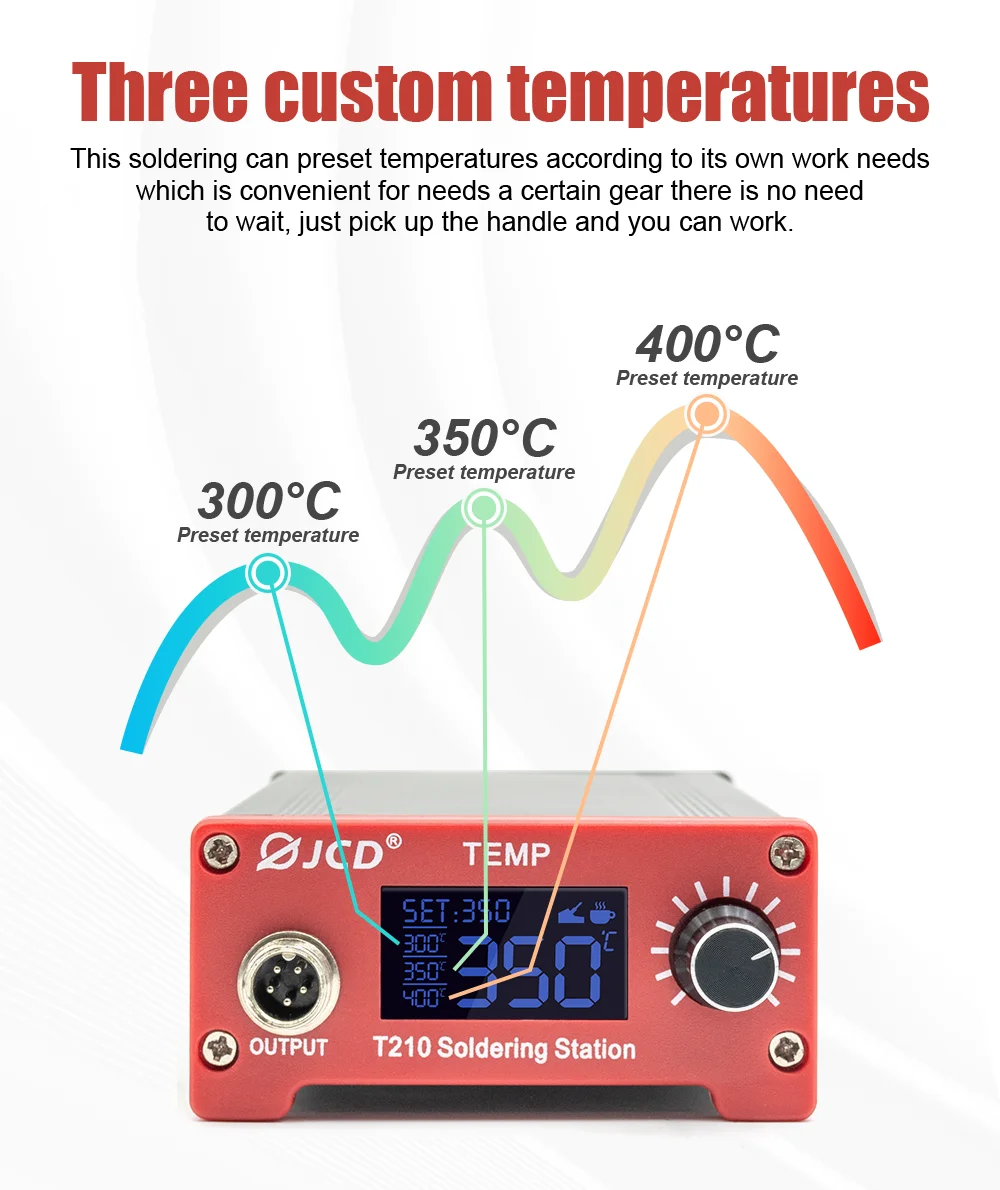

1. Under normal circumstances, turn on the heating mode when you turn it on. Rotate the temperature control button to adjust the temperature. After turning off, turn on again and automatically remember the temperature set at the last shutdown.

2. Under normal working conditions, short press the encoder once to enter the temperature enhanced mode for temporary welding of large solder joints. When the temperature is enhanced, the ten decimal point flashes quickly as a reminder. The enhanced temperature and time can be set in the menu. Automatically restore the original set temperature.

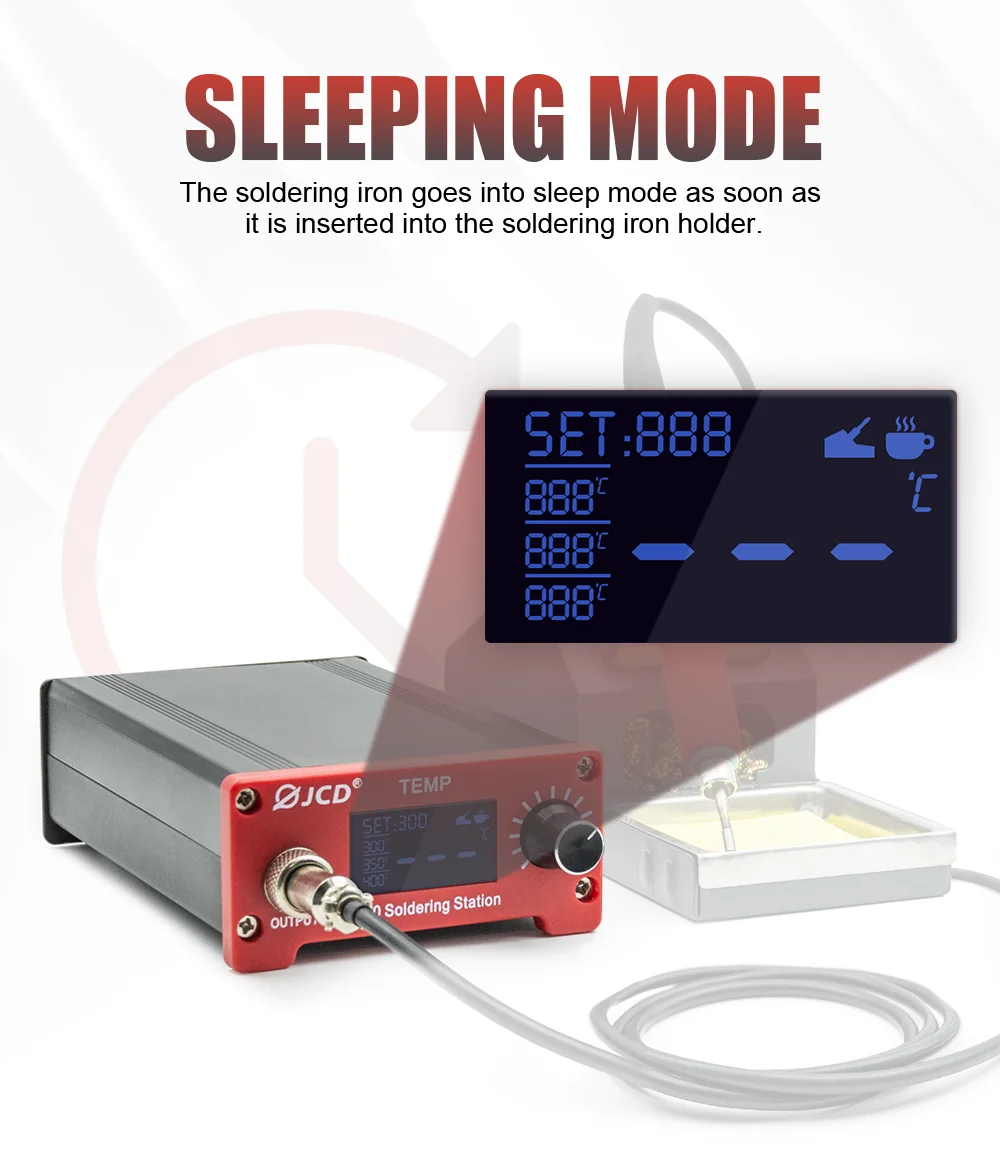

3. Press and hold the encoder slightly for about one second to enter the manual standby mode, the temperature drops to 200 degrees, pick up the handle or the encoder will automatically restore the original set temperature if there is any action

4. After manual standby, long press the encoder for about one second to enter the soft shutdown mode. The digital tube displays OFF. When you pick up the handle or the encoder, any action will automatically restore the original set temperature.

5. The handle vibrates during the welding process, and the hundred decimal point will flash to show the vibration sensor action. 6. When not welding for a long time, the control panel will automatically wait for 200 degrees according to the menu setting time and then automatically shut down automatically. Raise the handle or turn the encoder to restore the original set temperature.
