SPECIFICATIONS

Brand Name: NONE

Compatible Audio & Video Equipment Style: Amplifier

Electronic: Yes

High-concerned chemical: none

Origin: Mainland China

Specification 1: Infrared Transmitter

Specification 2: Infrared Receiver

Specification 3: For NEC Command WIFI ESP12F Module

Specification 4: TYPEC Interface Transmission Module

Specification 5: Infrared Transmitter

Type: IR

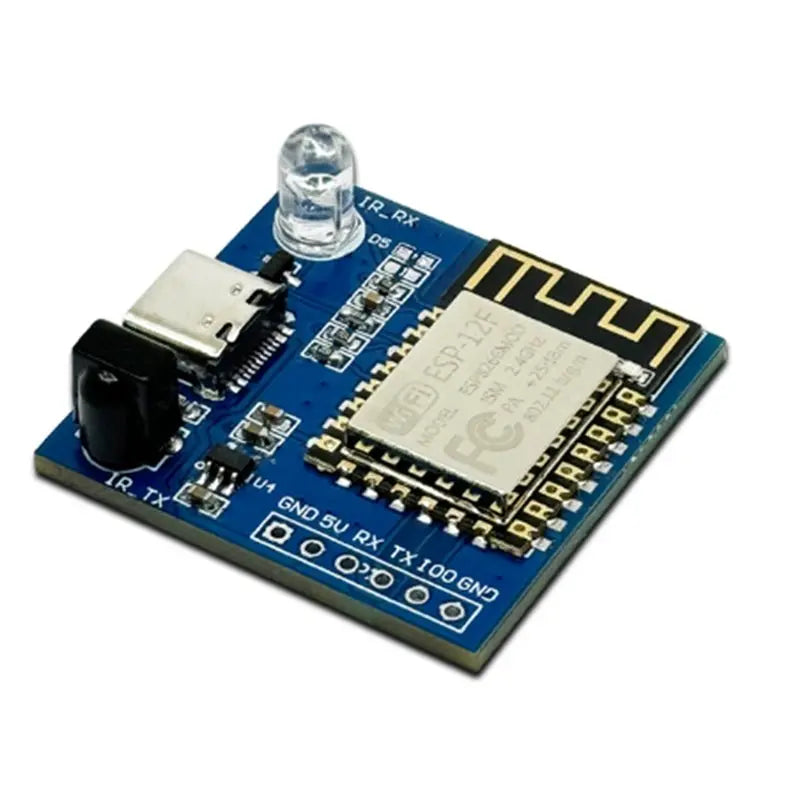

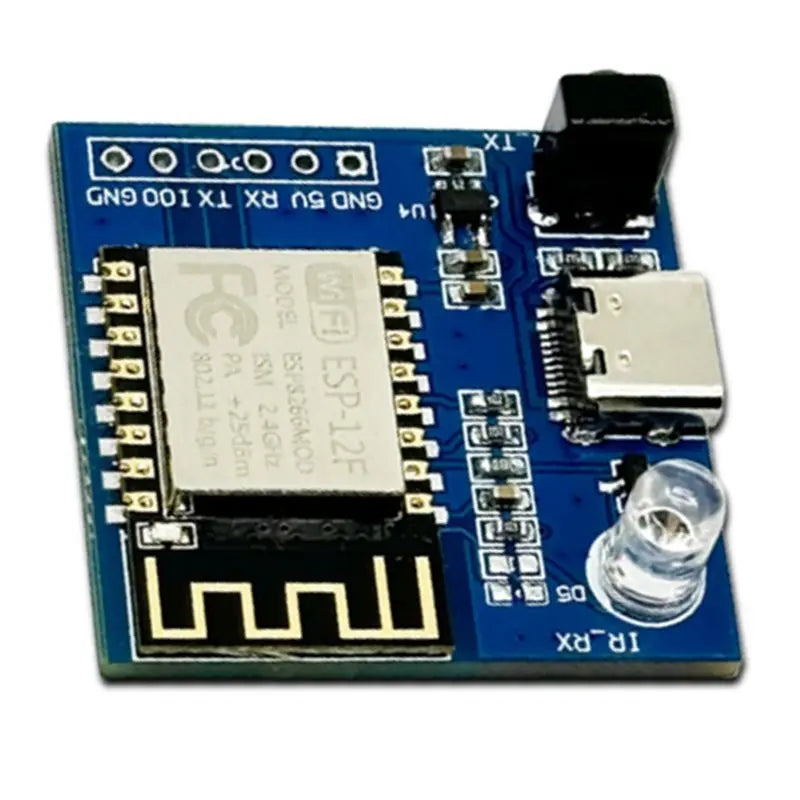

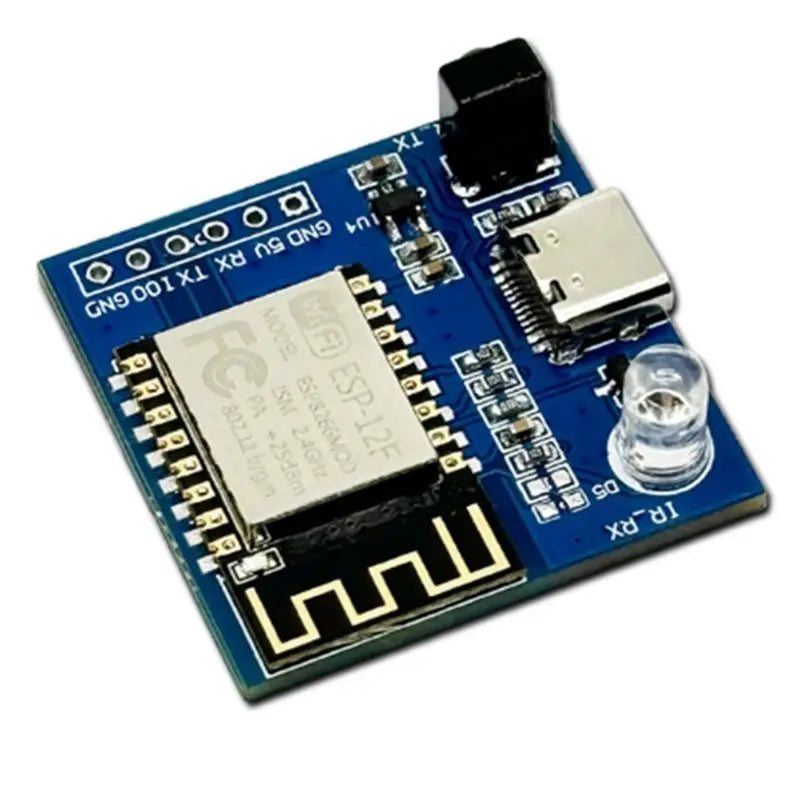

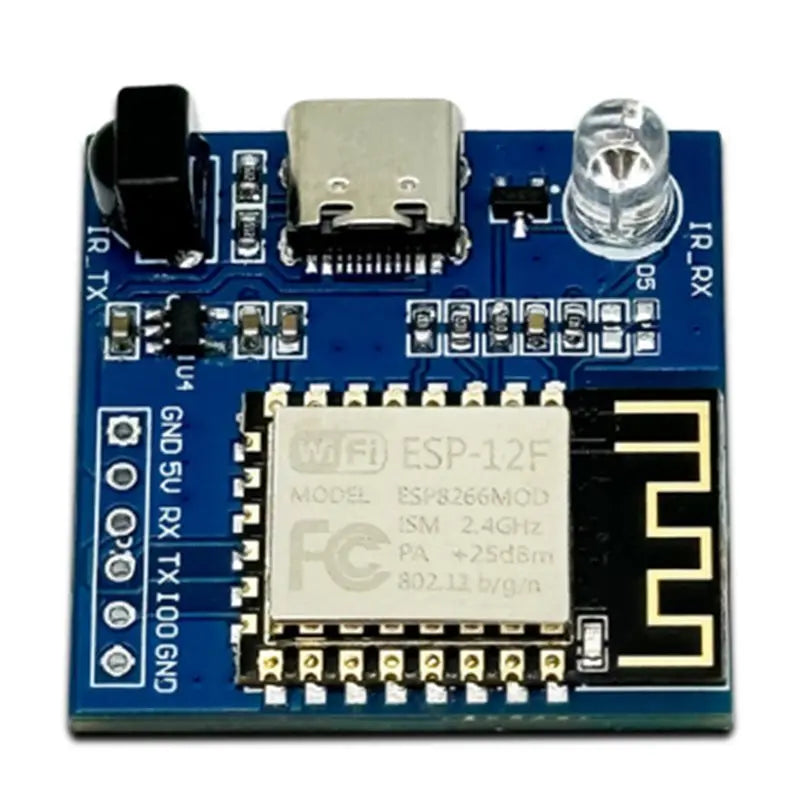

T23C 3X ESP8266 Infrared Transmitter-Receiver For NEC Command WIFI ESP-12F Module TYPE-C Interface Transmission Module

1. NEC Directive WIFI Transmissive Module with easy-to-develop module.
2. is a high-performance wireless SoC that provides maximum utility at minimum cost, offering unlimited possibilities for Wi-Fi functionality to be embedded in other systems.

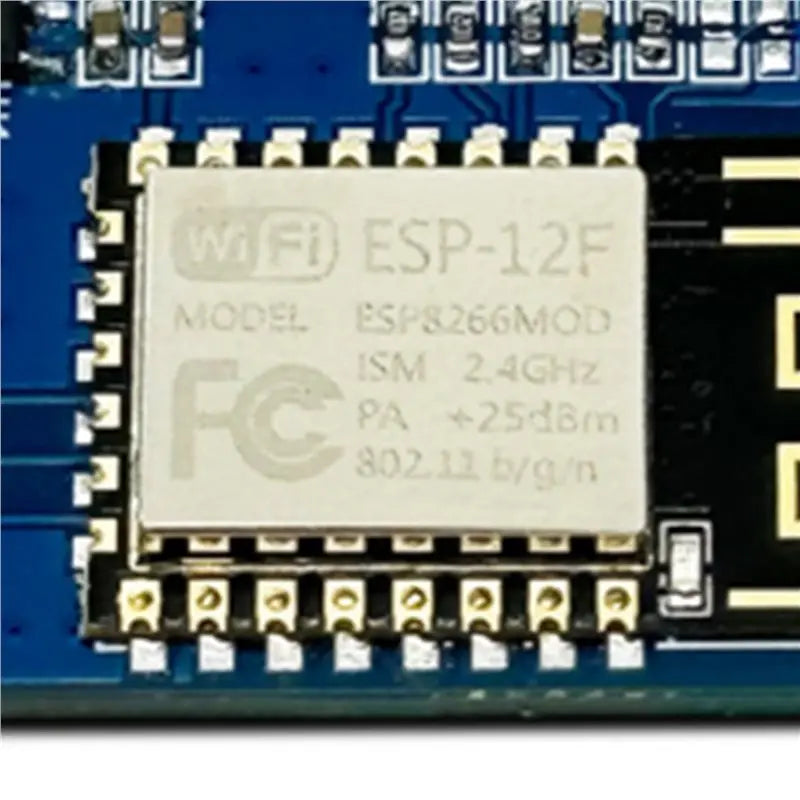

3. ESP-12F is a low-power WiFi module developed based on , which can be easily developed twice.
4. This module has infrared transmission and reception function, which is highly functional.
5. The infrared transmitter-receiver distance is about 5 metres, and after connecting to wifi, the received remote control signal in NEC format can be transmitted to another device via UDP, and then sent out by another device, to achieve the effect of infrared transmission across the room.

Product Parameters:
Interface:Type-c
Working voltage:5V
WiFi protocol: 802.11b/g/n
Infrared transmitting and receiving distance: about 5 metres
Infrared frequency: 38KHz
Size:33x33mm
Colour:As Shown
Material:PC
Due to different product batches, the appearance may vary, which does not affect the use

Package Contents:

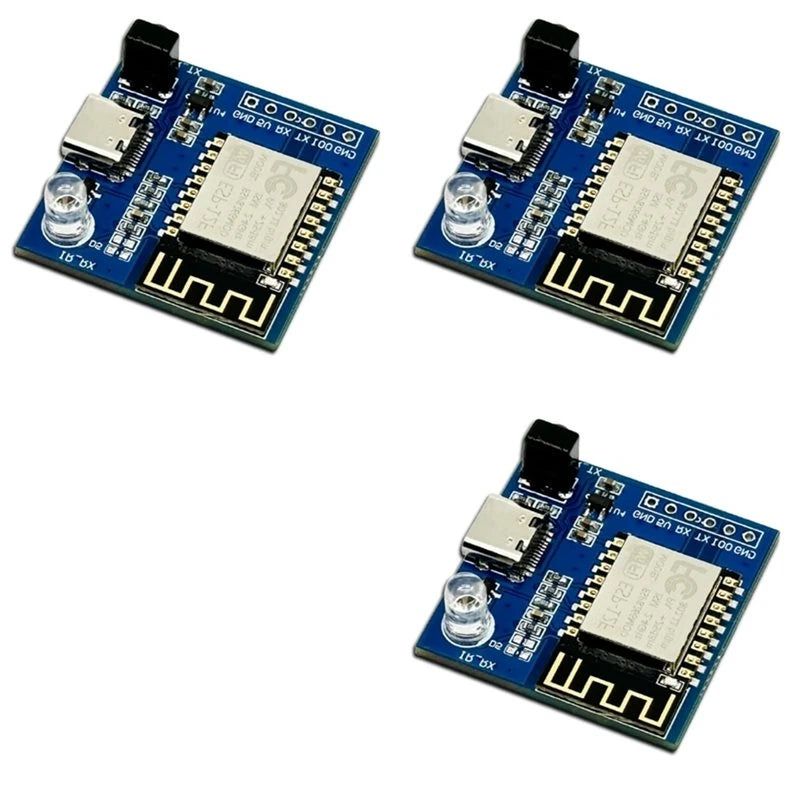

3 x Module
3 x 6pin single row pin

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
