SPECIFICATIONS

Brand Name: NONE

Electrified: No

High-concerned chemical: none

Origin: Mainland China

Specification 1: GPS Module

Specification 2: MultiGNSS Module

Specification 3: BN220

Specification 4: 180 BN

Specification 5: For UAV Flight Control

Support dropshipping and wholesaling.

We offer discount for large quantity. Welcome to contact with us !

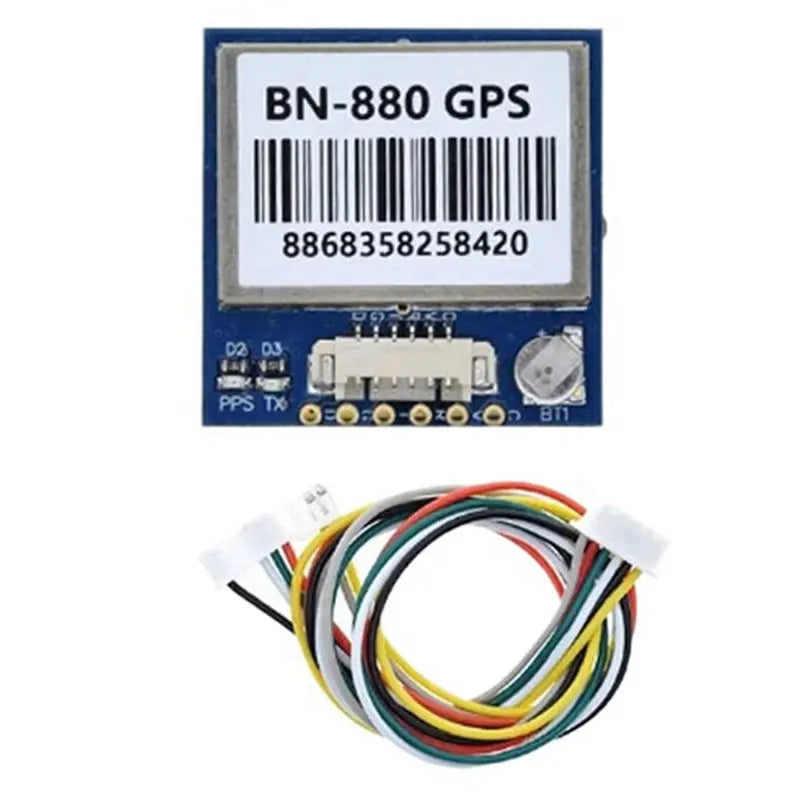

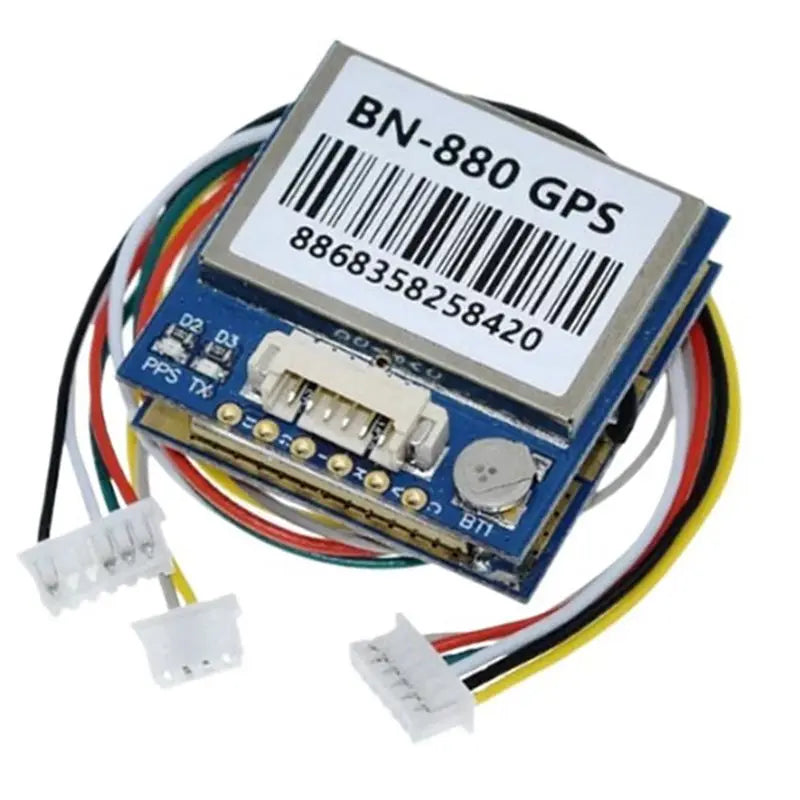

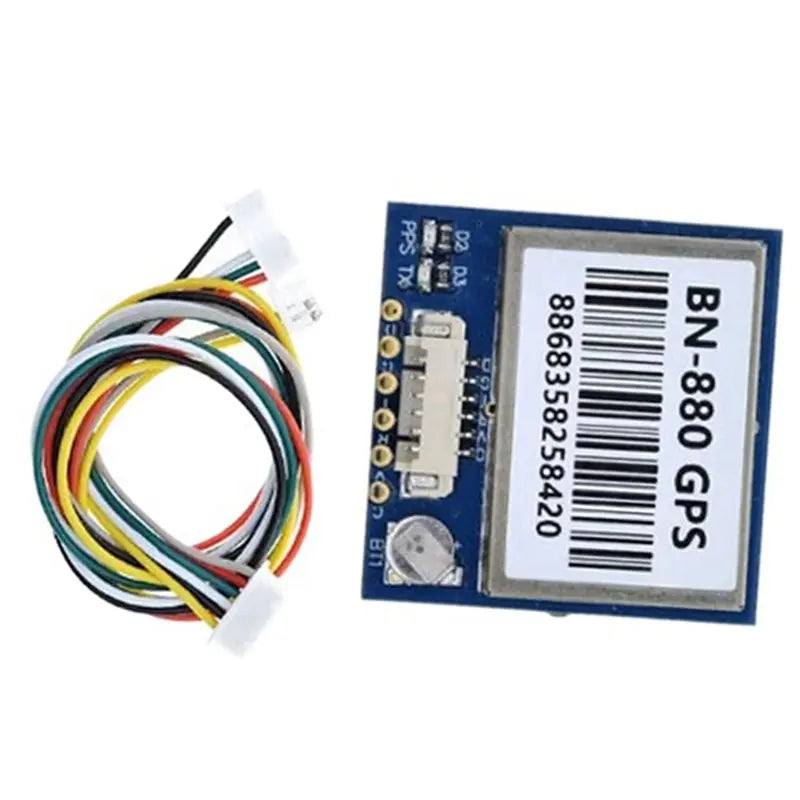

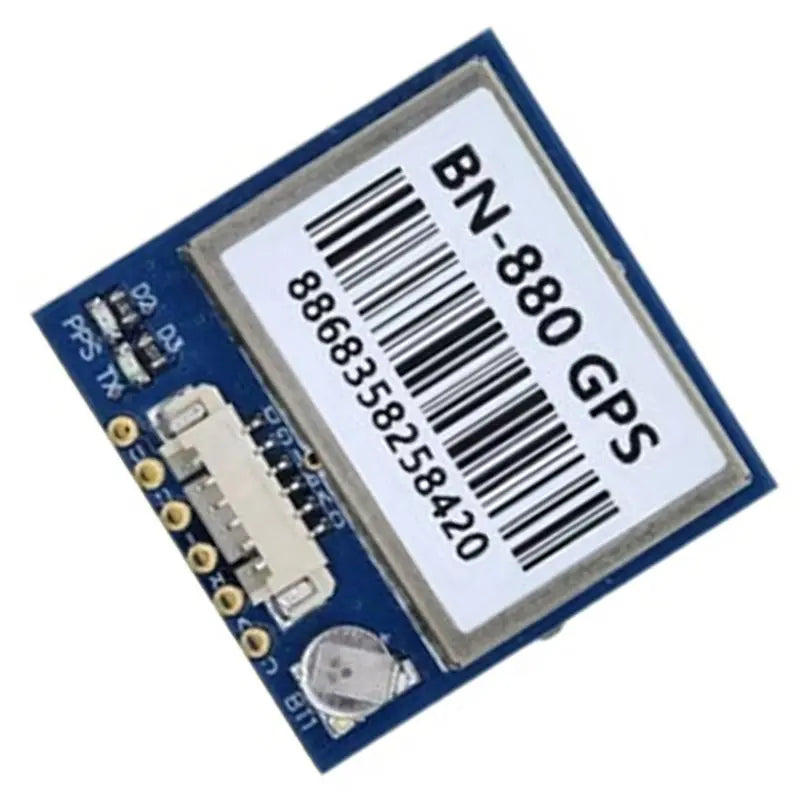

T24C 10X GPS BN-880 Module GPS+GLONASS+BDS+GALILEO+SBAS+QZSS GNSS Positioning For Fixed-Wing UAV Flight Control

Comprehensive Satellite Support: This advanced GNSS module is compatible with multiple satellite systems including GPS, GLONASS, BDS, GALILEO, SBAS, and QZSS, ensuring superior positioning accuracy for your fixed-wing UAVs.
Designed for UAV Flight Control: Tailored specifically for use in unmanned aerial vehicles (UAVs), this module provides reliable and precise navigation, crucial for effective flight control and operations.
Enhanced Positioning Accuracy: Benefit from enhanced accuracy in your UAV's navigation capabilities, making it ideal for complex flight patterns and operations in varied environments.

1.SDA:(connect to flight control SDA)
2.GND:(Negative pole)
3.TX:(connect to flight control UART RX)
4.RX:(connect to flight control UART TX)
5.VCC:(Positive 3.6V-5.5V)
6.SCL:(connect to flight control SCL)
Color: As Shown
Material: PCB

Package Contents:

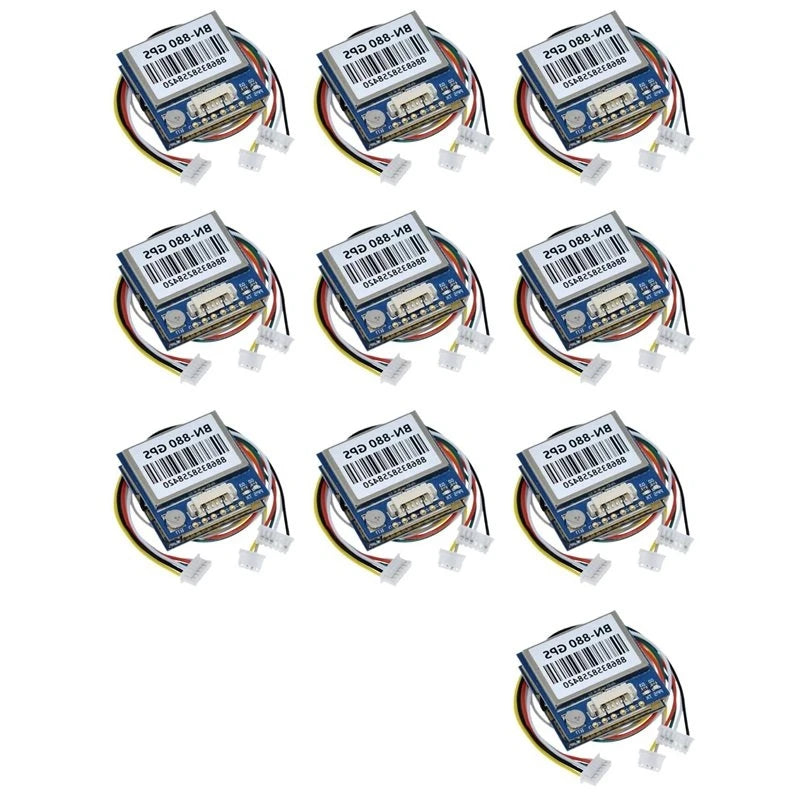

10 x GPS Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
