SPECIFICATIONS

Applicable Object: Electromechanica

Brand Name: Aideepen

Certification: CE

Choice: yes

Contact Arrange: SPDT

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: T3230

Origin: Mainland China

Power Source: DC,Ac

Protect Feature: Sealed

Theory: Time Relay

Use: General Purpose

Voltage: 110V

is_customized: Yes

Product Selling Points:

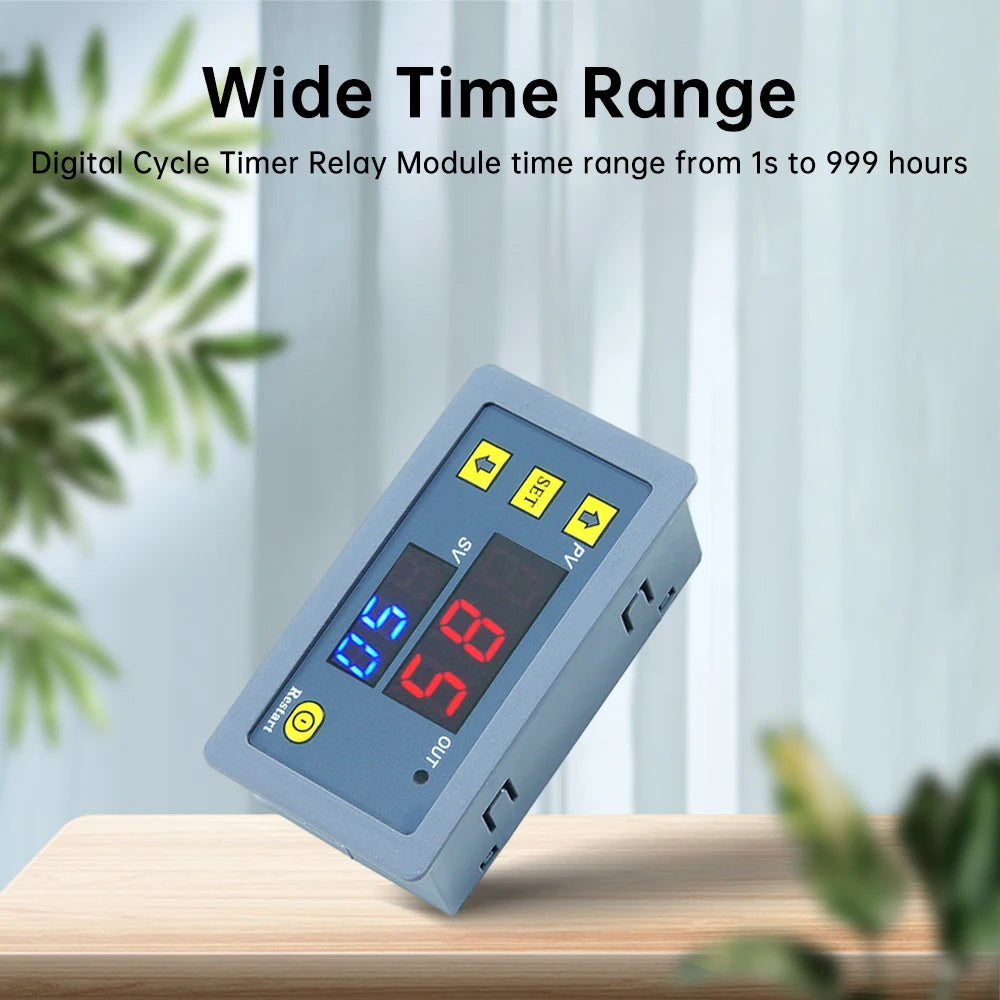

1. Wide time range: This digital cycle timer relay module offers a time range from 1 second to 999 hours.

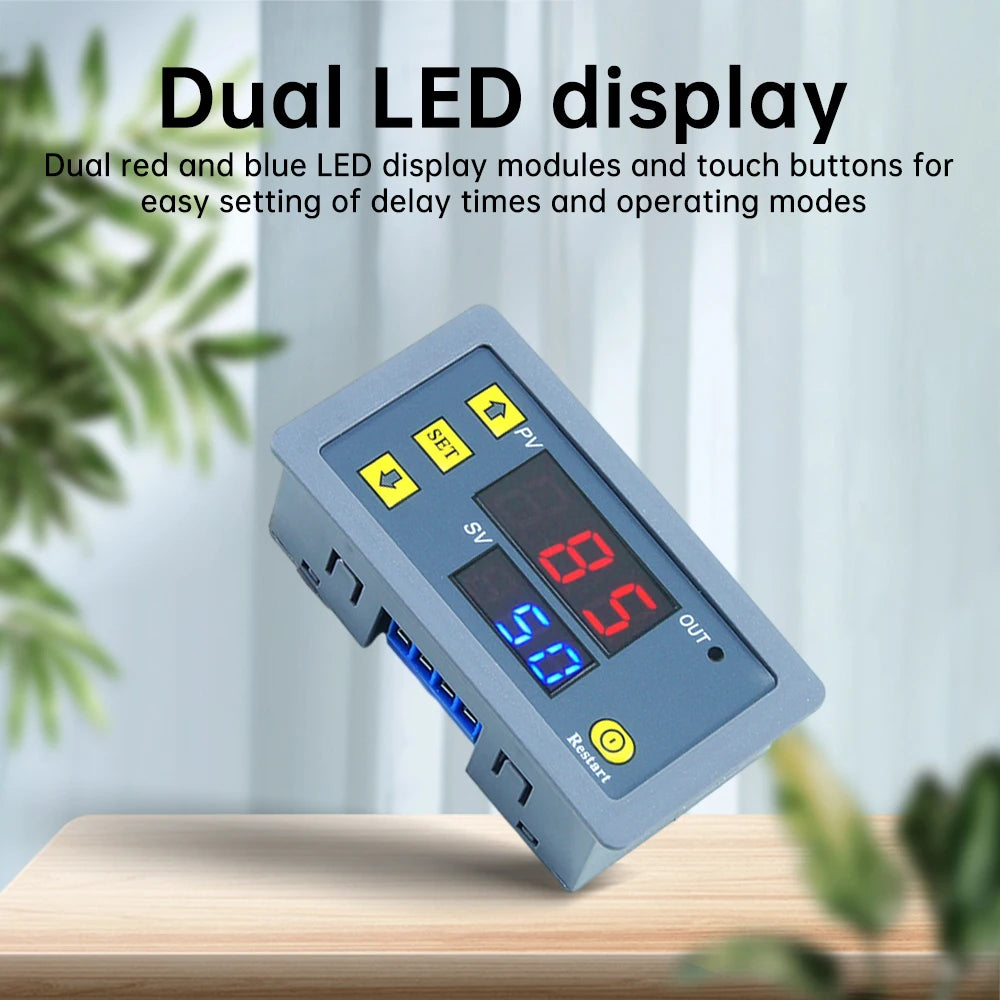

2. Dual - LED display: The red - blue dual - LED display module, combined with touch - type buttons, facilitates the setting of delay time and working mode.

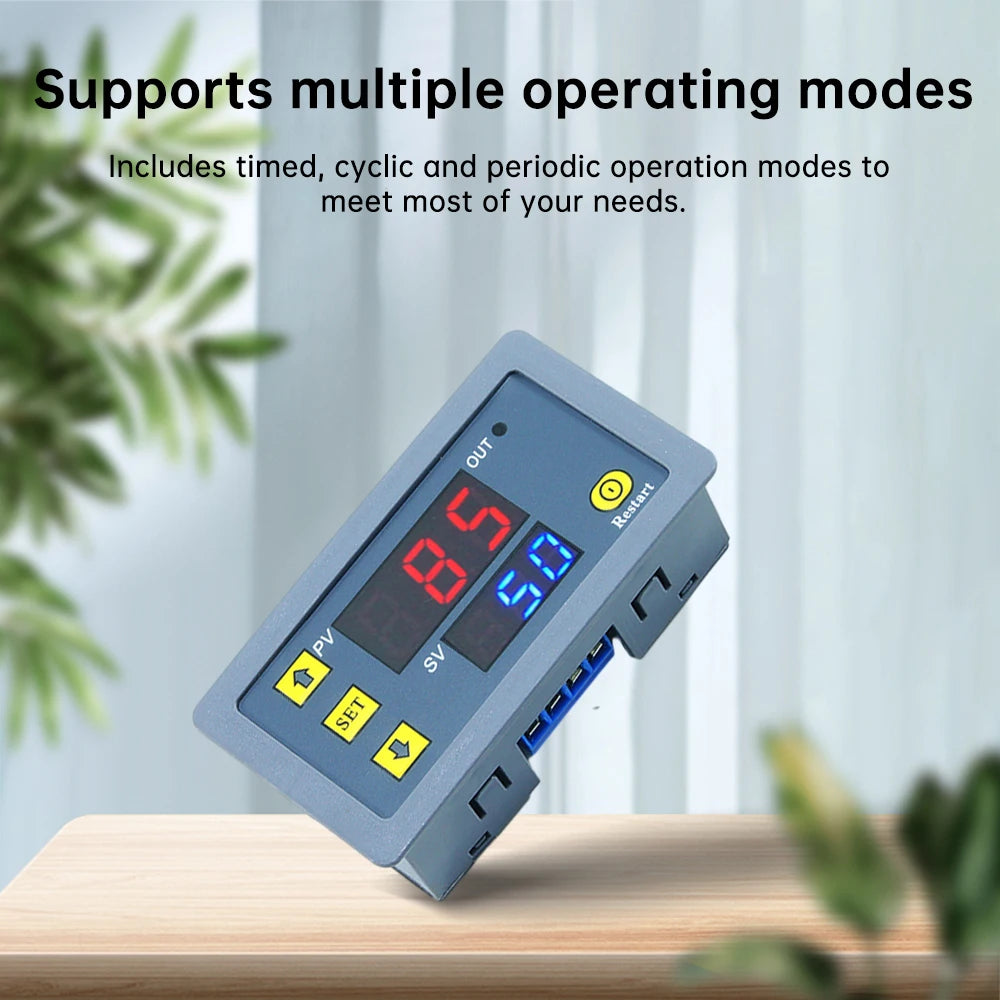

3. Multiple working modes: It supports various working modes, including timing, cycling, and periodic working modes, meeting most of your requirements.

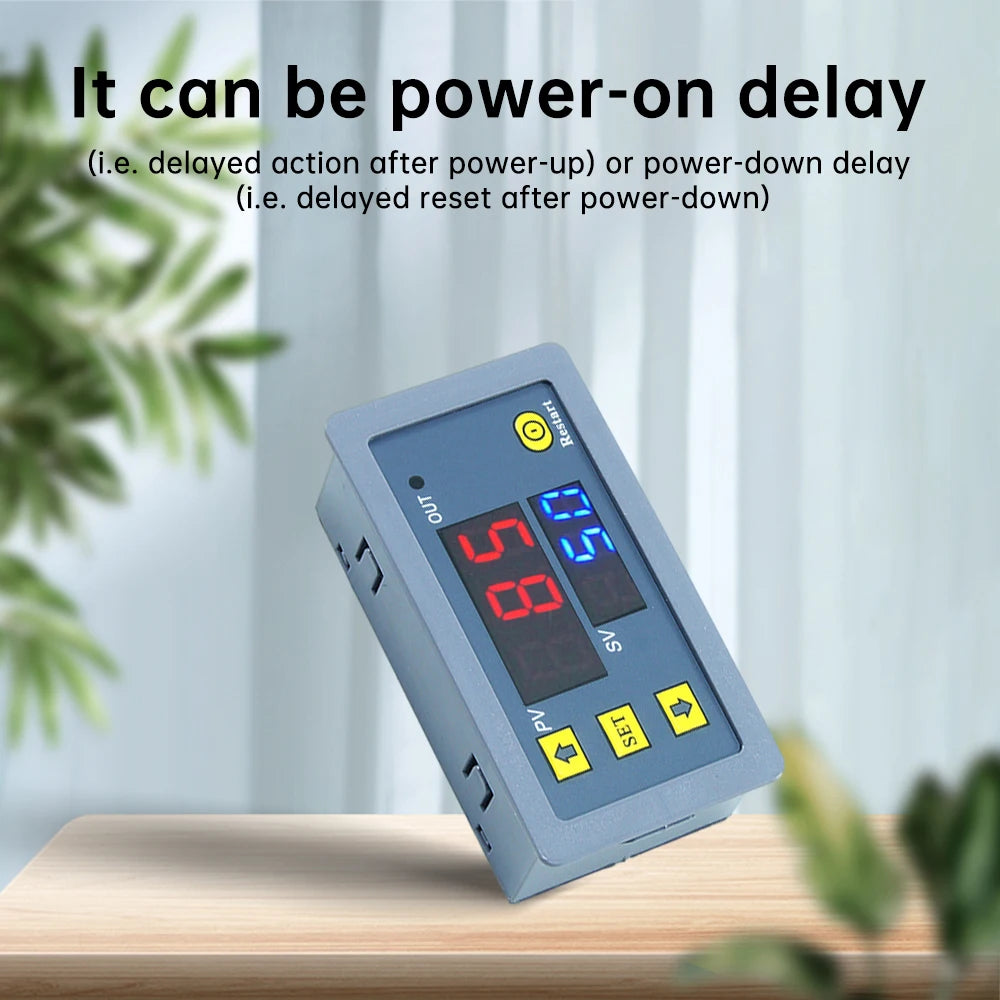

4. Delay options: It can be either power - on delay (delayed action after power - on) or power - off delay (delayed reset after power - off).
5. Installation size: With an installation size of 77×39.3mm, it features embedded installation, suitable for a variety of application scenarios.

Product Parameters:

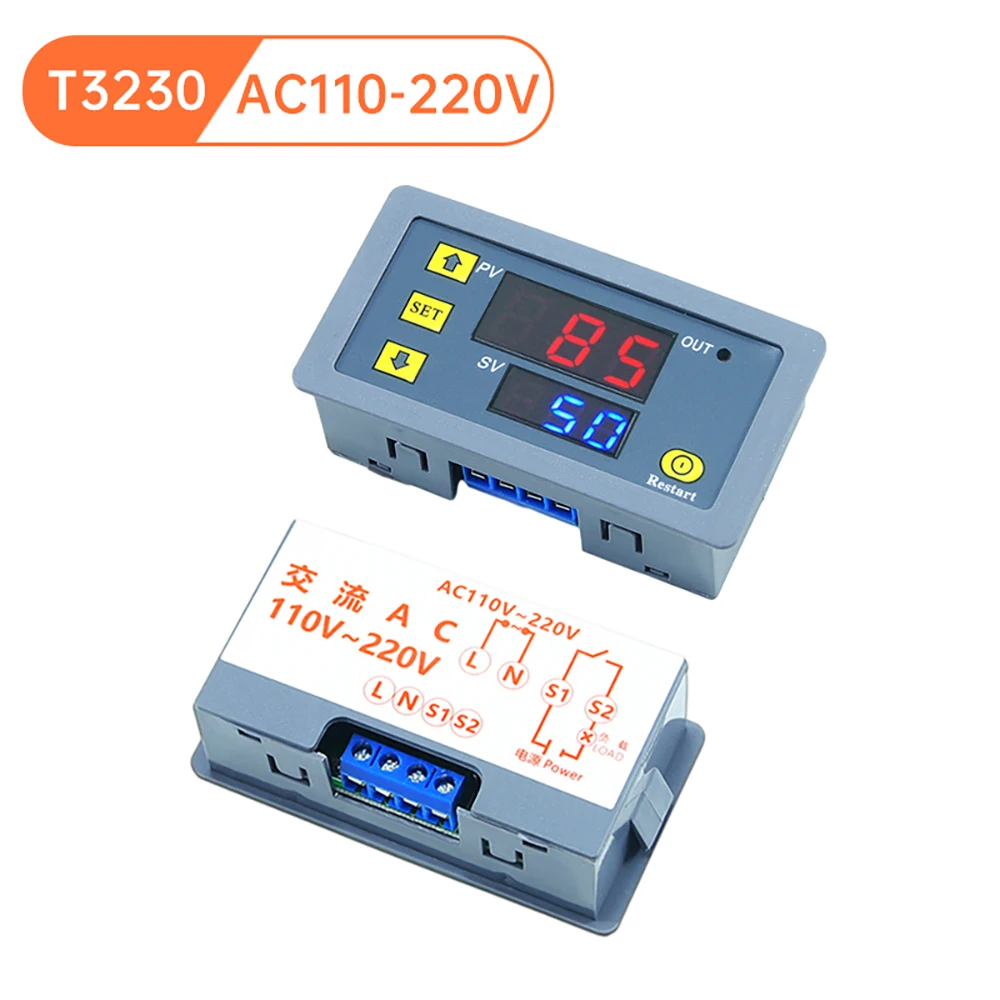

Product Name: T3230
Timing range: 0 - 999s, 0 - 999m, 0 - 999h

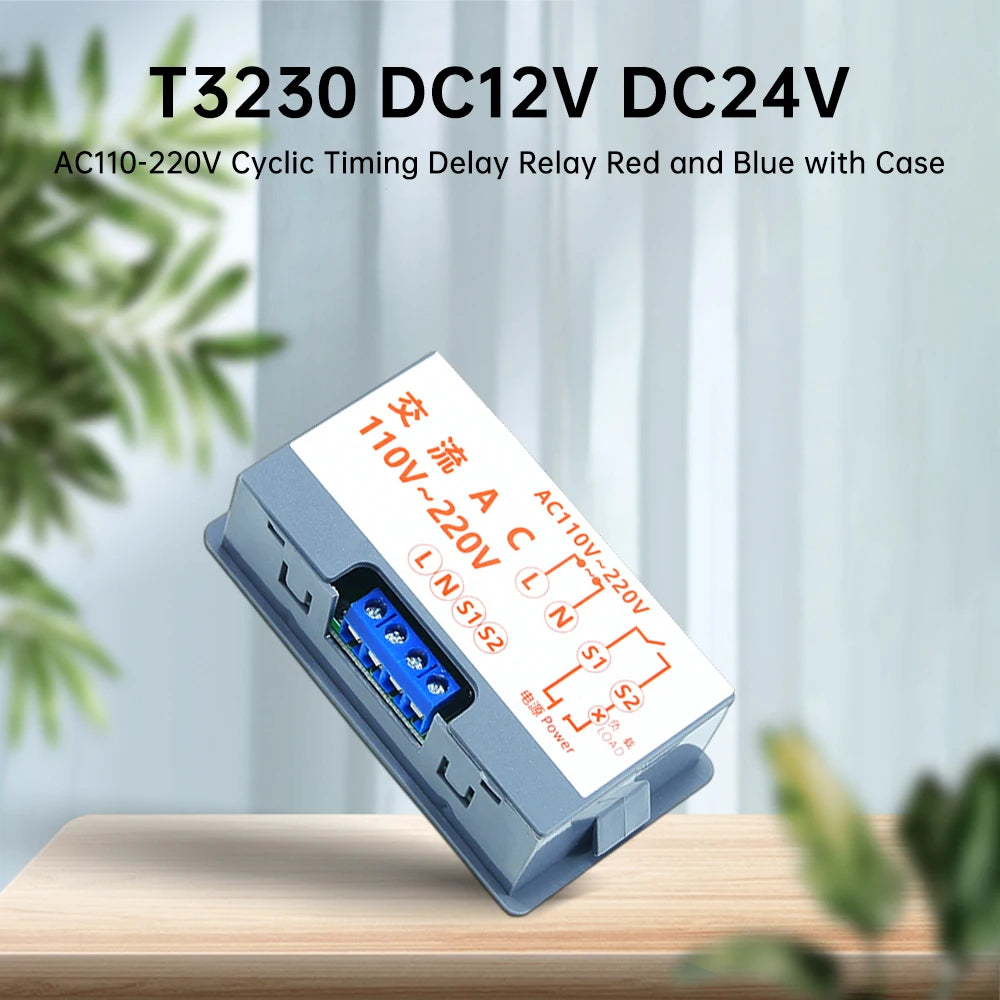

Power supply voltage: AC 110V - 220V

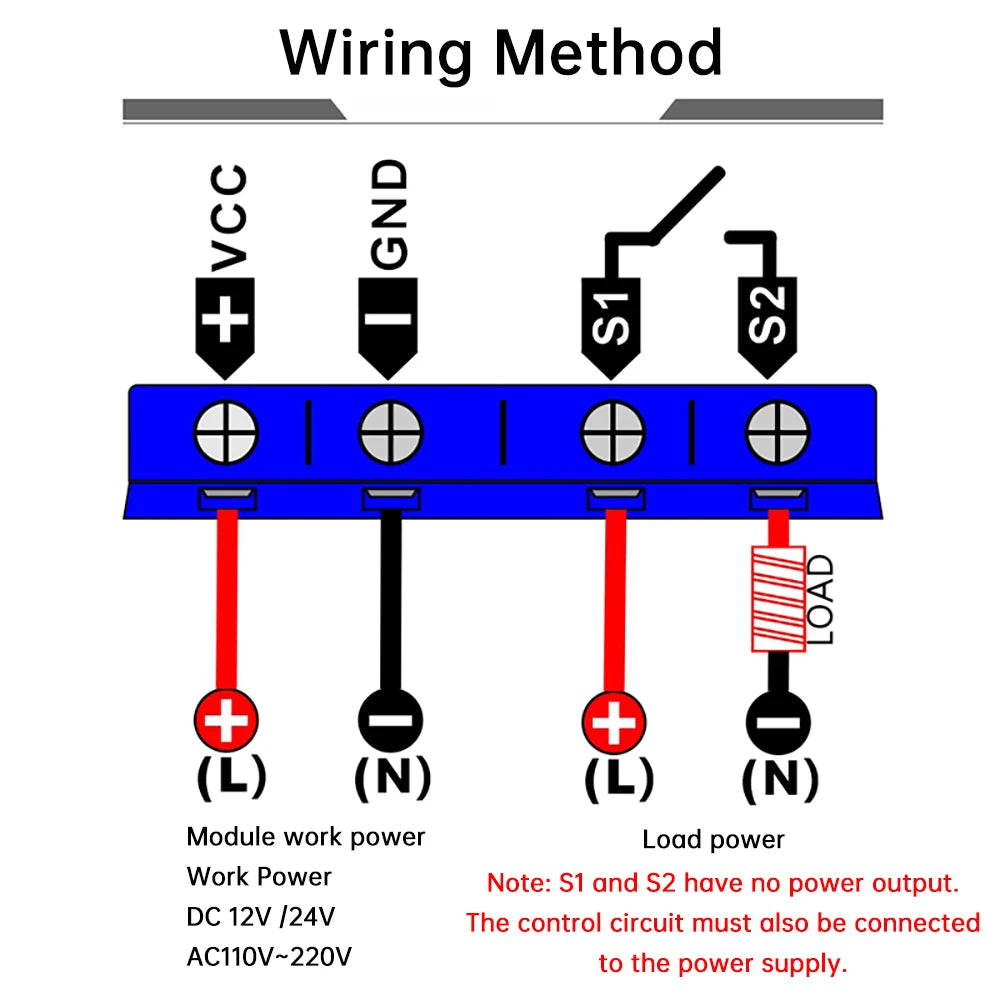

Output type: Switch type, with no output at the contact
Relay type: 1 - way normally open relay
Timing unit: Second/minute/hour
Timing range: 0~999, with the minimum measurement unit of 1 second
Cycle switch: Supported
Delayed startup: Supported
Delayed shutdown: Supported
Infinite cycle: Supported
Power - off save: Supported. Only settings are saved, and it restarts with power - on reset.
Buzzer alarm: None

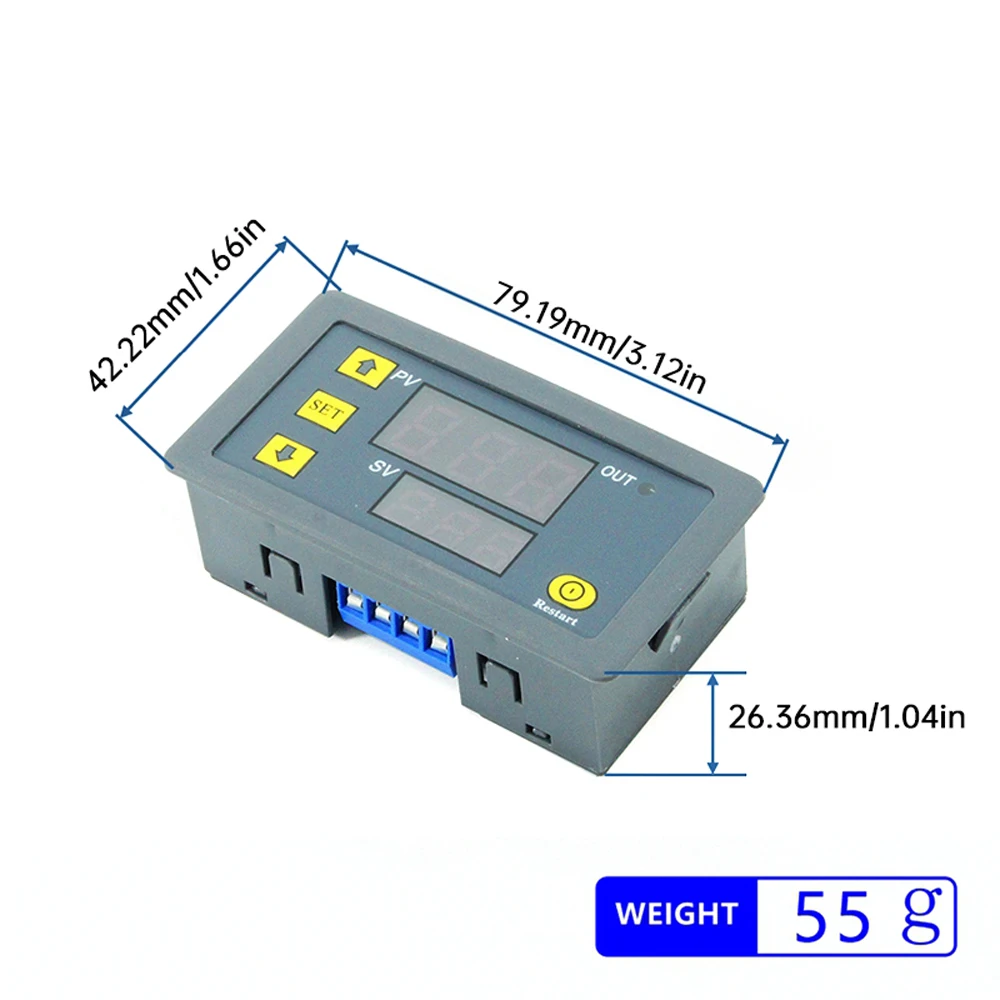

Product size: 79.5×42.1×27.8mm
Installation opening: 77×39.3mm

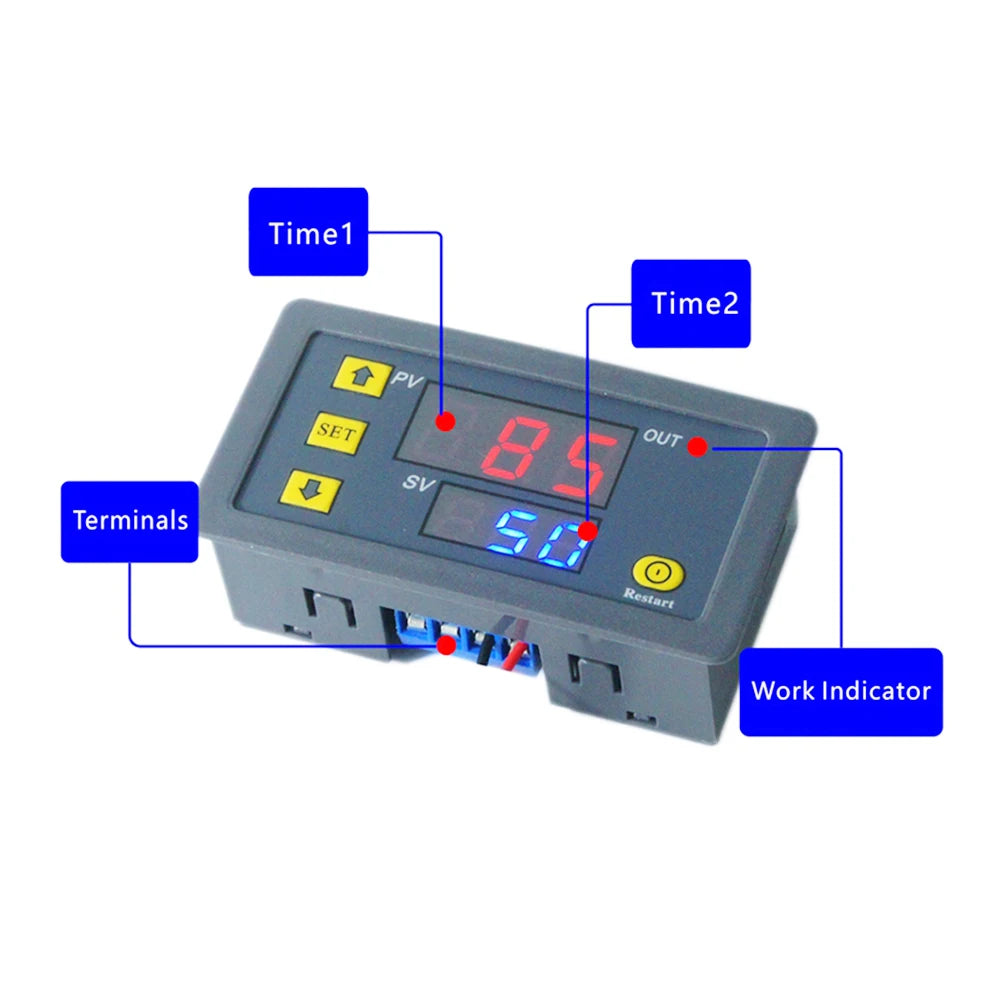

LED display: Red + blue dual - display

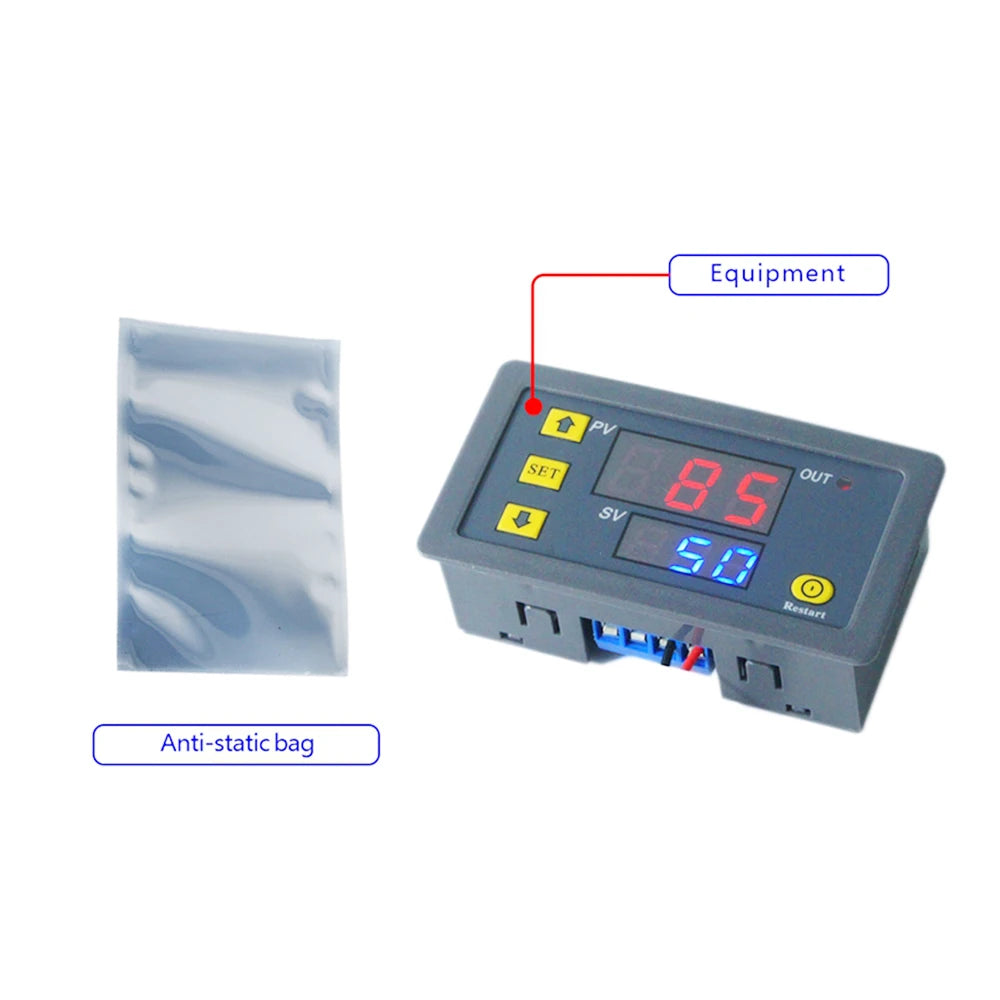

Package List:
1*Delay relay
