SPECIFICATIONS

Application: Computer

Brand Name: diymore

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Quantity: 1

Type: Voltage Regulator

is_customized: Yes

Product selling points:
1. Stable and extremely fast
2. High cost performance
3. Easy to use

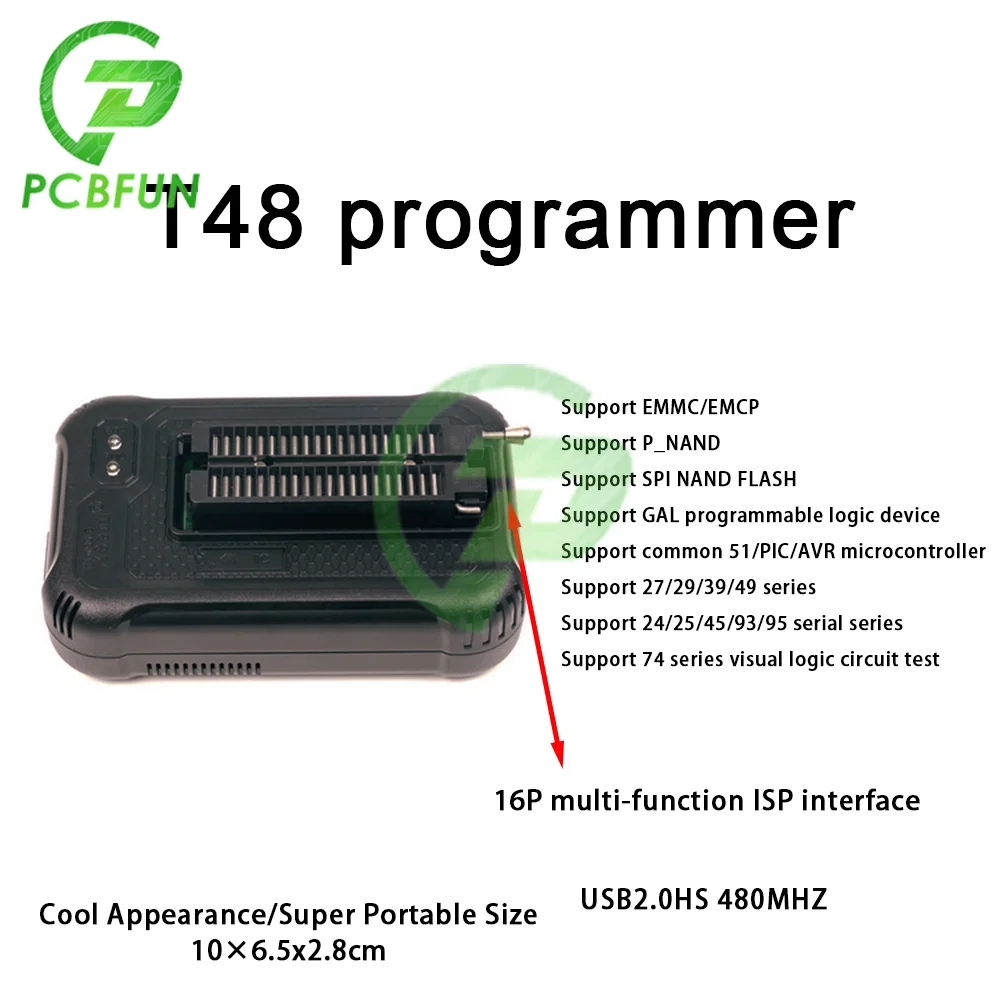

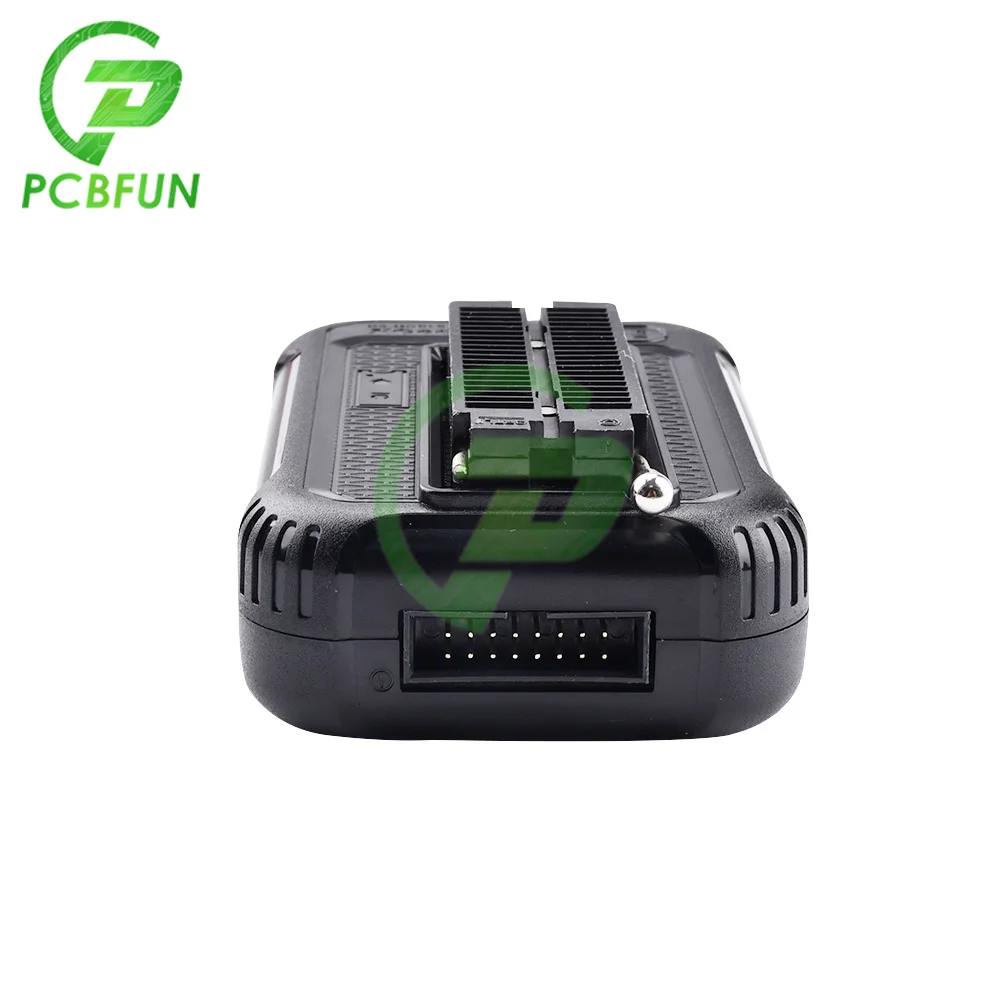

4.16P multi-function ISP interface
5. Cool appearance, super portable

Product parameters:

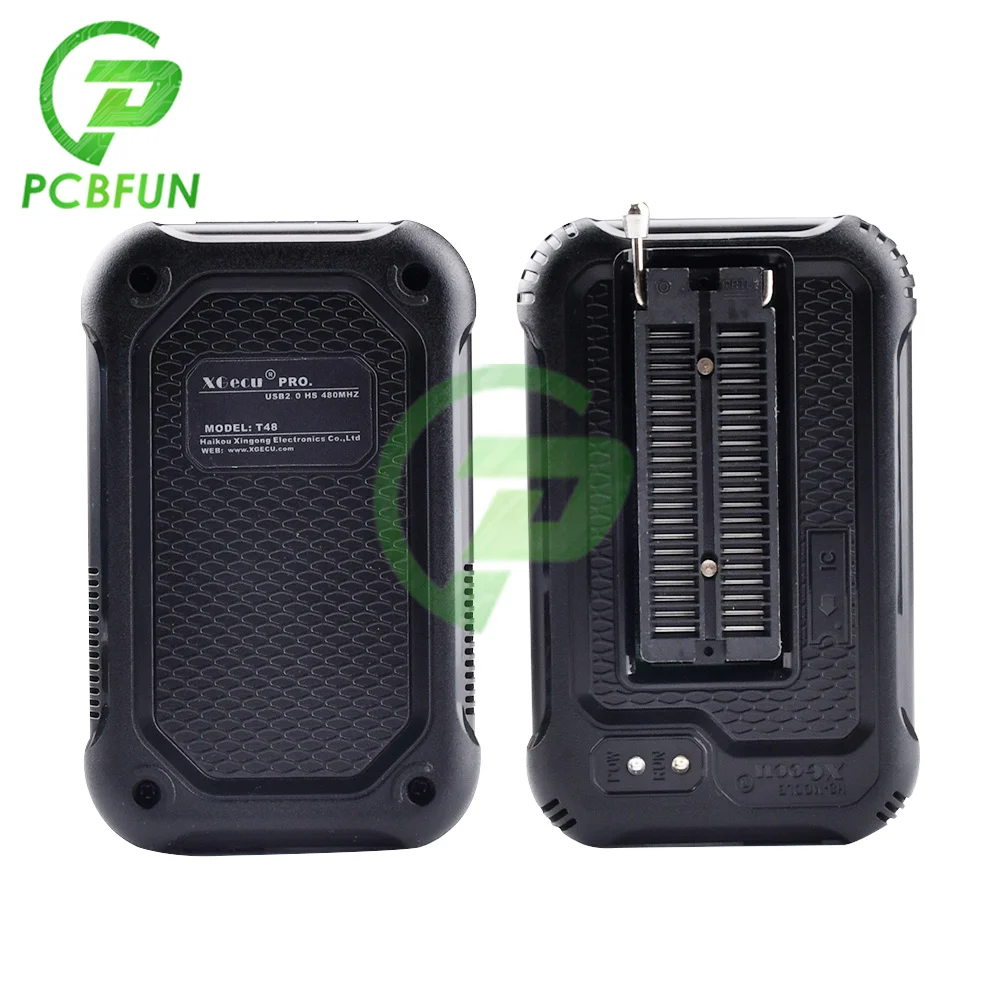

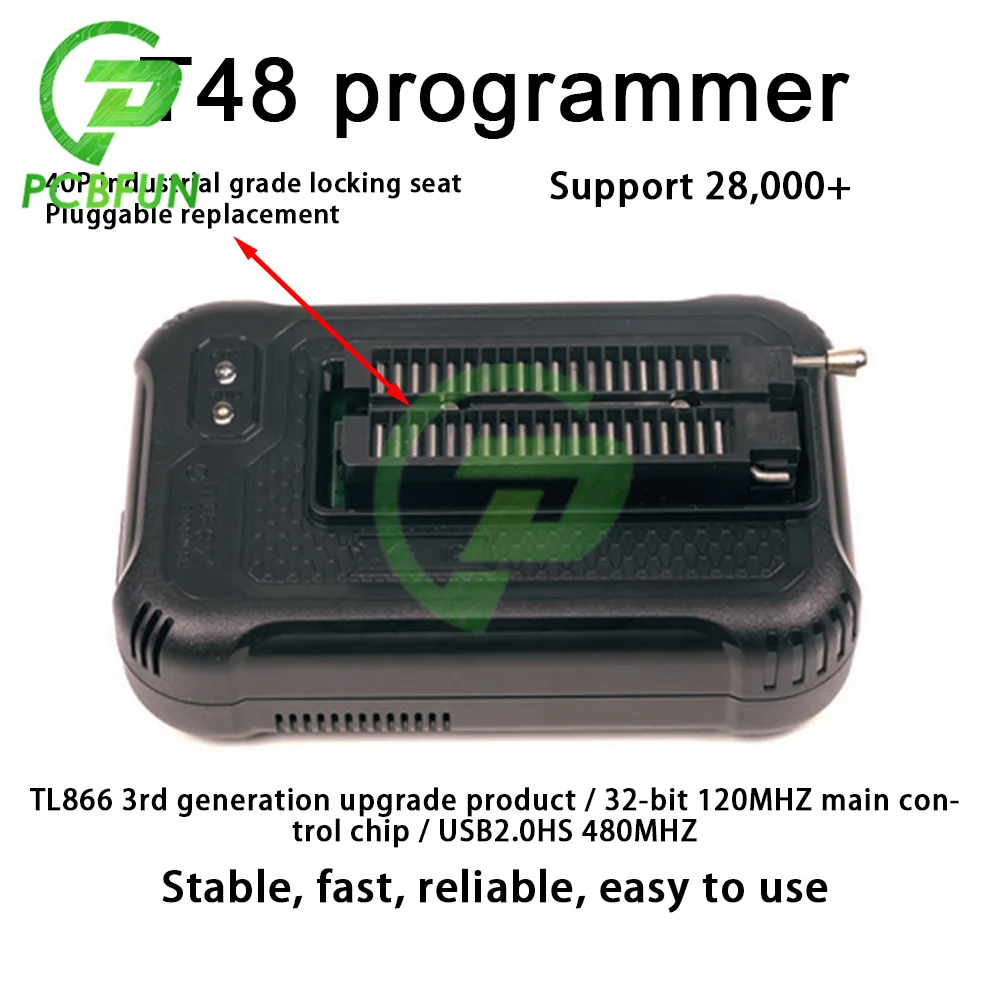

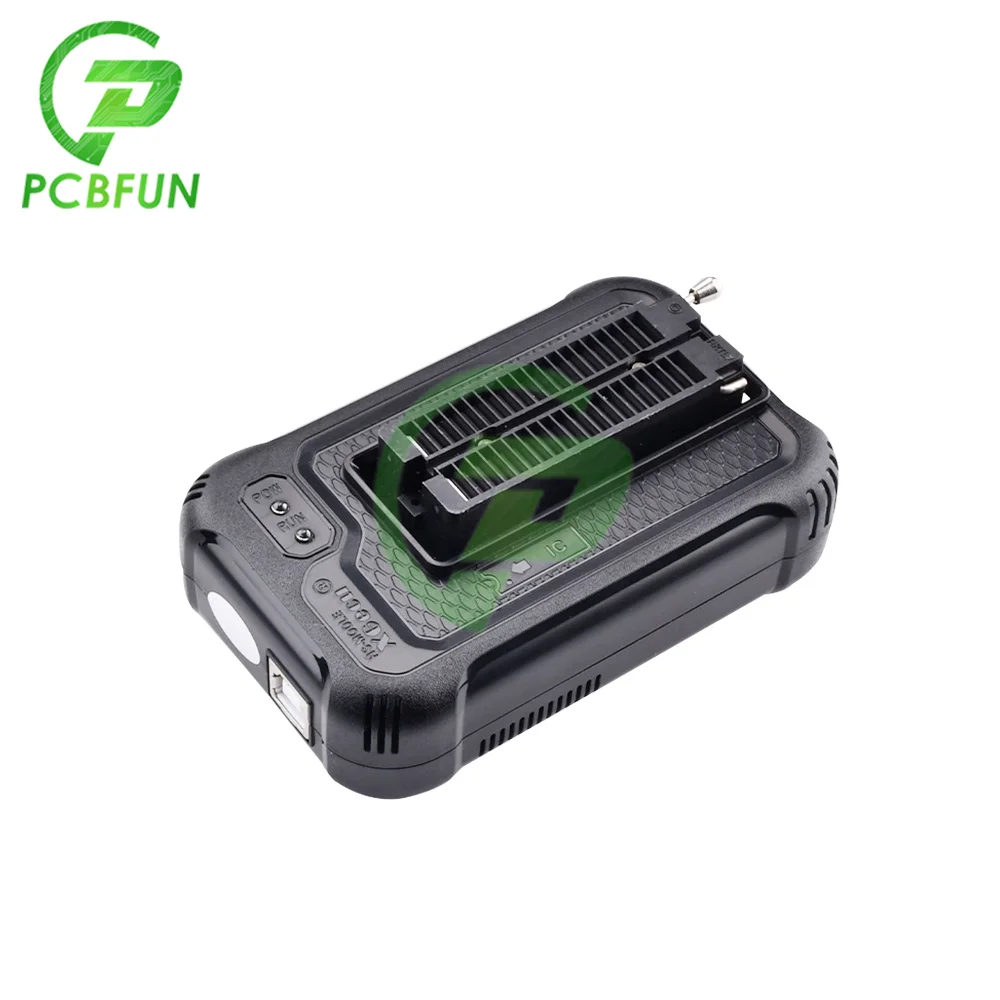

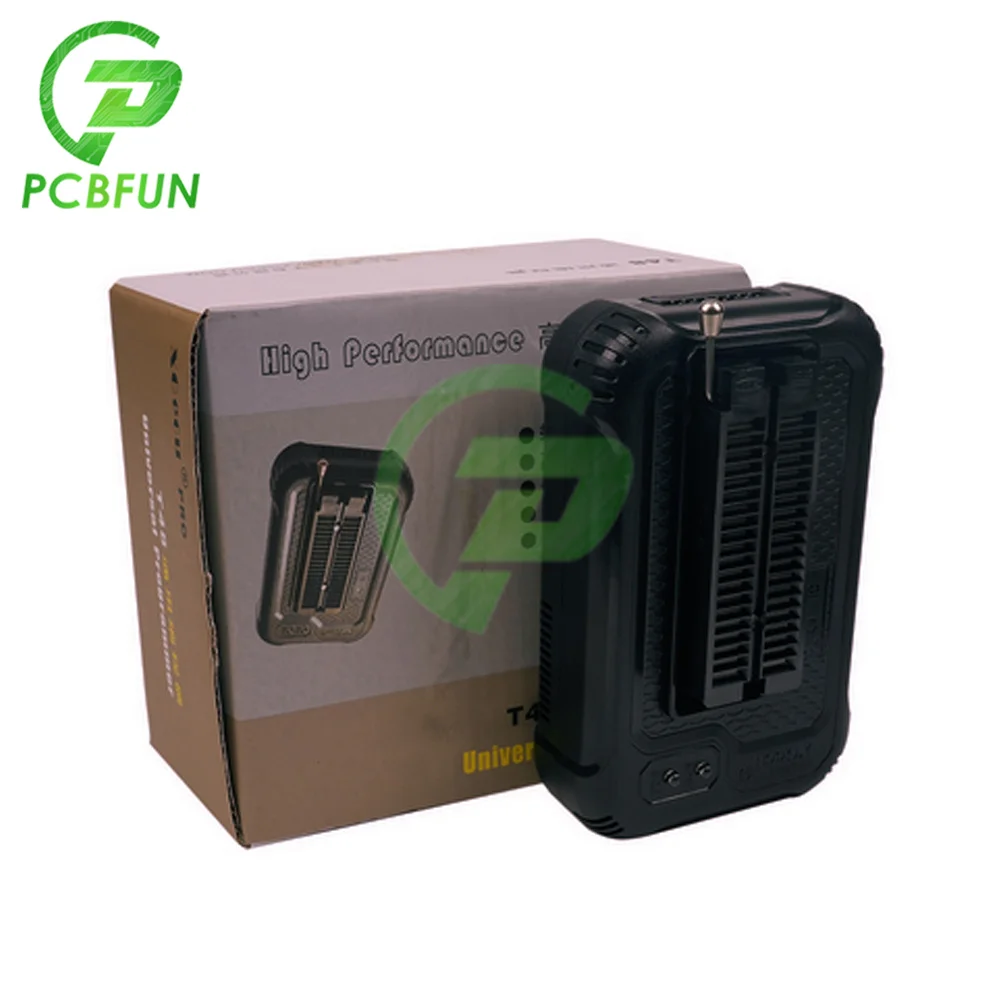

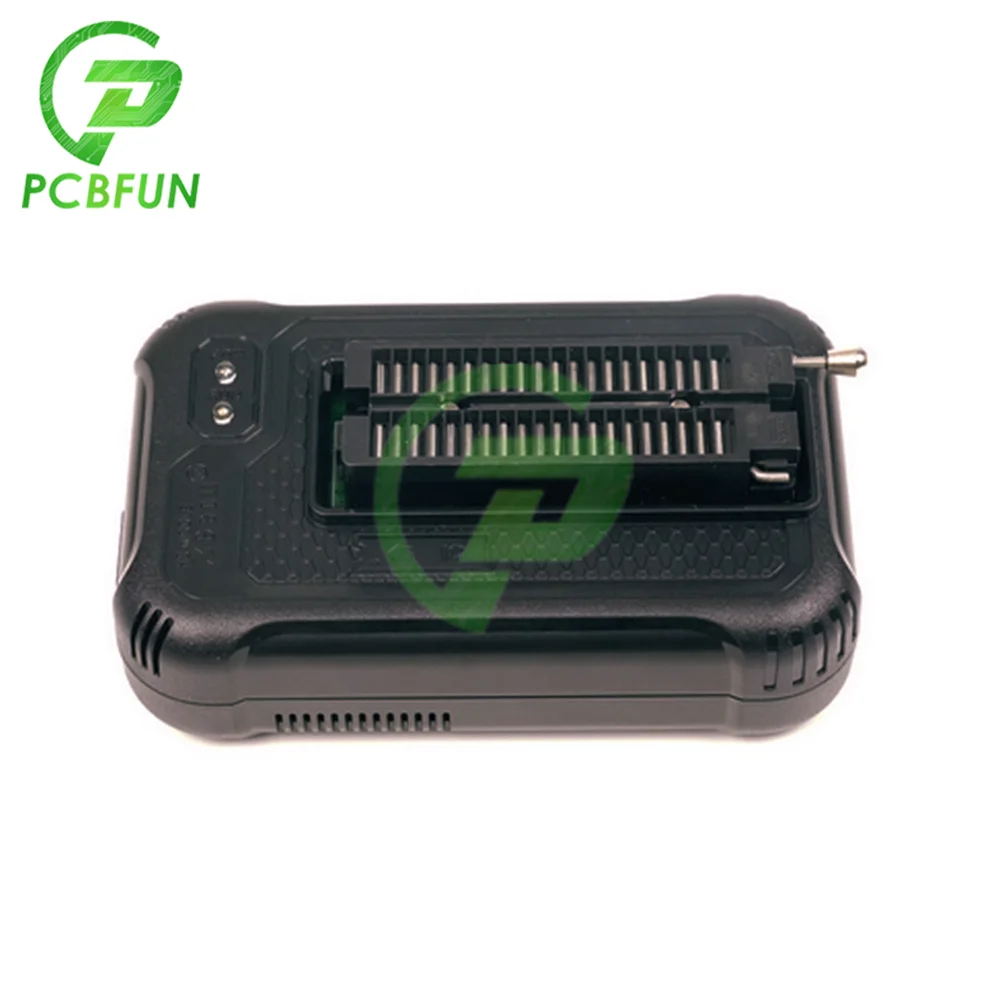

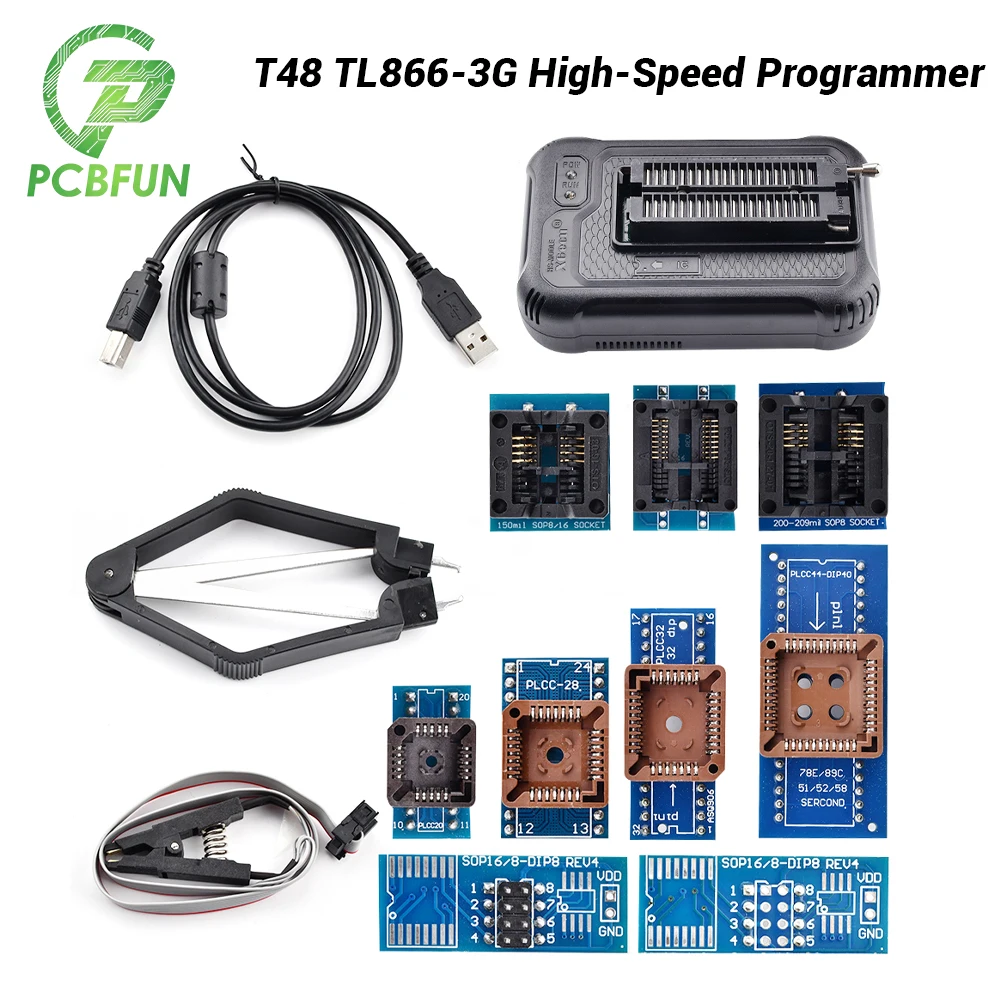

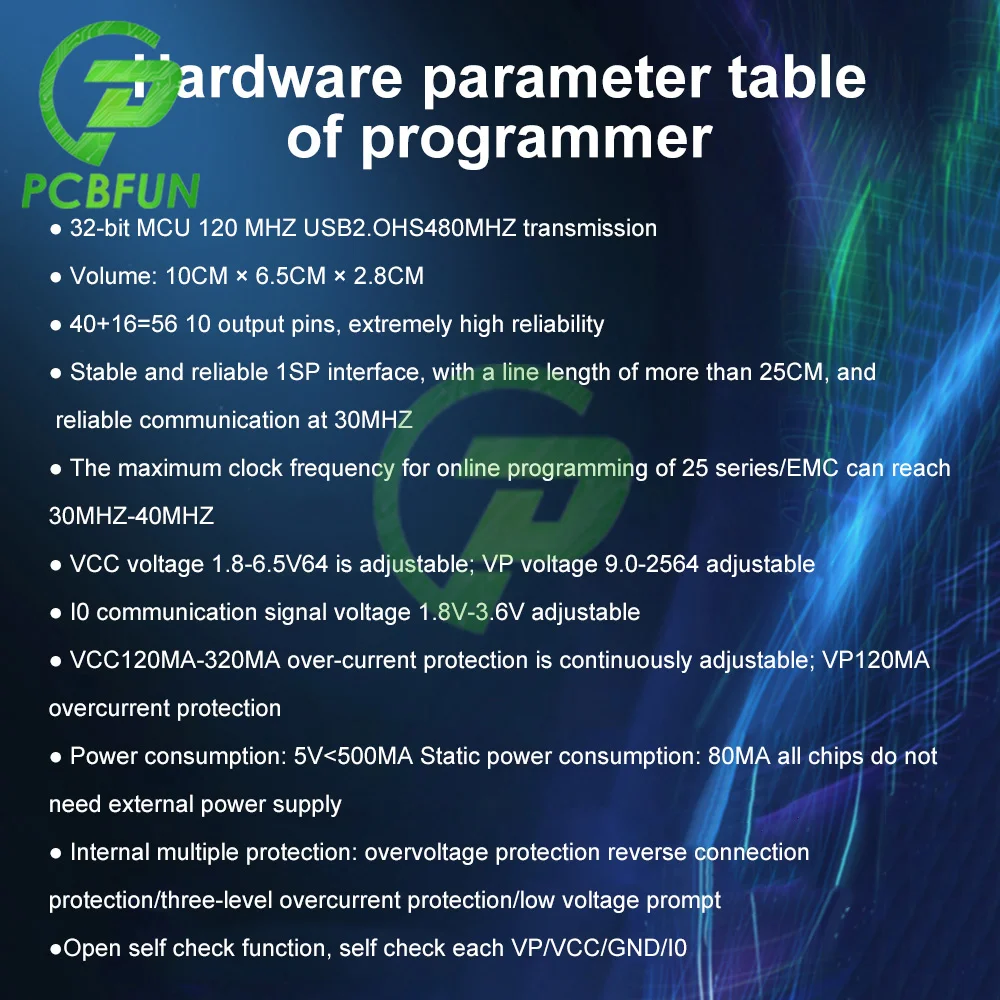

T48 (TL866-3G) hardware parameters:
32-bit MCU, 120MHZ, 4-layer PCB design, USB2.0 HS 480MHZ
16 channel ISP, 56 channels in total, dedicated IO56 channels, high-speed high-voltage isolation
VCC voltage 1.8-6.5V 64 level adjustable, VPP voltage 9V-25V 64 level adjustable
Power consumption: 5V<500MA, static power consumption: 60mA, no external power interface
*Self check function, self check each pin of VPP/VCC/GND/IO

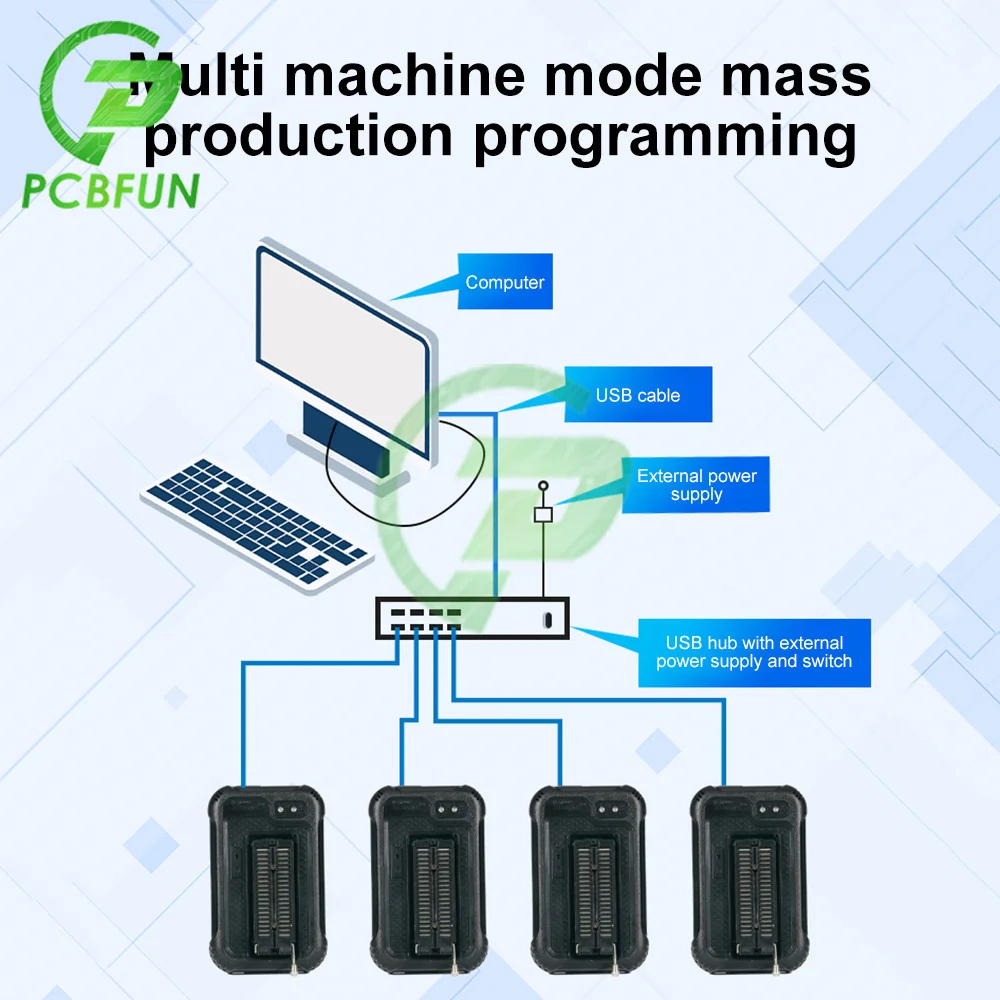

It is suitable for developers and maintenance personnel. It can produce high-capacity chips in small batches. It supports working with 4 programmers on each computer at the same time
Supported operating systems: Windows XP, 20032008, Vista Win7 WIN8 WIN10 WIN11
