SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Certification: NONE

Compatible Audio & Video Equipment Style: Display Equipment

Display Size: < 1"

Model Number: ZC-RS485serialportmeter-0311

Origin: Mainland China

Package: Yes

Size: 0.8 inch

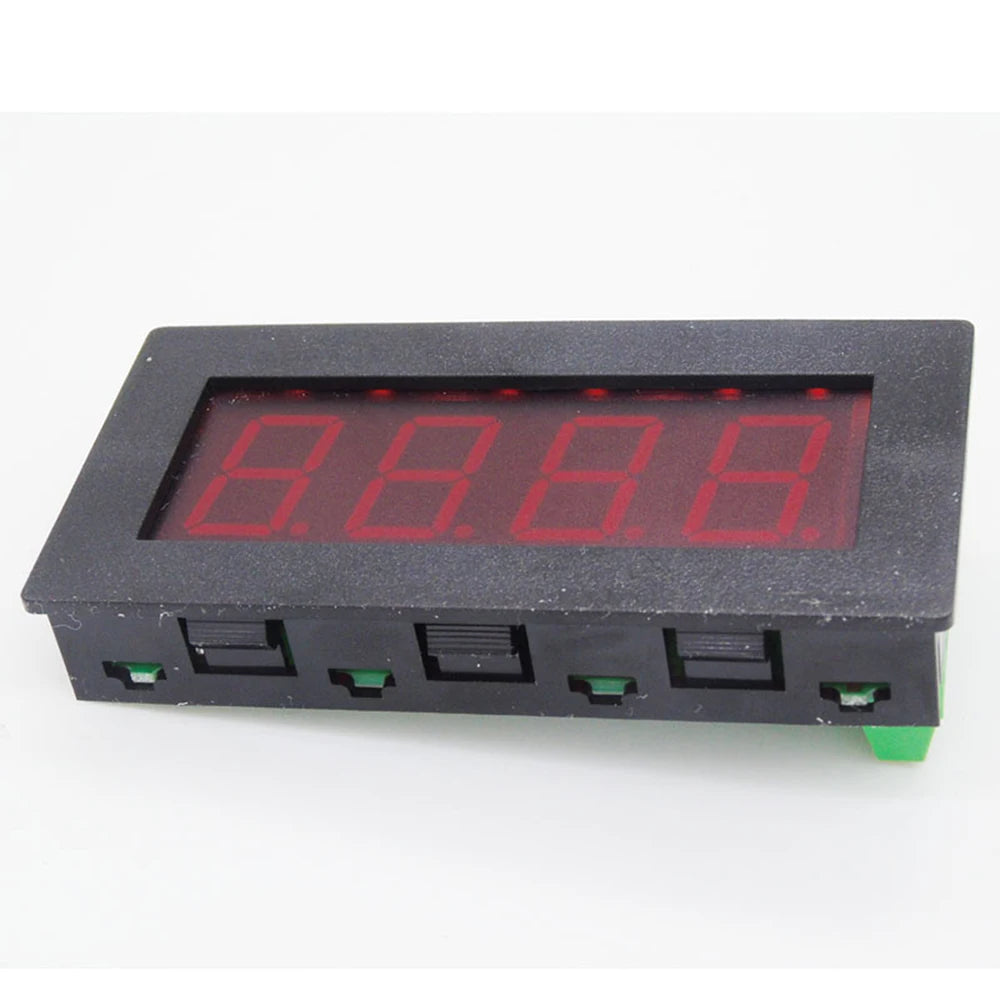

Features

1. Transmit display data via RS485 2. The cover of the meter head can be easily embedded on the top of the device 3. Four-digit red digital tube display, brightness can be set 4. The position of the decimal point can be set, and the baud rate can be set 5. The interface adopts KF128-5.08 high quality environmental protection copper terminal 6. Wide range of uses and powerful functions

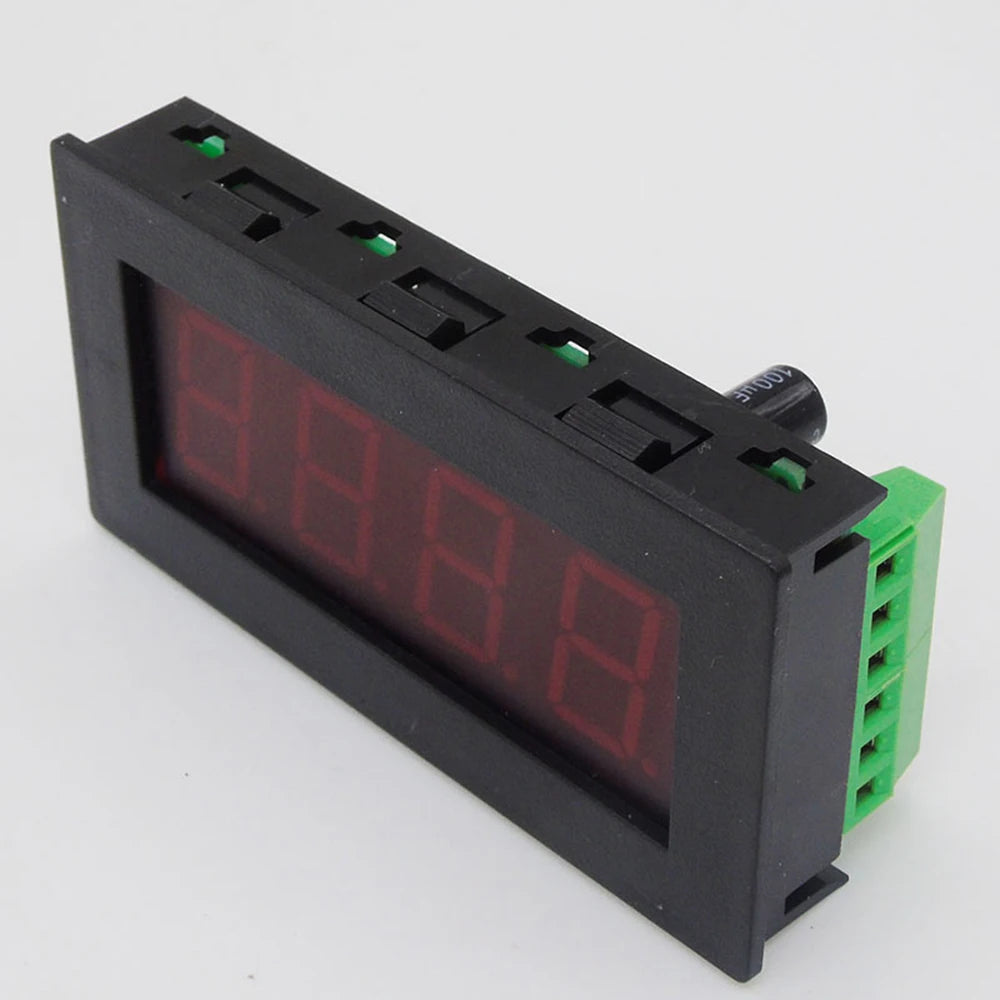

Parameter

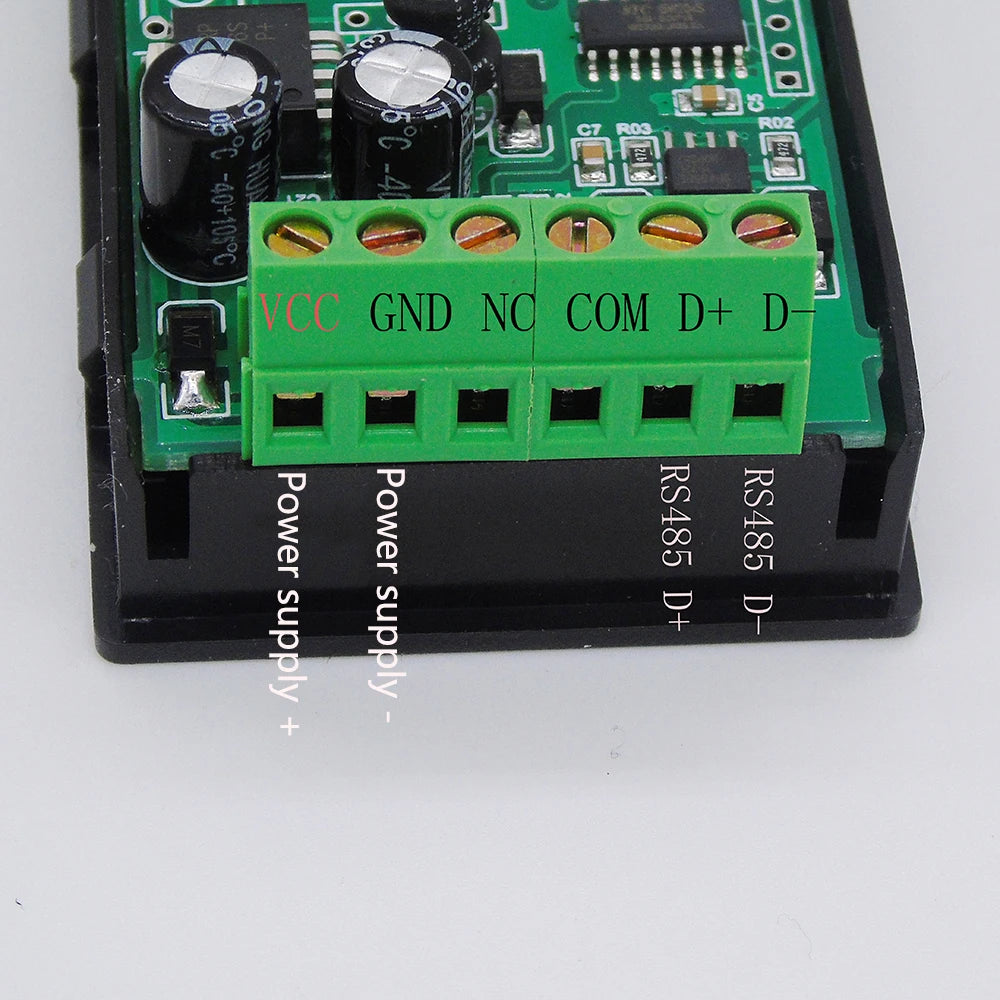

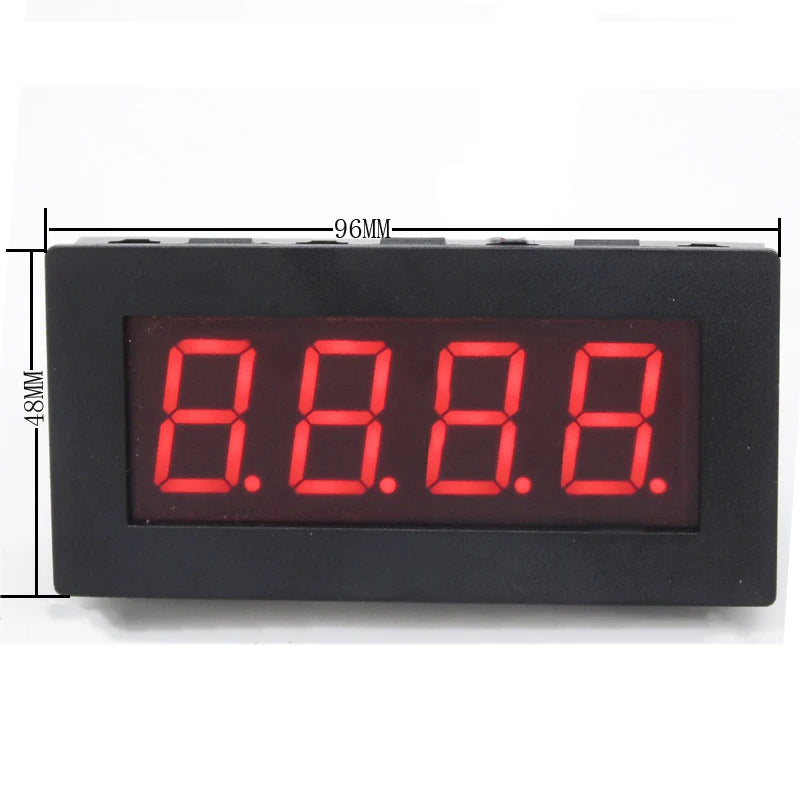

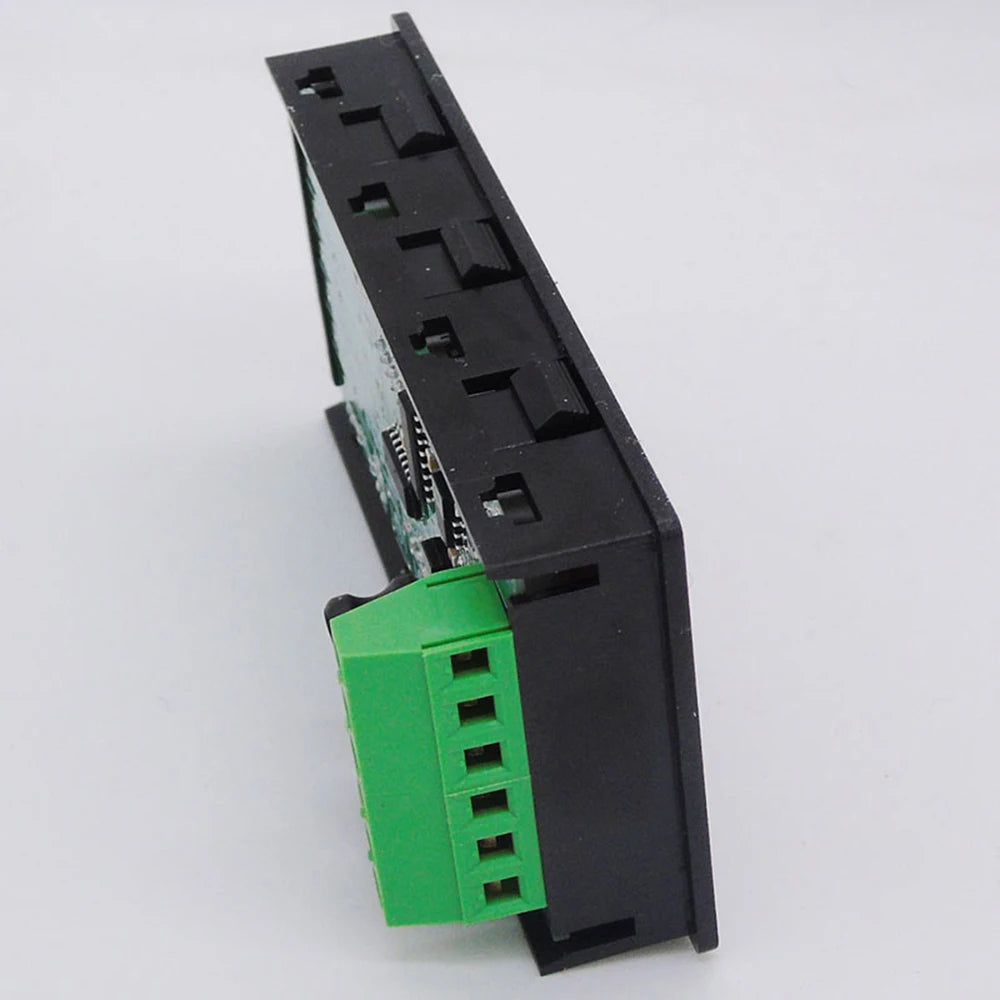

Digital tube size: 0.8 inches Display digits: 4 digits Working voltage: DC5~36V Power indicator: 1 way red LED indicator Product Size Outer diameter size: length 96mm * width 48mm Window size: length 75mm*width 28mm Hole size: length 92mm*width 45mm Display color: red Interface Description VCC: positive power supply GND: negative power supply COM: negative power supply D+: RS485 data communication A+ D-: RS485 data communication B- Communication parameters Baud rate: 1200bps/2400bps/ 4800bps/ 9600bps/19200bps/ 38400bps/57600bps/ 115200bps Default: 9600bps, N, 8, 1 Communication protocol: Modbus-RTU

Instruction example and detailed explanation

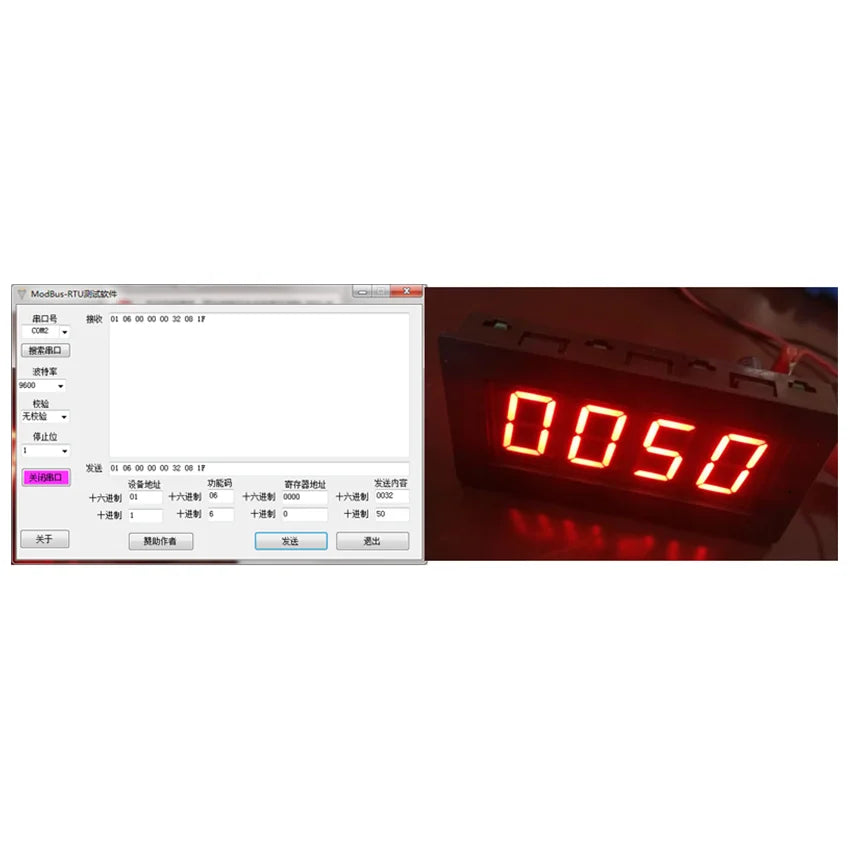

0. Display data (00 32 decimal is 50, and negative numbers are represented by the inverse code. If ff fe is sent, it will display -001) Address: 0x01 Function: 0x06 Register address high: 0x00 Register address low: 0x00 Data high: 0x00 Data low: 0x32 CRC check: 0x08 / 01F Slave response Address: 0x01 Function: 0x06 Register address high: 0x00 Register address low: 0x00 Data high: 0x00 Data low: 0x32 CRC check: 0x08 / 0x1f

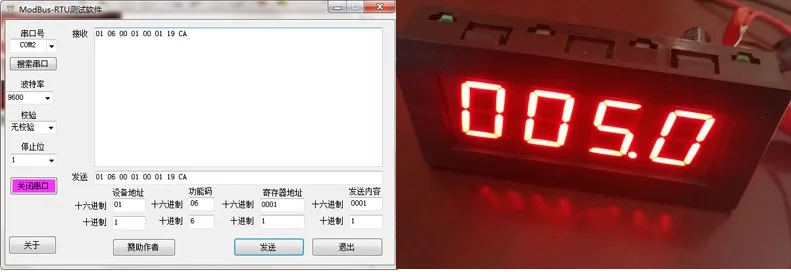

1. Set the position of the decimal point (the range is 01-03, 01 is the decimal point after the tens digit, 02 is the decimal point after the hundreds digit, 03 is the thousand digit, and only the tens and hundreds digit after the negative number can be displayed) Address: 0x01 Function: 0x06 Register address high: 0x00 Register address low: 0x01 Data high: 0x00 Data low: 0x01 CRC check: 0x19/ 0xCa Slave response Address: 0x01 Function: 0x06 Register address high: 0x00 Register address low: 0x01 Data high: 0x00 Data low: 0x01 CRC check: 0x19/ 0xCa
