SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

Origin: Mainland China

Type: Voltage Regulator

semi_Choice: yes

Features:

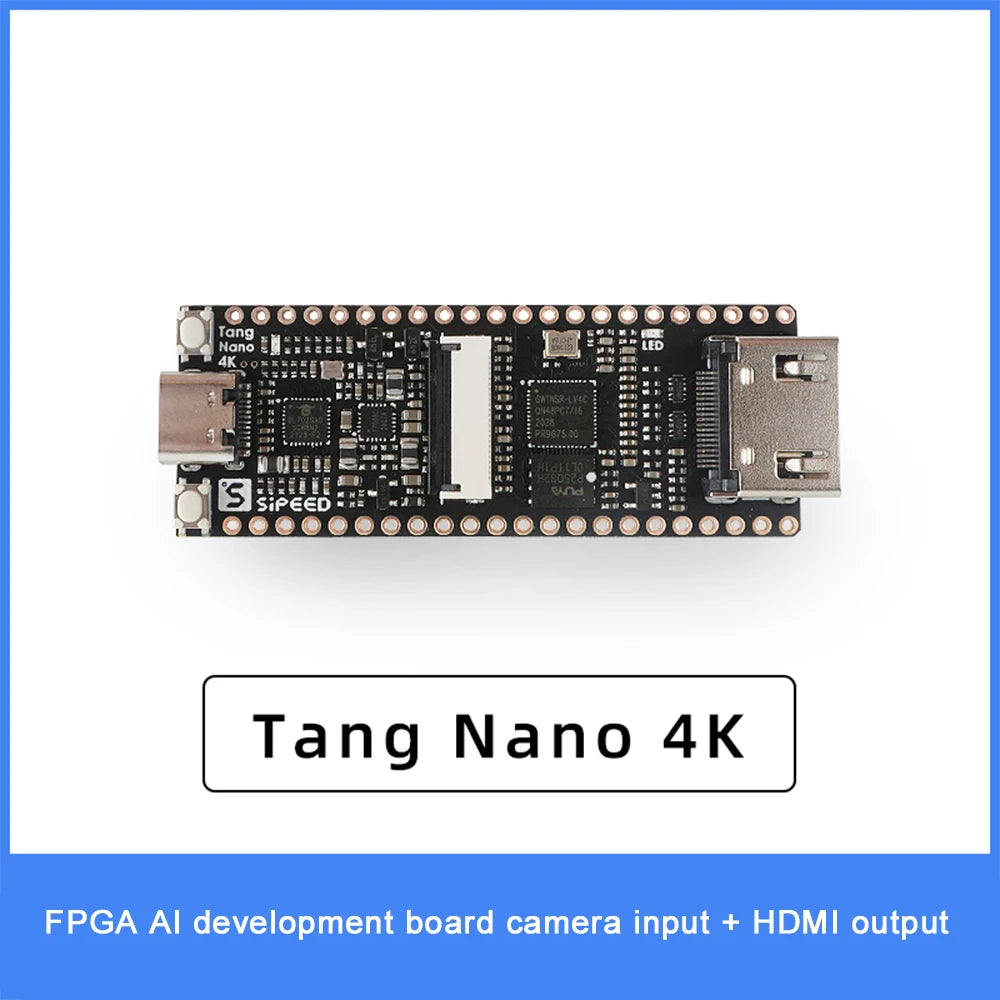

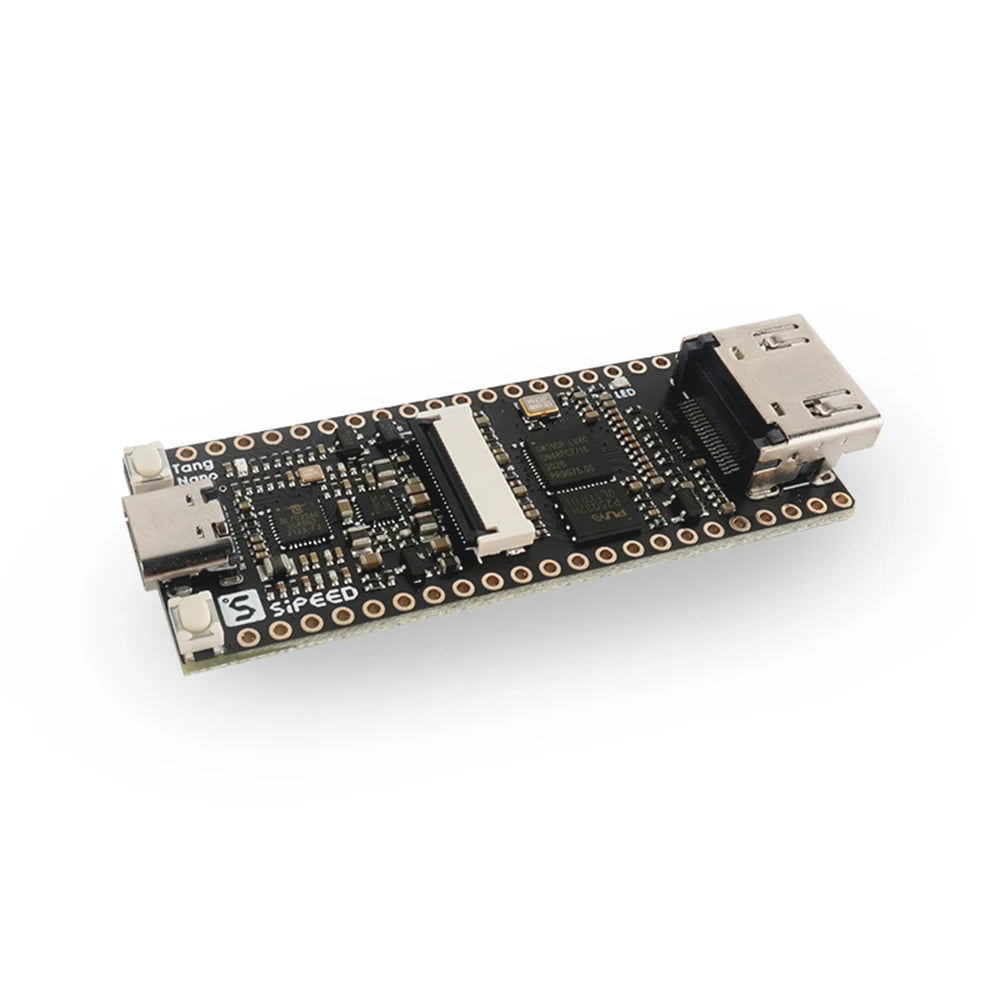

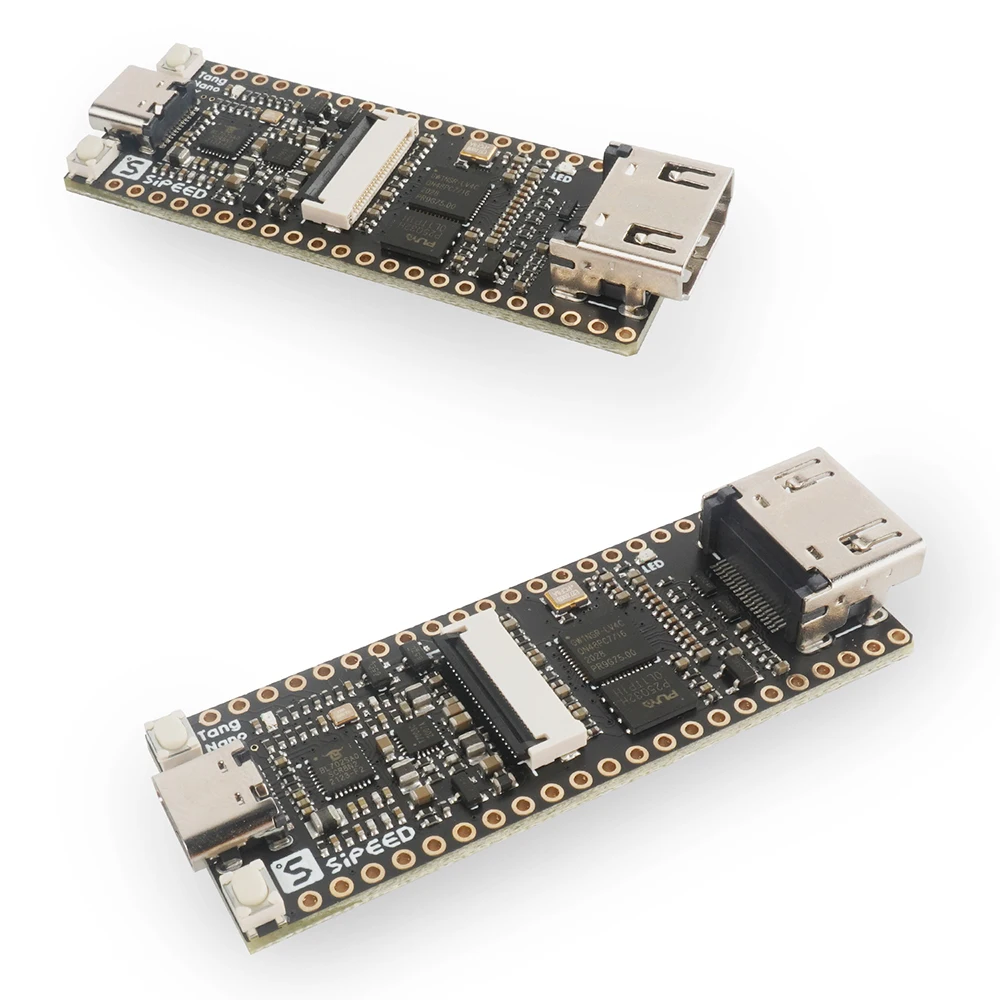

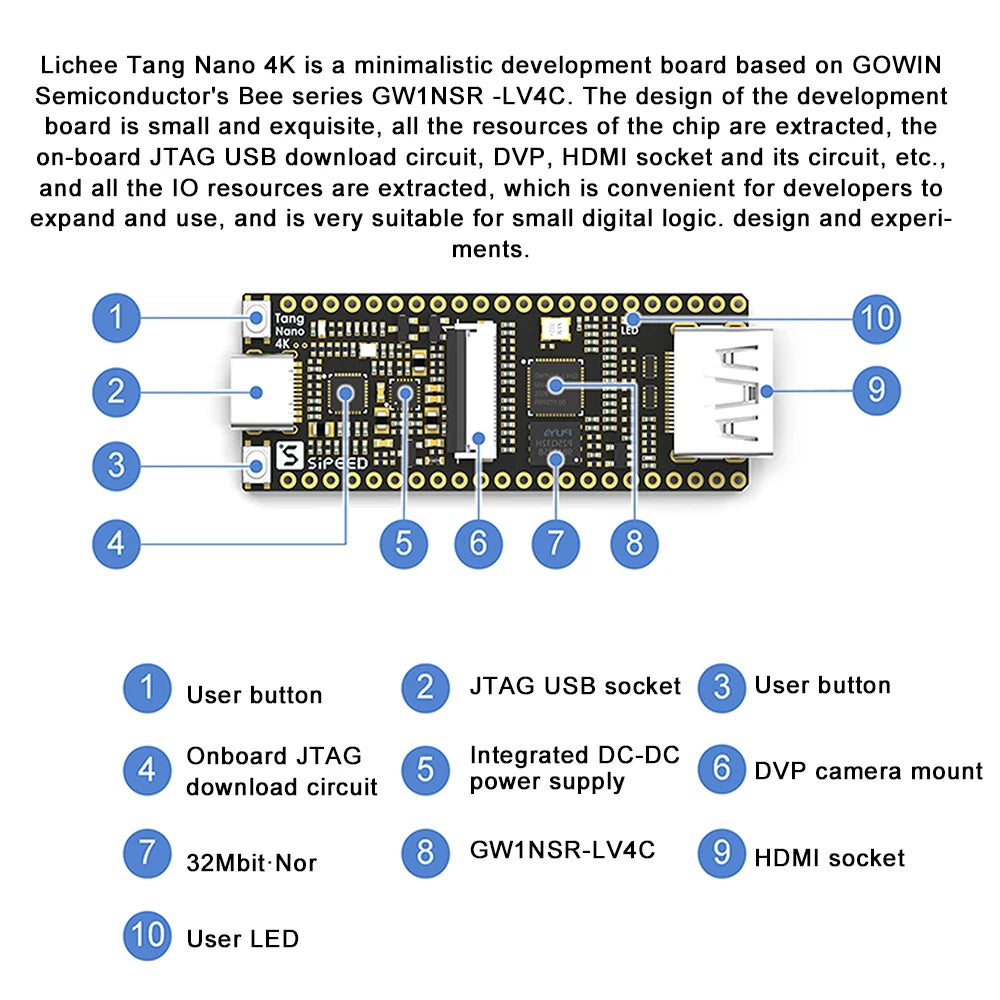

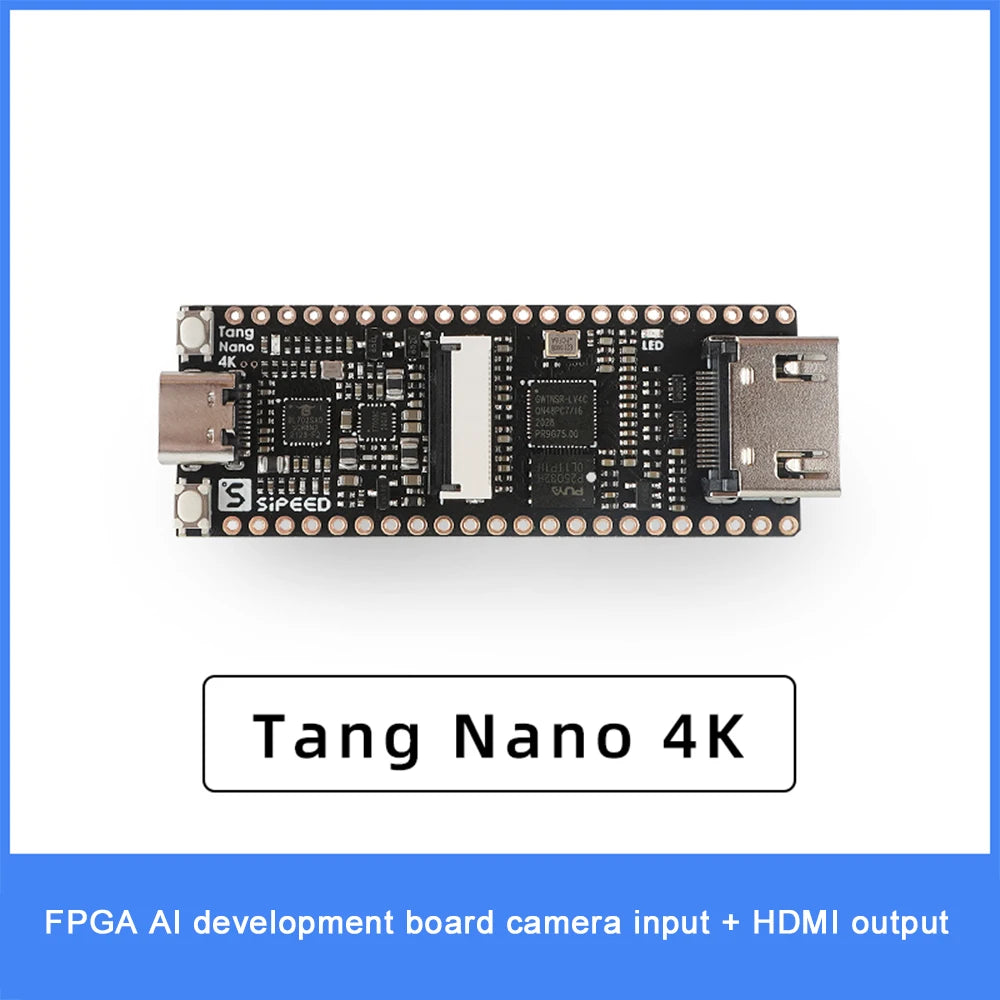

Lichee Tang Nano 4K is a simple development board based on GOWIN Semiconductor's Bee series GW1NSR -LV4C

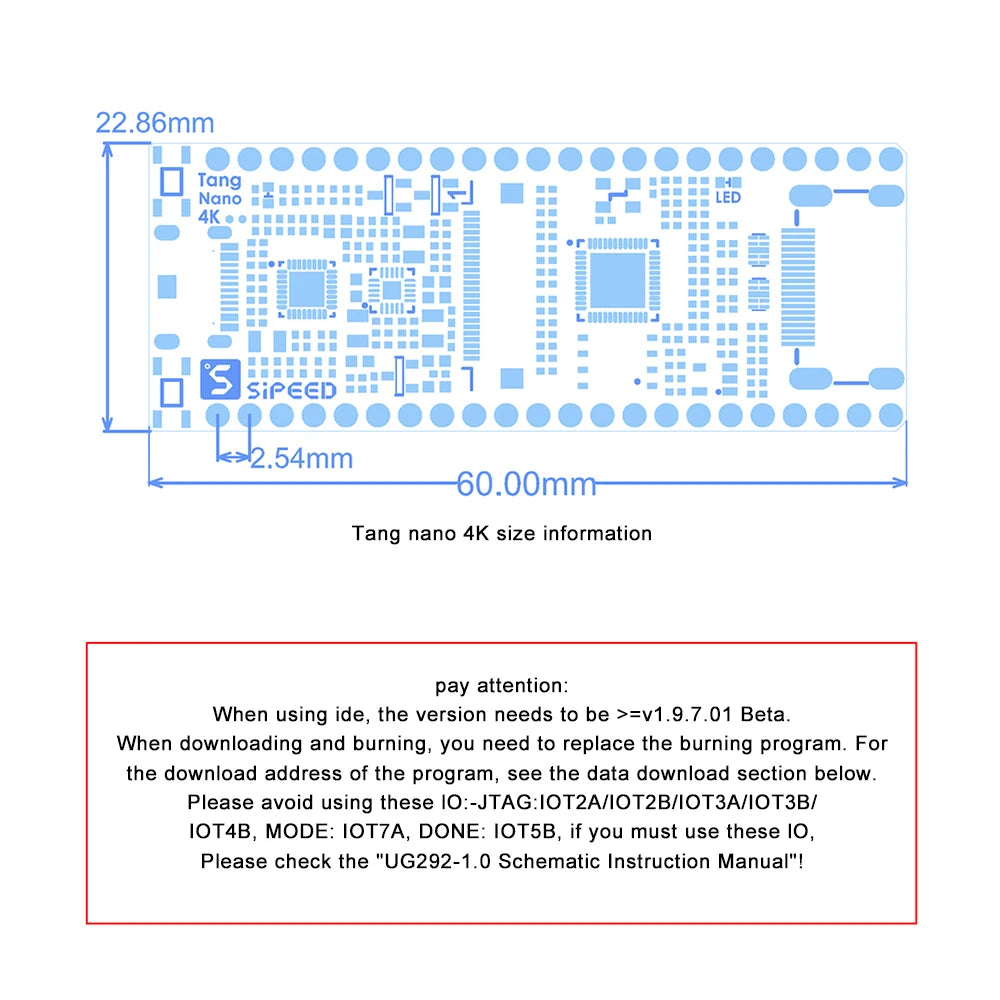

The design of the development board is small and exquisite, and all the resources of the chip are drawn out

On-board JTAG USB download circuit, DVP, HDMI socket and its circuit, etc.

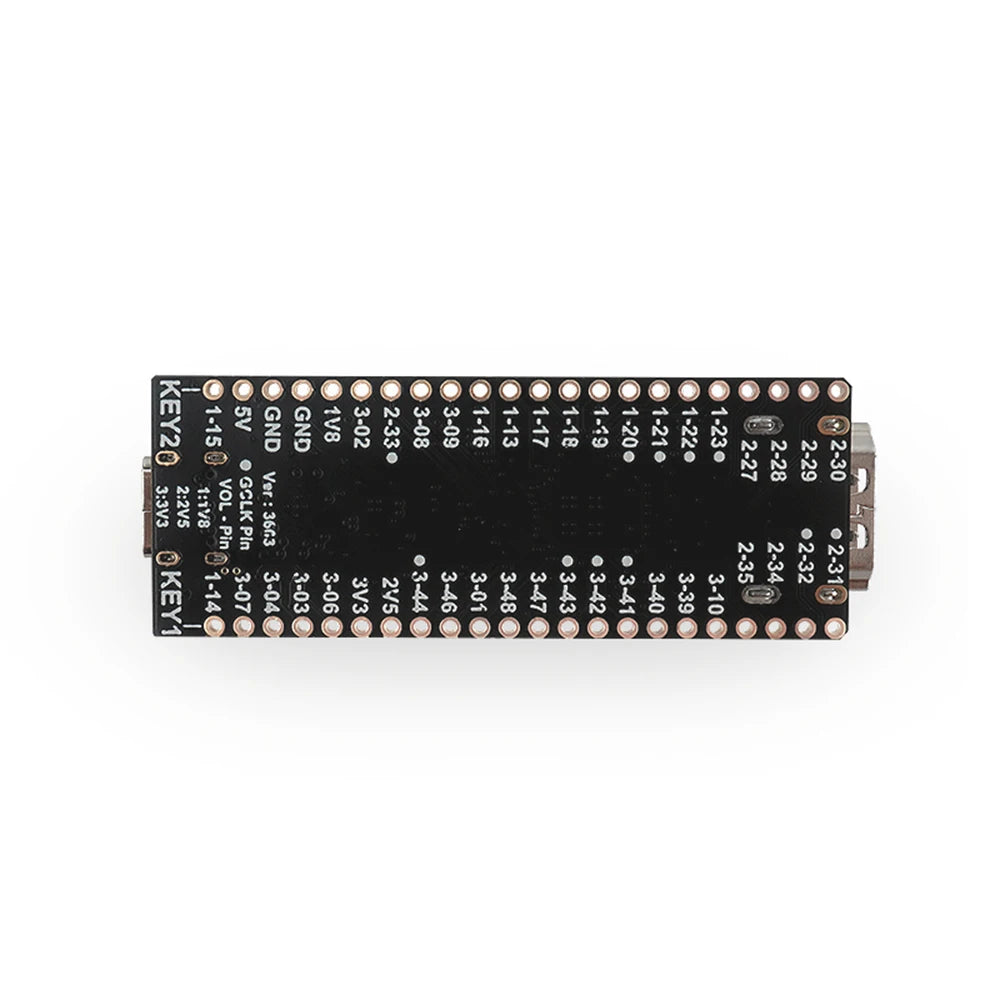

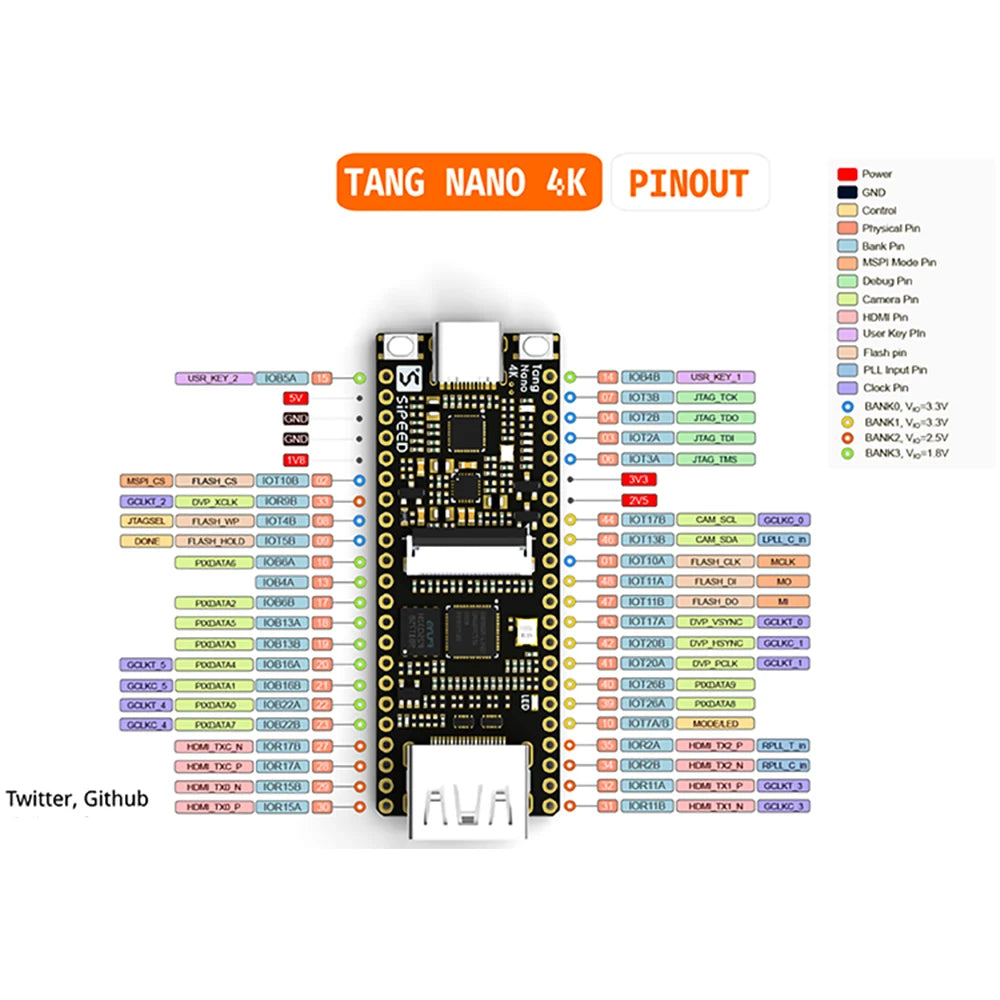

All IO resources are exported, which is convenient for developers to expand and use

Ideal for design and experimentation with small digital logic

product description:

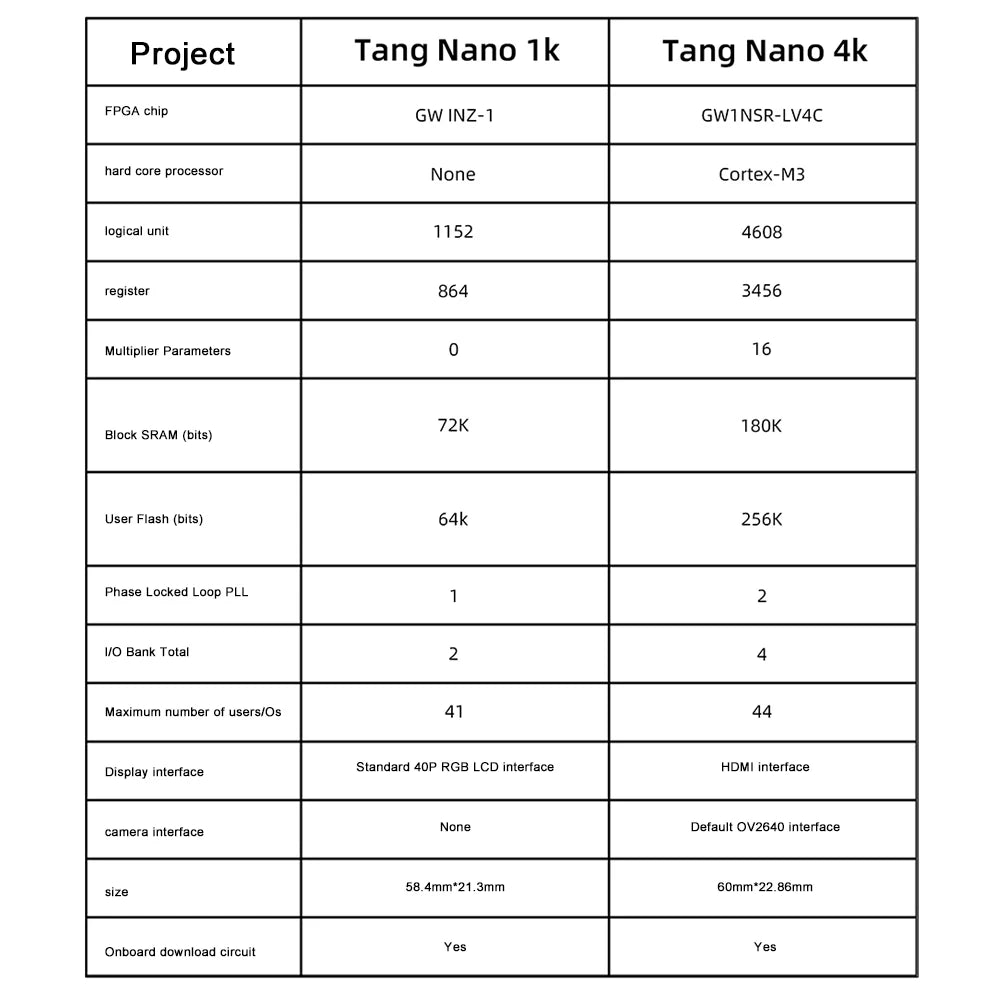

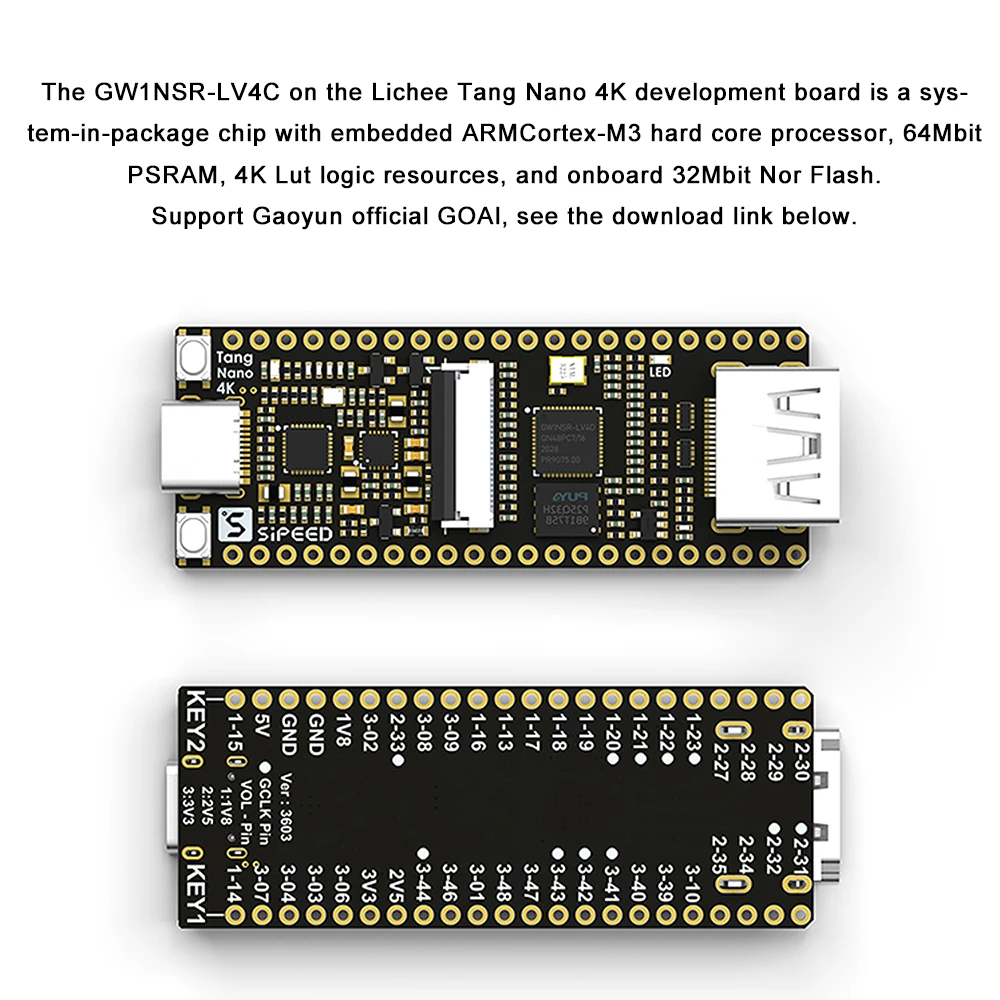

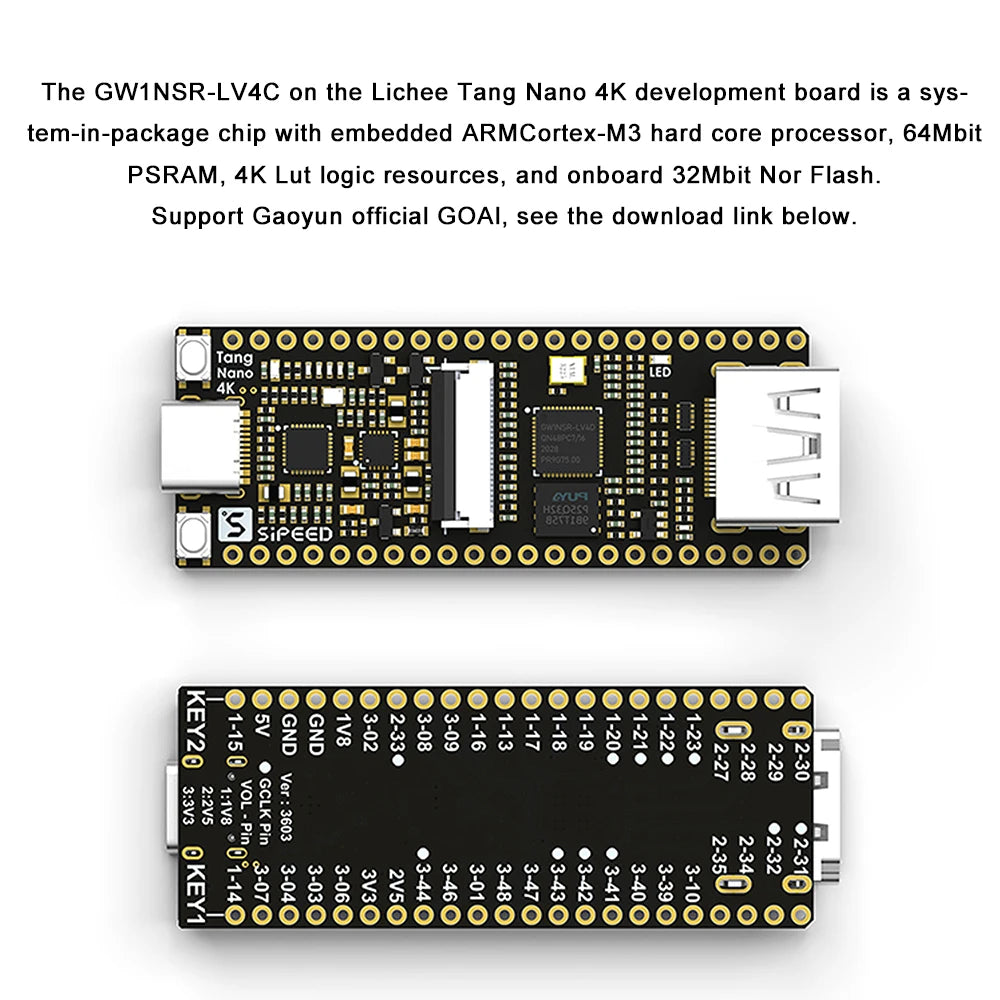

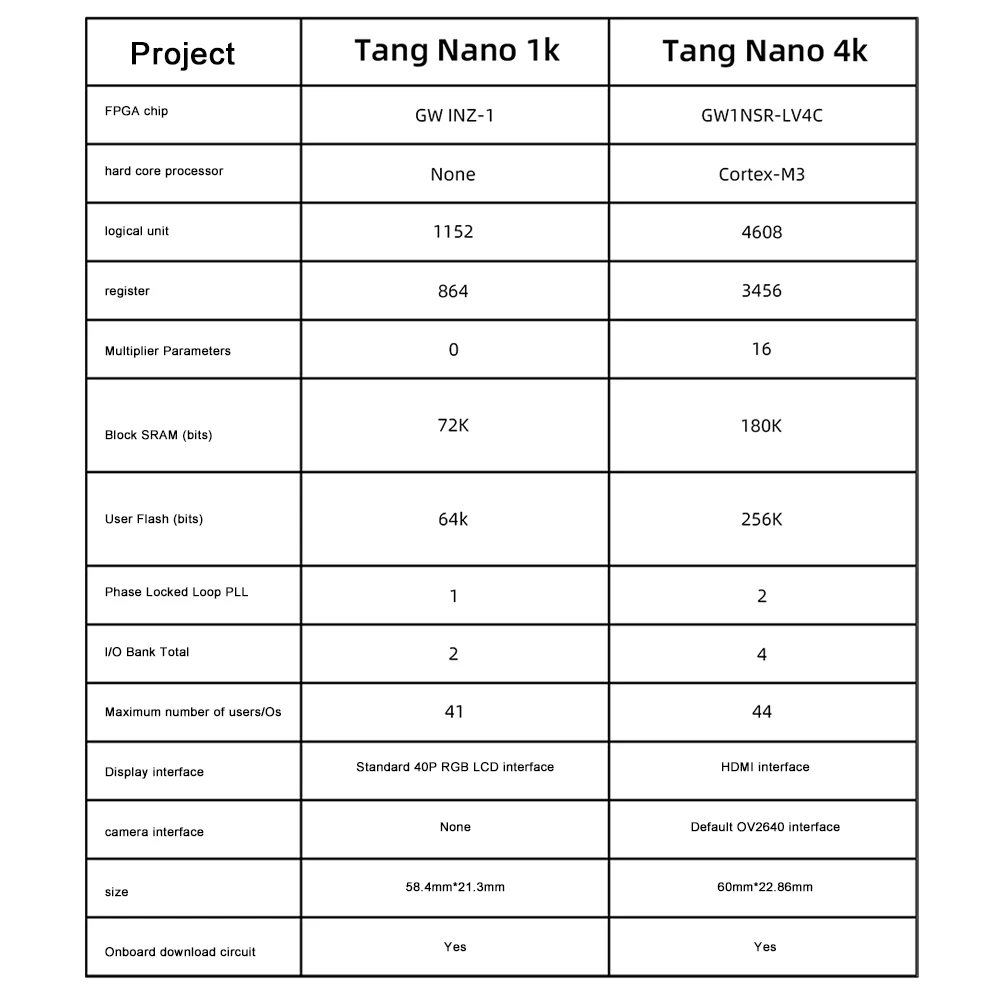

The GW1NSR-LV4C onboard the Lichee Tang Nano 4K development board is a system-in-package chip with embedded ARMCortex-M3 hard core processor, 64Mbit PSRAM, 4K Lut logic resources, and onboard 32Mbit Nor Flash.

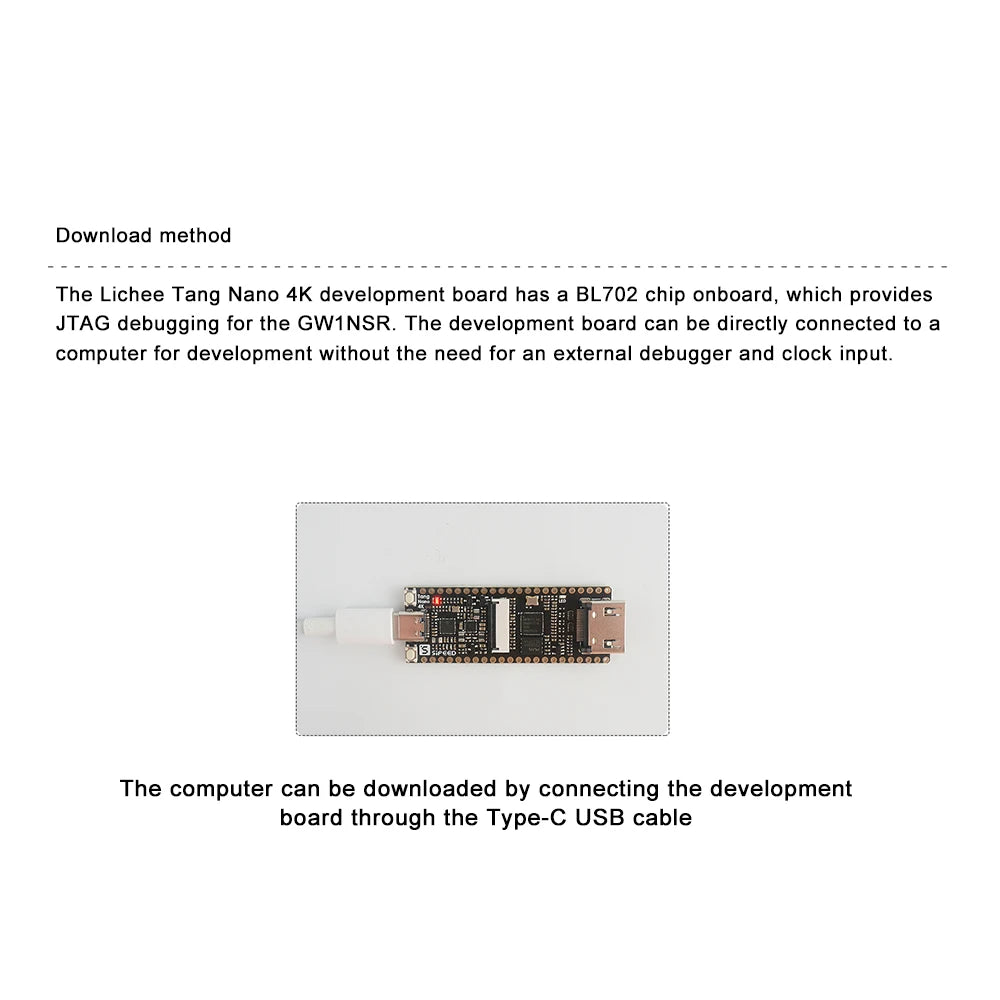

The Lichee Tang Nano 4K development board has a BL702 chip onboard, which provides JTAG debugging for the GW1NSR. The development board can be directly connected to a computer for development without the need for an external debugger and clock input.

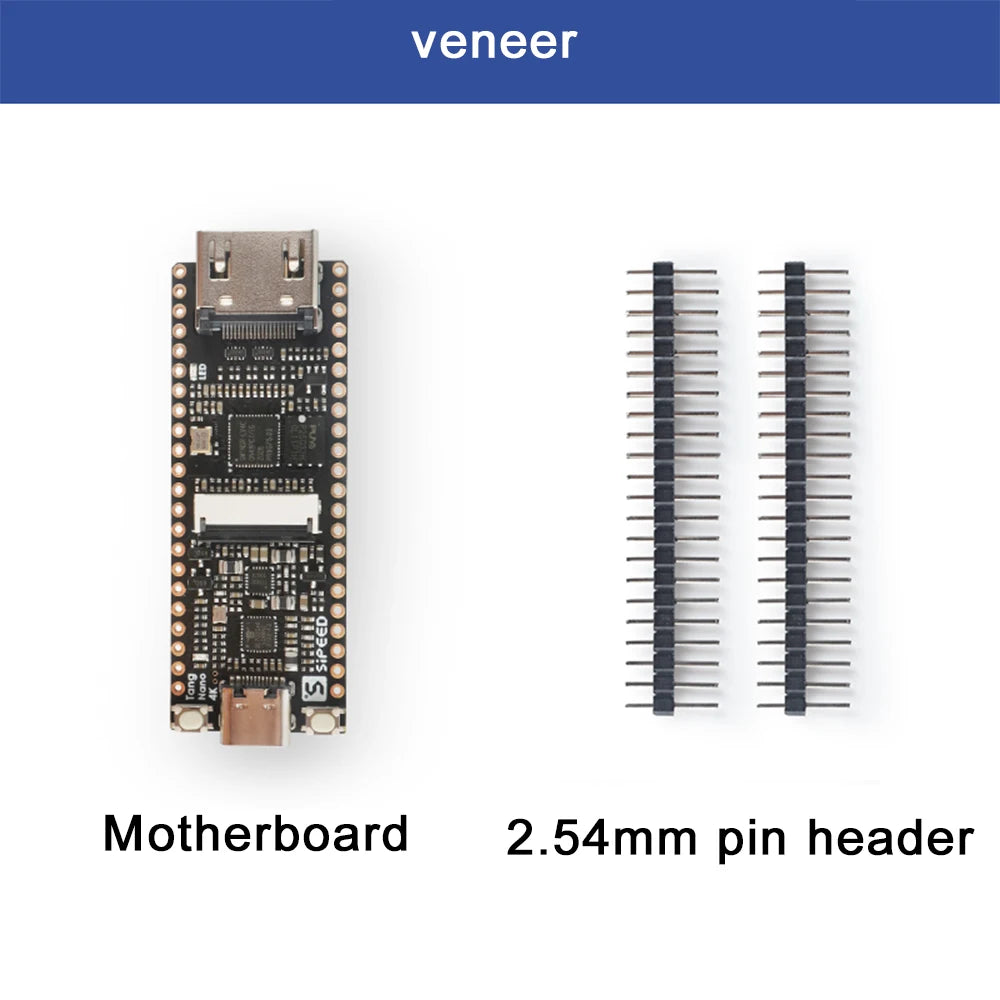

Package 1:

Development board X1

Pin header X2

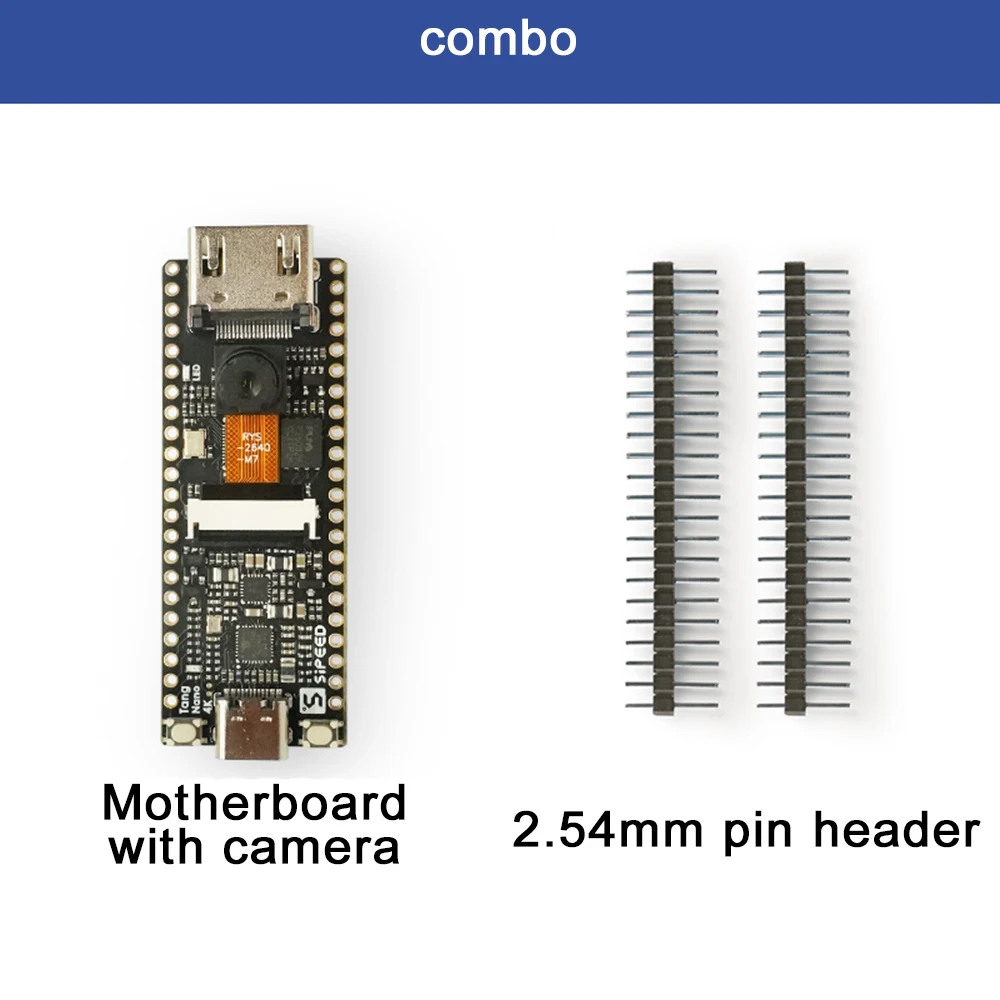

Package 2:

Development board X1

OV2640 Camera X1

Pin header X2
