SPECIFICATIONS

Brand Name: diymore

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

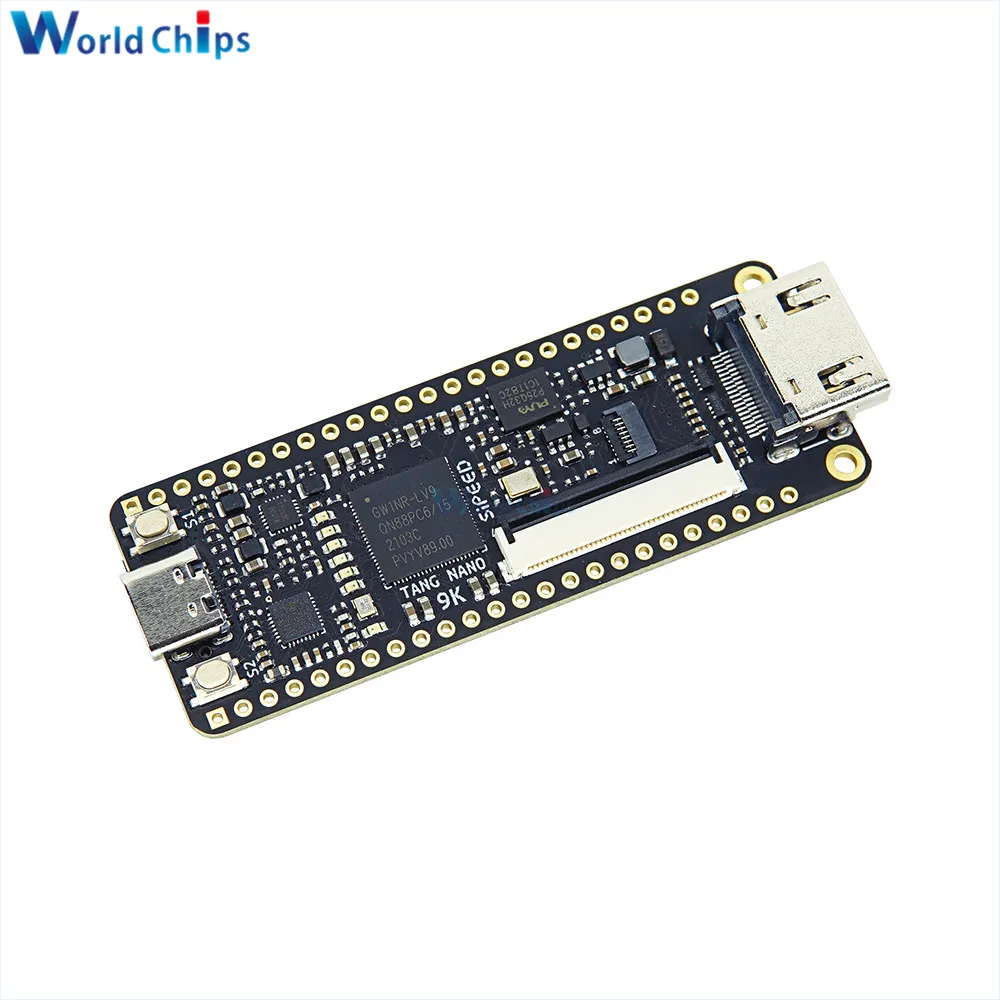

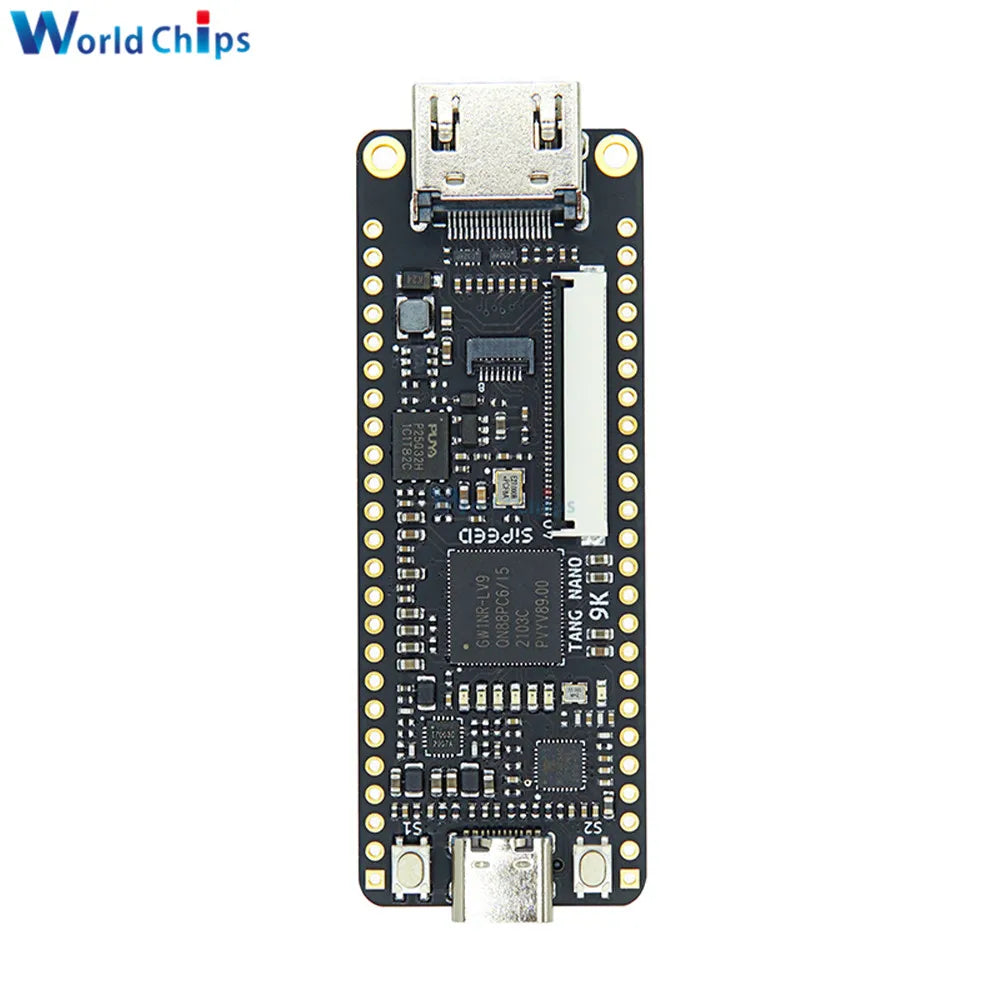

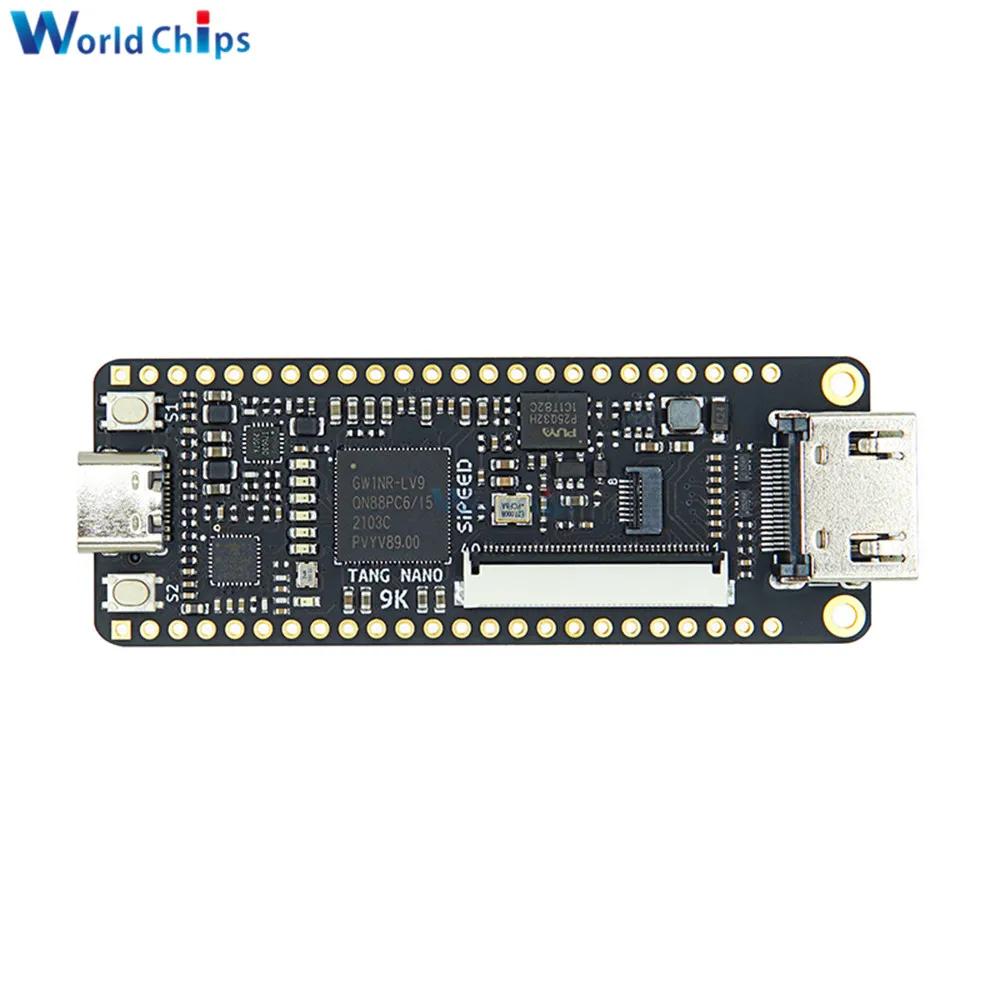

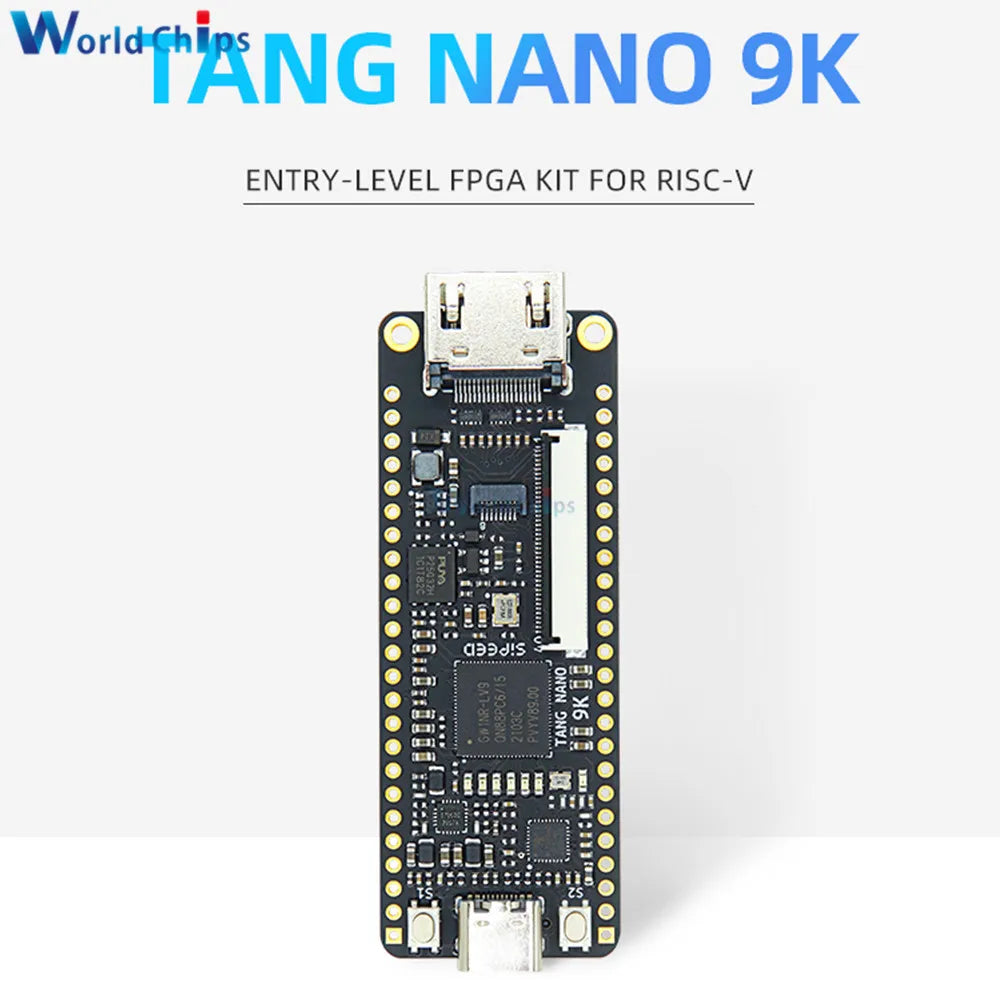

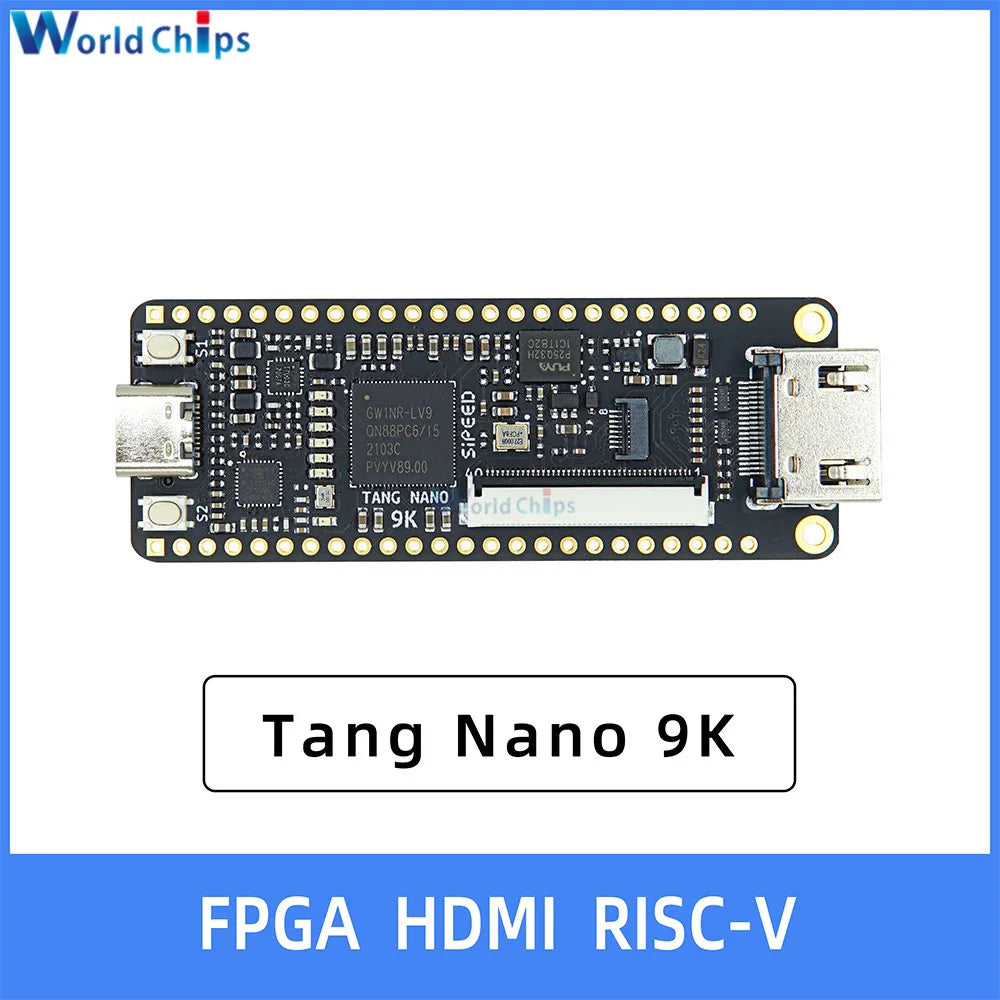

Tang Nano 9K Gaoyun FPGA GoAI Development Board GW1NR-9 RISC-V RV HDMI 40P RGB Interface with 1.14/4.3/5/7 Inch SPI Bare Screen

Features:
S-SRAM: 17280 bits S-SRAM
User Flash: 608K bits User Flash

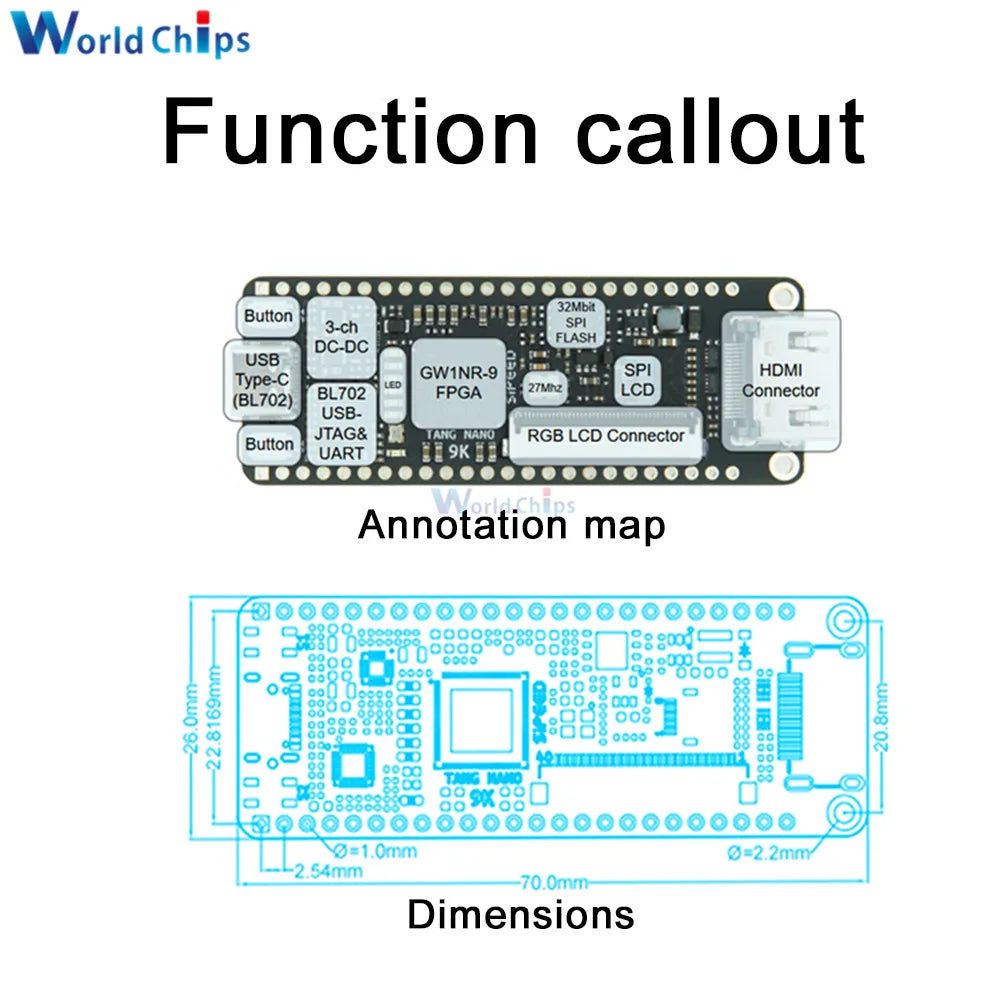

Display interface: HDMI, 40P RGB interface, 8P SPI screen interface
With IF card holder
Downloader: Onboard USB-JTAG&UART downloader

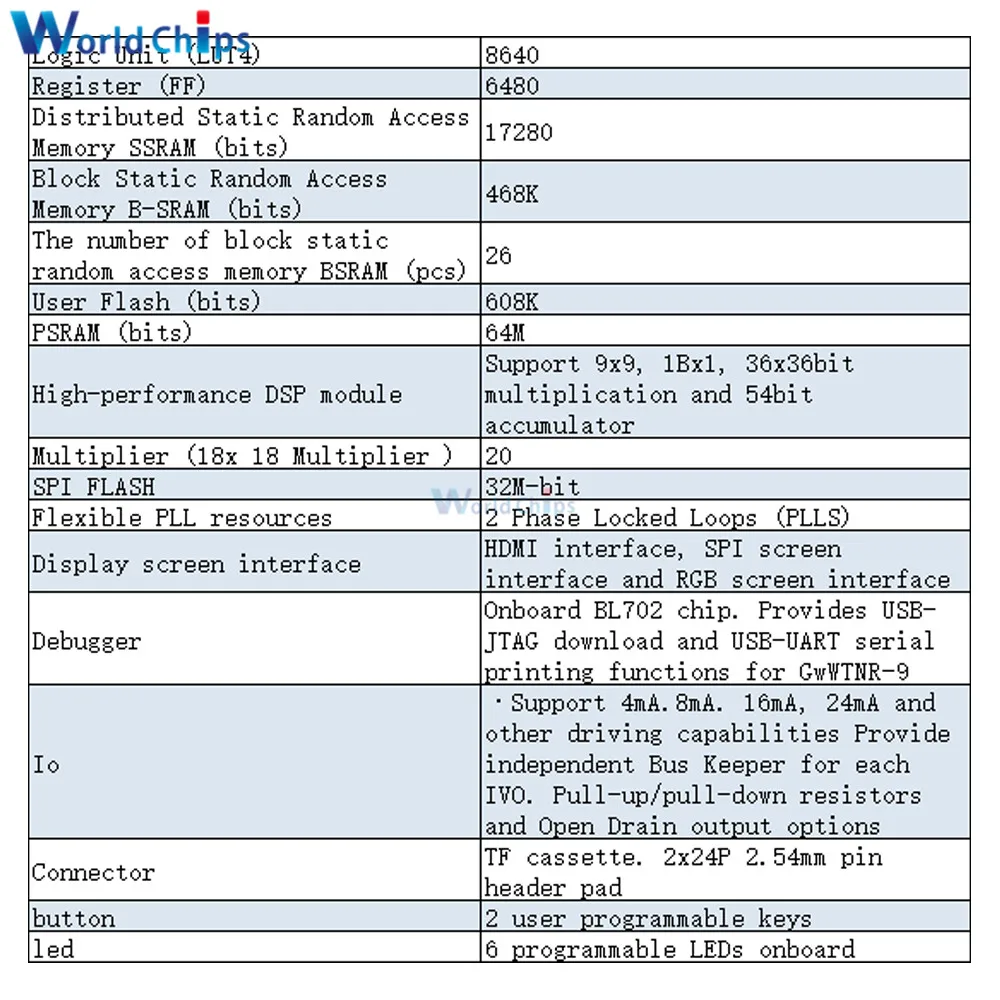

Core configuration:
Logical Units (LUT4): 8640
Register (FF): 6480
Distributed Static Random Access Memory SSRAM (bits): 17280
Block Static Random Access Memory B-SRAM (bits): 468K
The number of block static random access memory BSRAM (pcs): 26
User Flash (bits): 608K
PSRAM (bits): 64M
High-performance DSP module: support 9x9, 18x18, 36x36bit multiplication and 54bit accumulator
Multiplier (18x 18 Multiplier ): 20
SPI FLASH: 32M-bit
Flexible PLL resources: 2 Phase Locked Loops (PLLs)

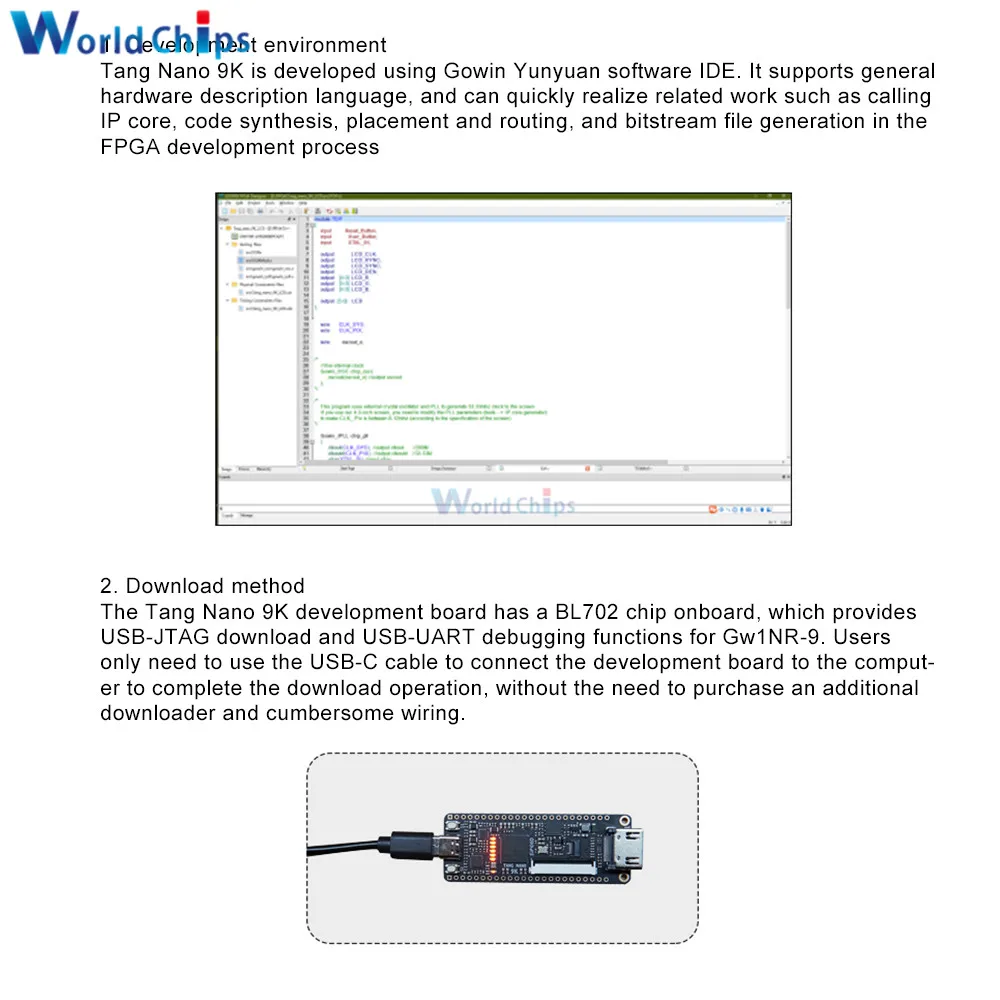

Debugger: Onboard BL702 chip, providing USB-JTAG download and USB-UART serial port printing functions for GW1NR-9

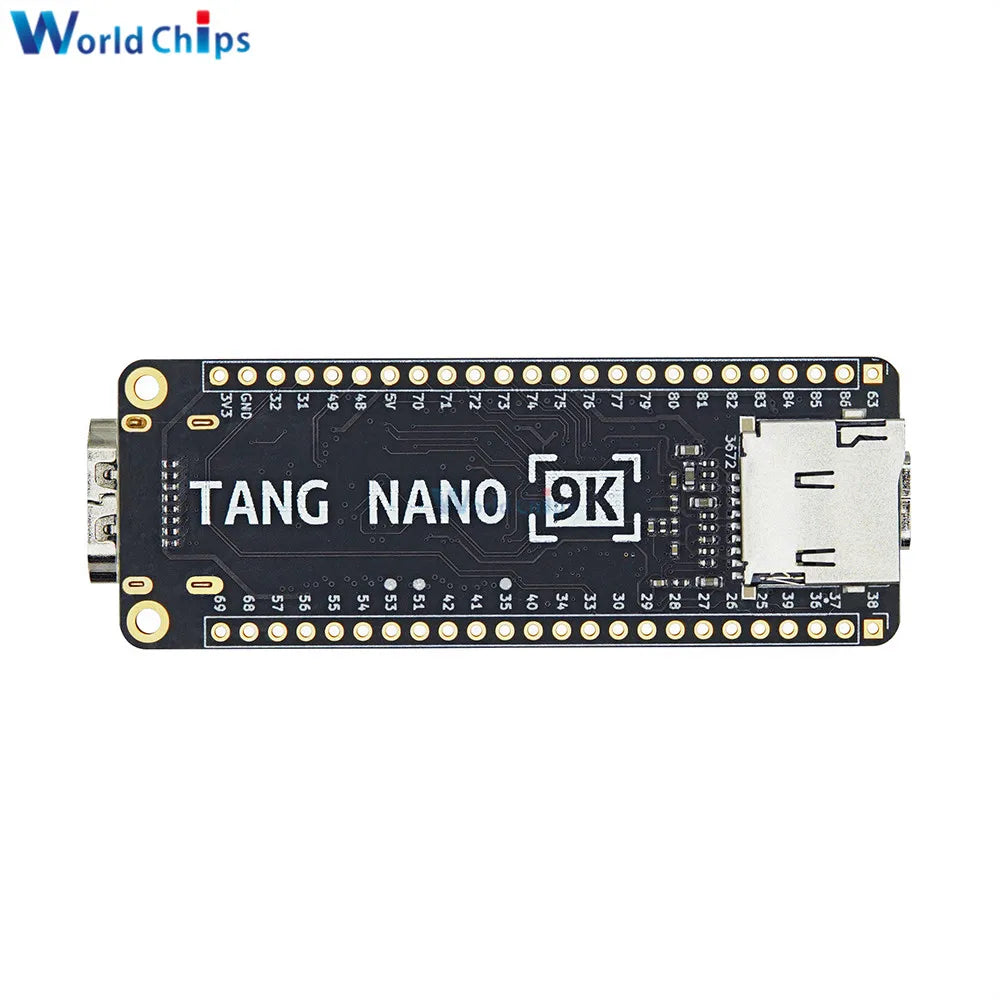

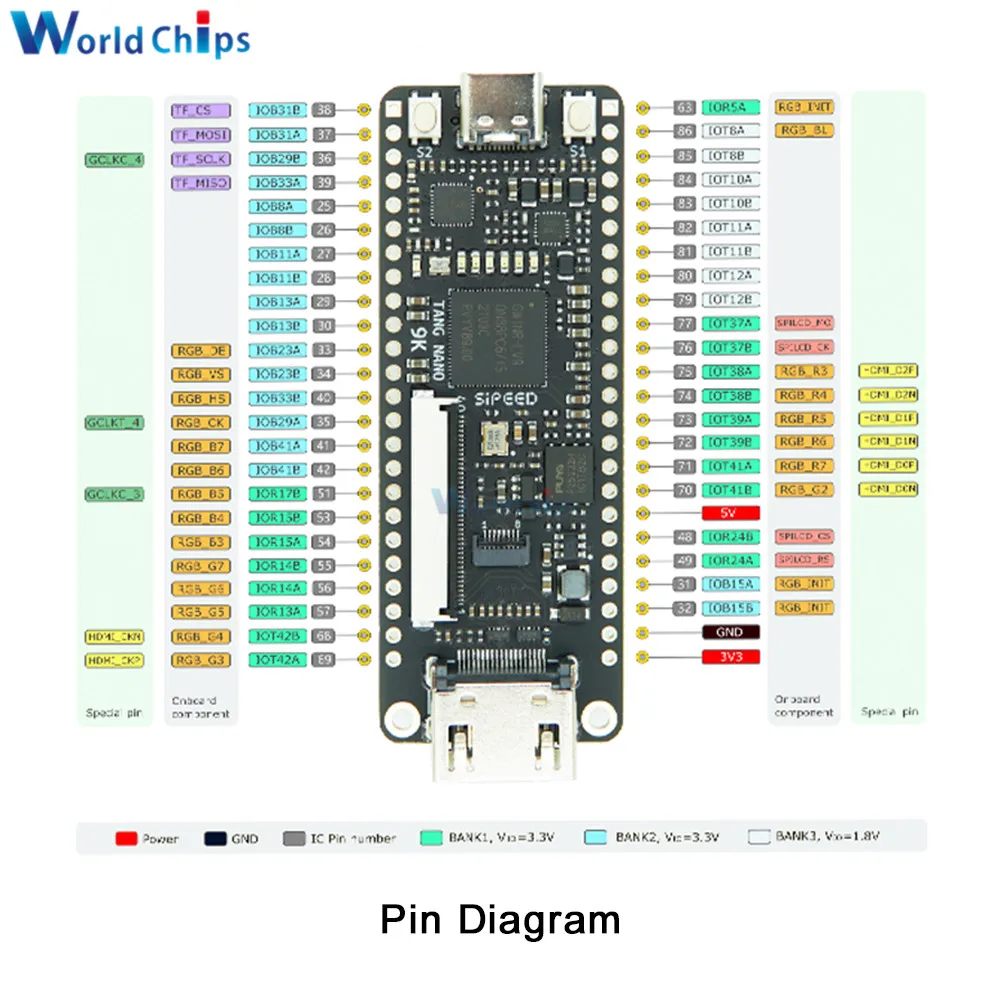

Connector: TF card holder, 2x24P 2.54mm pin header pad
Keys: 2 user programmable keys
LEDs: 6 programmable LEDs onboard

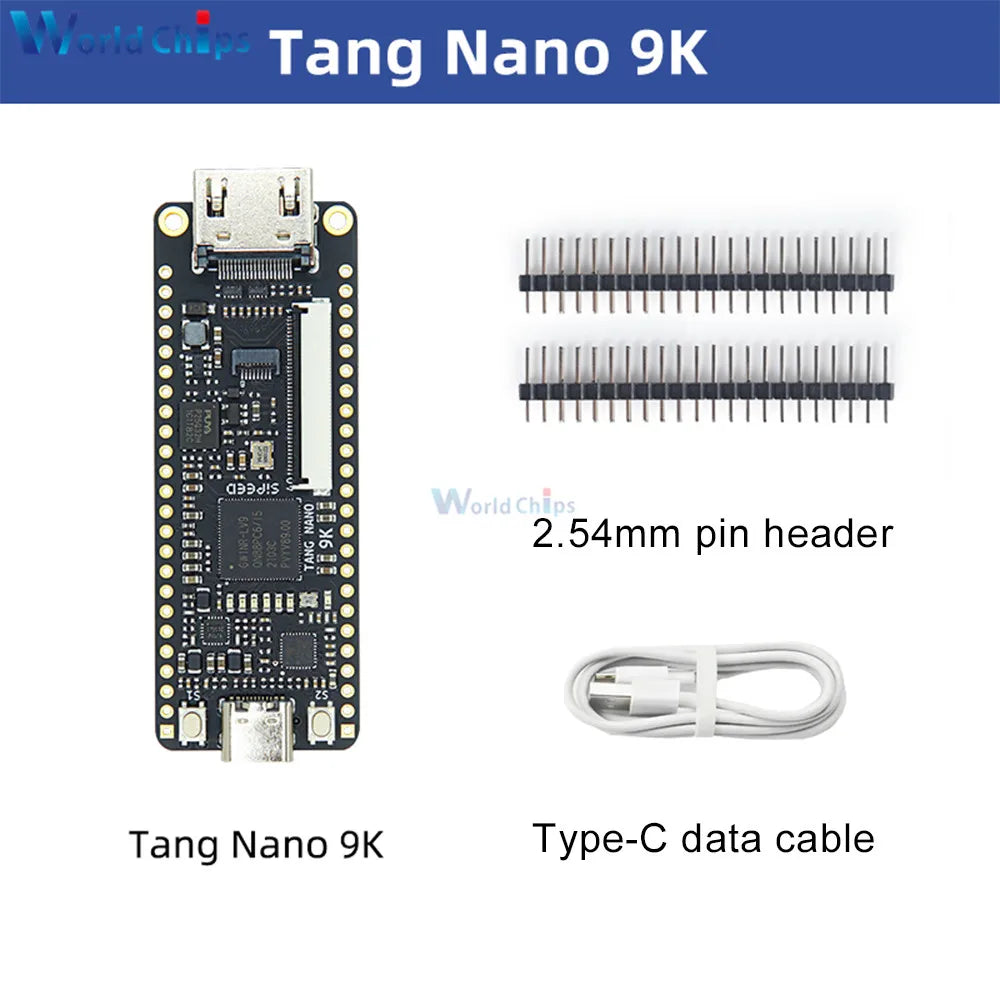

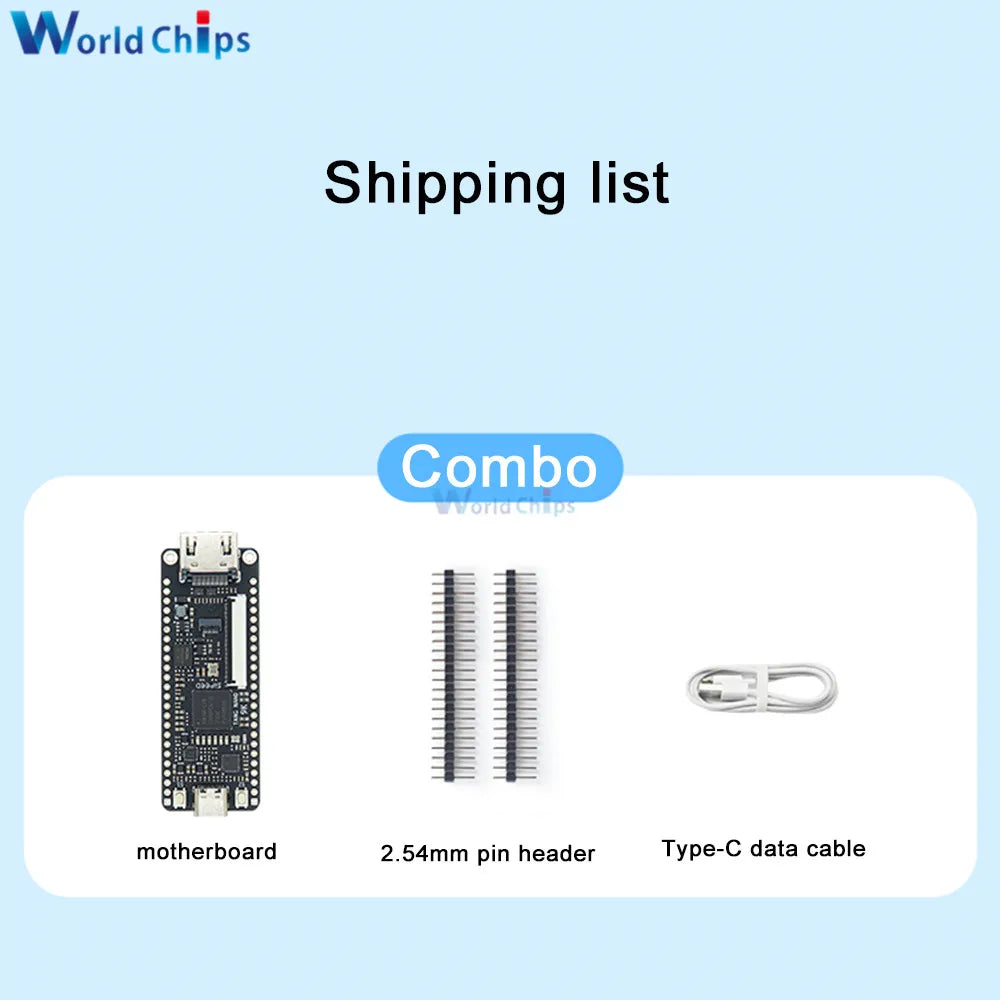

Package A:
Motherboard X1
2.54mm pin header X2
Type-C data cable X1

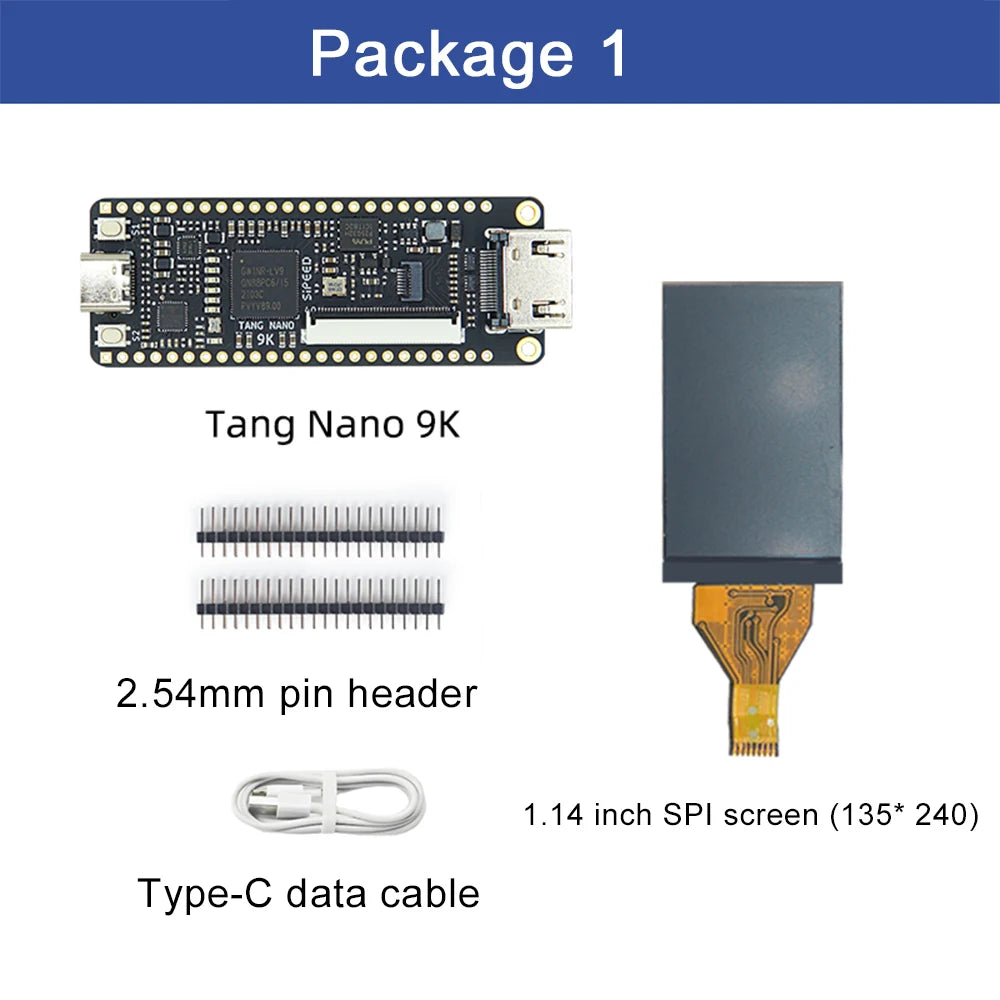

Package B:
Motherboard X1
2.54mm pin header X2
Type-C data cable X1
1.14 inch SPI screen X1

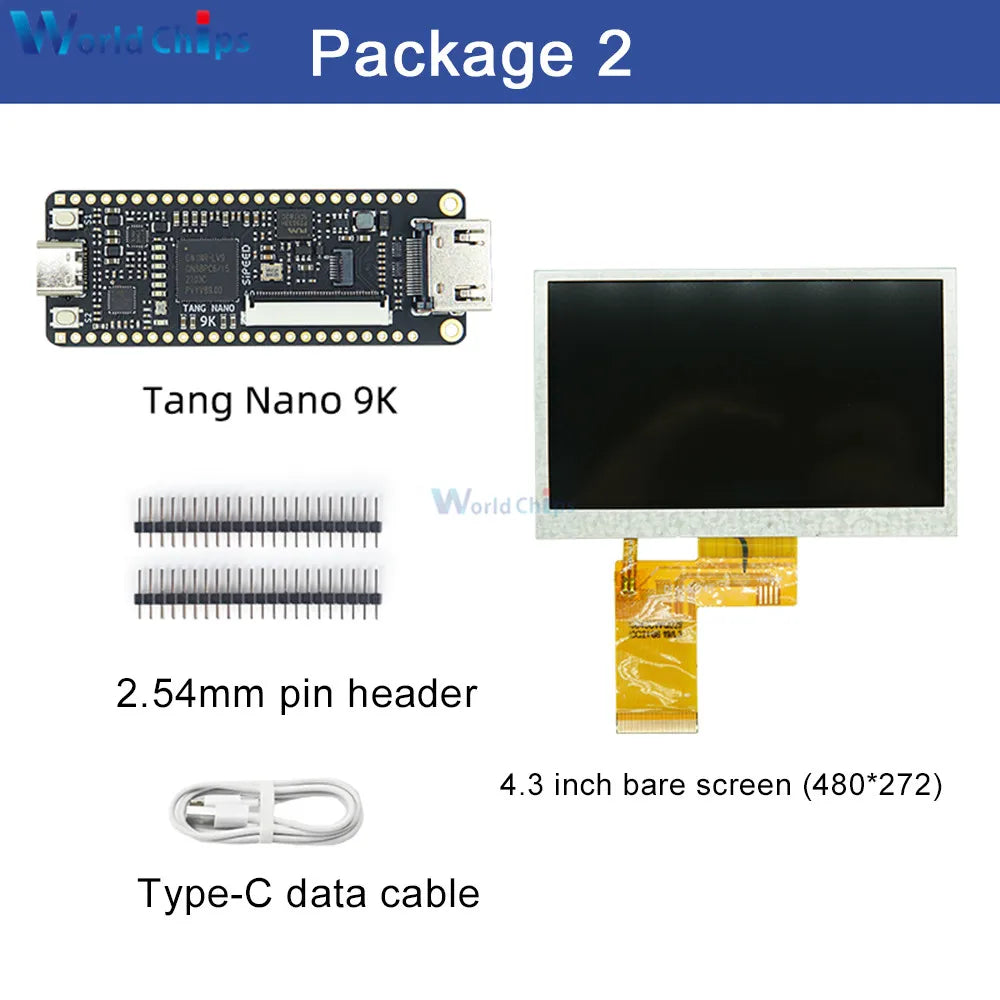

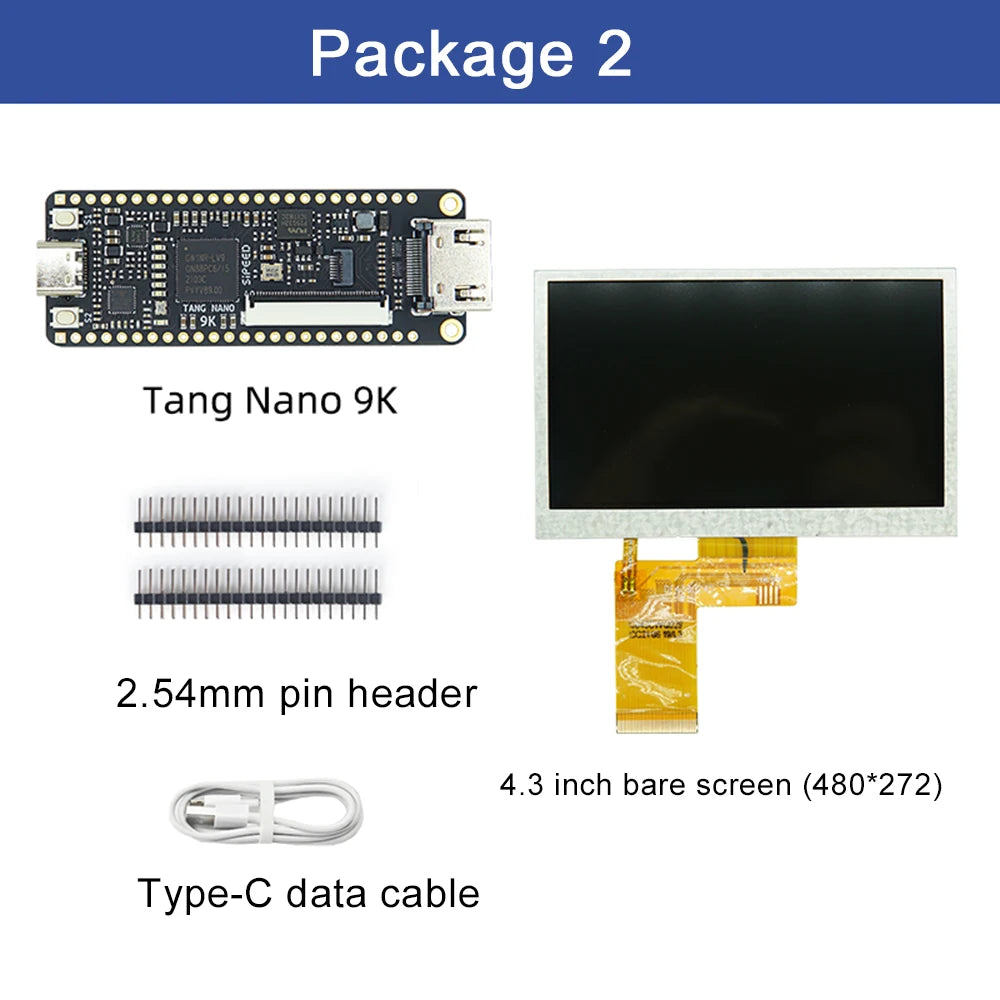

Package C:
Motherboard X1
2.54mm pin header X2
Type-C data cable X1
4.3 inch bare screen X1

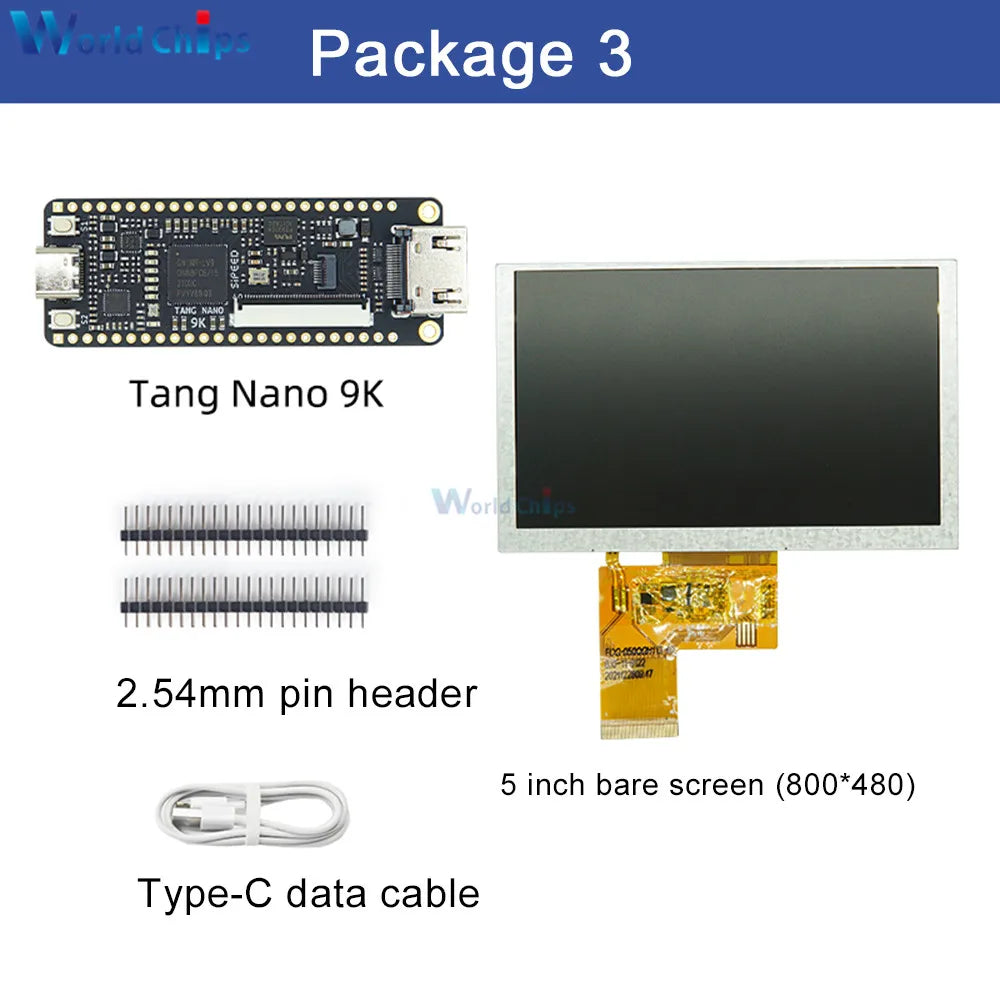

Package D:
Motherboard X1
2.54mm pin header X2
Type-C data cable X1
5 inch bare screen X1

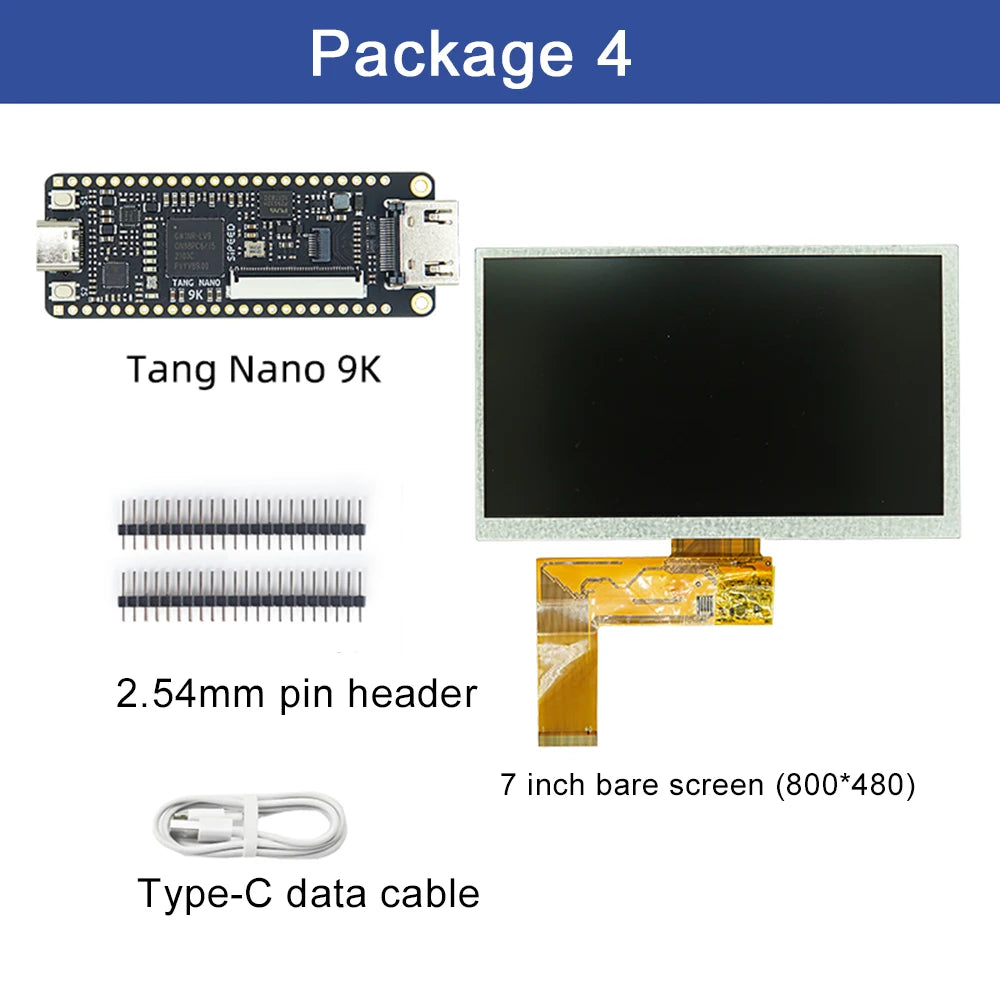

Package E:
Motherboard X1
2.54mm pin header X2
Type-C data cable X1
7 inch bare screen X1
