SPECIFICATIONS

Audio Output Mode: Other

Brand Name: NONE

Choice: yes

Control Method: Others

DSP Bluetooth 2.0 Audio Amp Board: TAS5805

Department: Unisex-adult

Form-factor: Others

High-concerned chemical: none

Item Type: Speaker Active Components

Model Number: TAS5805

Number of Items: 1

Origin: Mainland China

Package: Yes

Power Source: Others

Speaker maximum output power: 60W

Subwoofer connectivity technology: Wired

Surround sound channel configuration: 2.0

Water Resistance Level: Not water resistant

semi_Choice: yes

Description

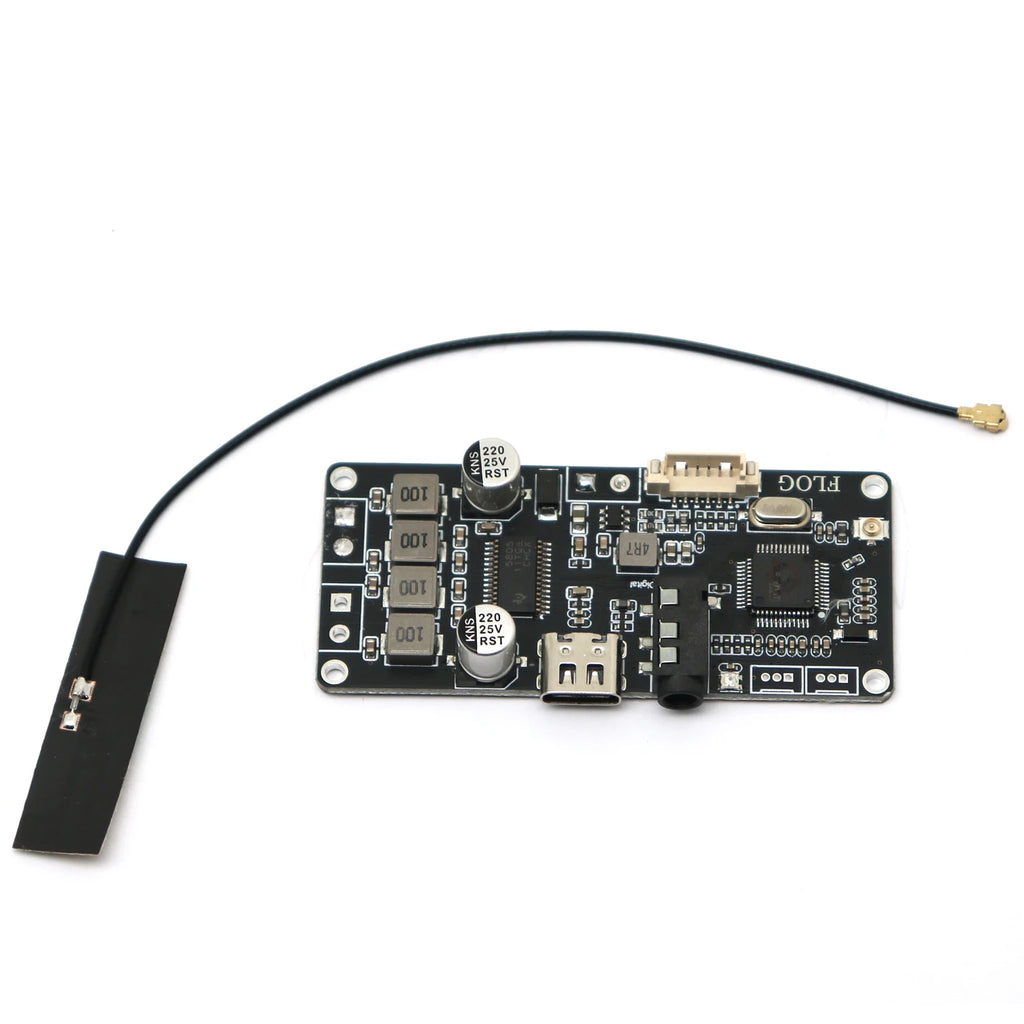

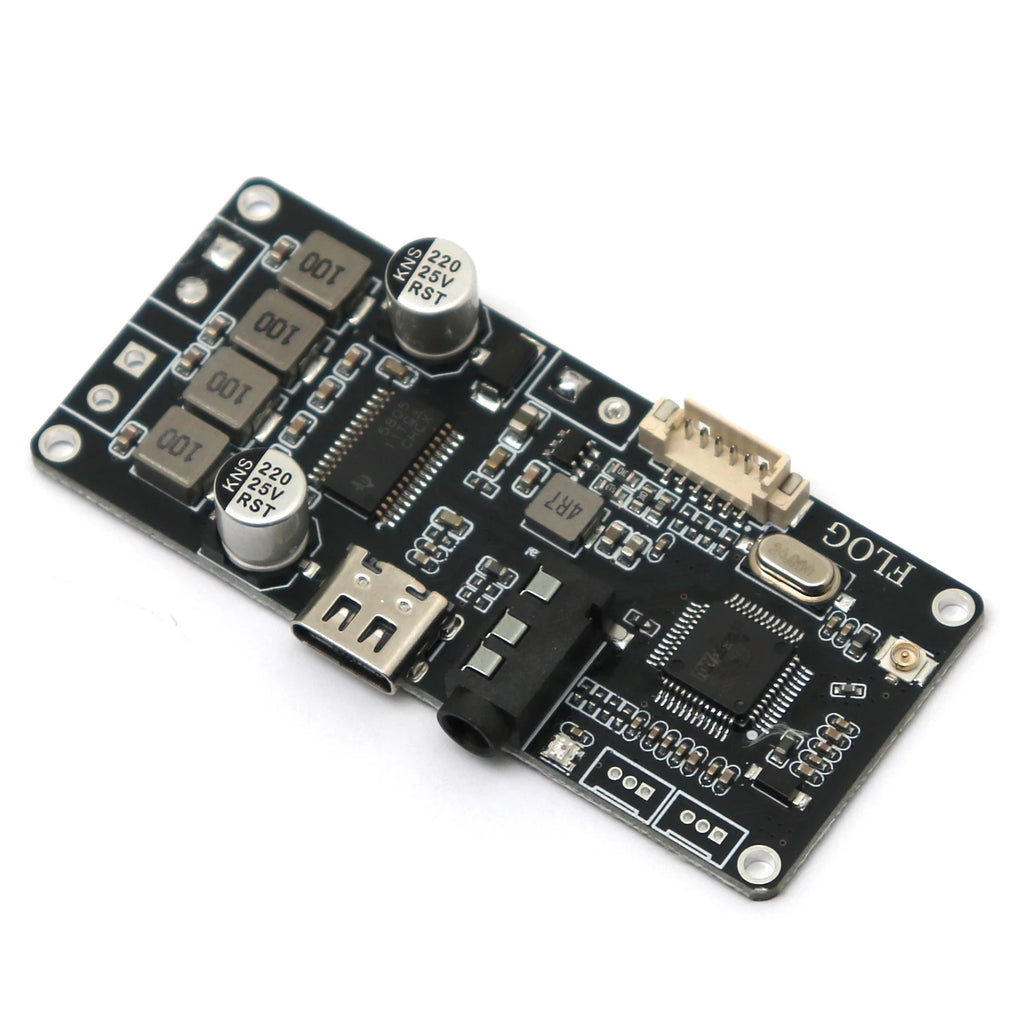

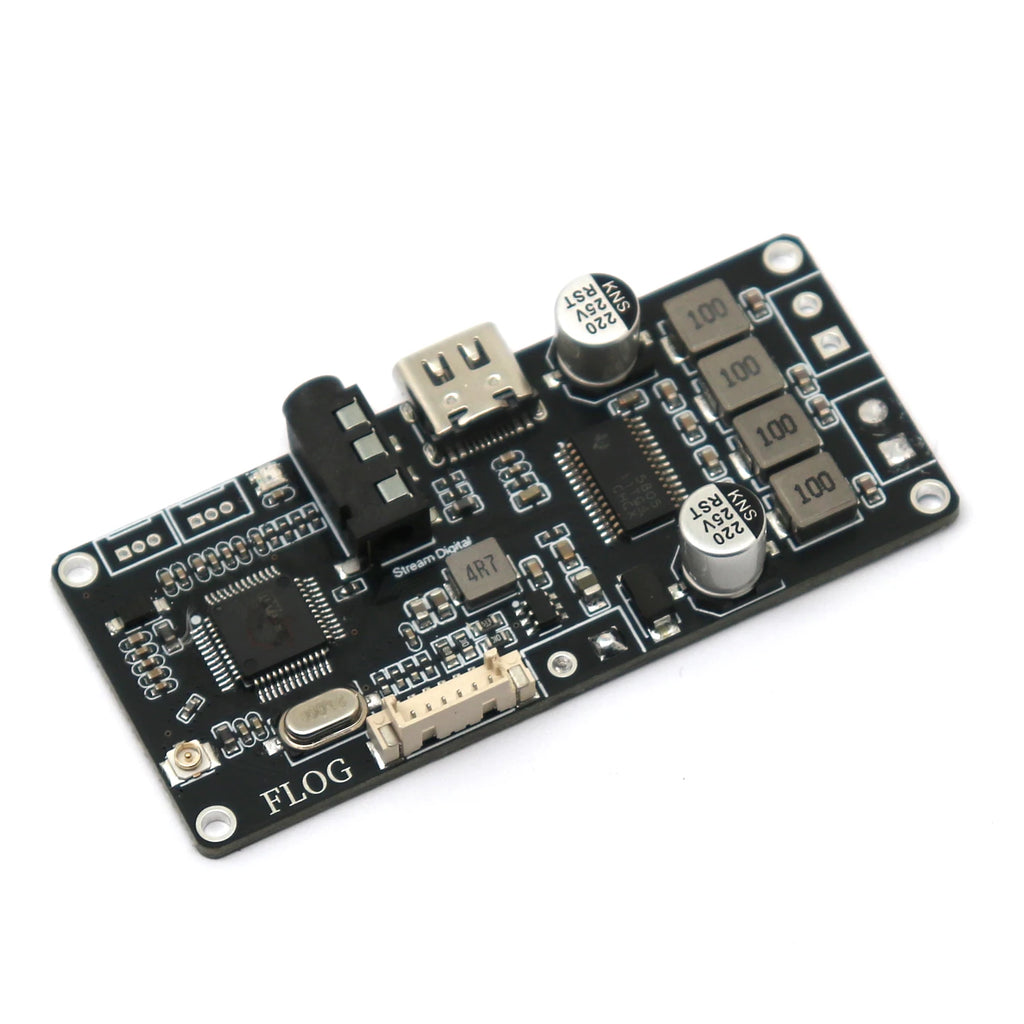

Mini ultra-high definition I2S TAS5805 Bluetooth DSP power amplifier board, Mountain View DSP power amplifier board 2.0 channel 60W

▶All digital design, the power amplifier is a digital input (I2S) power amplifier, which brings ultra-high signal to noise ratio and ultra-low noise floor (better than bose mini2 noise floor), no distortion sound quality experience, the highest THD + N ≤ 0.03%, SNR = 107db, so that you can also enjoy the sound quality of high-end audio.

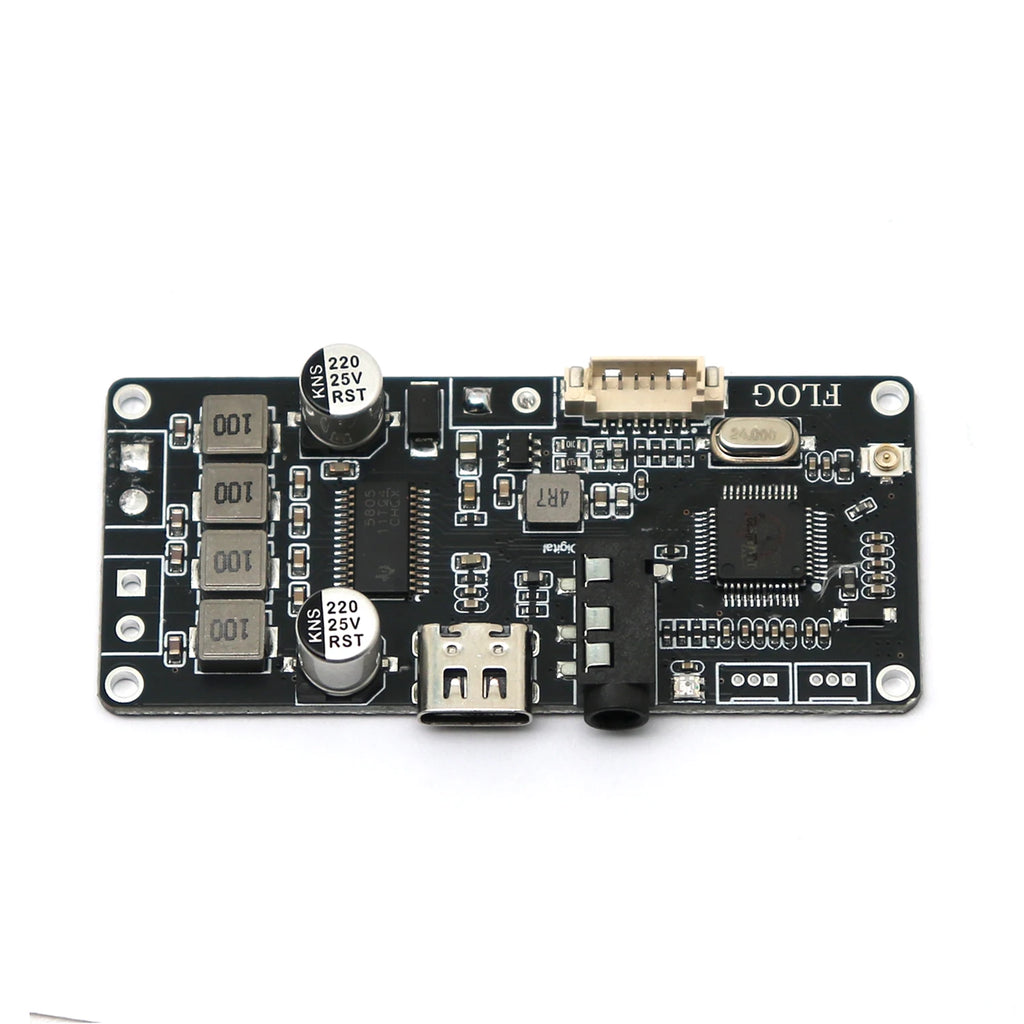

▶Ultra-small size 61 * 28mm can be used for small size audio with high sound quality requirements

▶Bluetooth 5.3 supports AAC/SBC, AAC sound quality is better

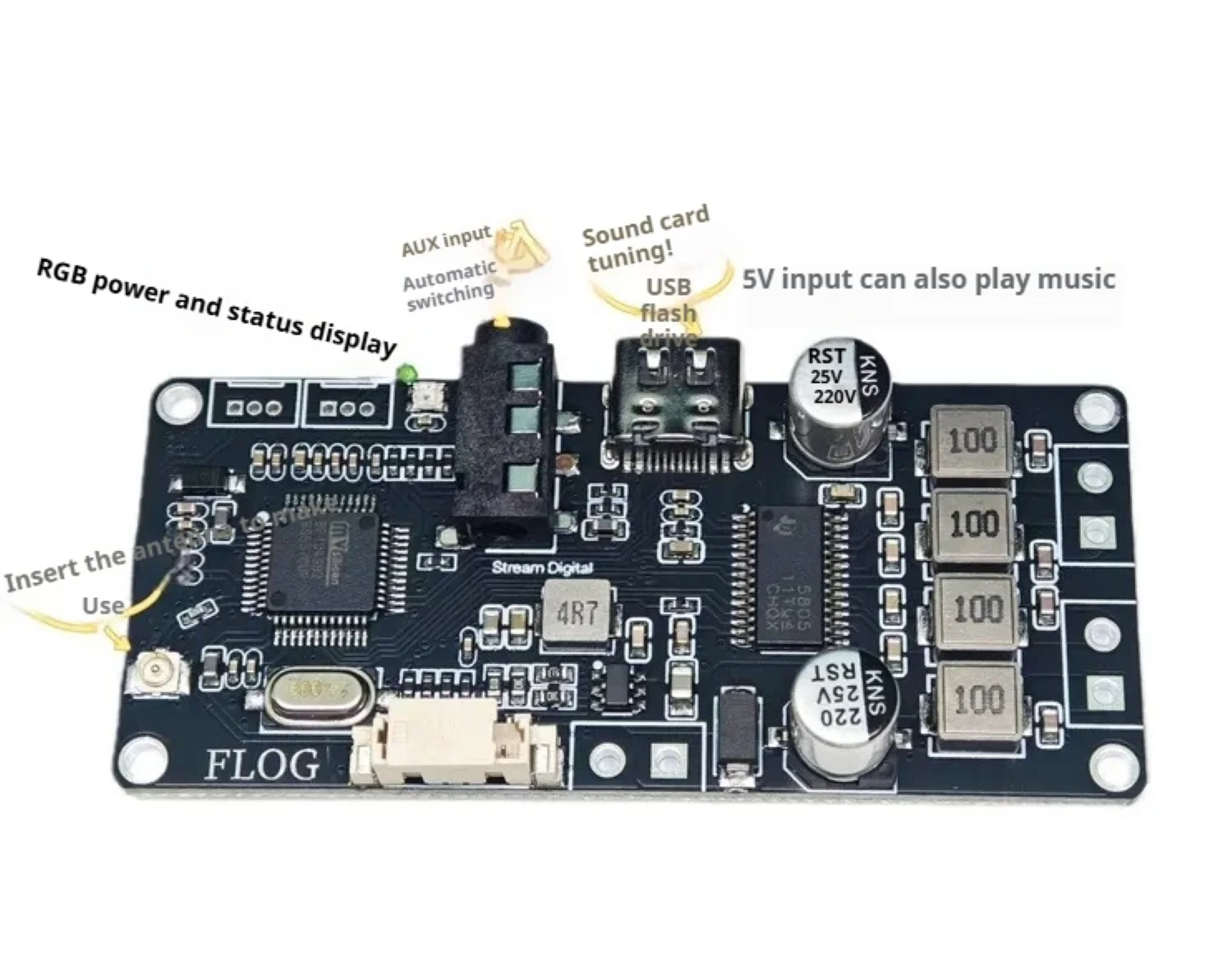

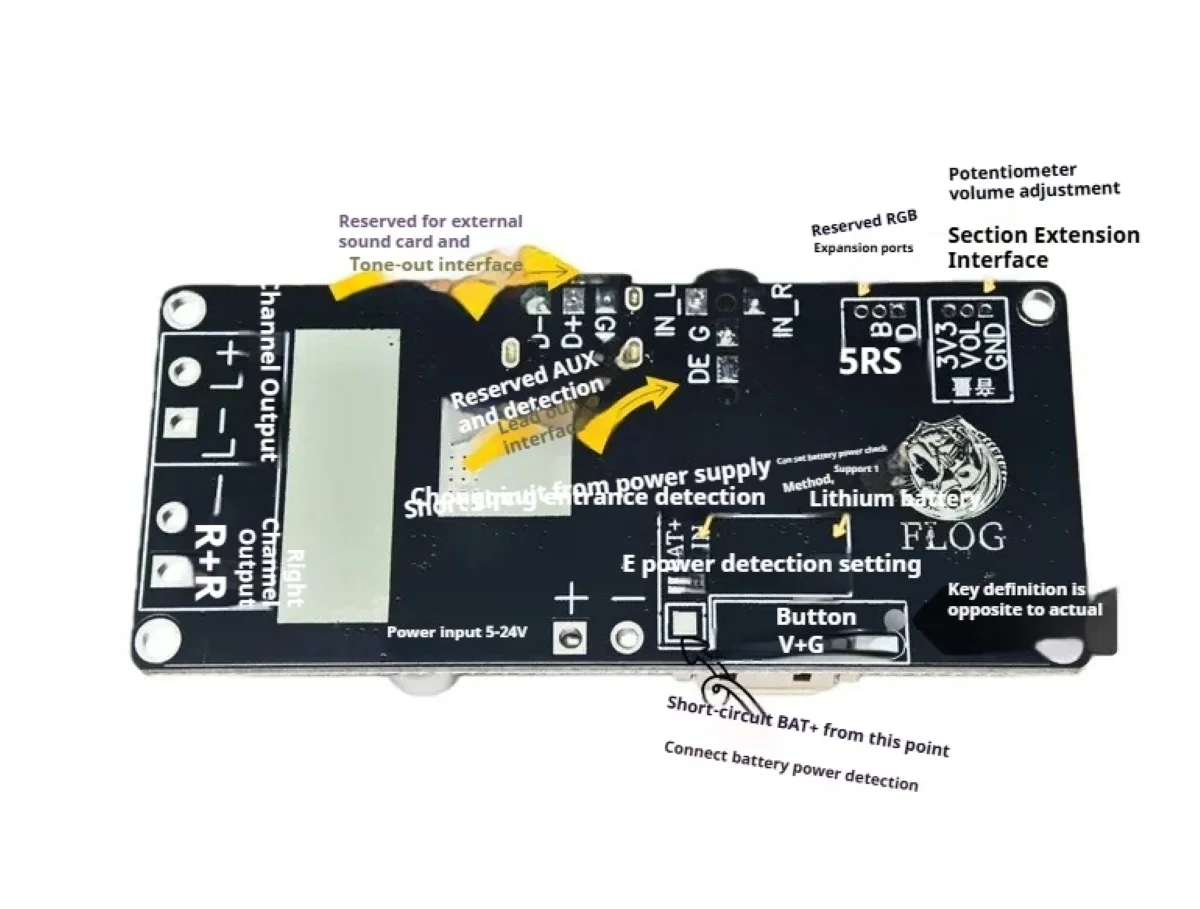

▶Support Bluetooth power echo, RGB power display, and can set 1-6 strings of lithium battery power detection

▶Support software switch (touch button does not use this function), power it on for the first time, support software settings whether to use software switch

▶In THD + N ≤ 1%, you can get 2 * 23W power, 4Ω speaker 24V power supply, maximum power 2 * 30W, 5-24V power supply, recommended power supply below 18V, 24V must be used with heat dissipation!!!

The power supply power is the same as the speaker power. It is recommended to use a 12V power supply 8Ω impedance speaker. When using high power, you need to enhance heat dissipation, otherwise it is easy to overheat and shut down!!!

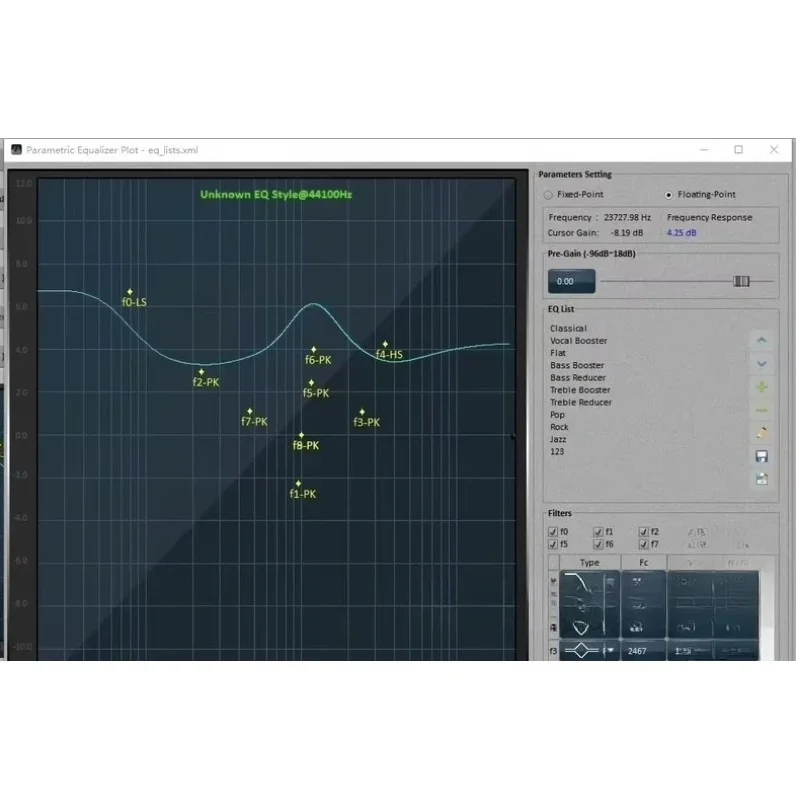

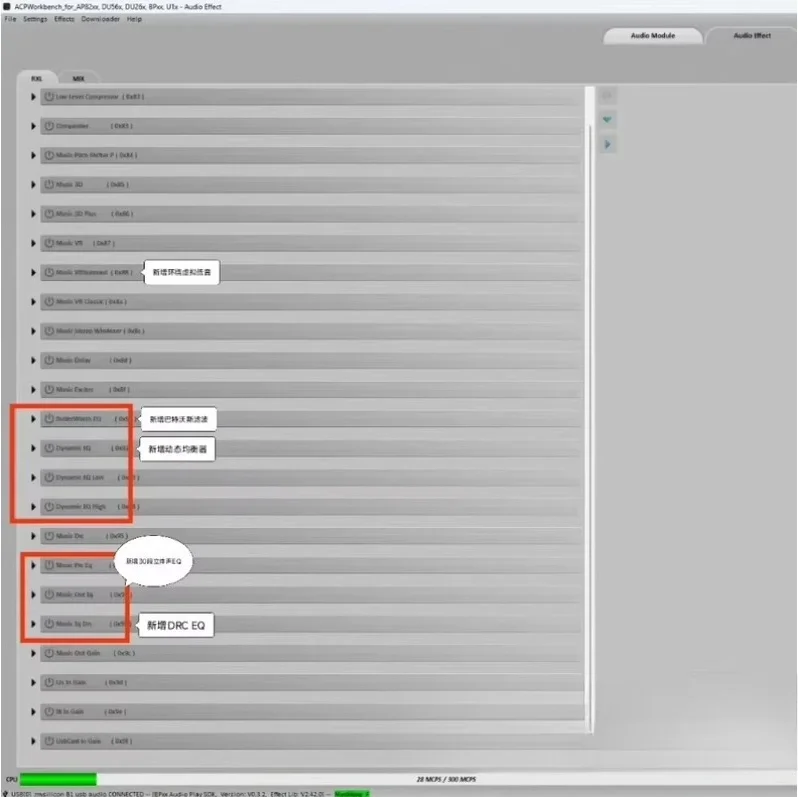

▶DSP Mountain View Bluetooth, DIY tuning (using computer host), virtual bass enhancement, stereo enhancement, 30-band EQ equalizer, noise suppression, DRC power suppression, a variety of functions can call up your favorite sound, support saving 3 global sound effects switch;

▶The materials used are exquisite, integrated metal high current inductor, high capacity density capacitor, power amplifier independent high noise suppression ratio linear regulated power supply, synchronous high frequency 1MHz step-down, eliminating audible low frequency interference

▶Support TWS, support Bluetooth input, AUX input, U disk, USB sound card input (the computer can be directly plugged into usb, the sound quality is the best)

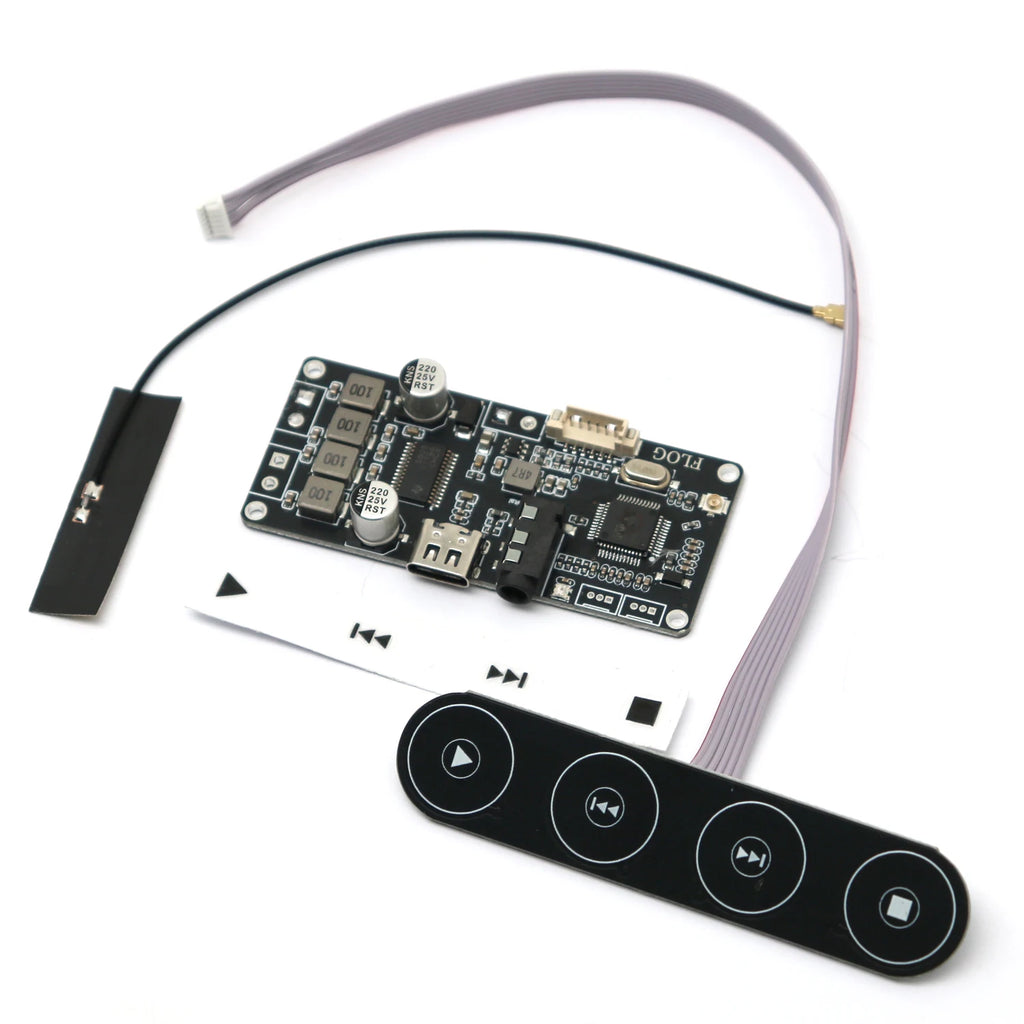

▶Bluetooth or USB flash drive mode supports button control, four buttons: play/pause (triangle icon ▶) (click, play pause, long press to switch sound effects), up and down (long press volume ±), mode switch (square icon ■) (click mode input switch, long press mode switch, double click TWS)

▶Support external control of a total volume potentiometer knob
