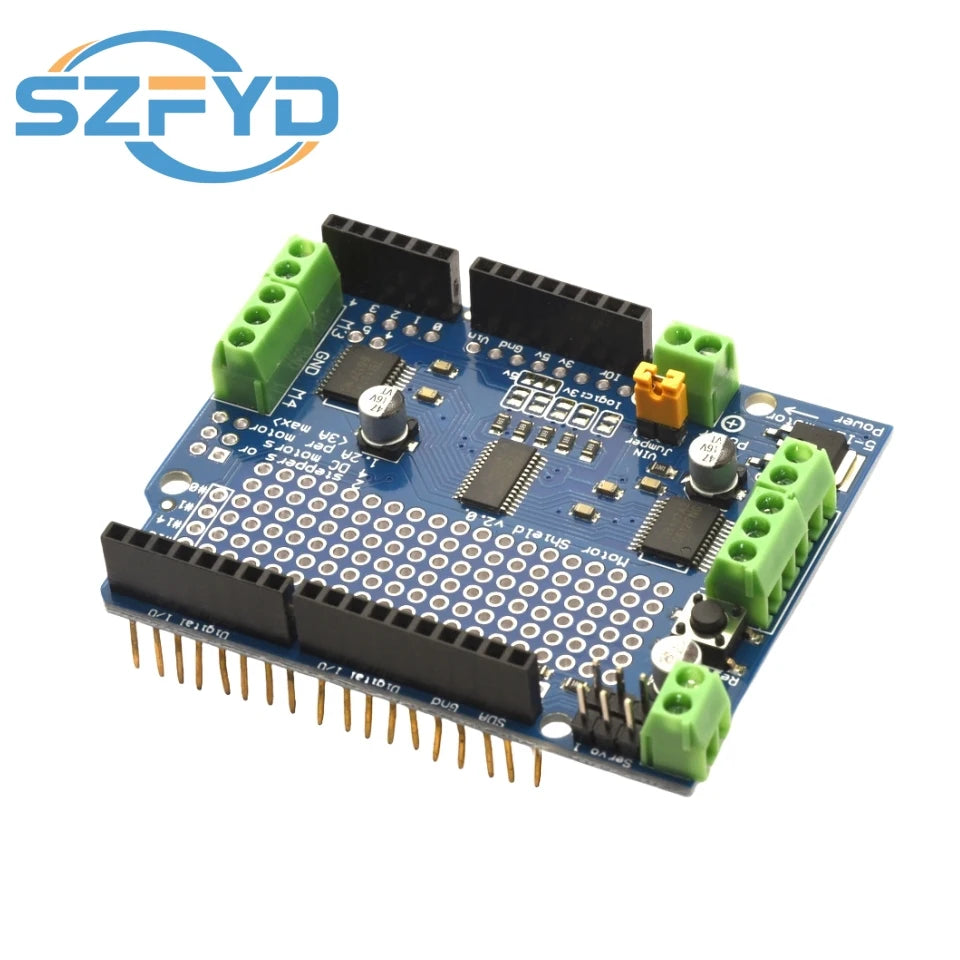

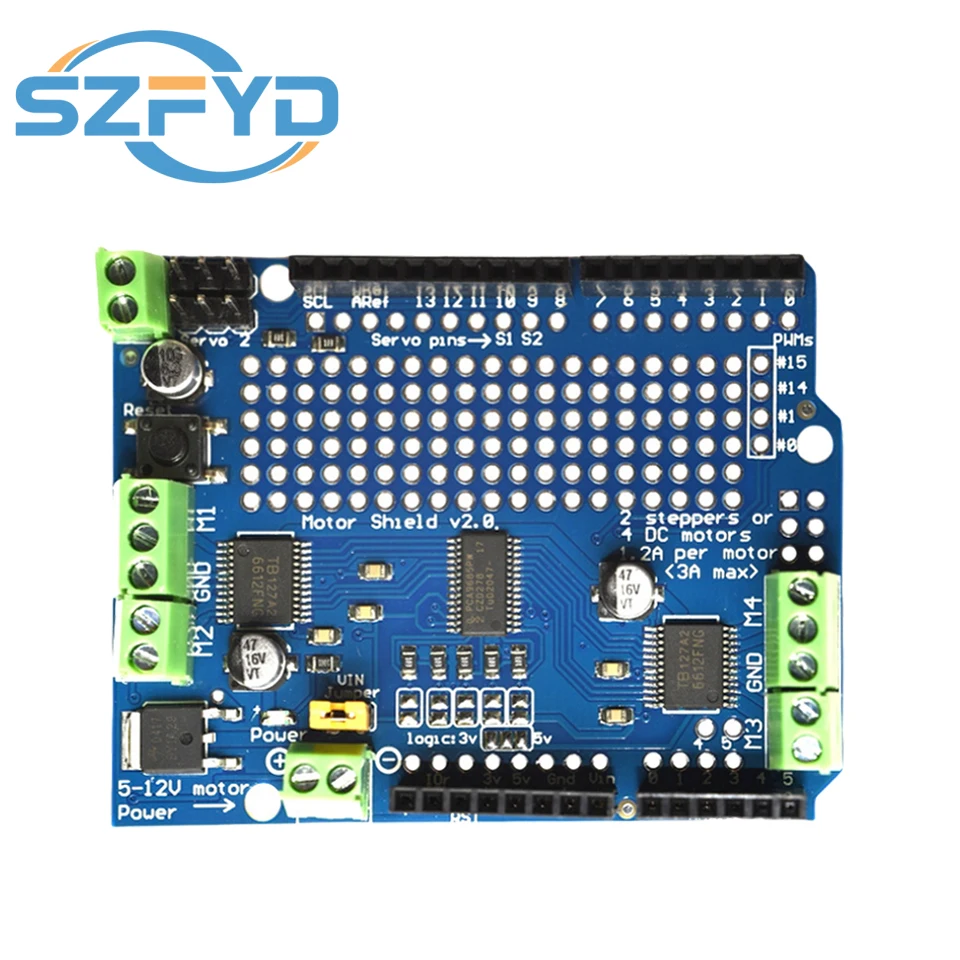

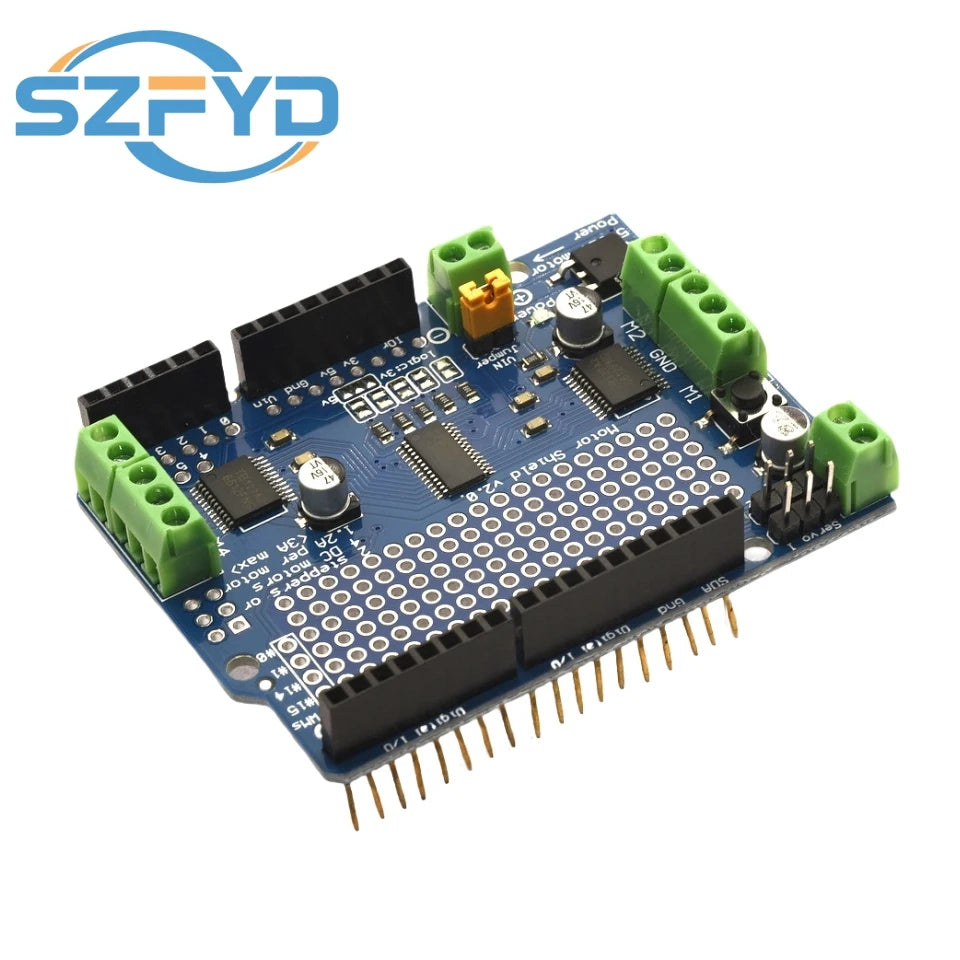

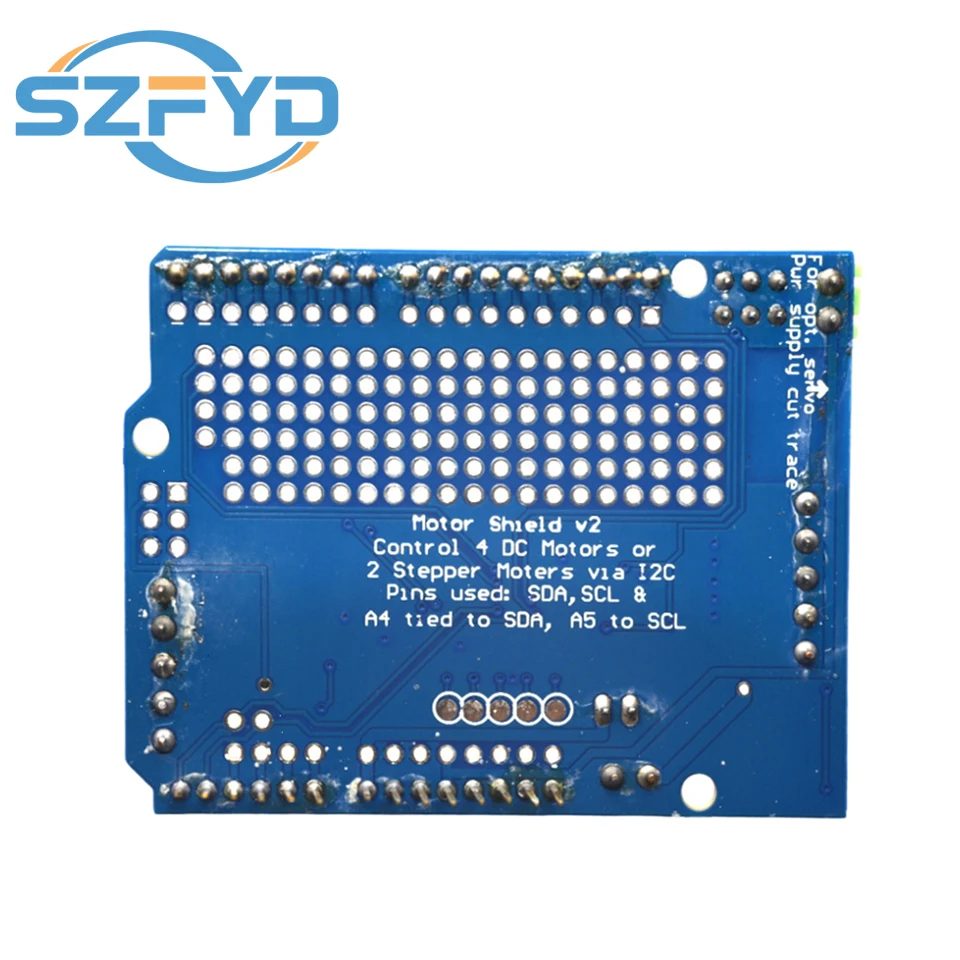

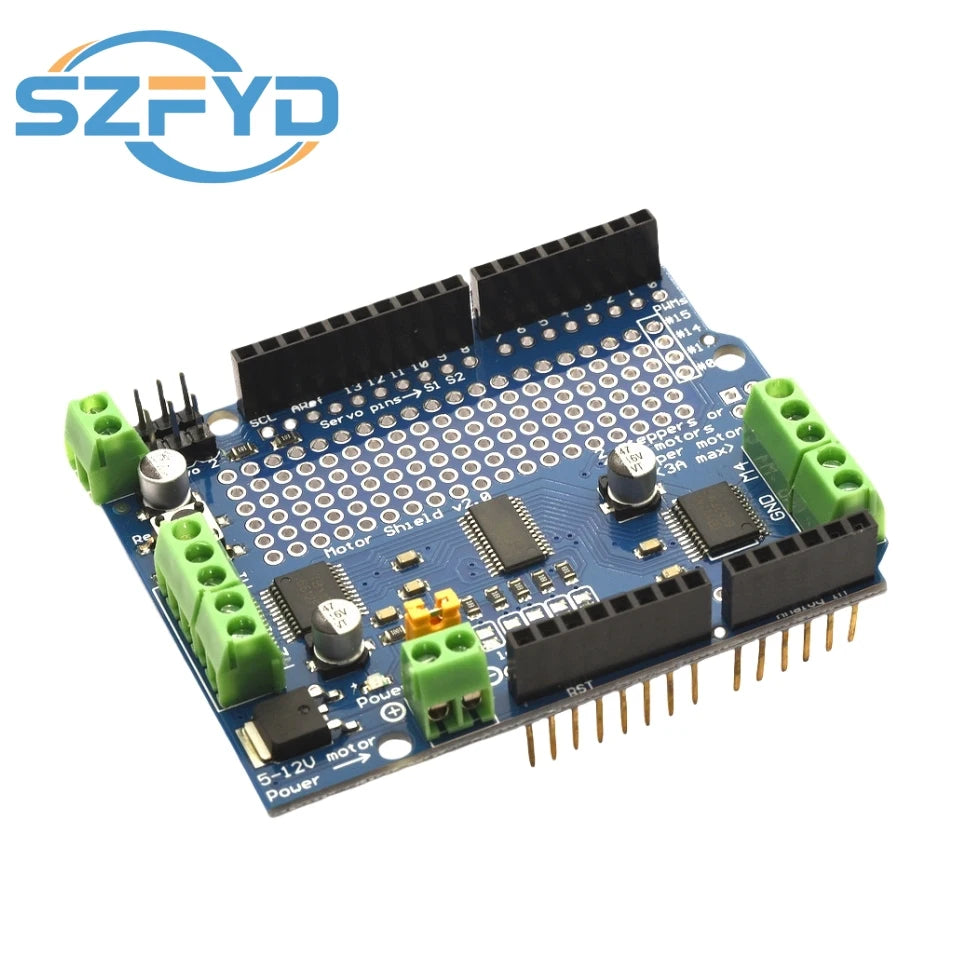

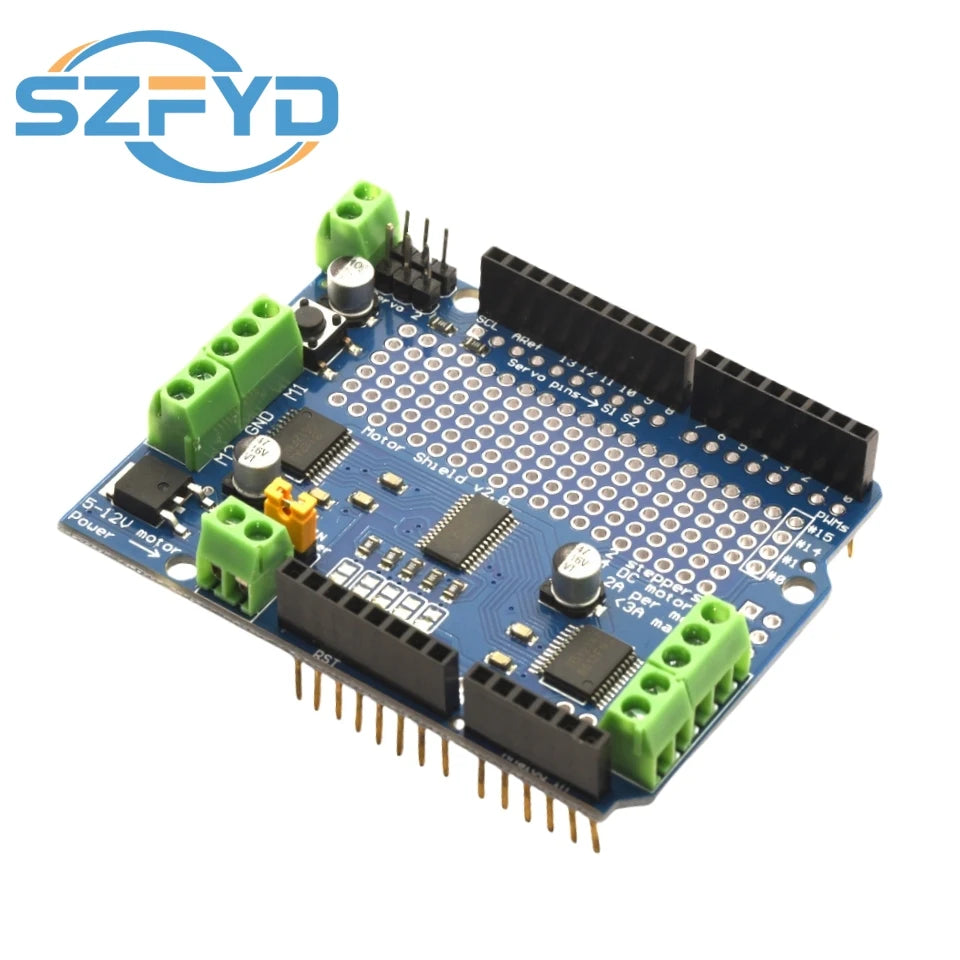

Motor Shield Driver Board Shield V2 DC Stepper Motor Servo Drive Module TB6612 for Arduino Robot Mega R3

Features:

1. High Compatibility: This motor drive shield board offers high compatibility, supporting various motors including 2 servos, 4 brushed DC motors, or 2 4-wire stepper motors. Enjoy the flexibility to drive different types of motors with a single module, making it suitable for a wide range of projects.

2. Direct PWM Output: With direct PWM output capability, this motor shield driver board enables easy control of servo motors without additional circuitry. Effortlessly adjust the motor's position or speed by utilizing the built-in pulse width modulation (PWM) functionality.

3. TB6612FNG Chip: Utilizing the powerful TB6612FNG motor driver chip, this PWM servo motor driver provides a driving ability of 1.2A and peaks current of 3.2A, surpassing the capabilities of the L298N module. Experience superior motor control and performance with this advanced motor driver chip.

4. Fully Expandable Interface: The PWM servo driver board features a fully compatible interface, allowing for easy expansion and connection to other compatible devices. Expand your project by adding additional shields or modules, enabling more motors or peripherals to be controlled simultaneously.

5. Address Modification via I2C: Communicate with the DC stepper motor servo drive module through the I2C interface, offering the ability to modify the address for enhanced versatility. Customize the addressing scheme to suit your specific project requirements, ensuring seamless integration and control.

Specification:

Origin: Mainland China

Type: Module

Condition: New

Model Number: DC Stepper Motor Module

Product size: 70.00x53.00x20.00mm/2.76x2.09x0.79inch

Product Description:

1.  Can be connected to 2 servos, direct output PWM drive

2.  Can be connected to 4 DC brush motors or 2 4-wire stepper motors.

3.  Using TB6612FNG motor driver chip, 1.2A driving capacity, peaks 3.2A, kills the L298N module.

4.  Fully compatible interface expansion

5.  Through the I2C and arduino communication, you can modify the address

Powerful enough motor driver board, servos, stepper motors, DC small motors all done.

I2C interface, motor is not enough, stack a piece, double the number of drive motors.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.  Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
