SPECIFICATIONS

Brand Name: diymore

Choice: yes

High-concerned chemical: none

Material: Polymer

Origin: Mainland China

Output: Analog Sensor

Size: 3.5cm x 1cm

Theory: Optical Sensor

Type: Optical-Electronics Sensor

Use: Level Sensor

Working voltage: 5V

is_customized: Yes

semi_Choice: yes

Feature:

High precision

Simple operation

Wide application range

Small size

Easy to use

Product use:

1. Pulse data sampling of kilowatt-hour meter

2, fax machine shredder paper detection

3. Obstacle detection

4. Black and white line detection

Product introduction:

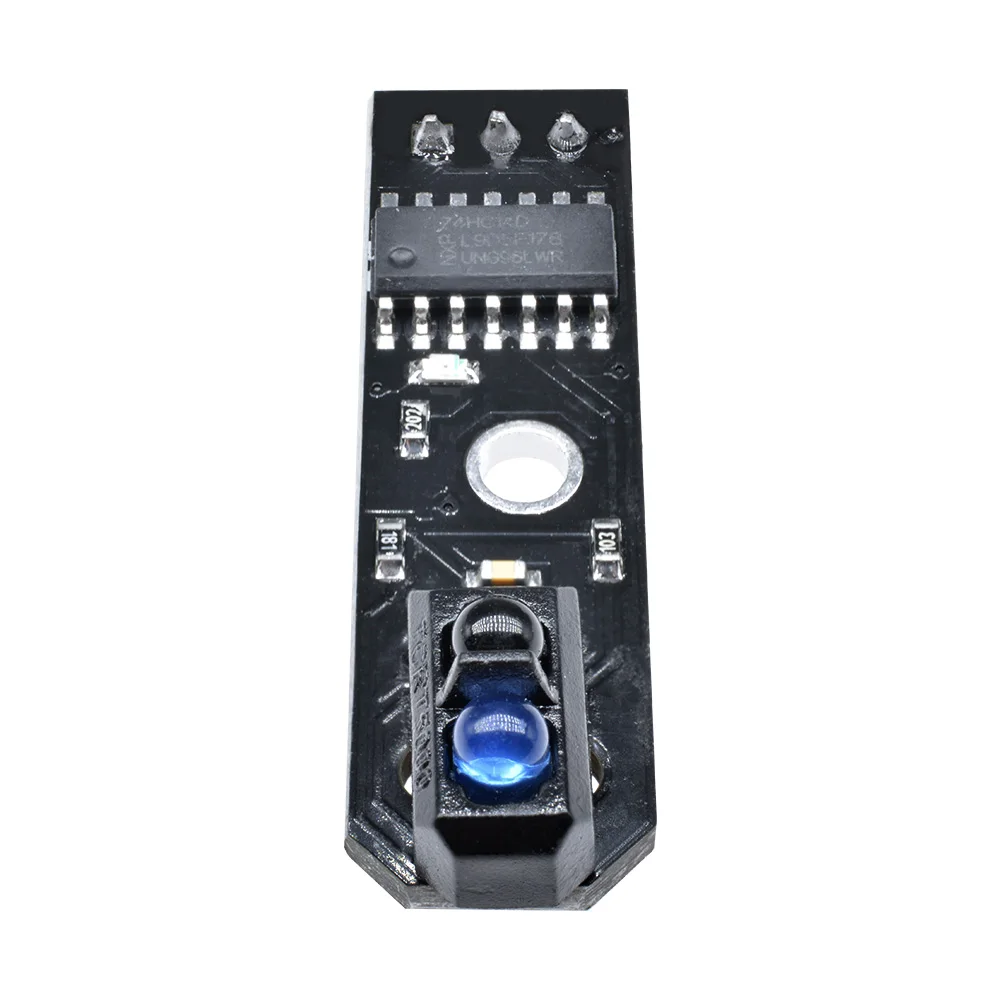

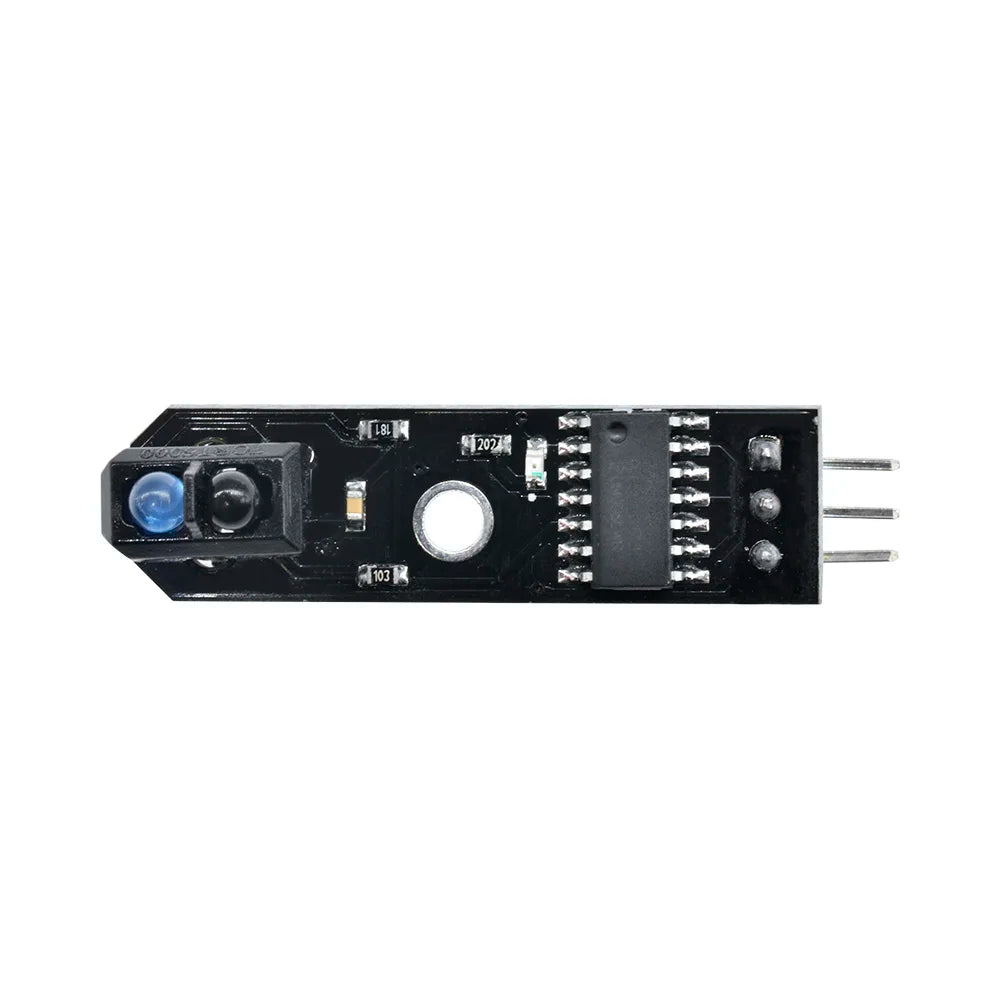

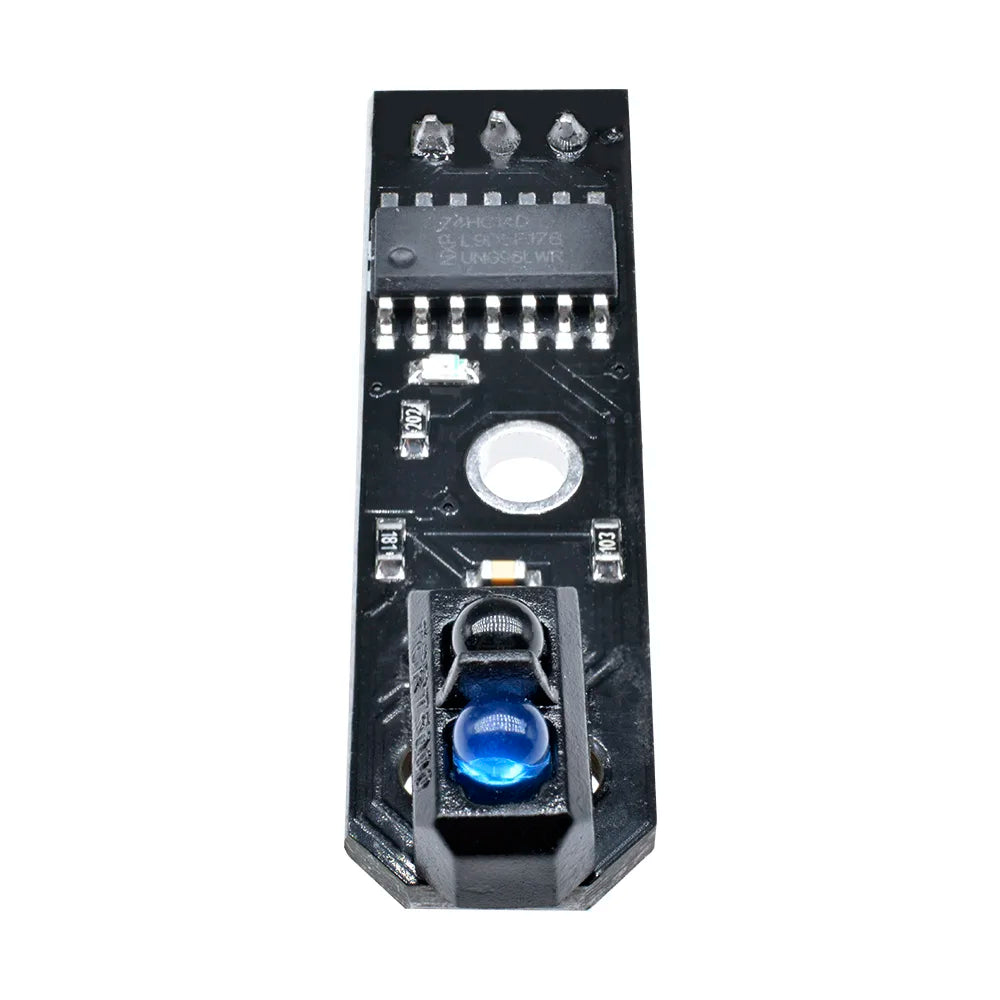

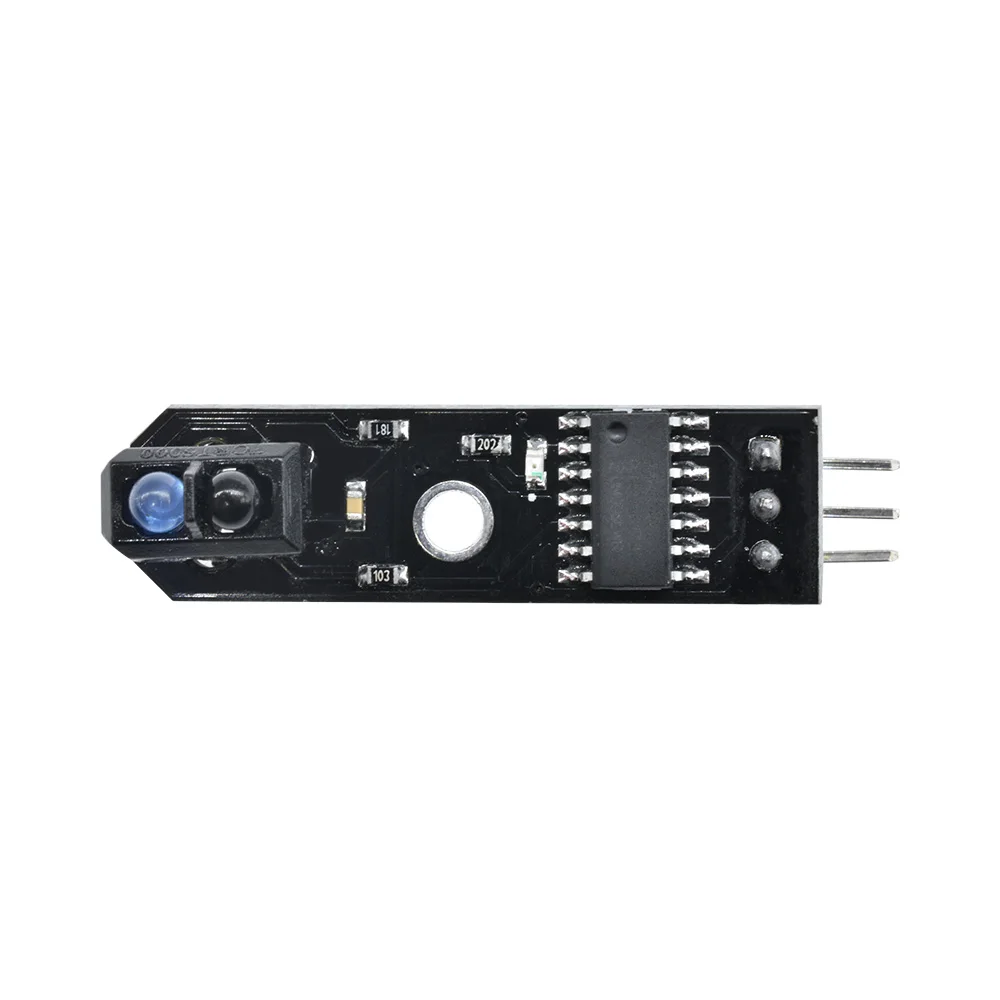

1, using TCRT5000 infrared reflection sensor

2, detection reflection distance: 1mm~25mm applicable

3. Working voltage: 5V

4, output form: digital signal (0 and 1)

5, with fixed bolt holes, easy to install

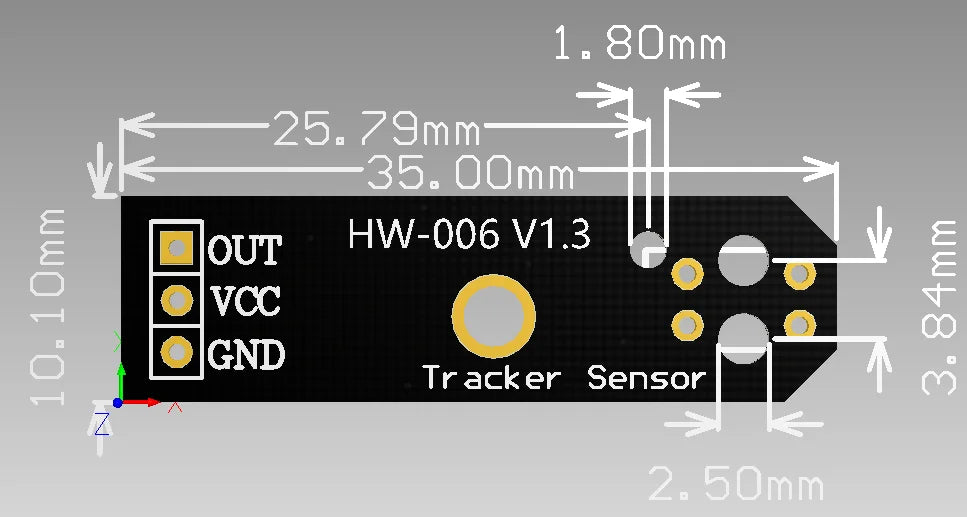

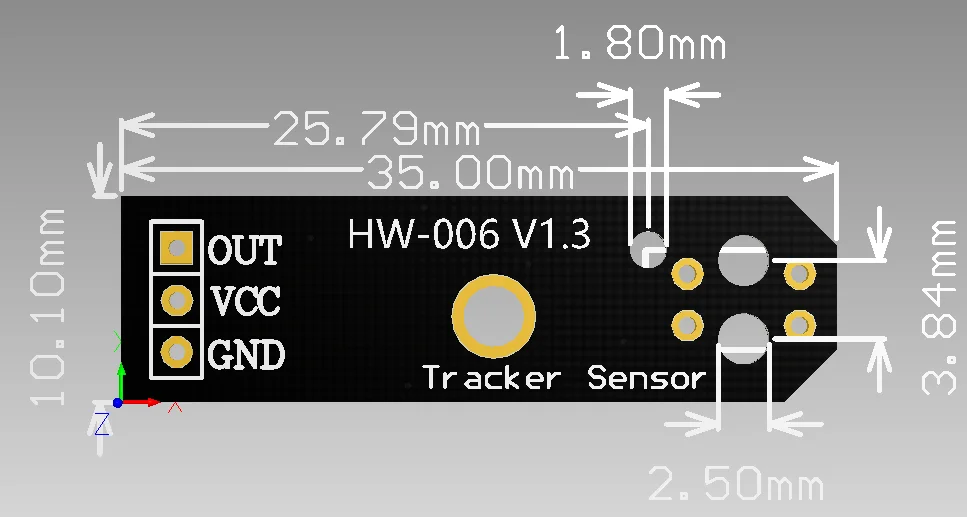

6, small board PCB size: 3.5cm x 1cm

Function introduction:

The infrared emitting diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or are reflected back but the intensity is not large enough, the infrared receiving tube is always in the off state. At this time, the output end of the module is low, indicating that the diode is always in the off state. When the detected object appears within the detection range, the infrared is reflected back and the intensity is large enough, the infrared receiving tube is saturated, and the output end of the module is high, and the indicating diode is lit.

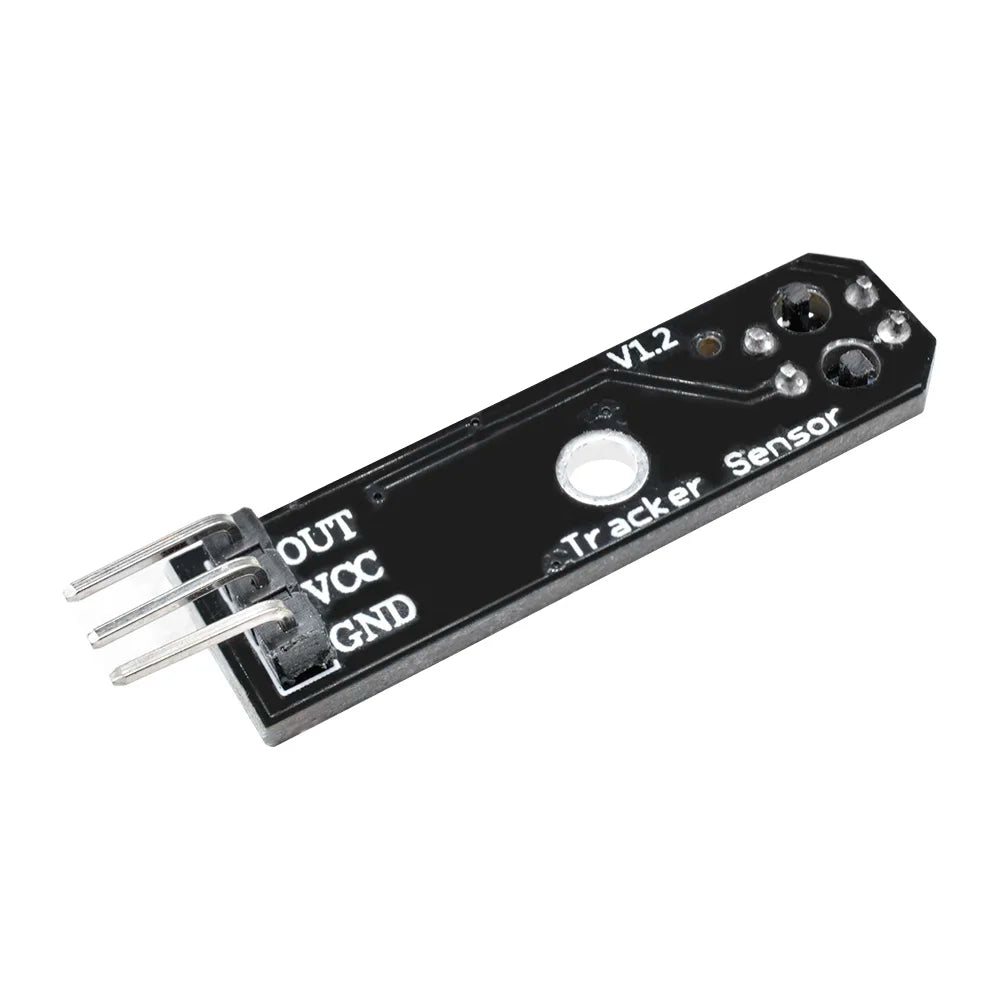

Connection mode:

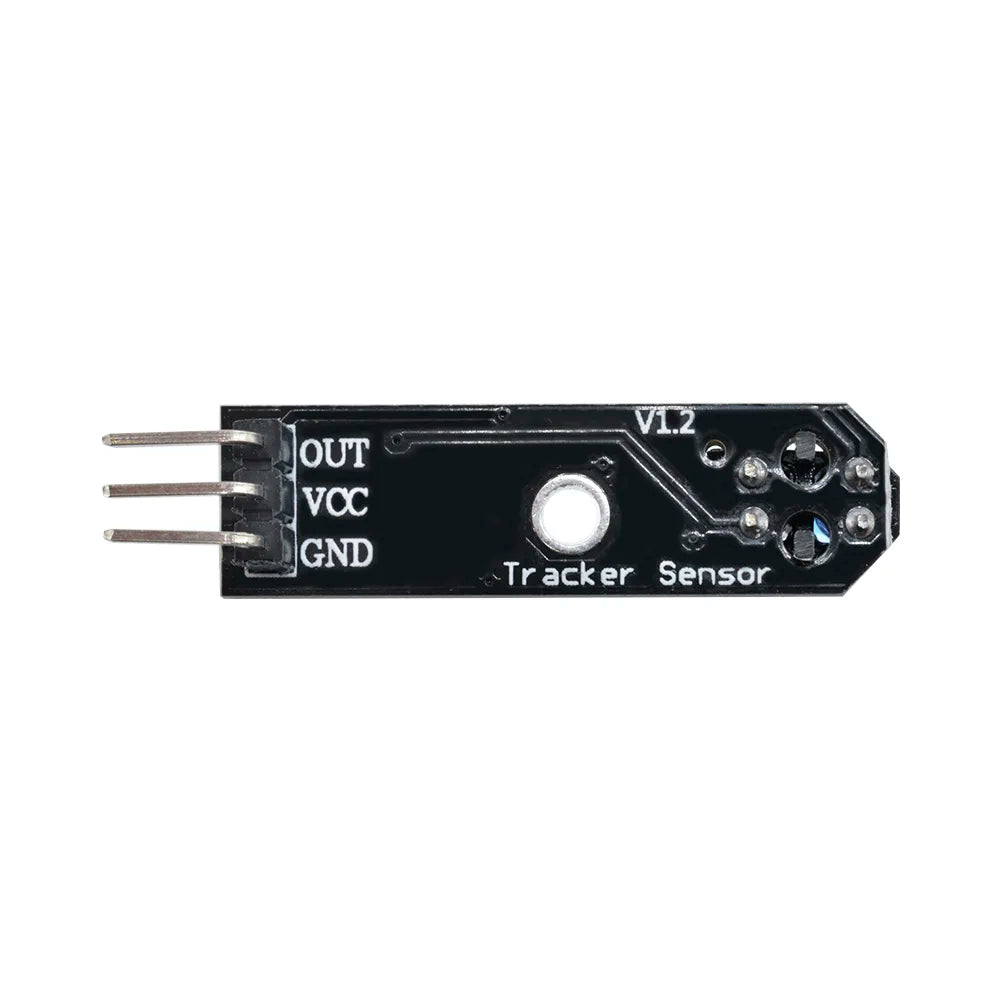

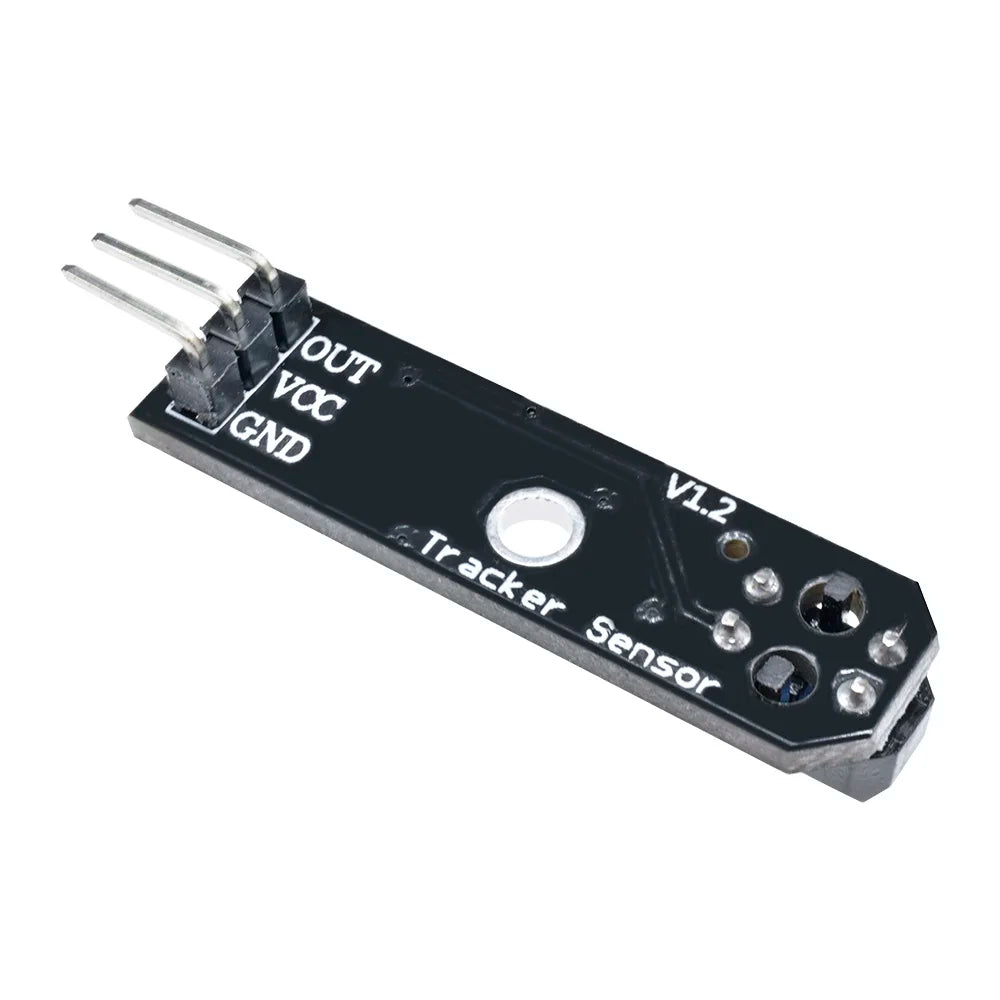

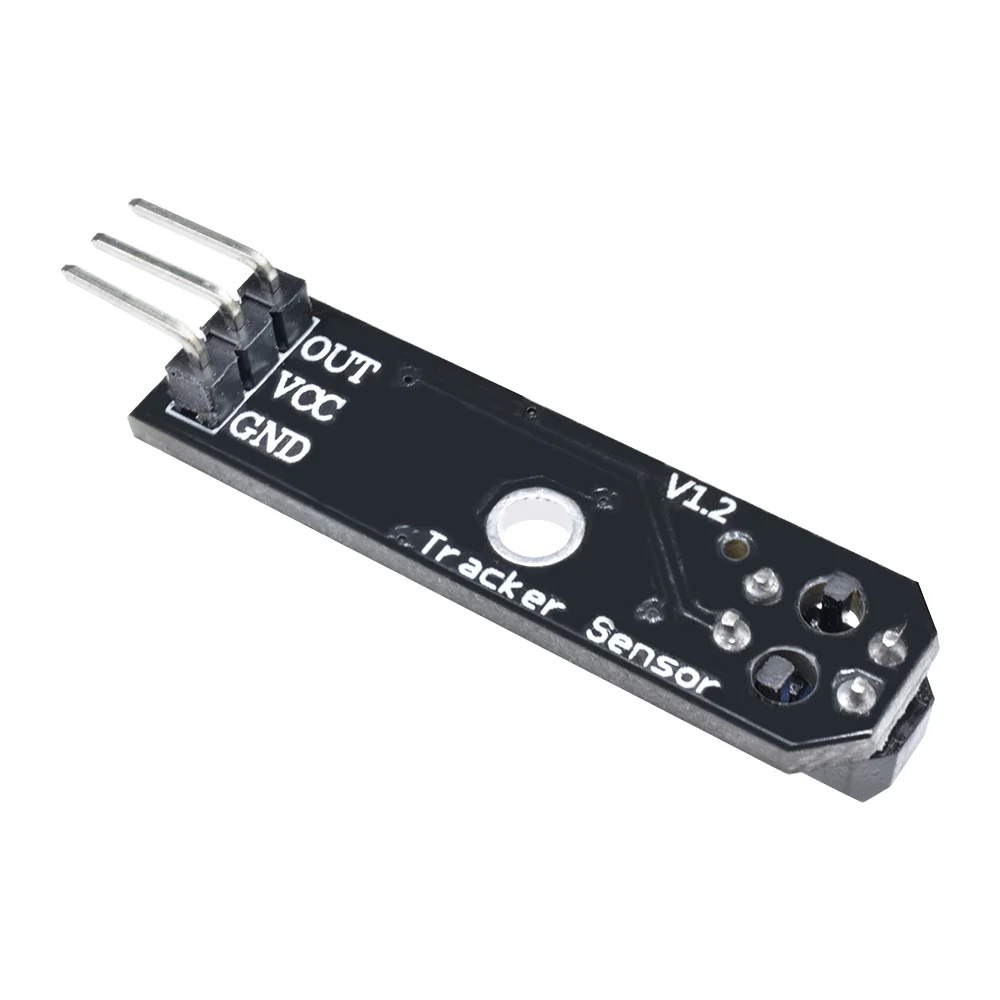

1, VCC: connected to the positive electrode of the power supply (5V)

2. GND: Connects to the negative terminal of the power supply

3, OUT: high/low level switching signals (digital signals 0 and 1)

Package included:

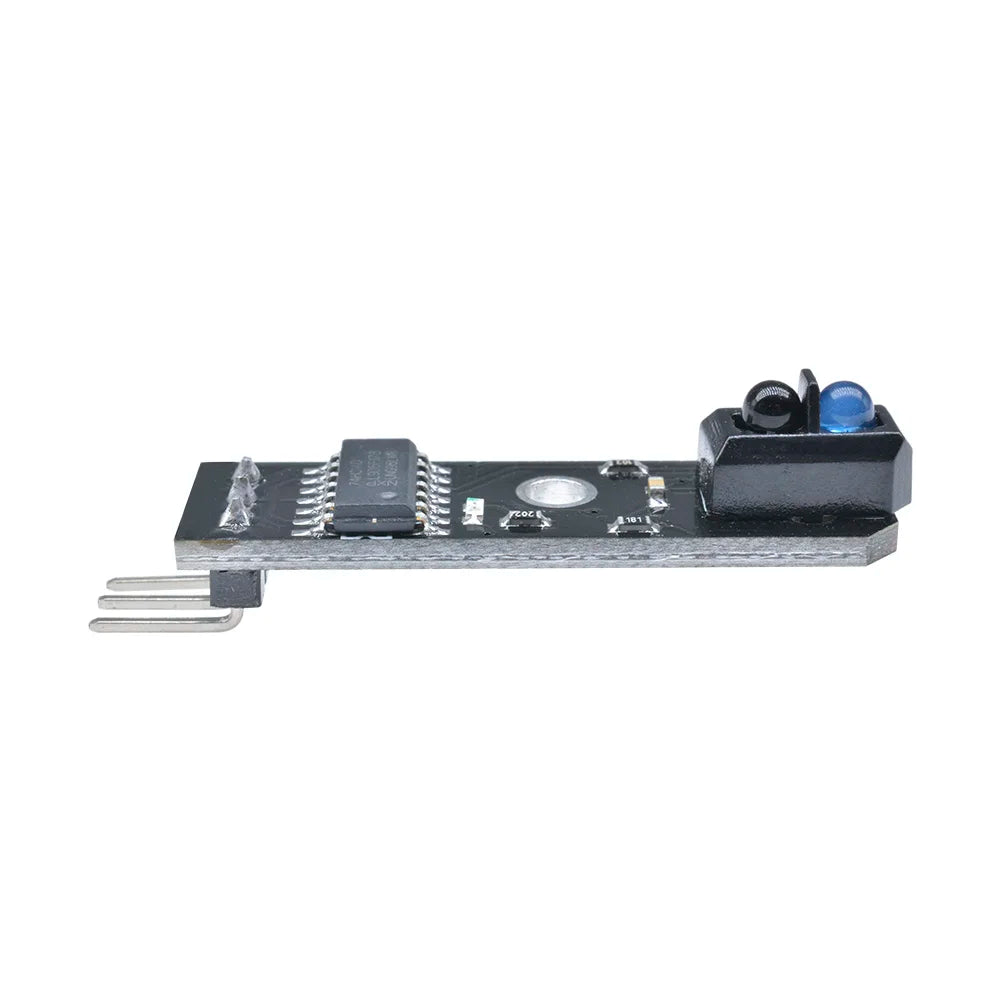

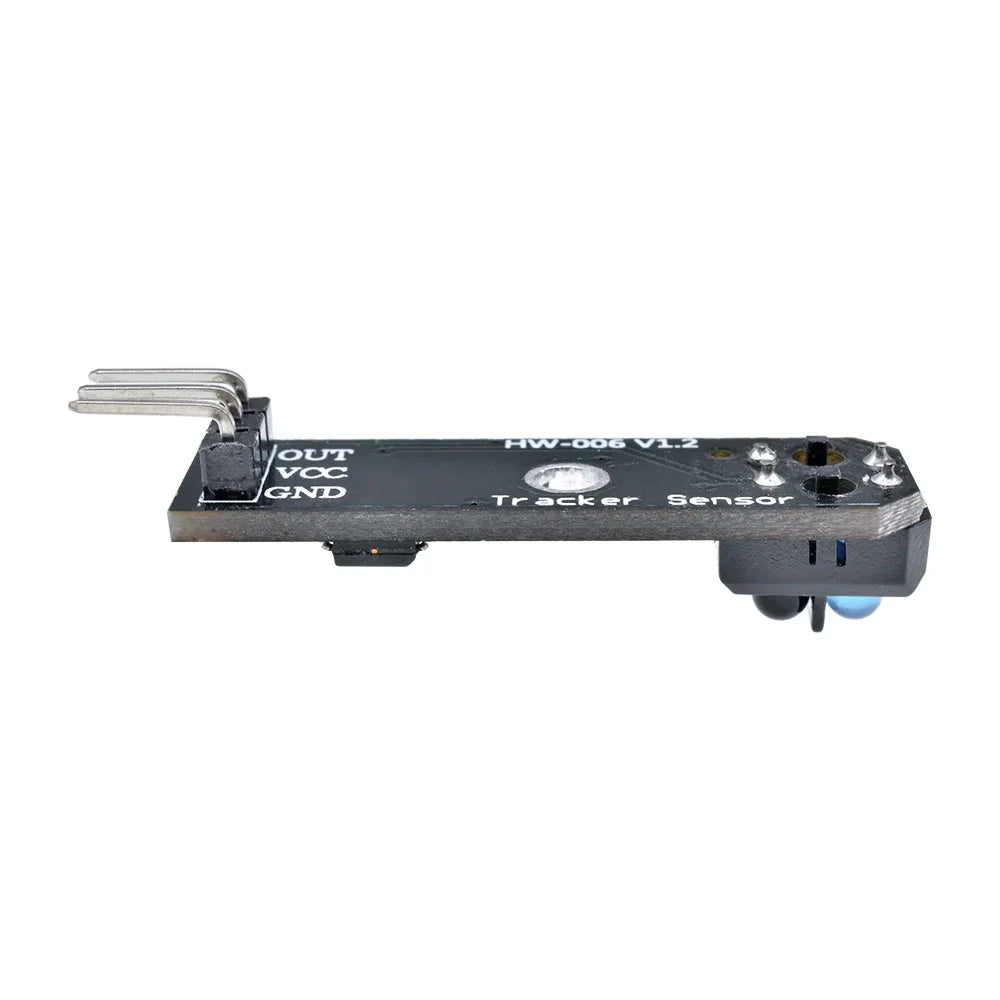

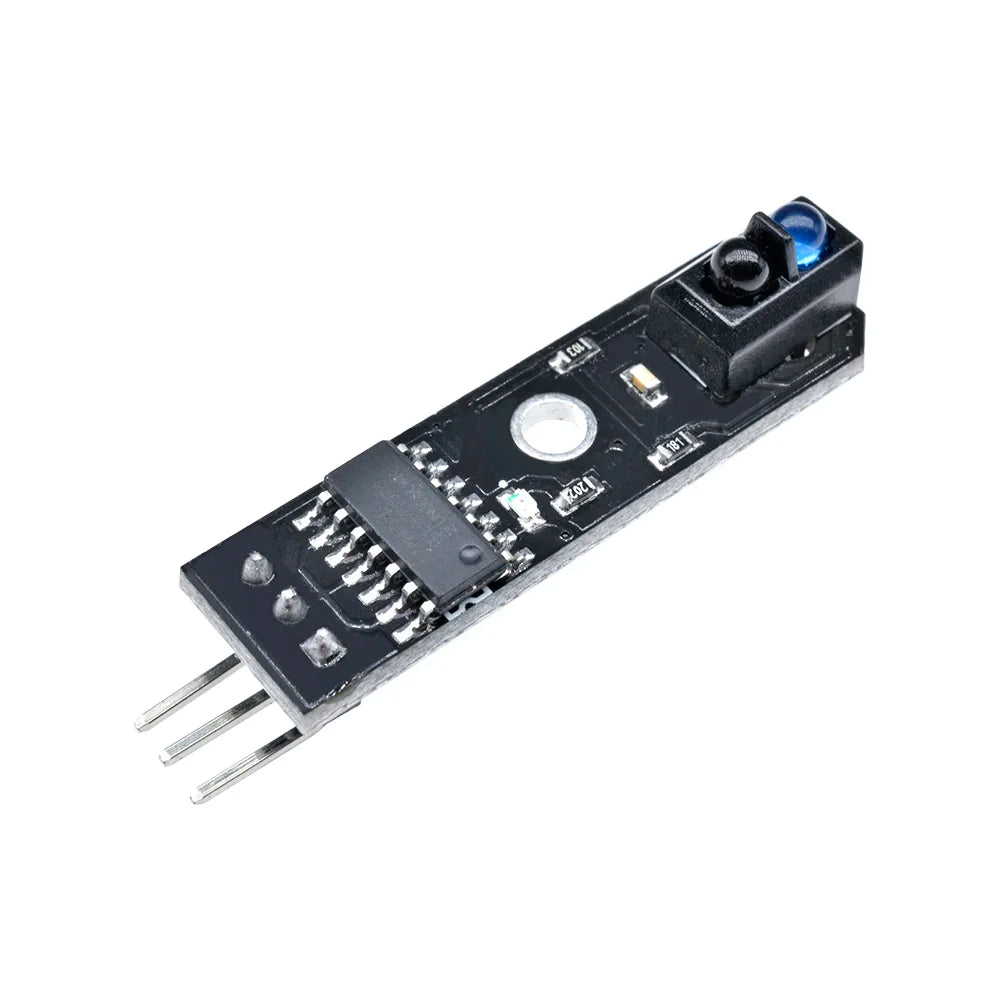

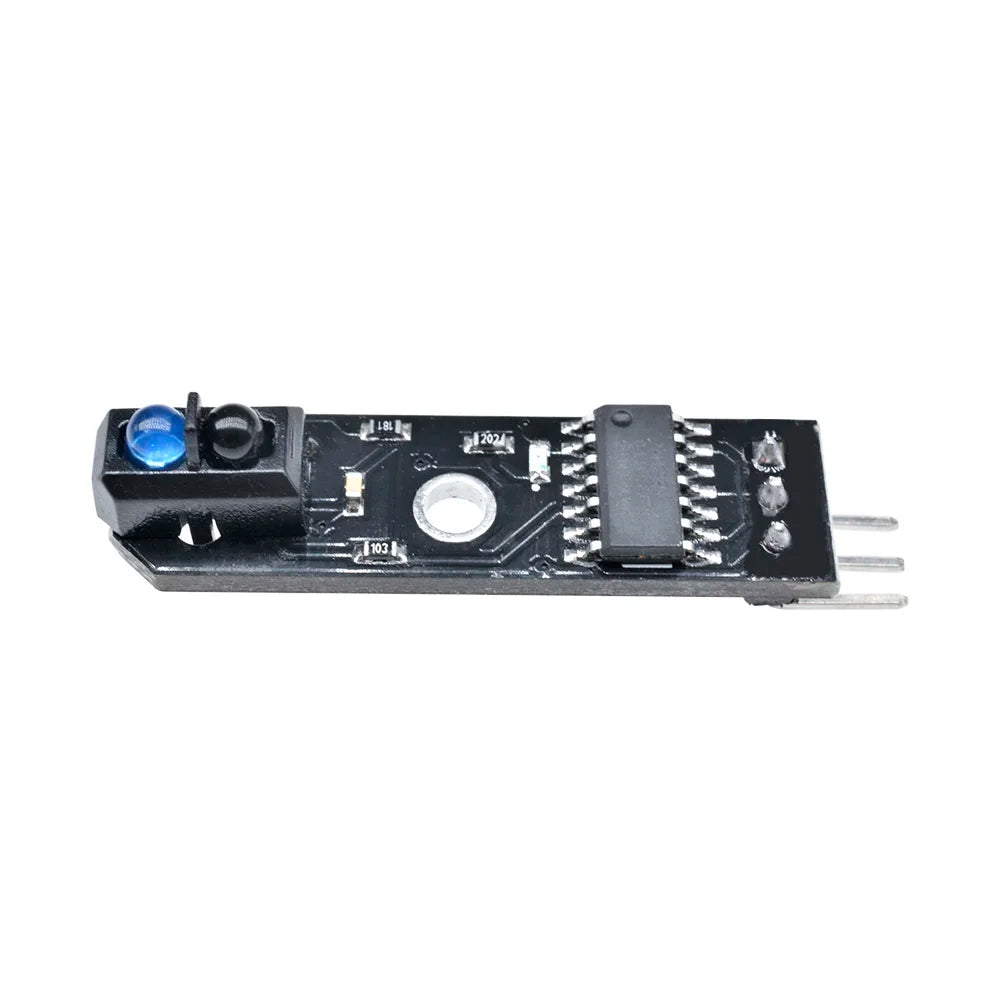

1 x TCRT5000 3PIN Tracking Module IR Infrared Line Reflection Track Follower Sensor TCRT5000 Obstacle Avoidanc For Arduino
