Description
SPECIFICATIONS
Brand Name: EMDSXGO
High-concerned chemical: none
Origin: Mainland China
1, the main chip: TCS3200
2, the output frequency range from 10kHz to 12kHz, duty cycle 50%
3, working voltage: +2.7V ~ +5.5V
4, working current: 1.4mA (does not include LED working current)
5, detection status: static detection
6, detection distance: 10mm
The module has white LED illumination, and the outside can be controlled to be on and off.
Can detect the color of non-illuminating objects

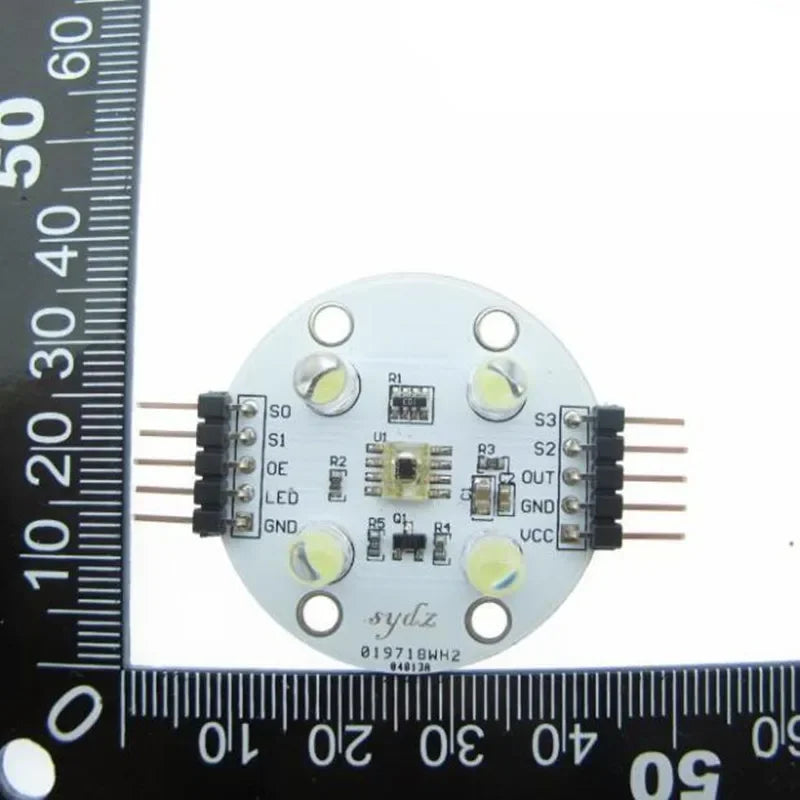

Size: 36mm (diameter)
TCS3200 is a static recognition object color, and output different frequency according to the color information. After the frequency sampling is converted by the single chip microcomputer, the color RGB data can be obtained.
Users can use it with a little modification, greatly reducing user development time

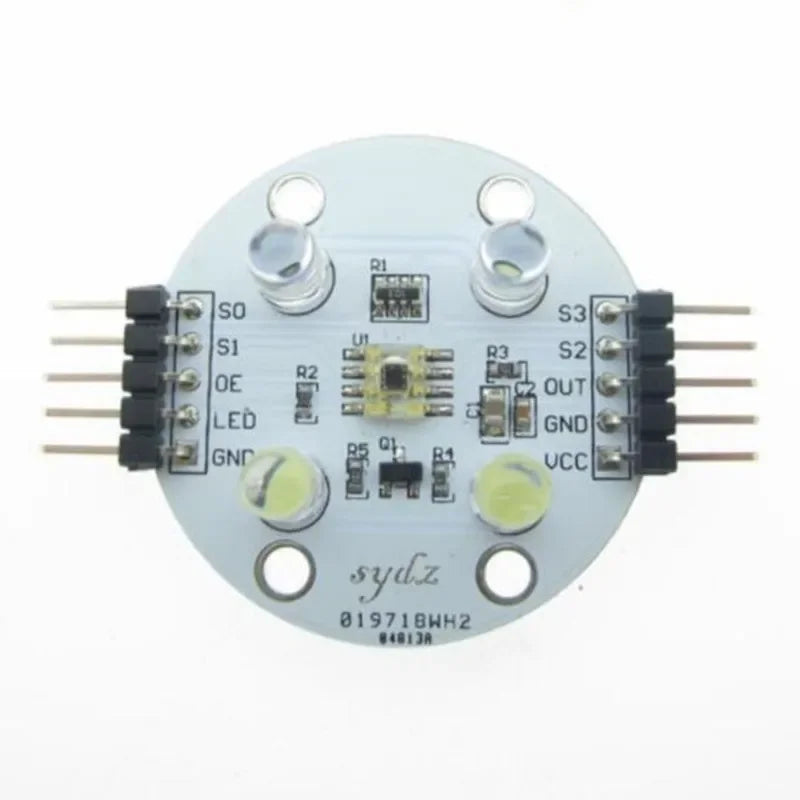

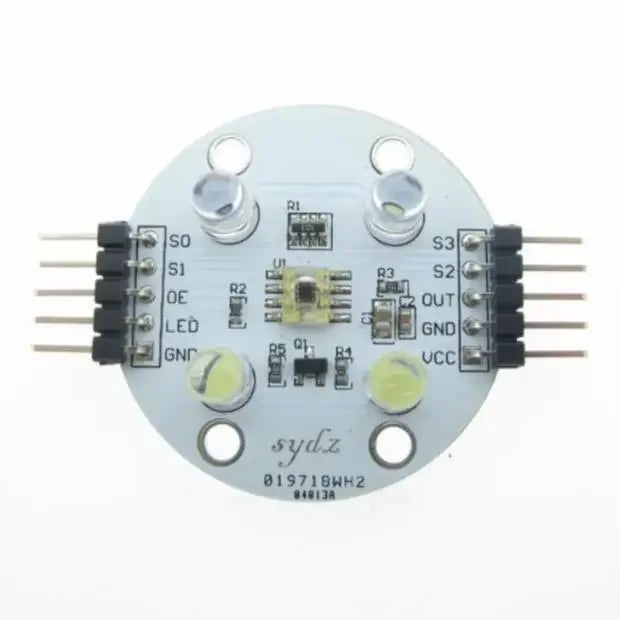

All IO ports of this module are led out, and the LED fill light can be controlled by IO. It is also possible to directly short the control pin and the ground pin through the jump cap, and the LED will be always on.
Operating voltage 3V-5V, frequency output range 10-12KHZ, duty cycle 50%
Application range:
1, barcode scanner
2, static object color recognition
3, DIY various color discrimination cases
