SPECIFICATIONS

Brand Name: PHTY

High-concerned chemical: none

Number: P9171I5164079

Origin: Mainland China

TCS3200 RGB Color Sensor Module Serial Output

Product Description:

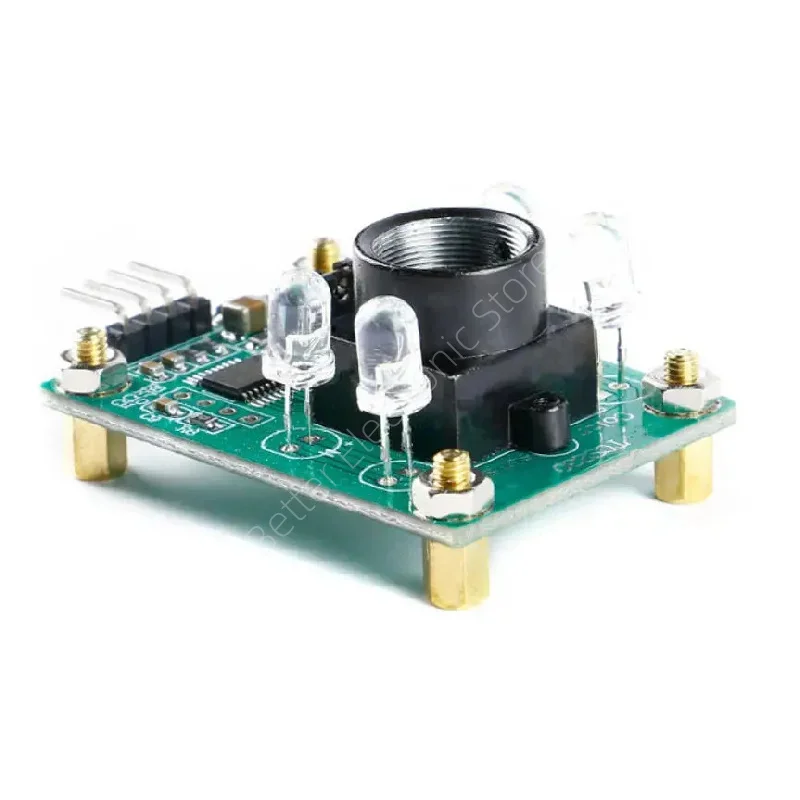

TCS230 Color Sensor Module
Color Recognition Sensor Module with RGB Triple Color and Serial Output

This TCS230 (TCS3200) color recognition sensor module is designed for accurate RGB color detection.It operates at 5V and features a compact size of 46mm x 33mm.The module integrates a high-performance sensor, microcontroller, and power management circuit.

With an RGB frequency response range of 10–50,000 Hz, the module ensures precise color measurement under optimal conditions.The recommended detection distance is 10mm, and it is intended for static color detection.

Output is provided via serial communication, allowing direct connection to a computer through a USB-to-TTL adapter.RGB values can be read in real-time using a serial monitor.

Usage Notes:

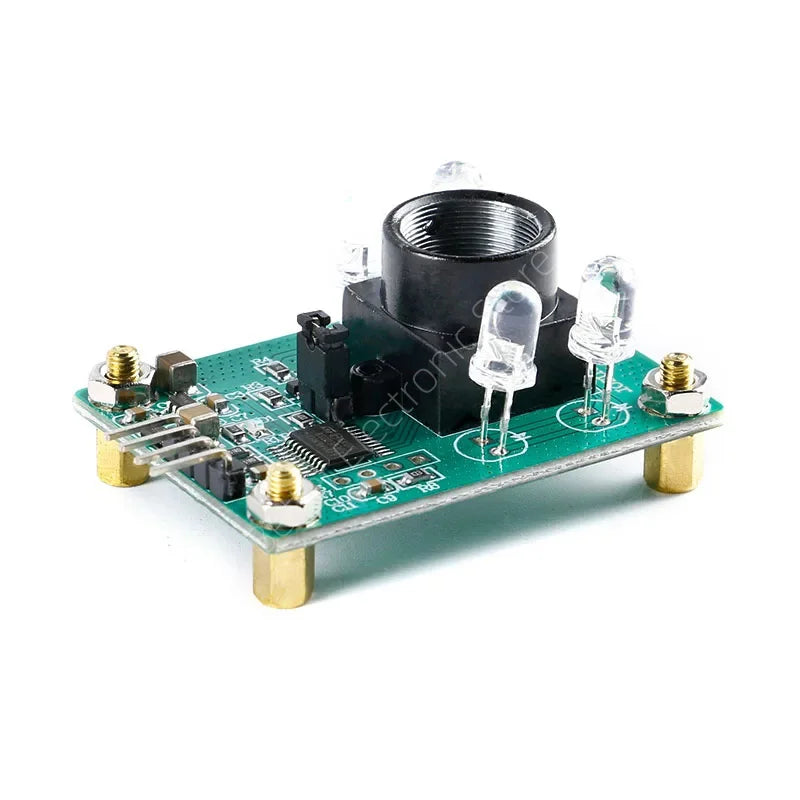

The onboard white LED provides sufficient reflected light for daily use—no external strong light source is required.
Avoid exposing the sensor to excessively bright light, as this may prevent the module from returning valid data.Reducing ambient light restores normal function.
If color measurement is inaccurate, perform white balance calibration: Send the command “AT+LIGHT+ON” to turn on the onboard LED, place white paper above the sensor to reflect light, then send “AT+ADJ”.Wait for “OK” to confirm calibration.
Note: Recalibrate after changing DPI settings.

Specifications:
Product Name: TCS230 TCS3200 Color Recognition Sensor Module
Power Supply: 5V

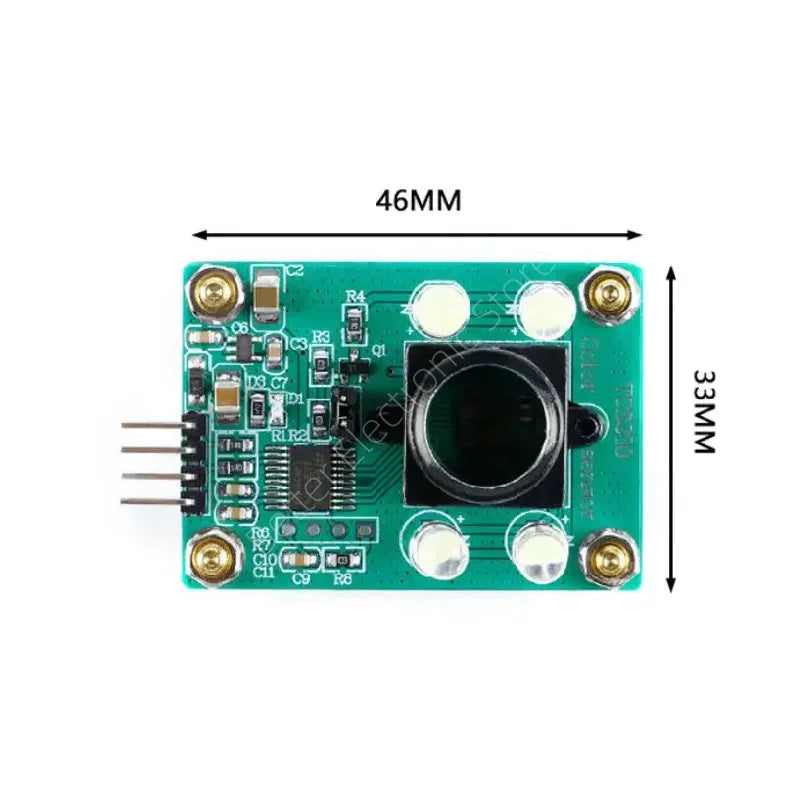

Dimensions: 46mm x 33mm
Main Chips: Sensor, Microcontroller, Power Management
RGB Frequency Range: 10–50,000 Hz
Optimal Detection Distance: 10mm
Detection Type: Static Detection

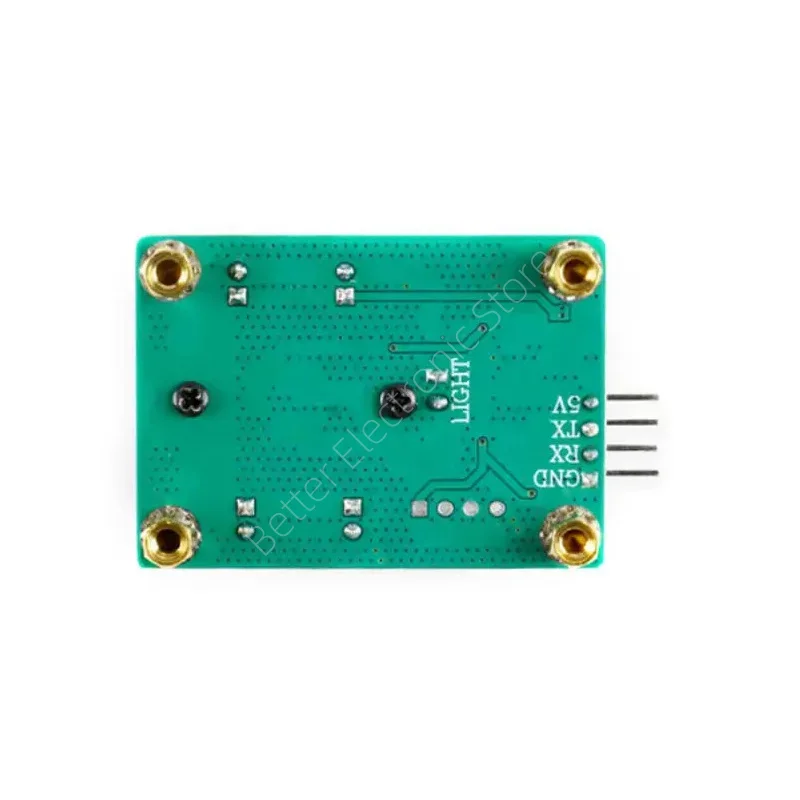

Output Method: Serial Output (compatible with USB-TTL adapters for computer connection)

Important Notes:

Built-in LED provides adequate light—avoid strong external light.
Module may malfunction under extreme brightness.Keep C parameter below 38000 (via AT+FRE command).
White balance calibration required for accurate color measurement.Use “AT+ADJ” after “AT+LIGHT+ON” with white reference.
Recalibrate after adjusting DPI.
