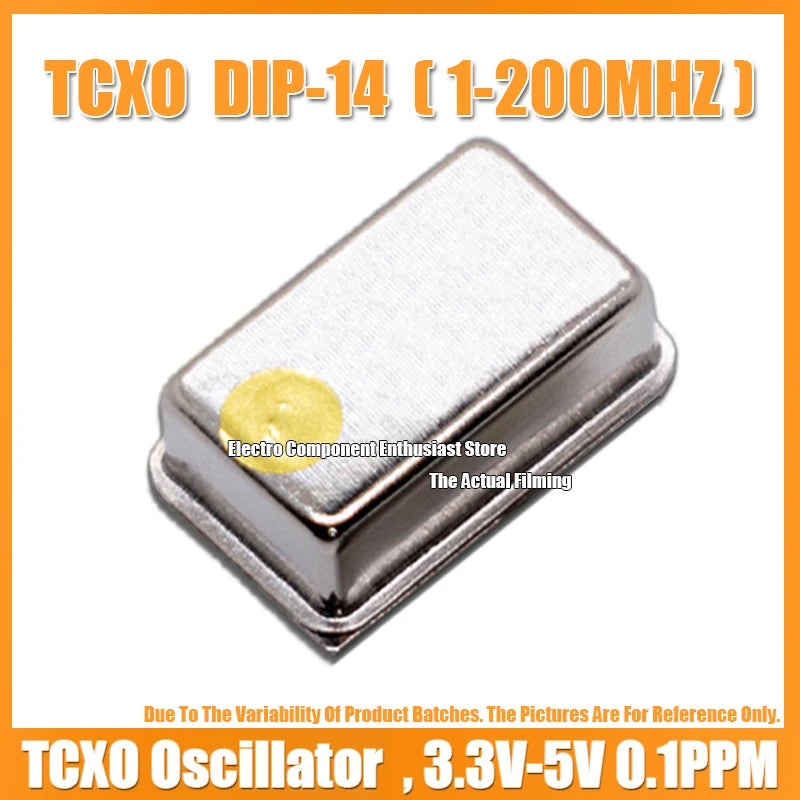

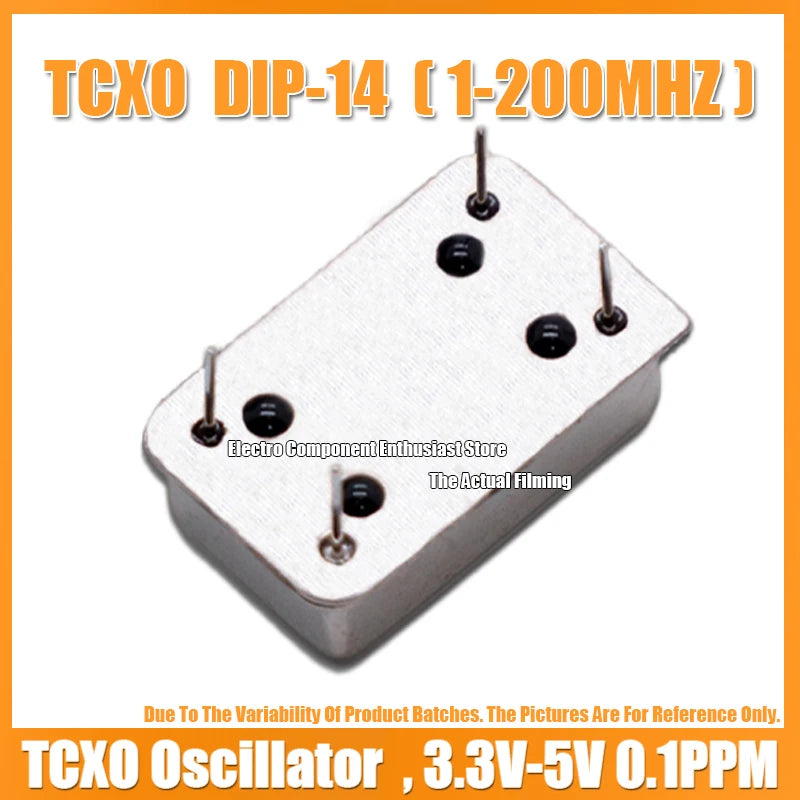

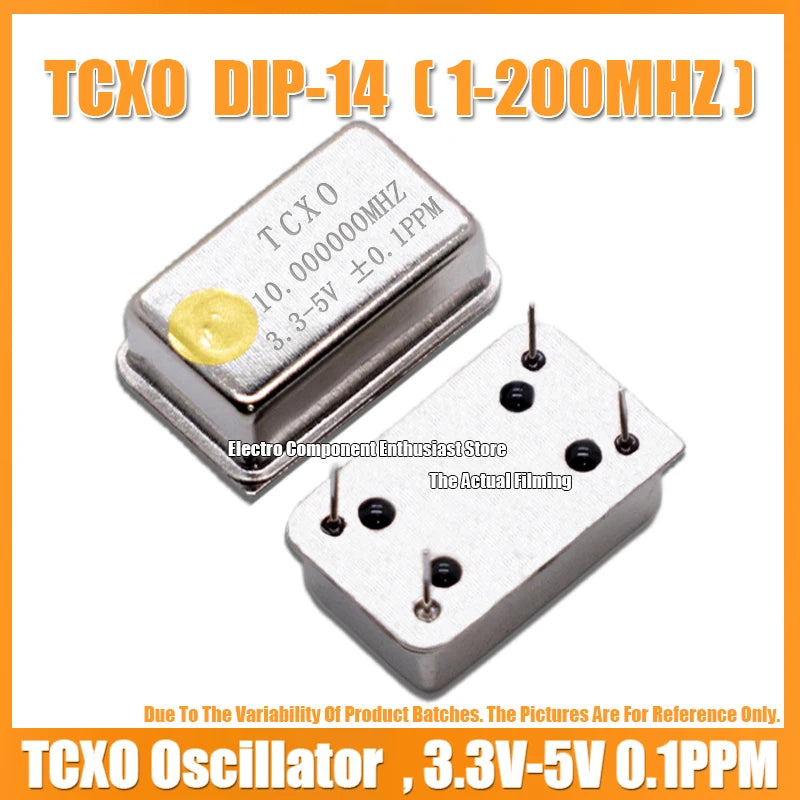

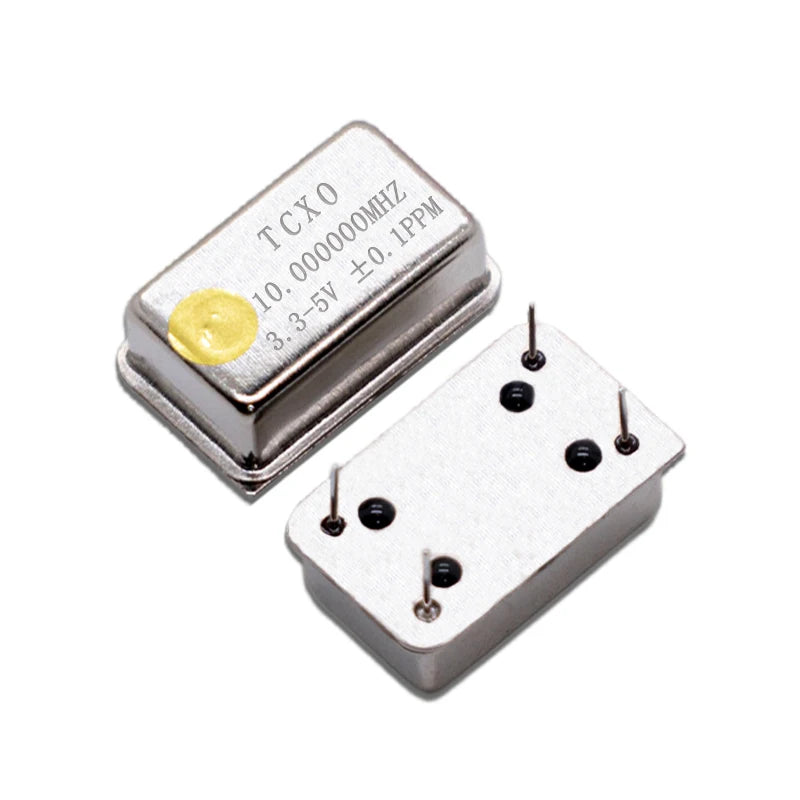

TCXO Full-Size 10M 10MHZ 10.000MHZ Rectangular Temperature Compensated Crystal Oscillator DIP-14 High Precision 3.3V-5V ±0.1PPM
Default Title
$59.54
Sale price
$59.54
Regular price
$0.00
Skip to product information
TCXO Full-Size 10M 10MHZ 10.000MHZ Rectangular Temperature Compensated Crystal Oscillator DIP-14 High Precision 3.3V-5V ±0.1PPM
$59.54
Sale price
$59.54
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Frequency Tolerance: 0.1PPM
Load Capacitance: 1PPM
Model Number: TCXO-10MHZ
Nominal Frequency: 10MHZ
Operating Temperature: -40℃~+100℃
Origin: Mainland China
Supply Voltage: 3.3V-5V
is_customized: Yes
Frequency Range：1~200MHz
Frequency Stability vs. Temperature (FST)：
±1.0ppm(0℃~+50℃)
±1.5ppm(0℃~+70℃)
±2ppm(-20℃~+70℃)
±2.5ppm(-30℃~+75℃)
±3.0ppm(-40℃~+85℃)
Initial Frequency：Max. ±1.0ppm
Aqing：Max. ±1ppm/Yea

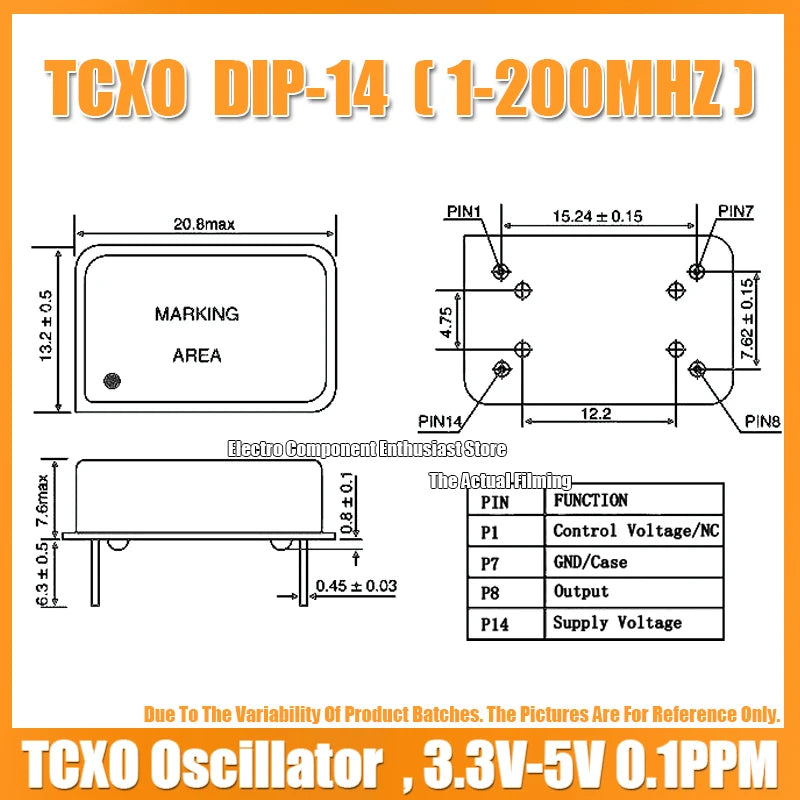

Output Type and Load Characteristics：See Table1
Frequency Stability vs Load：±0.3ppm max.vs±10%load change
Supply Voltage:：+3.3 VDC,+5.0VDC
Frequency Stability vs Voltage：±0.2ppm max.vs±5%voltage change
Phase Noise(10MHZ):
10Hz,-80dBc/Hz
100Hz,-110dBc/Hz
1kHz,-140dBc/Hz
10kHz,-150dBc/Hz
100kHz,-150dBc/Hz
Supply Current:
40MHz.25mA(max)
≥40MHz,40mA(max)
Storage Temperature Range:-40℃~+100℃
