SPECIFICATIONS

Brand Name: wishiot

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Motors

High-concerned chemical: none

Material: Metal

Model Number: TD-8120MG

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Servo Accessories

Recommend Age: 14+y

Remote Control Peripherals/Devices: Servos

Size: 40.0*20.5*40.5mm

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Gear

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

semi_Choice: yes

TD-8120MG 20KG Digital Servo Waterproof Metal Gear 180/270/360° High Torque for RC Car Remote Control Model Vehicle

Specification parameter:
Storage Temperature Range:-30°C～80°C
Operating Temperature Range:-25°C～70°C
Temperature Range:-25°C～70°C
Humidity Range:65%±10%

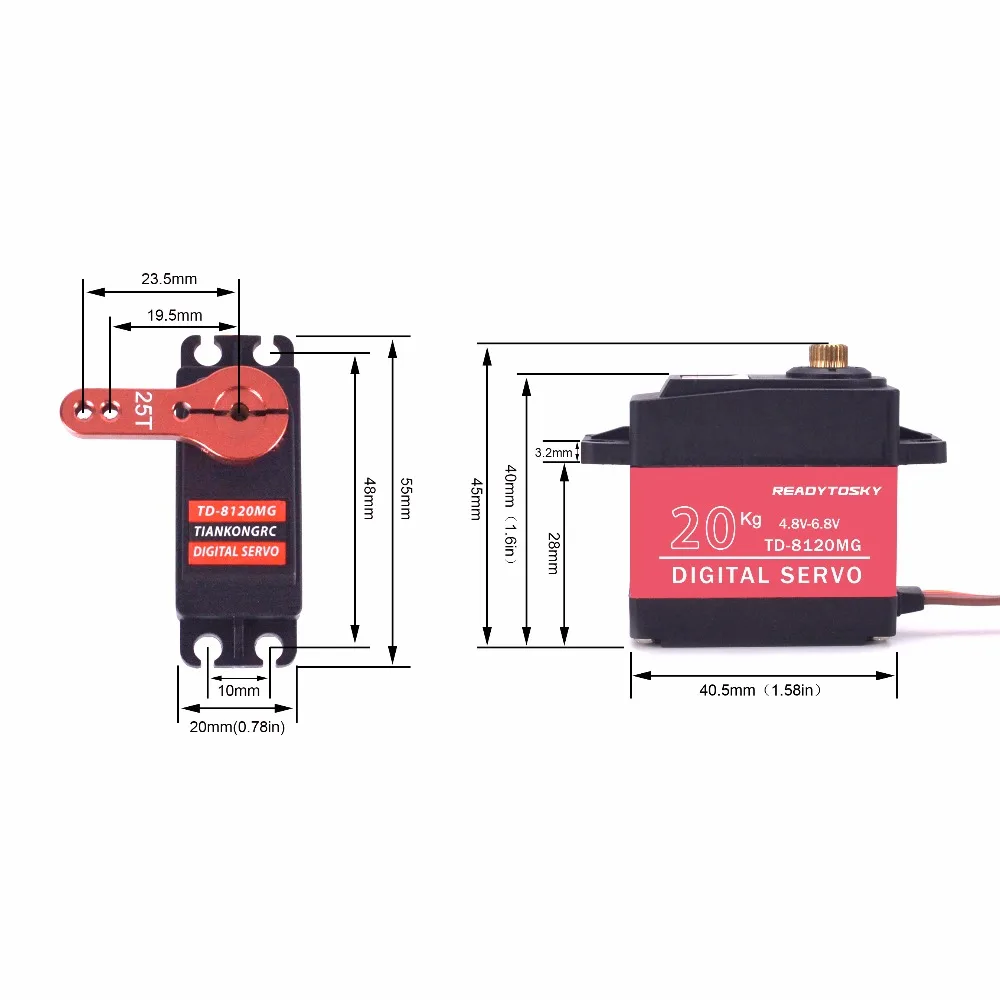

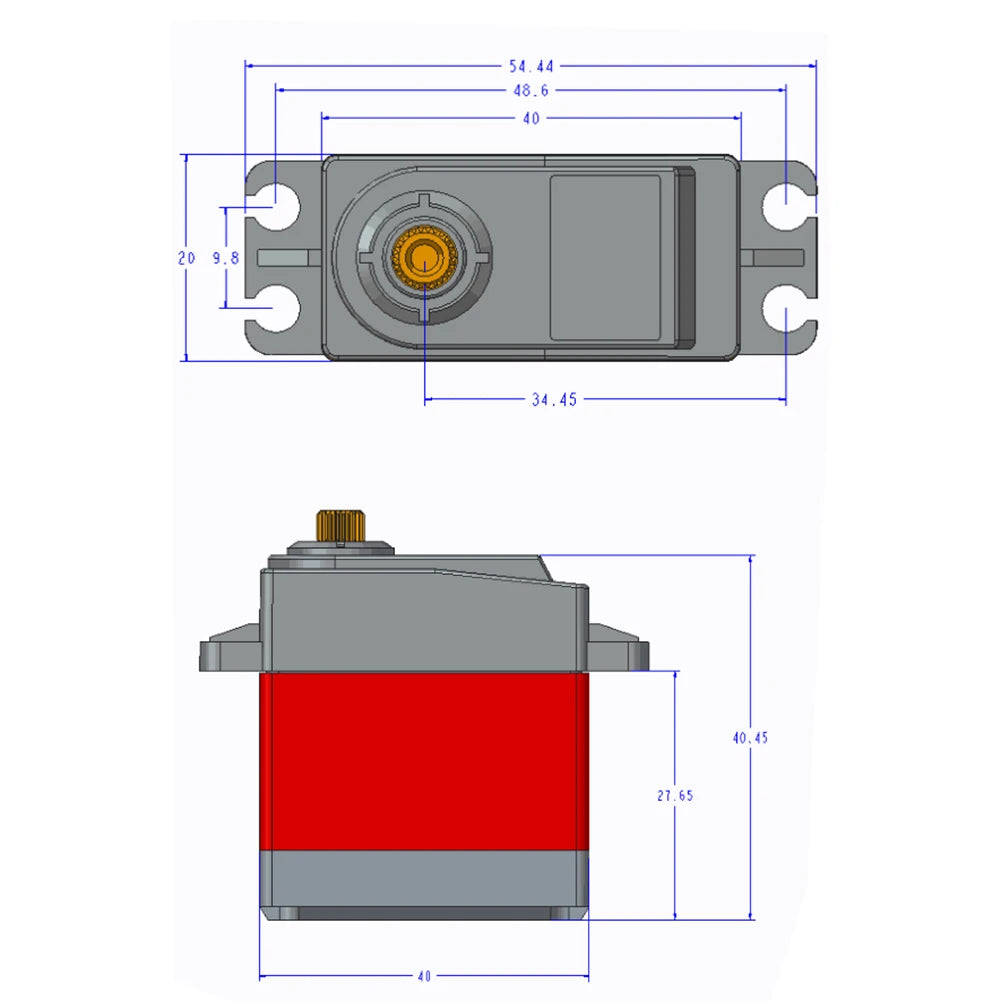

Size:40.0*20.5*40.5mm
Weight:56g±5%

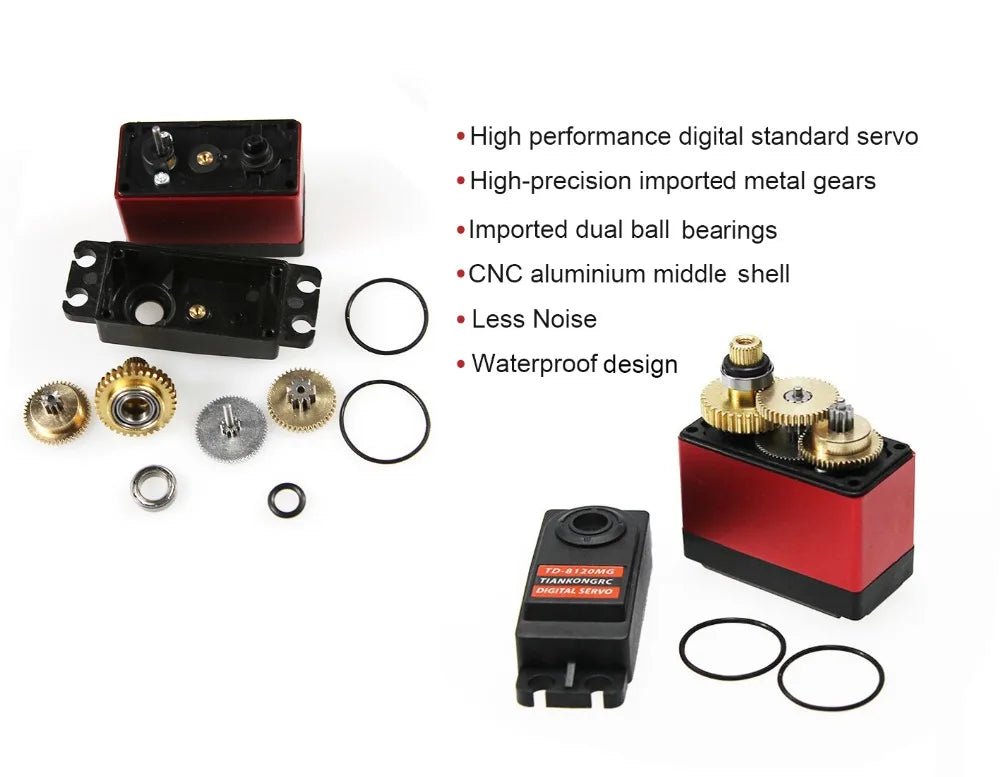

Gear type:5 Metal
Limit angle:180° / 270° / 360°
Bearing:2BB
Horn gear spline:25T OD:5.9mm
Horn type:Plastic, POM
Case:Engineering plastics(PBT)+Aluminum alloy

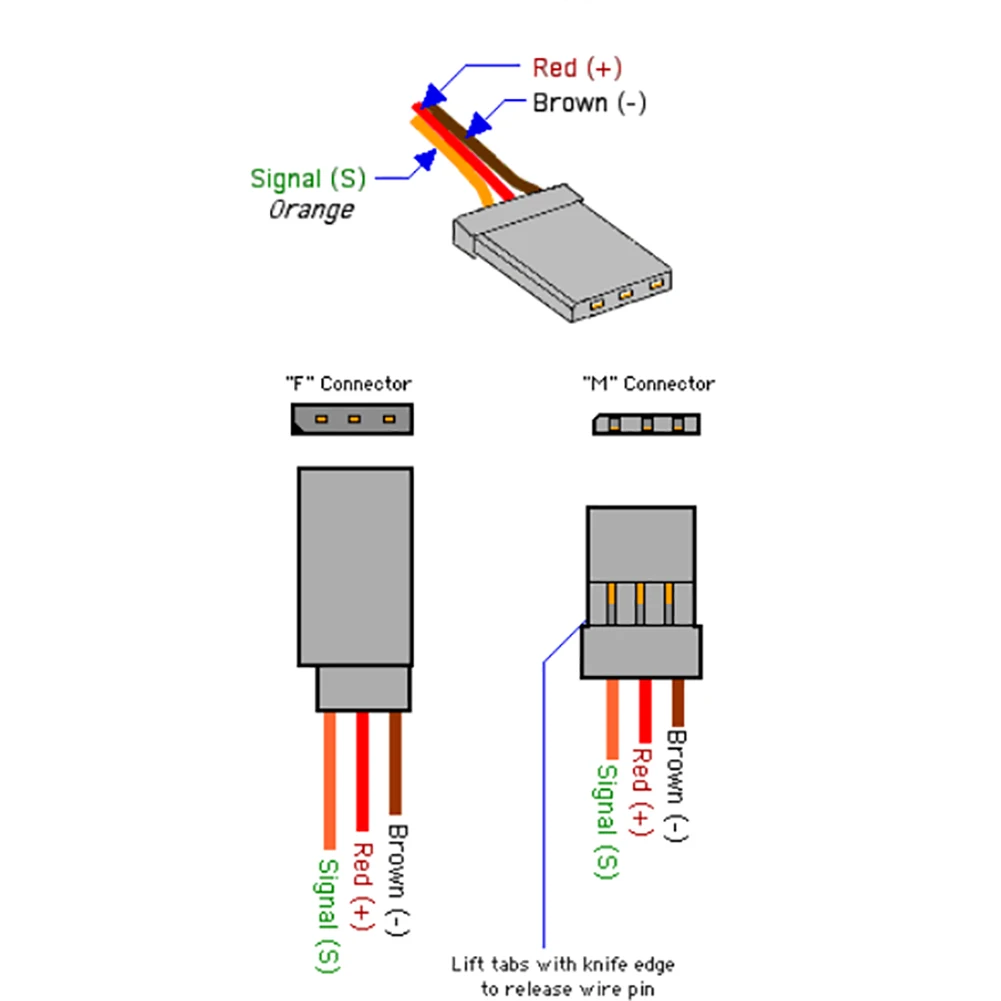

Connector wire:320mm±5mm
Motor:Carbon brush motor
Splash water resistance:No
Operat voltage:4.8V-7.2V
Idlecurrent:mA
Noload speed:0.18sec/60°-0.14sec/60°
Runnig current:210mA-260mA
Peak stall torque:20.5kg.cm-22.8kg.cm
Stall current:2100mA±10%-2700mA±10%
Working voltage range:4.8-7.2V
Command signal:Pulse width modification
Amplifier type:Digital controller
Pulse width range:500～2500usec
Neutral position:1500usec
Running degree:180°±3°(when 500～2500usec)
