SPECIFICATIONS

Brand Name: XINFU

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

semi_Choice: yes

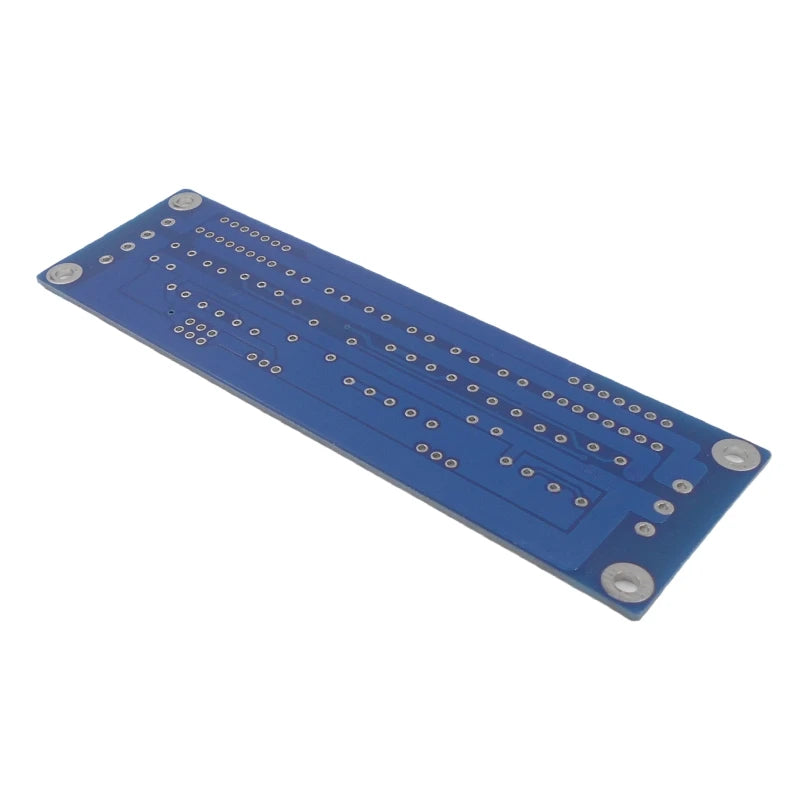

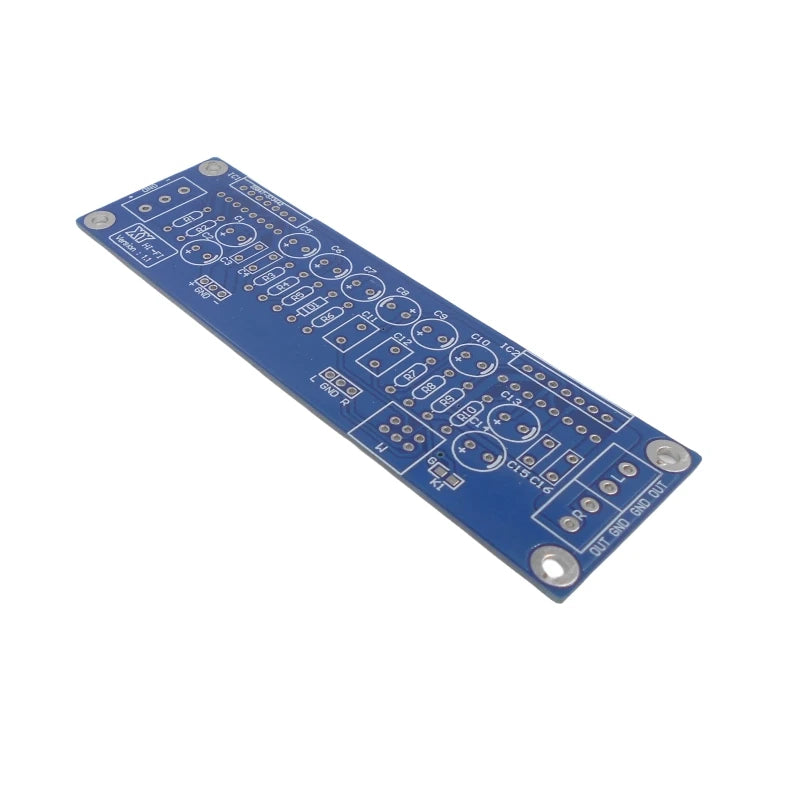

TDA7293 power amplifier board PCB empty board does not contain any components

Note: The installation and production of DIY products requires a certain professional foundation and hands-on ability. The manufacturing process has the risk of damage. If the installation is unsuccessful or the component damage is not provided, please choose carefully!

Most of the PCBs are printed with component values. If there is no printed component value, it will be accompanied by the specification. After receiving the PCB, you can also take a screenshot of the manual with the customer service, so as to keep it for later use.

Product desciption:

TDA7293 is a HI-FI high-power DMOS power amplifier integrated circuit introduced by SGS-THOMSON. It has the characteristics of large output power, few external components, simple circuit, small distortion, boldness and so on. It is very popular among enthusiasts.

The board is designed with a power supply and a power amplifier that can be mounted in a 43MM ultra-thin chassis. The power amplifier board has two TDA7293s, which can be connected into OCL (double field track) or BTL (single field track) mode. The circuit board adopts double-sided blue board, which is beautiful and elegant, with reasonable wiring and high signal-to-noise ratio.

Power amplifier board Dimensions: 117*37*1.6mm length and width
