SPECIFICATIONS

Brand Name: UICPAL

Choice: yes

High-concerned chemical: none

Material: Mixture

OD: 3.0MM

Origin: Mainland China

Output: Digital Sensor

Theory: Resistance Sensor

Type: Humidity Sensor

Use: Temperature Sensor

is_customized: Yes

semi_Choice: yes

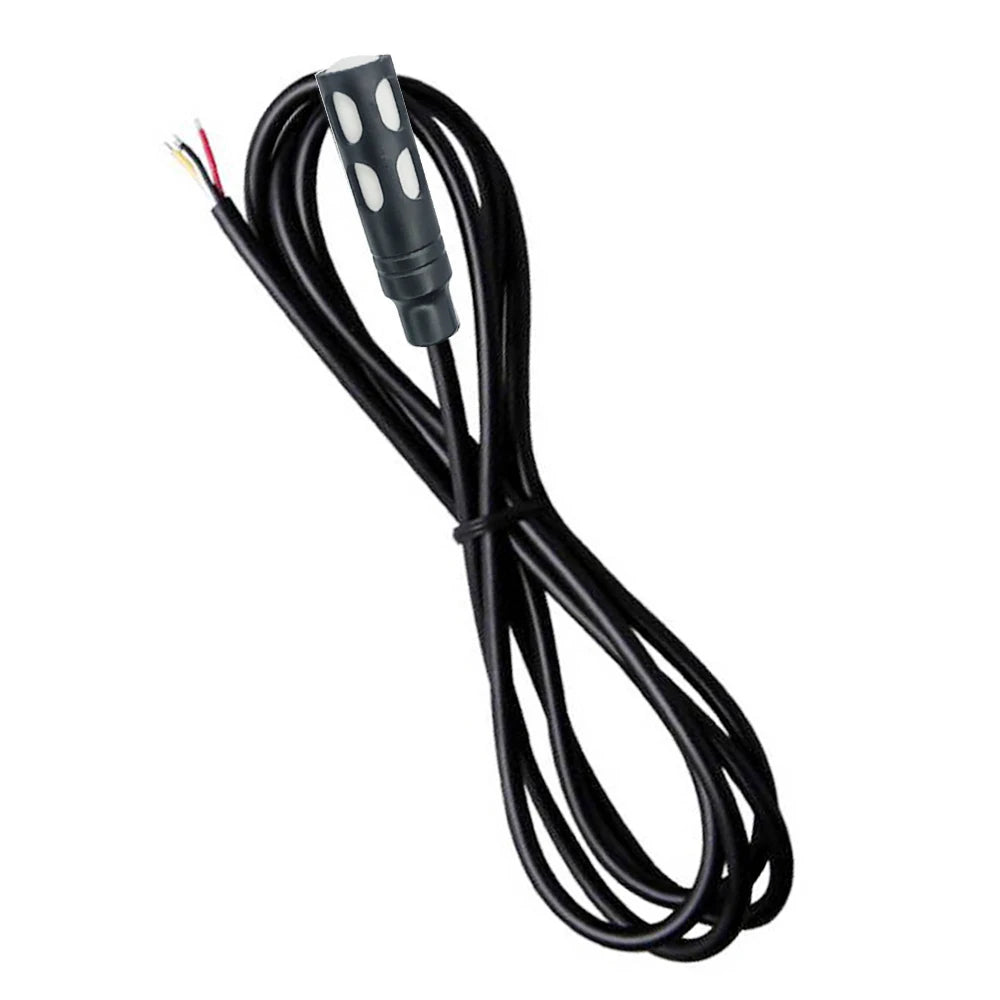

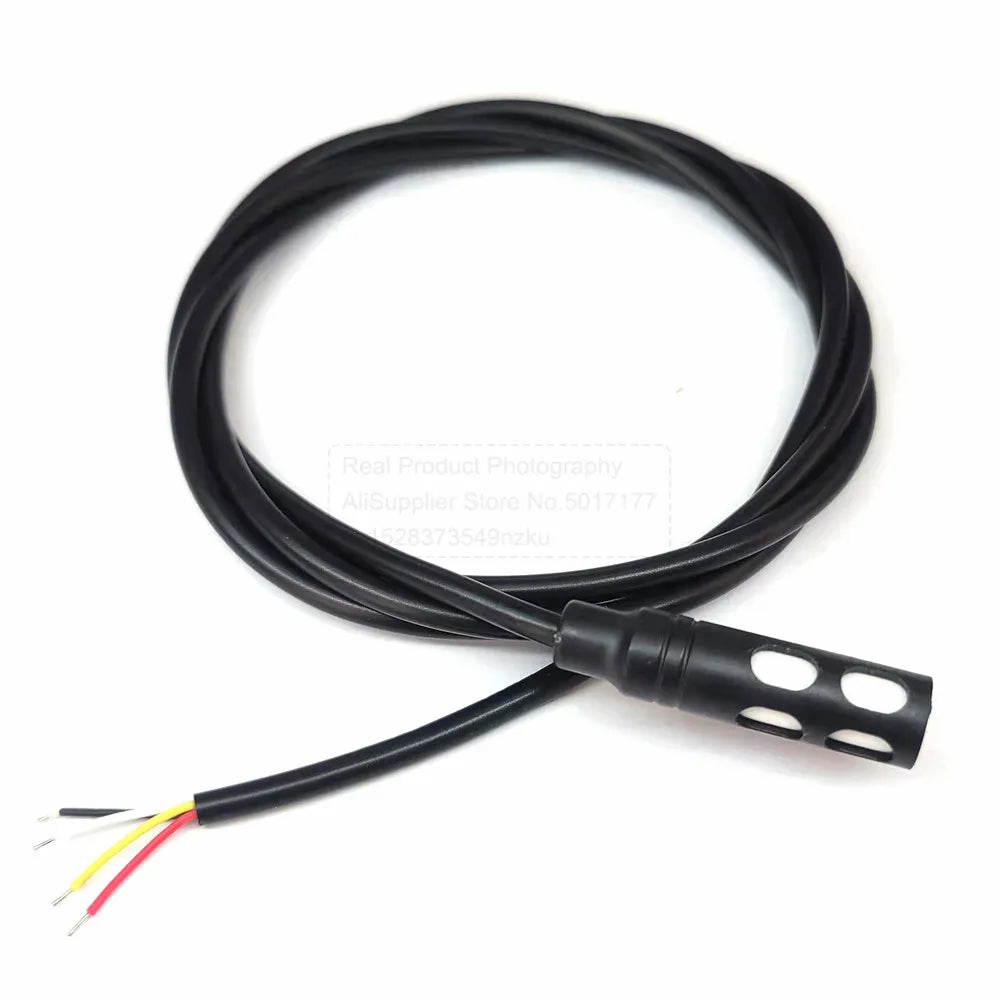

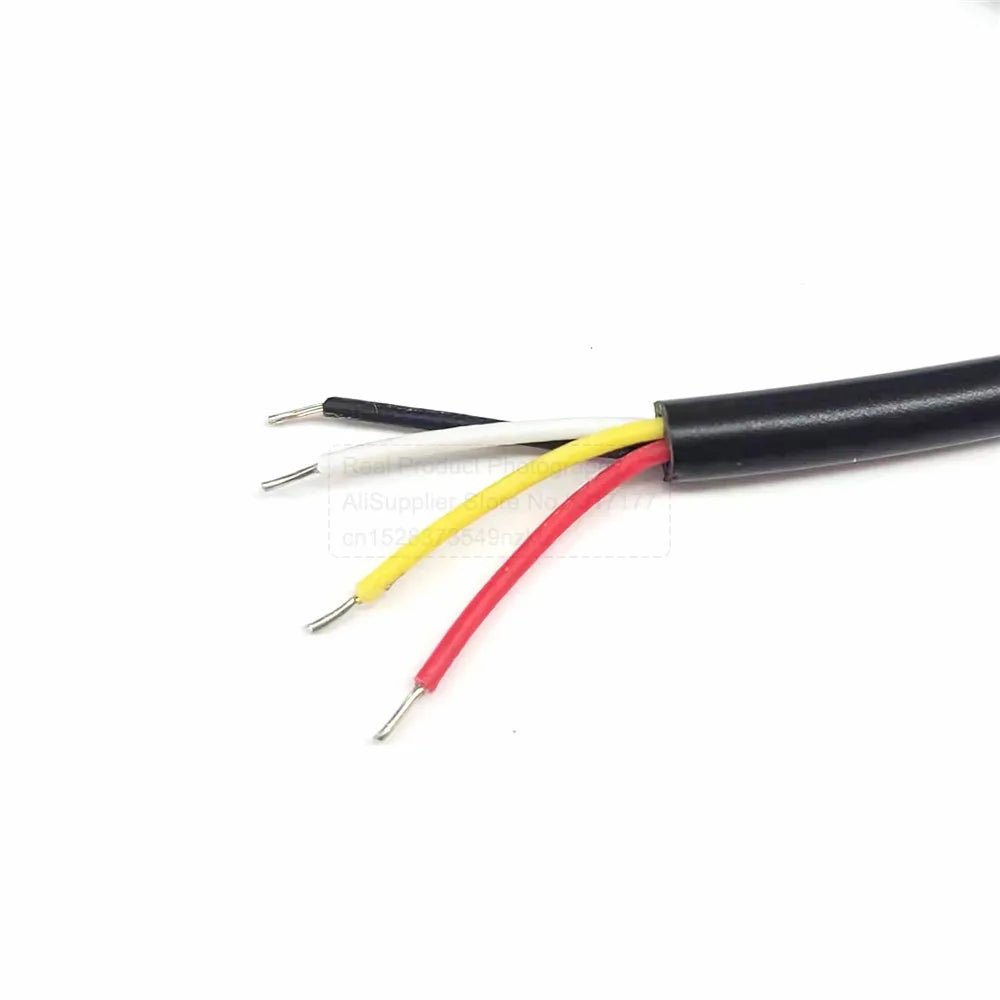

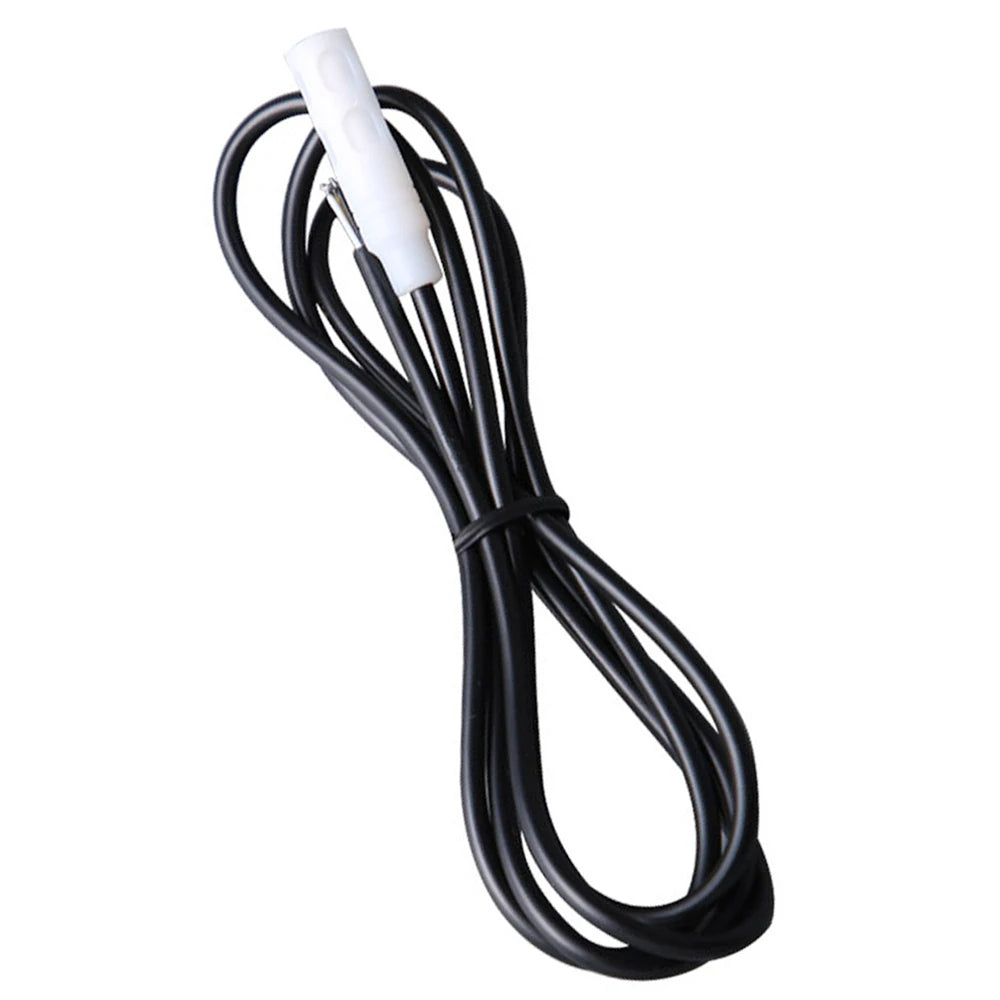

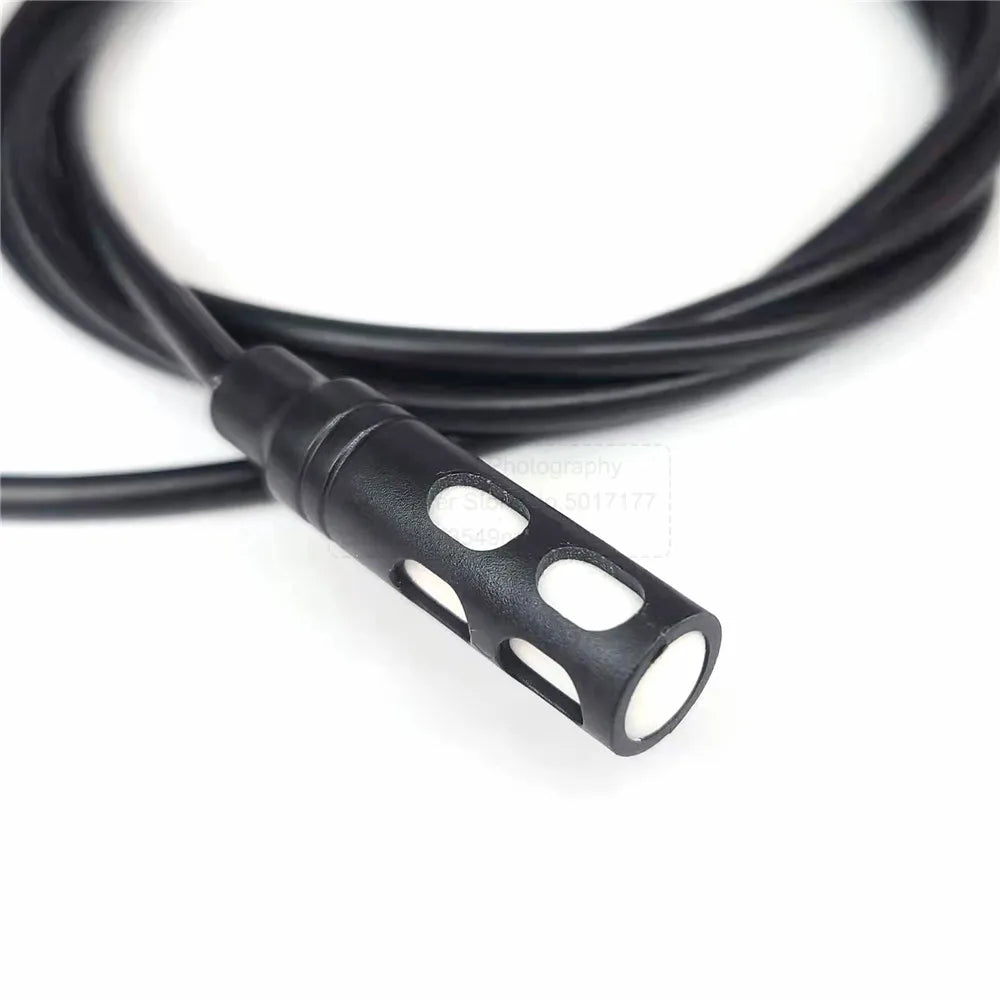

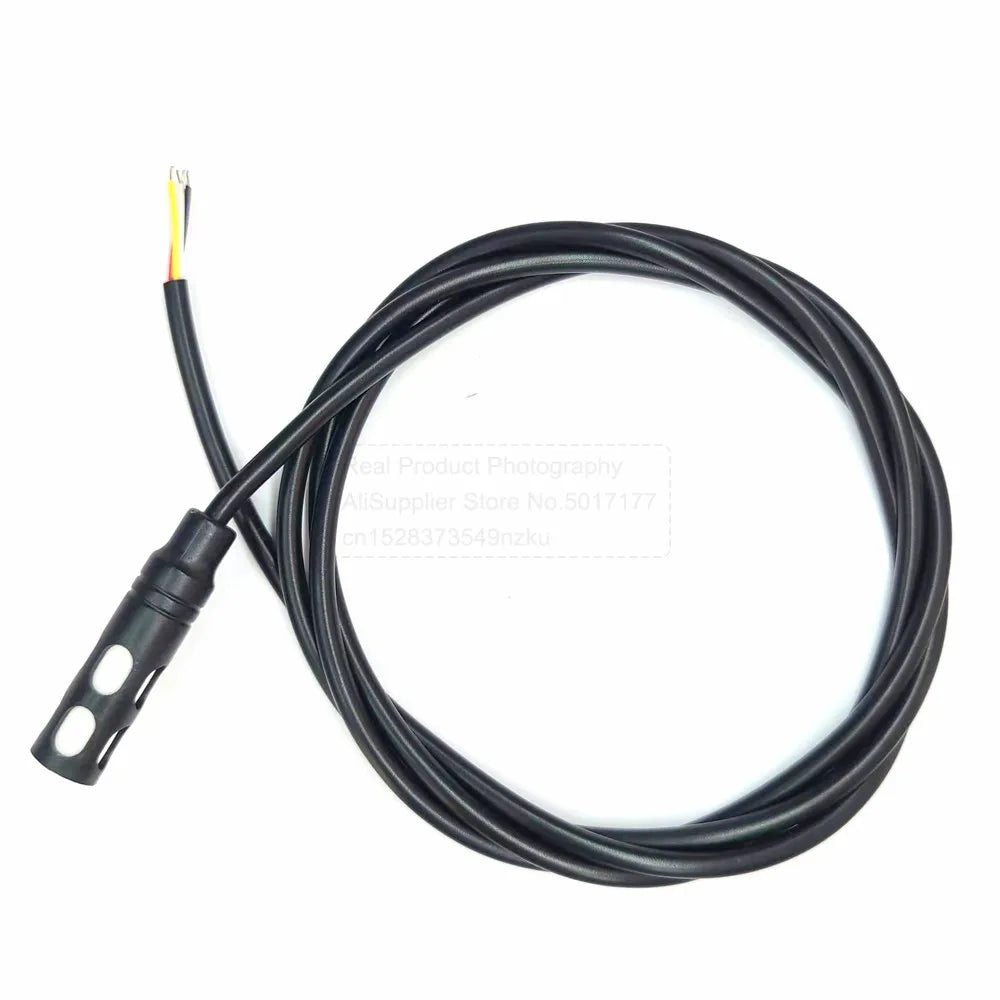

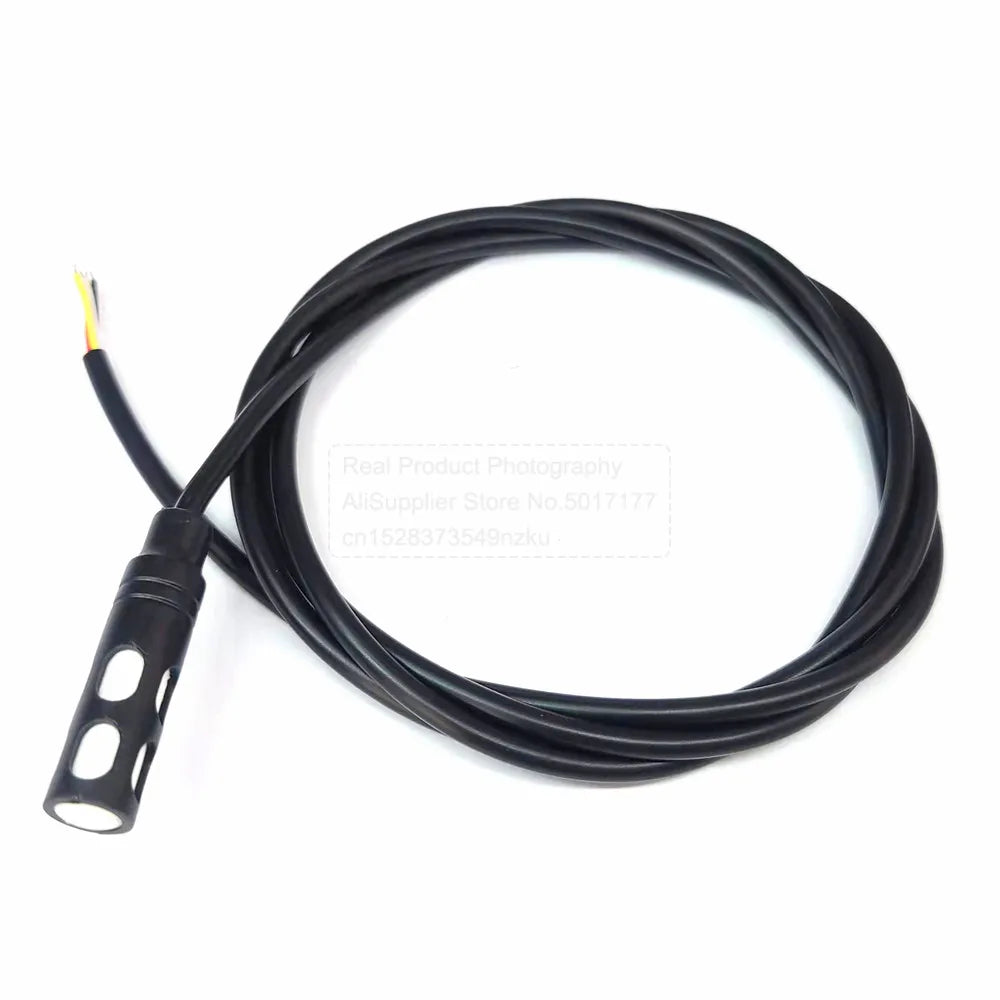

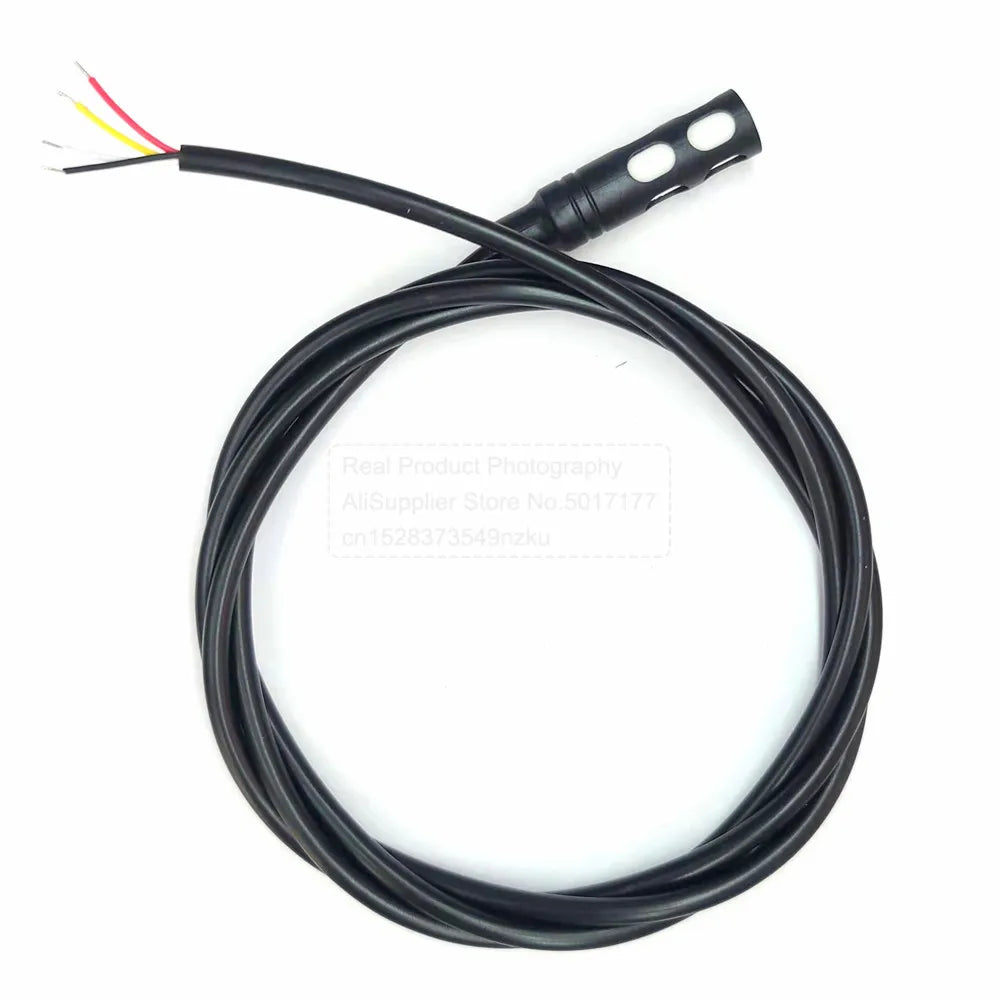

Temperature and Humidity Sensor Probe Cable SHT20 SHT30 SHT40 SHTC3 Digital Temperature Sensor 1M Length I2C Interface

Characteristic:

1, a new generation of new Swiss Sensirion temperature and humidity chips

2, I2C interface, digital signal output resolution up to 14 bits

3, fully calibrated, internal self-calibration

4, Low power consumption, high reliability and excellent long-term stability

5. The temperature and humidity are closely combined and convenient for dew testing

6. It is sealed with waterproof glue to ensure that the circuit is not short-circuited in a humid environment

7, suitable for temperature and humidity detection of cold chain, electricity, refrigerator, etc., the length of the cable can be customized

Storage conditions and precautions:

Air relative humidity is a function of temperature, air temperature has a great influence on relative humidity, and various compounds such as acids, bases, salts, etc.

The physical properties have a significant impact, the following matters should be paid attention to when using:

1. The temperature and humidity sensor should be installed in a place where the temperature is relatively stable and can best represent the measured ambient temperature and humidity;

2. Avoid installing in places with drastic temperature changes;

3. Avoid installing in places with strong air flow;

4. Avoid installing in the dead corner where the air does not flow;

5. Avoid using it in a salt spray environment;

6. Avoid using in corrosive gas environment;

7. Sensors exposed to extreme working conditions or chemical vapors can be restored to their calibrated state by the following treatments;

Drying: keep more than 10 hours at 80℃ and < 5%RH humidity;

Rehydration: 12 hours at 20-30°C and >75%RH humidity conditions;

8. The internal temperature and humidity sensor and circuit part of the module have been protected by silicone rubber, and are protected by a waterproof and breathable shell, which can effectively improve its high performance.

Service life in wet environment. However, it is still necessary to pay attention to avoid the sensor being immersed in water, or using it under high humidity and condensation conditions for a long time;
