Feature:

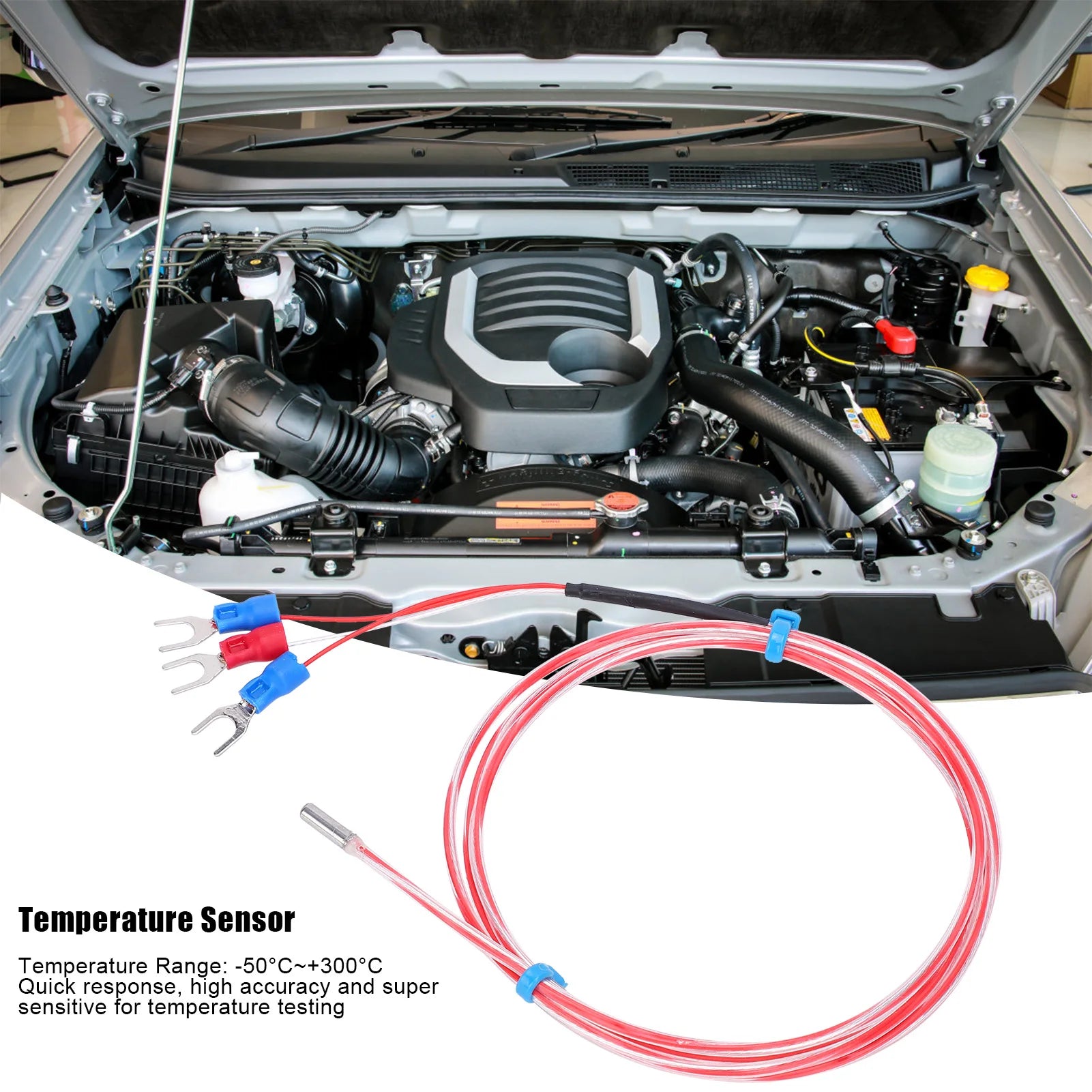

1. A‑level chip for quick response, high accuracy and super sensitive for temperature testing.
2. Platinum‑nickel wire, waterproof, anti‑corrosion, bending resistance, strong and durable.
3. The structure is simple, easy to use and widely used, waterproof temperature sensor.
4. Temperature range of ‑50 to +300℃, reliable in use and widely applications.
5. Widely used in petroleum, water conservancy, chemical industry, metallurgy, electric power, environmental protection and so on.

Specification:

Condition: 100% Brand New

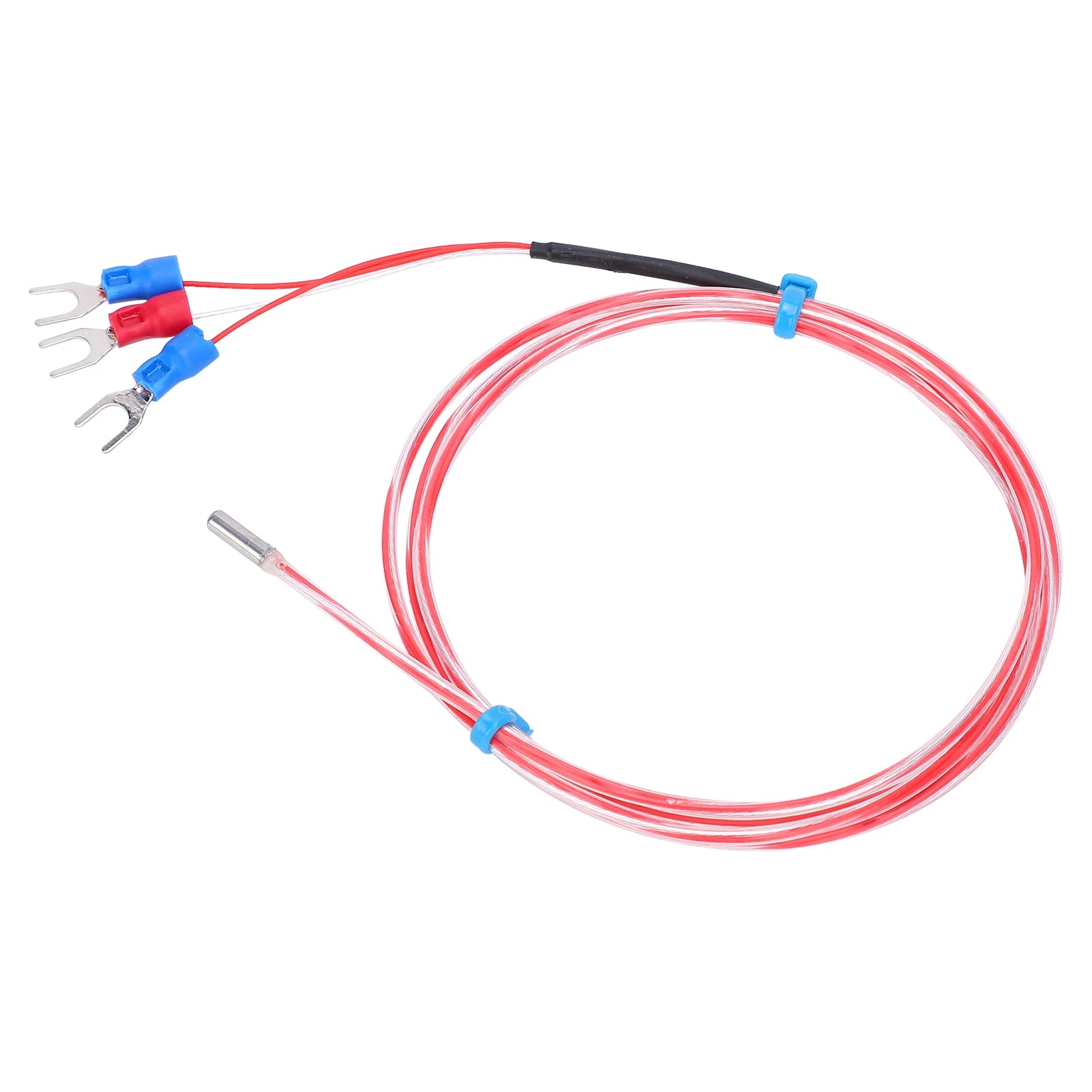

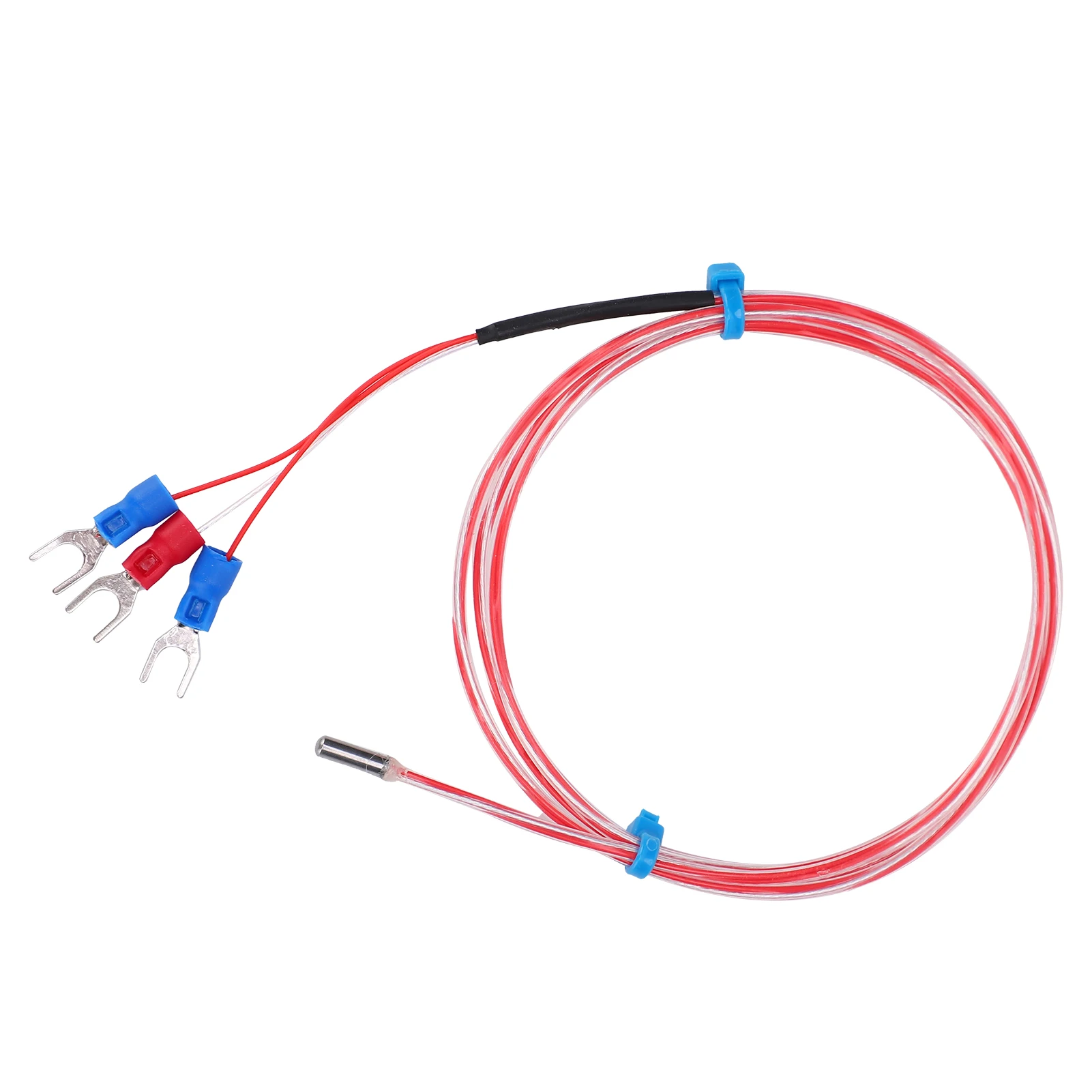

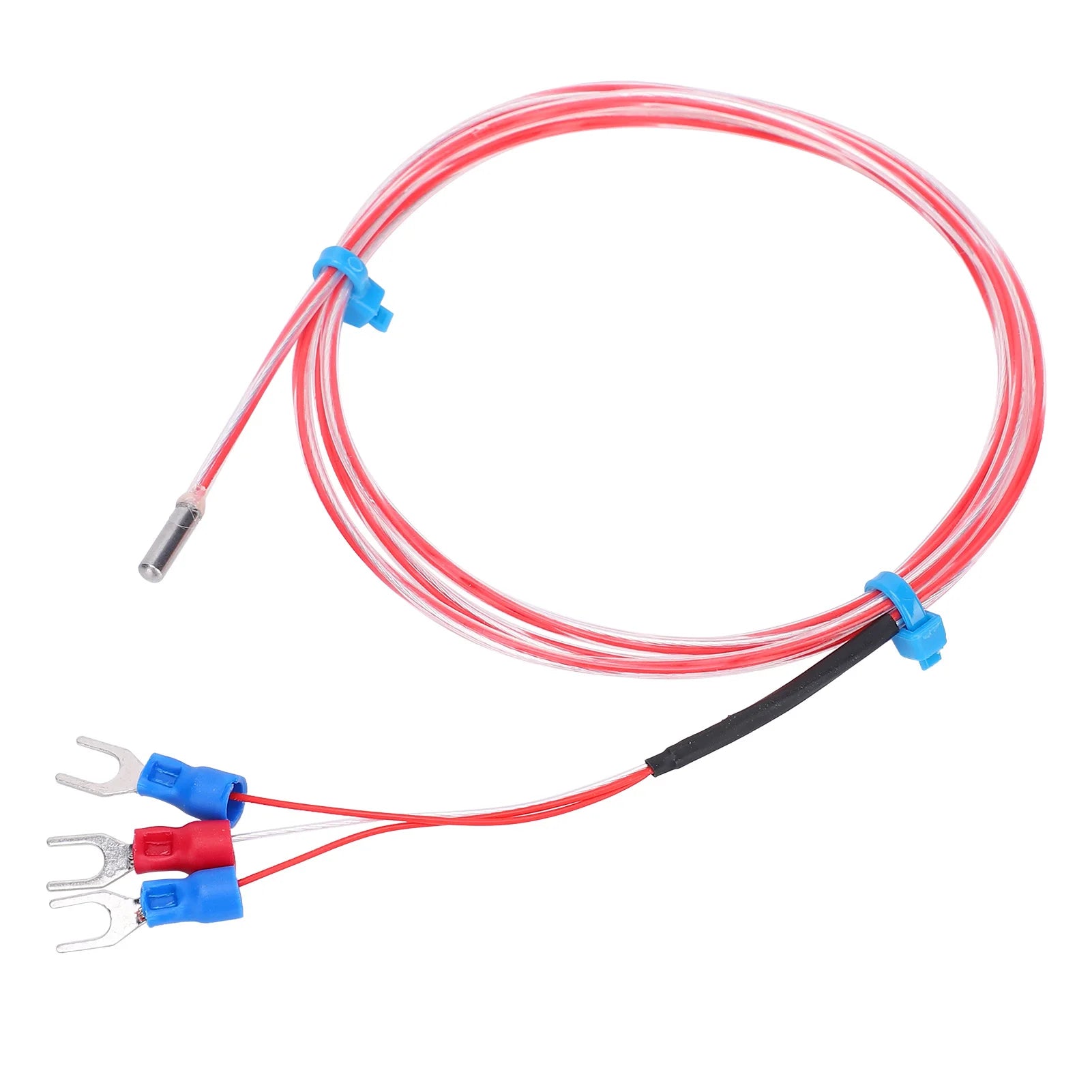

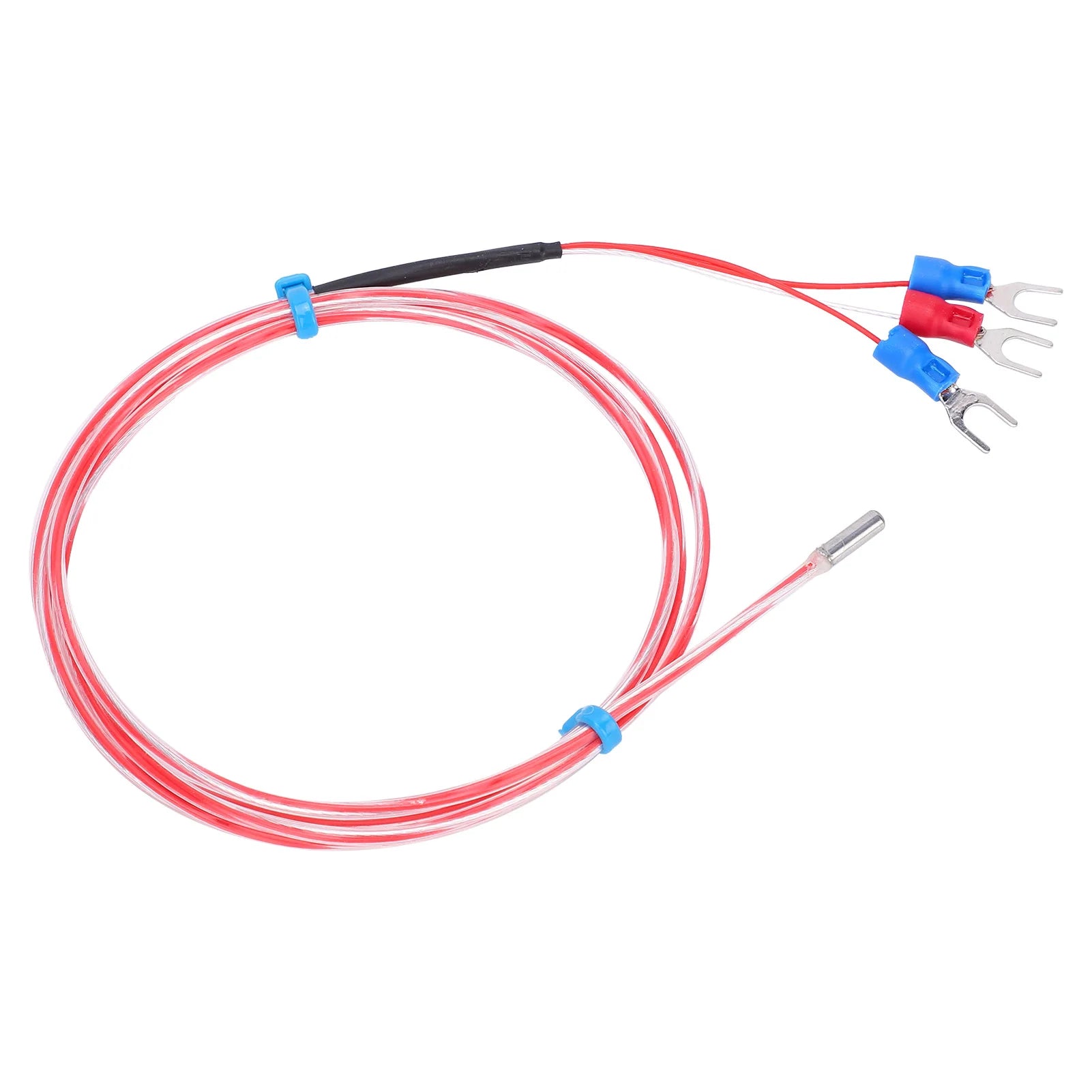

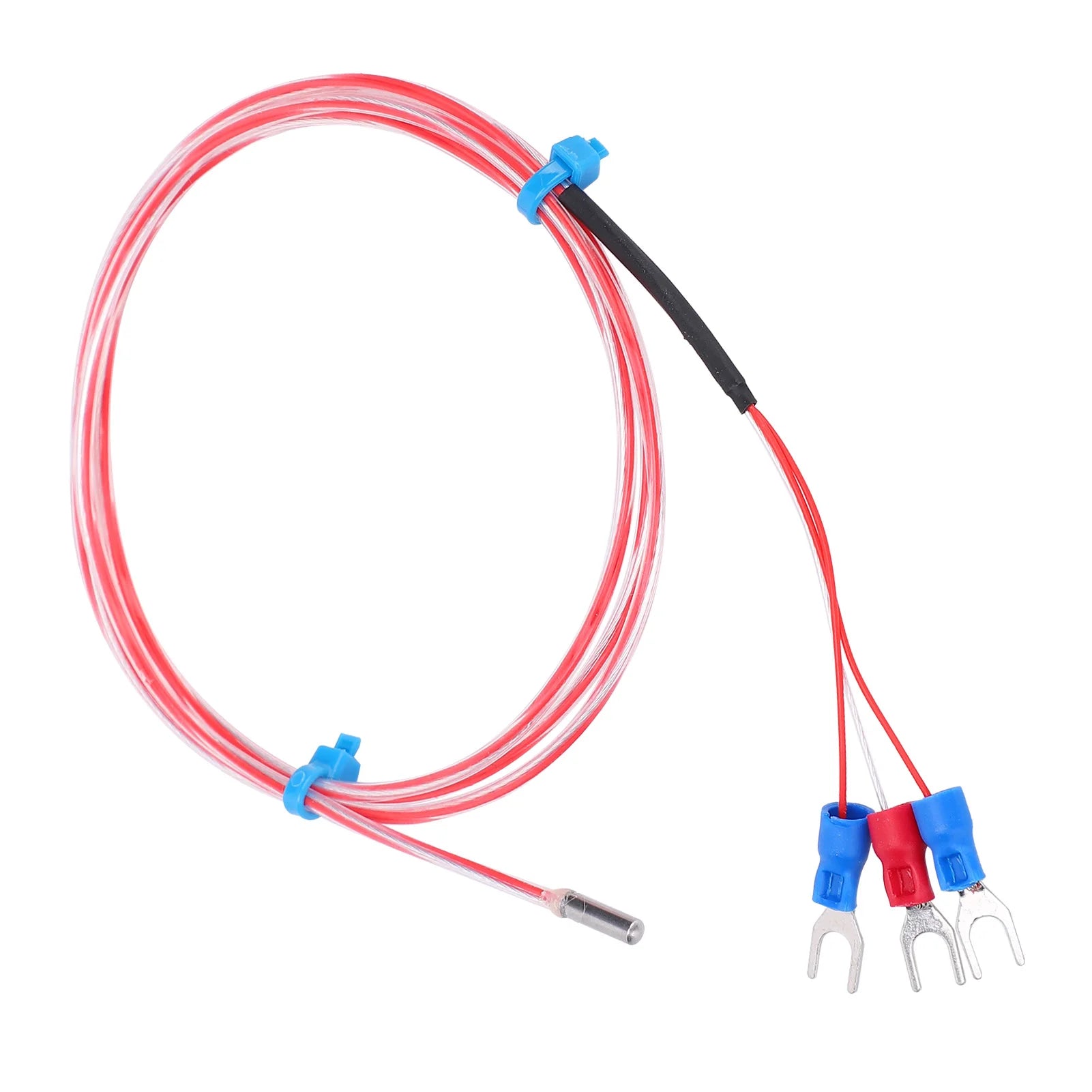

Item Type: Temperature Sensor
Material: Plastic

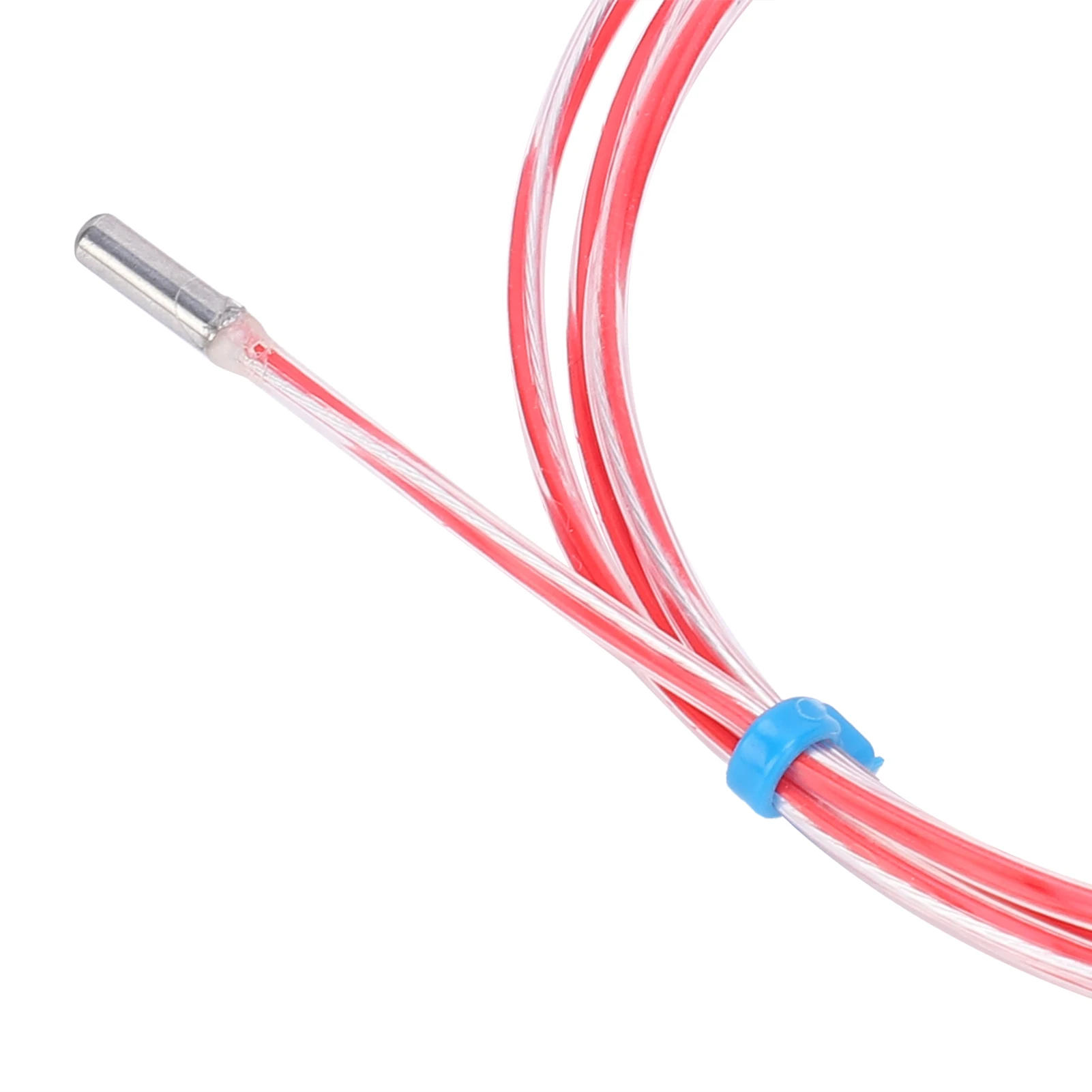

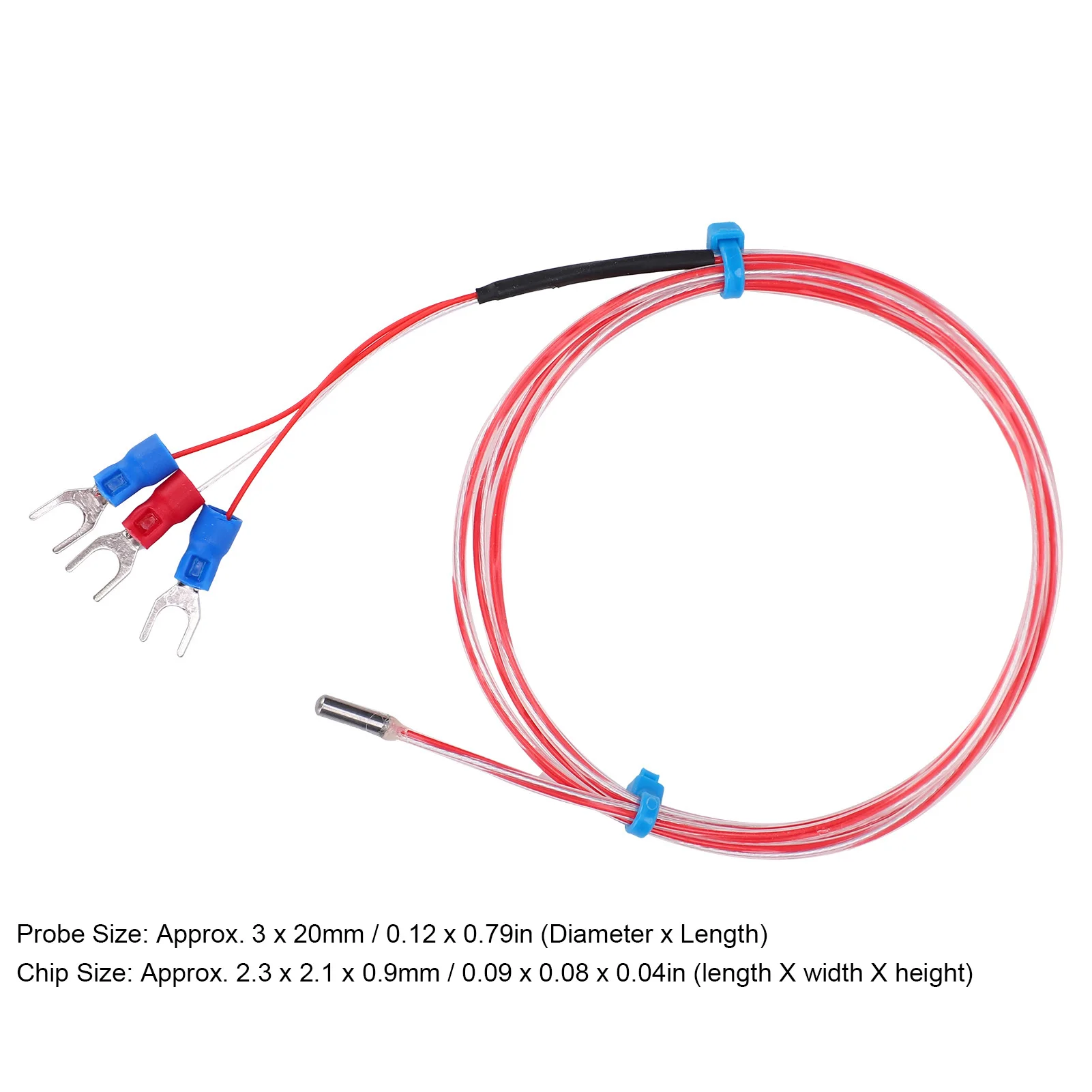

Probe Size: Approx. 3 x 20mm / 0.12 x 0.79in (Diameter x Length)
Grade: PT100
Temperature Coefficient: TCR-3850ppm /K
Temperature Range: -50°C~+300°C
Wire: Platinum-Nickel wire
DIN EN60751 (in accordance with 1EC751)
Chip Size: Approx. 2.3 x 2.1 x 0.9mm / 0.09 x 0.08 x 0.04in (length X width X height)
Stability: Ro drift≤0.04% (after 1000 hours at 500°C)
Insulation Resistance: > 100MQ at 20°C, > 2MQ50 at 0°C
Self-Heating Coefficient: 0.4K/ MW (at 0°C)
Response Time:
Water: S t0. 5=0. 05s t0. 9=0.15s
Air: 2m/s t0. 5=3.0s t0. 5=10. 0s.
Measurement Current: PT100 0.3, Maximum. 1. 0mA

Package List:

1 x Temperature Sensor
