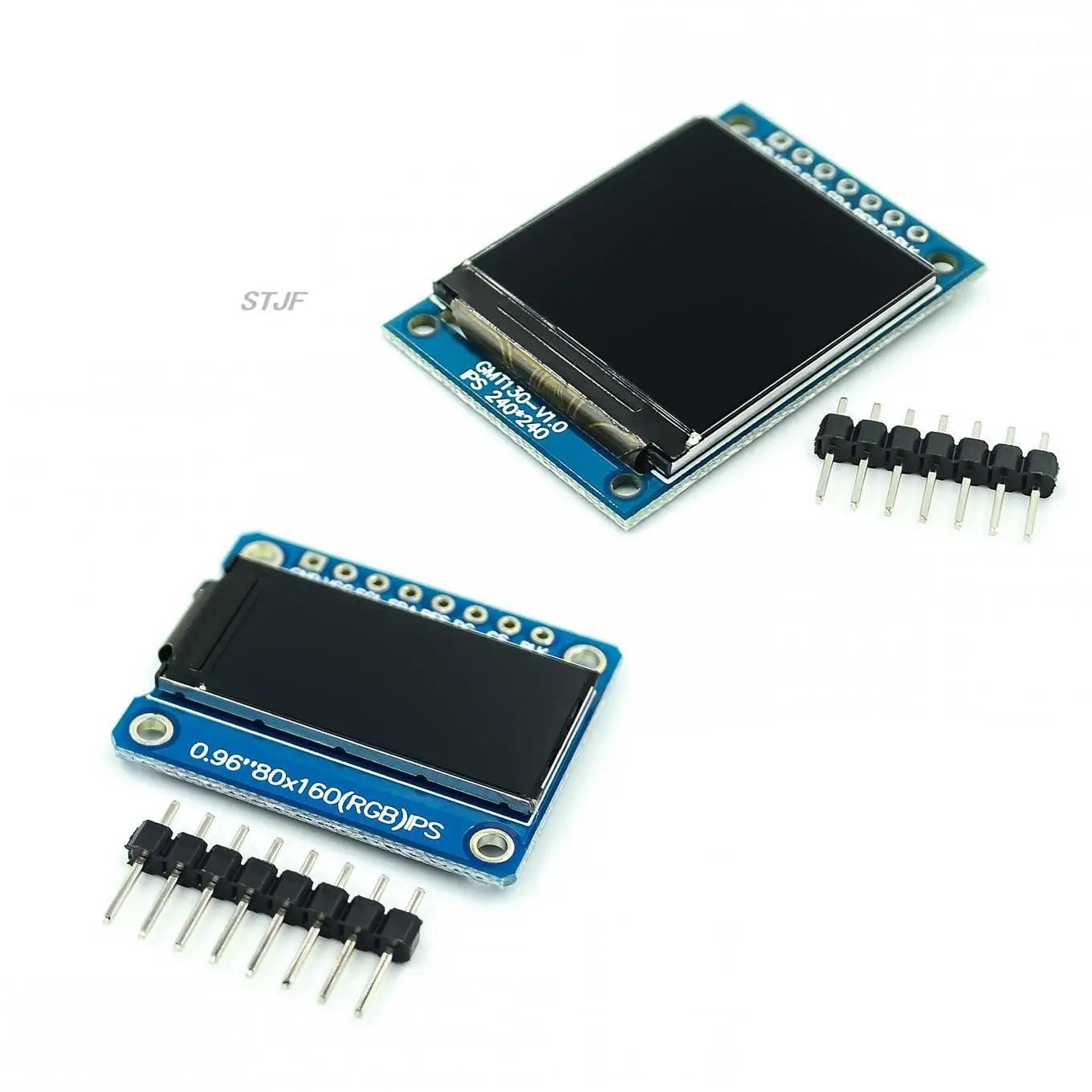

TFT Display 0.96 / 1.3 inch IPS 7P SPI HD 65K Full Color LCD Module ST7735 Drive IC 80*160 (Not OLED) For Arduino
1.3
$12.74
Sale price
$12.74
Regular price
$0.00
Skip to product information
TFT Display 0.96 / 1.3 inch IPS 7P SPI HD 65K Full Color LCD Module ST7735 Drive IC 80*160 (Not OLED) For Arduino
$12.74
Sale price
$12.74
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: STJF
Condition: New
Dissipation Power: 1
High-concerned chemical: none
Origin: Mainland China
Supply Voltage: 1
Type: Voltage Regulator
is_customized: Yes

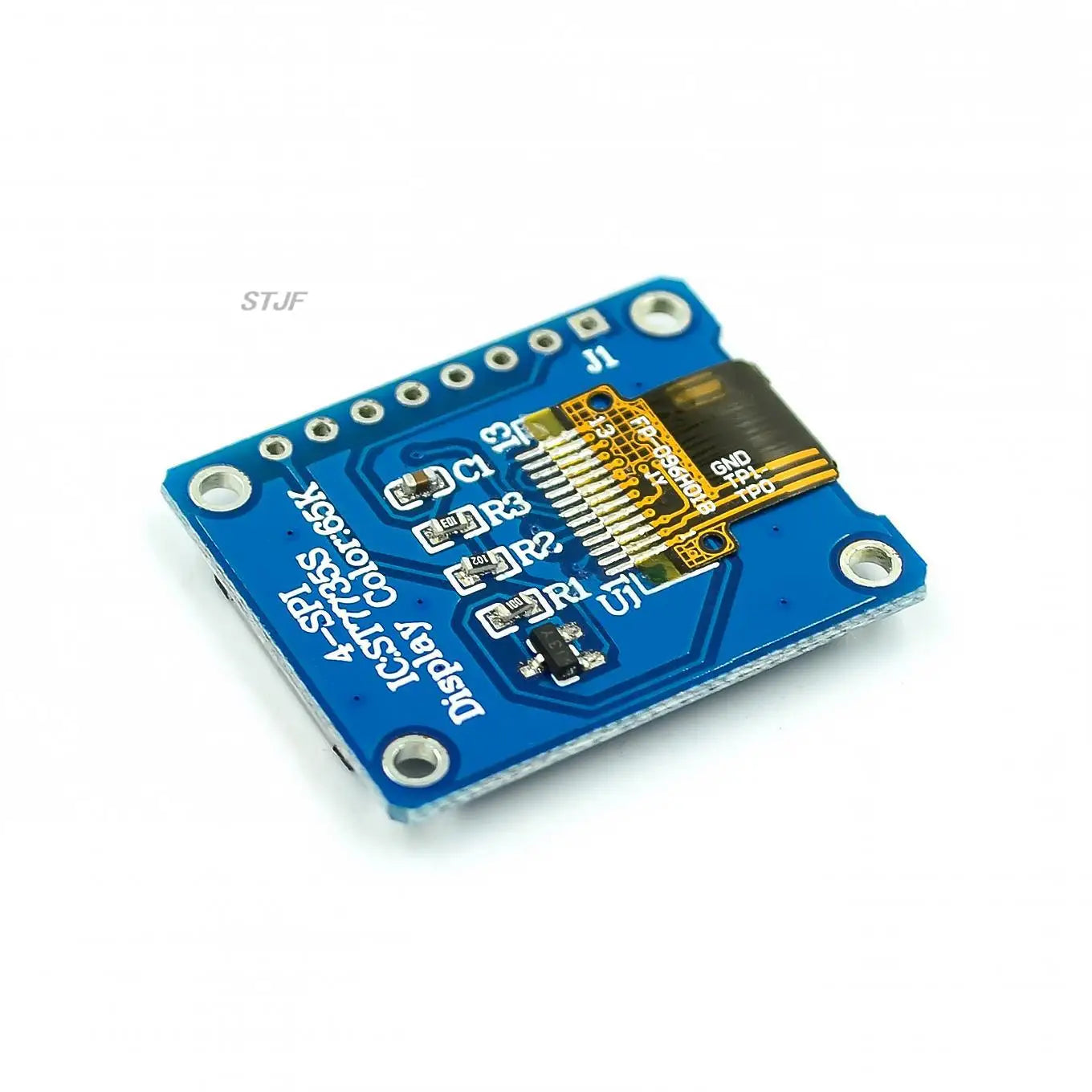

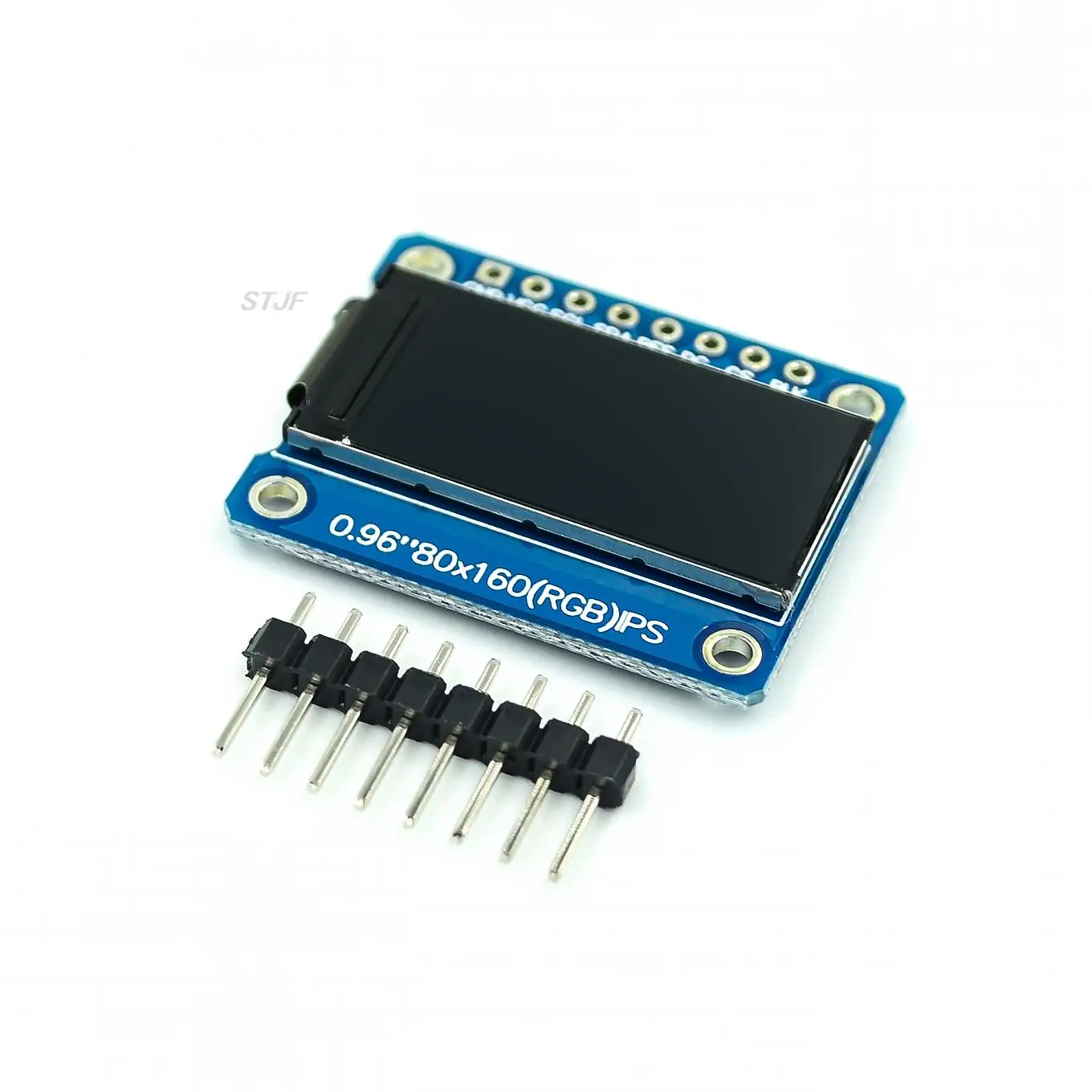

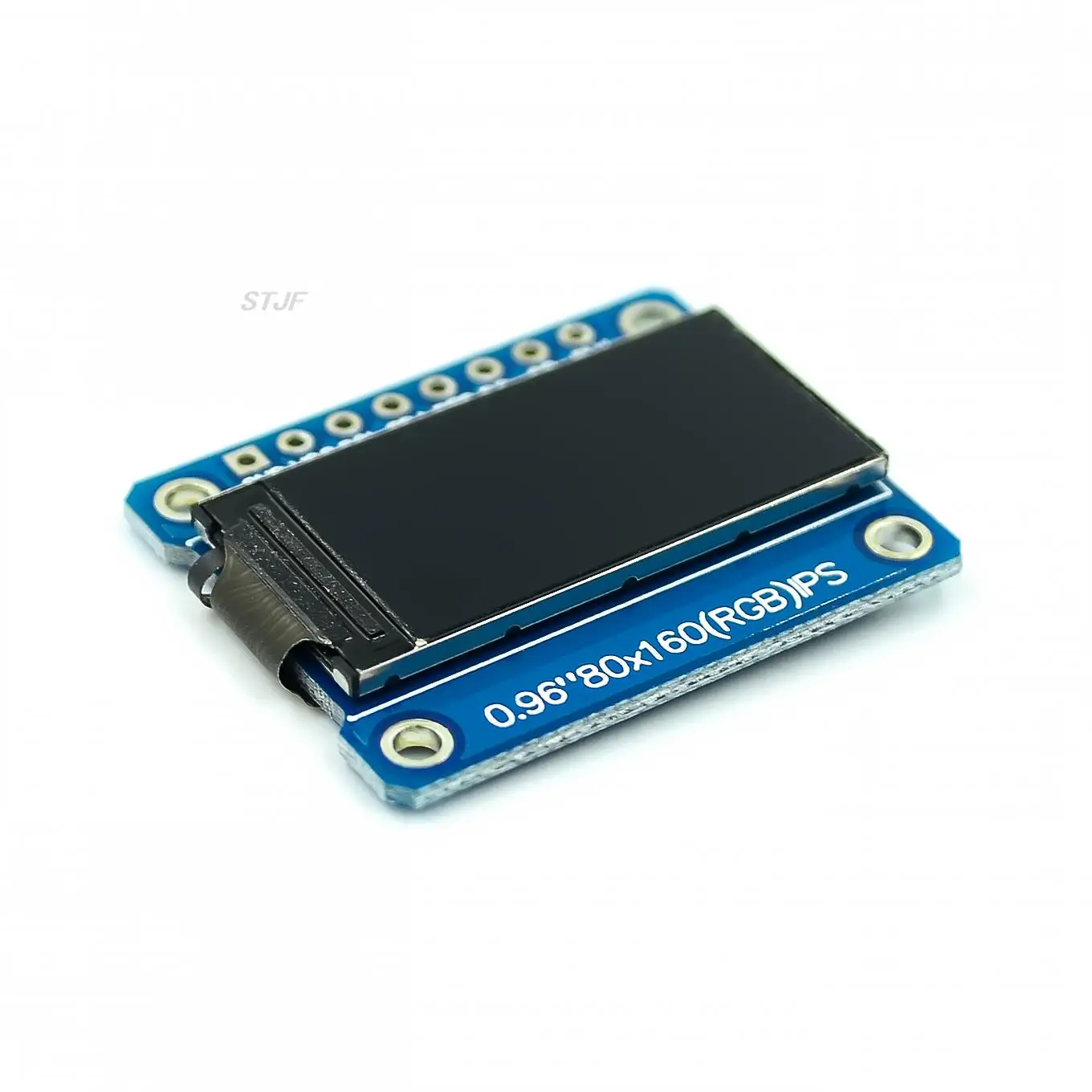

1.Features
?
SIZE?0.96inch?
Display Mode?Normally black IPS
Display Format?Graphic 80RGB*160 Dot-matrix
Input Data?SPI interface
Drive IC?ST7735S
Dimensional outline?24(W)*30 (H)*2.8+/-0.1(T)mm
Resolution?80RGB*160 Dots
LCD Active area?10.8 (W)*21.7 (H)
Dot pitch?0.135(H) x 0.1356(V) mm
Viewing Direction?All View
Operating Temperature?-2070??C
?
?
2.Pin Descriptions:
?
PIN No?Symbol?Description
1?GND?Ground
2?VCC?Power 3.3V
3?SCL?Serial clock pin.
4?SDA?Serial data input
5?RES?LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6?DC?Data/Command Control
7?CS?Chip Select
8?BLK?Backlight control pin

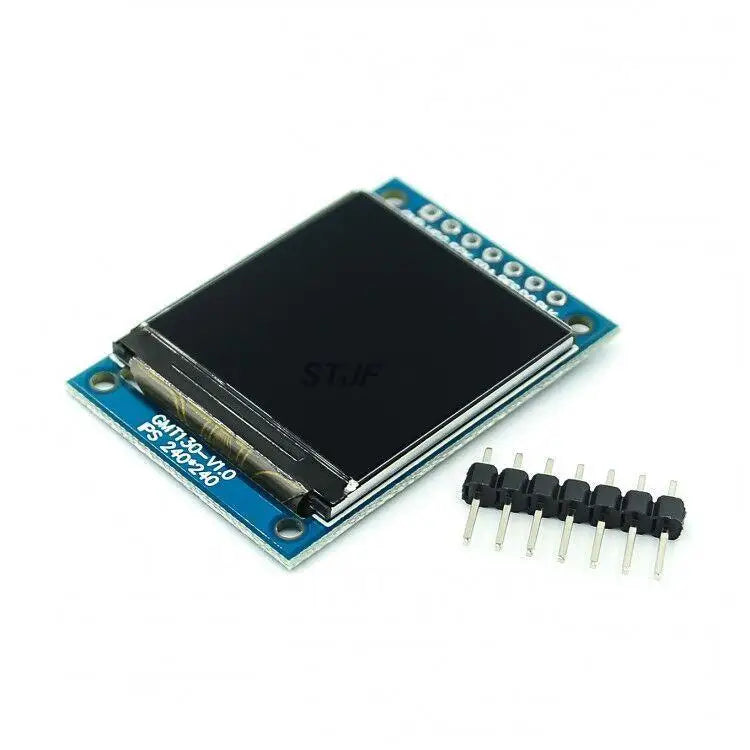

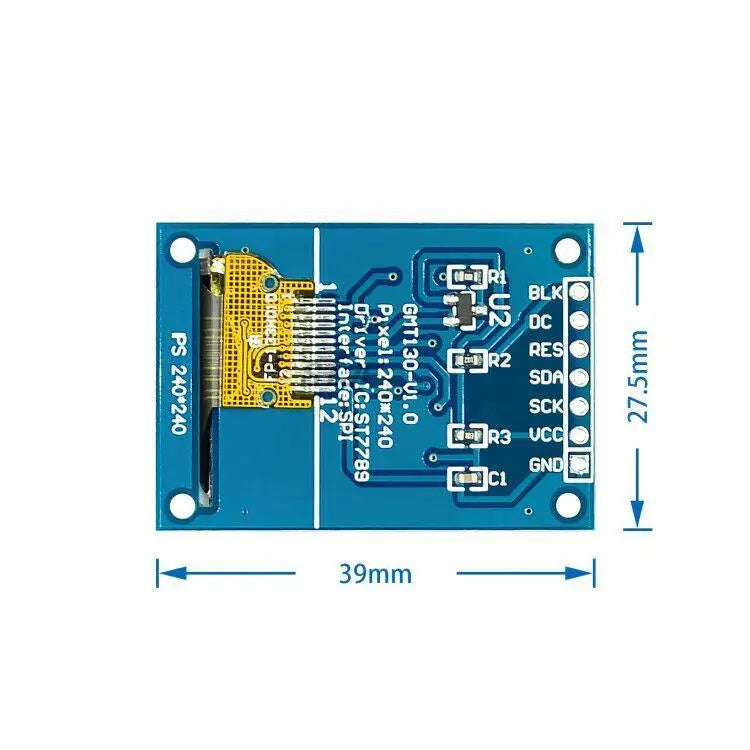

1.Features
?
SIZE?1.3inch?
Display Mode?Normally black IPS
Display Format?Graphic 240RGB*240 Dot-matrix
Input Data?SPI interface
Drive IC?ST7789VW
Dimensional outline?27.78(W)*39.22 (H)*3.0+/-0.1(T)mm
Resolution?240RGB*240 Dots
LCD Active area?23.4 (W)*23.4 (H)
Dot pitch?0.0975(H) x 0.0975(V) mm
Viewing Direction?All View
Operating Temperature?-2070??C
?
?
2.Pin Descriptions:
?
PIN No?Symbol?Description
1?GND?Ground
2?VCC?Power 3.3V
3?SCL?Serial clock pin.
4?SDA?Serial data input
5?RES?LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6?DC?Data/Command Control
7?BLK?Backlight control pin
