SPECIFICATIONS

Description:

This refrigerator thermostat ideal replace for your damaged thermostat, features D shaped shaft.

Control the temperature of refrigerator, display cabinet, congealer, beverage cooler and similar product.

Easy to operate manual controls

Used for hotel, bar, car, vehicle, apartment, villa and other places.

Applicable models: K50 K54 K56 K57 K59 K59E K60

Specification:

Working Voltage: AC 250V

Current: 4A/5A, 50Hz/60Hz

Warm In: -1° to -9°

Warm Out: -20° to 25°

Terminals: 2

Material: Metal, Plastic

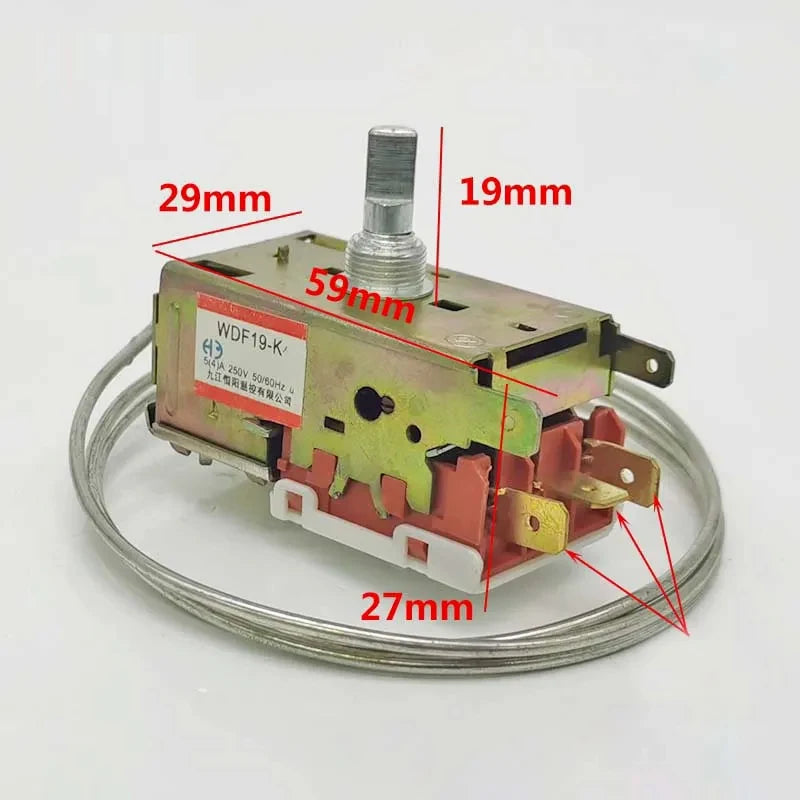

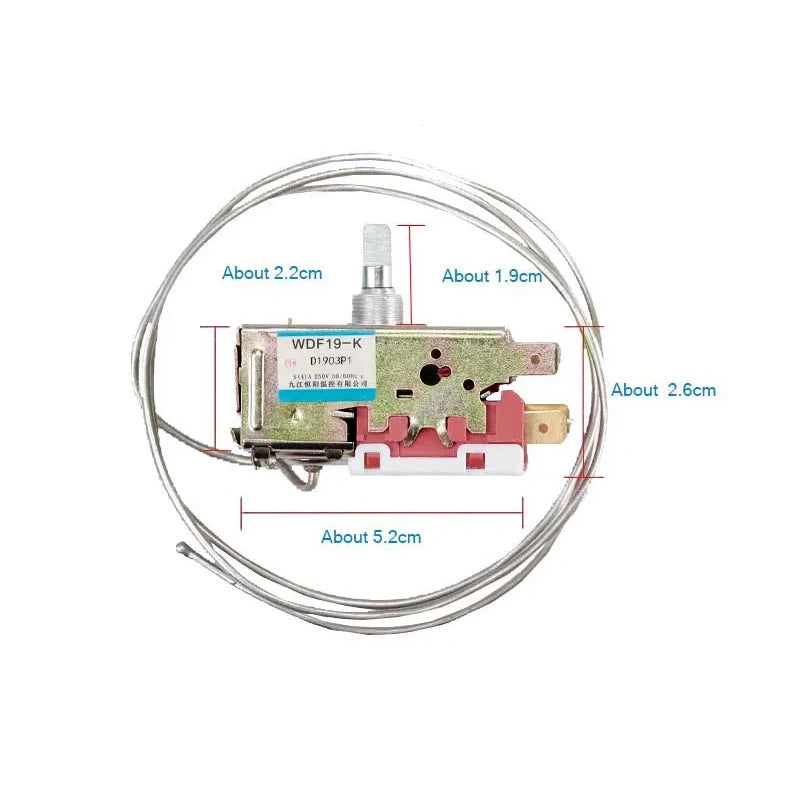

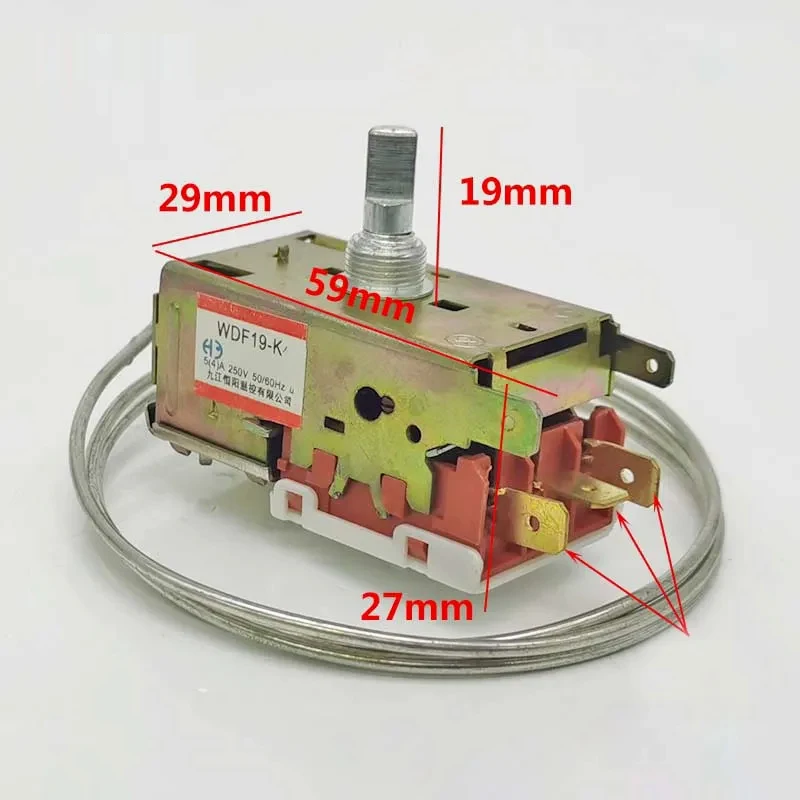

Dimensions: approx. 5.4x2.5x5.6cm(2.13x0.98x2.20in)

Cord Length: approx. 85cm(33.46in)

Color: As pictures shown.

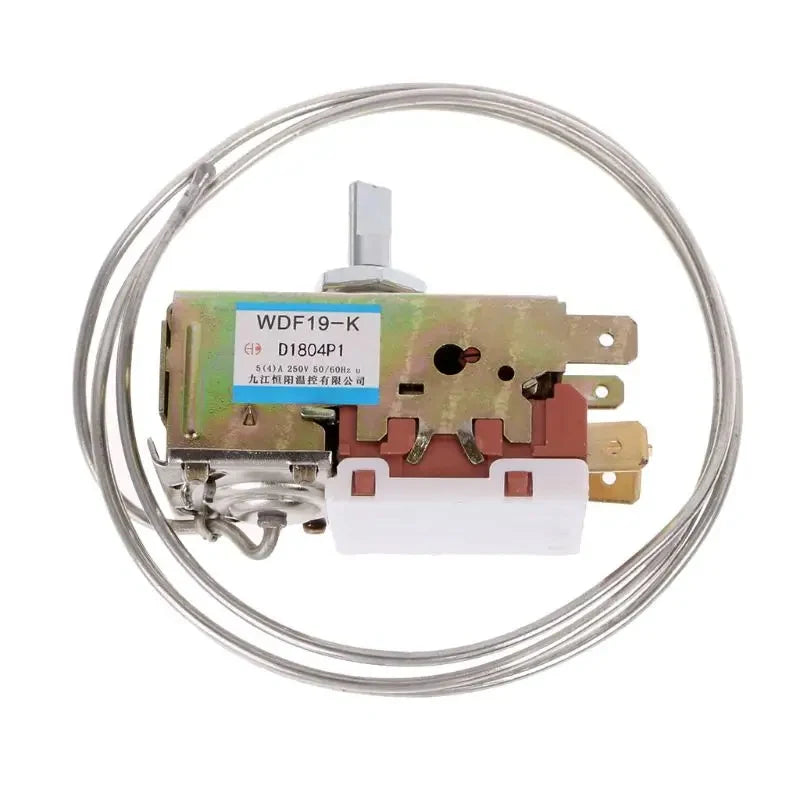

WDF19-K is suitable for Freezer

Quantity: 1pc x Refrigerator Parts

Notes:

1. Due to various factors such as monitor brightness, light brightness, etc., the actual color of the product may be slightly different from the picture displayed on the website.

2. Please allow for slight manual measurement deviations in the data.

Pre-sales guidance

Question 1: The compressor of the refrigerator keeps running, the refrigerator freezes normally, but the effect of the freezer is not good

The left side of the back of the refrigerator is frozen and the freezing is uneven or there is no cooling effect,

Is it a thermostat problem?

Answer 1: It's not a thermostat problem, it's generally a lack of refrigerant or an aging compressor

The refrigerator has not been repaired, the refrigerator compressor has been running

Question 2: The refrigerator freezes normally, and the back of the refrigerator freezes evenly. Is it a problem with the thermostat?

Answer 2: This is generally a problem with the thermostat, which can be replaced generally.

Question 3: After replacing the compressor of the swimming tank or adding oxygen to the pipeline, the refrigerator does not stop, is it a problem with the thermostat?

Answer 3: Generally it is not a thermostat problem, it is recommended to use a refrigerator timer.

Question 4: The refrigerator compressor does not start, is it a problem with the thermostat?

Answer 4: This is divided into 3 situations:

1: short-circuit the thermostat pin wiring. If it starts normally and the cooling is normal, replace the thermostat. If the short-circuit compressor does not run cooling, it is a lack of refrigerant, not a thermostat fault.

2: In winter, the ambient temperature is very low, the refrigerator does not start, generally the temperature compensation heating is broken or the thermostat is broken

3: short-circuit thermostat compressor does not start, generally the line, compressor or starter failure

...............................................................................................................................................

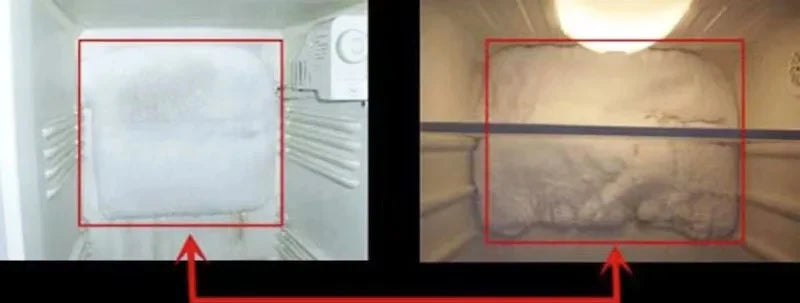

The back of the refrigerator compartment is frozen and evenly frozen. As shown in the figure blew, the compressor does not stop and fails. It is a problem with the temperature control circuit. The thermostat needs to be replaced.

............................................................................................................................................................

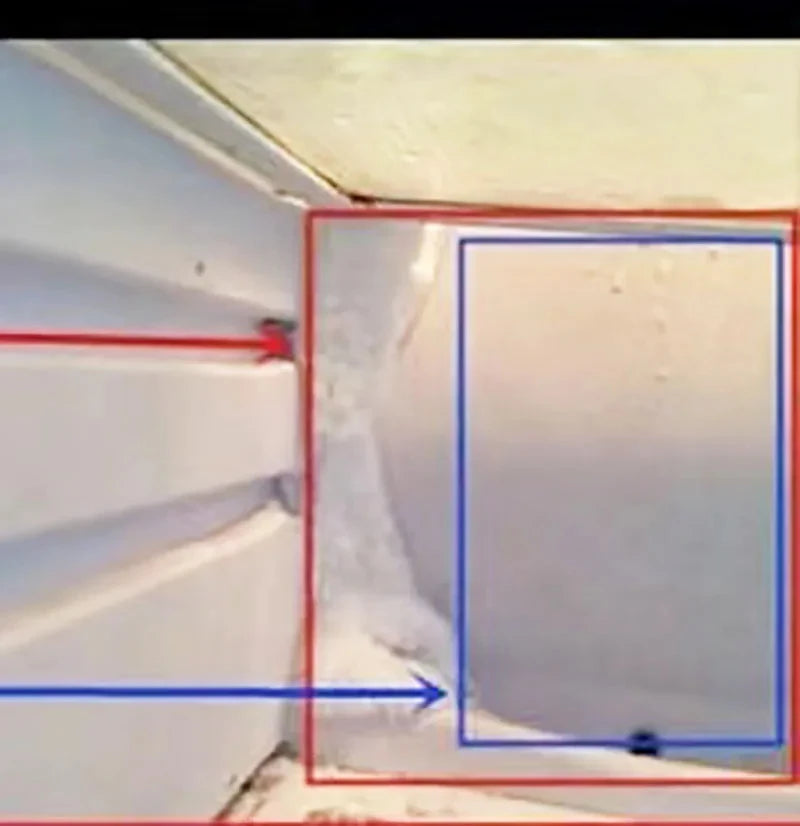

Refrigerator freezer freezes only the left side has ice or the other side freezes, freezes

Uneven analysis, as shown in the figure blew, leads to the failure of the compressor not shutting down is not the problem of the thermostat

It is a variety of problems such as internal leakage and operating pressure, piping and compressor problems

...................................................................................................................................................................

If your refrigerator thermostat is 2 feet, you can also buy our 3 feet thermostat, which can be used instead, as long as the length of the line is enough

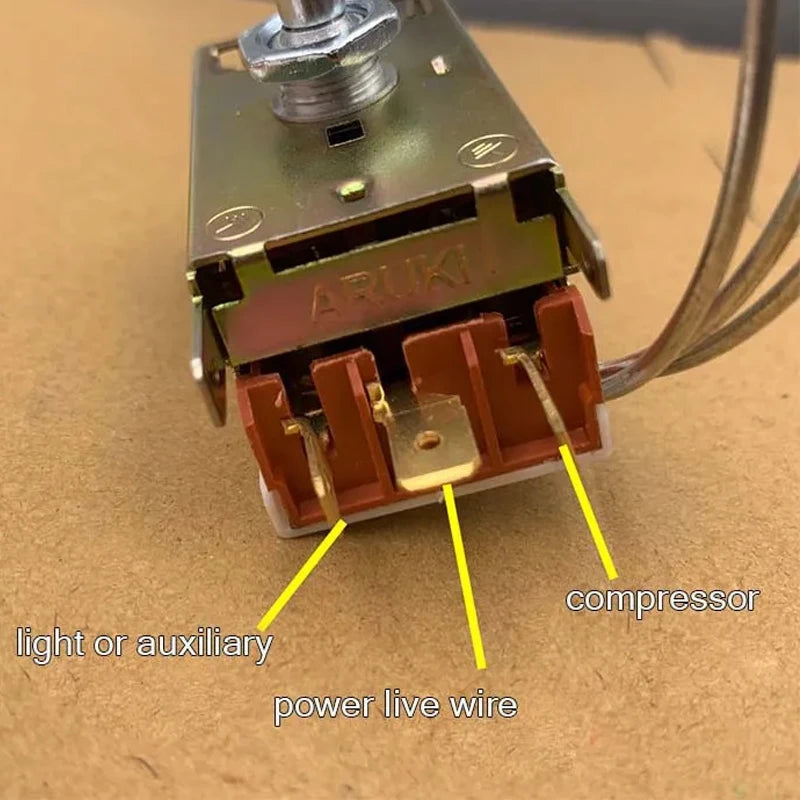

H is connected to the brown wire, which is the live wire of the power supply;

L is connected to the gray wire, which is the live wire of the lamp;

C is connected to the white wire, which is the live wire of the compressor.

H---connected to the power supply terminal, C---connected to the compressor control terminal, L---connected to the temperature compensation control terminal.

The two-leg temperature control only needs to be connected to the two feet of the three-leg temperature-controlled HC.

Purchase standard:

1. Check whether the original machine is WDF type or WPF type (the two types are not common).

2. The thermostat does not need to be the same model, it is used on the same type and same refrigeration equipment

can be used in general.

3. Check whether the appearance is similar and whether the fixing method is the same, otherwise it cannot be installed.

4. Check whether the length of the probe is enough. The long one is generally short, and the short one is generally not long.
