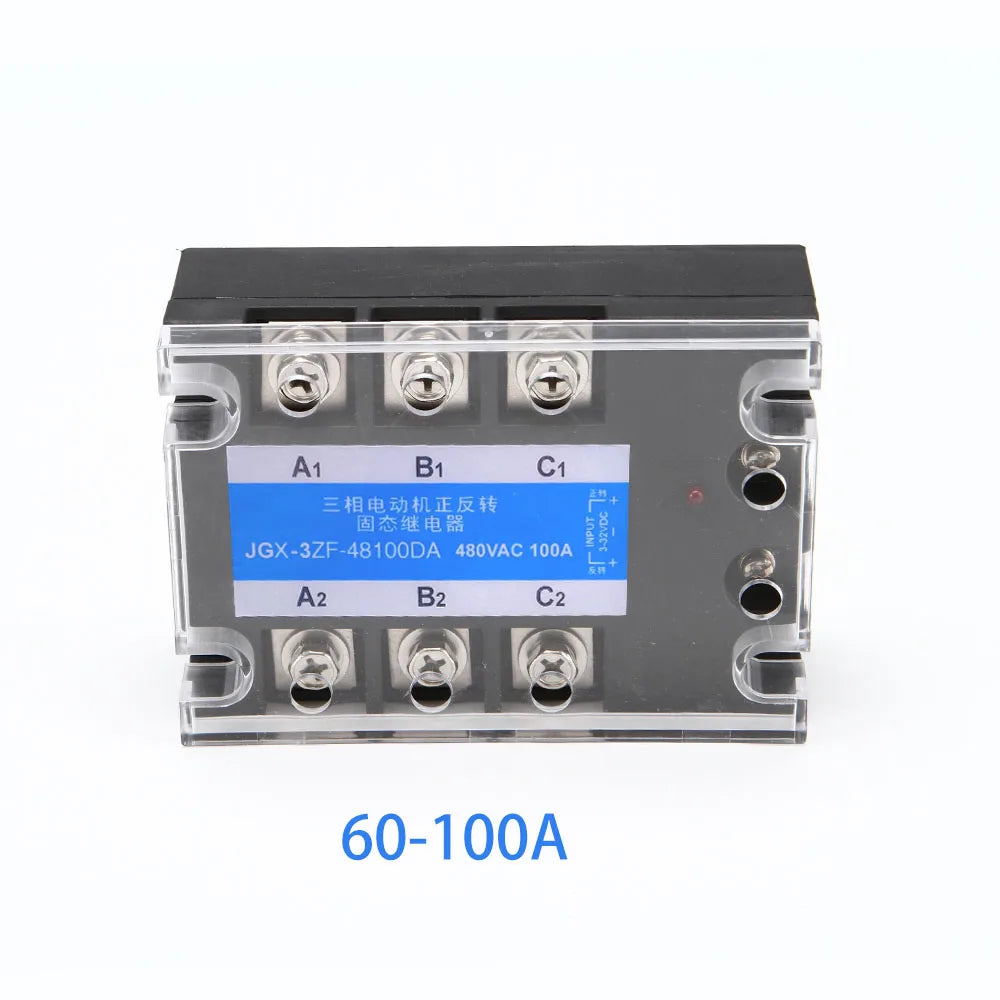

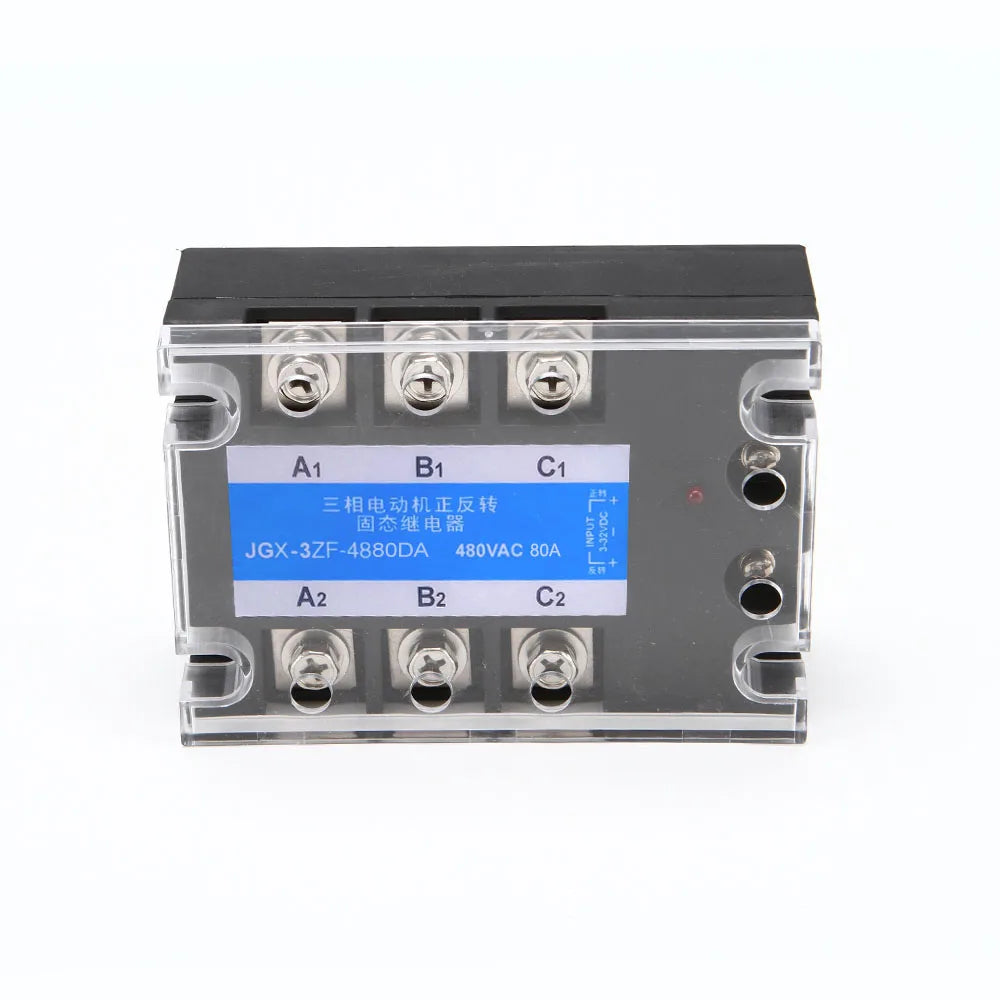

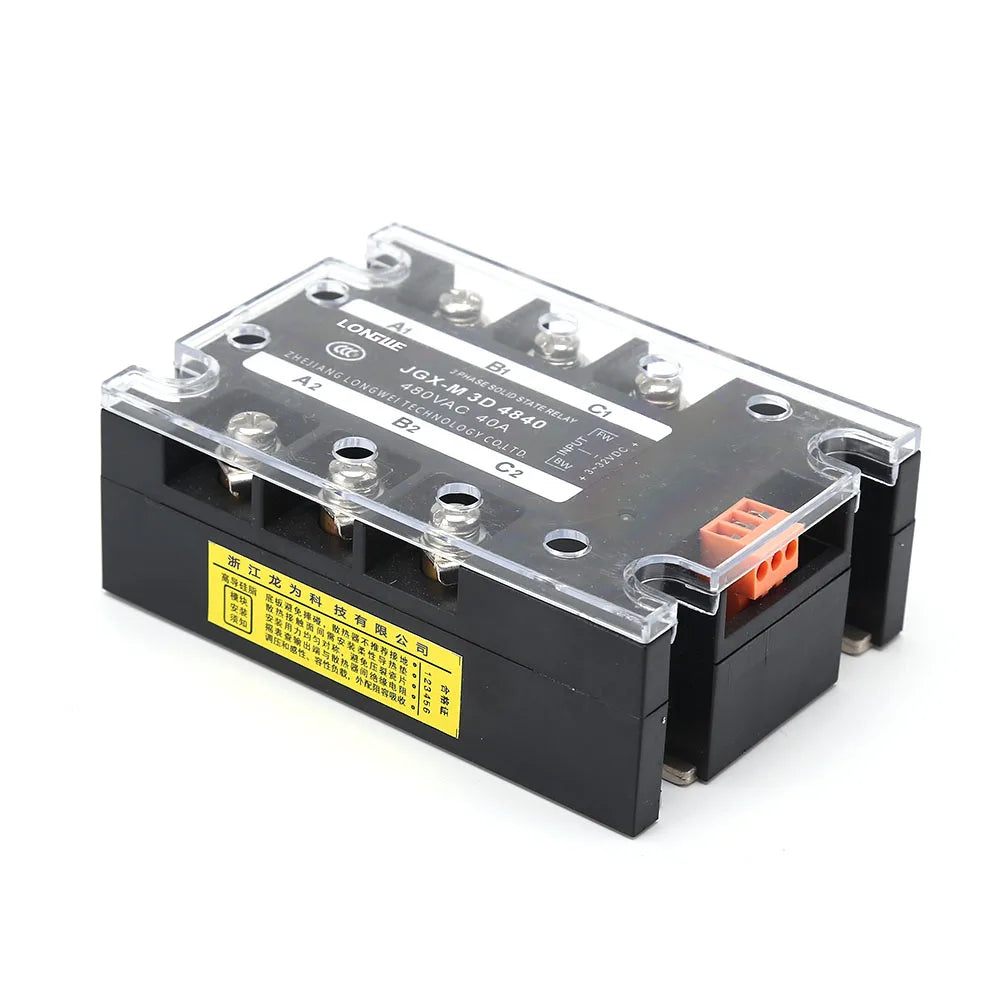

Three-Phase Motor Reversing Control Module SSR 10A-100A 32VDC Control 24-480VAC CE DC Forward & Reverse Solid State Relay

Three-Phase Motor Reversing Control Module SSR 10A-100A 32VDC Control 24-480VAC CE DC Forward & Reverse Solid State Relay

$547.70

$547.70 $0.00

Size JGX-3ZF-4880DA JGX-3ZF-48100DA JGX-3ZF-4860DA JGX-3ZF-4875DA JGX-3ZF-4825DA JGX-3ZF-4840DA JGX-3ZF-4810DA

Description

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: replace ac contactor

Origin: Mainland China

Output Power: 24-480VAC

Power Source: DC

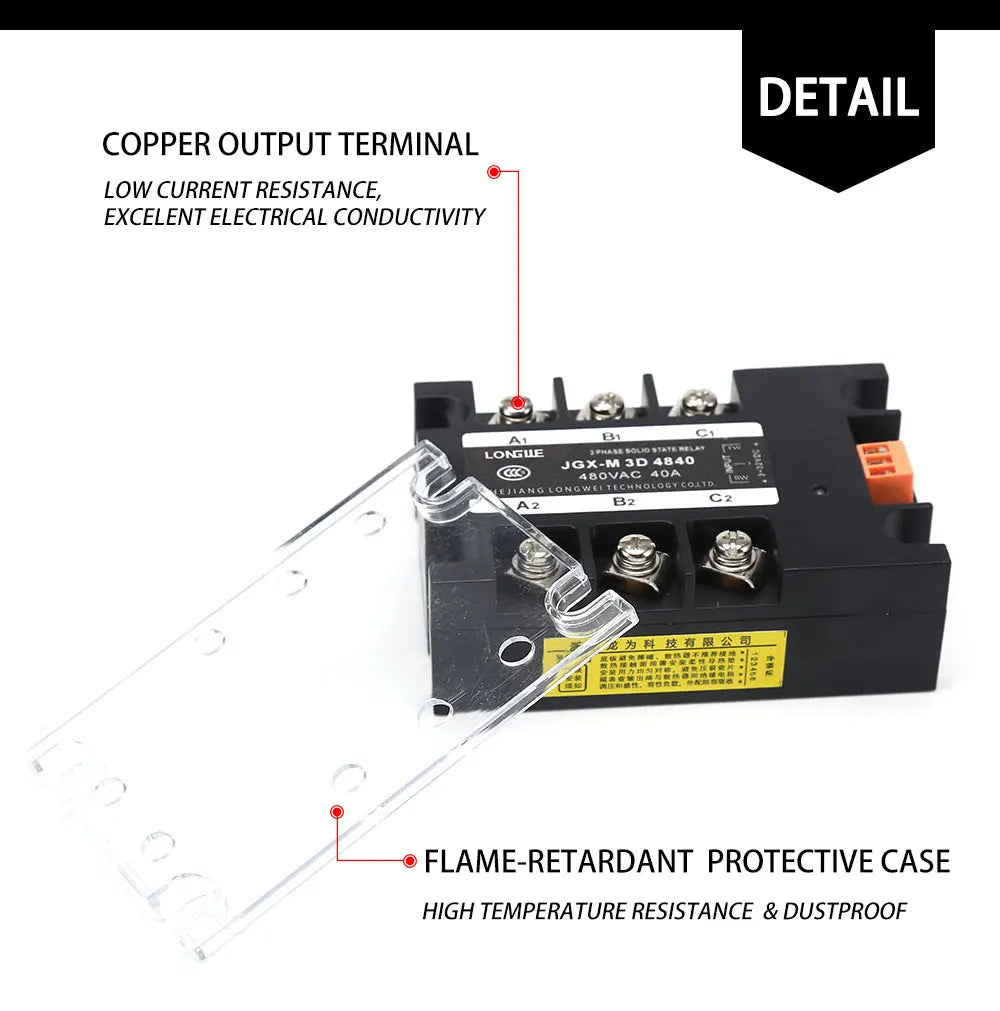

Protect Feature: Epoxy

Theory: Solid State Relay

Use: Protective

Voltage: 3-32VDC

is_customized: Yes

LONGWE Three-Phase Motor Reversing Control Module SSR 10A-100A 32VDC Control 24-480VAC CE DC Forward & Reverse Solid State Relay

Over 10 years we focus on industry automation fields, well know the local market

Select quality sensors and related items with senior sales teams and engineers

*********************************************************************************************

Please find the "contact" on the UPPER-LEFT to contact us!

Or you can "follow" us on the UPPER-LEFT to know our newest information!

Want to know more about us? click"visit store" on the UPPER-LEFT!

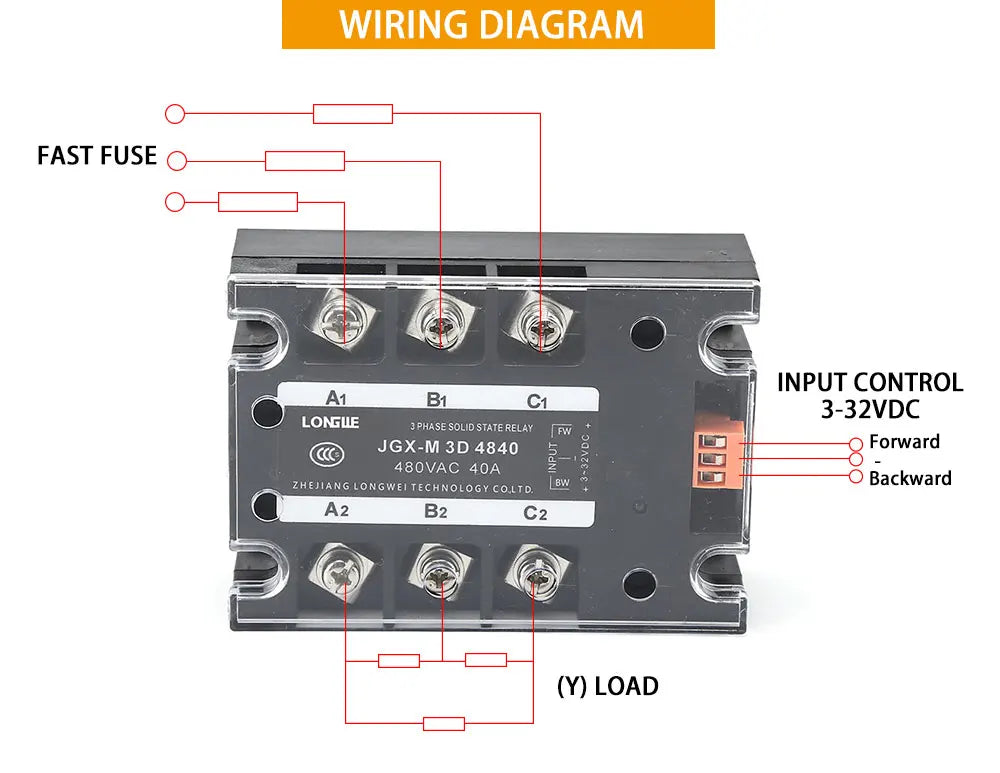

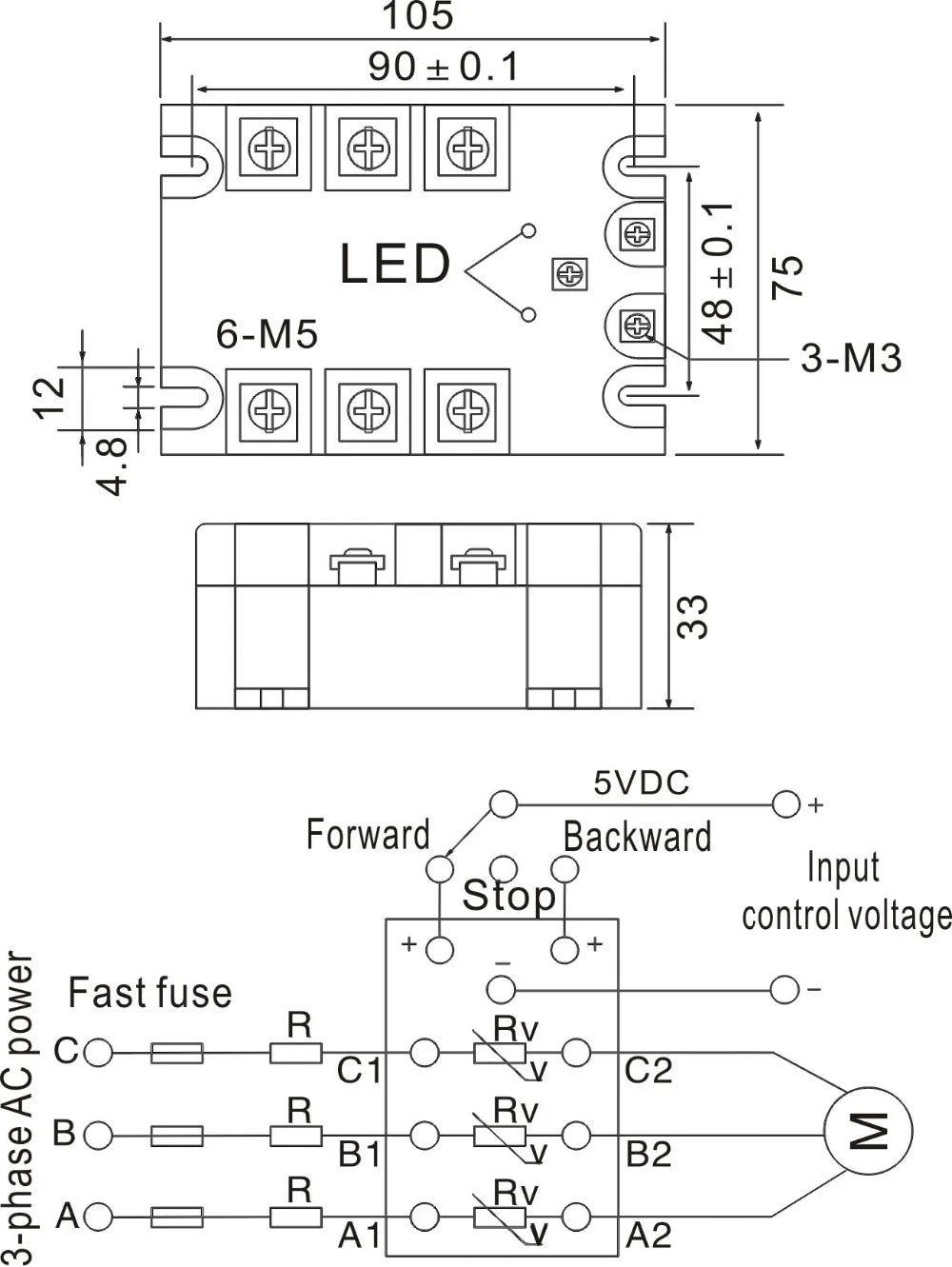

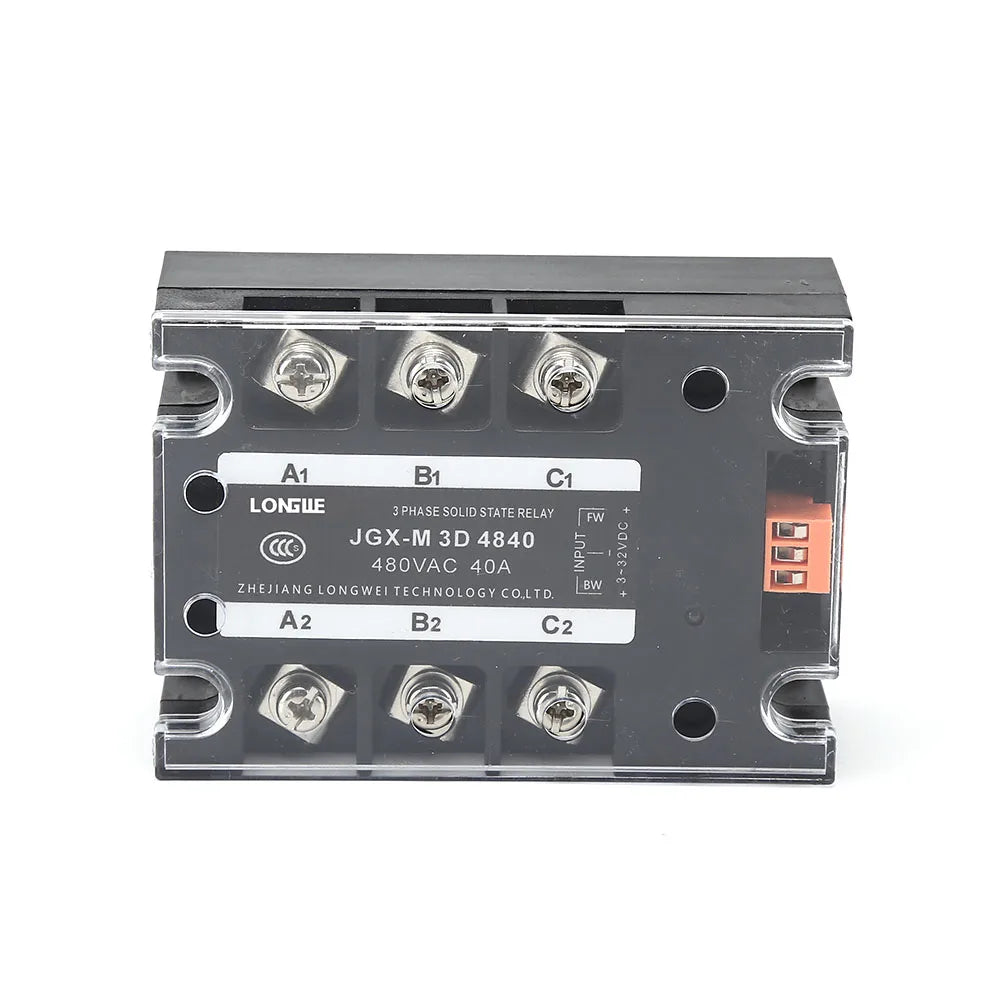

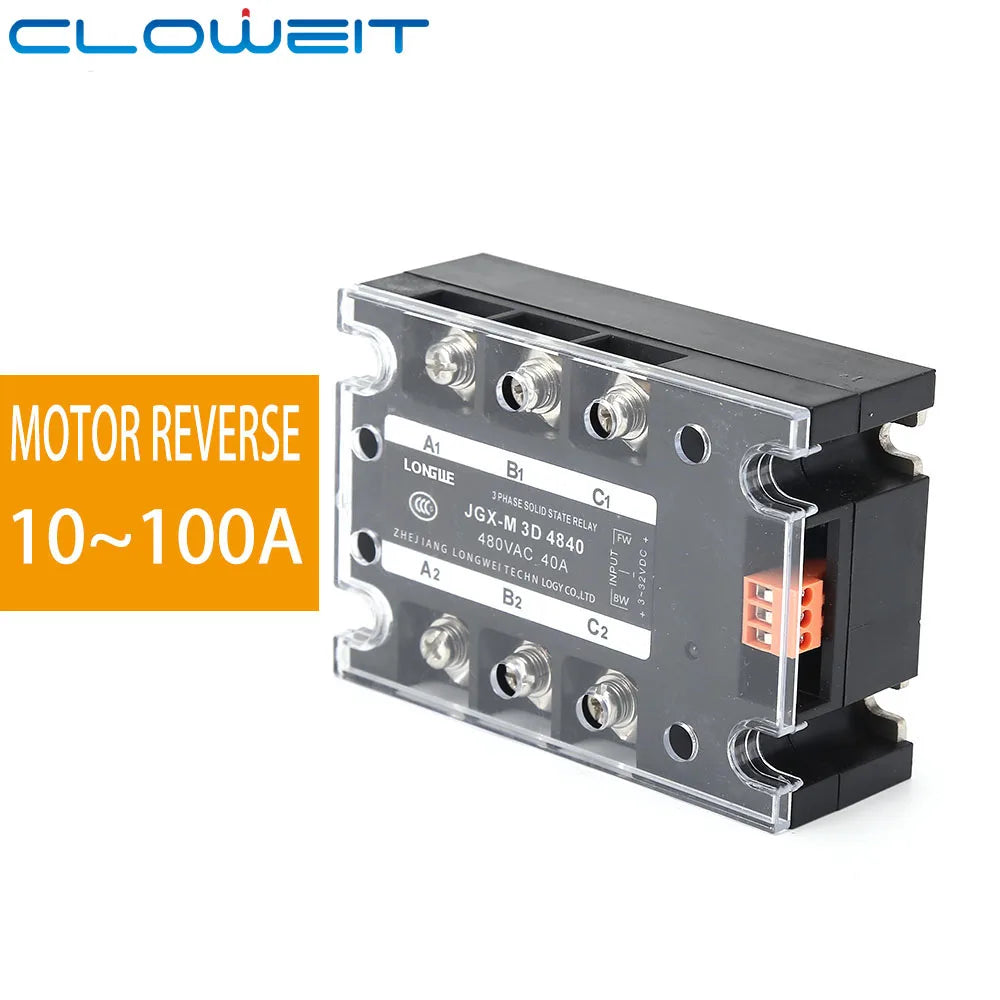

MOTOR REVERSE (3 phase)

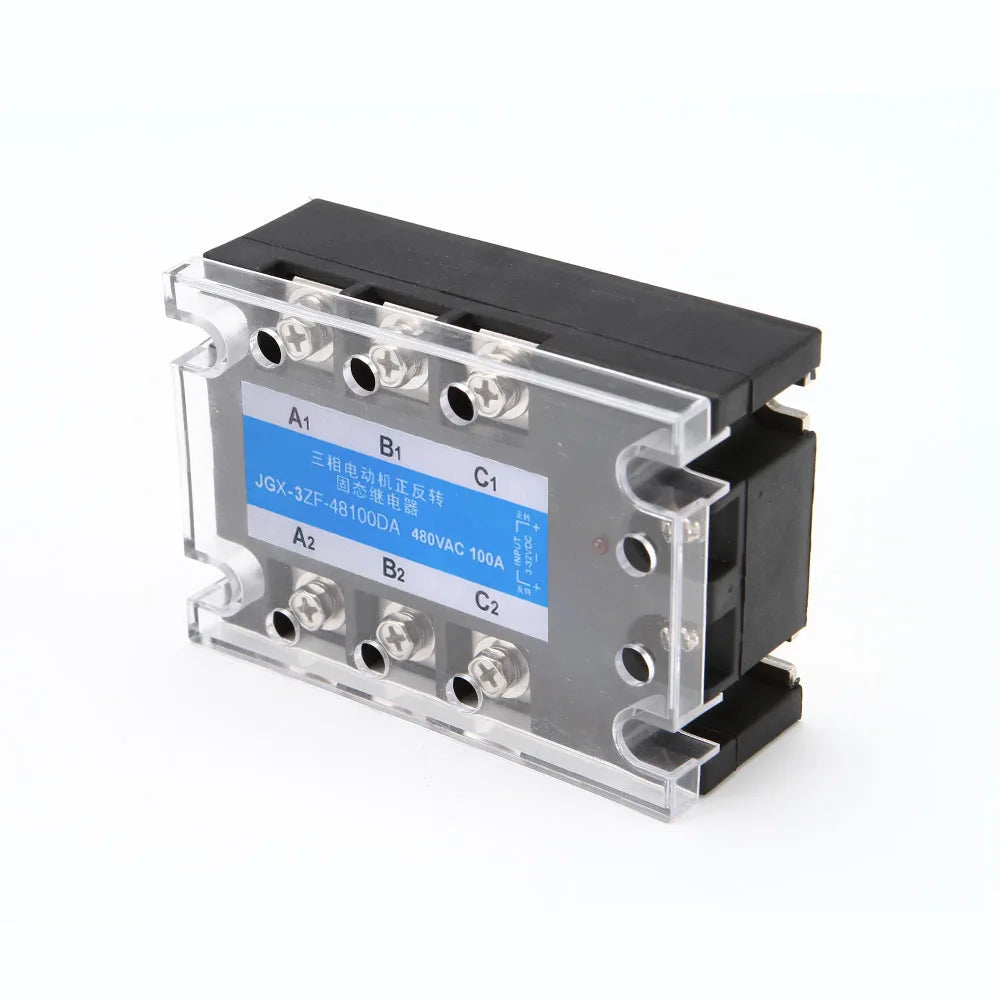

Mode NO.	JGX-3ZF-48_DA
Load current	10A	25A	40A	60A	75A	80A	100A
Load Voltage	480VAC
Control Voltage	5~32VDC
Control current	10-30mA
On Voltage	≦2V
OFF Leak current	≦10mA
ON-OFF Time	≥30ms (forward & backward switch time)
Dielectric Strength	2500VAC
Insulation Resistance	1000MΩ / 500VDC
Ambient Temp	–30 to 75 ℃
Mounting Methods	Screw fixed
Work Instruction	LED
Weight	480g

STEP 1: Choose a correct control Mode

AA- AC Control AC

DA- DC Control AC

DD- DC Control DC

VA-Control and Adjust

STEP 2: Choose a correct type

Current of Equipment/Ratio = Current of SSR

PS: The Ratio depend on the kind of your loading equipment.

Resistive load :50%, Inductive load:20%

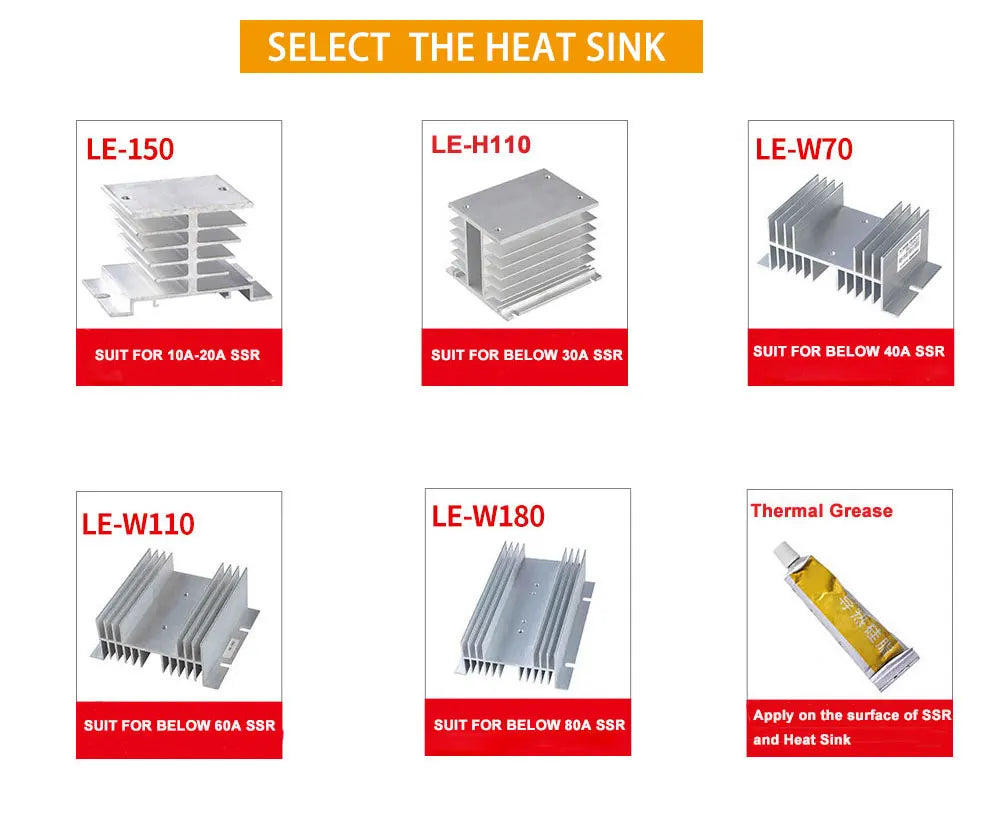

STEP 3: Choose a suitable heat sink.

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , and if the current is over 60A, a cooling fan is required.
